垃圾焚烧飞灰水洗脱氯及重金属浸出特性研究

doi:10.19964/j.issn.1006-4990.2021-0333

摘要/Abstract

摘要：

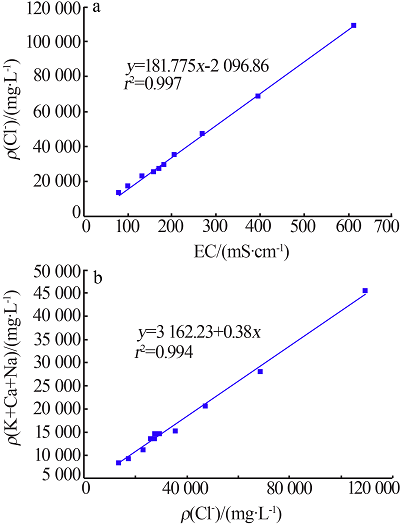

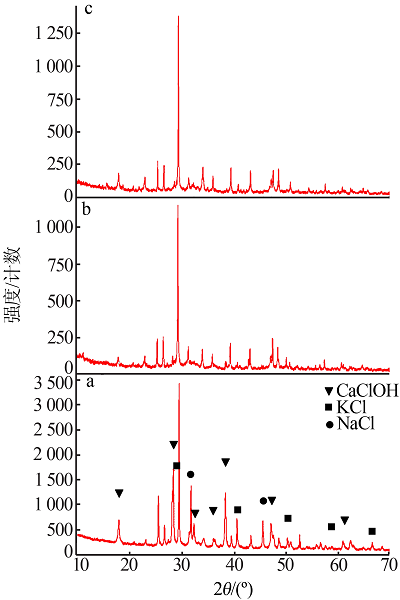

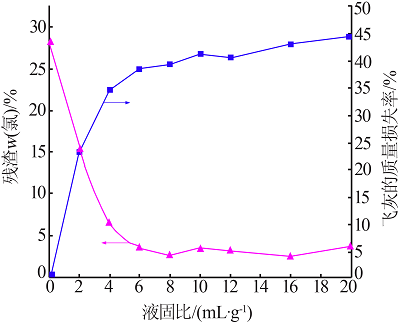

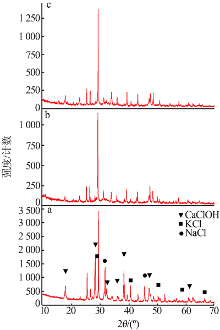

系统研究了机械炉排炉垃圾焚烧飞灰水洗过程中氯化物和重金属的浸出特性,并采用Visual MINTEQ模拟分析水洗液中重金属的存在形态。结果表明：飞灰中的氯主要以可溶性氯化钠（NaCl）、氯化钾（KCl）、氯化钙（CaCl₂）、碱式氯化钙（CaClOH）的形式存在,飞灰水洗浸出成分97%以上为氯离子（Cl^-）、钠（Na）、钾（K）、钙（Ca）,其中氯离子占比高达60%;重金属及其他成分的浸出量很少,不足1%。水洗对氯离子的去除效果非常明显,可达92%以上,但是重金属的浸出量极低。飞灰单次水洗最佳条件：液固体积质量比为6 mL/g,洗涤时间为10 min。Visual MINTEQ模型分析表明,pH是控制飞灰水洗液中铅（Pb）、铜（Cu）、锌（Zn）、镉（Cd）形态的重要因素,氯离子（Cl^-）对镉的形态分布也有着重要的影响。飞灰水洗液电导率与氯离子质量浓度具有极好的线性相关性,其可作为监测滤液中氯离子质量浓度变化的有效间接指标。

关键词: 垃圾焚烧飞灰, 水洗, 脱氯, 重金属, MINTEQ, 相关性

Abstract:

The leaching characteristics of chloride and heavy metals in the washing process of waste incineration fly ash from mechanical grate furnace were systematically studied,and the existing forms of heavy metals in the washing solution were simulated and analyzed by Visual MINTEQ.The results showed that the chlorine state in fly ash mainly existed in the form of soluble sodium chloride（NaCl）,potassium chloride（KCl）,calcium chloride（CaCl₂） and basic calcium chloride（CaClOH）.More than 97% of the leaching components of fly ash were Cl^-,Na,K and Ca,of which Cl^- accounts for 60%.The leaching amount of heavy metals and other components was very small,less than 1%.The removal effect of water washing on chloride ion was very obvious,up to more than 92%,but the leaching amount of heavy metals in the process of water washing was very low.The optimum conditions for single water washing of fly ash: the volume mass ratio of liquid to solid was 6 mL/ g and the washing time was 10 min.The analysis of visual MINTEQ model showed that pH was an important factor to control the forms of lead（Pb）,copper（Cu）,zinc（Zn） and cadmium（Cd） in fly ash washing solution,and chloride ion（Cl^-） also had an important influence on the form distribution of cadmium.There was an excellent linear correlation between the conductivity of fly ash washing solution and the mass concentration of chloride ion,which could be used as an effective indirect index to monitor the change of mass concentration of chloride ion in leachate.

Key words: waste incineration fly ash, washing process, dechlorination, heavy metal, MINTEQ, correlation

中图分类号:

X705

常威,刘宏辉,蒋旭光. 垃圾焚烧飞灰水洗脱氯及重金属浸出特性研究[J]. 无机盐工业, 2022, 54(3): 113-118.

CHANG Wei,LIU Honghui,JIANG Xuguang. Study on dechlorination and heavy metal leaching characteristics of MSWI fly ash during water-washing[J]. Inorganic Chemicals Industry, 2022, 54(3): 113-118.

图/表 6

表1

图1

图2

图3

表2

表3

参考文献 17

[1]	蒋旭光, 常威. 生活垃圾焚烧飞灰的处置及应用概况[J]. 浙江工业大学学报, 2015, 43(1):7-17.
[2]	SHAO N N, WEI X K, MONASTERIO M, et al. Performance and me-chanism of mold-pressing alkali-activated material from MSWI fly ash for its heavy metals solidification[J]. Waste Management, 2021, 126:747-753. doi: 10.1016/j.wasman.2021.04.003
[3]	DONTRIROS S, LIKITLERSUANG S, JANJAROEN D. Mechanisms of chloride and sulfate removal from municipal-solid waste-inciner-ation fly ash(MSWI FA):Effect of acid-base solutions[J]. Waste Management, 2020, 101:44-53. doi: 10.1016/j.wasman.2019.09.033
[4]	YUE Y, ZHANG J, SUN F C, et al. Heavy metal leaching and distri-bution in glass products from the co-melting treatment of electropla-ting sludge and MSWI fly ash[J]. Journal of Environmental Manage-ment, 2019, 232:226-235.
[5]	ZHU F F, TAKAOKA M, SHIOTA K, et al. Chloride chemical form in various types of fly ash[J]. Environmental Science & Technology, 2008, 42(11):3932-3937. doi: 10.1021/es7031168
[6]	张帅毅, 黄亚继, 王昕晔, 等. 模拟垃圾焚烧过程中氯对铅动态挥发特性的影响[J]. 浙江大学学报:工学版, 2016, 50(3):485-490.
[7]	朱芬芬, 高冈昌辉, 大下和徹, 等. 焚烧飞灰预处理工艺及其无机氯盐的行为研究[J]. 环境科学, 2013, 34(6):2473-2478.
[8]	ZHAO K X, HU Y Y, TIAN Y Y, et al. Chlorine removal from MSWI fly ash by thermal treatment:Effects of iron/aluminum additives[J]. Journal of Environmental Sciences, 2020, 88:112-121. doi: 10.1016/j.jes.2019.08.006
[9]	白晶晶, 张增强, 阎大海, 等. 水洗对焚烧飞灰中氯及重金属元素的脱除研究[J]. 环境工程, 2012, 33(2):104-108.
[10]	凌永生, 金宜英, 聂永丰. 焚烧飞灰水泥窑煅烧资源化水洗预处理实验研究[J]. 环境保护科学, 2012, 38(4):1-5.
[11]	王玉婷, 汤明慧, 宗达, 等. 炉排垃圾焚烧飞灰二级逆流水洗特性[J]. 浙江大学学报:工学版, 2019, 53(5):981-987.
[12]	王旭, 陆胜勇, 陈志良, 等. 生活垃圾焚烧飞灰水洗液中氯离子的去除研究[J]. 环境科学学报, 2017, 37(6):2218-2222.
[13]	范庆玲, 郭小甫, 袁俊生. 垃圾焚烧飞灰水洗液纯化及无机盐分离[J]. 无机盐工业, 2019, 51(3):67-71.
[14]	张芝昆, 王晶, 李浩天, 等. 城市垃圾焚烧飞灰的水洗脱氯与水泥固化技术[J]. 科学技术与工程, 2019, 19(35):395-401.
[15]	WEIBEL G, ZAPPATINI A, WOLFFERS M, et al. Optimization of metal recovery from MSWI fly ash by acid leaching:Findings from laboratory- and industrial-scale experiments[J]. Processes, 2021, 9:352-363. doi: 10.3390/pr9020352
[16]	GU Q Y, WANG T W, WU W, et al. Influence of pretreatments on accelerated dry carbonation of MSWI fly ash under medium tem-peratures[J]. Chemical Engineering Journal, 2021, 414.Doi: 10.1016/j.cej.2021.128756. doi: 10.1016/j.cej.2021.128756
[17]	ZHANG Y, JIANG J G, CHEN M Z. MINTEQ modeling for evaluat-ing the leaching behavior of heavy metals in MSWI fly ash[J]. Journal of Environmental Sciences, 2008, 20:1398-1402. doi: 10.1016/S1001-0742(08)62239-1

水洗时间/min	各成分质量浓度/（mg·L^-1)				EC/ (mS·cm^-1)	pH	φ_loss/ %
水洗时间/min	Cl^-	K	Ca	Na	EC/ (mS·cm^-1)	pH	φ_loss/ %
5	25 779	2 945	6 723	4 025	159.9	11.12	38.43
10	27 611	3 193	6 900	4 245	171.4	11.14	41.16
20	27 296	3 145	6 765	3 508	169.8	11.09	40.69
30	29 421	3 273	7 138	4 085	183.8	11.13	43.85
60	28 966	3 173	7 263	4 033	181.4	11.12	43.18
3 60	27 236	3 073	7 015	3 858	170.0	11.14	40.60
1 080	27 242	3 073	7 016	3 856	170.0	11.14	40.61

元素	原始含量/ （mg·kg^-1）	不同液固比条件下重金属的析出量/（mg·kg^-1）						析出率/%
元素	原始含量/ （mg·kg^-1）	2 mL/g	4 mL/g	6 mL/g	8 mL/g	12 mL/g	20 mL/g	析出率/%
As	46	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1
Cd	191	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1
Cr	229	0.3	0.5	0.6	0.7	0.8	1.6	约0.7
Cu	757	0.7	0.8	1.5	1.4	1.7	1.2	约0.2
Ni	44	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1	<0.1
Pb	1 830	77.2	83.0	128.2	119.0	126.3	67.1	4~7
Zn	7 640	1.8	1.8	8.5	11.6	18.7	12.2	约0.2

成分	存在形态	形态分布/%	成分	存在形态	形态分布/%
Zn	ZnOH⁺	0.1	Cd	CdCl⁺	25.5
	Zn（OH）₂（aq）	66.2		CdCl₂（aq）	62.6
	Zn（OH）₃^-	32.6		CdSO₄（aq）	0.0
	Zn（OH）₄^2-	1.1		CdCO₃（aq）	0.0
Cu	CuOH⁺	0.1		Cd（CO₃）₂^2-	0.0
	Cu（OH）₄^2-	1.4	Pb	PbOH⁺	2.0
	Cu（OH）₃^-	84.4		Pb（OH）₂（aq）	38.2
	Cu（OH）₂（aq）	14.0		Pb（OH）₃^-	59.3
Cd	Cd²⁺	0.6		Pb₃（OH）₄²⁺	0.3
	CdOH⁺	2.2		Pb（CO₃）₂^2-	0.0
	Cd（OH）₂（aq）	8.6		PbCO₃ （aq）	0.1
	Cd（OH）₃^-	0.1
