水盐体系汽液平衡的热力学模型研究

doi:10.19964/j.issn.1006-4990.2020-0562

摘要/Abstract

摘要：

水盐体系的相平衡性质是化工单元操作的基础,在化学化工、海洋、地质等领域有着重要的研究价值。国内外许多学者对水盐体系汽液平衡进行了实验和理论的研究,构筑了各具特色的经验和半经验的模型。针对水盐体系,在NRTL理论的基础上,基于水化作用和混合盐假设建立了能够预测混合体系汽液平衡的活度系数扩展模型。通过对21组二元水盐体系和14组混合体系的关联计算,验证了该模型的可行性;同时,该模型可以采用二元体系参数直接预测计算混合水盐体系汽液平衡。

关键词: 电解质溶液, 相平衡, 热力学, 活度系数模型

Abstract:

The phase equilibrium of electrolyte solution systems is the basis of chemical unit operation,and has important research value in in the fields of chemistry and chemical engineering,oceanography,geology and so on.Scholars at home and abroad have studied the experiment and theory on the vapor-liquid equilibrium for electrolyte solution system,and developed the empirical and semi-empirical models with their own characteristics.The extended activity coefficient model with prediction was established in this article,and the model was based on the NRTL theory and the hypothesis of hydration and mixed salt.The feasibility of the model was verified by the correlation calculation of 21 binary electrolyte systems and 14 mixed systems.In addition,the binary system parameters could be used to directly predict the vapor-liquid equilibrium of the mixed electrolyte solution system.

Key words: electrolyte solution, phase equilibrium, thermodynamics, activity coefficient model

中图分类号:

TQ131.1

刘治国,张娜,陈川,徐显朕. 水盐体系汽液平衡的热力学模型研究[J]. 无机盐工业, 2021, 53(8): 55-59.

Liu Zhiguo,Zhang Na,Chen Chuan,Xu Xianzhen. Study on thermodynamic model of vapor-liquid equilibrium of electrolyte system[J]. Inorganic Chemicals Industry, 2021, 53(8): 55-59.

图/表 10

表1

表2

图1

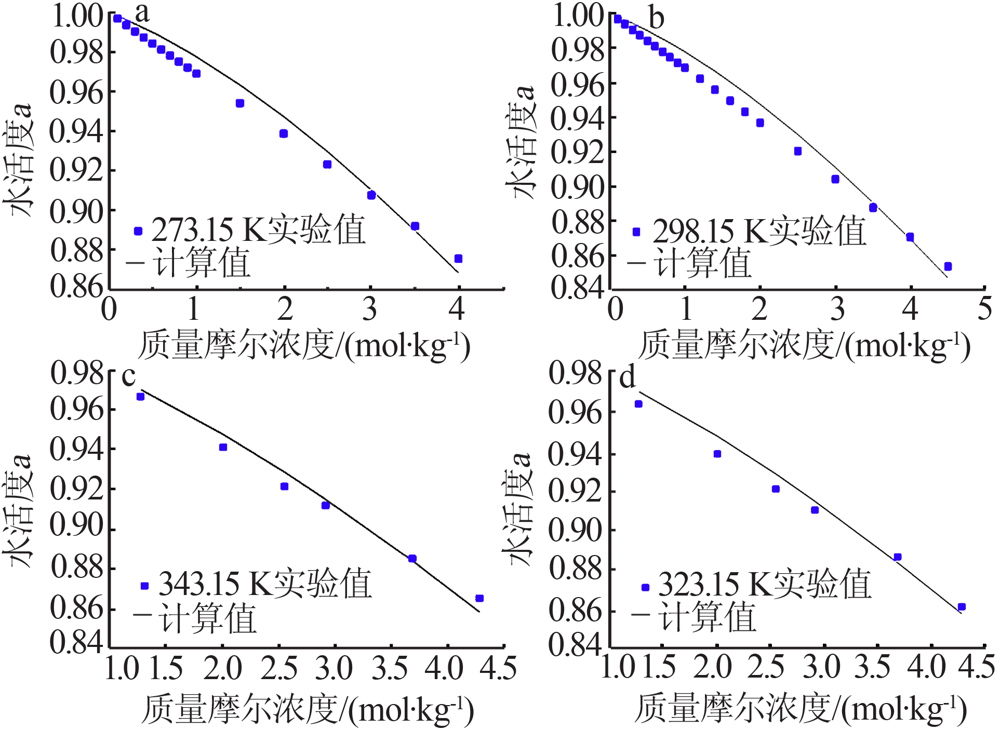

图2

表3

图3

表4

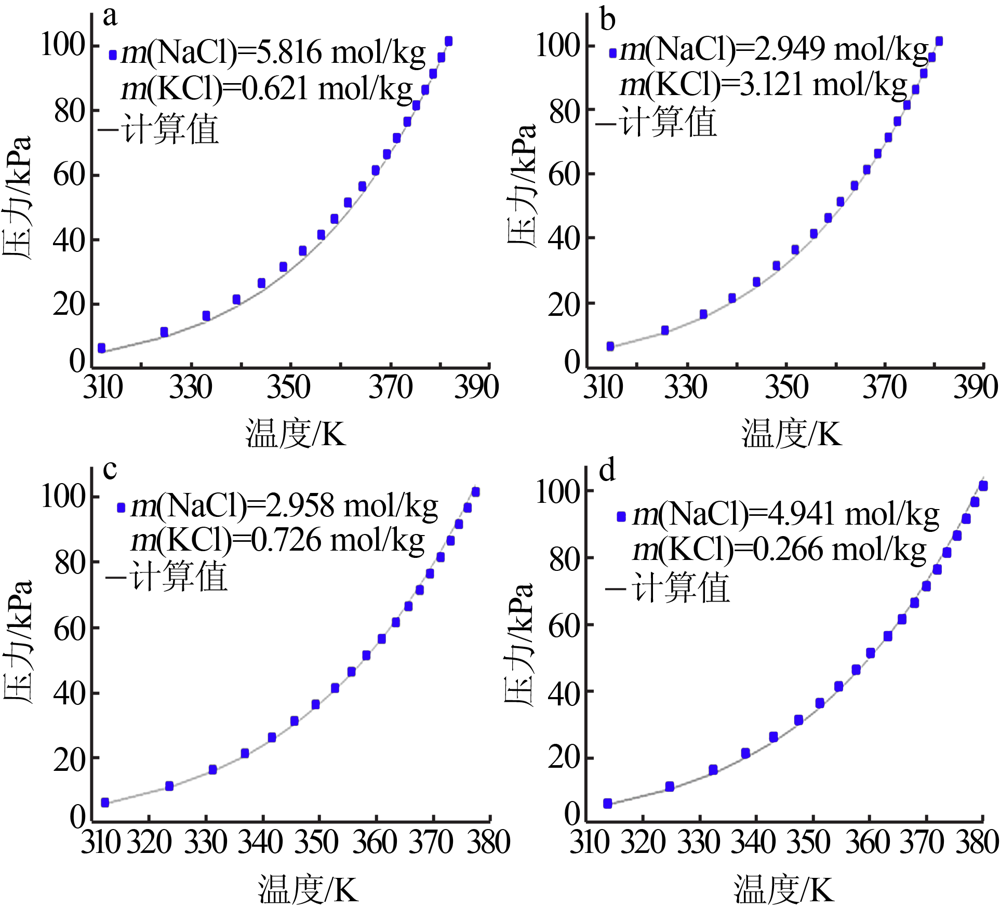

图4

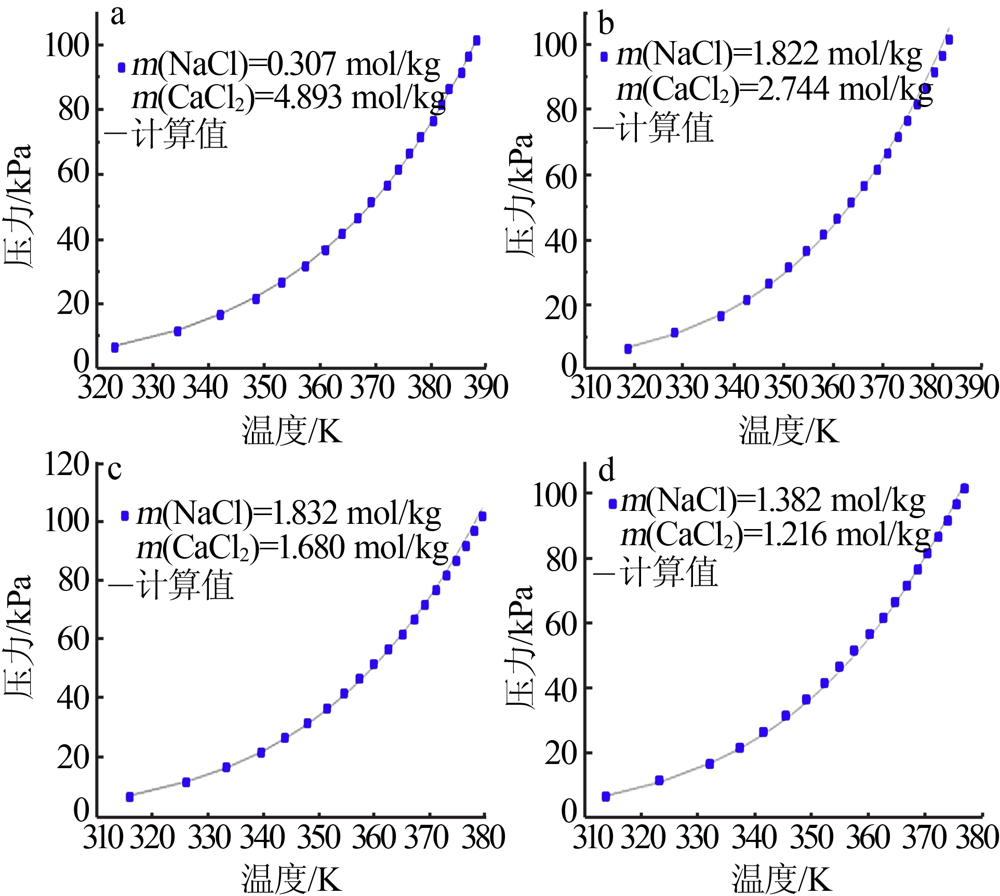

图5

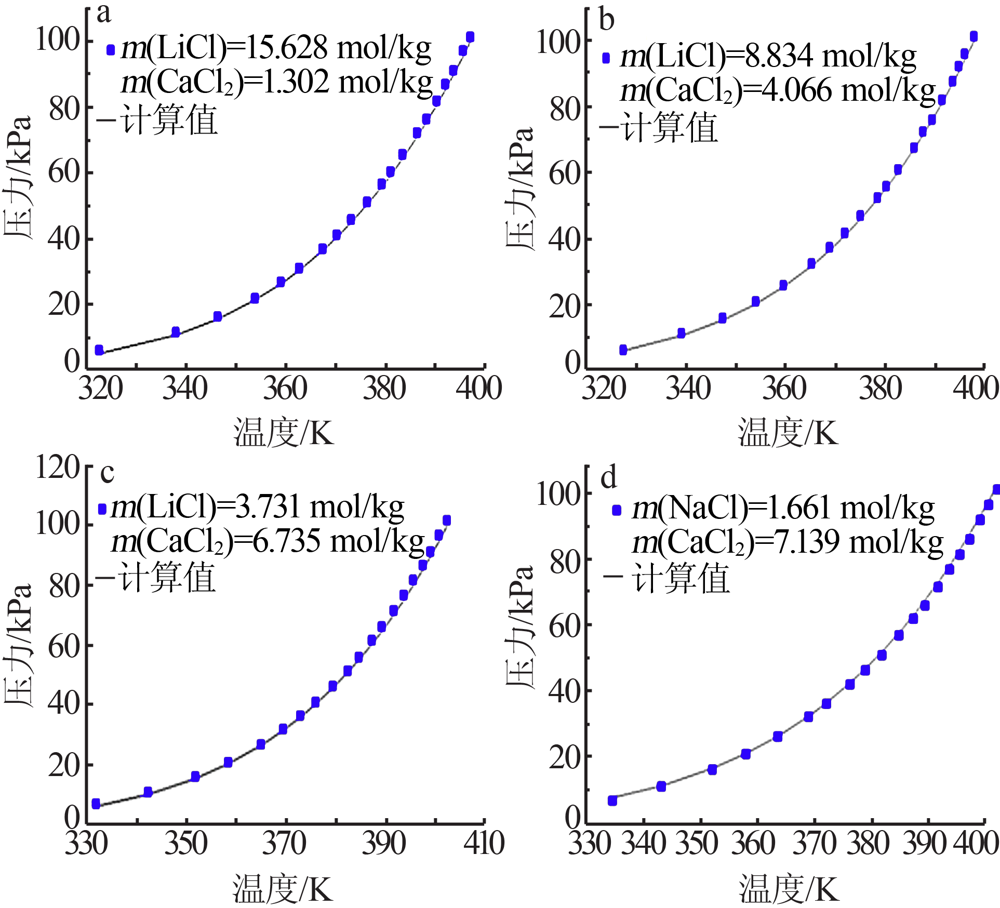

图6

参考文献 24

[1]	Robinson R A, Stokes R H. Electrolyte Solutions[M].2nd ed. London: Courier Dover Publications, 2002.
[2]	Patil K R, Tripathi A D, Pathak G, Katti S S. Thermodynamic proper-ties of aqueous electrolyte solutions,vapor pressure of aqueous so-lutions of sodium bromide,sodium iodide,potassium chloride,pota-ssium bromide,potassium iodide,rubidium chloride,cesium chlo-ride,cesium bromide,cesium iodide,magnesium chloride,calcium chloride,calcium bromide,calcium iodide,strontium chloride,st-rontium bromide,strontium iodide,barium chloride,and barium bromide[J]. Journal of Chemical and Engineering Data, 1991, 36:225-230. doi: 10.1021/je00002a021
[3]	Dinane A, Guendouzi M E, Mounir A. Hygrometric determination of water activities,osmotic and activity coefficients of (NaCl+KCl)(aq) at T=298.15 K[J]. Journal of Chemical Thermodynamics, 2002, 34:423-441. doi: 10.1006/jcht.2001.0845
[4]	Kolár P, Nakata H, Tsuboi A, et al. Measurement and modeling of vapor-liquid equilibria at high salt concentrations[J]. Fluid Phase Equilibria, 2005, 228:493-497.
[5]	Apelblat A, Korin E. Temperature dependence of vapor pressures over saturated aqueous solutions at invariant points of the NaCl+KCl+H₂O,NaCl+NaNO₃+H₂O,KCl+KBr+H₂O,KCl+KI+H₂O,KCl+KNO₃+H₂O,and KCl+K₂SO₄+H₂O systems[J]. Journal of Chemical and Engineering Data, 2009, 54:1619-1624. doi: 10.1021/je800963g
[6]	Chen C C, Britt H I, Boston J F. Extension and application of the pi-tzer equation for vapor-liquid equilibrium of aqueous electrolyte systems with molecular solutes[J]. AIChE Journal, 1979, 25(5):820-831. doi: 10.1002/(ISSN)1547-5905
[7]	Pitzer K S. Thermodynamics of electrolytes,I.Theoretical basis and general equations[J]. Journal of Physical Chemistry, 1973, 77(2):268-277. doi: 10.1021/j100621a026
[8]	Clegg S L, Pitzer K S. Thermodynamics of multicomponent,miscible,ionic solutions:Generalize equations for symmetrical electrolytes[J]. Journal of Physical Chemistry, 1992, 96(8):3513-3520. doi: 10.1021/j100187a061
[9]	Chen C C, Britt H I, Boston J F, et al. Local composition model for excess Gibbs energy of electrolyte systems; part Ⅰ:Single solvent,single completely dissociated electrolyte systems[J]. AIChE Journal, 1982, 28(4):588-596. doi: 10.1002/(ISSN)1547-5905
[10]	Chen C C, Evans L B. A local composition model for the excess gi-bbs energy of aqueous electrolyte systems[J]. AIChE Journal, 1986, 32(3):444-454. doi: 10.1002/(ISSN)1547-5905
[11]	Lu X H, Maurer G. Model for describing activity coefficients in mi-xed electrolyte aqueous solutions[J]. AIChE Journal, 1993, 39(9):1527-1538. doi: 10.1002/aic.v39:9
[12]	Lu X, Zhang L, Wang Y, et al. Prediction of activity coefficients of electrolytes in aqueous solutions at high temperatures[J]. Indus-trial & Engineering Chemistry Research, 1996, 35(5):1777-1784.
[13]	Wang P, Anderko A, Young R D. A speciation-based model for mi-xed-solvent electrolyte systems[J]. Fluid Phase Equilibria, 2002, 203(1/2):141-176. doi: 10.1016/S0378-3812(02)00178-4
[14]	Thomsen K, Rasmussen P. Modeling of vaporliquid-solid equilibri-um in gas-aqueous electrolyte systems[J]. Chemical Engineering Science, 1999, 54(12):1787-1802. doi: 10.1016/S0009-2509(99)00019-6
[15]	Renon H, Prausnitz J M. Local compositions in thermodynamic ex-cess functions for liquid mixtures[J]. AIChE Journal, 1968, 14(1),135-144. doi: 10.1002/(ISSN)1547-5905
[16]	Xu X, Wang Y, Sun X, et al. Vapor-liquid equilibria study of LiCl+CaCl₂+H₂O system[J]. ACS Omega, 2019(4):4390-4396.
[17]	Platford R F. Osmotic coefficients of aqueous solutions of seven co-mpounds at 0 deg[J]. Journal of Chemical and Engineering Data, 1973, 18(2):215-217. doi: 10.1021/je60057a017
[18]	Xu X, Hu Y, Wu L, et al. Experimental and modeling of vapor-liquid equilibria for electrolyte solution systems[J]. Journal of Chemical and Engineering Data, 2014, 59(11):3741-3748. doi: 10.1021/je500623w
[19]	Xu X, Hu Y, Wang X, et al. Experimental and modeling of vapor-liquid equilibria for mixed electrolyte solution systems[J]. Journal of Chemical and Engineering Data, 2016, 61(7):2311-2320. doi: 10.1021/acs.jced.5b01028
[20]	Wu Y C, Rush R M, Scatchard G. Osmotic and activity coefficients for binary mixtures of sodium chloride,sodium sulfate,magnesium sulfate,and magnesium chloride in water at 25 deg.I.Isopiestic mea-surements on the four systems with common ions[J]. Journal of Phy-sical Chemistry, 1968, 72:4048-4053.
[21]	Wu Y C, Rush R M, Scatchard G. Osmotic and activity coefficients for binary mixtures of sodium chloride,sodium sulfate,magnesium sulfate,and magnesium chloride in water at 25 deg.Ⅱ.Isopiestic and electromotive force measurements on the two systems without common ions[J]. Journal of Physical Chemistry, 1969, 73:2047-2053. doi: 10.1021/j100726a068
[22]	Saad D, Padova J, Marcus Y. Thermodynamics of mixed electrolyte solutions.Ⅵ.An isopiestic study of a pseudo-ternary system:NaCl-KCl-MgCl₂·H₂O at 25 ℃[J]. Journal of Solution Chemistry, 1975(4):983-993.
[23]	Padova J, Saad D, Rosenzweig D. Thermodynamics of mixed elec-trolyte solutions.X.An isopiestic study of the uaternary system NaCl-KCl-MgCl₂·H₂O at 25 ℃[J]. Journal of Solution Chemistry, 1977(6):309-325.
[24]	Saad D, Padova J. Thermodynamics of mixed electrolyte solutions.Ⅸ.Calculation of the osmotic and activity coefficients in a pseudo-ternary system(NaCl-nKCl)-MgCl₂-H₂O at 298.15 K[J]. Journal of Solution Chemistry, 1977(6):191-201.

体系	h	τ_i_,w^（0）	τ_w,_i^（0）	τ_i_,w^（1）	τ_w,_i^（1）
BaBr₂+H₂O	1.50	-4.42	3.52	-228.19	321.73
CaBr₂+H₂O	2.55	-0.40	-33.92	-1 649.09	12 785.70
CaCl₂+H₂O	1.10	781.44	-3 771.77	-98.47	-6 010.44
CsBr+H₂O	0.50	-4.34	4.12	423.85	-480.68
CsCl+H₂O	0.30	-3.38	2.83	-59.70	-20.03
CsI+H₂O	0.10	-3.78	-1.40	9.67	642.89
K₂SO₄+H₂O	0.60	-38.84	70.38	12 703.70	-17 691.81
KBr+H₂O	2.10	1.20	-50.38	-1 340.62	15 952.42
KCl+H₂O	2.00	-2.92	2.38	-81.81	126.71
KI+H₂O	3.00	-3.63	3.64	199.06	-326.81
LiCl+H₂O	2.15	-4.99	13.17	-4.29	16.17
LiBr+H₂O	0.80	-5.47	56.87	510.23	-23 153.41
MgCl₂+H₂O	3.47	-6.26	-58.68	453.19	19 585.20
MgSO₄+H₂O	0.41	-2.63	3.29	-696.95	2 367.36
Na₂SO₄+H₂O	0.10	1.06	-1.45	-1 441.50	1 425.60
NaBr+H₂O	4.00	-1.50	-0.69	-456.26	567.10
NaCl+H₂O	3.10	-2.54	2.06	184.51	-203.49
NaI+H₂O	1.90	-3.50	2.74	-75.40	-137.38
RbCl+H₂O	2.70	-0.94	0.66	-607.71	993.37
SrCl₂+H₂O	2.00	-6.85	30.00	539.38	-8 296.66
ZnCl₂+H₂O	3.00	-3.77	3.26	-1.23	2.83

体系	T/K	数据点	本实验
体系	T/K	数据点	dY/kPa	dP/%
LiCl+H₂O^[1,4]	298.15~394.40	47	0.018	1.250
LiBr+H₂O^[1-2,16]	298.15~377.85	182	0.070	0.860
MgCl₂+H₂O^[1-2,16]	273.15~376.45	151	0.076	0.850
MgSO₄+H₂O^[1,17]	273.15~298.15	30	0.012	0.530
Na₂SO₄+H₂O^[1,2]	298.15~343.15	49	0.048	0.750
NaBr+H₂O^[1,17]	298.15~373.15	69	0.040	0.650
NaCl+H₂O^[1,2]	298.15~343.15	58	0.090	0.929
NaI+H₂O^[1,2]	298.15~343.15	51	0.061	0.690
RbCl+H₂O^[1,2]	298.15~343.15	59	0.068	0.710
SrCl₂+H₂O^[1,4]	298.15~379.80	30	0.030	0.750
ZnCl₂+H₂O^[1,4]	298.15~379.80	30	0.030	0.910
BaBr₂+H₂O^[1,2]	298.15~353.15	55	0.079	0.780
CaBr₂+H₂O^[1,2]	298.15~353.15	63	0.049	1.100
CaCl₂+H₂O^[1-2,18-19]	273.15~423.15	322	0.081	1.820
CsBr+H₂O^[1,2]	298.15~353.15	51	0.097	1.010
CsCl+H₂O^[1,2]	298.15~353.15	63	0.091	0.970
CsI+H₂O^[1,2]	298.15~353.15	42	0.039	0.420
K₂SO₄+H₂O^[1,18]	298.15~383.65	104	0.051	1.150
KBr+H₂O^[1,2]	298.15~343.15	51	0.077	0.870
KCl+H₂O^[1-2,18-19]	273.15~343.15	66	0.044	0.670
KI+H₂O^[1,2]	298.15~343.15	60	0.097	0.950
平均值			0.059	0.880

体系	T/K	数据点	本实验
体系	T/K	数据点	dY/kPa	dP/%
NaCl-Na₂SO₄-H₂O^[20]	298.15	25	0.036	1.58
MgSO₄-Na₂SO₄-H₂O^[20]	298.15	30	0.024	0.82
MgCl₂-Na₂SO₄-H₂O^[21]	298.15	22	0.030	1.60
NaCl-MgSO₄-H₂O^[21]	298.15	30	0.044	1.55
KCl-K₂SO₄-H₂O^[5]	280.15~323.15	50	0.021	0.85
KCl-KBr-H₂O^[5]	279.55~323.35	48	0.075	0.95
KCl-KNO₃-H₂O^[5]	279.05~324.75	46	0.086	1.17
K₂SO₄-MgSO₄-H₂O^[18,19]	310~374.35	360	0.080	1.10
NaCl-KCl-H₂O^[3,5,18-19]	298.15~382.25	180	0.091	1.80
NaCl-CaCl₂-H₂O^[18,19]	313.25~388.25	240	0.091	1.10
NaCl-KCl-MgCl₂-H₂O^[22,23,24]	298.15	136	0.026	0.80
MgCl₂-MgSO₄-H₂O^[20]	298.15	20	0.100	1.70
NaCl-MgCl₂-H₂O^[20]	298.15	20	0.080	1.70
NaCl-KCl-MgCl₂-CaCl₂- MgSO₄^[15,19]	306.75~373.25	60	0.070	1.07
平均值			0.061	1.27

体系	T/K	数据点	本实验
体系	T/K	数据点	dY/kPa	dP/%
NaCl-Na₂SO₄-H₂O^[20]	298.15	25	0.072	2.58
MgSO₄-Na₂SO₄-H₂O^[20]	298.15	30	0.037	1.22
MgCl₂-Na₂SO₄-H₂O^[21]	298.15	22	0.080	2.60
NaCl-MgSO₄-H₂O^[21]	298.15	30	0.074	2.55
KCl-K₂SO₄-H₂O^[5]	280.15~323.15	50	0.031	1.50
KCl-KBr-H₂O^[5]	279.55~323.35	48	0.150	2.50
KCl-KNO₃-H₂O^[5]	279.05~324.75	46	0.160	2.71
K₂SO₄-MgSO₄-H₂O^[18,19]	310~374.35	360	0.180	3.10
NaCl-KCl-H₂O^[3,5,18-19]	298.15~382.25	180	0.170	2.80
NaCl-CaCl₂-H₂O^[18,19]	313.25~388.25	240	0.140	1.90
NaCl-KCl-MgCl₂-H₂O^[22,23,24]	298.15	136	0.046	1.50
MgCl₂-MgSO₄-H₂O^[20]	298.15	20	0.160	2.70
NaCl-MgCl₂-H₂O^[20]	298.15	20	0.180	2.75
NaCl-KCl-MgCl₂-CaCl₂- MgSO₄^[15,19]	306.75~373.25	60	0.070	1.07
平均值			0.117	2.36
