膨润土负载钌催化剂制备及其催化氨硼烷水解产氢研究

doi:10.19964/j.issn.1006-4990.2020-0421

摘要/Abstract

摘要：

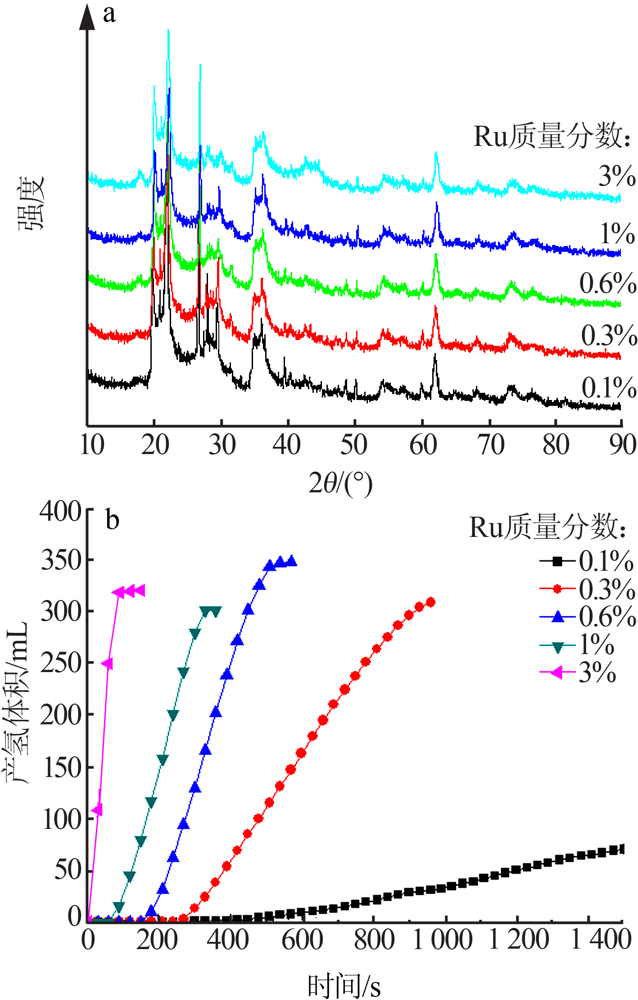

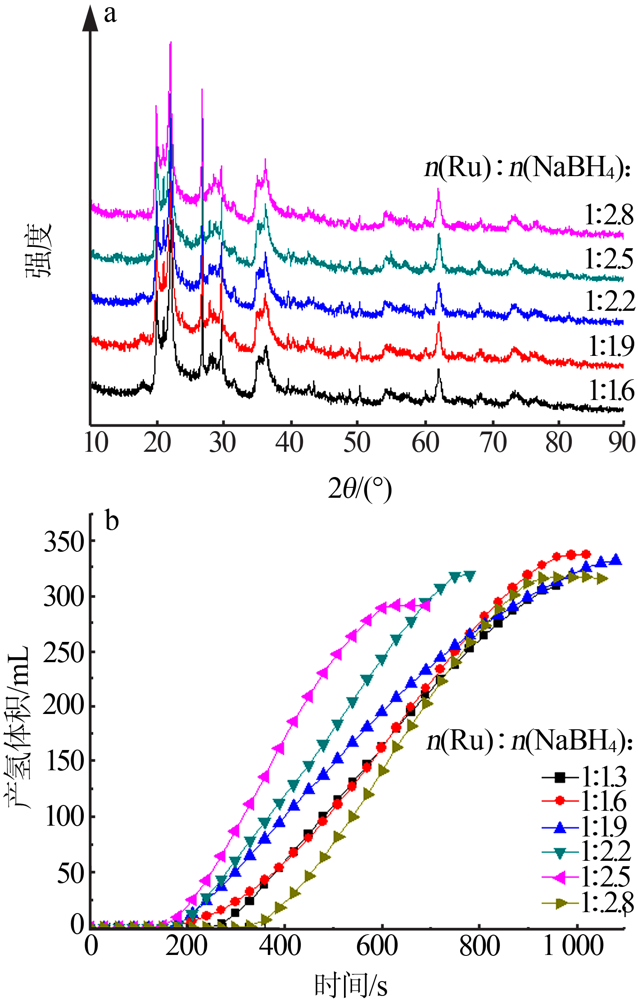

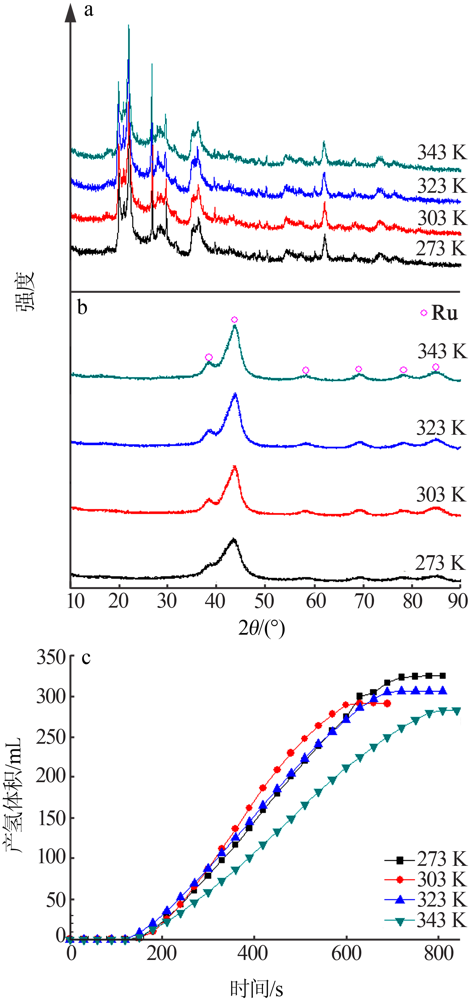

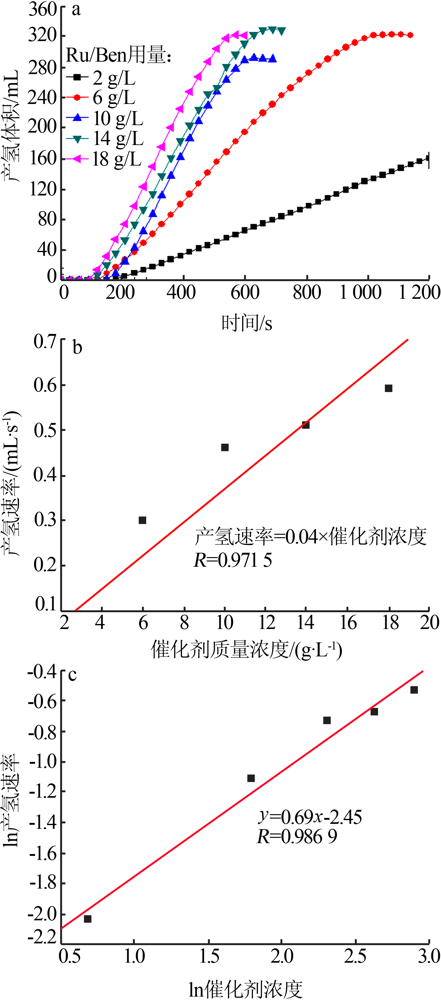

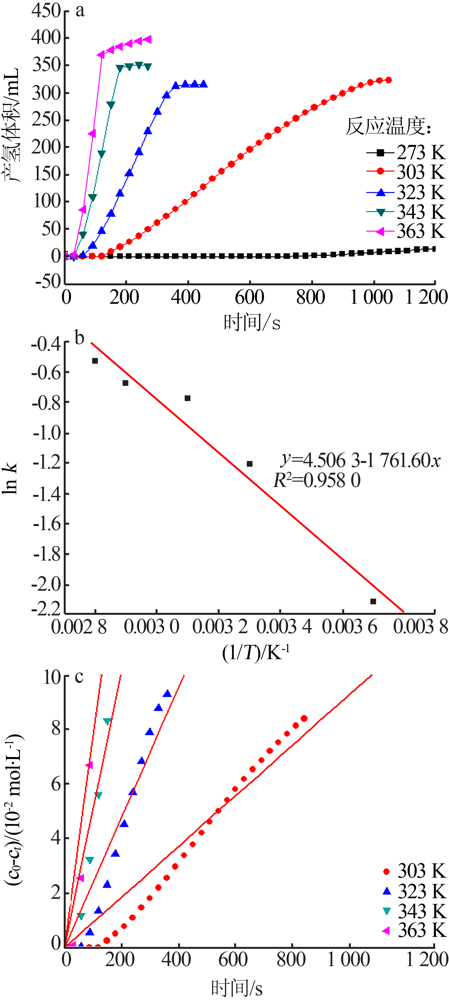

采用浸渍-化学还原法制备了钌/膨润土（Ru/Ben）催化剂,考察了钌含量、还原剂硼氢化钠用量、还原温度以及反应条件等对Ru/Ben催化氨硼烷（NH₃BH₃）水解产氢的影响。结果表明,在钌负载量为0.3%（质量分数）、钌与还原剂硼氢化钠物质的量比为1∶2.5、还原温度为303 K条件下,制备的Ru/Ben中Ru微晶尺寸为3.8 nm,Ru/Ben催化NH₃BH₃水解产氢的转化频率（TOF）为145 mol/（mol·min）;搅拌转速为450 r/min时,外扩散限制消除,产氢速率最大;产氢速率与Ru/Ben浓度成正比,催化剂界面反应是氨硼烷水解产氢反应的控速步骤,Ru/Ben催化NH₃BH₃水解产氢反应对催化剂浓度的反应级数为0.7;反应温度越高,氨硼烷向催化剂表面的传质速率越高、产物氢气及副产物偏硼酸钠从催化剂表面越易脱附,产氢速率越大。动力学计算表明,Ru/Ben催化NH₃BH₃水解产氢反应的产氢速率与氨硼烷浓度无关,活化能为15 kJ/mol。

关键词: 钌, 膨润土, 氨硼烷, 产氢

Abstract:

Ruthenium/bentonite（Ru/Ben） catalysts were prepared via an impregnation-reduction method using NaBH₄ as the reducing agent.The effects of ruthenium content,amount of reducing agent of sodium borohydride,reduction temperature and reaction conditions on the hydrolysis of ammonia borane（NH₃BH₃） catalyzed by Ru/Ben were investigated.The results showed that under the conditions of Ru loading of 0.3%（mass fraction）,the molar ratio of Ru to NaBH₄ was 1∶2.5,and the reduction temperature was 303 K,the size of Ru microcrystalline in Ru/Ben was 3.8 nm,and the conversion frequency（TOF） of Ru/Ben catalyzed hydrolysis of NH₃BH₃ was 145 mol/（mol·min）.When the stirring speed reached 450 r/min,external diffusion could be neglected,resulting in the highest reaction rate towards hydrogen generation.The rate of hydrogen production was directly proportional to the concentration of Ru/Ben.The interfacial reaction of catalyst was the decisive step in the hydrolysis of NH₃BH₃ to generate hydrogen.The order of Ru/Ben catalyzed hydrolysis of NH₃BH₃ to generate hydrogen was 0.7.The higher the reaction temperature,the higher the mass transfer rate of ammonia borane to the catalyst surface,the easier desorption of hydrogen and sodium metaborate from the catalyst surface,and the higher the hydrogen generation rate.The kinetic calculation showed that the hydrogen production rate of NH₃BH₃ hydrolysis catalyzed by Ru/Ben was independent of the concentration of aminoborane,and the activation energy was 15 kJ/mol.

Key words: Ru, bentonite, ammonia borane, hydrogen generation

中图分类号:

O643.36

陈凌霞,王琪,孙海杰,陈志浩,刘冉冉. 膨润土负载钌催化剂制备及其催化氨硼烷水解产氢研究[J]. 无机盐工业, 2021, 53(6): 199-204.

Chen Lingxia,Wang Qi,Sun Haijie,Chen Zhihao,Liu Ranran. Study on preparation of bentonite supported Ru catalysts and their performance for hydrogen generation from catalytic hydrolysis of ammonia borane[J]. Inorganic Chemicals Industry, 2021, 53(6): 199-204.

图/表 7

图1

图2

图3

图4

图5

图6

表1

参考文献 31

[1]	聂文丹, 杨齐凤, 卢章辉. 介孔硅负载超细Pd纳米粒子催化甲酸分解脱氢[J]. 江西师范大学学报:自然科学版, 2019,43(4):416-424.
[2]	孙海杰, 陈凌霞, 张玉凤, 等. 钴-硼/二氧化锆催化剂催化硼氢化钠水解制氢研究[J]. 无机盐工业, 2019,51(3):72-76.
[3]	孙海杰, 陈凌霞, 黄振旭, 等. 第四周期过渡金属催化硼氢化钠水解制氢研究[J]. 无机盐工业, 2017,49(5):14-17.
[4]	孙海杰, 黄振旭, 王雅苹, 等. 非晶态合金Ru-B/ZrO₂催化剂催化硼氢化钠水解制氢性能的研究[J]. 化工新型材料, 2018,46(1):102-105.
[5]	张帅, 王斯瑶, 姜召, 等. 静电纺丝技术在氨硼烷水解脱氢催化剂制备中的应用[J]. 化工进展, 2019,38(7):3194-3206.
[6]	杨晓婧, 尚伟, 李兰兰, 等. 金属催化氨硼烷制氢研究进展[J]. 电源技术, 2014,38(7):1387-1389.
[7]	桑婉璐, 李兰兰, 高若源, 等. 氨硼烷水解制氢催化剂载体的研究进展[J]. 材料导报, 2017,31(9):27-33.
[8]	刘仲毅, 孙海杰, 王东斌, 等. 纳米ZrO₂作分散剂的Ru-Zn催化剂上苯选择加氢制环己烯[J]. 催化学报, 2010,31(2):150-152.
[9]	姚鹏泉, 祝琳华, 司甜. 从天然膨润土制备钠基蒙脱石催化剂载体[J]. 非金属矿, 2013,36(1):24-26.
[10]	Wang W T, Liu H Z, Wu T B, et al. Ru catalyst supported on ben-tonite for partial hydrogenation of benzene to cyclohexene[J]. Jo-urnal of Molecular Catalysis A:Chemical, 2012,355:174-179.
[11]	周雷雷, 张荣斌, 张婷婷, 等. 钐对Ni/膨润土催化性能的改性研究[J]. 非金属矿, 2013,37(2):27-29.
[12]	孙海杰, 陈凌霞, 陈秀丽. ZrO₂织构性质对Ru-B/ZrO₂催化剂的结构及其苯选择加氢性能的影响[J]. 石油化工, 2015,44(9):1066-1070.
[13]	孙海杰, 陈凌霞, 黄振旭, 等. Ru-Zn催化剂在苯选择加氢制环己烯反应中的粒径效应[J]. 高等学校化学学报, 2015,36(10):1969-1976.
[14]	Cao N, Luo W, Cheng G Z. One-step synjournal of graphene suppor-ted Ru nanoparticles as efficient catalysts for hydrolytic dehydro-genation of ammonia borane[J]. International Journal of Hydrogen Energy, 2013,38(27):11964-11972. doi: 10.1016/j.ijhydene.2013.06.125
[15]	Basu S, Brockman A, Gagare P, et al. Chemical kinetics of Ru-catalyzed ammonia borane hydrolysis[J]. Journal of Power Sources, 2009,188(1):238-243. doi: 10.1016/j.jpowsour.2008.11.085
[16]	Giovanni P R, Umit B D, Philippe M, et al. Faicile synjournal by po-lyol method of a ruthenium catalyst supported on γ-Al₂O₃ for hy-drolytic dehydrogenation of ammonia borane[J]. Catalysis Today, 2011,170(1):85-92. doi: 10.1016/j.cattod.2011.01.040
[17]	Can H, Metin Ö. A facile synjournal of early monodisperse ruthenium nanoparticles and their catalysis in the hydrolytic dehydrogenation of ammoniaborane for chemical hydrogen storage[J]. Applied Ca-talysis B:Environmental, 2012,125(3):304-310.
[18]	Akbayrak S, Erdek P, Özkar S. Hydroxyapatite supported rutheni-um（0）nanoparticles catalyst in hydrolytic dehydrogenation of ammonia borane：Insight to the nanoparticles formation and hydro-gen evolution kinetics[J]. Applied Catalysis B:Environmental, 2013,142-143:187-195. doi: 10.1016/j.apcatb.2013.05.015
[19]	孙海杰, 陈秀丽, 黄振旭, 等. NaOH浓度对苯选择加氢制环己烯Ru-Zn催化剂性能的影响[J]. 化工学报, 2016,67(4):1324-1332.
[20]	Hu S, Chen Y W. Partial hydrogenation of benzene to cyclohexene on ruthenium catalysts supported on La₂O₃-ZnO binary oxides[J]. Industrial & Engineering Chemistry Research, 1997,36(12):5153-5159. doi: 10.1021/ie970300y
[21]	朱玉玲, 郑修成, 刘蒲. 磁性花生壳负载钯催化剂的制备及催化氨硼烷释氢性能[J]. 信阳师范学院学报:自然科学版, 2019,32(2):276-280.
[22]	Dong H, Yang H, Ai X, et al. Hydrogen production from catalytic hydrolysis of sodium borohydride solution using nickel boride ca-talyst[J]. International Journal Hydrogen Energy, 2003,28(10):1095-1100. doi: 10.1016/S0360-3199(02)00235-5
[23]	卢章辉, 杨宇雯, 陈祥树. 一种用于氨硼烷水解制氢的Ni-CeO₂@graphene复合纳米催化剂及其制备方法:中国,103990465B [P]. 2016-10-05.
[24]	Liang H Y, Chen G Z, Desinan S, et al. In situ facile synjournal of ruthenium nanocluster catalyst supported on carbon black for hy-drogen generation from the hydrolysis of ammonia-borane[J]. In-ternational Journal of Hydrogen Energy, 2012,37(23):17921-17927.
[25]	Park S, An J, Potts J R, et al. Hydrazine-reduction of graphite-and graphene oxide[J]. Carbon, 2011,49(9):3019-3023. doi: 10.1016/j.carbon.2011.02.071
[26]	Yang K Z, Zhou L Q, Yu G F, et al. Ru nanoparticles supported on MIL-53(Cr,Al) as efficient catalysts for hydrogen generation from hydrolysis of ammonia borane[J]. International Journal of Hydrogen Energy, 2016,41(15):6300-6309. doi: 10.1016/j.ijhydene.2016.02.104
[27]	Wen L, Su J, Wu X J, et al. Ruthenium supported on MIL-96:An efficient catalyst for hydrolytic dehydrogenation of ammonia borane for chemical hydrogen storage[J]. International Journal of Hydro-gen Energy, 2014,39(30):17129-17135.
[28]	Cao N, Liu T, Su J, et al. Ruthenium supported on MIL-101 as an efficient catalyst for hydrogen generation from hydrolysis of amine boranes[J]. New Journal of Chemistry, 2014,38(9):4032-4035. doi: 10.1039/C4NJ00739E
[29]	Kohsuke M, Kohei M, Hiromi Y, et al. Ru and Ru-Ni nanoparticles on TiO₂ support as extremely active catalysts for hydrogen produc-tion from ammonia-borane[J]. ACS Catalysis, 2016,6(5):3128-3135. doi: 10.1021/acscatal.6b00715
[30]	陈健民, 卢章辉, 熊丽华. Ru/Ce(OH)CO₃纳米复合材料催化氨硼烷水解产氢[J]. 无机化学学报, 2016,32(10):1816-1824.
[31]	孙海杰, 刘欣改, 陈志浩, 等. 羟基磷灰石负载Ru催化氨硼烷产氢性能研究[J]. 江西师范大学学报:自然科学版, 2020,44(4):424-428.

催化剂	表观活化能/ （kJ·mol^-1）	催化剂	表观活化能/ （kJ·mol^-1）
Ru/g-C₃N₄^[23]	37	Ru/MIL-96^[27]	48
Ru/C^[24]	35	Ru/MIL-101^[28]	51
Ru/Graphene^[14]	12	Ru/micro HAP^[18]	58
Ru/Carbon^[15]	76	Ru/TiO₂^[29]	87
Ru/γ-Al₂O₃^[16]	67	Ru/Ce（OH）CO₃^[30]	60
Ru/Al₂O₃^[17]	48	Ru/HAP^[31]	44
Ru/MIL-41^[25]	42	Ru/Ben（本研究）	15
Ru/MIL-53^[26]	29
