钛基化合物在锂硫电池中的应用

doi:10.19964/j.issn.1006-4990.2021-0236

摘要/Abstract

摘要：

锂硫电池是极具实用前景的新型高能量密度电池体系之一,但在充放电过程中会产生可溶于液态电解液的多硫化锂,引发穿梭效应和硫的快速损失,导致电池的容量和循环性能难以满足实用化的要求。钛基化合物的结构多样且易于调控,对多硫化锂也有较强的吸附能力和催化转化活性,是抑制穿梭效应的常用材料之一。主要介绍了钛基化合物对多硫化锂的物理限域、化学吸附和催化转化能力等性质,系统讨论了不同种类的钛基化合物在锂硫电池正极中的作用,在此基础上对钛基化合物在锂硫电池中的应用前景进行了探讨。

关键词: 钛基化合物, 锂硫电池, 物理限域, 化学吸附, 催化转化

Abstract:

Lithium-sulfur batteries（Li-S batteries） is among the most promising candidates for novel batteries with high ener-gy density.However,the shuttle effects resulted from the highly soluble lithium polysulfides in charging and discharging pro-cesses lead to the loss of active materials,low capacities and inferior cycling performances,hindering the practical application of Li-S batteries.The titanium（Ti）-based compounds with versatile interface properties and easily controllable structures are widely used to suppress the shuttle effects due to their strong adsorption ability and catalytic activity towards polysulfides con-version.The physical confinement,chemical adsorption,and catalytic conversion roles of Ti-based compounds in Li-S batte-ries were introduced.The roles of different kinds of Ti-based compounds in the cathode of Li-S batterie were discussed system-atically.On this basis,the application prospect of Ti-based compounds in Li-S batteries was discussed.

Key words: Ti-based materials, lithium-sulfur battreies, physical confinement, chemical adsorption, catalysis

中图分类号:

TQ131.11

刘子琛,张玢,谷思辰,吕伟. 钛基化合物在锂硫电池中的应用[J]. 无机盐工业, 2021, 53(6): 14-22.

Liu Zichen,Zhang bin,Gu Sichen,Lü Wei. Applications of titanium-based compounds for lithium-sulfur batteries[J]. Inorganic Chemicals Industry, 2021, 53(6): 14-22.

图/表 9

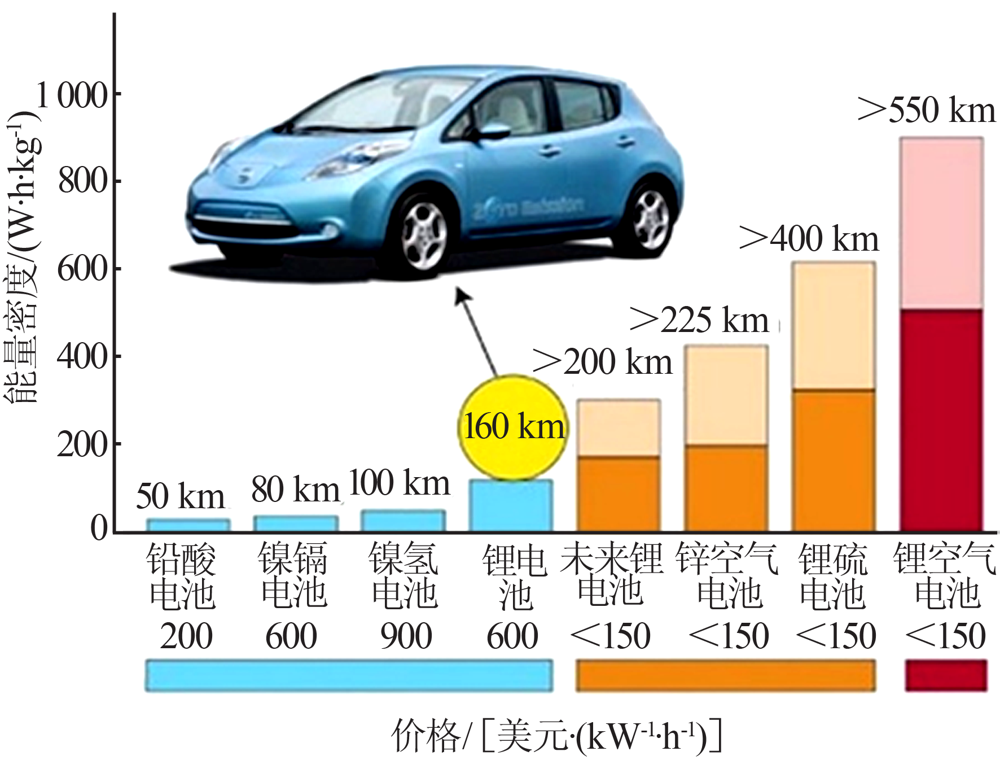

图1

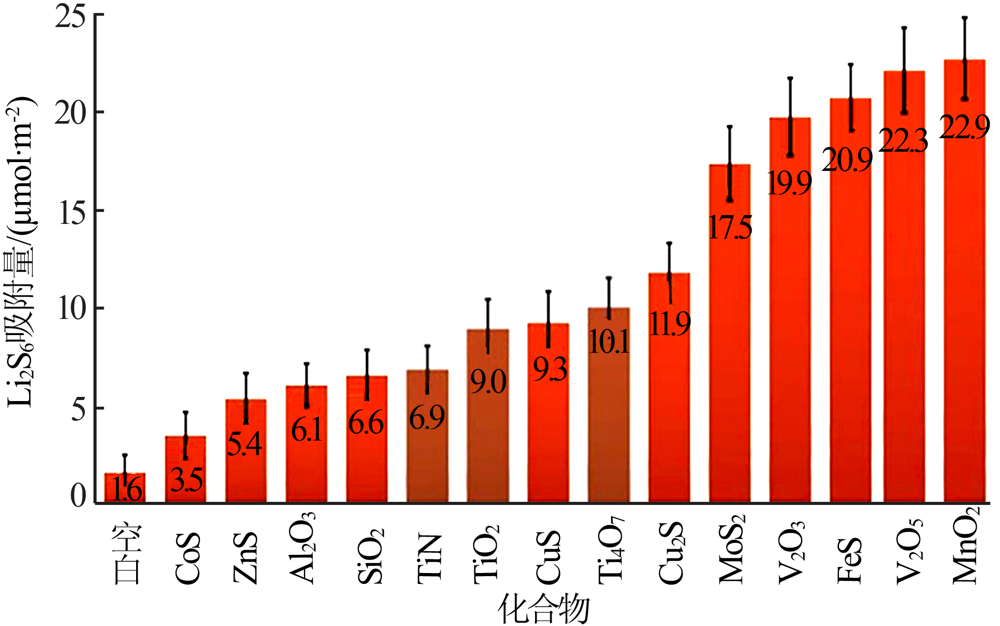

图2

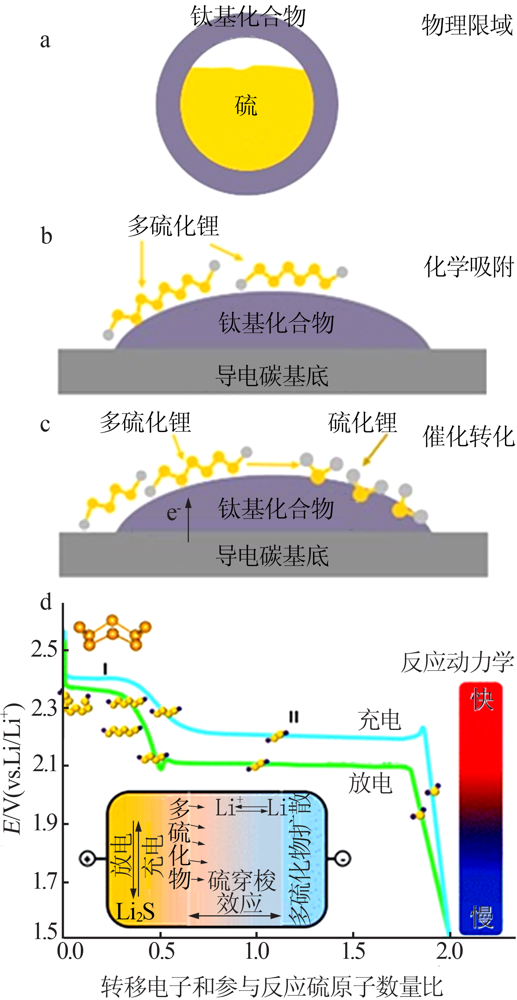

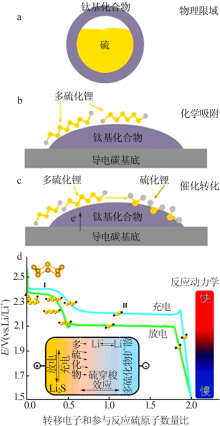

图3

表1

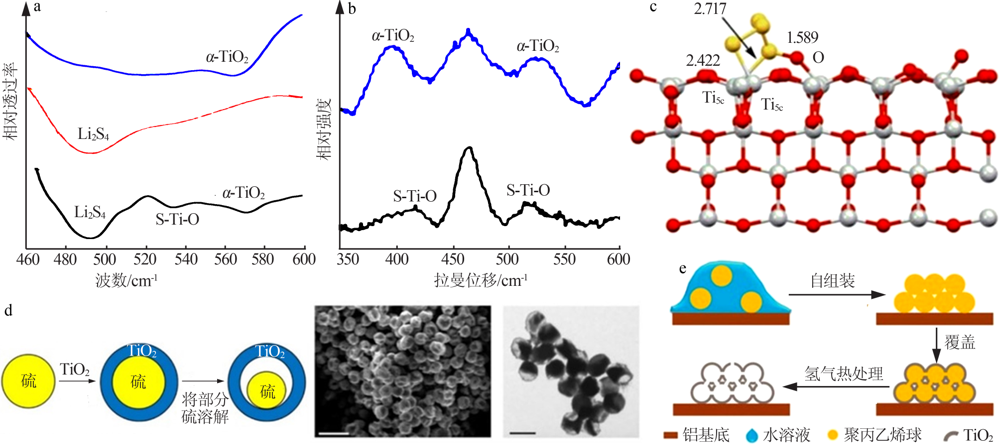

图4

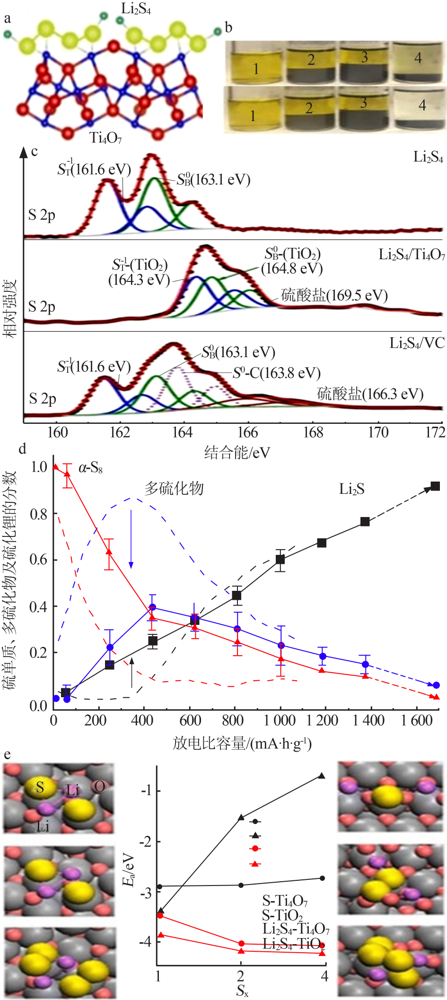

图5

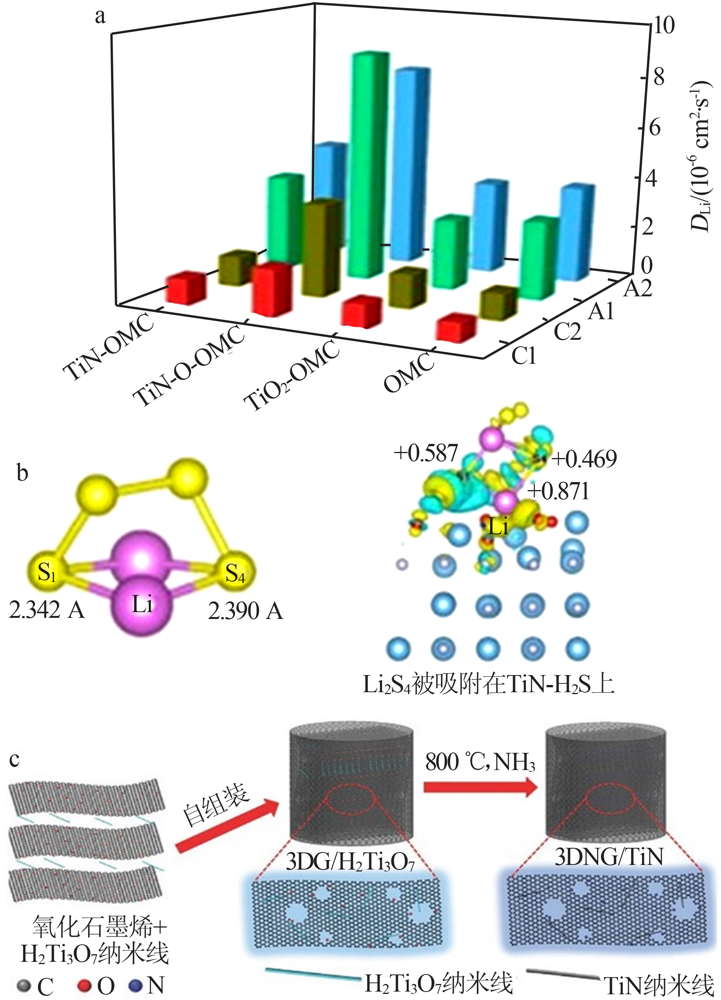

图6

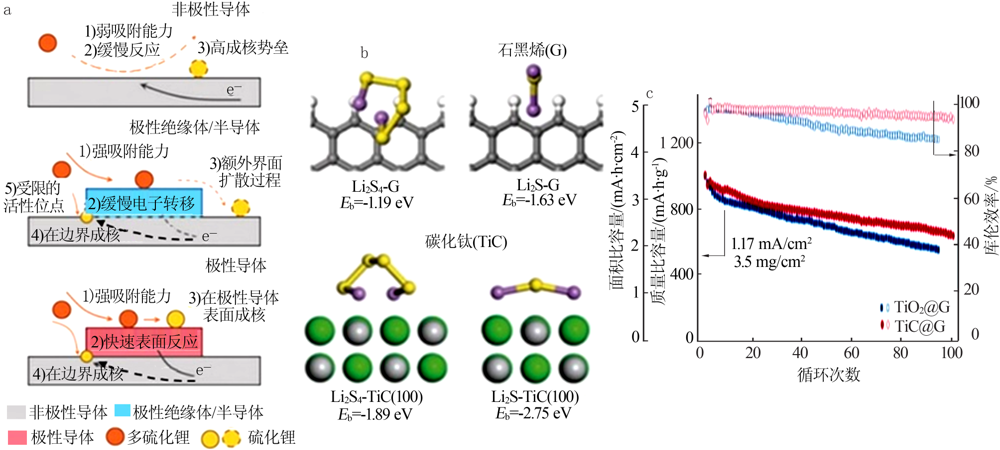

图7

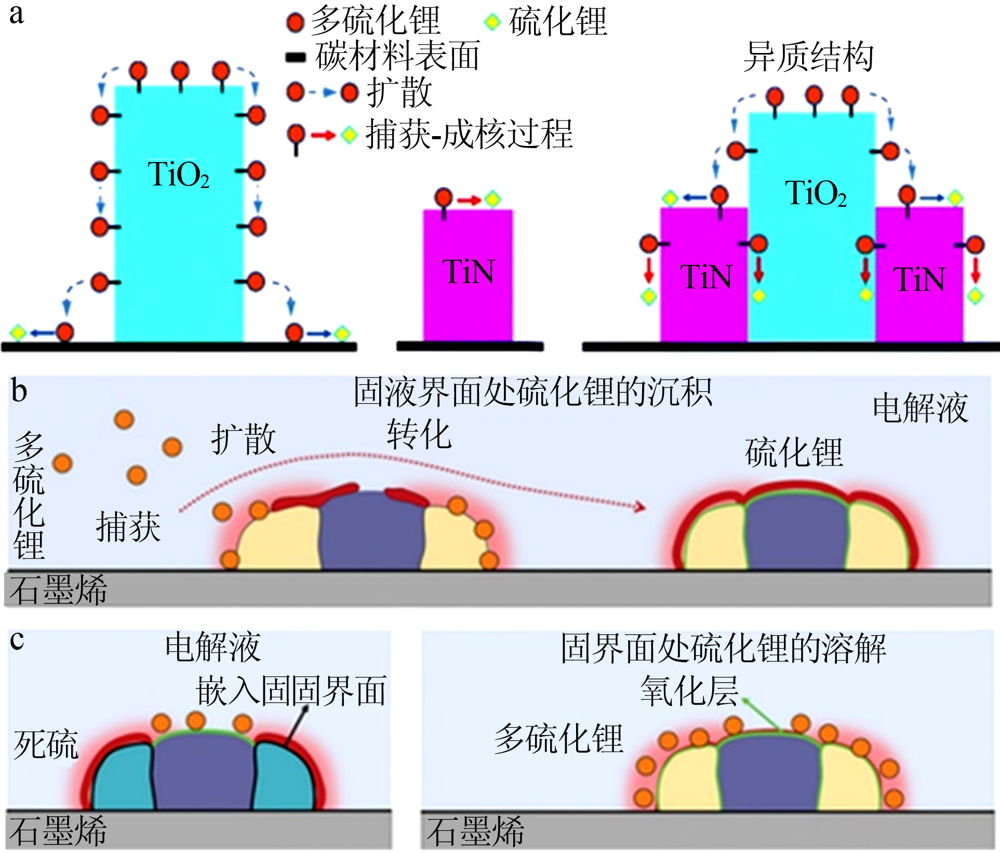

图8

参考文献 51

[1]	Pang Q, Liang X, Kwok C Y, et al. Advances in lithium-sulfur batte-ries based on multifunctional cathodes and electrolytes[J]. Nature Energy, 2016,1(9).Doi: 10.1038/nenergy.2016.132.
[2]	Bruce P G, Freunberger S A, Hardwick L J, et al. Li-O₂ and Li-S bat-teries with high energy storage[J]. Nature Materials, 2011,11(1):19-29. doi: 10.1038/nmat3191
[3]	Manthiram A, Fu Y, Chung S H, et al. Rechargeable lithium-sulfur batteries[J]. Chemical Reviews, 2014,114(23):11751-11787. doi: 10.1021/cr500062v
[4]	Goodenough J B. Electrochemical energy storage in a sustainable mo-dern society[J]. Energy Environmental Science, 2014,7(1):14-18. doi: 10.1039/C3EE42613K
[5]	Zhang C, Cui L, Abdolhosseinzadeh S, et al. Two-dimensional mxenes for lithium-sulfur batteries[J]. Info.Mat., 2020,2(4):613-638. doi: 10.1002/inf2.v2.4
[6]	Liu D, Zhang C, Zhou G, et al. Catalytic effects in lithium-sulfur bat-teries:Promoted sulfur transformation and reduced shuttle effect[J]. Advanced Science, 2018,5(1).Doi: 10.1002/advs. 201700270.
[7]	Liu X, Huang J Q, Zhang Q, et al. Nanostructured metal oxides and sulfides for lithium-sulfur batteries[J]. Advanced Materials, 2017,29(20).Doi: 10.1002/adma.201601759.
[8]	Zhang Z W, Peng H J, Zhao M, et al. Heterogeneous/homogeneous mediators for high-energy-density lithium-sulfur batteries:Progress and prospects[J]. Advanced Functional Materials, 2018,28(38).Doi: 10.1002/adfm.201707536.
[9]	Mei S, Jafta C J, Lauermann I, et al. Porous Ti₄O₇ particles with in terconnected-pore structure as a high-efficiency polysulfide mediator for lithium-sulfur batteries[J]. Advanced Functional Materials, 2017,27(26).Doi: 10.1002/adfm.201701176.
[10]	Wei Seh Z, Li W, Cha J J, et al. Sulphur-TiO₂ yolk-shell nanoarchi-tecture with internal void space for long-cycle lithium-sulphur bat-teries[J]. Nature Communications, 2013(4).Doi: 10.1038/ncomms2327.
[11]	Shi H, Lv W, Zhang C, et al. Functional carbons remedy the shuttl-ing of polysulfides in lithium-sulfur batteries:Confining,trapping,blocking,and breaking up[J]. Advanced Functional Materials, 2018,28(38).Doi: 10.1002/adfm.201800508.
[12]	Lee B J, Kang T H, Lee H Y, et al. Revisiting the role of conductivi-ty and polarity of host materials for long-life lithium-sulfur bat-tery[J]. Advanced Energy Materials, 2020,10(22).Doi: 10.1002/aenm.201903934.
[13]	Ye C, Jiao Y, Jin H, et al. 2D MoN-VN heterostructure to regulate polysulfides for highly efficient lithium-sulfur batteries[J]. Ange-wandte Chemie:International Edition, 2018,57(51):16703-16707.
[14]	Chung S H, Luo L, Manthiram A. TiS₂-polysulfide hybrid cathode with high sulfur loading and low electrolyte consumption for lithi-um-sulfur batteries[J]. ACS Energy Letters, 2018,3(3):568-573. doi: 10.1021/acsenergylett.7b01321
[15]	Zhou F, Li Z, Luo X, et al. Low cost metal carbide nanocrystals as binding and electrocatalytic sites for high performance Li-S bat-batteries[J]. Nano Letters, 2018,18(2):1035-1043. doi: 10.1021/acs.nanolett.7b04505
[16]	Wang H, Zhang W, Xu J, et al. Advances in polar materials for lit-hium-sulfur batteries[J]. Advanced Functional Materials, 2018,28(38).Doi: 10.1002/adfm.201707520.
[17]	罗远辉. 钛化合物[M]. 北京: 冶金工业出版社, 2011:1-7.
[18]	Wu D S, Shi F, Zhou G, et al. Quantitative investigation of polysul-fide adsorption capability of candidate materials for Li-S batteri-es[J]. Energy Storage Materials, 2018,13:241-246. doi: 10.1016/j.ensm.2018.01.020
[19]	黄仲涛. 工业催化剂手册[M]. 北京: 化学工业出版社, 2004:17-31.
[20]	日本钛协会. 钛材料及其应用[M].周连在,译.1版. 北京: 冶金工业出版社, 2008:1-25.
[21]	Zhou G, Tian H, Jin Y, et al. Catalytic oxidation of Li₂S on the sur-face of metal sulfides for Li-S batteries[J]. Proceedings of the Na-tional Academy of Sciences of the United States of America, 2017,114(5):840-845.
[22]	Zhang Q F, Wang Y P, Seh Z W, et al. Understanding the anchoring effect of two-dimensional layered materials for lithium-sulfur bat-teries[J]. Nano Letters, 2015,15(6):3780-3786. doi: 10.1021/acs.nanolett.5b00367
[23]	Pang Q, Kundu D, Cuisinier M, et al. Surface-enhanced redox che-mistry of polysulphides on a metallic and polar host for lithium-sulphur batteries[J]. Nature Communications, 2014(5).Doi: 10.1038/ncomms5759.
[24]	Peng H J, Zhang G, Chen X, et al. Enhanced electrochemical kine-tics on conductive polar mediators for lithium-sulfur batteries[J]. Angewandte Chemie International Edition, 2016,55(42):12990-12995. doi: 10.1002/anie.201605676
[25]	Li Z H, He Q, Xu X, et al. A 3D nitrogen-doped graphene/TiN nano-wires composite as a strong polysulfide anchor for lithium-sulfur batteries with enhanced rate performance and high areal capaci-ty[J]. Advanced Materials, 2018,30(45).Doi: 10.1002/adma.
	201804089.
[26]	Tao X, Wang J, Liu C, et al. Balancing surface adsorption and diffu-sion of lithium-polysulfides on nonconductive oxides for lithium-sulfur battery design[J]. Nature Communications, 2016,7.Doi: 10.1038/ncomms.11203.
[27]	Wang D W, Zeng Q, Zhou G, et al. Carbon-sulfur composites for Li-S batteries:Status and prospects[J]. Journal of Materials Che-mistry A, 2013,1(33):9382-9394
[28]	Liang Z, Zheng G Y, Li W Y, et al. Sulfur cathodes with hydrogen reduced titanium dioxide inverse opal structure[J]. ACS Nano, 2014,8(5):5249-5256. doi: 10.1021/nn501308m pmid: 24766547
[29]	Salhabi E H M, Zhao J, Wang J, et al. Hollow multi-shelled struc-tural TiO₂-_x with multiple spatial confinement for long-life lithium-sulfur batteries[J]. Angewandte Chemie:International Edition, 2019,58(27):9078-9082. doi: 10.1002/anie.v58.27
[30]	Li Z, Zhang J, Guan B, et al. A sulfur host based on titanium mono-xide@carbon hollow spheres for advanced lithium-sulfur batteri-es[J]. Nature Communications, 2016(7).Doi: 10.1038/ncomms. 13065.
[31]	Evers S, Yim T, Nazar L F. Understanding the nature of absorption/adsorption in nanoporous polysulfide sorbents for the Li-Sbattery[J]. The Journal of Physical Chemistry C, 2012,116(37):19653-19658. doi: 10.1021/jp304380j
[32]	Wu J, Li S, Yang P, et al. S@TiO₂ nanospheres loaded on PPy ma-trix for enhanced lithium-sulfur batteries[J]. Journal of Alloys and Compounds, 2019,783:279-285 doi: 10.1016/j.jallcom.2018.12.316
[33]	Cui Z M, Zu C X, Zhou W D, et al. Mesoporous titanium nitride-enabled highly stable lithium-sulfur batteries[J]. Advanced Mate-rials, 2016,28(32):6926-6931.
[34]	Hao Z, Yuan L, Chen C, et al. TiN as a simple and efficient poly-sulfide immobilizer for lithium-sulfur batteries[J]. Journal of Ma-terials Chemistry A, 2016,4(45):17711-17717.
[35]	Hao B, Li H, Lv W, et al. Reviving catalytic activity of nitrides by the doping of the inert surface layer to promote polysulfide conver-sion in lithium-sulfur batteries[J]. Nano Energy, 2019,60:305-311. doi: 10.1016/j.nanoen.2019.03.064
[36]	Gao X, Zhou D, Chen Y, et al. Strong charge polarization effect en- abled by surface oxidized titanium nitride for lithium-sulfur bat- teries[J]. Communications Chemistry, 2019,2(1):66. doi: 10.1038/s42004-019-0166-8
[37]	Zhou F, Song L T, Lu L L, et al. Titanium-carbide-decorated carbon nanofibers as hybrid electrodes for high performance Li-S batteri- es[J]. ChemNanoMat, 2016,2(10):937-941. doi: 10.1002/cnma.201600227
[38]	Wang R, Luo C, Wang T, et al. Bidirectional catalysts for liquid-so- lid redox conversion in lithium-sulfur batteries[J]. Advanced Ma- terials, 2020,32(32).Doi: 10.1002/adma.202000315.
[39]	Zhou T, Lv W, Li J, et al. Twinborn TiO₂-TiN heterostructures en- abling smooth trapping-diffusion-conversion of polysulfides towar- ds ultralong life lithium-sulfur batteries[J]. Energy & Environmen- tal Science, 2017,10(7):1694-1703.
[40]	Zhou T, Zhao Y, Zhou G, et al. An in-plane heterostructure of grap- hene and titanium carbide for efficient polysulfide confinement[J]. Nano Energy, 2017,39:291-296. doi: 10.1016/j.nanoen.2017.07.012
[41]	Yuan C, Zhu S, Cao H, et al. Hierarchical sulfur-impregnated hy- drogenated TiO₂ mesoporous spheres comprising anatase nanoshee- ts with highly exposed(001) facets for advanced Li-S batteries[J]. Nanotechnology, 2016,27(4).Doi: 10.1088/0957-4484/27/4/045403.
[42]	Ma X Z, Jin B, Wang H Y, et al. S-TiO₂ composite cathode materi- als for lithium/sulfur batteries[J]. Journal of Electroanalytical Che- mistry, 2015,736:127-131.
[43]	Li Q, Zhang Z A, Zhang K, et al. Synjournal and electrochemical performance of TiO₂-sulfur composite cathode materials for lithi- um-sulfur batteries[J]. Journal of Solid State Electrochemistry, 2013,17(11):2959-2965. doi: 10.1007/s10008-013-2203-3
[44]	Xie Keyu, Han Yunzhao, Wei Wenfei, et al. Fabrication of a novel TiO₂/S composite cathode for high performance lithium-sulfur bat- teries[J]. RSC Advances, 2015,5(94):77348-77353. doi: 10.1039/C5RA13823J
[45]	Lei T, Xie Y, Wang X, et al. TiO₂ feather duster as effective polysul- fides restrictor for enhanced electrochemical kinetics in lithium- sulfur batteries[J]. Small, 2017,13(37).Doi: 10.1002/smll.201701013.
[46]	Nowotny J, Alim M A, Bak T, et al. Defect chemistry and defect en- gineering of TiO₂-based semiconductors for solar energy conver- sion[J]. Chemical Society Reviews, 2015,44(23):8424-8442. doi: 10.1039/c4cs00469h pmid: 26446476
[47]	Naldoni A, Allieta M, Santangelo S, et al. Effect of nature and loc- ation of defects on bandgap narrowing in black TiO₂ nanoparticl- es[J]. Journal of the American Chemical Society, 2012,134(18):7600-7603. doi: 10.1021/ja3012676
[48]	Tao X Y, Wang J G, Ying Z G, et al. Strong sulfur binding with con- ducting magnéli-phase TinO₂_n_-1 nanomaterials for improving lithi- um-sulfur batteries[J]. Nano Letters, 2014,14(9):5288-5294. doi: 10.1021/nl502331f
[49]	Zhang Miao, Chen Wei, Xue LanXin, et al. Adsorption-catalysis design in the lithium-sulfur battery[J]. Advanced Energy Materi- als, 2020,10(2):Doi: 10.1002/aenm.201903008.
[50]	Huang S, Wang Z, Von Lim Y, et al. Recent advances in heterost- structure engineering for lithium-sulfur batteries[J]. Advanced Energy Materials, 2021,11(10).Doi: 10.1002/aenm.202003689.
[51]	Zhao M, Li B, Peng H, et al. Lithium-sulfur batteries under lean electrolyte conditions:challenges and opportunities[J]. Angewan- dte Chemie:International Edition, 2020,59.Doi: 10.1002/ange.201909339.

正极添加剂/中间层材料		倍率（C）	初始容量/ （mA·h·g^-1）	循环寿命/次	容量衰减率/%	硫载量/ （mg·cm^-2）
氧化物	TiO_2-_x球壳/S正极^[28]	0.2	1 100	200	0.095	0.8
	S@TiO_2-_x多层壳正极^[29]	0.5	903	1 000	0.021	0.5
	“蛋黄-蛋壳”结构S-TiO₂正极^[10]	0.5	1 030	1 000	0.033	0.4~0.6
	TiO@C/S正极^[30]	0.5	1 066	500	0.082	1.5
	SCM（介孔碳）/S-αTiO₂正极^[31]	1.0	1 201	200	0.135	0.75
	S@TiO₂/聚吡咯纳米线正极^[32]	1.0	900	500	0.098	—
	Ti₄O₇/S正极^[23]	2.0	850	500	0.060	0.75~0.9
氮化物	介孔TiN/S^[33]	0.5	988	500	0.070	1.0
	氢氟酸刻蚀TiN/S正极^[34]	0.5	1 017	200	0.175	1.5
	3DNG/TiN/Li₂S₆正极^[25]	0.5	1 250	60	0.280	9.6
	TiN-H₂S中间层^[35]	1.0	480	500	0.039	3.4
	TiN-O-有序介孔碳（OMC）/S正极材料^[36]	5.0	726	120	0.064	1.4
碳化物	TiC@G/S正极^[24]	0.2	1 032	100	0.350	3.5
碳化物	S/TiC-CNFs正极^[37]	1.0	1 079	350	0.120	1.0
异质结构	Ni₃S₂-TiO₂异质结构/石墨烯/S正极^[38]	0.5	980	900	0.004	—
	TiO₂-TiN异质结构中间层^[39]	1.0	688	2 000	0.013	3.1
	石墨烯-TiC异质结构中间层^[40]	1.0	560	500	0.032	1.1~1.4
