薄水铝石改善聚氧化乙烯基固态电解质离子电导率的研究

doi:10.19964/j.issn.1006-4990.2024-0684

Abstract

Abstract:

Poly（ethylene oxide）（PEO）-based polymer electrolytes exhibit broad application prospects in the field of all-solid-state sodium-ion batteries due to their ability to dissolve various sodium salts and ease of processing.However，PEO has the defects of high crystallinity and insufficient segmental mobility，resulting in low ionic conductivity at room temperature.This study proposed an effective strategy to address this issue.By incorporating succinonitrile（SN） and boehmite（BM） into the polymer system of PEO and sodium bis（trifluoromethanesulfonyl）imide（NaTFSI）.A composite solid electrolyte（PEO-NaTFSI-SN-BM） with excellent performance was successfully prepared.The mechanism of SN and BM improving the ionic conductivity of solid-state electrolyte was analyzed by using techniques including X-ray diffraction（XRD），Fourier transform infrared spectroscopy（FT-IR），X-ray photoelectron spectroscopy（XPS） and scanning electron microscopy（SEM）.The experimental results demonstrated that，when only SN was added and the molar ratio of SN to EO was 1∶8，a self-supporting membrane（PNS₈） could be formed，significantly increasing the ionic conductivity of the PEO-NaTFSI polymer electrolyte from the initial 2.27×10^-6 S/cm to 4.51×10^-5 S/cm at 30 ℃.Upon further incorporation of BM，the ionic conductivity of the composite solid electrolyte was increased to 6.99×10^-5 S/cm，while simultaneously enhancing the mechanical properties of the electrolyte membrane.In the presence of BM，when the molar ratio of SN to EO was further increased to 1∶4，a self-supporting membrane（PNS₄B₁₀） could still be formed.The ionic conductivity of PNS₄B₁₀ at 30 ℃ reached as high as 1.43×10^-4 S/cm，representing an approximately 60-fold improvement compared to the initial PEO-NaTFSI polymer electrolyte.The introduction of BM not only facilitated ion transport of the solid-state electrolyte，but also enhanced its mechanical properties，thereby enabling higher SN loading and further optimization of ionic conductivity.This composite solid electrolyte represented a promising approach for achieving high ionic conductivity in all-solid-state sodium metal batteries at room temperature.

Key words: boehmite, poly（ethylene oxide）, succinonitrile, ionic conductivity, sodium solid state electrolyte

CLC Number:

TQ133.1

TIAN Peng, YANG Guanglong, MU Chenxi, CHEN Junyi, NING Guiling. Study on enhancement of ionic conductivity in poly（ethylene oxide）-based solid-state electrolytes by boehmite[J]. Inorganic Chemicals Industry, 2025, 57(11): 43-51.

Figures/Tables 5

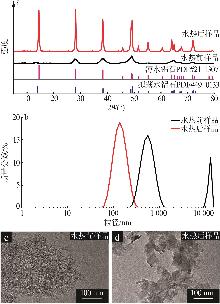

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

References 40

[1]	SHI Kuangyi， GUAN Bin， ZHUANG Zhongqi，et al.Recent progress and prospects on sodium-ion battery and all-solid-state sodium battery：A promising choice of future batteries for energy storage［J］.Energy & Fuels，2024，38（11）：9280-9319.
[2]	YIN Hang， HAN Chengjun， LIU Qirong，et al.Recent advances and perspectives on the polymer electrolytes for sodium/potassium-ion batteries［J］.Small，2021，17（31）：2006627.
[3]	康乐，景茂祥，李东红，等.铝酸锂纳米棒改性固态电解质的制备及电化学性能研究［J］.无机盐工业，2023，55（8）：65-70.
	KANG Le， JING Maoxiang， LI Donghong，et al.Study on preparation and electrochemical performance of lithium aluminate nanorods modified solid electrolyte［J］.Inorganic Chemicals Industry，2023，55（8）：65-70.
[4]	WANG Sen， JIANG Yingjun， HU Xianluo.Ionogel-based membranes for safe lithium/sodium batteries［J］.Advanced Materials，2022，34（52）：2200945.
[5]	YANG Huiling， ZHANG Binwei， KONSTANTINOV K，et al.Progress and challenges for all-solid-state sodium batteries［J］.Advanced Energy and Sustainability Research，2021，2（2）：2000057.
[6]	晁广召.硅烷偶联剂修饰纳米Al₂O₃对全固态电池性能提高的研究［D］.哈尔滨：哈尔滨工业大学，2021.
	CHAO Guangzhao.Study on improving the performance of all-solid-state battery by modified nano-Al₂O₃ with silane coupling agent［D］.Harbin：Harbin Institute of Technology，2021.
[7]	YANG Ruilu， ZHANG Zheng， ZHANG Qi，et al.Flexible asymmetric organic-inorganic composite solid-state electrolyte based on PI membrane for ambient temperature solid-state lithium metal batteries［J］.Frontiers in Chemistry，2022，10：855800.
[8]	ZHANG Zhizhen， ZHANG Qiangqiang， REN Cheng，et al.A ceramic/polymer composite solid electrolyte for sodium batteries［J］.Journal of Materials Chemistry A，2016，4（41）：15823-15828.
[9]	许希军，林见烽，罗雄伟，等.NASICON型Na₁₊ _x Zr₂Si _x P_3- _x O₁₂固态电解质及其钠金属电池研究进展［J］.无机盐工业，2024，56（11）：1-14，38.
	XU Xijun， LIN Jianfeng， LUO Xiongwei，et al.Recent progress of NASICON-type Na₁₊ _x Zr₂Si _x P_3- _x O₁₂ solid electrolyte for sodium metal batteries［J］.Inorganic Chemicals Industry，2024，56（11）：1-14，38.
[10]	LI Zhiyong， LI Zhuo， FU Jialong，et al.Sodium-ion conducting polymer electrolytes［J］.Rare Metals，2023，42（1）：1-16.
[11]	刘丽露.钠离子固体电解质及固态钠电池研究［D］.北京：中国科学院大学（中国科学院物理研究所），2018.
	LIU Lilu.Studies on solid state sodium ion electrolytes and solid state sodium batteries［D］.Beijing：University of Chinese Academy of Sciences（Institute of Physics，Chinese Academy of Sciences），2018.
[12]	LI Zhuo， FU Jialong， ZHOU Xiaoyan，et al.Ionic conduction in polymer-based solid electrolytes［J］.Advanced Science，2023，10（10）：2201718.
[13]	马静媛，李妍，周晗洁，等.PEO基有机/无机复合固态电解质的研究进展［J］.无机盐工业，2025，57（3）：1-8.
	MA Jingyuan， LI Yan， ZHOU Hanjie，et al.Research progress of PEO based organic/inorganic composite solid electrolyte［J］.Inorganic Chemicals Industry，2025，57（3）：1-8.
[14]	HE Fei， HU Zhenglin， TANG Wenjing，et al.Vertically heterostructured solid electrolytes for lithium metal batteries［J］.Advanced Functional Materials，2022，32（25）：2201465.
[15]	PAN Kecheng， ZHANG Lan， QIAN Weiwei，et al.A flexible ceramic/polymer hybrid solid electrolyte for solid-state lithium metal batteries［J］.Advanced Materials，2020，32（17）：2000399.
[16]	ZHANG Jinfang， WANG Yuanyuan， XIA Qingbing，et al.Confining polymer electrolyte in MOF for safe and high-performance all-solid-state sodium metal batteries［J］.Angewandte Chemie International Edition，2024，63（16）：e202318822.
[17]	赵兰清，侯敏杰，张达，等.固态钠离子电池用PEO基聚合物固体电解质［J］.化学进展，2023，35（11）：1625-1637.
	ZHAO Lanqing， HOU Minjie， ZHANG Da，et al.Poly（ethylene oxide）-based solid polymer electrolytes for solid-state sodiumI on batteries［J］.Progress in Chemistry，2023，35（11）：1625-1637.
[18]	XU Shengjun， SUN Zhenhua， SUN Chengguo，et al.Homogeneous and fast ion conduction of PEO-based solid-state electrolyte at low temperature［J］.Advanced Functional Materials，2020，30（51）：2007172.
[19]	QIU Genrui， SHI Yapeng， HUANG Bolong.A highly ionic conductive succinonitrile-based composite solid electrolyte for lithi-um metal batteries［J］.Nano Research，2022，15（6）：5153-5160.
[20]	ZHANG Xueyan， FU Chuankai， CHENG Shichao，et al.Novel PEO-based composite electrolyte for low-temperature all-solid-state lithium metal batteries enabled by interfacial cation-assistance［J］.Energy Storage Materials，2023，56：121-131.
[21]	ZHOU Dong， HE Yanbing， LIU Ruliang，et al.In situ synthesis of a hierarchical all-solid-state electrolyte based on nitrile materials for high-performance lithium-ion batteries［J］.Advanced Energy Materials，2015，5（15）：1500353.
[22]	CHEN Fei， ZHA Wenping， YANG Dunjie，et al.All-solid-state lithium battery fitted with polymer electrolyte enhanced by solid plasticizer and conductive ceramic filler［J］.Journal of the Electrochemical Society，2018，165（14）：A3558.
[23]	GUO Shiyuan， SU Yuefeng， YAN Kang，et al.Robust and adhesive laminar solid electrolyte with homogenous and fast Li-ion conduction for high-performance all-solid-state lithium metal battery［J］.Advanced Science，2024，11（30）：2404307.
[24]	WEI Xiuqin， WANG Qiulin， SONG Zhenglin，et al.Effect of hydroxyls and particle size on the electrochemical performance of boehmite coated PE separators for lithium-ion batteries［J］.Solid State Ionics，2021，366-367：115652.
[25]	冯锟，朱勇，张凯强，等.勃姆石纳米片增强锂离子电池隔膜性能研究［J］.无机材料学报，2022，37（9）：1009-1016.
	FENG Kun， ZHU Yong， ZHANG Kaiqiang，et al.Boehmite nanosheets-coated separator with enhanced performance for lithi-um-ion batteries［J］.Journal of Inorganic Materials，2022，37（9）：1009-1016.
[26]	GAO Tingting， TIAN Peng， XU Qianjin，et al.Class of boehmite/polyacrylonitrile membranes with different thermal shutdown temperatures for high-performance lithium-ion batteries［J］.ACS Applied Materials & Interfaces，2023，15（1）：2112-2123.
[27]	ZHAO Weiran， TIAN Peng， GAO Tingting，et al.Different-grain-sized boehmite nanoparticles for stable all-solid-state lithium metal batteries［J］.Nanoscale，2024，16（23）：11163-11173.
[28]	ALSULAMI Q A.Structural，dielectric，and magnetic studies based on MWCNTs/NiFe₂O₄/ZnO nanoparticles dispersed in poly-mer PVA/PEO for electromagnetic applications［J］.Journal of Materials Science：Materials in Electronics，2021，32（3）：2906-2924.
[29]	BANDYOPADHYAY S， GUPTA A， SRIVASTAVA R，et al.Bio-inspired design of electrospun poly（acrylonitrile） and novel ionene based nanofibrous mats as highly flexible solid state polymer electrolyte for lithium batteries［J］.Chemical Engineering Journal，2022，440：135926.
[30]	SHENG Ouwei， JIN Chengbin， LUO Jianmin，et al.Mg₂B₂O₅ nanowire enabled multifunctional solid-state electrolytes with high ionic conductivity，excellent mechanical properties，and flame-retardant performance［J］.Nano Letters，2018，18（5）：3104-3112.
[31]	XU Hao， LIU Shuai， LI Zhiang，et al.Ti₃C₂T _x MXene enhanced PEO/SN-based solid electrolyte for high-performance Li metal battery［J］.Journal of Materials Science & Technology，2025，219：101-112.
[32]	WANG Han， SUN Yongjiang， LIU Qing，et al.An asymmetric bilayer polymer-ceramic solid electrolyte for high-performance sodium metal batteries［J］.Journal of Energy Chemistry，2022，74：18-25.
[33]	LI Bangxing， YI Xianlin， XIE Zhenjun，et al.A promising composite room temperature solid electrolyte via incorporating LLZTO into cross-linked ETPTA/PEO/SN matrix for all solid state lithi- um batteries［J］.Ionics，2024，30（4）：2007-2017.
[34]	FU Wenjing， WEI Cundi， ZUO Jing，et al.A facile temperature-controlled“green” method to prepare multi-kinds of high-quality alumina hydrates via a Ga-In-Sn-alloyed aluminum-water interface reaction［J］.ACS Omega，2022，7（23）：19775-19783.
[35]	LIU Lehao， MO Jinshan， LI Jingru，et al.Comprehensively-modified polymer electrolyte membranes with multifunctional PMIA for highly-stable all-solid-state lithium-ion batteries［J］.Journal of Energy Chemistry，2020，48：334-343.
[36]	SONG Jiechen， XU Yuxing， ZHOU Yuncheng，et al.Incorporating 2D γ-Al₂O₃ nanosheets into the flexible PEO-based solid electrolyte for lithium metal batteries［J］.Electrochimica Acta，2023，437：141504.
[37]	WANG Meihuang， TIAN Liying， CAO Yu，et al.Surface positive-charged modification of inorganic fillers to optimize lithium ion conductive pathways in composite polymer electrolytes for lithium-metal batteries［J］.Journal of Colloid and Interface Science，2023，630：634-644.
[38]	SU Yanxia， MU Zheshen， QIU Yuqian，et al.Embedding of laser generated TiO₂ in poly（ethylene oxide） with boosted Li⁺ conduction for solid-state lithium metal batteries［J］.ACS Applied Materials & Interfaces，2023，15（48）：55713-55722.
[39]	WANG Xiaoen， ZHU Haijin， GIRARD G A，et al.Preparation and characterization of gel polymer electrolytes using poly（ionic liquids） and high lithium salt concentration ionic liquids［J］.Journal of Materials Chemistry A，2017，5（45）：23844-23852.
[40]	SHEN Lin， DENG Shungui， JIANG Rongrong，et al.Flexible composite solid electrolyte with 80% Na_3.4Zr_1.9Zn_0.1Si_2.2P_0.8O₁₂ for solid-state sodium batteries［J］.Energy Storage Materials，2022，46：175-181.

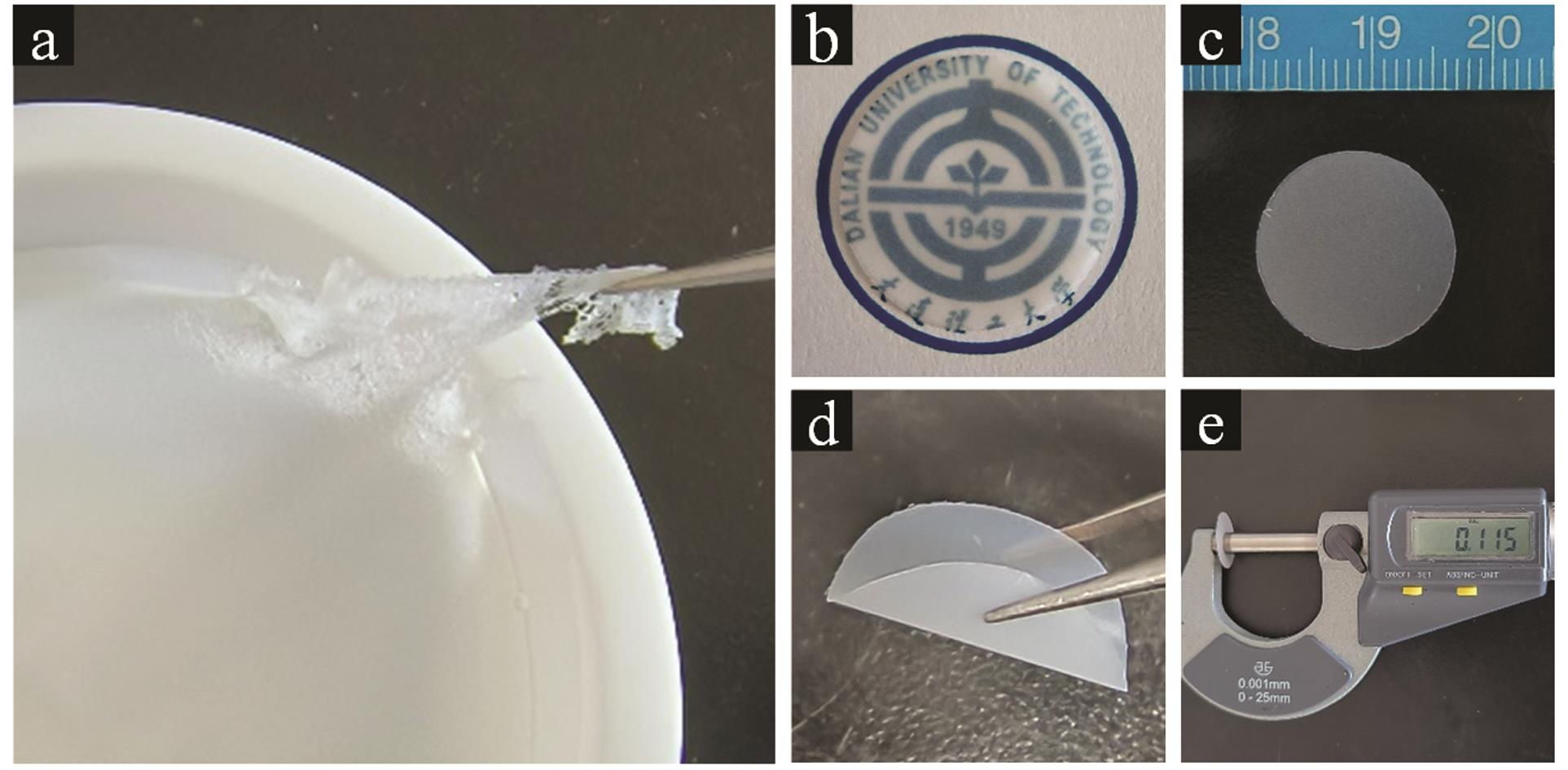

序号	样品名	n（SN）∶ n（EO）	w（BM）/ %	离子电导率 σ/（S cm^-1）	脱膜难易程度
1	PEO-NaTFSI	0	0	2.27×10^-6	容易
2	PNS₂₄	1∶24	0	1.53×10^-5	容易
3	PNS₁₆	1∶16	0	1.63×10^-5	容易
4	PNS₁₂	1∶12	0	2.30 0×10^-5	容易
5	PNS₈	1∶8	0	4.51×10^-5	容易
6	PNS₇	1∶7	0		困难
7	PNS₄	1∶4	0		无法
8	PNB₁₀	0	10	3.11×10^-6	容易
9	PNS₈B₅	1∶8	5	6.36×10^-5	容易
10	PNS₈B₁₀	1∶8	10	6.99×10^-5	容易
11	PNS₈B₁₅	1∶8	15	6.57×10^-5	容易
12	PNS₈B₂₀	1∶8	20	6.15×10^-5	容易
13	PNS₈B₂₅	1∶8	25	6.02×10^-5	容易
14	PNS₈B₃₀	1∶8	30	5.19×10^-5	容易
15	PNS₇B₁₀	1∶7	10	7.77×10^-5	容易
16	PNS₆B₁₀	1∶6	10	8.99×10^-5	容易
17	PNS₅B₁₀	1∶5	10	1.11×10^-4	容易
18	PNS₄B₁₀	1∶4	10	1.43×10^-4	容易
19	PNS₃B₁₀	1∶3	10		困难

National Inorganic Salts Information Center

Inorganic Acid-Base-Salt Committee of CIESC

Study on enhancement of ionic conductivity in poly（ethylene oxide）-based solid-state electrolytes by boehmite

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 5

References 40

Related Articles 15

Metrics

Comments

Recommended 0

[1]	TIAN Peng, JIAO Dandan, LI Fan, NING Guiling. Study on synthesis of high purity pseudoboehmite by hydrolyzing isooctanol aluminum [J]. Inorganic Chemicals Industry, 2025, 57(10): 49-54.
[2]	XU Xijun, LIN Jianfeng, LUO Xiongwei, ZHAO Jingwei, HUO Yanping. Recent progress of NASICON-type Na₁₊_x Zr₂Si _x P_3-_x O₁₂ solid electrolyte for sodium metal batteries [J]. Inorganic Chemicals Industry, 2024, 56(11): 1-14.
[3]	TENG Jiayang, FENG Qingge, ZHANG Xuan, QIN Fanghong, FENG Jinghang, HU Jiawen, CHEN Chaohong. Study on preparation of pseudo-boehmite from aluminum dross resource treatment [J]. Inorganic Chemicals Industry, 2023, 55(11): 130-138.
[4]	TIAN Peng, ZHOU Ruohui, XU Qianjin, LIU Kunji, PANG Hongchang, NING Guiling. Synthesis and dehydration dynamics of boehmite microcrystalline with different particle sizes [J]. Inorganic Chemicals Industry, 2023, 55(11): 27-36.
[5]	YANG Yongyu,TIAN Peng,ZHOU Ruohui,XU Qianjin,LIU Kunji,NING Guiling. Effect of gibbsite activation on preparation of boehmite by hydrothermal method [J]. Inorganic Chemicals Industry, 2022, 54(9): 55-62.
[6]	LI Fan,YANG Yuzhe,TIAN Peng,LI Wei,NING Guiling. Preparation of high purity pseudo-boehmite by hydrolysis of aluminium sec-butoxide [J]. Inorganic Chemicals Industry, 2022, 54(7): 78-84.
[7]	TIAN Peng,LI Wei,YANG Yuzhe,LIU Kunji,XU Qianjin,NING Guiling. Preparation of high purity pseudo-boehmite by hydrolysis of aluminium isopropanol [J]. Inorganic Chemicals Industry, 2022, 54(2): 54-59.
[8]	SHI Kai,ZHAO Xu,ZHANG Hongzhi,REN Yixuan,LI Xiaofeng. Study on synthesis of SAPO-34 molecular sieve by silicon-modified pseudo-boehmite [J]. Inorganic Chemicals Industry, 2022, 54(10): 149-154.
[9]	Yang Yongyu,Gao Tingting,Tian Peng,Xu Qianjin,Liu Kunji,Ning Guiling. Research progress of lithium-ion battery separator modified with inorganic ultrafine powder [J]. Inorganic Chemicals Industry, 2021, 53(6): 49-58.
[10]	Xiong Xiaoyun,Hu Qingxun,Zhao Hongjuan,Gao Xionghou. Impact of alumina matrix on cracking performance of heavy oil molecule of FCC catalyst [J]. Inorganic Chemicals Industry, 2019, 51(8): 83-87.
[11]	Nan Jun,Yu Qun,Yu Haibin,Zhang Jingcheng,Xiao Han,Zhu Jinjian,Li Xiaoyun. Study on a new production process of pseudo-boehmite and its application in hydrofining catalysts [J]. Inorganic Chemicals Industry, 2019, 51(6): 80-82.
[12]	LI Xiao-Yun, YU Hai-Bin, SUN Yan-Min, LI Shi-Peng, ZENG Xian-Jun, SUI Yun-Le, ZHOU Peng. Inorganic aluminum salt assisted hydrothermal synthesis of pseudoboehmite by activated alumina [J]. INORGANICCHEMICALSINDUSTRY, 2016, 48(6): 35-.
[13]	ZHANG Chun-Li, YE Xue-Hai, REN Chun-Yan. Study on succinonitrile as additive of electrolyte solution [J]. INORGANICCHEMICALSINDUSTRY, 2015, 47(4): 65-.
[14]	WANG Yu-Ling. Production of large pore volume active alumina [J]. INORGANICCHEMICALSINDUSTRY, 2012, 44(4): 25-.
[15]	SHANG Lian-Di, WANG Hui-Hui. Production and modification of activated alumina [J]. INORGANICCHEMICALSINDUSTRY, 2012, 44(1): 1-.
