碳酸镁结晶过程离子团簇与扩散成核机制

doi:10.19964/j.issn.1006-4990.2021-0344

摘要/Abstract

摘要：

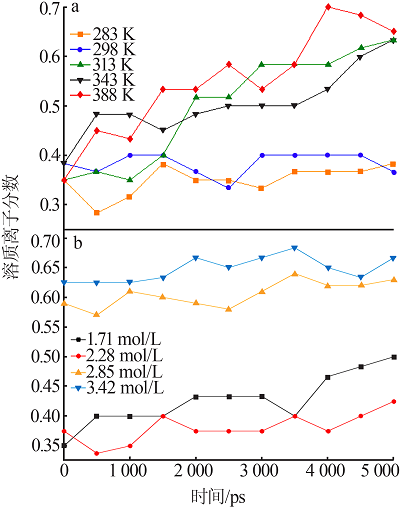

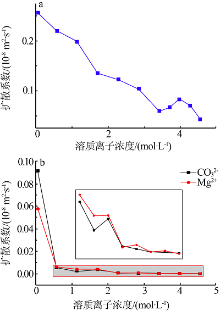

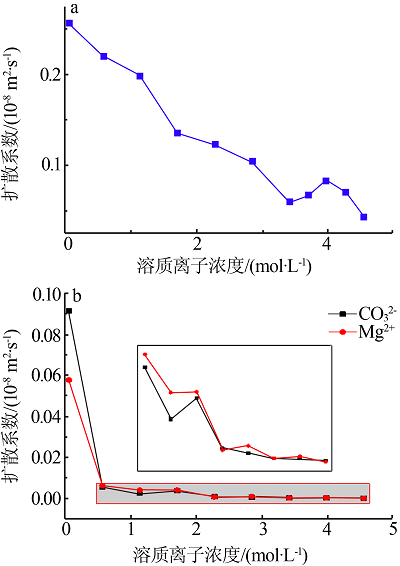

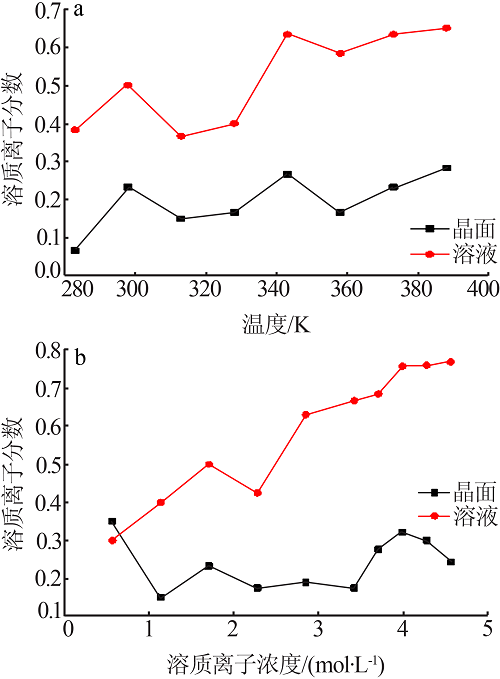

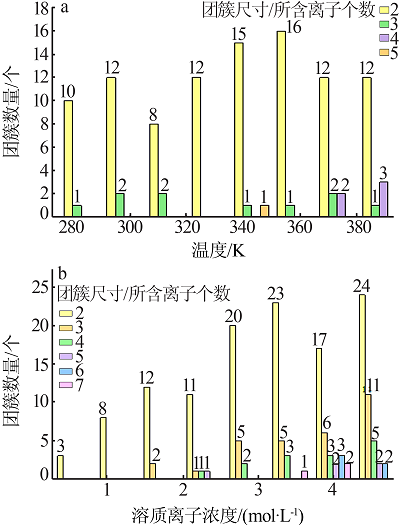

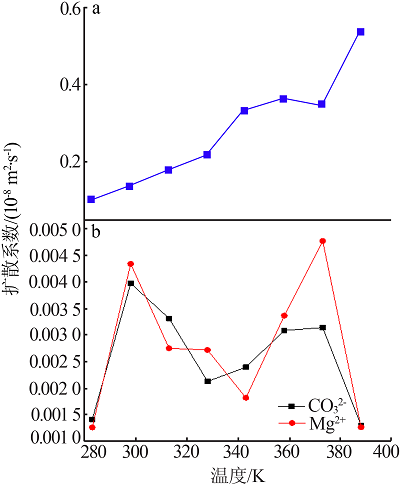

理解离子的团簇演化成核机制可以更好地进行结晶过程的调控。基于分子动力学模拟研究了结晶温区、溶质离子浓度等对溶液结晶成核与生长过程的影响,并探讨了溶质离子的团簇演化规律。结果表明,溶质离子的扩散速率与物质结构和分子间作用力有关,并且与成核或晶界生长过程的团簇演化相互影响。在此研究范围内,溶质离子浓度一定（1.71 mol/L）时,388 K体系的成核与生长能力最强,是晶界引导无水碳酸镁生长、干扰镁离子和水分子结合的最佳温度,吸附在晶界的溶质离子分数为28.33%;一定温度下（298 K）,溶质离子浓度为3.99 mol/L时最有利于晶体生长,吸附在晶界的溶质离子分数为32.14%,且该浓度起到了最佳的脱水效果,有利于形成无水碳酸镁。这为获得结晶良好、形貌均匀的无水碳酸镁等工艺技术提供了理论依据和指导。

关键词: 团簇演化, 成核与生长, 分子动力学模拟, 碳酸镁溶液, 晶体表面

Abstract:

Understanding the nucleation mechanism of ion cluster evolution can better regulate the crystallization process.The effect of crystallization temperature zone and concentration on the nucleation and growth process of solution crystallization was studied based on molecular dynamics simulation,and the evolution of solute ion clusters was discussed.The results showed that the diffusion rate of solute ions was related to the material structure and intermolecular forces,and interacted with cluster evolution during nucleation or grain boundary growth.Within the scope of this study,at the certain solute ion concen-tration（1.71 mol/L）,the system had the strongest nucleation and growth ability at 388 K,which was the best temperature for the grain boundary to guide the growth of AMC and interfere with the combination of Mg²⁺ and H₂O,and the ratio of solute ions adsorbed on the grain boundary was 28.33%.At the certain temperature（298 K）,the ion concentration of 3.99 mol/L was the most conducive to crystal growth.Under this concentration,the ratio of solute ions adsorbed on the grain boundary was 32.14%,and it had the best dehydration effect,which was beneficial to formate anhydrous magnesium carbonate.It provided theoretical basis and guidance for the technological process of obtaining anhydrous magnesium carbonate with good crystallization and uniform morphology.

Key words: cluster evolution, nucleation and growth, molecular dynamics simulation, magnesium carbonate solution, crystal surface

中图分类号:

TQ174

任文芝,强伟丽,廉士俊,兰忠. 碳酸镁结晶过程离子团簇与扩散成核机制[J]. 无机盐工业, 2022, 54(3): 51-58.

REN Wenzhi,QIANG Weili,LIAN Shijun,LAN Zhong. Ionic clusters and diffusion nucleation mechanism during crystallization of magnesium carbonate[J]. Inorganic Chemicals Industry, 2022, 54(3): 51-58.

图/表 13

图1

表1

表2

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 27

[1]	王英伟. 超细无水碳酸镁粉体的制备[D]. 北京:北京化工大学, 2017.
[2]	NI S, LI T, YANG X L. Hydrothermal synjournal of MgCO₃ and its op-tical properties[J]. Journal of Alloys Compound, 2011, 509:7874-7876.
[3]	XU J, YAN C, ZHANG F F, et al. Testing the cation-hydration effect on the crystallization of Ca-Mg-CO₃ systems[J]. Proceedings of the National Academy of Sciences, 2013, 110:17750-17755.
[4]	TIAN P, YE J W, XU N, et al. A magnesium carbonate recyclable template to synthesize micro hollow structures at a large scale[J]. Chemical Communications, 2011, 47:12008-12010.
[5]	CUI W W, LI P, WANG Z M, et al. Adsorption study of selenium ions from aqueous solutions using MgO nanosheets synthesized by ultra-sonic method[J]. Journal of Hazardous Materials, 2018, 341:268-276.
[6]	REZAEI F, MOUSSAVI G, BAKHTIARI A R, et al. Toluene removal from waste air stream by the catalytic ozonation process with MgO/GAC composite as catalyst[J]. Journal of Hazardous Materials, 2016, 306:348-358.
[7]	MIRTALEBI S S, ALMASI H, KHALEDABAD M A. Physical,mor-phological,antimicrobial and release properties of novel MgO-bac-terial cellulose nanohybrids prepared by in-situ and ex-situ metho-ds[J]. International Journal of Biological Macromolecules, 2019, 128:848-857.
[8]	张翠钰, 方莉, 廖洪强, 等. 三水碳酸镁在氢氧化镁-二氧化碳-水体系中的沉淀结晶[J]. 无机盐工业, 2018, 50(6):36-41.
[9]	王晶瑶, 郭宏飞, 吴耀, 等. 苦卤制备碱式碳酸镁及分离钠、钾盐工艺研究[J]. 高校化学工程学报, 2020, 34(2):383-392.
[10]	SANDENGEN K, JOSANG L O, KAASA B. Simple method for synjournal of magnesite(MgCO₃)[J]. Industrial & Engineering Chemistry Research, 2008, 47(4):1002-1004.
[11]	KORNPROBST T, PLANK J. Synjournal and properties of magnesium carbonate xerogels and aerogels[J]. Journal of Non-Crystalline So-lids, 2013, 361:100-105.
[12]	高震. 特殊形貌无水碳酸镁及氧化镁粉体制备和性能表征[D]. 大连:大连交通大学, 2011.
[13]	SWANSON E J, FRICKER K J, SUN M, et al. Directed precipita-tion of hydrated and anhydrous magnesium carbonates for carbon storage[J]. Physical Chemistry Chemical Physics, 2014, 16(42):23440-23450.
[14]	杨静, 陈明洋, 许史杰, 等. 无机盐晶体形貌调控研究进展[J]. 无机盐工业, 2018, 50(8):11-15.
[15]	李继翔, 郝婷婷, 兰忠, 等. 射流循环DTB结晶器内的CFD模拟[J]. 化工学报, 2015, 66(9):3383-3390.
[16]	YAN X, LI Z, ZOU C, et al. Renucleation and sequential growth of ZnO complex nano/microstructure:From nano/microrod to ball-sh-aped cluster[J]. The Journal of Physical Chemistry C, 2009, 114(3):1436-1443.
[17]	徐威. 冷凝成核微观过程与界面结构效应影响机制[D]. 大连:大连理工大学, 2015.
[18]	王雪. 颗粒聚集生长过程的动力学模拟[D]. 北京:中国科学院大学(中国科学院过程工程研究所), 2018.
[19]	LANARO G, PATEY G N. Birth of NaCl crystals:Insights from mo-lecular simulations[J]. The Journal of Physical Chemistry B, 2016, 120(34):9076-9087.
[20]	CHAKRABORTY D, PATEY G N. How crystals nucleate and grow in aqueous NaCl solution[J]. The Journal of Physical Chemistry Letters, 2013, 4(4):573-578.
[21]	窦翔宇. 反应-扩散调控材料成核过程的分子动力学模拟[D]. 北京:中国科学院大学(中国科学院过程工程研究所), 2020.
[22]	KADOTA K, SHIRAKAWA Y, WADA M, et al. Influence of clus-ters on the crystal surface of NaCl at initial growth stage investiga-ted by molecular dynamics simulations[J]. Journal of Molecular Liquids, 2012, 166(1):31-39.
[23]	YAMANAKA S, SHIMOSAKA A, SHIRAKAWA Y, et al. Molec-ular dynamics simulations of the formation for NaCl cluster at the interface between the supersaturated solution and the substrate[J]. Journal of Nanoparticle Research, 2010, 12(3):831-839.
[24]	KADOTA K, FURUKAWA R, SHIRAKAWA Y, et al. Effect of sur-face properties of calcium carbonate on aggregation process inves-tigated by molecular dynamics simulation[J]. Journal of Materials Science, 2014, 49(4):1724-1733.
[25]	柴汝宽, 刘月田, 杨莉, 等. 方解石表面结构影响水分子吸附的微观机理[J]. 哈尔滨工业大学学报, 2020, 52(4):170-179.
[26]	柴林涛, 乔秀臣, 秦东, 等. 结晶硫酸铝脱水过程中晶型与形貌的转变[J]. 无机盐工业, 2016, 48(11):17-20.
[27]	SHI W Y, XU W, CANG H, et al. Design and synjournal of biode-gradable antiscalant based on MD simulation of antiscale mecha-nism:A case of itaconic acid-epoxysuccinate copolymer[J]. Com-putational Materials Science, 2017, 136:118-125.

c（MgCO₃）/ （mol·L^-1）	离子数/个		密度/ （g·cm^-3）
c（MgCO₃）/ （mol·L^-1）	CO₃^2-	Mg²⁺	密度/ （g·cm^-3）
0.057	1	1	1.030
0.57	10	10	1.073
1.14	20	20	1.121
1.71	30	30	1.170
2.28	40	40	1.217
2.85	50	50	1.265
3.42	60	60	1.313
3.99	70	70	1.361
4.56	80	80	1.409

项目	原子类型	力场类型	电荷/C
CO₃^2-	C	c3i	+0.395 1
CO₃^2-	O	o1-	-0.798 4
Mg²⁺	Mg	mg+2	+2.000 0
H₂O	H	h1o	+0.410 0
H₂O	O	o2*	-0.820 0
