煤化工高盐废水复分解法制备硫酸钾实验研究

摘要/Abstract

摘要：

煤化工厂生产甲醇和轻烃过程会产生大量废液,将废液经过反渗透和纳滤膜浓缩以及减量处理可以得到高盐废水。以高盐废水为原料,将其浓缩至对硫酸钠饱和,然后采用两步转化法（复分解法）制备硫酸钾：第一步,向浓缩废水中加入氯化钾制备钾芒硝,产生的母液蒸发一部分水分得到氯化钠,向蒸发后的母液中加入硫酸钠得到浓缩母液,回收利用母液;第二步,以钾芒硝为原料加入氯化钾制备硫酸钾。考察了高盐废水浓缩倍率、氯化钾加入量、蒸发水量对钾芒硝纯度及产率的影响;考察了加水量、氯化钾加入量对硫酸钾纯度及产率的影响。得出以高盐废水为原料制备硫酸钾的适宜条件：制备钾芒硝过程,高盐废水浓缩倍率为4.35,以500 g浓缩废水为基准,氯化钾加入量为84.25 g,蒸发水量为100 g;制备硫酸钾过程,以100 g氯化钾为基准,钾芒硝用量为153.08 g,加水量为322.06 g。在此条件下得到的硫酸钾中水溶性氧化钾的质量分数为52.96%、氯离子质量分数为1.09%,符合GB/T20406—2017《农业用硫酸钾》优等品的要求。制备钾芒硝过程,母液循环利用3次,总有机碳（TOC）对钾芒硝的纯度影响不大,对白度有影响;钾芒硝与氯化钾制备硫酸钾产生的母液K,经过投加硫酸钠制备钾芒硝得到母液K″,母液K″与浓缩废水制备钾芒硝产生的母液F组成基本一致,验证了循环工艺路线的可行性。

关键词: 煤化工高盐废水, 硫酸钾, 钾芒硝, 硫酸钠

Abstract:

The process of methanol and light hydrocarbon production in coal chemical plant produces a large amount of waste-water and the high salt wastewater can be obtained by reverse osmosis,nanofiltration membrane concentration and reduction treatment.Potassium sulfate was prepared from high salt wastewater by two-step conversion（double decomposition） after being concentrated to saturate sodium sulfate.In the first step,aphthitalite was prepared by adding potassium chloride to concent-rated wastewater.Sodium chloride was obtained by evaporating part of water from the mother liquor and the mother liquor was concentrated by adding sodium sulfate,also the mother liquor was recycled.In the second step,potassium sulfate was prepared from aphthitalite by adding potassium chloride.The effects of concentration ratio,potassium chloride dosage and amount of evaporation water on the purity and yield of aphthitalite were investigated and the influence of the dosage of potassium chloride and water on the purity and yield of potassium sulphate were determined.The optimum conditions for the preparation of potassium sulfate from high-salt wastewater were concluded as follows：In the process of preparing aphthitalite,the concentration ratio of high salt wastewater was 4.35 times,the addition of potassium chloride was 84.25 g,and the amount of water evaporation was 100 g based on 500 g concentrated wastewater.In the process of preparing potassium sulfate,the dosage of aphthitalite and water were 153.08 g and 322.06 g based on 100 g potassium chloride,respectively.The mass frac-tion of K₂O and Cl ^- in potassium sulphate were 52.96% and 1.09%,respectively,which was in line with the requirements of premium grade in the standard of agricultural potassium sulfate（GB/T 20406—2017）.After the mother liquor was recycled for 3 times in the preparation process of aphthitalite,TOC has little effect on the purity and has an effect on the whiteness of aphthitalite.The mother liquor K was produced by the preparation of potassium sulfate by aphthitalite and potassium chloride,and the mother liquor K″ was obtained by adding sodium sulfate to the mother liquor K.The composition of mother liquor K″ was basically consistent with that of mother liquor F produced by concentrated waste water to prepare aphthitalite,which verified the feasibility of the circulating process route.

Key words: high-salt wastewater in coal chemical industry, potassium sulfate, aphthitalite, sodium sulfate

中图分类号:

X703

陈侠, 白凤霞, 史亚鹏, 董思成, 廖恩鑫, 李颖, 苗淑兰. 煤化工高盐废水复分解法制备硫酸钾实验研究[J]. 无机盐工业, 2019, 51(6): 57-61.

Chen Xia, Bai Fengxia, Shi Yapeng, Dong Sicheng, Liao Enxin, Li Ying, Miao Shulan. Experimental research of preparation of potassium sulfate from high-salt wastewater in coal chemical industry by double decomposition method[J]. Inorganic Chemicals Industry, 2019, 51(6): 57-61.

图/表 12

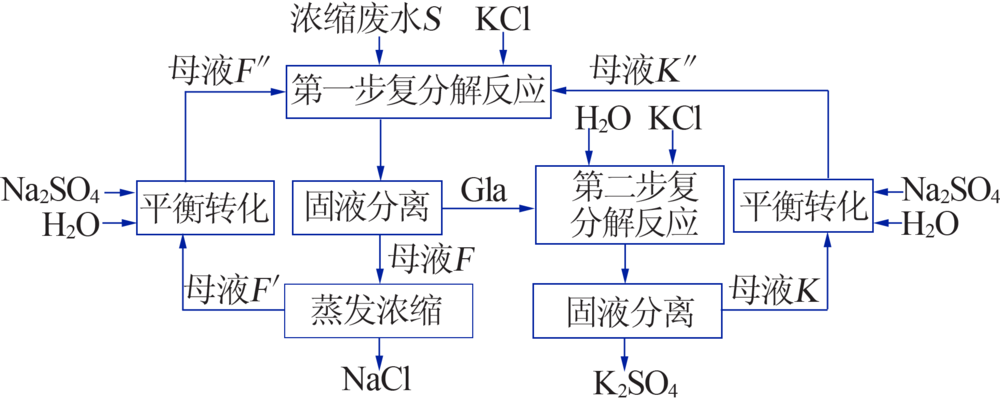

图1

表1

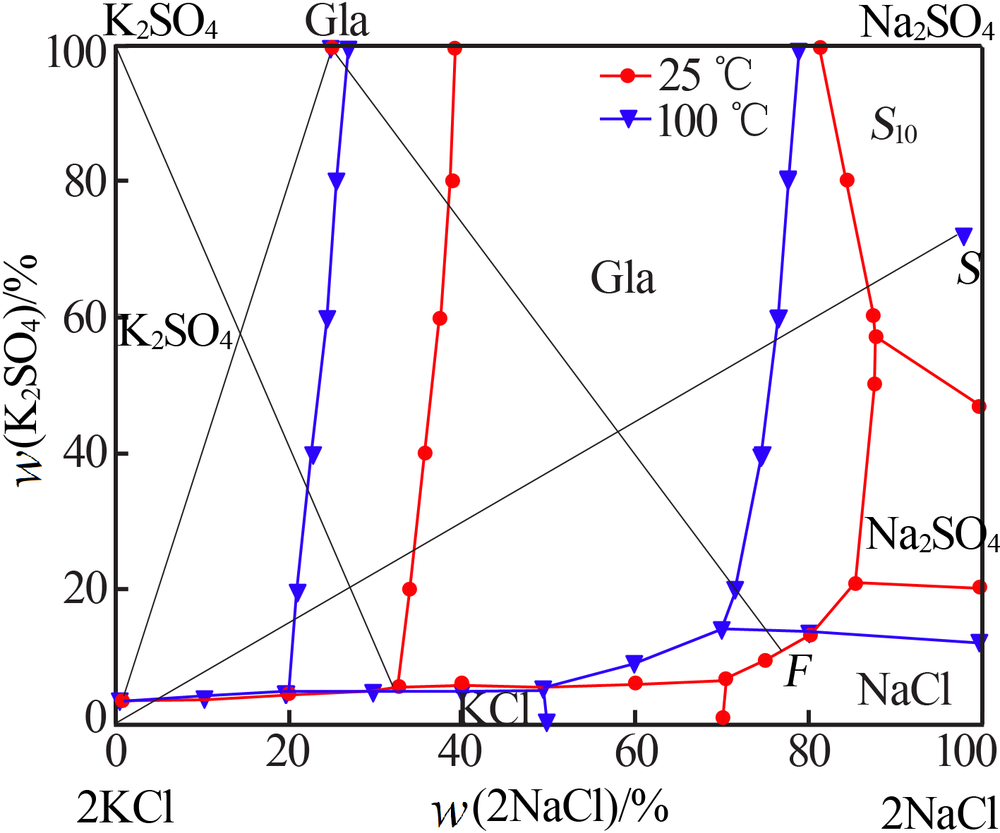

图2

图3

图4

图5

表2

表3

图6

表4

表5

表6

参考文献 19

[1]	成广勇 . 高盐度废水生物处理微生物相动态变化及其与污泥性能相关性研究[D]. 青岛:青岛大学, 2009.
[2]	Lefebvre O, Moletta R . Treatment of organic pollution in industrial saline wastewater:a literature review[J]. Water Research, 2017,40(20):3671-3682.
[3]	Sudarno U, Bathe S, Winter J , et al. Nitrification in fixed-bed reac-tors treating saline wastewater[J]. Applied Microbiology and Biotech-nology, 2010,85(6):2017-2030.
[4]	Wu Y, Xiao X, Song Z . Competitiveness analysis of coal industry in China:A diamond model study[J]. Resources Policy, 2017,52:39-53.
[5]	Cui P, Mai Z, Yang S , et al. Integrated treatment processes for coal-gasification wastewater with high concentration of phenol and am-monia[J]. Journal of Cleaner Production, 2017,142:2218-2226.
[6]	Gai H, Feng Y, Lin K , et al. Heat integration of phenols and ammo-nia recovery process for the treatment of coal gasification waste-water[J]. Chemical Engineering Journal, 2017,327:1093-1101.
[7]	Gerek E E, Yılmaz S, Koparal A S , et al. Combined energy and remo-val efficiency of electrochemical wastewater treatment for leather industry[J/OL]. Journal of Water Process Engineering[2017-05-18]. https:∥doi.org/10.1016/j.jwpe. 2017. 03. 007.
[8]	Gai H, Guo K, Xiao M , et al. Ordered mesoporous carbons as highly efficient absorbent for coal gasification wastewater-A real case study based on the Inner Mongolia Autonomous coal gasification waste-water[J]. Chemical Engineering Journal, 2018,341:471-482.
[9]	Zhao Q, Liu Y . State of the art of biological processes for coal gasi-fication wastewater treatment[J]. Biotechnology Advances, 2016,34(5):1064-1072.
[10]	Li Y, Tabassum S, Chu C , et al. Inhibitory effect of high phenol co-ncentration in treating coal gasification wastewater in anaerobic biofilter[J]. Journal of Environmental Sciences, 2018,64(2):207-215.
[11]	张桐, 刘健, 霍卫东 , 等. 煤化工反渗透浓缩液的“零排放”技术的研究现状[J]. 工业水处理, 2016,36(2):15-20.
[12]	郭沙沙, 张培玉, 曲洋 , 等. 高盐废水生物处理研究进展与可行性分析[J]. 四川环境, 2009,28(3):85-88.
[13]	Woolard C R, Irvine R L . Treatment of hypersaline wastewater in the sequencing batch reactor[J]. Water Research, 1995,29(4):1159-1168.
[14]	郑刚 . 高COD高硫酸根精细化工废水的微生物处理研究[D]. 杭州:浙江大学, 2011.
[15]	曹天飚, 郭伟, 马红钦 , 等. 盐卤中硫酸根脱除技术[J]. 中国井矿盐, 2017,37(4):19-22.
[16]	刘泼, 陈国松, 刘小祥 , 等. 联碱生产洗盐水中硫酸根的脱除工艺研究[J]. 化肥工业, 2017,33(4):31-32,35.
[17]	Lens P N L, Visser A, Janssen A J H , et al. Biotechnological treat-ment of sulfate-rich wastewaters[J]. Critical Reviews in Environ-mental Science and Technology, 1998,28(1):41-88.
[18]	卢芳仪, 刘晓红, 卢爱军 . 由硫酸钠废液制硫酸钾的研究[J]. 无机盐工业, 1997(5):38-41.
[19]	胡修权 . 富硫铵化工废水室温转化法提取硫酸钾肥的工艺探索[J]. 化工技术与开发, 2005,34(4):47-48.

项目	w（Na⁺）/ %	w（SO₄^2-）/ %	w（K⁺）/ %	w（Cl^-）/ %	w（NO₃^-）/ %	w（H₂O）/ %	w（TOC）/ （mg·kg^-1）	COD/ （mg·kg^-1）	pH
高盐废水	1.64	2.56	0.08	0.63	0.14	—	346.00	700	10
4.35倍率浓缩废水	7.36	11.59	0.31	2.58	0.86	77.30	1 341.85	—	—
硝酸钠折算成氯化钠后浓缩废水	7.51	11.59	0.31	3.30	—	77.29	—	—	—

项目	w（Na⁺）/ %	w（SO₄^2-）/ %	w（K⁺）/ %	w（Cl^-）/ %	w（NO₃^-）/ %	w（H₂O）/ %
母液F	8.86	2.84	4.53	14.26	1.74	67.77
硝酸钠折算成氯化钠母液F	9.30	3.91	6.98	17.82	0.00	61.99

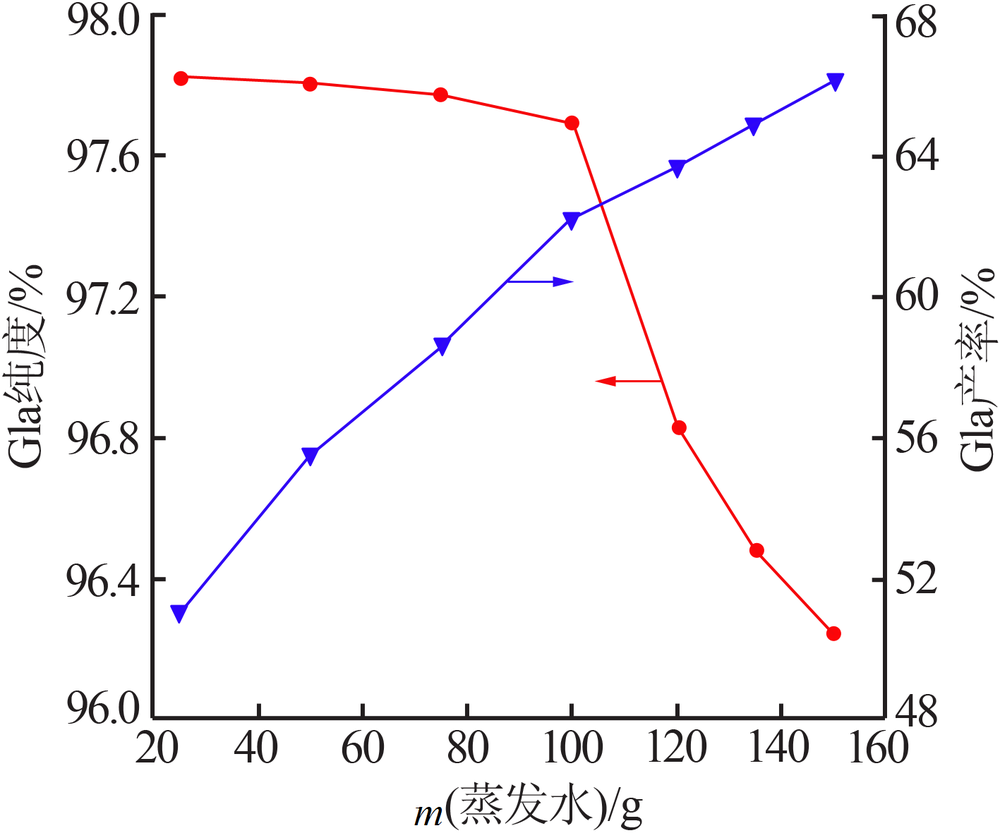

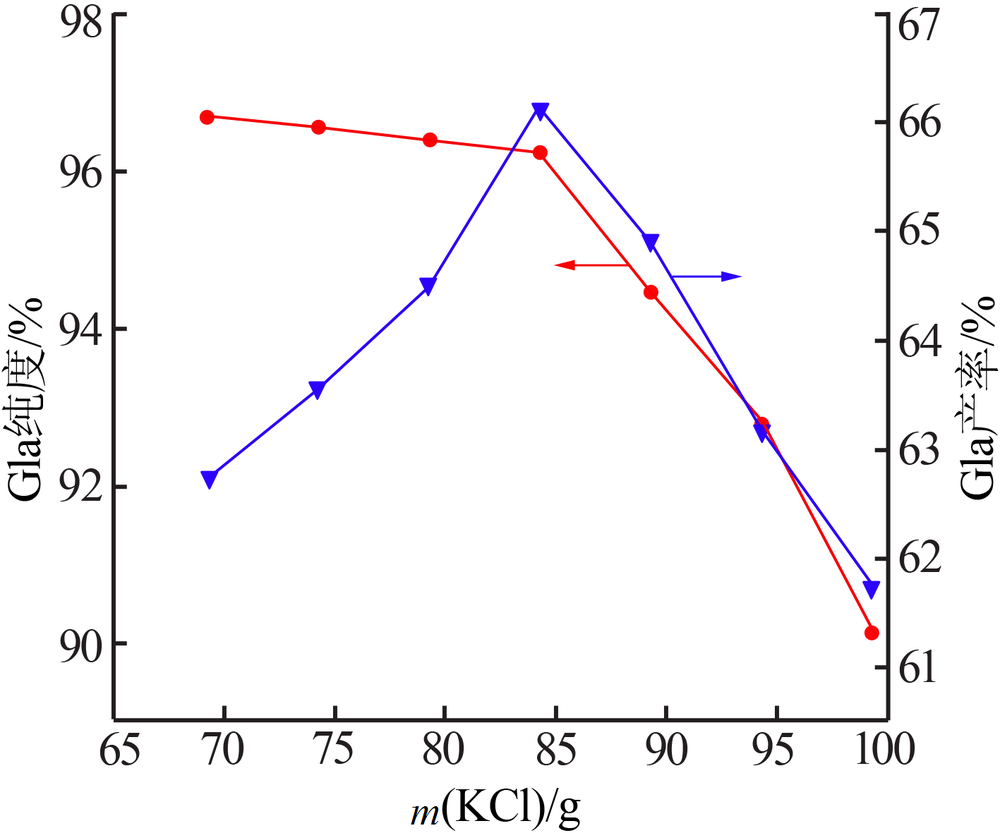

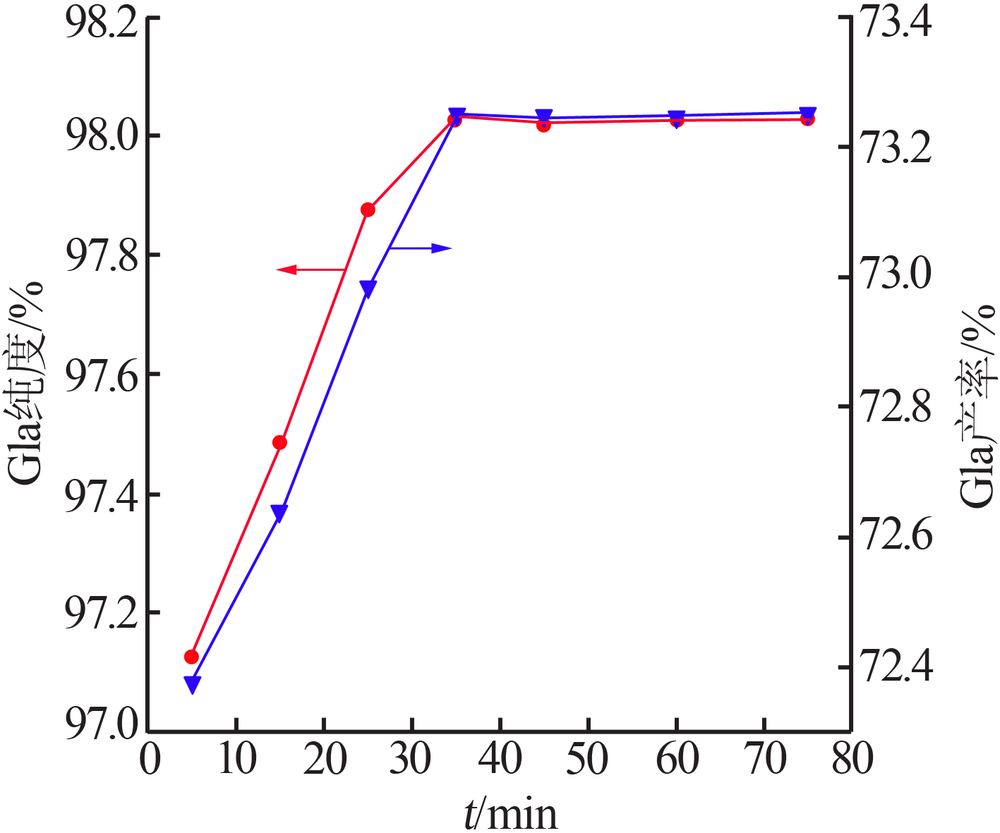

蒸发次数	模拟值				实际值				TOC/（mg·kg^-1）		白度/%
蒸发次数	m（NaCl）/ g	w（NaCl）/ %	m（Gla）/ g	w（Gla）/ %	m（NaCl）/ g	w（NaCl）/ %	m（Gla）/ g	w（Gla）/ %	NaCl	Gla	NaCl	Gla
1	63.71	96.75	12.40	97.55	63.45	96.41	12.14	97.30	527.32	3 445	68.9	67.5
2	45.76	96.10	9.87	97.11	45.23	96.64	9.85	96.85	650.45	4 620	63.4	64.1
3	36.54	95.65	7.81	96.75	36.55	95.48	7.54	96.21	691.23	5 100	59.3	60.3

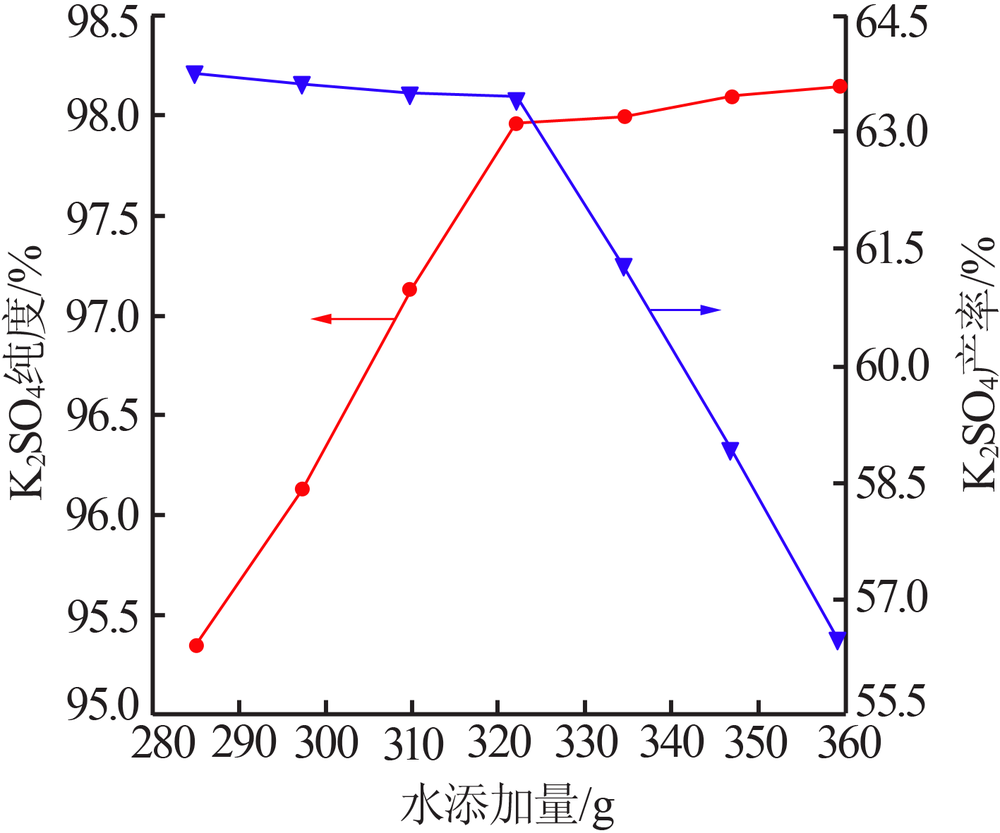

m（加水）/ g	硫酸钾		m（加水）/ g	硫酸钾
m（加水）/ g	w（K₂O）/%	w（Cl^-）/%	m（加水）/ g	w（K₂O）/%	w（Cl^-）/%
284.90	51.55	1.96	334.45	52.98	0.95
297.29	51.97	1.66	346.84	53.04	0.85
309.68	52.51	1.53	359.22	53.09	0.82
322.06	52.96	1.09

项目	m（母液K″）/g	w（Gla）/%	Gla产率/%
模拟值	364.21	97.65	76.81
实际值	368.88	97.20	76.01

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
