萃取法脱除磷酸二氢钾生产废水中氯离子的研究

doi:10.19964/j.issn.1006-4990.2025-0025

摘要/Abstract

摘要：

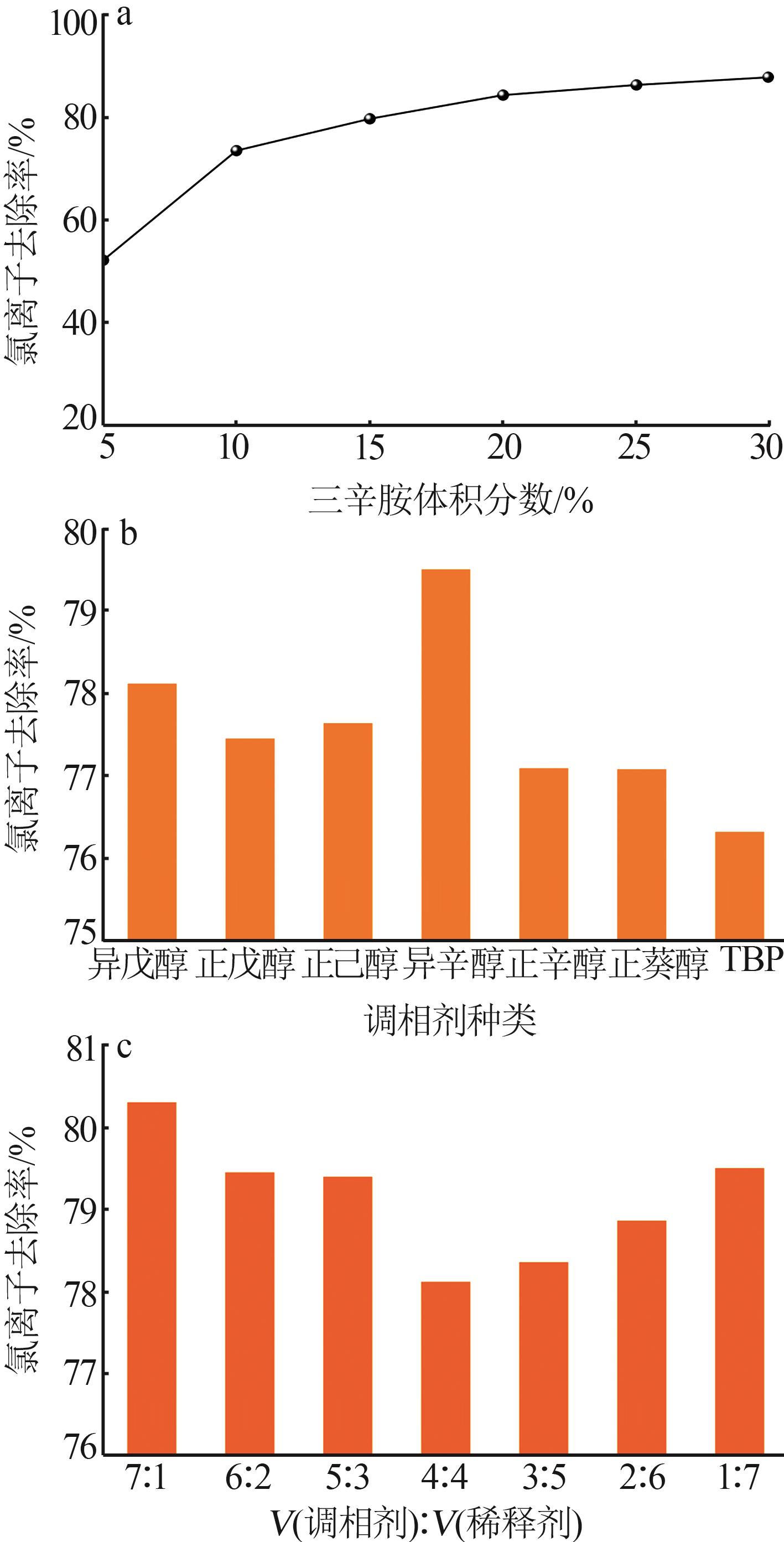

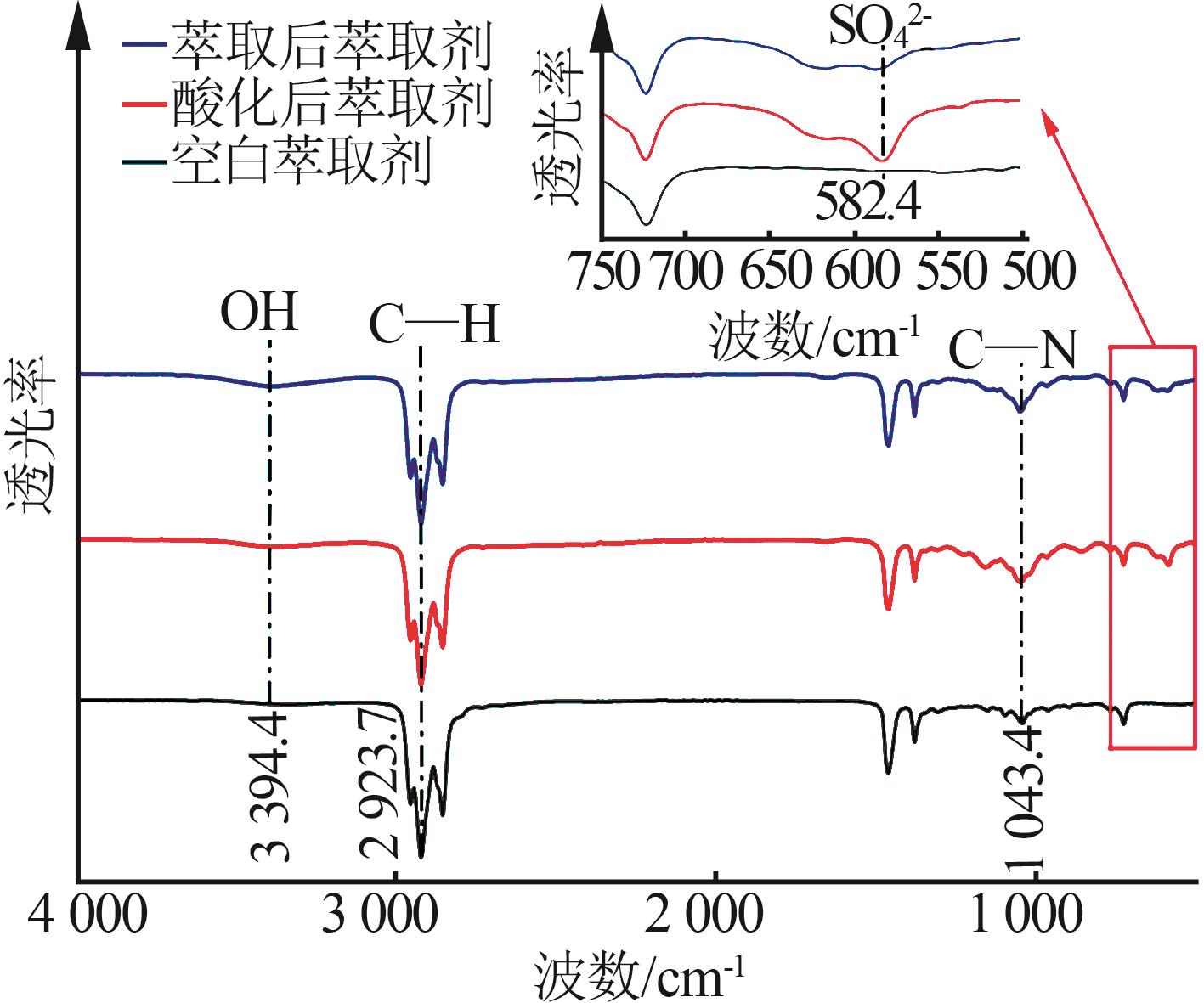

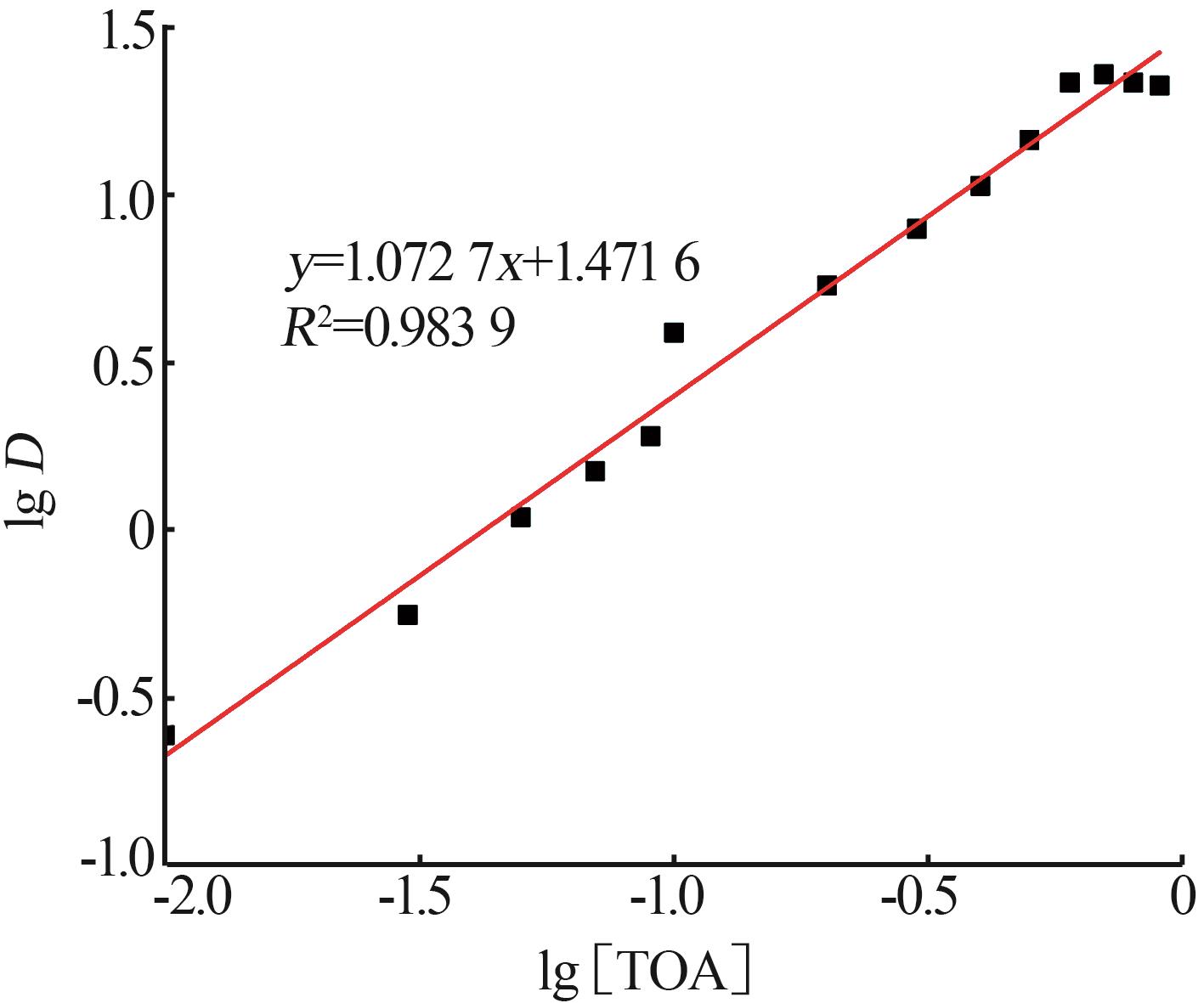

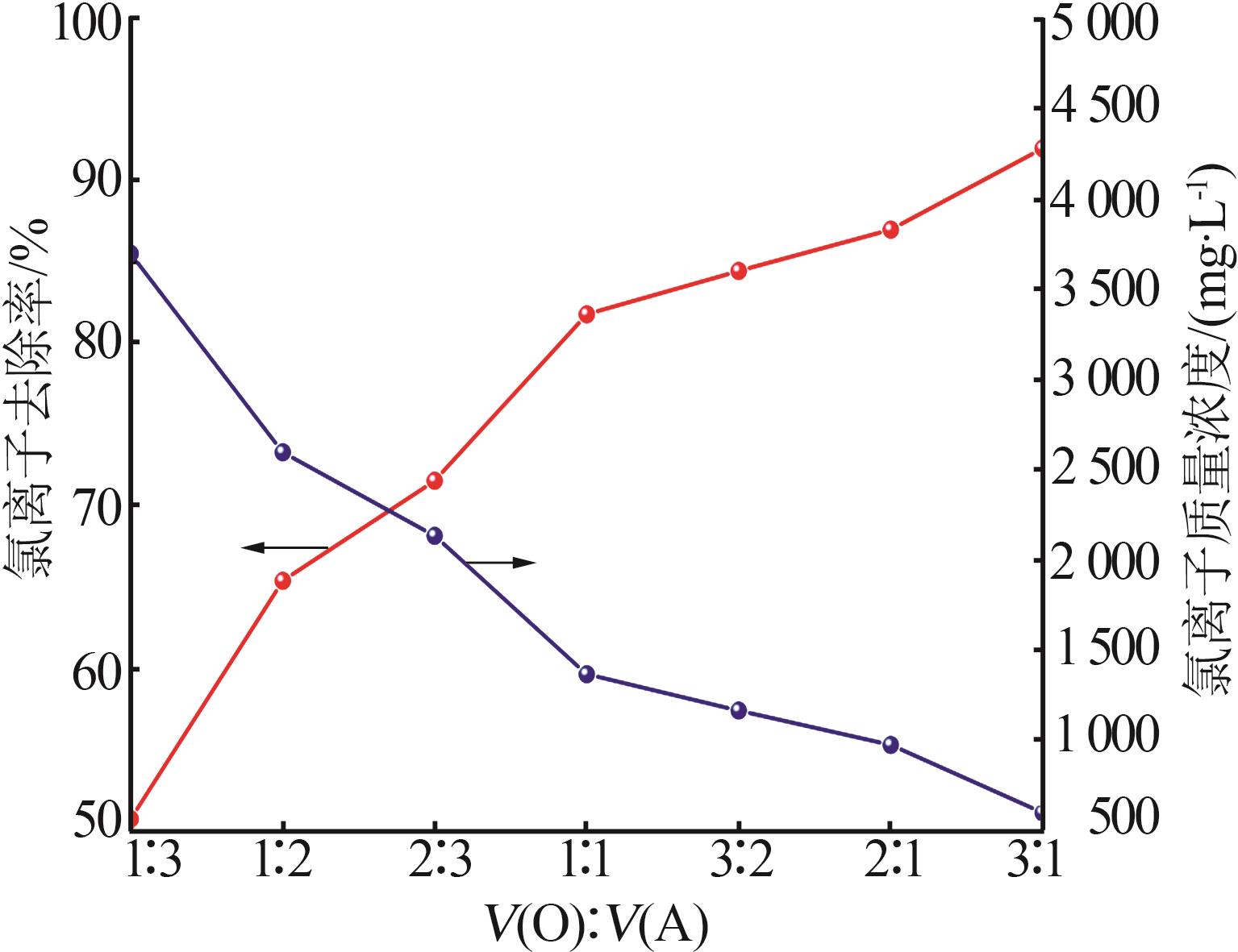

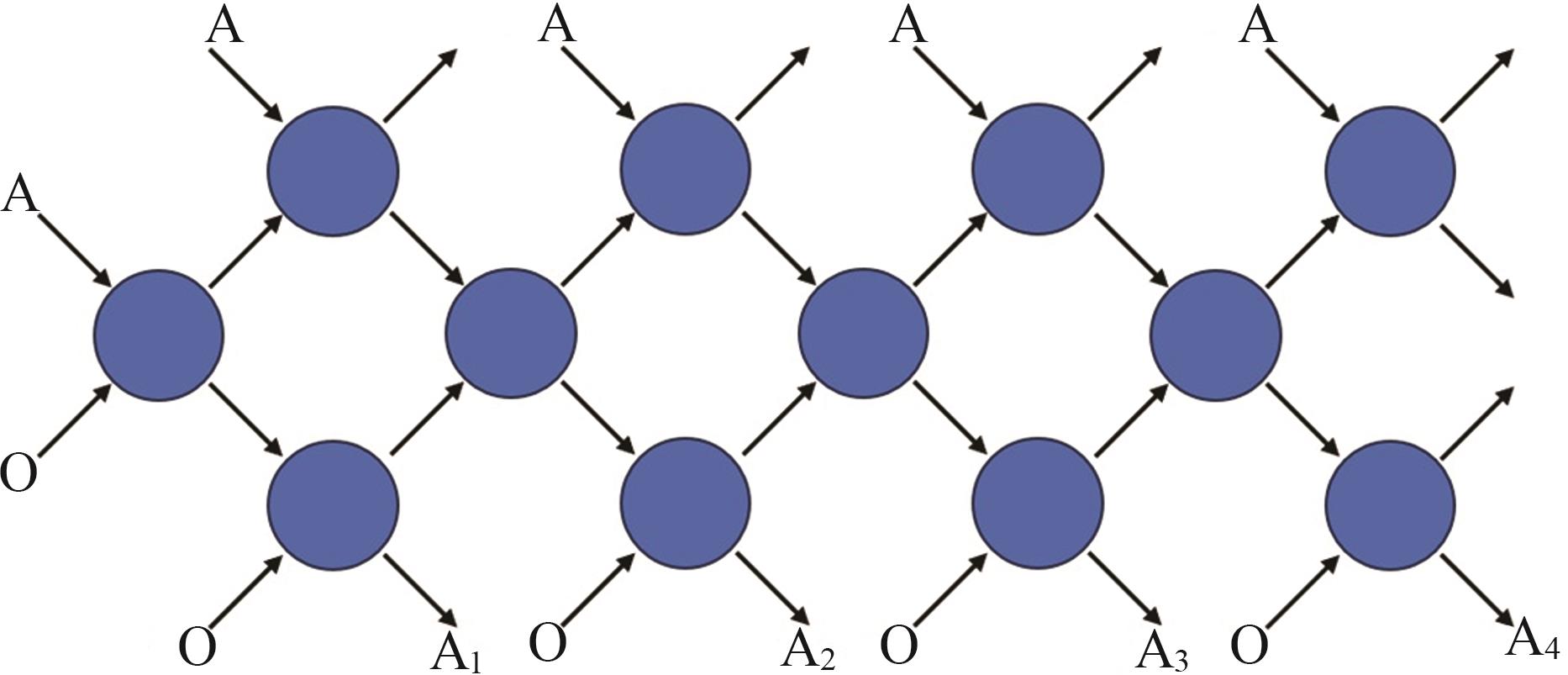

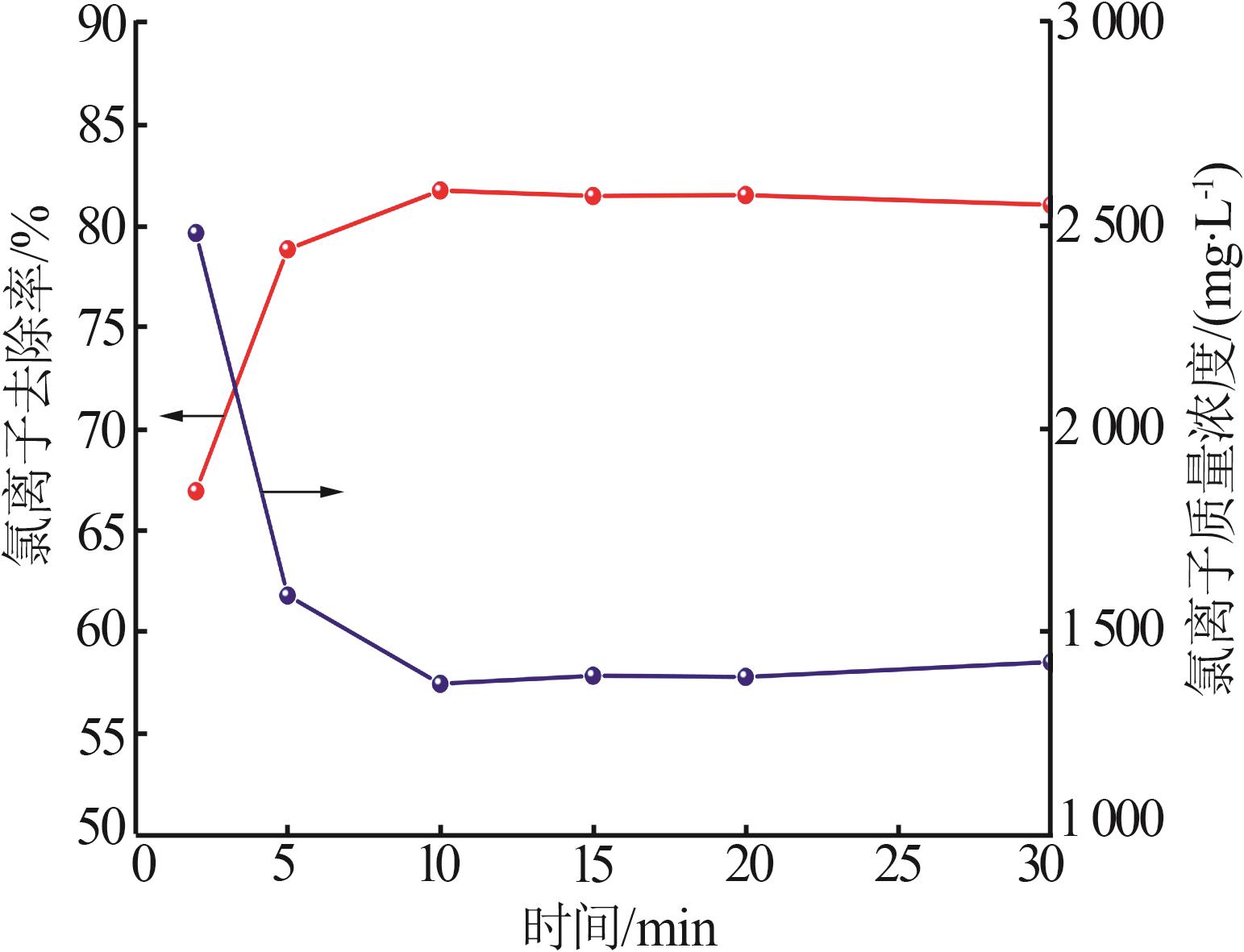

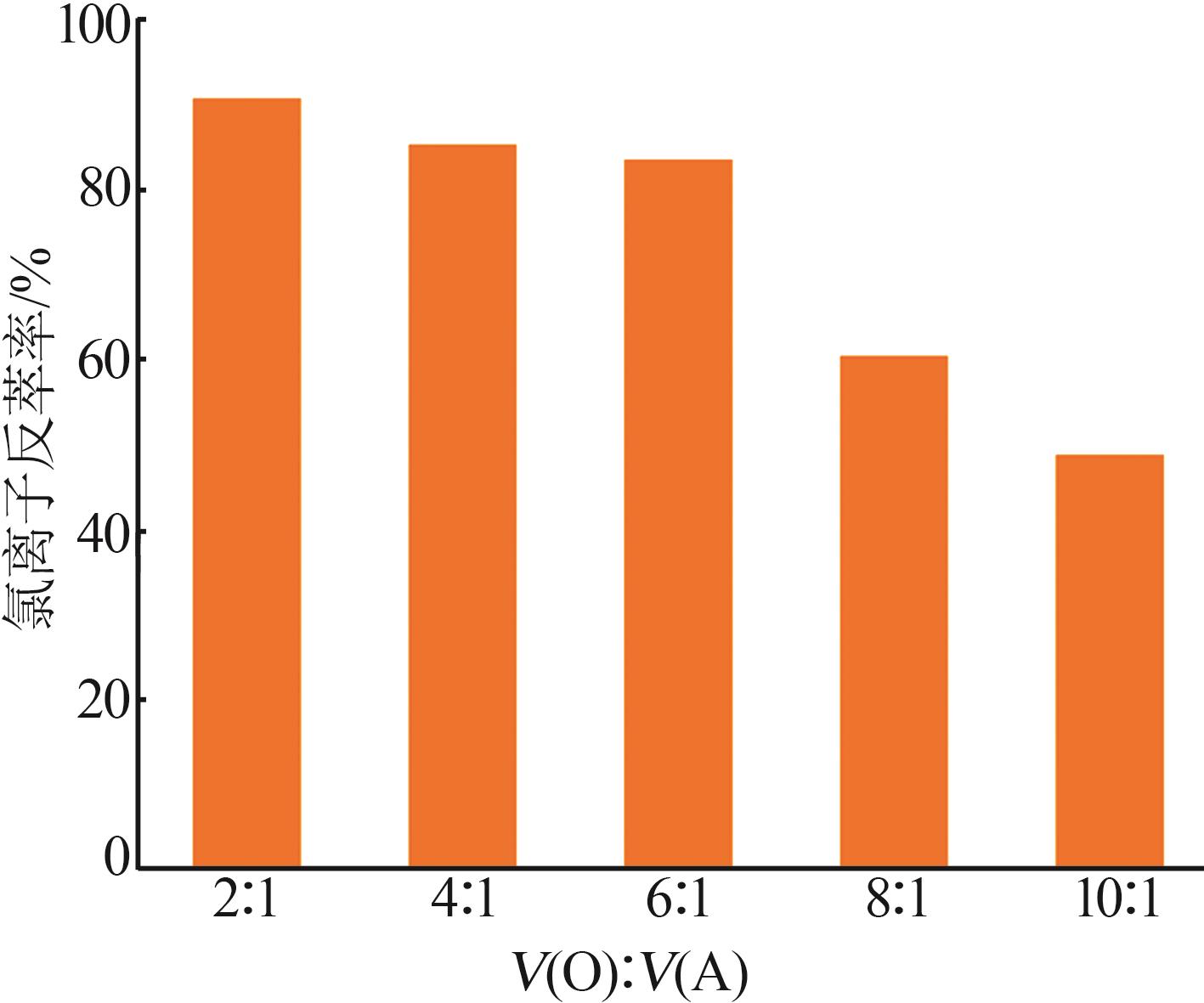

针对磷酸二氢钾生产过程中产生的高浓度含氯离子废水难以处理的问题，提出一种以三辛胺为萃取剂去除废水中氯离子的方法。研究萃取剂配方、萃取相比、萃取温度、萃取时间等因素对氯离子去除率的影响，并探索逆流萃取级数和反萃条件。结果表明：在萃取剂配方为三辛胺与异辛醇与煤油体积比为2∶1∶7、萃取相比（有机相与水相体积比）为1∶1、萃取温度为25 ℃、萃取时间为10 min条件下，经过三级逆流萃取后废水中氯离子质量浓度从7 500 mg/L降至294 mg/L，氯离子去除率达到96.08%；使用浓度为5 mol/L氨水进行三级逆流反萃，在反萃相比为6∶1条件下反萃率为95.43%。通过斜率法和红外光谱分析萃取机理，结果表明三辛胺萃取氯离子过程为离子缔合-离子交换过程，萃合物中三辛胺与氯离子的化学计量比为1∶1。研究提出的方法有效去除磷酸二氢钾生产废水中的氯离子，避免废水对后续处理设备的腐蚀，为磷酸二氢钾生产废水处理提供新的解决思路。

关键词: 磷酸二氢钾, 废水处理, 萃取法, 除氯

Abstract:

In response to the challenging issue of treating high-concentration chloride-containing wastewater generated during the production of monopotassium phosphate（MKP），a method for removing chloride ions from wastewater using trioctylamine（TOA） as an extractant was proposed.The effects of factors such as extractant formulation，extraction phase ratio，temperature and time on chloride ion removal rate were investigated，and the conditions for countercurrent extraction stages and stripping were explored.The results showed that under the conditions of an extractant formulation with a volume ratio of TOA，isooctyl alcohol，and kerosene at 2∶1∶7，with a phase ratio of 1∶1，an extraction temperature of 25 ℃，and an extraction time of 10 minutes，chloride ion concentration in the wastewater was decreased from 7500 mg/L to 294 mg/L after three stages of countercurrent extraction，achieving a chloride removal rate of 96.08%.Using 5 mol/L ammonia solution for three stages of countercurrent stripping with a phase ratio of 6∶1，the stripping rate reached 95.43%.The extraction mechanism was analyzed using the slope method and infrared spectroscopy，revealing that the extraction process followed an ion association-ion exchange mechanism，with a chloride-to-TOA molar ratio of 1∶1 in the extracted complex.This study presented an effective method for removing chloride ions from MKP production wastewater，preventing corrosion of equipment during subsequent treatment stages and providing a new approach for the treatment of chloride-containing wastewater in MKP production.

Key words: monopotassium phosphate, wastewater treatment, extraction method, chloride removal

中图分类号:

TQ115

陈泰尊, 李军, 金央. 萃取法脱除磷酸二氢钾生产废水中氯离子的研究[J]. 无机盐工业, 2026, 58(2): 92-99.

CHEN Taizun, LI Jun, JIN Yang. Study on removal of chloride ions from wastewater produced in production of monopotassium phosphate using extraction method[J]. Inorganic Chemicals Industry, 2026, 58(2): 92-99.

图/表 13

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

表2

表3

图10

参考文献 30

[1]	李伟.磷酸二氢钾的应用及市场分析［J］.盐科学与化工，2019，48（1）：7-9.
	LI Wei.Application and market analysis of potassium dihydrogen phosphate［J］.Journal of Salt Science and Chemical Industry，2019，48（1）：7-9.
[2]	汪朝强，唐浩，明大增，等.磷酸二氢钾生产方法现状及发展前景［J］.无机盐工业，2017，49（6）：7-11.
	WANG Chaoqiang， TANG Hao， MING Dazeng，et al.Discussion on current situation and prospects of potassium dihydrogen phosphate production methods［J］.Inorganic Chemicals Industry，2017， 49（6）：7-11.
[3]	吴俊虎，杨秀山，许德华，等.磷酸二氢钾生产工艺研究进展［J］.磷肥与复肥，2022，37（1）：21-25.
	WU Junhu， YANG Xiushan， XU Dehua，et al.Research progress on production technology of potassium dihydrogen phosphate［J］.Phosphate & Compound Fertilizer，2022，37（1）：21-25.
[4]	薛河南，师永林.溶剂萃取法生产磷酸二氢钾技术［J］.磷肥与复肥，2023，38（2）：16-18.
	XUE Henan， SHI Yonglin.Production technology of potassium dihydrogen phosphate by solvent extraction［J］.Phosphate & Compound Fertilizer，2023，38（2）：16-18.
[5]	孟洋，廖秋实，田承涛，等.工业磷酸一铵制备磷酸二氢钾技术研究［J］.磷肥与复肥，2024，39（6）：24-27.
	MENG Yang， LIAO Qiushi， TIAN Chengtao，et al.Preparation of potassium dihydrogen phosphate from industrial monoammonium phosphate［J］.Phosphate & Compound Fertilizer，2024，39（6）：24-27.
[6]	CAO Kefan， CHEN Zhuo， WU Yinhu，et al.The noteworthy chloride ions in reclaimed water：Harmful effects，concentration levels and control strategies［J］.Water Research，2022，215：118271.
[7]	DUAN Lizhe， YUN Qinghang， JIANG Gaoliang，et al.A review of chloride ions removal from high chloride industrial wastewater：Sources，hazards，and mechanisms［J］.Journal of Environmental Management，2024，353：120184.
[8]	DOU Wenyue， PENG Xianjia， KONG Linghao，et al.A review on the removal of Cl（-I） with high concentration from industrial wastewater：Approaches and mechanisms［J］.Science of the Total Environment，2022，824：153909.
[9]	HE Yuan， LI Xinpei， LI Tingting，et al.Research progress on removal methods of Cl^- from industrial wastewater［J］.Journal of Environmental Chemical Engineering，2023，11（1）：109163.
[10]	XIN Yi， ZHOU Zhen， MING Qiang，et al.A two-stage desalination process for zero liquid discharge of flue gas desulfurization wastewater by chloride precipitation［J］.Journal of Hazardous Materials，2020，397：122744.
[11]	ZHANG Yang， MA Baozhong， SHAO Shuang，et al.Removal of chloride from waste acid using Bi₂O₃：Thermodynamics and dechlorination behavior［J］.Journal of Water Process Engineering，2022，49：103048.
[12]	LIN Shunda， LV Guojun， KHALID Z，et al.Process optimization and mechanism for removal of high-concentration chlorine from municipal solid waste incineration fly ash washing wastewater by Friedel′s salt［J］.Journal of Environmental Management，2024，349：119542.
[13]	SHI Jiaqian， ZHOU Chuncai， XU Shihai，et al.Ultrasound-improved removal of chloride ions from coking circulating water by Friedel′s salt precipitation：Efficiency enhancement and me-chanisms［J］.Process Safety and Environmental Protection，2024，189：47-60.
[14]	LIU Weizao， Li LÜ， LU Yao，et al.Removal of chloride from simulated acidic wastewater in the zinc production［J］.Chinese Journal of Chemical Engineering，2019，27（5）：1037-1043.
[15]	RUCK E B， PORAT O BEN， GENDEL Y.Catalytic selective separation of chloride ions from acidic wastewater［J］.Separation and Purification Technology，2023，306：122502.
[16]	RODRÍGUEZ J F， NAVA J L.Active chlorine electrosynthesis from dilute chloride solutions in a flow cell equipped with a Ti\|Ti-Ru-Ir-oxides anode［J］.Chemical Engineering and Processing-Process Intensification，2024，196：109634.
[17]	ZAGO G P， PENHA F M， SECKLER M M.Product characteristics in simultaneous crystallization of NaCl and CaSO₄ from aqueous solution under different evaporation rates［J］.Desalination，2019，457：85-95.
[18]	LV Liang， SUN Peide， GU Zhengyu，et al.Removal of chloride ion from aqueous solution by ZnAl-NO₃ layered double hydroxides as anion-exchanger［J］.Journal of Hazardous Materials，2009，161（2/3）：1444-1449.
[19]	DRON J， DODI A.Comparison of adsorption equilibrium models for the study of Cl^–，NO₃ ^–and SO₄ ^2–removal from aqueous solutions by an anion exchange resin［J］.Journal of Hazardous Materials，2011，190（1/2/3）：300-307.
[20]	ZHANG Liangjing， LV Peng， HE Yuan，et al.Purification of chlorine-containing wastewater using solvent extraction［J］.Journal of Cleaner Production，2020，273：122863.
[21]	YAO Jiashu， LI Yali， SRINIVASAKANNAN C，et al.Extraction of chloride from slag flush wastewater using solvent N235［J］.Hydrometallurgy，2022，213：105934.
[22]	YAO Jiashu， RAN Jianfeng， SRINIVASAKANNAN C，et al.Chloride recovery and simultaneous CO₂ mineralization from rare earths high salinity wastewater by the Reaction-extraction-crystallization process［J］.Chemical Engineering Journal，2023，455：140620.
[23]	楚立军，苏秋琼，罗远辉，等.N235萃取脱除锌溶液中氟氯［J］.有色金属（冶炼部分），2020（4）：8-11.
	CHU Lijun， SU Qiuqiong， LUO Yuanhui，et al.Removal of fluorine and chlorine from zinc leaching solution by N235 extracti-on［J］.Nonferrous Metals（Extractive Metallurgy），2020（4）：8- 11.
[24]	赵海舰，刘田田，陈志东，等.萃取法去除燃煤电厂脱硫废水中的氯离子［J］.应用化工，2022，51（2）：386-391.
	ZHAO Haijian， LIU Tiantian， CHEN Zhidong，et al.Extraction method to remove chloride ion in desulfurization wastewater of coal-fired power plant［J］.Applied Chemical Industry，2022，51（2）：386-391.
[25]	高行庥，刘田田，孟雪璐，等.废水中高浓度氯离子的萃取脱除研究［J］.应用化工，2023，52（5）：1308-1312.
	GAO Xingxiu， LIU Tiantian， MENG Xuelu，et al.Extraction study of high concentration chloride ion in wastewater［J］.Applied Chemical Industry，2023，52（5）：1308-1312.
[26]	熊峰.曼海姆法硫酸钾生产工艺发展趋势与优化浅议［J］.中氮肥，2023（2）：70-73.
[27]	赵榛，翟大举.曼海姆硫酸钾复合肥制备工艺研究［J］.中国石油和化工标准与质量，2024，44（18）：167-169.
[28]	HASEGAWA K， KIMURA Y， ONO T A.Chloride cofactor in the photosynthetic oxygen-evolving complex studied by Fourier transform infrared spectroscopy［J］.Biochemistry，2002，41（46）：13839-13850.
[29]	XU Caixia， ZHOU Junwen， YIN Shaohua，et al.Solvent extraction and separation of zinc-iron from spent pickling solution with trin-octylamine［J］.Separation and Purification Technology，2021，278：119579.
[30]	SUN Linquan， YU Hongdong， MENG Fancheng，et al.A novel method for the separation of niobium and titanium from sulfuric acid-oxalate solutions using N235 and MIBK［J］.Hydrometallurgy，2021，205：105748.

样品	质量浓度/（mg·L^-1）
样品	Cl^-	H₂PO₄^-	F^-	SO₄^2-	Na⁺	K⁺	氨氮 COD
废水	7 500	29 745	1 100	1 440	2 100	13 600	3 400	1 150

级数	ρ（Cl^-）/（mg·L^-1）	级数	ρ（Cl^-）/（mg·L^-1）
原液	7 500	二级	591
一级	1 993	三级	294

样品	质量浓度/（mg·L^-1）
样品	Cl^-	H₂PO₄^-	F^-	SO₄^2-	Na⁺	K⁺	氨氮 COD
萃取后废水	294	29 538	481	12 498	2 100	13 600	3 400	1 430
