溶剂萃取法从低品位高黏土浸出液中提取锂的研究

doi:10.19964/j.issn.1006-4990.2022-0713

摘要/Abstract

摘要：

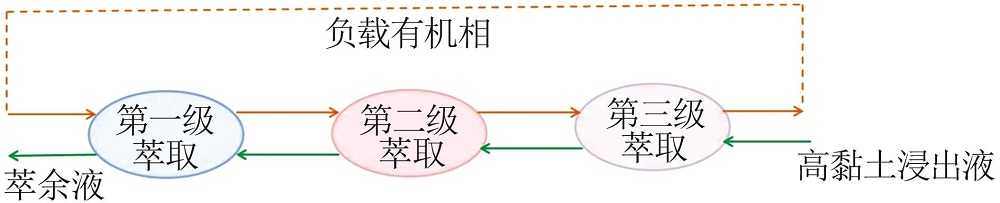

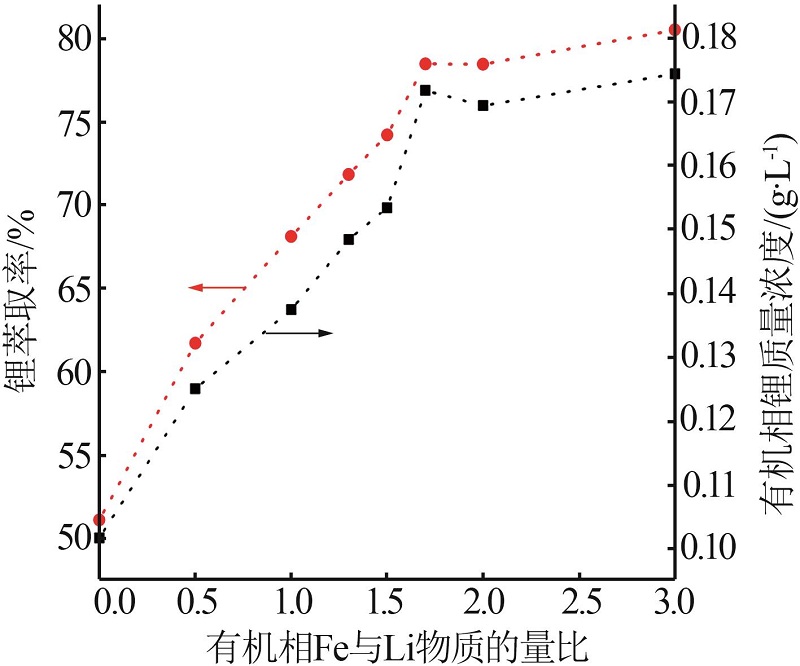

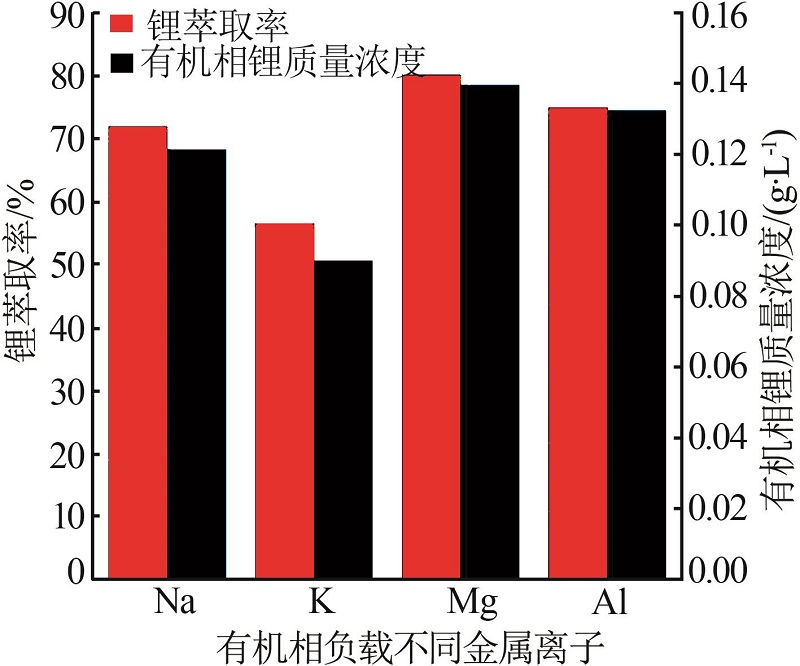

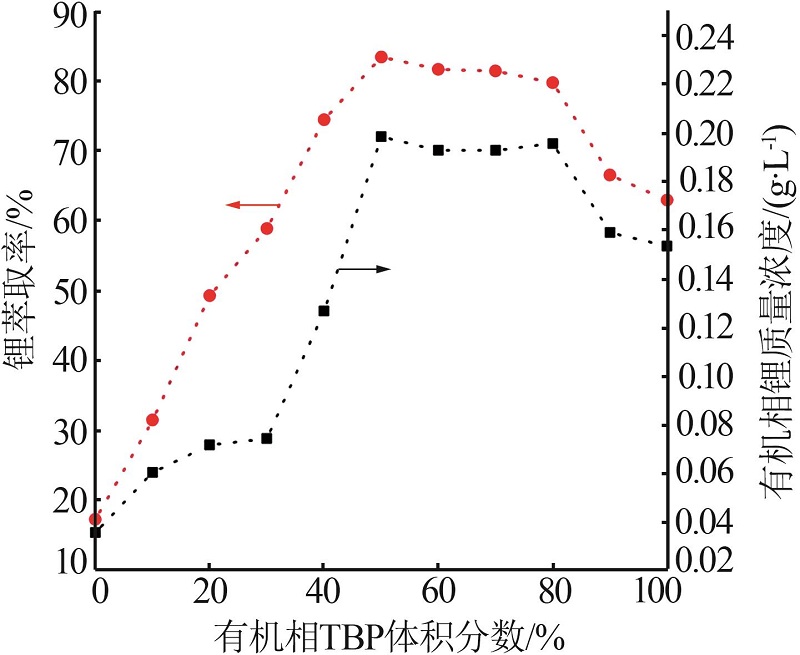

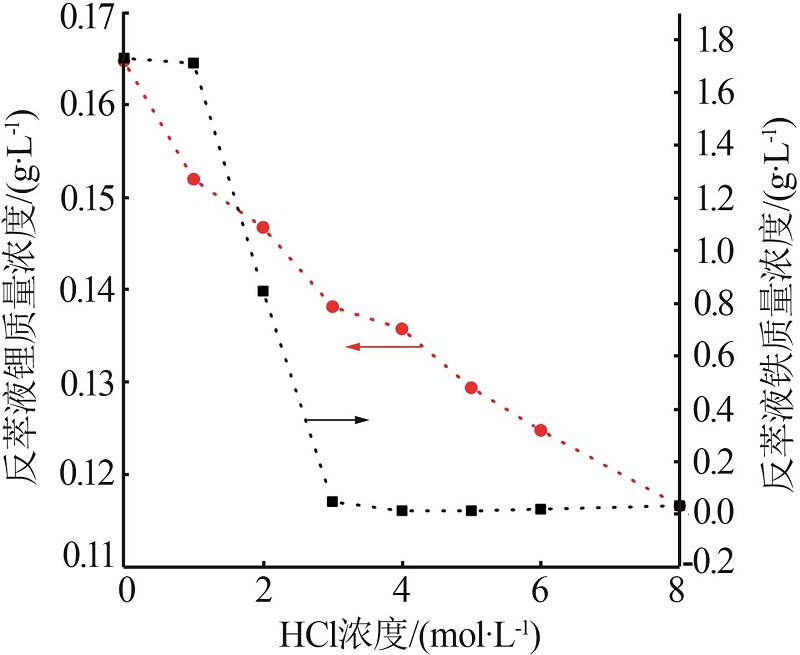

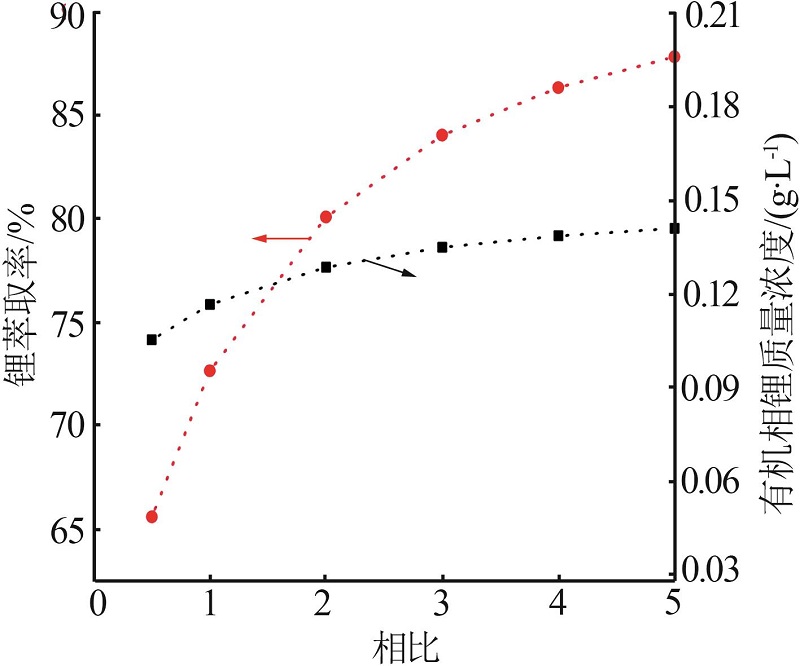

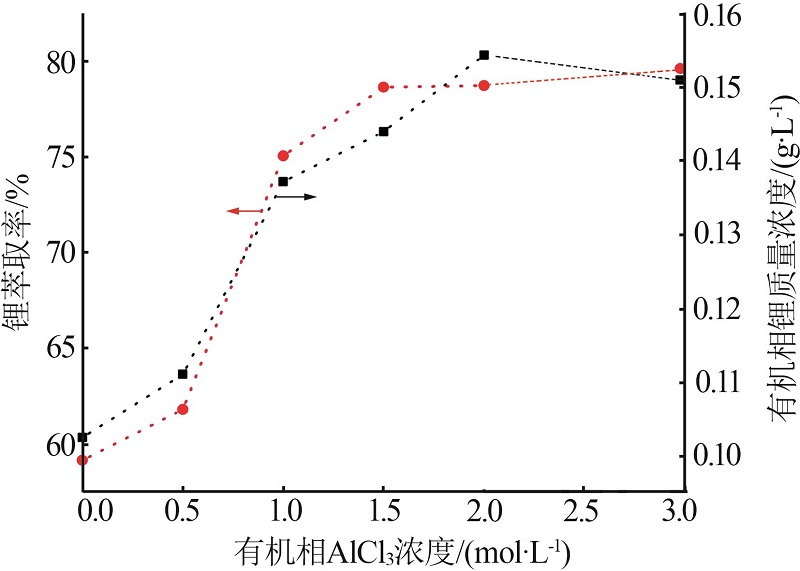

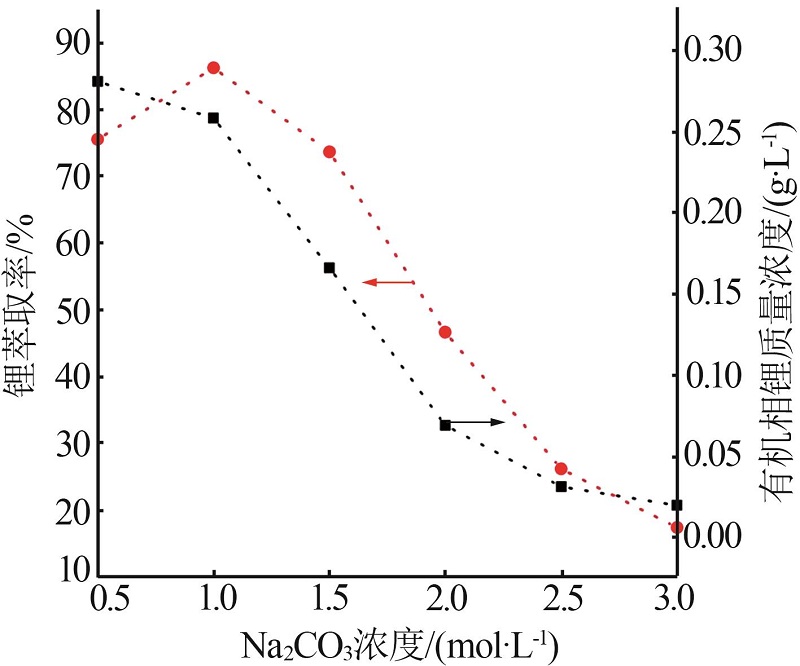

以磷酸三丁酯（TBP）为萃取剂、甲基异丁基酮（MIBK）为稀释剂、FeCl₃为共萃剂，采用溶剂萃取法开展从高黏土浸出液中分离提取锂的研究，考察了水相组成、负载有机相金属离子种类、负载有机相AlCl₃浓度、有机相TBP浓度、Fe与Li物质的量比、相比等因素对萃取性能的影响。结果表明，当水相组成确定为0.028 8 mol/L LiCl+0.036 5 mol/L FeCl₃+2 mol/L AlCl₃、负载有机相金属离子为Al³⁺、负载有机相中AlCl₃浓度为2 mol/L、TBP体积分数为50%、Fe与Li物质的量比为1.7、萃取相比（有机相与水相的体积比）为2:1时，萃取效果最佳。为了实现负载有机相的循环使用，3 mol/L HCl和1 mol/L Na₂CO₃分别被确定为反萃液和再生液。此外，采用三级逆流串级实验进行锂的串级萃取实验，经串级实验后，锂的萃取率达到了99.72%。以上研究结果表明TBP-MIBK-FeCl₃体系从低品位高黏土浸出液中分离提取锂资源是十分有效的。

关键词: 高黏土浸出液, 溶剂萃取法, 萃取锂, TBP-MIBK-FeCl₃萃取体系

Abstract:

Tributyl phosphate（TBP） was acted as extractant，Methyl isobutyl ketone （MIBK） was used as diluent，FeCl₃ played as co-extraction agent，and solvent extraction method was used to separate and extract lithium from high clay leaching solution.The effects of aqueous phase composition，the kinds of metal ion in loaded organic phase，AlCl₃ concentration in loaded organic phase，TBP concentration in organic phase，Fe/Li mass ratio，phase ratio and other factors on extraction performance were investigated.The experimental results showed that when the aqueous phase composition was determined as 0.028 8 mol/L LiCl+0.036 5 mol/L FeCl₃+2 mol/L AlCl₃，the metal ion in loaded organic phase was Al³⁺，the concentration of AlCl₃ in the loaded organic phase was 2 mol/L，the concentration of TBP was 50%，the molar ratio of Fe/Li was 1.7 and the phase ratio of（Volume ratio of organic phase to aqueous phase）2:1 the extraction effect was optimal.In order to realize the recycling of the loaded organic phase，3 mol/L HCl and 1 mol/L Na₂CO₃ were identified as the stripping and regeneration solution，respectively.In addition，in order to realize the efficient extraction of lithium resources，the three-stage counter-current cascade experiment was used to carry out the lithium cascade extraction experiment.After the cascade experiment，the extraction rate of lithium reached 99.72%.The experimental results indicated that TBP-MIBK-FeCl₃ extraction system could effectively separate and extract lithium from low grade and high clay leaching solution.

Key words: high clay leaching solution, solvent extraction, lithium extraction, TBP-MIBK-FeCl₃ extraction system

中图分类号:

TQ131.11

李慧芳, 王晓, 白有鹏, 张世翔. 溶剂萃取法从低品位高黏土浸出液中提取锂的研究[J]. 无机盐工业, 2023, 55(10): 63-69.

LI Huifang, WANG Xiao, BAI Youpeng, ZHANG Shixiang. Study on extraction of lithium from low grade high clay leaching solution by solvent extraction[J]. Inorganic Chemicals Industry, 2023, 55(10): 63-69.

图/表 11

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

表2

参考文献 23

1	SWAIN B.Recovery and recycling of lithium：A review［J］.Separation and Purification Technology，2017，172：388-403.
2	MESHRAM P， PANDEY B D， MANKHAND T R.Extraction of lithium from primary and secondary sources by pre-treatment，leac-hing and separation：A comprehensive review［J］.Hydrometallurgy，2014，150：192-208.
3	ZHANG Xiufeng， TAN Xiumin， LI Chun，et al.Energy-efficient and simultaneous extraction of lithium，rubidium and cesium from lepidolite concentrate via sulfuric acid baking and water leaching［J］.Hydrometallurgy，2019，185：244-249.
4	STERBA J， KRZEMIEŃ A， RIESGO FERNÁNDEZ P，et al.Lithium mining：Accelerating the transition to sustainable energy［J］.Resources Policy，2019，62：416-426.
5	乜贞，卜令忠，郑绵平.中国盐湖锂资源的产业化现状：以西台吉乃尔盐湖和扎布耶盐湖为例［J］.地球学报，2010，31（1）：95-101.
	NIE Zhen， BU Lingzhong， ZHENG Mianping.Lithium resources industrialization of salt lakes in China：A case study of the Xitaijinaier salt lake and the Zabuye salt lake［J］.Acta Geoscientica Sinica，2010，31（1）：95-101.
6	贾旭宏，李丽娟，曾忠民，等.磷酸三丁酯萃取体系从盐湖卤水提取锂［J］.无机盐工业，2011，43（8）：29-32.
	JIA Xuhong， LI Lijuan， ZENG Zhongmin，et al.Extracting lithium from salt lake brines by TBP extraction system［J］.Inorganic Chemicals Industry，2011，43（8）：29-32.
7	MARTIN G， SCHNEIDER A， VOIGT W，et al.Lithium extraction from the mineral zinnwaldite：Part Ⅱ：Lithium carbonate recovery by direct carbonation of sintered zinnwaldite concentrate［J］.Minerals Engineering，2017，110：75-81.
8	BARBOSA L I， VALENTE G， OROSCO R P，et al.Lithium extraction from β-spodumene through chlorination with chlorine gas［J］.Minerals Engineering，2014，56：29-34.
9	VIECELI N， NOGUEIRA C A， PEREIRA M F C，et al.Effects of mechanical activation on lithium extraction from a lepidolite ore concentrate［J］.Minerals Engineering，2017，102：1-14.
10	ZHANG Ye， HU Yuehua， WANG Li，et al.Systematic review of lithium extraction from salt-lake brines via precipitation approaches［J］.Minerals Engineering，2019，139：105868.
11	HE Lihua， XU Wenhua， SONG Yunfeng，et al.Selective removal of magnesium from a lithium-concentrated anolyte by magnesium ammonium phosphate precipitation［J］.Separation and Purification Technology，2017，187：214-220.
12	XIONG Jiachun， HE Lihua， ZHAO Zhongwei.Lithium extraction from high-sodium raw brine with Li_0.3FePO₄ electrode［J］.Desalination，2022，535：115822.
13	LIU Dongfu， LI Zheng， HE Lihua，et al.Facet engineered Li₃PO₄ for lithium recovery from brines［J］.Desalination，2021，514：115186.
14	LI Hongwei， WANG Ying， LI Tingyu，et al.Nanofiltration membrane with crown ether as exclusive Li⁺ transport channels achiev-ing efficient extraction of lithium from salt lake brine［J］.Chemical Engineering Journal，2022，438：135658.
15	ZANTE G， BOLTOEVA M， MASMOUDI A，et al.Lithium extraction from complex aqueous solutions using supported ionic liquid membranes［J］.Journal of Membrane Science，2019，580：62-76.
16	XIONG Yanhang， GE Tao， XU Liang，et al.A fundamental study on selective extraction of Li⁺ with dibenzo-14-crown-4 ether：Toward new technology development for lithium recovery from brines［J］.Journal of Environmental Management，2022，310：114705.
17	SU Hui， TAN Boren， ZHANG Jian，et al.Modelling of lithium extraction with TBP/P507-FeCl₃ system from salt-lake brine［J］.Separation and Purification Technology，2022，282：120110.
18	LI Huifang， LI Lijuan， LI Wu.Lithium extraction from aqueous solution using different metal chloride as co-extraction reagent［J］.Chemical Physics Letters，2020，754：137675.
19	LI Huifang， LI Lijuan， LI Wu，et al.The key factors and mechanism study on lithium extraction by TBP-FeCl₃ extraction system［J］.Chemical Physics Letters，2020，754：137740.
20	LI Huifang， LI Lijuan， JI Lianmin，et al.The extraction ability and mechanism in extraction lithium by several organic extractants［J］.Chemical Physics Letters，2019，733：136668.
21	ZHOU Zhiyong， FAN Jiahui， LIU Xueting，et al.Recovery of lithium from salt-lake brines using solvent extraction with TBP as extractant and FeCl₃ as co-extraction agent［J］.Hydrometallurgy，2020，191：105244.
22	YU Xiaoping， FAN Xuebing， GUO Yafei，et al.Recovery of lithium from underground brine by multistage centrifugal extraction using tri-isobutyl phosphate［J］.Separation and Purification Technology，2019，211：790-798.
23	时东，李丽娟，宋富根，等.N523-TBP混合萃取体系从盐湖卤水中萃取锂的机理研究［J］.盐湖研究，2017，25（1）：57- 63.
	SHI Dong， LI Lijuan， SONG Fugen，et al.Mechanism study of extracting lithium from brine with N523-TBP mixed extraction system［J］.Journal of Salt Lake Research，2017，25（1）：57-63.

有机相	水相	锂萃取率/%
负载Mg有机相	0.028 8 mol/L LiCl+0.036 5 mol/L FeCl₃	0.00
负载Mg有机相	0.028 8 mol/L LiCl+2 mol/L AlCl₃	38.54
负载Mg有机相	0.028 8 mol/L LiCl+0.036 5 mol/L FeCl₃+2 mol/L AlCl₃	82.66
