两步烧结法对AlN原料提纯工艺的研究

doi:10.19964/j.issn.1006-4990.2024-0367

摘要/Abstract

摘要：

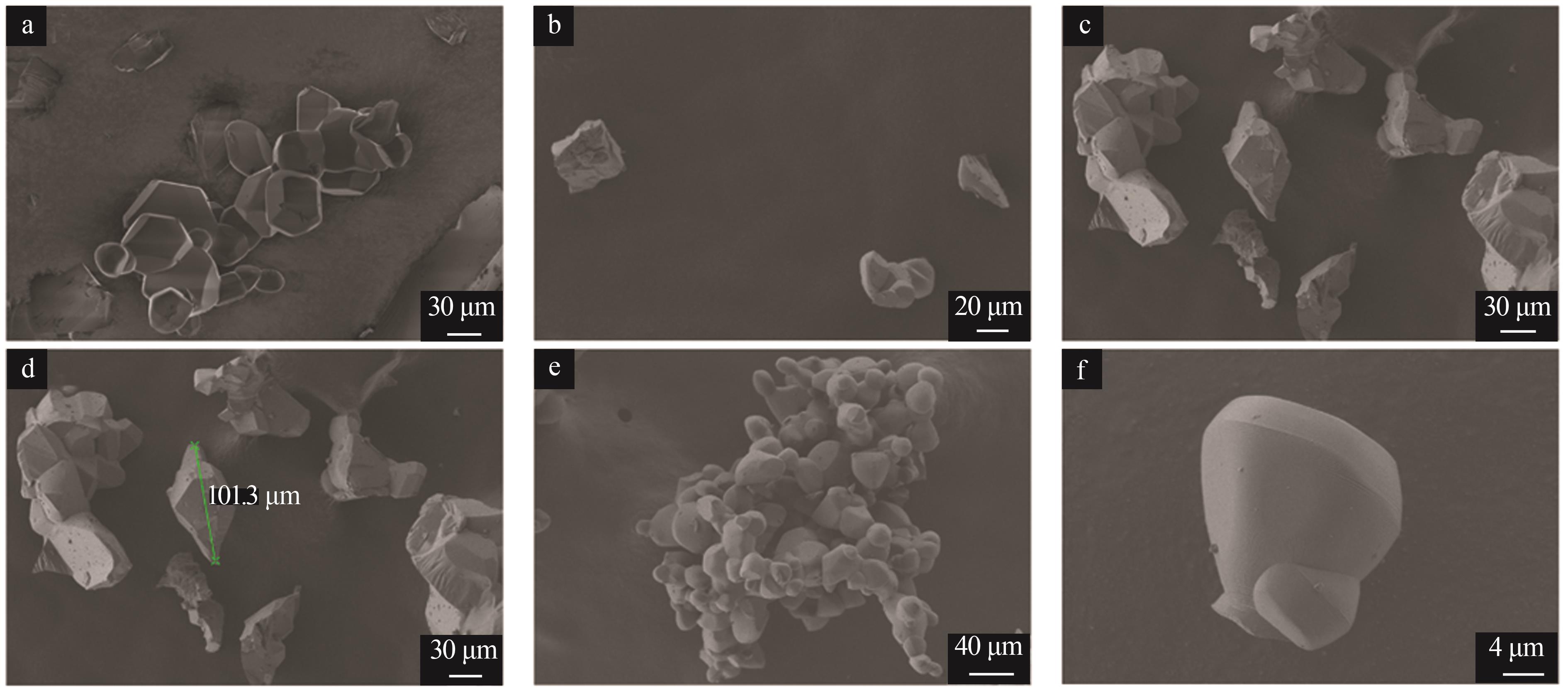

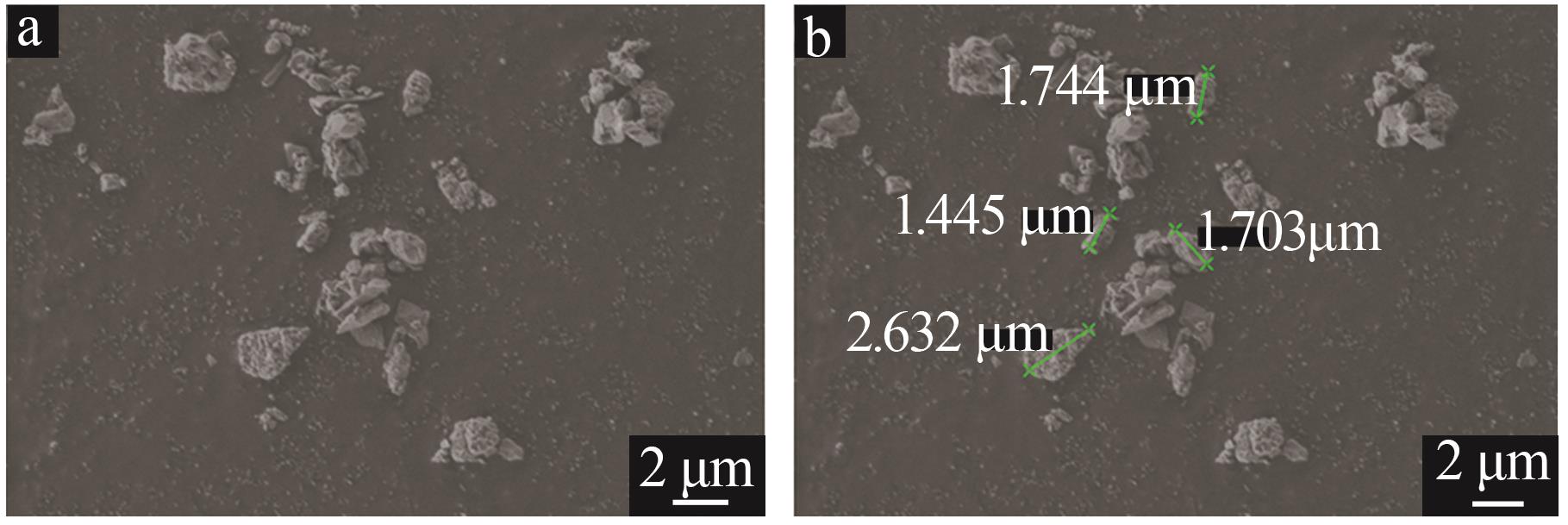

氮化铝（AlN）晶体作为超宽禁带半导体材料的代表之一，具有大的禁带宽度、高热导率、高的击穿场强等优异性质，在深紫外光电器件和大功率电子器件等领域具有重要的应用。在氮化铝晶体的生长过程中，AlN原料中的O、C含量过高导致晶体内部缺陷浓度过高或者生长多晶，从而会影响生长后的AlN单晶质量。该研究提出一种两步烧结工艺对AlN原料进行提纯，并使用扫描电子显微镜（SEM），氧氮氢气体分析仪、碳硫气体分析仪对烧结后的样品进行表征。SEM结果表明，AlN粉末的粒径从1~3 μm增加到100 μm左右，比表面积减小，降低了O杂质的吸附，并且烧结之后的AlN粉末颗粒具有良好的结晶性。氧氮氢气体分析仪、碳硫气体分析仪结果表明，O元素杂质含量从7 900 μg/g降低至640 μg/g，C元素杂质从420 μg/g降低至57 μg/g。综上所述，两步烧结工艺是控制AlN粉末比表面积的有效途径，能够有效去除AlN中的O、C等杂质，提高了AlN原料的结晶质量，为高质量AlN晶体生长奠定基础。

关键词: AlN原料, 提纯, 烧结工艺, O杂质, C杂质

Abstract:

Aluminum nitride（AlN） crystal，as one of the representatives of ultra-wideband semiconductor materials，has excellent properties such as large bandwidth，high thermal conductivity，and high breakdown field strength，which has important applications in the fields of deep-ultraviolet optoelectronic devices and high-power electronic devices.During the growth process of AlN crystals，the high O and C content in the AlN source material lead to the high concentration of defects inside the crystals or the growth of polycrystals，which will affect the quality of the AlN single crystals.In this paper，a two-step sintering process was proposed to purify the AlN source material，and the sintered samples were characterized by scanning electron microscope（SEM）、oxygen，nitrogen，and hydrogen gas analyzer、carbon and sulfur gas analyzer.The SEM results showed that the particle size of the AlN powder was increased from 1~3 μm to about 100 μm，the specific surface area was reduced，and the adsorption of the O impurities was reduced，and the sintered AlN particles had good crystallinity.The results of oxygen，nitrogen and hydrogen gas analyzer、carbon and sulfur gas analyzer showed that the O impurity content was reduced from 7 900 μg/g to 640 μg/g，and the C impurity was reduced from 420 μg/g to 57 μg/g.In summary，the two-step sintering process was an effective way to control the specific surface area of the AlN source material，which was capable of effectively removing the O，C and other impurities in the AlN source material，and improved the crystalline quality of the AlN source material，laying a foundation for the growth of high-quality AlN crystal.

Key words: AlN source material, purification, sintering process, oxygen impurities, carbon impurities

中图分类号:

TQ133.1

吕令爽, 曹文豪, 俞瑞仙, 王守志, 王国栋, 朱亚军, 杜家宸, 徐现刚, 张雷. 两步烧结法对AlN原料提纯工艺的研究[J]. 无机盐工业, 2024, 56(12): 51-55.

LÜ Lingshuang, CAO Wenhao, YU Ruixian, WANG Shouzhi, WANG Guodong, ZHU Yajun, DU Jiachen, XU Xiangang, ZHANG Lei. Research on purification process of AlN source material by two-step sintering method[J]. Inorganic Chemicals Industry, 2024, 56(12): 51-55.

图/表 6

表1

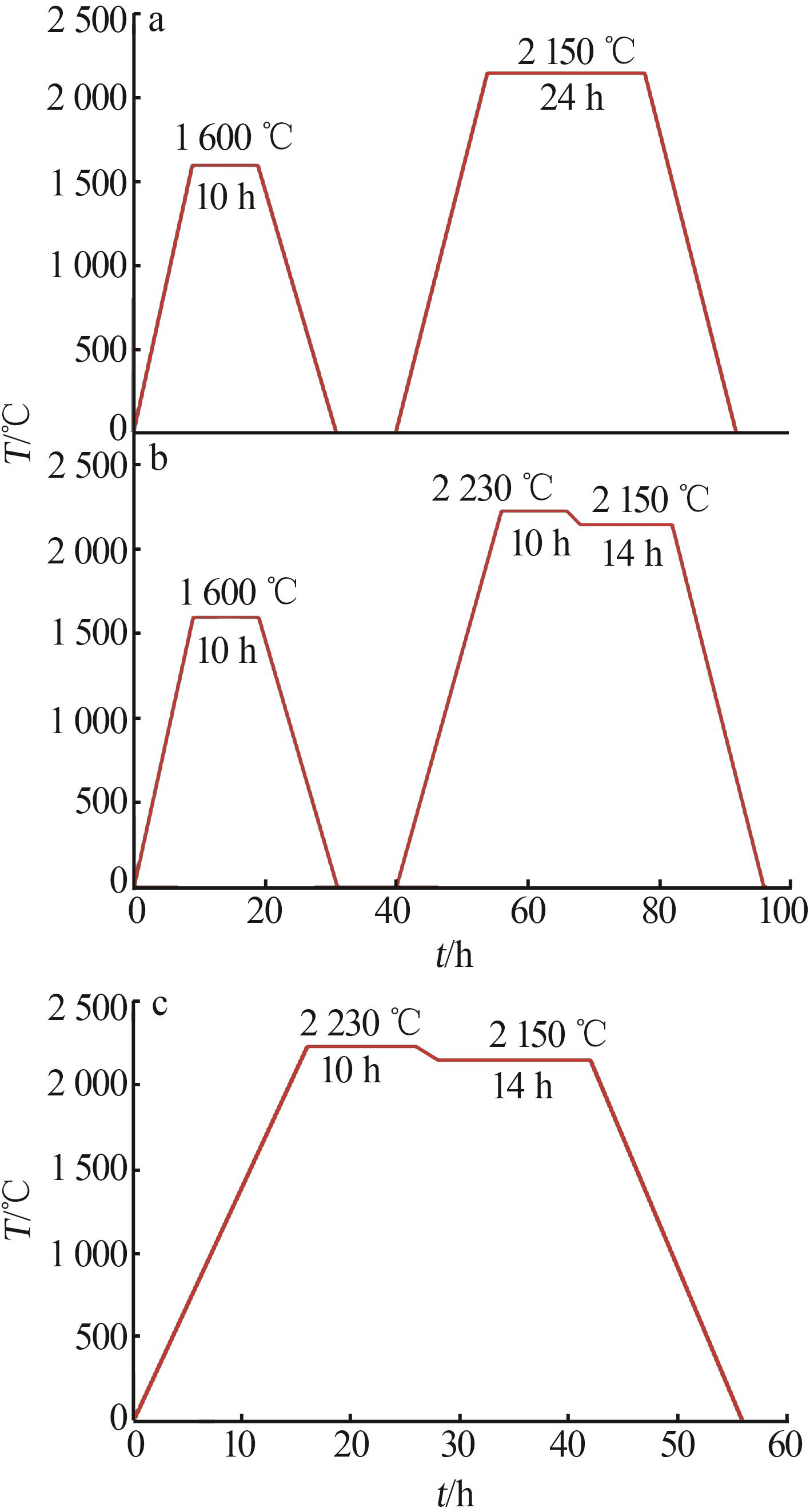

图1

图2

图3

图4

表2

参考文献 17

[1]	YU Ruixian， LIU Guangxia， WANG Guodong，et al.Ultrawide-bandgap semiconductor AlN crystals：Growth and applications［J］.Journal of Materials Chemistry C，2021，9（6）：1852-1873.
[2]	付丹扬，龚建超，雷丹，等.PVT法AlN单晶生长技术研究进展及其面临挑战［J］.人工晶体学报，2020，49（7）：1141-1156.
	FU Danyang， GONG Jianchao， LEI Dan，et al.Research progress and future challenges of AlN single crystal growth by physical vapor transport method［J］.Journal of Synthetic Crystals，2020，49（7）：1141-1156.
[3]	LANG Jing， XU Fujun， WANG Jiaming，et al.Progress in performance of AlGaN-based ultraviolet light emitting diodes［J］.Advanced Electronic Materials，2024：2300840.
[4]	王国栋.PVT法生长AlN晶体及其性质研究［D］.济南：山东大学，2020.
	WANG Guodong.Study on growth and properties of AlN crystal by PVT method［D］.Jinan：Shandong University，2020.
[5]	KARPOV S Y， KULIK A V， PRZHEVALSKII I N，et al.Role of oxygen in AlN sublimation growth［J］.Physica Status Solidi（c），2003（7）：1989-1992.
[6]	BICKERMANN M， EPELBAUM B M， WINNACKER A.PVT growth of bulk AlN crystals with low oxygen contamination［J］.Physica Status Solidi（c），2003（7）：1993-1996.
[7]	汪佳，曹凯，刘理想，等.单晶生长用AlN粉料的烧结提纯工艺实验研究［J］.半导体光电，2017，38（6）：830-833.
	WANG Jia， CAO Kai， LIU Lixiang，et al.Experimental research on AlN powder source purification by sintering process for AlN crystal growth［J］.Semiconductor Optoelectronics，2017，38（6）：830-833.
[8]	KIM J， KIM Y H， SHIN Y J，et al.The effect of thermally treated AlN powder on PVT-grown single crystals［J］.CrystEngComm，2023，25（2）：314-320.
[9]	俞瑞仙，王国栋，王守志，等.原料颗粒度对AlN晶体生长的影响［J］.人工晶体学报，2024，53（1）：58-64.
	YU Ruixian， WANG Guodong， WANG Shouzhi，et al.Effect of granularity of raw materials on growth of AlN crystal［J］.Journal of Synthetic Crystals，2024，53（1）：58-64.
[10]	EDGAR J H， DU L， NYAKITI L，et al.Native oxide and hydroxides and their implications for bulk AlN crystal growth［J］.Journal of Crystal Growth，2008，310（17）：4002-4006.
[11]	姚向阳，芦伟，纪君宇，等.煅烧温度对湿化学法制备AlN粉体的影响［J］.人工晶体学报，2022，51（8）：1451-1458.
	YAO Xiangyang， LU Wei， JI Junyu，et al.Effect of calcination temperature on AlN powder prepared by wet chemical method［J］.Journal of Synthetic Crystals，2022，51（8）：1451-1458.
[12]	GUGUSCHEV C， MOUKHINA E， WOLLWEBER J，et al. In situ kinetic investigations during aluminium nitride purification and crystal growth processes by capillary coupled mass spectrometry［J］.Thermochimica Acta，2011，526（1/2）：213-221.
[13]	刘京明，刘彤，杨俊，等.AlN原料的钨网炉高温提纯［J］.材料科学与工程学报，2015，33（4）：601-604.
	LIU Jingming， LIU Tong， YANG Jun，et al.Purification of AlN source material using a tungsten mesh furnace［J］.Journal of Materials Science and Engineering，2015，33（4）：601-604.
[14]	GUGUSCHEV C， DITTMAR A， MOUKHINA E，et al.Growth of bulk AlN single crystals with low oxygen content taking into account thermal and kinetic effects of oxygen-related gaseous species［J］.Journal of Crystal Growth，2012，360：185-188.
[15]	FU Danyang， WANG Qikun， ZHANG Gang，et al.Modelling and simulation of oxygen transport during AlN crystal growth by the PVT method［J］.Journal of Crystal Growth，2020，551：125902.
[16]	LEE K H， JEONG S M， KWON W T，et al.Purification and size control of AlN powder for AlN single crystal growth［J］.Materials Science Forum，2014，804：107-110.
[17]	WANG Zeren， ZHU Xingyu， ZHAO Qiyue，et al.Oxygen reduction through specific surface area control of AlN powder for AlN single-crystal growth by physical vapor transport［J］.Semiconductor Science Technology，2024，39（2）：025006.

样品	C含量/（μg·g^-1）	O含量/（μg·g^-1）
初始样品	420	7 900
样品1	100	820
样品2	57	640
样品3	240	790
