钙芒硝石膏深度提纯工艺的研究

doi:10.19964/j.issn.1006-4990.2022-0075

摘要/Abstract

摘要：

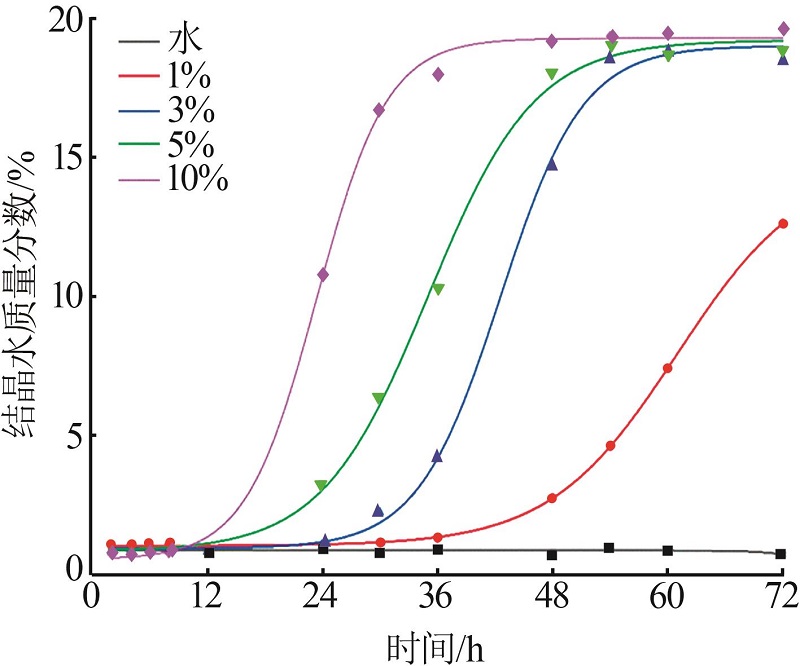

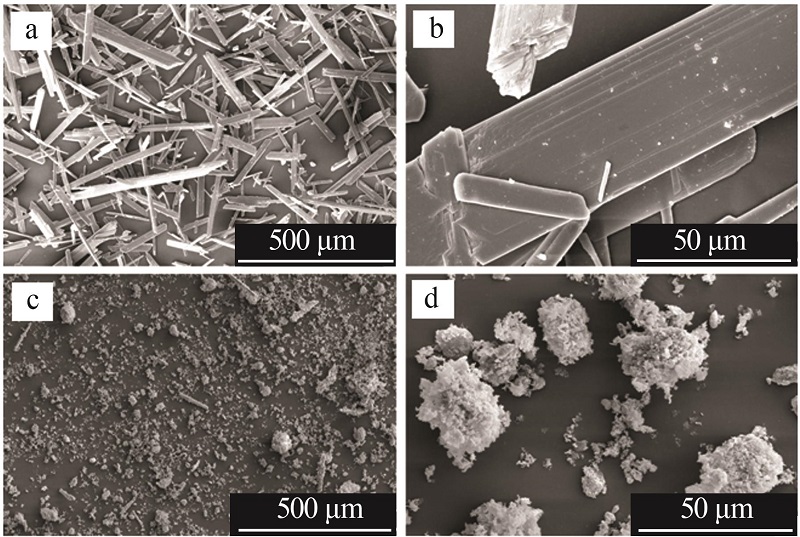

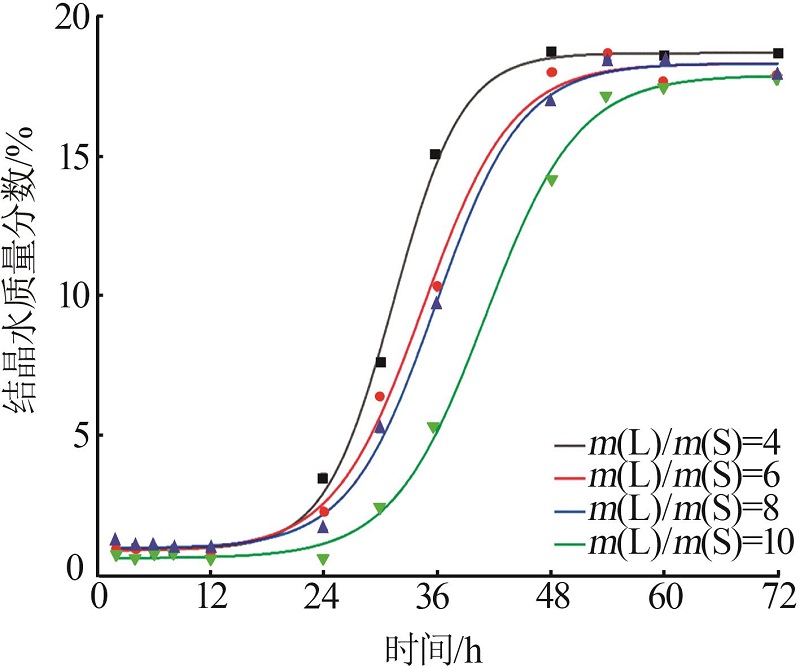

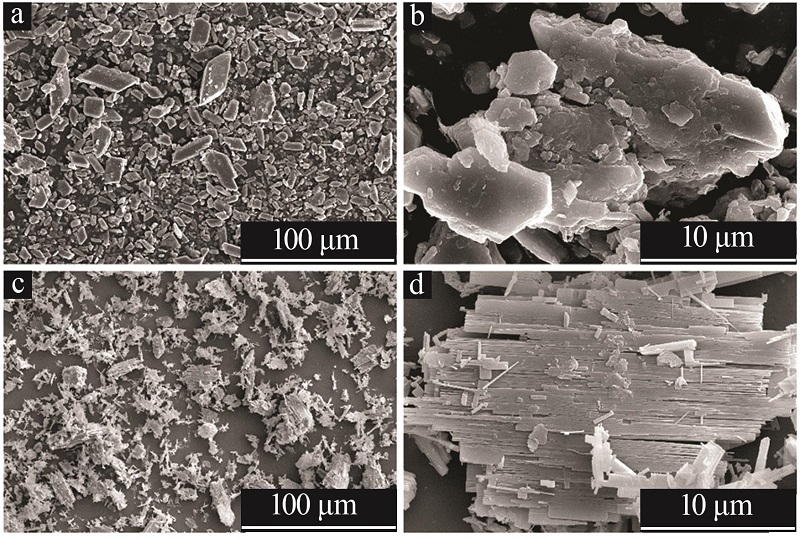

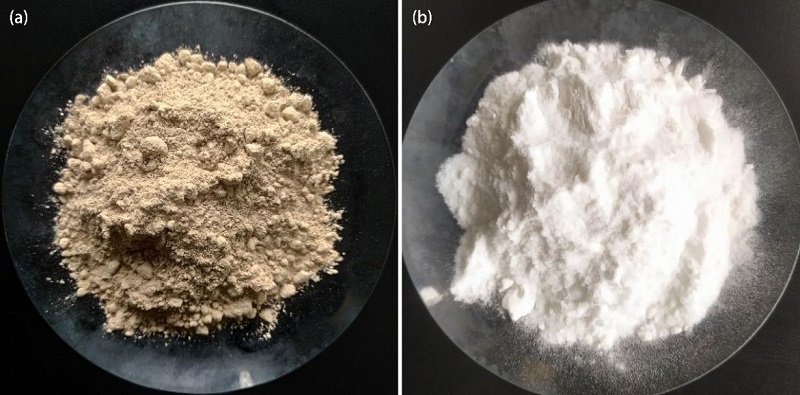

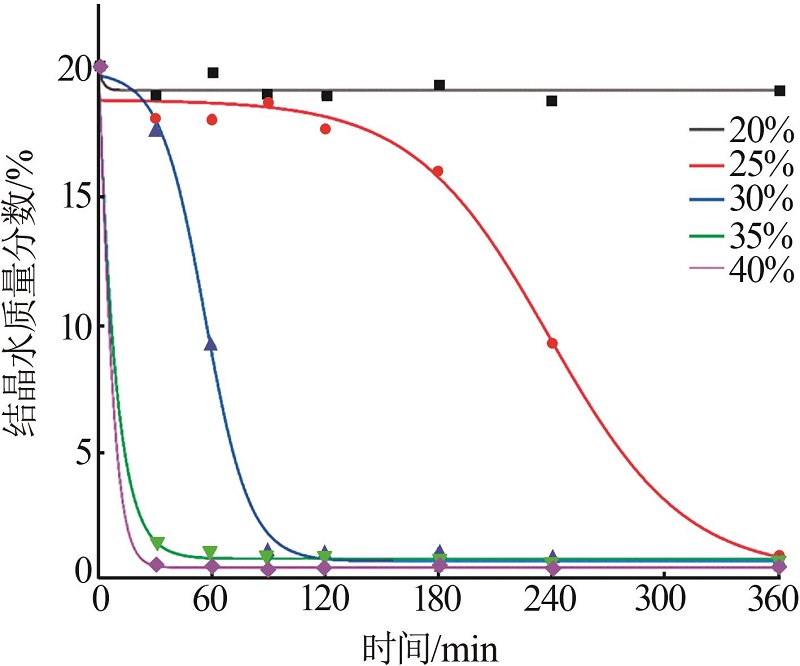

钙芒硝石膏是工业上采用溶浸法生产元明粉的副产尾矿，与脱硫石膏和磷石膏等工业副产石膏相比其杂质含量高、纯度低、利用价值低。采用酸浸-重结晶工艺对钙芒硝石膏进行提纯，通过酸浸去除钙芒硝石膏中的酸溶性杂质，并将二水硫酸钙（DH）脱水转化为无水硫酸钙（AH），然后控制水化条件，使AH水化为大尺寸的DH晶体，并与小尺寸的酸不溶性杂质分离开来，得到高纯度的二水石膏。研究了硫酸浓度、水化激发剂、液固质量比、反应时间等对石膏提纯的影响。研究结果表明：常压下，在硫酸酸洗液质量分数为35%、反应温度为80 ℃、石膏与硫酸溶液固液质量比为1∶5、酸洗时间为2 h时能有效去除钙芒硝石膏中的酸溶性杂质；在水化硫酸质量分数为5%、硫酸钾质量分数为1.74%、反应温度为25 ℃、固液质量比为1∶6、陈化时间为18 h时能有效去除钙芒硝石膏中酸不溶性杂质，提纯后的石膏纯度可达97%以上。

关键词: 钙芒硝石膏, 石膏提纯, 重结晶

Abstract:

Glauberite gypsum is the by-product tailings produced by leaching sodium sulfate in the industry.Compared with industrial by-product gypsum such as desulfurized gypsum and phosphogypsum，it has higher impurity content，lower purity and utilization value.Glauberite gypsum was purified by acid leaching-recrystallization process，the acid-soluble impurities in Glauberite gypsum were removed by acid leaching and dihydrate calcium sulfate（DH） was converted into anhydrous calcium sulfate（AH）.Then hydration conditions were controlled to hydrate AH into large-size DH crystals separated from small-sized acid-insoluble impurities to obtain high-purity dihydrate gypsum.The effects of sulfuric acid concentration，hydration activator，liquid-solid ratio and reaction time on purified gypsum were studied.The research results showed that under normal pressure，when the mass fraction of sulfuric acid pickling solution was 35%，the reaction temperature was 80 ℃，the solid-liquid ratio of gypsum and sulfuric acid solution was 1∶5，and the pickling time was 2 h，it could effectively remove acid-soluble impurities in glauberite gypsum.When mass fraction of hydrate sulfuric acid was 5%，mass fraction of potassium sulfate was 1.74%，reaction temperature was 25 ℃，solid-liquid ratio was 1∶6，aging time was 18 h，it could effectively remove acid-insoluble impurities in glauberite gypsum，and the purity of purified gypsum could reach more than 97%.

Key words: glauberite gypsum, gypsum purification, recrystallization

中图分类号:

X781

尹会斌,李军,郑卓超. 钙芒硝石膏深度提纯工艺的研究[J]. 无机盐工业, 2022, 54(11): 104-111.

YIN Huibin,LI Jun,ZHENG Zhuochao. Research on deep purification process of glauberite gypsum[J]. Inorganic Chemicals Industry, 2022, 54(11): 104-111.

图/表 16

表1

图1

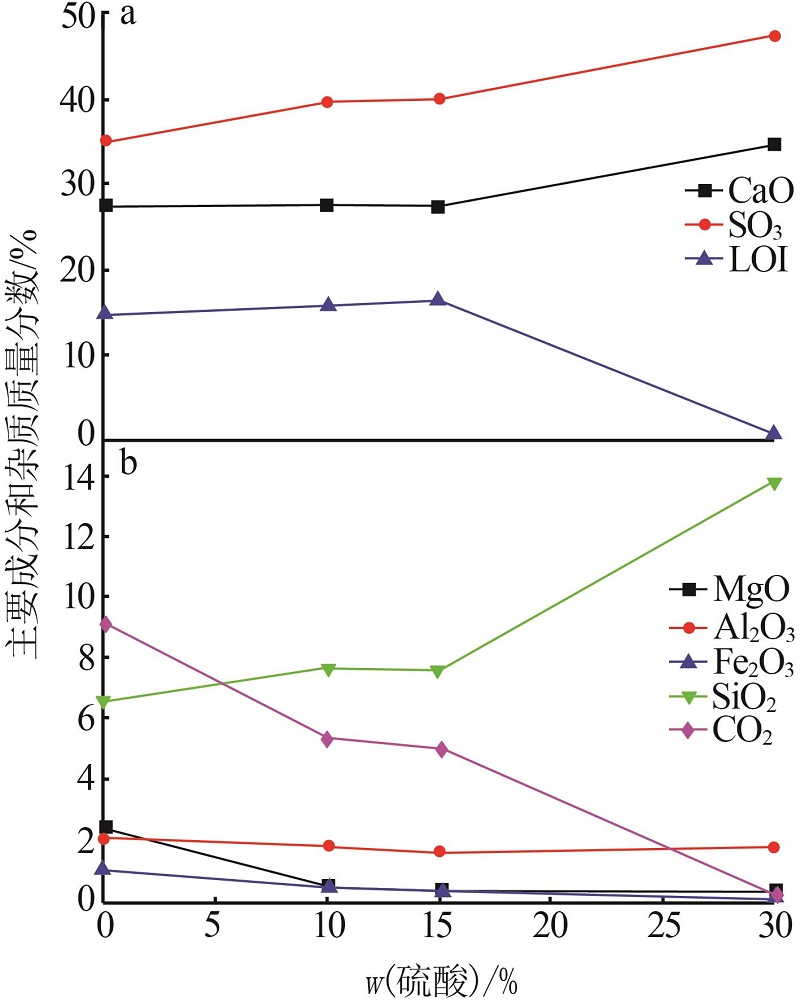

图2

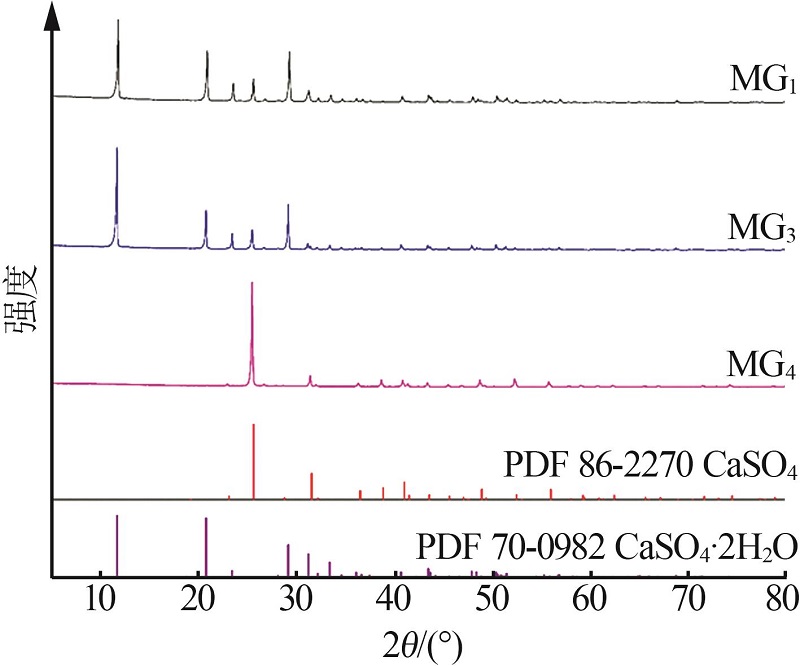

图3

表2

图4

图5

图6

图7

图8

图9

图10

图 11

表3

图12

图13

参考文献 16

1	张秀峰,谭秀民,张利珍.钙芒硝矿石的水浸工艺研究[J].矿产保护与利用,2017(4):69-72.
	ZHANG Xiufeng, TAN Xiumin, ZHANG Lizhen.Research on water leaching process of glauberite ore[J].Conservation and Utilization of Mineral Resources,2017(4):69-72.
2	赵宏旭,刘磊.硝盐联产技术在元明粉生产中的应用[J].化工设计通讯,2020,46(9):52-53.
	ZHAO Hongxu, LIU Lei.Application of nitrate combined production technology in the production process of yuanmingfen[J].Che-mical Engineering Design Communications,2020,46(9):52-53.
3	李林,贝鑫.苦卤资源综合利用发展趋势[J].中国盐业,2019(14):48-50.
	LI Lin, BEI Xin.Development trend of comprehensive utilization of bittern resources[J].China Salt Industry,2019(14):48-50.
4	杨大涌,周堃.钙芒硝尾矿的综合利用[J].化工矿物与加工,2020,49(12):53-56.
	YANG Dayong, ZHOU Kun.Comprehensive utilization of glauberite tailings[J].Industrial Minerals ＆ Processing,2020,49(12):53-56.
5	刘林程,左海滨,许志强.工业石膏的资源化利用途径与展望[J].无机盐工业,2021,53(10):1-9.
	LIU Lincheng, ZUO Haibin, XU Zhiqiang.Resource utilization approach of industrial gypsum and its prospect[J].Inorganic Chemicals Industry,2021,53(10):1-9.
6	董益宇.芒硝石膏在水泥生产中的应用[J].四川建材,2017,43(10):24-26.
	DONG Yiyu.Application of glauber's salt gypsum in cement production[J].Sichuan Building Materials,2017,43(10):24-26.
7	张利珍,吕子虎,张永兴,等.磷石膏提质降杂实验研究[J].无机盐工业,2021,53(6):171-173，184.
	ZHANG Lizhen, Zihu LÜ, ZHANG Yongxing, et al.Experimental study on improving quality and reducing impurity of phosphogypsum[J].Inorganic Chemicals Industry,2021,53(6):171-173，184.
8	张巨松,高飞,安会勇,等.低品位石膏提纯与增白实验研究[J].非金属矿,2004,27(6):44-46.
	ZHANG Jusong, GAO Fei, AN Huiyong, et al.Experimental research on purification and whitening of low-grade gypsum[J].Non-Metallic Mines,2004,27(6):44-46.
9	王进明,董发勤,王肇嘉,等.磷石膏浮选增白净化新工艺研究[J].非金属矿,2019,42(5):1-5.
	WANG Jinming, DONG Faqin, WANG Zhaojia, et al.Study on new technology of phosphogypsum whitening and purification by flotation[J].Non-Metallic Mines,2019,42(5):1-5.
10	ROGERS K J, OWENS F C.Purification of FGD gypsum product：US,5215672[P].1993-06-01.
11	GRONE D.Process of purifying gypsum：US,5500197[P].1996-03-19.
12	赵志曼,刘子瑜,李帅,等.磷石膏炒制-酸浸法脱色增白研究[J].低温建筑技术,2016,38(5):9-11.
	ZHAO Zhiman, LIU Ziyu, LI Shuai, et al.Research on decolorization and whitening of phosphogypsum frying-acid leaching me-thod[J].Low Temperature Architecture Technology,2016,38(5):9-11.
13	张伟卓,赵斌,陈学青,等.脱硫石膏晶体提纯脱色的研究[J].人工晶体学报,2015,44(4):1069-1076，1083.
	ZHANG Weizhuo, ZHAO Bin, CHEN Xueqing, et al.Decoloration and purification of FGD gypsum crystal[J].Journal of Synthetic Crystals,2015,44(4):1069-1076，1083.
14	卢静昭,赵斌,陈学青,等.利用脱硫石膏制备高品质二水石膏[J].人工晶体学报,2016,45(1):97-103.
	LU Jingzhao, ZHAO Bin, CHEN Xueqing, et al.Preparation of the high-quality gypsum by dihydrate FGD[J].Journal of Synthetic Crystals,2016,45(1):97-103.
15	杨新亚,喻德高,王锦华.硫酸钾对无水硫酸钙水化激发机理研究[J].沈阳建筑大学学报：自然科学版,2008,24(1):104-107.
	YANG，Xinya， YU Degao, WANG Jinhua.Research on hydration mechanism of calcium sulfate anhydrite activated by potassium sulfate[J].Journal of Shenyang Jianzhu University：Natural Science,2008,24(1):104-107.
16	喻德高.无水硫酸钙水化机理及应用研究[D].武汉：武汉理工大学，2007.
	YU Degao.Research on the hydration machanism and application of anhydrous calcium sulphate[D].Wuhan：Wuhan University of Technology，2007.

组成	w（CaO）/%	w （SO₃）/ %	w （SiO₂）/ %	w （CO₂）/ %	w （MgO）/ %	w （Al₂O₃）/ %	w （Fe₂O₃）/ %	w （SrO）/ %	w （K₂O）/ %	w （Na₂O）/ %	w （TiO₂）/ %	w （MnO₂）/ %	w （P₂O₅）/ %	LOI/ %	总计/ %
MG₁	27.54	35.10	6.59	9.10	2.38	2.02	1.08	0.47	0.42	0.23	0.13	0.03	0.03	14.89	100.01
MG₂	27.27	39.91	7.63	5.33	0.47	1.79	0.43	0.47	0.43	0.10	0.13	—	—	16.03	99.99
MG₃	27.39	40.20	7.59	5.06	0.30	1.59	0.32	0.46	0.39	0.13	0.13	—	0.02	16.41	99.99
MG₄	34.71	47.53	13.85	—	0.34	1.79	0.12	0.58	—	0.21	0.17	—	—	0.72	100.02

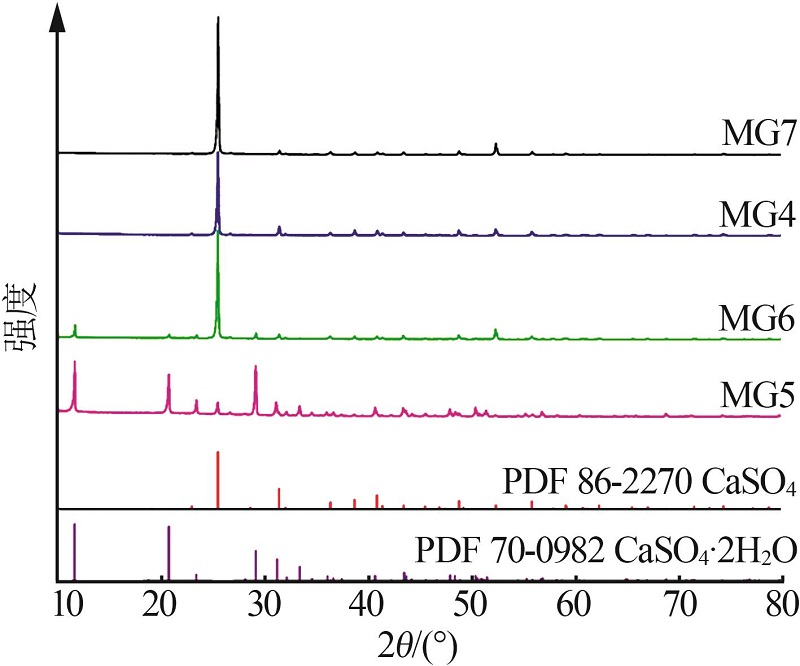

组成	w （CaO）/ %	w （SO₃）/ %	w （SiO₂）/ %	w （CO₂）/ %	w （MgO）/ %	w （Al₂O₃）/ %	w （Fe₂O₃）/ %	w （SrO）/ %	w （K₂O）/ %	w （Na₂O）/ %	w （TiO₂）/ %	LOI/ %	总量 %
MG₅	27.80	40.75	8.04	4.44	0.33	1.75	0.37	0.49	0.41	0.15	0.12	15.36	100.01
MG₆	31.09	45.24	10.45	5.28	0.35	2.04	0.27	0.56	0.45	0.15	0.16	3.96	100.00
MG₄	34.71	47.53	13.85	—	0.34	1.79	0.12	0.58	—	0.21	0.17	0.72	100.02
MG₇	34.61	48.10	13.63	—	0.34	1.64	0.13	0.58	—	0.19	0.14	0.71	100.07

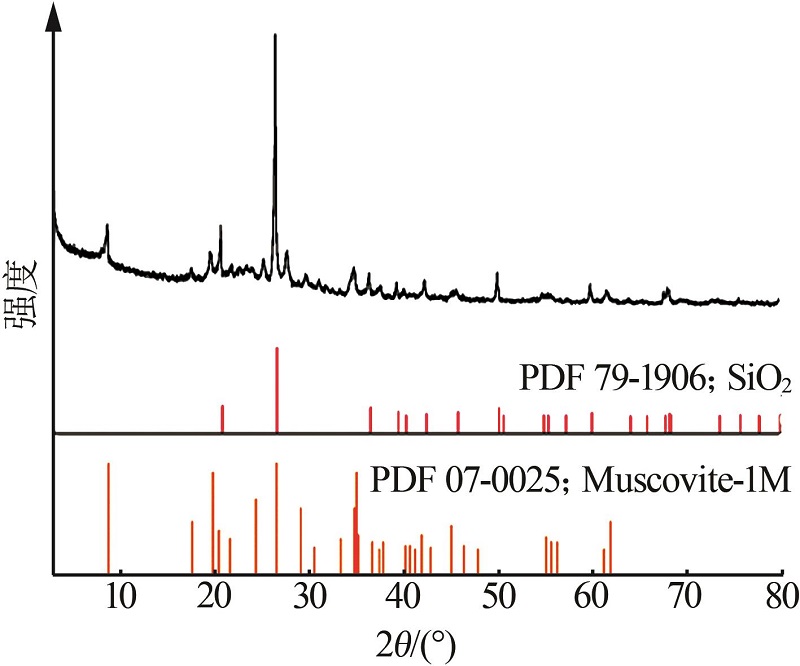

组成	w（石膏）/%	w（酸不溶性杂质）/%	组成	w（石膏）/%	w（酸不溶性杂质）/%
CaO	32.79	7.26	K₂O	—	3.16
SO₃	46.98	12.64	Na₂O	—	0.55
SiO₂	0.25	62.66	TiO₂	—	0.93
CO₂	—	—	MnO₂	—	—
MgO	—	0.57	P₂O₅	—	0.08
Al₂O₃	—	10.96	LOI	19.50	0.00
Fe₂O₃	—	1.01	总计	99.95	100.53
SrO	0.43	0.71

[1]	高积勤. 硫磺渣提纯工业硫磺工艺研究[J]. 无机盐工业, 2014, 46(6): 44-.
[2]	屠兰英, 赵启文, 崔小琴. 纯碱副产物氯化钙的提纯实验研究[J]. 无机盐工业, 2012, 44(8): 32-.
[3]	王运朝, 孙士坤, 冯磊, 陈英军. 制取高纯八水氢氧化锶晶体颗粒的新方法[J]. 无机盐工业, 2012, 44(10): 39-.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
