铝基吸附剂固定床分离卤水锂资源过程研究

doi:10.19964/j.issn.1006-4990.2022-0605

摘要/Abstract

摘要：

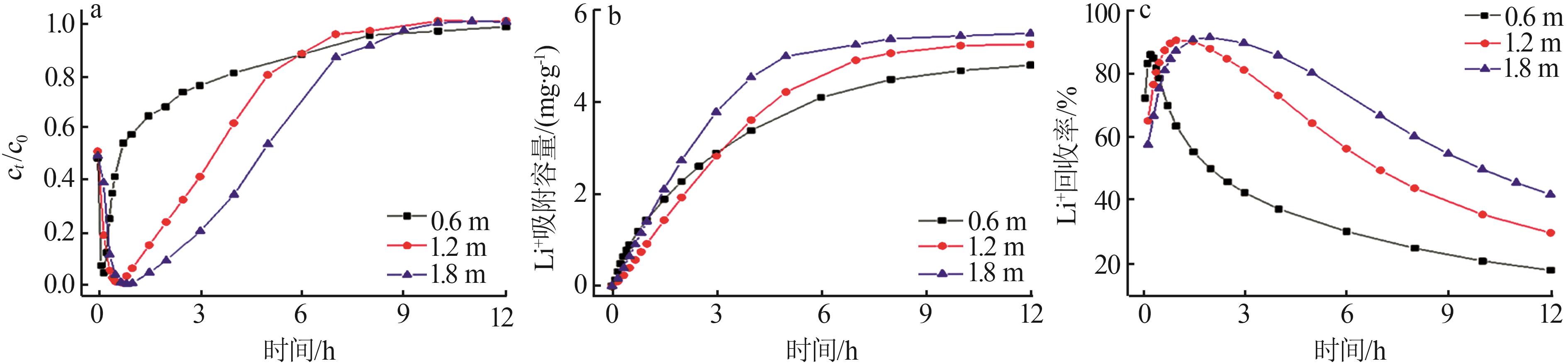

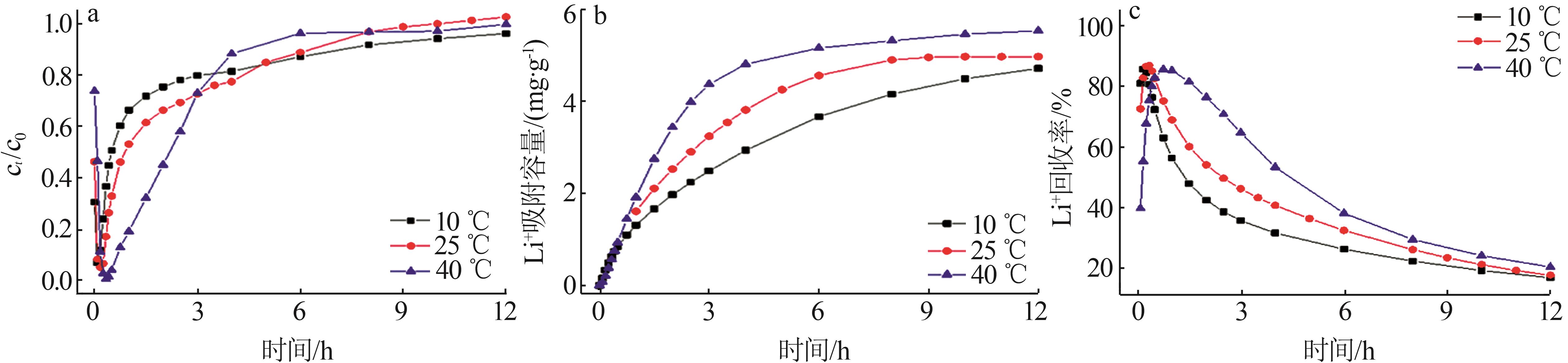

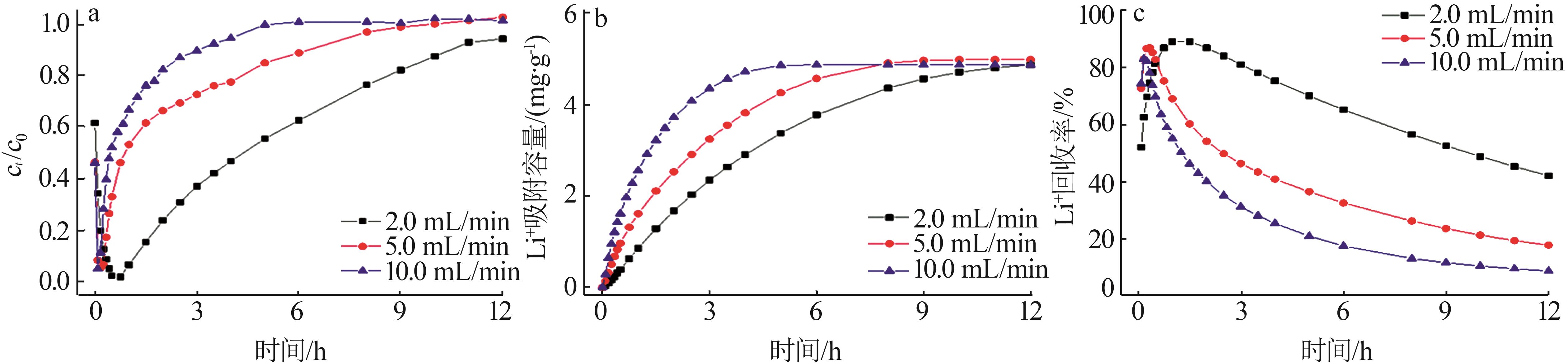

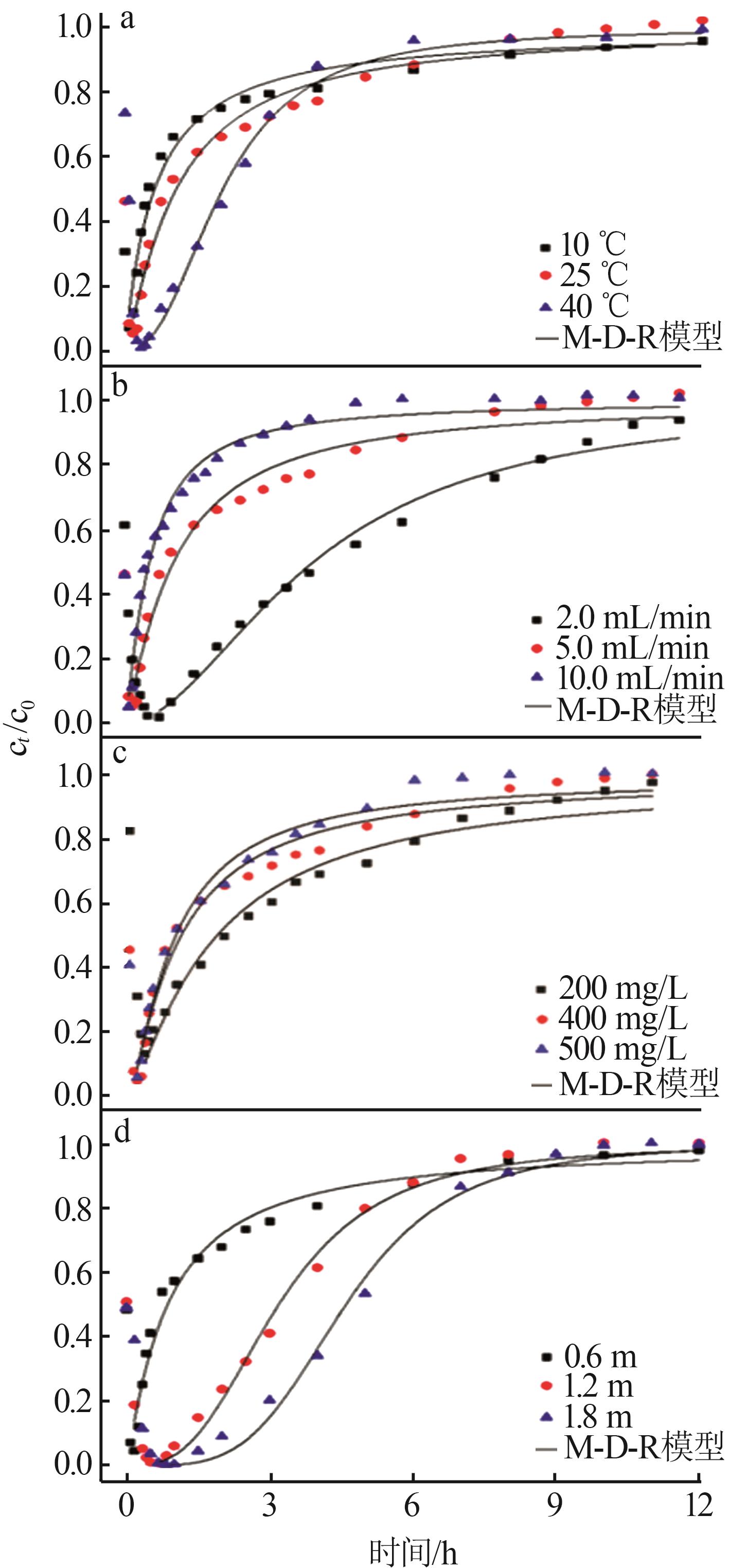

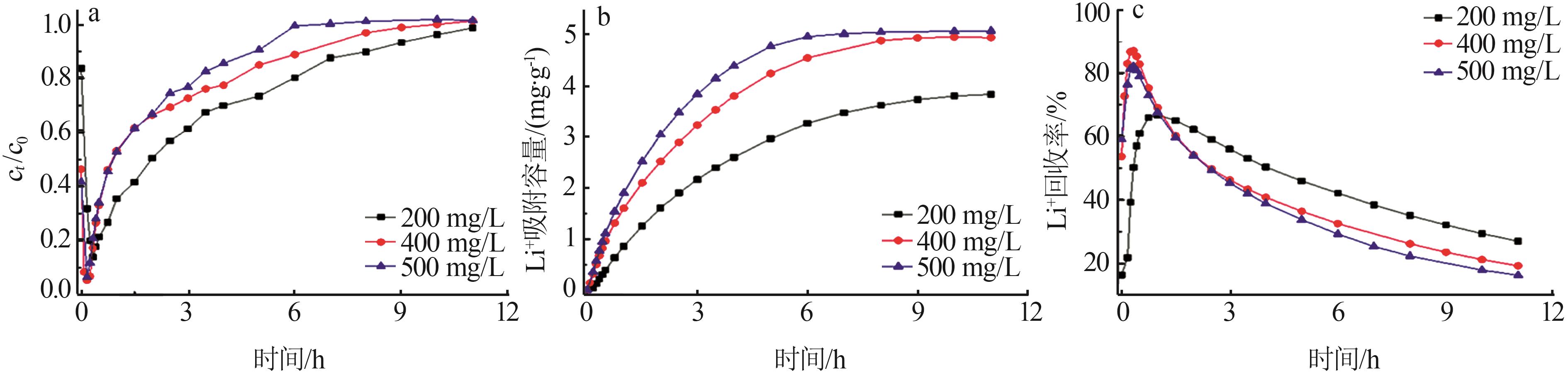

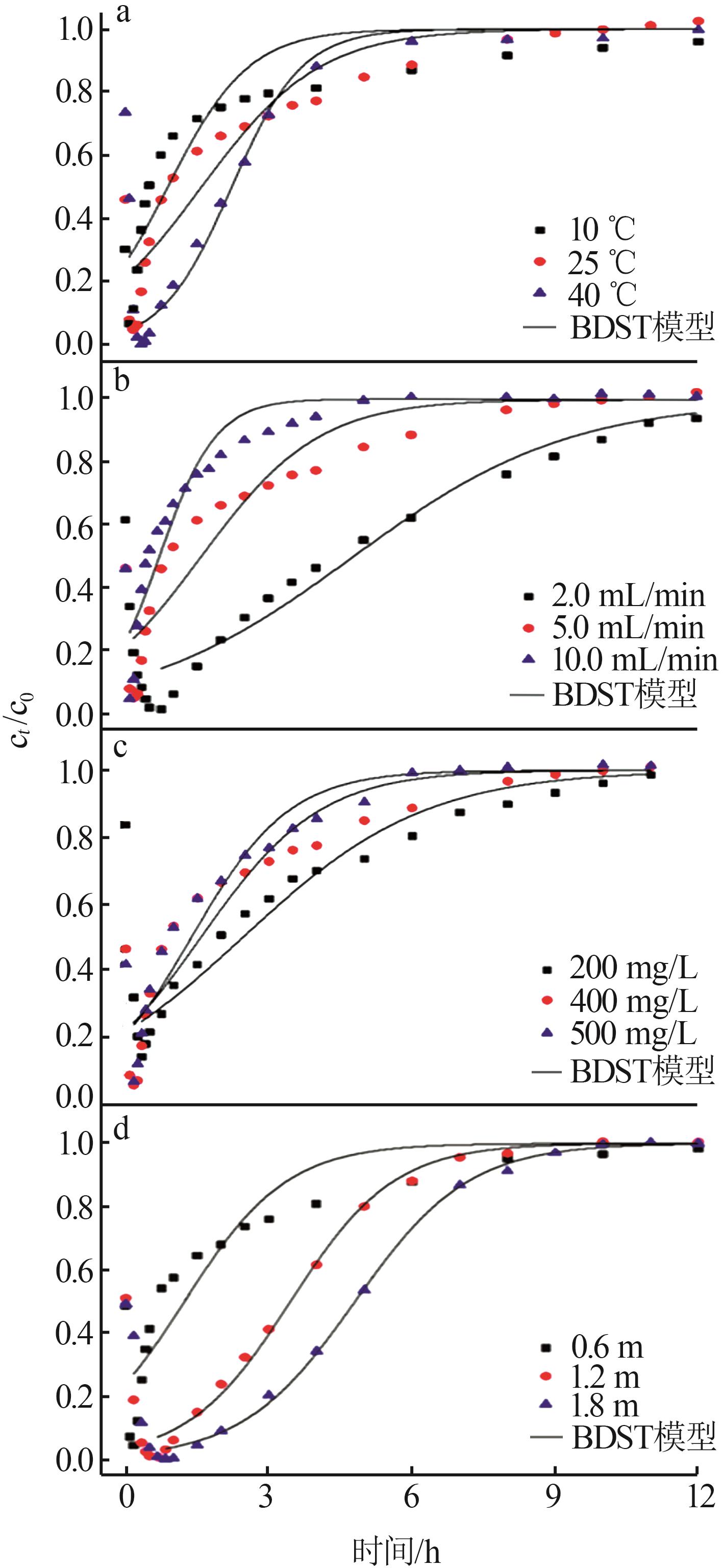

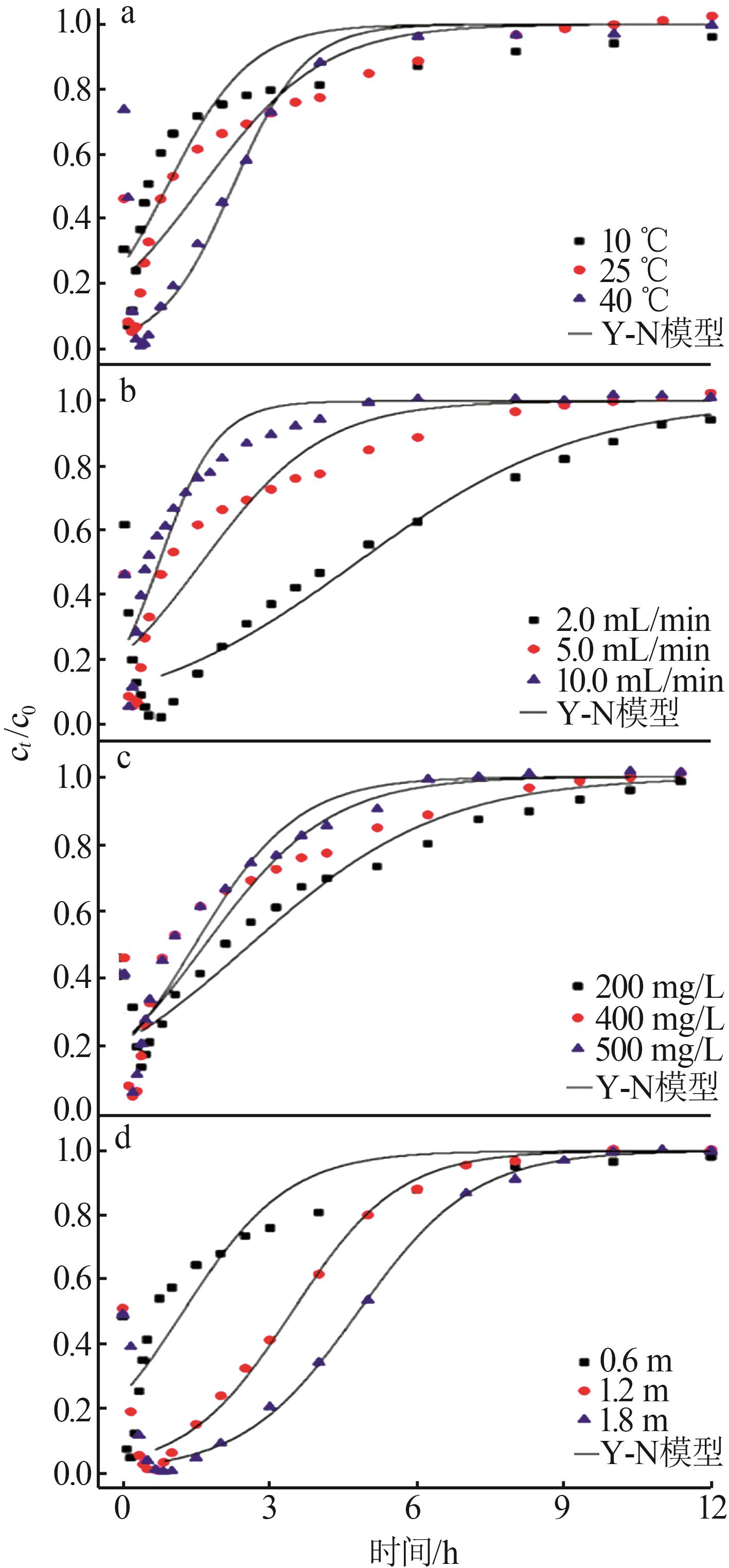

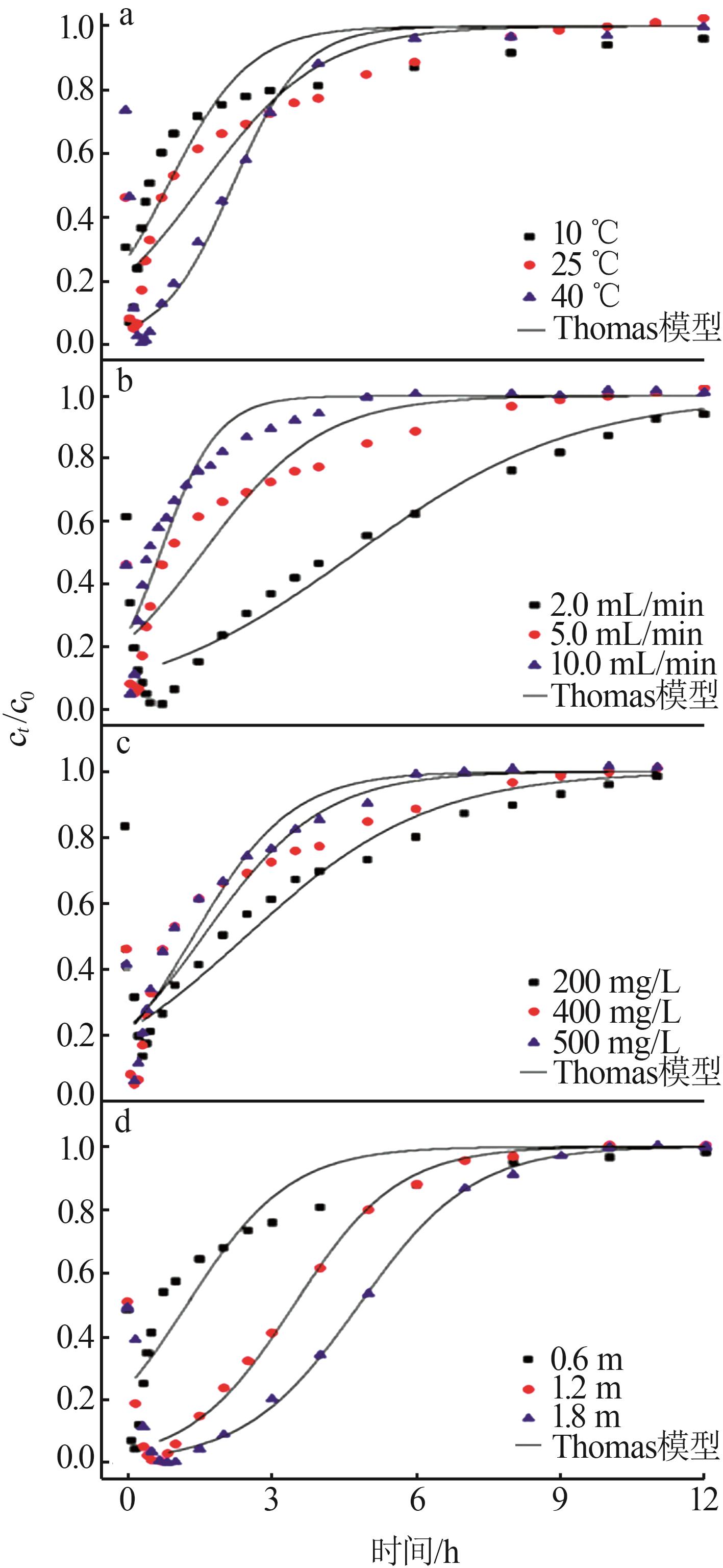

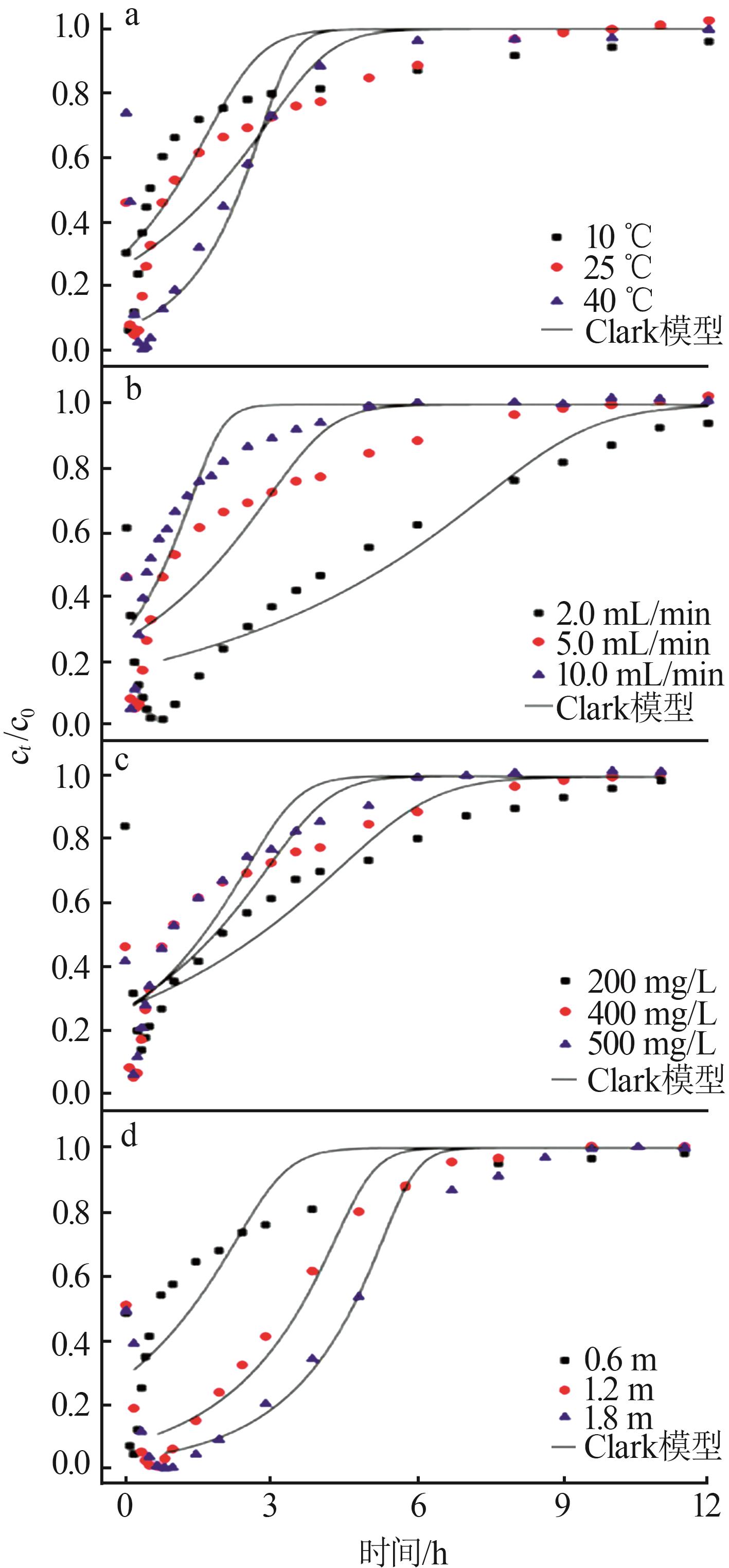

铝基锂吸附剂是一种非常适用于低锂品位、高镁锂比盐湖卤水提锂的吸附剂，具有无溶损、稳定性高等优点，也是目前唯一一种已投入工业化生产的吸附剂。使用自制的球形铝基锂吸附剂GLDH填充固定床，系统研究了吸附温度、进料流速、初始锂离子浓度和床层高度对GLDH固定床分离卤水锂资源过程中吸附穿透曲线的影响。结果表明：升高温度、增加床层高度、降低初始锂离子浓度和进料流速会导致穿透时间延长、穿透吸附容量升高。采用BDST、Clark、Thomas、Y-N和M-D-R 5种经验模型对锂吸附穿透曲线进行拟合，确定M-D-R模型能够较准确地描述固定床锂吸附过程。

关键词: 铝基锂吸附剂, 固定床, 吸附提锂, 影响因素, 模型拟合

Abstract:

Aluminum-based lithium adsorbent is very suitable for extracting lithium from salt lake brine with low lithium grade and high Mg²⁺/Li⁺ ratios.It has the advantages of no dissolution loss，high stability，which is the only adsorbent that has been put into industrial production.The homemade spherical aluminum-based lithium adsorbent GLDH was applied to lithium extraction in fixed bed.The effects of adsorption temperature，feed flow rate，initial Li⁺ concentration and bed height on the adsorption breakthrough curves of GLDH during lithium separation from brine in fixed bed were systematically studied.The results showed that increasing temperature and bed height as well as decreasing initial concentration and flow rate led to longer breakthrough time and higher breakthrough adsorption capacity.Five empirical models，including BDST，Clark，Thomas，Y-N and M-D-R models，were used to fit the lithium adsorption breakthrough curves.It was determined that the M-D-R model could accurately describe the lithium adsorption process in the fixed bed.

Key words: aluminum-based lithium adsorbent, fixed bed, lithium adsorption, influencing factor, model fitting

中图分类号:

TQ131.11

陈君,钟静,林森,于建国. 铝基吸附剂固定床分离卤水锂资源过程研究[J]. 无机盐工业, 2023, 55(1): 64-73.

CHEN Jun,ZHONG Jing,LIN Sen,YU Jianguo. Study on lithium separation from brine by aluminum-based adsorbent in fixed bed[J]. Inorganic Chemicals Industry, 2023, 55(1): 64-73.

图/表 21

表1

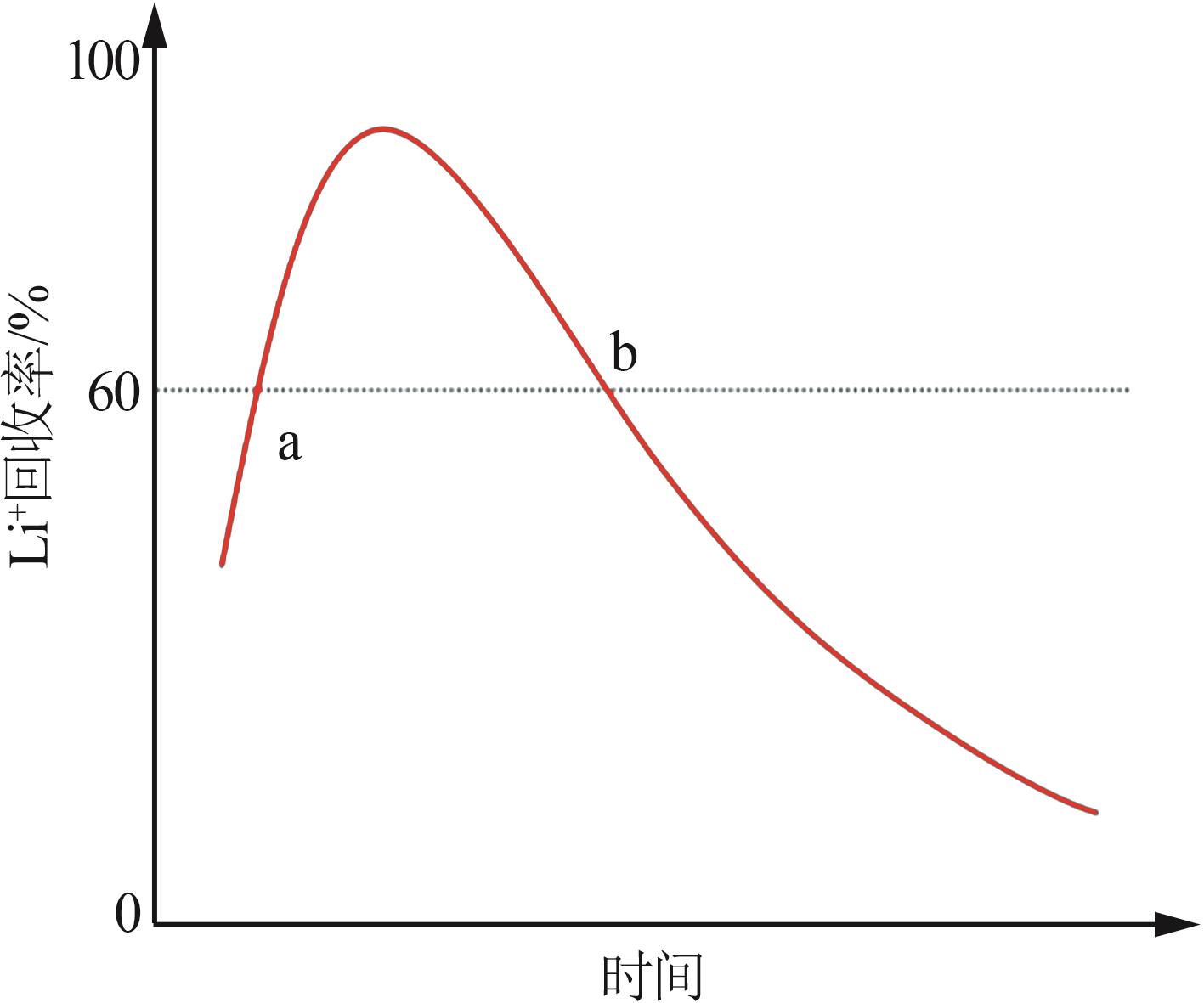

图1

表2

图2

表3

图3

表4

图4

表5

图5

表6

图6

表7

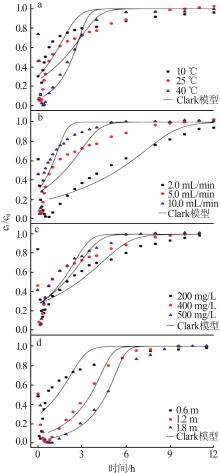

图7

表8

图8

表9

图9

表10

图10

表11

参考文献 35

1	Survey U.S.Geological. Mineral commodity summaries 2022[R].Reston，VA：U.S.Geological Survey, 2022.
2	马珍. 盐湖锂资源高效分离提取技术研究进展[J].无机盐工业, 2022, 54（10）：22-29．
	MA Zhen. Research progress on efficient separation and extraction technology of lithium resources in salt lakes[J].Inorganic Chemicals Industry, 2022, 54（10）：22-29．
3	ALESSIA A, ALESSANDRO B, MARIA V G, et al. Challenges for sustainable lithium supply：A critical review[J].Journal of Clean- doi: 10.1016/j.jclepro.2021.126954
	Production er，2021, 300.Doi：10.1016/j.jclepro.2021.126954． doi: 10.1016/j.jclepro.2021.126954
4	VIKSTRÖM H, DAVIDSSON S, HÖÖK M. Lithium availability and future production outlooks[J].Applied Energy, 2013, 110：252-266．
5	KESLER S E, GRUBER P W, MEDINA P A, et al. Global lithium resources：Relative importance of pegmatite，brine and other deposits[J].Ore Geology Reviews, 2012, 48：55-69．
6	韩佳欢, 乜贞, 方朝合, 等. 中国锂资源供需现状分析[J].无机盐工业, 2021, 53（12）：61-66．
	HAN Jiahuan, NIE Zhen, FANG Chaohe, et al. Analysis of existing circumstance of supply and demand on China's lithium resourc-es[J].Inorganic Chemicals Industry, 2021, 53（12）：61-66．
7	SWAIN B. Recovery and recycling of lithium：A review[J].Separation and Purification Technology, 2017, 172：388-403．
8	刘东帆, 孙淑英, 于建国. 盐湖卤水提锂技术研究与发展[J].化工学报, 2018, 69（1）：141-155．
	LIU Dongfan, SUN Shuying, YU Jianguo. Research and development on technique of lithium recovery from salt lake brine[J].CIESC Journal, 2018, 69（1）：141-155．
9	SUN Ying, WANG Qi, WANG Yunhao, et al. Recent advances in magnesium/lithium separation and lithium extraction technologies from salt lake brine[J].Separation and Purification Technology, 2021, 256.Doi：10.1016/j.seppur.2020.117807． doi: 10.1016/j.seppur.2020.117807
10	ZHONG Jing, LIN Sen, YU Jianguo. Li⁺ adsorption performance and mechanism using lithium/aluminum layered double hydroxides in low grade brines[J].Desalination, 2021, 505.Doi：10.1016/j.desal.2021.114983. doi: 10.1016/j.desal.2021.114983
11	ISUPOV V P, KOTSUPALO N P, NEMUDRY A P, et al. Aluminium hydroxide as selective sorbent of lithium salts from brines and technical solutions[J].Studies in Surface Science and Catalysis, 1999, 120：621-652．
12	SUN Ying, YUN Rongping, ZANG Yufeng, et al. Highly efficient lithium recovery from pre-synthesized chlorine-ion-intercalated LiAl-layered double hydroxides via a mild solution chemistry process[J].Materials：Basel, Switzerland，2019, 12（12）.Doi：10.3390/ma12121968． doi: 10.3390/ma12121968
13	LIU Xuheng, ZHONG Maoli, CHEN Xingyu, et al. Separating lithium and magnesium in brine by aluminum-based materials[J].Hydrometallurgy, 2018, 176：73-77．
14	RYABTSEV A, MENZHERES L T，TEN A. Sorption of lithium from brine onto granular LiCl·2Al（OH）₃·mH₂O sorbent under dynamic conditions[J].Russian Journal of Applied Chemistry, 2002, 75：1069-1074．
15	PARANTHAMAN M P, LI Ling, LUO Jiaqi, et al. Recovery of lithium from geothermal brine with lithium-aluminum layered double hydroxide chloride sorbents[J].Environmental Science & Technology, 2017, 51（22）：13481-13486．
16	WILLIAMS G R, O'HARE D. A kinetic study of the intercalation of lithium salts into Al（OH）₃ [J].The Journal of Physical Chemistry.B, 2006, 110（22）：10619-10629．
17	WILLIAMS G R, O'HARE D. Towards understanding，control and application of layered double hydroxide chemistry[J].Che- mInform, 2006, 37（45）.Doi：10.1002/chin.200645266． doi: 10.1002/chin.200645266
18	吴志坚, 郭敏, 李权, 等. 氢氧化铝基锂吸附剂从卤水中吸附锂的机理[J].盐湖研究, 2018, 26（3）：1-6．
	WU Zhijian, GUO Min, LI Quan, et al. Adsorption mechanisms for the recovery of lithium from brines using aluminum hydroxide based adsorbent[J].Journal of Salt Lake Research, 2018, 26（3）：1-6．
19	郭敏, 刘忠, 李权, 等. 铝基锂吸附剂从卤水中吸附提锂的研究及进展[J].青海科技, 2019, 26（3）：16-20．
20	HU Fang, LIN Sen, LI Ping, et al. Quantitative effects of desorption intensity on structural stability and readsorption performance of lithium/aluminum layered double hydroxides in cyclic Li⁺ extraction from brines with ultrahigh Mg/Li ratio[J].Industrial & Engineering Chemistry Research, 2020, 59：13539-13548．
21	ZHONG Jing, LIN Sen, YU Jianguo. Lithium recovery from ultrahigh Mg²⁺/Li⁺ ratio brine using a novel granulated Li/Al-LDHs adsorbent[J].Separation and Purification Technology, 2021, 256.Doi：10.1016/j.seppur.2020.117780． doi: 10.1016/j.seppur.2020.117780
22	钟静, 陆旗玮, 林森, 等. 锂铝层状吸附剂超低品位卤水提锂冲洗和解吸过程[J].化工进展, 2021, 40（8）：4638-4646．
	ZHONG Jing, LU Qiwei, LIN Sen, et al. Washing and desorption procedures research on granulated lithium aluminum layered double hydroxides for lithium recovery from low-grade brine[J].Chemical Industry and Engineering Progress, 2021, 40（8）：4638-4646．
23	张瑞, 钟静, 林森, 等. 盐湖铝系提锂吸附剂成型条件的影响研究[J].化工学报, 2021, 72（12）：6291-6297．
	ZHANG Rui, ZHONG Jing, LIN Sen, et al. Study on the influence of granulation conditions on Li/Al-LDHs for lithium recovery from low grade brine[J].CIESC Journal, 2021, 72（12）：6291-6297．
24	YAGUB M T, SEN T K, AFROZE S, et al. Fixed-bed dynamic column adsorption study of methylene blue（MB） onto pine cone[J].Desalination and Water Treatment, 2015, 55（4）：1026-1039．
25	CLARK R M. Evaluating the cost and performance of field-scale granular activated carbon systems[J].Environmental Science & Technology, 1987, 21（6）：573-580．
26	THOMAS H C. Heterogeneous ion exchange in a flowing syst-em[J].Journal of the American Chemical Society, 1944, 66（10）：1664-1666．
27	RECEPOĞLU Y K, KABAY N, IPEK I Y, et al. Packed bed column dynamic study for boron removal from geothermal brine by a chelating fiber and breakthrough curve analysis by using mathematical models[J].Desalination, 2018, 437：1-6．
28	YAN G, VIRARAGHAVAN T. Heavy metal removal in a biosorption column by immobilized M.rouxii biomass[J].Bioresource Technology, 2001, 78（3）：243-249．
29	YAN Guangyu, VIRARAGHAVAN T, CHEN Min. A new model for heavy metal removal in a biosorption column[J].Adsorption Science & Technology, 2001, 19（1）：25-43．
30	高灿, 郭探, 刘海宁, 等. 碱金属离子在树脂上的动态吸附行为[J].无机盐工业, 2015, 47（2）：16-20．
	GAO Can, GUO Tan, LIU Haining, et al. Dynamic adsorption of mixed alkali metal ions onto resins[J].Inorganic Chemicals Industry, 2015, 47（2）：16-20．
31	吴赵敏, 杨林, 王辛龙, 等. 动态离子交换法处理电子行业蚀刻含铝废酸工艺研究[J].无机盐工业, 2021, 53（2）：61-65, 70．
	WU Zhaomin, YANG Lin, WANG Xinlong, et al. Study on process of dynamic ion-exchange for etching waste acid containing aluminum in electronic industry[J].Inorganic Chemicals Industry, 2021, 53（2）：61-65, 70．
32	周为峰, 池勇志, 李恺雄, 等. 离子交换法脱除湿法冶金工业MVR冷凝废水中盐类的研究[J].无机盐工业, 2022, 54（4）：152-158．
	ZHOU Weifeng, CHI Yongzhi, LI Kaixiong, et al. Study on removal of salts from MVR condensate wastewater in the hydrometallurgical industry by ion exchange method[J].Inorganic Chemicals Industry, 2022, 54（4）：152-158．
33	WAN NGAH W S, TEONG L C, TOH R H, et al. Utilization of chitosan-zeolite composite in the removal of Cu（Ⅱ） from aqueous solution：Adsorption，desorption and fixed bed column studies[J].Chemical Engineering Journal, 2012, 209：46-53．
34	CHU K H. Breakthrough curve analysis by simplistic models of fixed bed adsorption：In defense of the century-old bohart-adams model[J].Chemical Engineering Journal, 2020, 380.Doi：10.1016/j.cej.2019.122513. doi: 10.1016/j.cej.2019.122513
35	HU Qili, XIE Yanhua, ZHANG Zhenya. Modification of breakthrough models in a continuous-flow fixed-bed column：Mathematical characteristics of breakthrough curves and rate profil-es[J].Separation and Purification Technology, 2020, 238.Doi：10.1016/j.seppur.2019.116399． doi: 10.1016/j.seppur.2019.116399

编号	c₀/（mg·L^-1）	T/℃	H/cm	Q/（mL·min^-1）
1	400	10	60	5.0
2	400	25	60	5.0
3	400	40	60	5.0
4	400	25	60	2.0
5	400	25	60	10.0
6	200	25	60	5.0
7	500	25	60	5.0
8	400	25	120	5.0
9	400	25	180	5.0

编号	T/℃	t_b_，exp/h	q_b_，exp/（mg·g^-1）	V_b /mL	Q_sat，exp/（mg·g^-1）
1	10	0.88	1.21	264.00	4.72
2	25	1.98	2.52	594.64	4.99
3	40	3.58	4.63	1 074.05	5.43

编号	K₀/10^-3 （L·g^-1·h^-1）	N₀/10² （mg·L^-1）	R²	SSE
1	3.11	4.48	0.816 3	0.223 2
2	2.13	8.07	0.897 4	0.174 1
3	3.58	11.31	0.989 9	0.019 1
4	1.16	60.68	0.966 2	0.043 2
5	4.45	1.80	0.922 0	0.148 1
6	2.51	22.68	0.962 5	0.048 8
7	2.30	6.27	0.942 2	0.101 8
8	2.45	8.80	0.994 1	0.011 3
9	2.23	8.16	0.998 1	0.003 9

编号	A	r/h^-1	R²	SSE
1	184.72	2.19	0.762 4	0.289 7
2	2 131.60	1.98	0.856 7	0.267 1
3	78 527.71	3.53	0.974 6	0.048 2
4	25 454.78	1.13	0.913 9	0.110 0
5	1 259.00	3.93	0.879 0	0.229 9
6	2 119.74	1.32	0.909 5	0.118 4
7	2 772.06	2.43	0.902 4	0.176 8
8	3.332 7×10⁶	2.94	0.973 7	0.050 0
9	7.212 5×10⁸	3.37	0.984 4	0.032 2

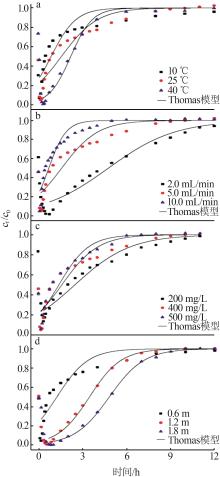

编号	k_T/10^-3 （L·g^-1·h^-1）	q₀/ （mg·g^-1）	R²	SSE
1	3.11	2.108 9	0.816 3	0.223 2
2	2.13	3.726 4	0.897 4	0.101 8
3	3.58	5.167 8	0.989 9	0.019 1
4	1.16	4.569 3	0.966 2	0.043 2
5	4.45	3.296 2	0.922 0	0.148 1
6	2.51	3.222 9	0.962 5	0.174 1
7	2.30	3.655 8	0.942 2	0.048 8
8	2.45	4.043 8	0.994 1	0.011 3
9	2.23	3.780 1	0.998 1	0.003 9
