硅藻土的可控沸石化及其对铅离子的吸附固定

doi:10.19964/j.issn.1006-4990.2021-0610

摘要/Abstract

摘要：

铅离子已造成严重的环境污染,所以开发高效的处理材料势在必行。以硅藻土作为基材和原料,采用水热合成的方法对硅藻土进行沸石化改性,制备出硅藻土/沸石复合吸附剂。将这一吸附剂用于水相以及多相体系（如土壤）中铅离子的吸附、固定,室温下水溶液中铅（Ⅱ）的最高吸附量可达448.20 mg/g。土壤连续浸提（BCR）实验结果表明,500 mg/kg铅污染土壤中加入质量分数为1%至10%的复合吸附剂,固定钝化7 d后易迁移的可交换态（EX）铅质量分数从9.25%降至1.97%,转化为稳定的组分,且随着时间延长至60 d,可交换态铅含量仍维持在较低水平。上述结果证实了合成的硅藻土/沸石复合材料具有良好的铅离子吸附和固定性能,在环境净化领域表现出经济、绿色、便捷的特点,因此具有较大的推广应用潜力。

关键词: 硅藻土, 沸石化, 离子交换, 吸附固定

Abstract:

Lead ions have caused serious environmental pollution,and it is imperative to develop efficient treatment materials.Diatomite/zeolite composite adsorbent was prepared by zeolitization of diatomite by hydrothermal synthesis method by using diatomite as substrate and raw material.When this adsorbent was used for the adsorption and fixation of lead ions in aqueous and heterogeneous systems（such as soil）,the maximum adsorption capacity of Pb（Ⅱ） in aqueous solution at room temperature could reach 448.20 mg/g.The results of soil continuous extraction（BCR） experiment showed that the mass fraction of exchangeable and mobile（Ex） lead was decreased from 9.25% to 1.97% after 7 days of fixed passivation by adding mass fraction of 1% to 10% composite adsorbent in 500 mg/kg lead contaminated soil,and transformed into stable components.With the extension of time to 60 d,EX remained at a low level.The above results confirmed that the synthesized diatomite/zeolite composite had good lead ion adsorption and fixation properties,and showed the characteristics of economy,green and convenience in the field of environmental purification.Therefore,it had great potential for popularization and application.

Key words: diatomite, zeolitization, ion exchange, immobilizatio

中图分类号:

TQ134.33

杨晨,吴俊书,王金淑,孙领民,徐梦,杜玉成. 硅藻土的可控沸石化及其对铅离子的吸附固定[J]. 无机盐工业, 2022, 54(4): 128-134.

YANG Chen,WU Junshu,WANG Jinshu,SUN Lingmin,XU Meng,DU Yucheng. Controlled zeolitization of diatomite for the adsorption and its immobilization of Pb（Ⅱ） ions[J]. Inorganic Chemicals Industry, 2022, 54(4): 128-134.

图/表 6

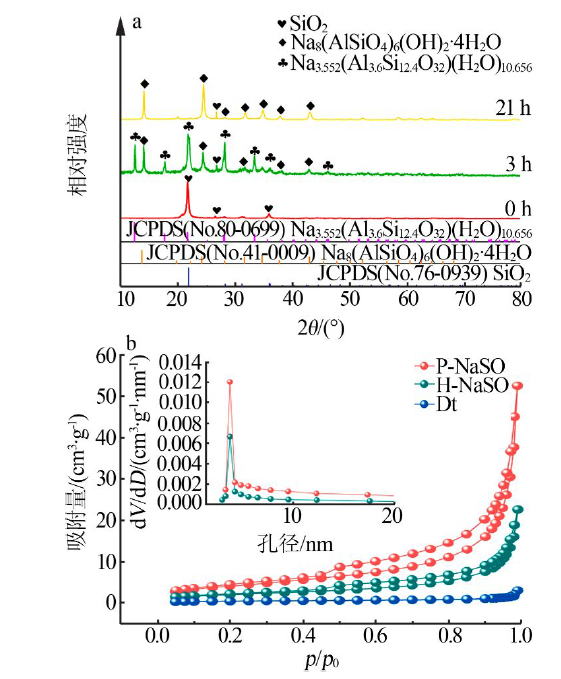

图1

图2

图3

图4

图5

图6

参考文献 20

[1]	LI J H, XIA C G, CHENG R, et al. Passivation of multiple heavy metals in lead-zinc tailings facilitated by straw biochar-loaded N-doped carbon aerogel nanoparticles:Mechanisms and microbial community evolution[J]. The Science of the Total Environment, 2021, 803.Doi: 10.1016/j.scitotenv.2021.149866.
[2]	SONG H W, KUMAR A, ZHANG Y L. A novel approach for the removal of Pb²⁺ and Cd²⁺ from wastewater by sulfur-ferromagnetic nanoparticles(SFMNs)[J]. Chemosphere, 2022.Doi: 10.1016/j.Chemosphere.2021.13215.
[3]	PAREJA-CARRERA J, MARTINEZ-HARO M, MATEO R, et al. Effect of mineral supplementation on lead bioavailability and toxicity biomarkers in sheep exposed to mining pollution[J]. Environmental Research, 2021, 196.Doi: 10.1016/j.envres.2020.110364.
[4]	HUANG B Q, TANG Y J, GAO A R, et al. Dually charged polyamide nanofiltration membranes fabricated by microwave-assisted grafting for heavy metals removal[J]. Journal of Membrane Science, 2021, 640.Doi: 10.1016/j.memsci.2021.119834.
[5]	CHEN M Y, NONG S Y, ZHAO Y T, et al. Renewable P-type zeolite for superior absorption of heavy metals:Isotherms,kinetics,and mechanism[J]. Science of the Total Environment, 2020, 726.Doi: 10.1016/j.scitotenv.2020.138535.
[6]	张婷, 徐曼, 朱慧霞, 等. 碳羟基磷灰石/钾长石复合材料的制备与表征[J]. 化工新型材料, 2019, 47(10):137-143.
[7]	WANG T N, YANG Y F, WANG J S, et al. A general route to modify diatomite with niobates for versatile applications of heavy metal removal[J]. RSC Advances, 2019, 9(7):3816-3827.
[8]	ARABYARMOHAMMADI H, DARBAN A K, ABDOLLAHY M, et al. Utilization of a novel chitosan/clay/biochar nanobiocomposite for immobilization of heavy metals in acid soil environment[J]. Journal of Polymers and the Environment, 2018, 26(5):2107-2119.
[9]	KERSTENS D, SMEYERS B, VAN WAEYENBERG J, et al. State of the art and perspectives of hierarchical zeolites:Practical overview of synjournal methods and use in catalysis[J]. Advanced Materials, 2020, 32.Doi: 10.1002/adma.2020.04690.
[10]	雷晶晶, 姚光远, 孙志明, 等. 非金属矿物合成沸石分子筛的研究进展[J]. 无机盐工业, 2019, 51(4):1-5.
[11]	LIU H Y, SHEN T, LI T S, et al. Green synjournal of zeolites from a natural aluminosilicate mineral rectorite:Effects of thermal treatment temperature[J]. Applied Clay Science, 2014, 90:53-60.
[12]	LIU B, SUN H J, PENG T J, et al. One-step synjournal of hydroxysodalite using natural bentonite at moderate temperatures[J]. Minerals, 2018, 8(11).Doi: 10.3390/min8110521.
[13]	熊晓云, 魏昭成, 王久江, 等. 合成条件对高岭土微球原位晶化NaY分子筛的影响[J]. 无机盐工业, 2020, 52(1):99-102.
[14]	DAI S Y, ZHANG L, HAO C L, et al. Preparation and characterization of zeolite/diatomite composite materials[J]. Materials Research Express, 2019, 6(12).Doi: 10.1088/2053-1591/ab5759.
[15]	SHEN T M, XU H, MIAO Y, et al. Study on the adsorption process of Cd(Ⅱ) by Mn-diatomite modified adsorbent[J]. Materials Letters, 2021, 300.Doi: 10.1016/j.matlet.2021.130087.
[16]	YAO G Y, LEI J J, ZHANG X Y, et al. Mechanism of zeolite X crystallization from diatomite[J]. Materials Research Bulletin, 2018, 107:132-138.
[17]	ZHANG S Q, CUI M, ZHANG Y F, et al. Synjournal of zeolite Y from diatomite and its modification by dimethylglyoxime for the removal of Ni(Ⅱ) from aqueous solution[J]. Journal of Sol-Gel Science and Technology, 2016, 80(1):215-225.
[18]	YUE Y Y, KANG Y, BAI Y, et al. Seed-assisted,template-free synjournal of ZSM-5 zeolite from natural aluminosilicate minerals[J]. Applied Clay Science, 2018, 158:177-185.
[19]	SUN L M, WU J S, WANG J S, et al. Controlled synjournal of zeolite adsorbent from low-grade diatomite:A case study of self-assembled sodalite microspheres[J]. Journal of Environmental Sciences, 2020, 91:92-104.
[20]	朱小涛. 表面改性活性炭对土壤中铅的吸附与稳定性能研究[D]. 武汉:武汉科技大学, 2016.
