基于阴离子交换反应的NiMn-LDH电极电容性能提升研究

doi:10.19964/j.issn.1006-4990.2021-0223

摘要/Abstract

摘要：

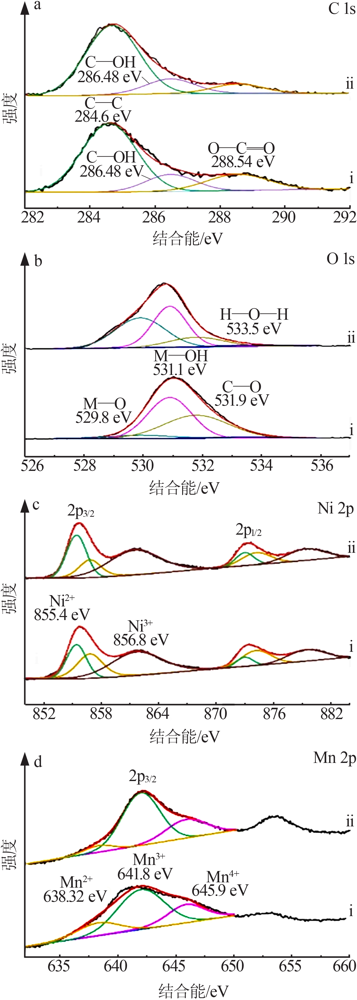

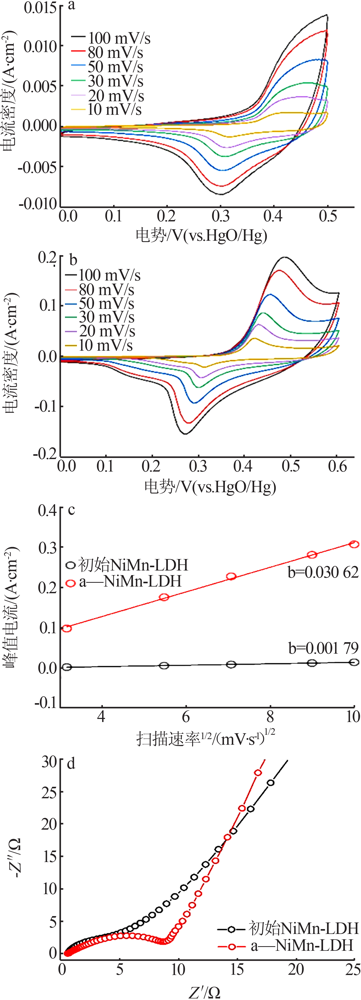

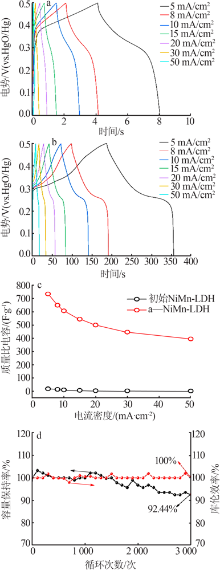

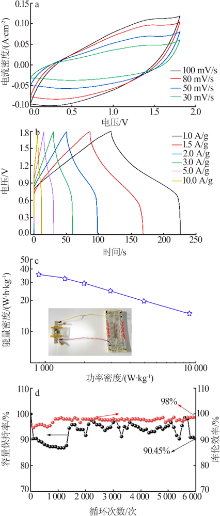

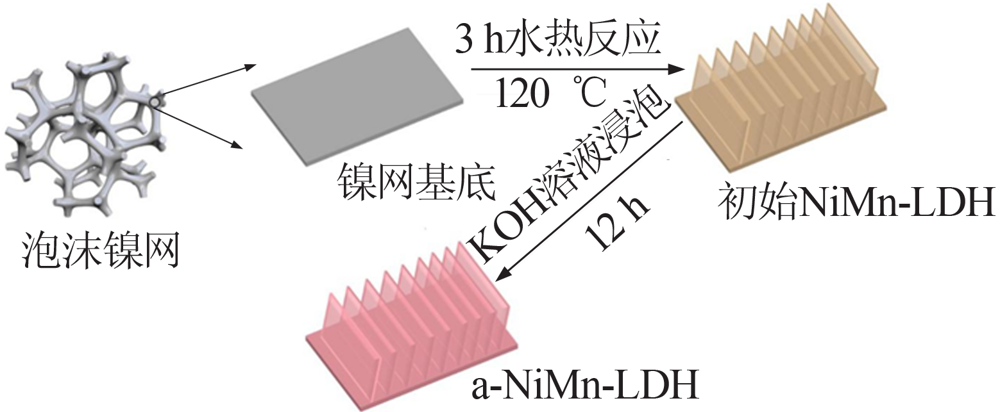

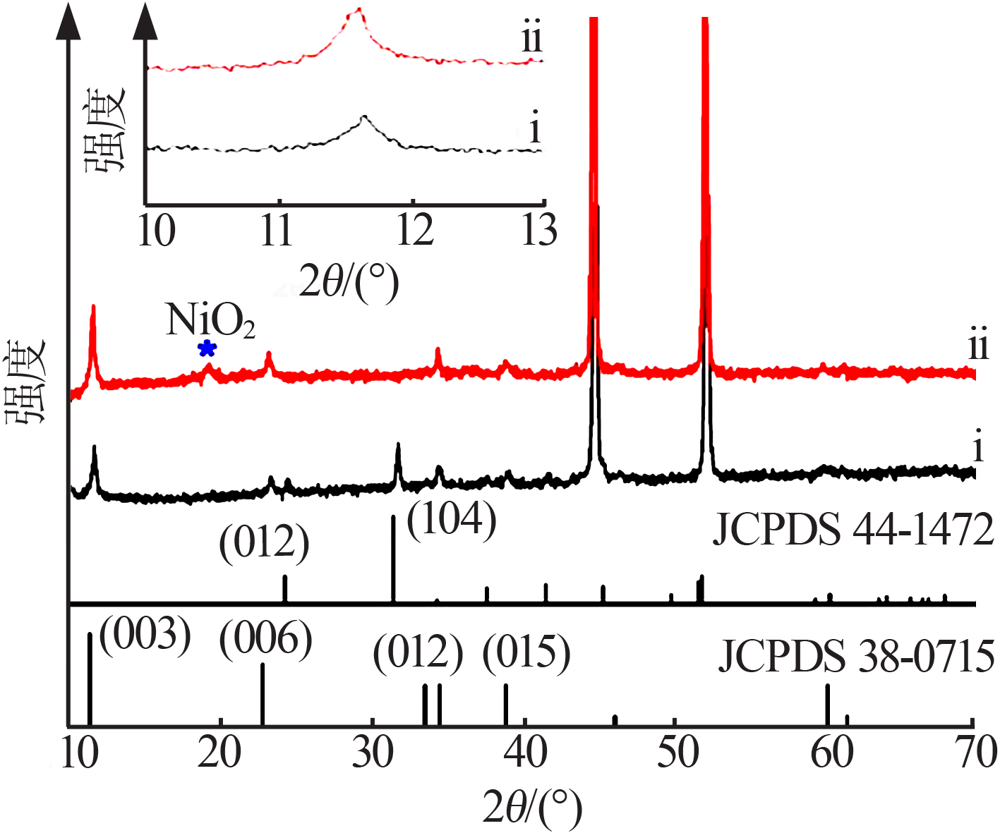

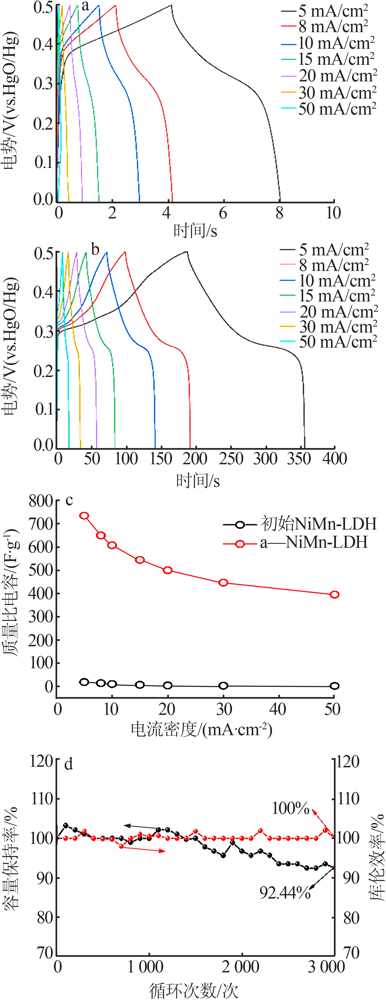

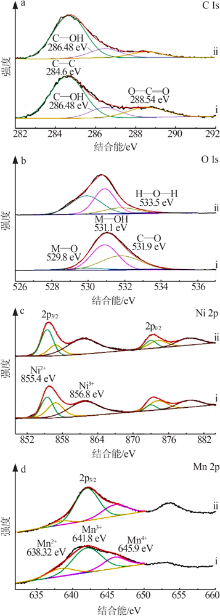

采用一步水热法在泡沫镍网上原位生长镍锰基层状双氢氧化物（NiMn-LDH）纳米片阵列电极,并通过氢氧化钾溶液中浸泡的方式提升电极的容量。采用SEM、XRD、TEM和XPS等手段对浸泡前后的电极材料进行表征。结果表明,在浸泡前后NiMn-LDH电极的形貌没有变化,但在电极材料内部发生了明显的CO₃^2-和OH^-的交换反应,降低体积较大的CO₃^2-在LDH层间的分布数量,使层内空间成为OH^-的“蓄水池”,缩短了电荷存储过程中OH^-的迁移距离,因此电容性能有了明显提升。电化学测试结果表明,在5 mA/cm²电流密度下,电极的比电容从18.0 F/g增加至766.6 F/g（1.69 F/cm²）。将该电极与活性炭组装的全固态不对称超级电容器在功率密度为900 W/kg时,可呈现的能量密度为35.9 W·h/kg,并且器件的循环稳定性良好。

关键词: NiMn-LDH, 电极活化, 超级电容器, 阴离子交换反应

Abstract:

NiMn-LDH nanosheet arrays on Ni foam were synthesized via one-step hydrothermal method,and the capacitive performance was enhanced by soaking the nanoarrays on KOH solution.The as-obtained electrode before and after the soaking process were characterized by SEM,XRD,TEM and XPS technologies.The results showed that the morphology of NiMn-LDH electrode did not change before and after immersion,but anion exchange reaction between CO₃^2- and OH^- anions was occurred in the electrode materials obviously,which reduced the distribution quantity of large CO₃^2- between LDH layers,made the space in the layer become the“reservoir”of OH^-,and reduced the migration distance of OH^- in the charge storage process.Therefore,the capacitance performance had been significantly improved.The electrochemical test results showed that the speci-fic capacitance of the electrode increased from 18.0 F/g to 766.6 F/g（1.69 F/cm²） at the current density of 5 mA/cm².When the power density of the all solid-state asymmetric supercapacitor assembled with the electrode and activated carbon was 900 W/kg,the displayed energy density was 35.9 W·h/kg,and the cycle stability of the device was good.

Key words: NiMn-LDH, electrode activation, supercapacitor, anions exchange reaction.

中图分类号:

TQ138.13

梁群芳,许雪棠,王凡. 基于阴离子交换反应的NiMn-LDH电极电容性能提升研究[J]. 无机盐工业, 2022, 54(2): 38-44.

LIANG Qunfang,XU Xuetang,WANG Fan. Study on improvement of capacitance performance of NiMn-LDH electrode material by anions exchange[J]. Inorganic Chemicals Industry, 2022, 54(2): 38-44.

图/表 8

图1

图2

图3

图4

图5

图6

图7

表1

参考文献 24

[1]	NGUYEN T, MONTEMOR M. Metal oxide and hydroxide-based aqueous supercapacitors:From charge storage mechanisms and functional electrode engineering to need-tailored devices[J]. Adva-nced Science, 2019, 6.Doi: 10.1002/advs.201801797.
[2]	张硕嘉, 杨玉彬, 唐宇, 等. 高活性Fe₂O₃@Ni复合电极制备及电化学性能研究[J]. 无机盐工业, 2019, 51(7):24-27.
[3]	CHOUDHARY N, LI C, MOORE J, et al. Supercapacitors:Asymme-tric supercapacitor electrodes and devices[J]. Advanced Materials, 2017, 29.Doi: 10.1002/adma.201605336.
[4]	赵杰, 郭月, 沈桢, 等. 高倍率容量层状双金属氢氧化物超级电容材料的研究进展[J]. 化工学报, 2020, 71(11):4851-4872.
[5]	王文聪. 层状双金属氢氧化物超级电容器电极材料的制备和电化学性能研究[D]. 杭州:浙江大学, 2019.
[6]	WANG R, YAO M, NIU Z. Smart supercapacitors from materials to devices[J]. InfoMat, 2020, 2:113-125.
[7]	朱基亮. 超级电容器用金属层状双氢氧化物电极材料研究进展[J]. 四川师范大学学报:自然科学版, 2020, 43(3):285-296.
[8]	雷娜, 马翩翩. Ni-Co LDHs纳米片阵列用于超级电容器电极的研究[J]. 浙江理工大学学报:自然科学版, 2020, 43(6):58-64.
[9]	XU R, DU L, ADEKOYA D, et al. Well-defined nanostructures for electrochemical energy conversion and storage[J]. Advanced Ener-gy Materials, 2020, 10.Doi: 10.1002/aenm.202001537.
[10]	李宫, 陈昆峰, 金京一, 等. La³+掺杂NiCo层状双金属氢氧化物纳米片的合成及其电化学性能[J]. 应用化学, 2017(34):71-75.
[11]	LIU H B, LI J C, YE L, et al. Co₁-_x-_yNi_xZn_y(CO₃)_0.5(OH)·0.11H₂O nanoneedles-NiCo-layered double hydroxide nanosheet compos-ites on vulcanized Ni foams for supercapacitors[J]. ACS Applied Nano Materials, 2021, 4(2):1743-1753.
[12]	WANG Y, YAN D, EL HANKARI S, et al. Recent progress on lay-ered double hydroxides and their derivatives for electrocatalytic water splitting[J]. Advanced Science, 2018, 5(8).Doi: 10.1002/advs.201800064.
[13]	WANG X L, ZHANG J Q, YANG S B, et al. Interlayer space regu- lating of NiMn layered double hydroxides for supercapacitors by controlling hydrothermal reaction time[J]. Electrochimica Acta, 2019, 295:1-6.
[14]	TANG Y Q, SHEN H M, CHENG J Q, et al. Fabrication of oxygen-vacancy abundant NiMn-layered double hydroxides for ultrahigh capacity supercapacitors[J]. Advanced Functional Materials, 2020, 30.Doi: 10.1002/adfm.201908223.
[15]	邹文茹. 阴离子交换法增强Ni-Co基纳米阵列电极性能的研究[D]. 南宁:广西大学, 2019.
[16]	YANG T Y, YE J, CHEN S H, et al. Construction of nanowall-su-pported-nanorod nico ldh array electrode with high mass-loadingon carbon cloth for high-performance asymmetric supercapacitors[J]. Electrochimica Acta, 2020, 362.Doi: 10.1016/j.electacta.2020.137081.
[17]	ZANG Y, LUO H, ZHANG H, et al. Polypyrrole nanotube-interco-nnected NiCo-LDH nanocages derived by ZIF-67 for supercapac-itors[J]. ACS Applied Energy Materials, 2021, 4(2):1189-1198.
[18]	LIU X, ZHOU A, PAN T, et al. Ultrahigh-rate-capability of a layered double hydroxide supercapacitor based on a self-generated elec-trolyte reservoir[J]. Journal of Materials Chemistry A, 2016(4):8421-8427.
[19]	WEI M, MA R, WU J, et al. Development of efficient electrocataly-sts via molecular hybridization of NiMn layered double hydroxide nanosheets and graphene[J]. Nanoscale, 2016, 8(19):10425-10432.
[20]	CHEN D M, YAN S, CHEN H J, et al. Hierarchical Ni-Mn layered double hydroxide grown on nitrogen-doped carbon foams as high-performance supercapacitor electrode[J]. Electrochimica Acta, 2018, 292:374-382.
[21]	YU M, LIU R L, LIU J H, et al. Polyhedral-like NiMn-layered dou-ble hydroxide/porous carbon as electrode for enhanced electroche-mical performance supercapacitors[J]. Small, 2017, 13(44).Doi: 10.1002/smll.201702616.
[22]	CHEN H Y, AI Y N, LIU F, et al. Carbon-coated hierarchical Ni-Mn layered double hydroxide nanoarrays on Ni foam for flexible high-capacitance supercapacitors[J]. Electrochimica Acta, 2016, 213:55-65.
[23]	SUN L, ZHANG Y X, ZHANG Y, et al. Reduced graphene oxide nanosheet modified NiMn-LDH nanoflake arrays for high-perfor-mance supercapacitors[J]. Chemical Communications, 2018, 54(72):10172-10175.
[24]	XU T, LI G, YANG X, et al. Design of the seamless integrated C@NiMn-OH-Ni₃S₂/Ni foam advanced electrode for supercapaci-tors[J]. Chemical Engineering Journal, 2019, 362:783-793.

正极	负极	能量密度/ （W·h·kg^-1）	功率密度/ （W·kg^-1）
a-NiMn LDH	AC	35.9	900.00
NiMn-LDH/NCF^[20]	NCF	34.1	350.10
NiMn-LDH/PC-1^[21]	RGO/CNT	18.6	225.03
NiMn-LDH/PPy/BC^[22]	Fe₃O₄@C/MWCNTs	29.8	299.00
rGO@NiMn-LDH@NF^[23]	AC	22.5	700.00
carbon-NiMn-LDH/NF^[24]	AC	37.7	378.13
