水菱镁矿制备高分散六角片状纳米氢氧化镁的新工艺条件探究

doi:10.11962/1006-4990.2020-0152

摘要/Abstract

摘要：

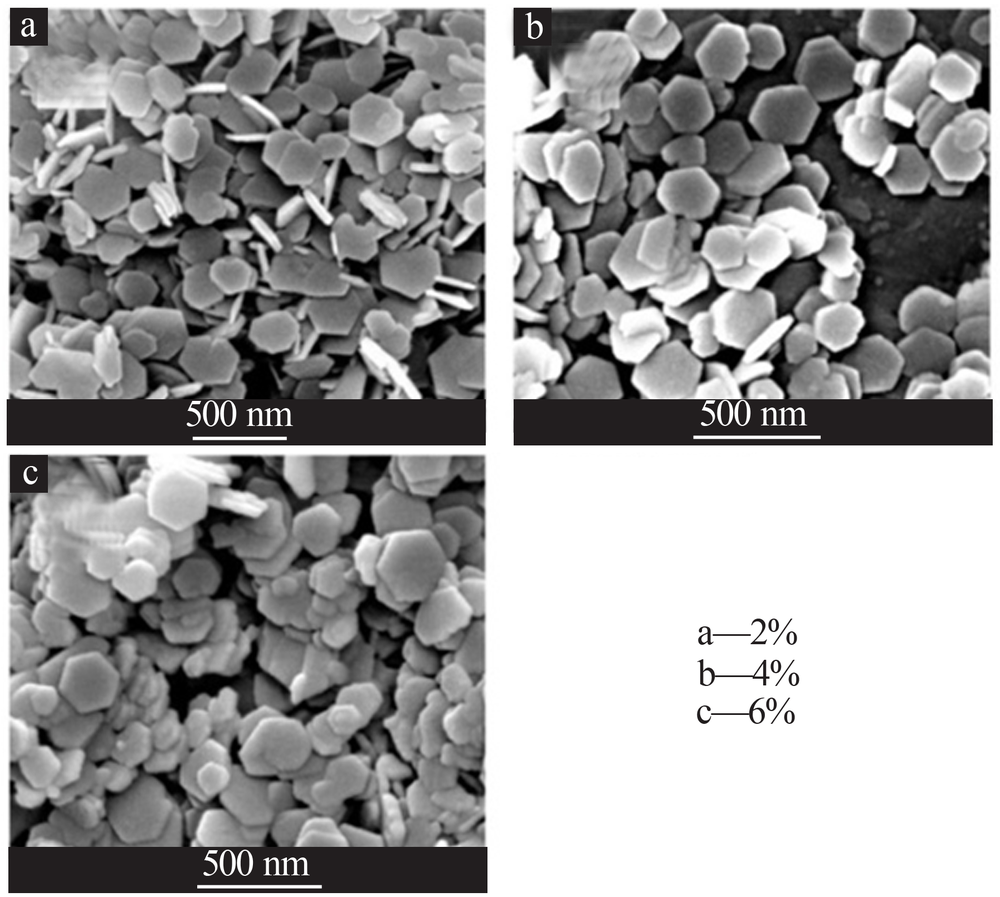

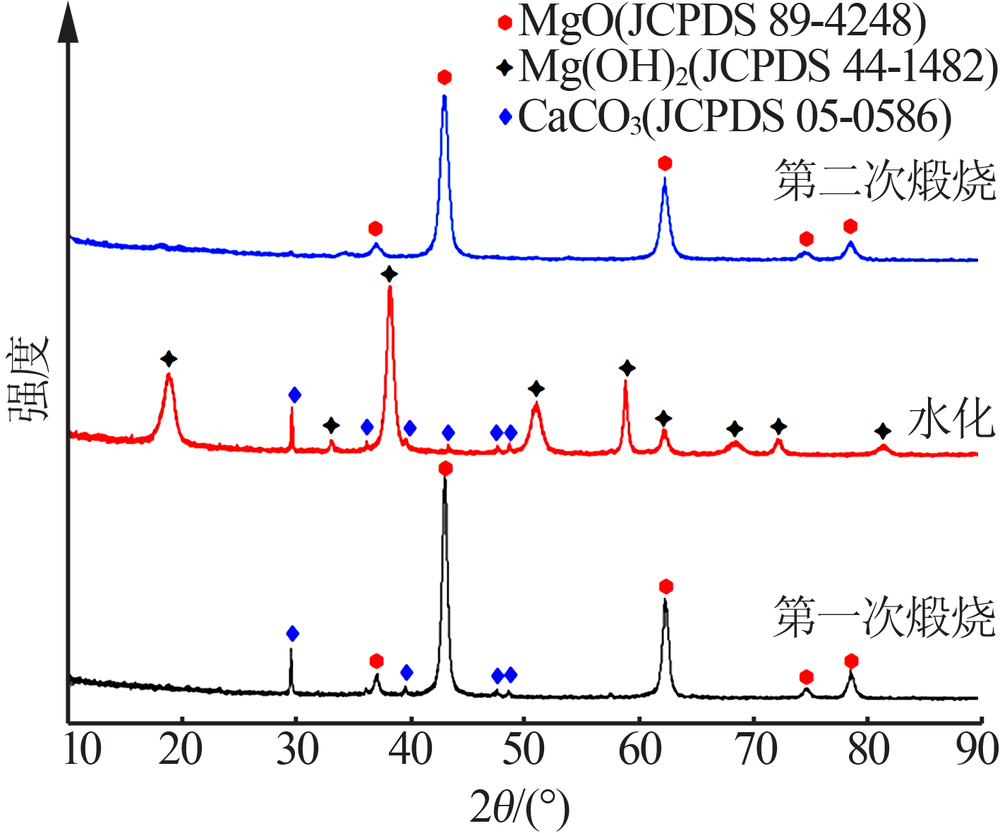

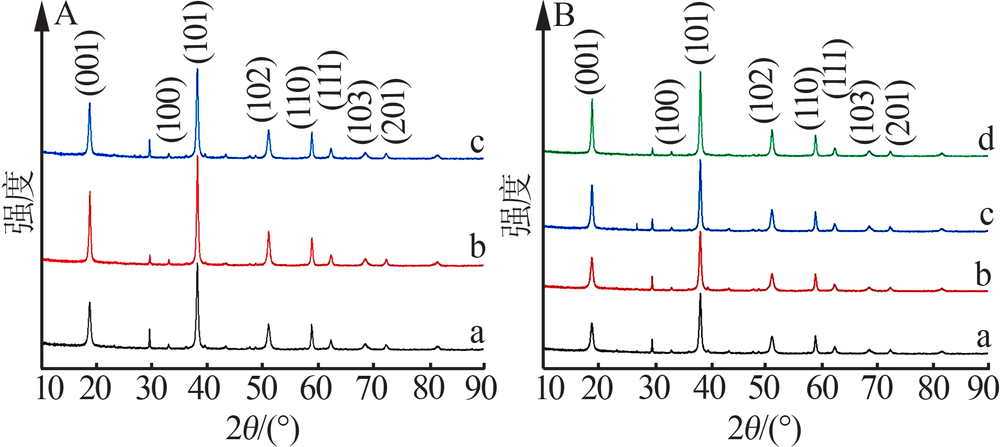

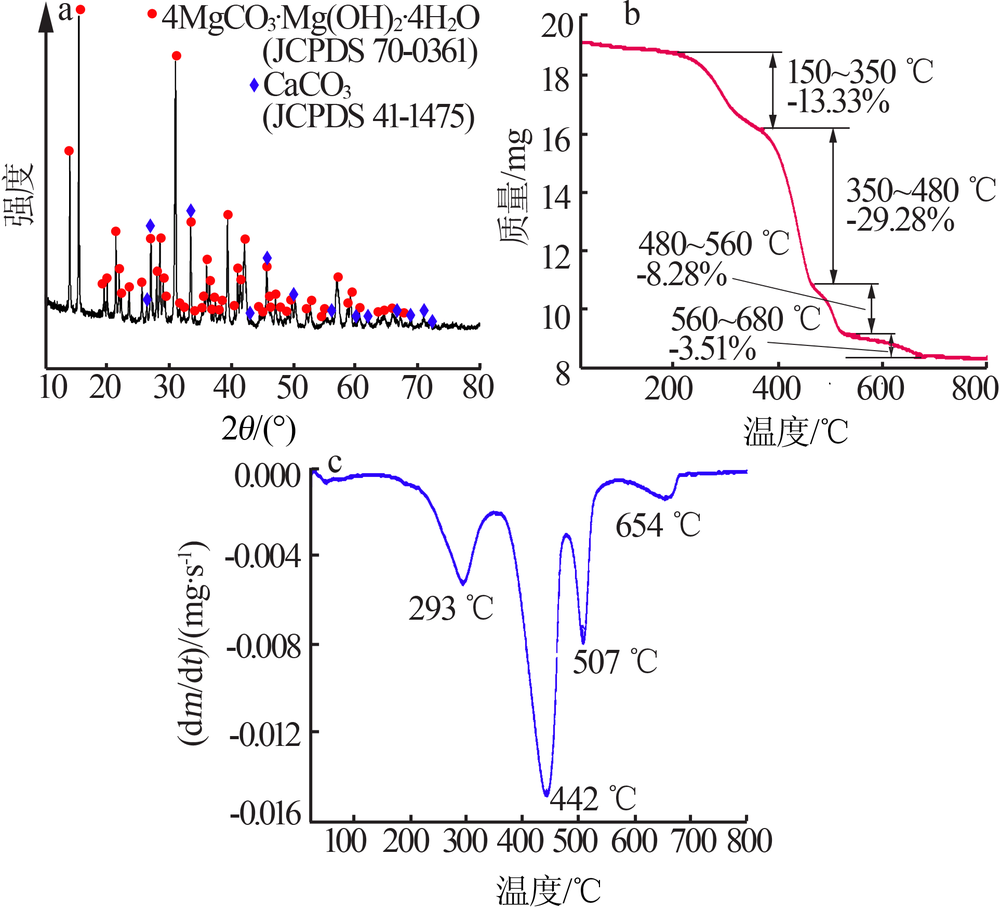

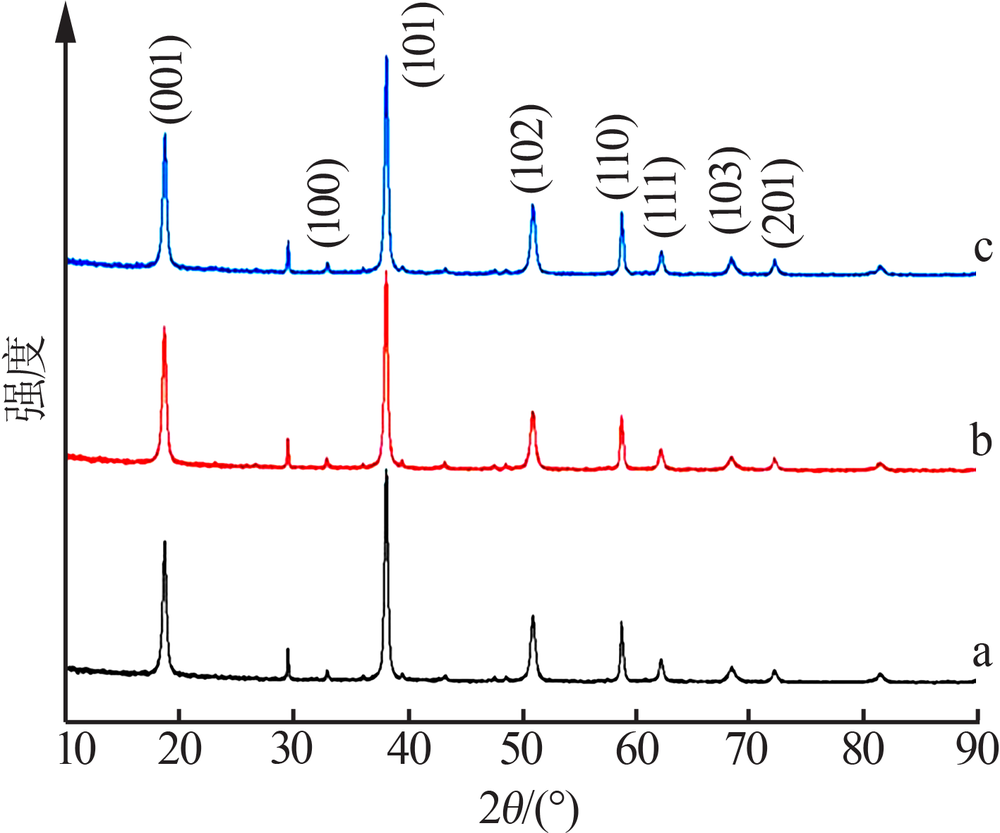

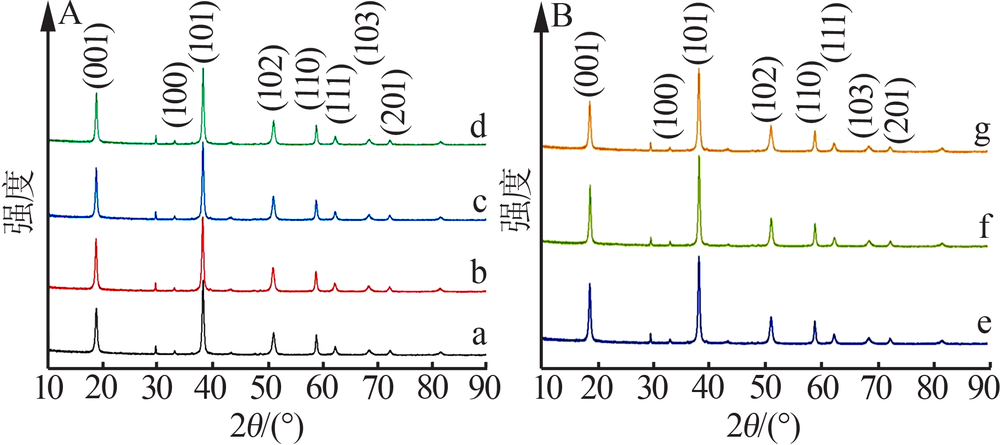

以水菱镁矿为原料,通过“煅烧-水化-煅烧-水热”的简单合成路线制备了高分散六角片状的阻燃型纳米氢氧化镁。确定初步工艺后,探究了氧化镁用量、水热温度和水热时间对氢氧化镁结晶度和形貌的影响,确定最佳工艺水热条件：氧化镁用量为10%~25%（质量分数）、水热温度为150 ℃、水热时间为3 h。在水热过程中,分别向反应体系中加入聚乙烯吡咯烷酮（PVP）、十六烷基三甲基溴化铵（CTAB）、聚乙二醇6000（PEG6000）和聚乙二醇200（PEG200）,考察了不同改性剂及改性剂用量对氢氧化镁颗粒结晶度和分散性的影响。结果表明在4%（质量分数）PVP的条件下,能很好地改善纳米氢氧化镁的分散性,并得到了分散性好、晶形完整、粒径均匀、直径为300~400 nm、厚度为40~60 nm的六角片状纳米氢氧化镁。

关键词: 水菱镁矿, 氢氧化镁, 氧化镁

Abstract:

Nano-sized highly-dispersed hexagonal magnesium hydroxide as the flame retardant was prepared from hydromag-nesite by a simple synthesis route by calcination-hydration-calcination-hydrothermal method.After the initial process was con-firmed,the effects of magnesium oxide（MgO） dosage,hydrothermal temperature and hydrothermal time on the crystallinity and morphology of Mg（OH）₂ were investigated.Finally,the optimized hydrothermal conditions were determined as follows：MgO dosage was 10%~25%（mass fraction）,hydrothermal temperature was 150 ℃ and hydrothermal time was 3 h.Polyvin-ylpyrrolidone（PVP）,cetyltrimethylammonium bromide（CTAB）,polyethylene glycol 6000（PEG6000） and polyethylene gly-col 200（PEG200） were separately added to the reaction system during the hydrothermal process to explore the effects of dif-ferent modifiers and mass fractions of the modifier on the crystallinity and dispersibility of Mg（OH）₂ nanoparticles.Result showed that the dispersibility of Mg（OH）₂ nanoparticles can be well improved using 4%（mass fraction） PVP and finally hexa-gonal nano-Mg（OH）₂ with high dispersibility,complete crystal shape,uniform particle size,300~400 nm diameter and 40~60 nm thickness was obtained.

Key words: hydromagnesite, magnesium hydroxide, magnesium oxide

中图分类号:

TQ132.2

黄建翠,凌观爽,宗俊. 水菱镁矿制备高分散六角片状纳米氢氧化镁的新工艺条件探究[J]. 无机盐工业, 2021, 53(2): 55-60.

Huang Jiancui,Ling Guanshuang,Zong Jun. Study on new conditions for preparation of highly-dispersed hexagonal magnesium hydroxide nanoparticles from hydromagnesite[J]. Inorganic Chemicals Industry, 2021, 53(2): 55-60.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 16

[1]	刘润静, 李呈, 赵华, 等. 氢氧化镁改性技术及阻燃效果研究进展[J]. 无机盐工业, 2015,47(7):9-11.
[2]	Wang Q. Preparation and surface modification of Mg(OH)₂/siloxane nanocomposite flame retardant[J]. Journal of Polymer Engineering, 2015,35(2):113-117.
[3]	Pilarska A, Klapiszewski Ł, Jesionowski T, et al. Recent development in the synjournal,modification and application of Mg(OH)₂ and MgO:A review[J]. Powder Technology, 2017,319:373-407.
[4]	Liu L, Hu J, Zhuo J, et al. Synergistic flame retardant effects between hollow glass microspheres and magnesium hydroxide in ethylene-vinyl acetate composites[J]. Polymer Degradation and Stability, 2014,104:87-94.
[5]	Chen Y, Zhou T, Fang H, et al. A novel preparation of nanosized he-xagonal Mg(OH)₂ as a flame retardant[J]. Particuology, 2016,24(1):177-182.
[6]	Wang P, Li C, Gong H, et al. Morphology control and growth mecha-nism of magnesium hydroxide nanoparticles via a simple wet preci-pitation method[J]. Ceramics International, 2011,37(8):3365-3370.
[7]	赵娜, 张琴, 翟俊, 等. 卤水-烧碱直接沉淀法制备纳米氢氧化镁的研究[J]. 无机盐工业, 2015,47(5):35-44.
[8]	Song G, Ma S, Tang G, et al. Ultrasonic-assisted synjournal of hydro-phobic magnesium hydroxide nanoparticles[J]. Colloids and Sur-faces A:Physicochemical and Engineering Aspects, 2010,364(1):99-104.
[9]	王明帆, 马祥伟, 游轻寒, 等. 活性氢氧化镁水热改性制备分散性氢氧化镁[J]. 无机盐工业, 2015,47(7):29-31.
[10]	Balducci G, Diaz L B, Gregory D H, et al. Recent progress in the synjournal of nanostructured magnesium hydroxide[J]. Cryst.Eng.Comm., 2017,19(41):6067-6084.
[11]	Sierrafernandez A, Gomezvillalba L S, Milosevic O, et al. Synjournal and morpho-structural characterization of nanostructured magne-sium hydroxide obtained by a hydrothermal method[J]. Ceramics International, 2014,40(8):12285-12292.
[12]	陈泆君, 马祥伟, 易美桂. 溶液组成对焙烧-水化制备氢氧化镁纳米片的影响[J]. 无机盐工业, 2016,48(11):35-37.
[13]	Hollingbery L A, Hull T R. The thermal decomposition of huntite and hydromagnesite-A review[J]. Thermochimica Acta, 2010,509(1):1-11.
[14]	Atay H Y, Çelik E. Use of Turkish huntite/hydromagnesite mineral in plastic materials as a flame retardant[J]. Polymer Composites, 2010,31(10):1692-1700.
[15]	郭如新. 水菱镁石和斜方云石的开发与应用[J]. 盐湖研究, 2009,17(3):63-68.
[16]	Fang H, Zhou T, Chen X, et al. Controlled preparation and charac-terization of nano-sized hexagonal Mg(OH)₂ flame retardant[J]. Particuology, 2014,14(3):51-56.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
