基于氧化铁/生物质碳复合材料的高性能超级电容器研究

doi:10.19964/j.issn.1006-4990.2021-0352

无机盐工业 ›› 2022, Vol. 54 ›› Issue (3): 59-65.doi: 10.19964/j.issn.1006-4990.2021-0352

基于氧化铁/生物质碳复合材料的高性能超级电容器研究

王典^1,^2,^3,⁴(),苏琼^1,^2,⁴,庞少峰^1,^2,^3,⁴,曹世军^1,^2,^3,⁴,康莉会^1,^2,^3,⁴,梁丽春^1,^2,^3,⁴,王彦斌^1,^2,^3,⁴(),李朝霞^1,^2,³()

1.西北民族大学化工学院,甘肃兰州 730030
2.环境友好复合材料国家民委重点实验室
3.甘肃省高校环境友好复合材料及生物质利用重点实验室
4.甘肃省生物质功能复合材料工程研究中心

收稿日期:2021-05-31 出版日期:2022-03-10 发布日期:2022-03-18
作者简介:王典（1997— ）,男,硕士研究生,研究方向为生物质综合利用及功能材料的制备研究;E-mail： 1458123231@qq.com。
基金资助:
国家自然科学基金(21968032);国家自然科学基金(22165025);甘肃省科技计划项目(20YF8FA045);西北民族大学化学学科创新团队建设项目(1110130139,1110130141);甘肃省一流专业建设(2019SJYLZY-08);中央高校基本科研业务费创新团队培育项目(31920190012);中央高校基本科研业务费创新团队培育项目(31920200085);甘肃省高校创新创业教育改革项目(四新建设背景下专创融合教育教学质量提升工程、精细化工创新创业教育教学团队、化学工程实验教学示范中心)

Study on high-performance supercapacitors based on Fe₂O₃/biomass carbon composites

WANG Dian^1,^2,^3,⁴(),SU Qiong^1,^2,⁴,PANG Shaofeng^1,^2,^3,⁴,CAO Shijun^1,^2,^3,⁴,KANG Lihui^1,^2,^3,⁴,LIANG Lichun^1,^2,^3,⁴,WANG Yanbin^1,^2,^3,⁴(),LI Zhaoxia^1,^2,³()

1. School of Chemical Engineering,Northwest Minzu University,Lanzhou 730030,China
2. Key Laboratory of EnvironmentFriendly Composite Materials of the State Ethnic Affairs Comm-ission
3. Key Laboratory of Utility of Environmental Friendly Composite Materials and Biomass in Universities of Gansu Province
4. Engineering Research Center of Biomass-Functional Composite Materials of Gansu Province

Received:2021-05-31 Published:2022-03-10 Online:2022-03-18

摘要/Abstract

摘要：

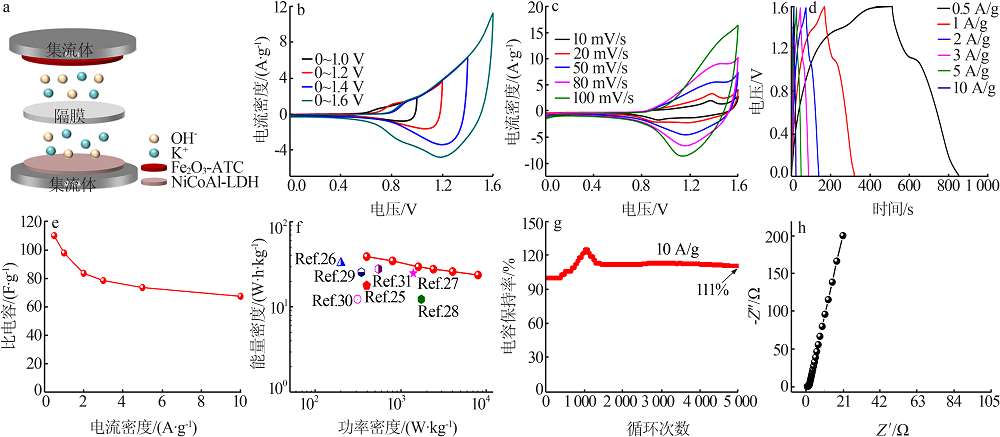

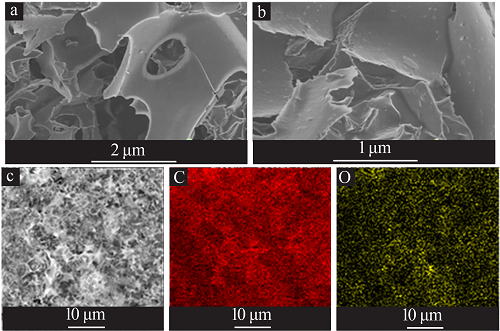

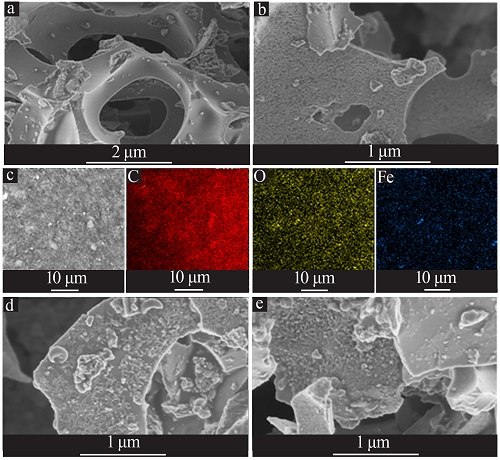

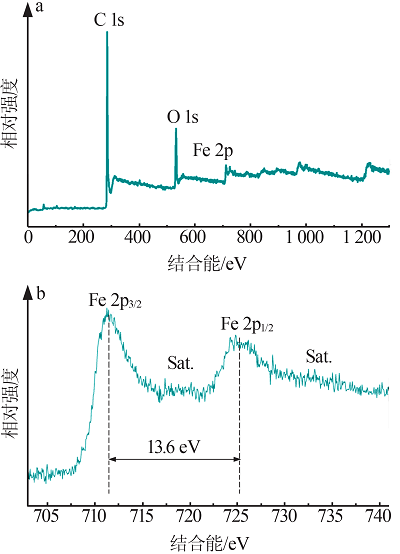

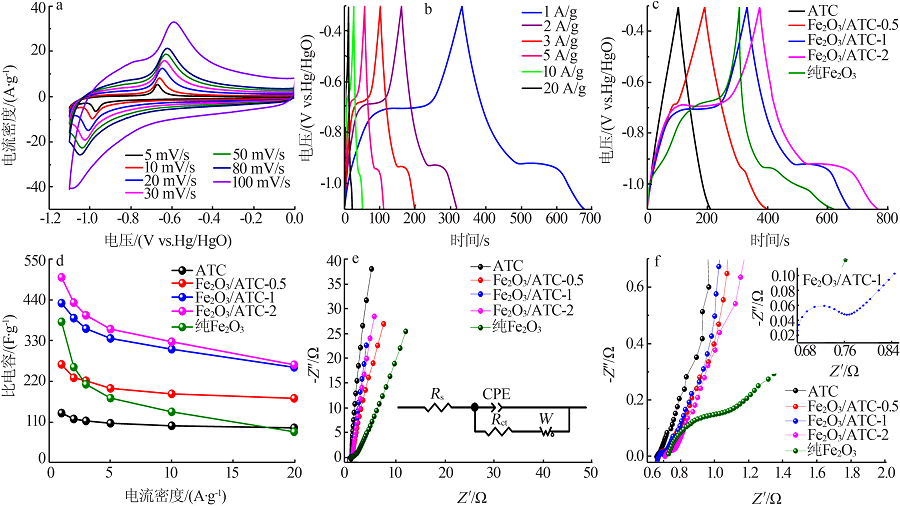

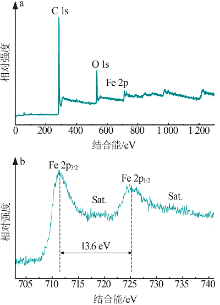

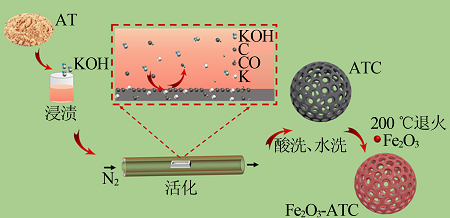

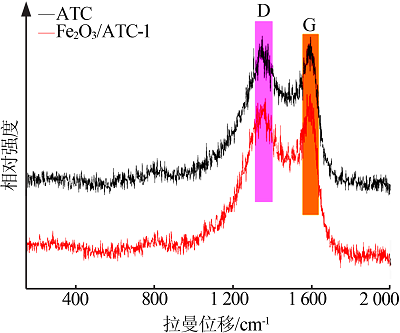

为改善碳材料比电容低的问题以及氧化铁（Fe₂O₃）导电性和循环稳定性差的问题,采用氧化铁修饰生物质衍生碳（ATC）表面制备氧化铁/生物质碳（Fe₂O₃/ATC）复合材料,通过氧化铁和生物质衍生碳的协同效应使复合材料获得更高的比电容和更好的稳定性。利用扫描电镜（SEM）、X射线光电子能谱（XPS）、拉曼（Raman）光谱等技术手段对样品进行了表征。结果表明,制备的复合材料存在一定的孔隙结构,氧化铁纳米粒子被锚定在碳表面。当氧化铁和生物质衍生碳的质量比为1:1时,制备的复合材料具有最优的电化学性能,在3.0 mol/L氢氧化钾溶液中显示出430.8 F/g（电流密度约为1.0 A/g）的高比电容,电流密度增大20倍时电容保持率大于60%。将其作为负极构建的不对称超级电容器具有较高的电压窗口（0~1.6 V）,并且实现了39.1 W·h/kg的高能量密度;同时表现出优异的循环稳定性,在电流密度为10 A/g下循环5 000次后拥有111%的电容保持率。

关键词: 生物质, 氧化铁, 复合材料, 比电容, 超级电容器

Abstract:

To improve the low specific capacitance of carbon materials as well as the poor electrical conductivity and low cyclic stability of ferric oxide（Fe₂O₃）,Fe₂O₃ was used to modify the surface of biomass-derived carbon to prepare Fe₂O₃/bio-mass carbon composites,which achieved higher specific capacitance and better stability by the synergistic effect of Fe₂O₃ and biomass-derived carbon.The samples were characterized by scanning electron microscopy（SEM）、X-ray photoelectron spec-troscopy（XPS） and Raman spectra.The results demonstrated that the prepared composites had a certain pore struc-ture,with Fe₂O₃ nanoparticles anchored on the carbon surface.When the mass ratio of Fe₂O₃ and biomass-derived carbon was 1:1,the prepared composites possessed the best electrochemical performance,showing a high specific capacitance of 430.8 F/g（1.0 A/g） in 3.0 mol/L KOH.The capacitance retention was still greater than 60% when the current density was increased by 20 times.The asymmetric supercapacitor constructed by using it as the negative electrode had a high voltage window（0~1.6 V） and achieved a high energy density of 39.1 W·h/kg.While,it also exhibited excellent cycling stability with 111% capacitance retention after 5 000 cycles at 10 A/g.

Key words: biomass, Fe₂O₃, composite materials, specific capacitance, supercapacitor

中图分类号:

王典,苏琼,庞少峰,曹世军,康莉会,梁丽春,王彦斌,李朝霞. 基于氧化铁/生物质碳复合材料的高性能超级电容器研究[J]. 无机盐工业, 2022, 54(3): 59-65.

WANG Dian,SU Qiong,PANG Shaofeng,CAO Shijun,KANG Lihui,LIANG Lichun,WANG Yanbin,LI Zhaoxia. Study on high-performance supercapacitors based on Fe₂O₃/biomass carbon composites[J]. Inorganic Chemicals Industry, 2022, 54(3): 59-65.

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 31

[1]	DINH K N, LIANG Q, DU C F, et al. Nanostructured metallic transi-tion metal carbides,nitrides,phosphides,and borides for energy sto-rage and conversion[J]. Nano Today, 2019, 25:99-121. doi: 10.1016/j.nantod.2019.02.008
[2]	MURALEEGOPI C V V, VINODH R, SAMBASIVAM S, et al. Rec-ent progress of advanced energy storage materials for flexible and wearable supercapacitor:From design and development to applicat-ions[J]. Journal of Energy Storage, 2020, 27.Doi: 10.1016/j.est.2019.101035. doi: 10.1016/j.est.2019.101035
[3]	SETHURAMAN B, PURUSHOTHAMAN K K, MURALIDHARAN G. Synjournal of mesh-like Fe₂O₃/C nanocomposite via greener route for high performance supercapacitors[J]. RSC Advances, 2014, 4(9):4631-4637. doi: 10.1039/C3RA45025B
[4]	SHENG L, JIANG L, WEI T, et al. Spatial charge storage within ho-neycomb-carbon frameworks for ultrafast supercapacitors with high energy and power densities[J]. Advanced Energy Materials, 2017, 7(19).Doi: 10.1002/aenm.201700668. doi: 10.1002/aenm.201700668
[5]	PAN Z, ZHONG J, ZHANG Q, et al. Ultrafast all-solid-state coaxial asymmetric fiber supercapacitors with a high volumetric energy den-sity[J]. Advanced Energy Materials, 2018, 8(14).Doi: 10.1002/aenm.201702946. doi: 10.1002/aenm.201702946
[6]	HAN J, HIRATA A, DU J, et al. Intercalation pseudocapacitance of amorphous titanium dioxide@nanoporous graphene for high-rate and large-capacity energy storage[J]. Nano Energy, 2018, 49:354-362. doi: 10.1016/j.nanoen.2018.04.063
[7]	LI Y, ZHANG H, WANG S, et al. Facile low-temperature synjournal of hematite quantum dots anchored on a three-dimensional ultra-po-rous graphene-like framework as advanced anode materials for asy-mmetric supercapacitors[J]. Journal of Materials Chemistry A, 2016, 4(29):11247-11255. doi: 10.1039/C6TA02927B
[8]	JI W, JI J, CUI X, et al. Polypyrrole encapsulation on flower-like po-rous NiO for advanced high-performance supercapacitors[J]. Che-mical Communications, 2015, 51(36):7669-7672.
[9]	HAO J, PENG S, LI H, et al. A low crystallinity oxygen-vacancy-rich Co₃O₄ cathode for high-performance flexible asymmetric supercapa-citors[J]. Journal of Materials Chemistry A, 2018, 6(33):16094-16100. doi: 10.1039/C8TA06349D
[10]	何启贤, 袁学韬. 基于纳米片状二氧化锰的柔性固态超级电容的性能研究[J]. 无机盐工业, 2018, 50(2):43-45.
[11]	QI Z, YOUNIS A, CHU D, et al. A facile and template-free one-pot synjournal of Mn₃O₄ nanostructures as electrochemical supercapaci-tors[J]. Nano-Micro Letters, 2016, 8(2):165-173. doi: 10.1007/s40820-015-0074-0
[12]	JIA H, WANG Z, LI C, et al. Designing oxygen bonding between reduced graphene oxide and multishelled Mn₃O₄ hollow spheres for enhanced performance of supercapacitors[J]. Journal of Materi-als Chemistry A, 2019, 7(12):6686-6694.
[13]	XU W, DAI S, LIU G, et al. CuO nanoflowers growing on carbon fiber fabric for flexible high-performance supercapacitors[J]. Elec-trochimica Acta, 2016, 203:1-8.
[14]	CHO E C, CHANG-JIAN C W, LEE K C, et al. Ternary composite based on homogeneous Ni(OH)₂ on graphene with Ag nanoparticles as nanospacers for efficient supercapacitor[J]. Chemical Engineer-ing Journal, 2018, 334:2058-2067.
[15]	ZHANG H, GAO Q, YANG K, et al. Solvothermally induced α-Fe₂O₃/graphene nanocomposites with ultrahigh capacitance and excellent rate capability for supercapacitors[J]. Journal of Materi-als Chemistry A, 2015, 3(44):22005-22011.
[16]	张硕嘉, 杨玉彬, 唐宇, 等. 高活性Fe₂O₃@Ni复合电极制备及电化学性能研究[J]. 无机盐工业, 2019, 51(7):24-27.
[17]	HE T, TU M, ZHANG J, et al. Nanoparticles of iron nitride encaps-ulated in nitrogen-doped carbon bulk derived from polyaniline/Fe₂O₃ blends and its electrochemical performance[J]. Particle & Particle Systems Characterization, 2020, 37(7).Doi: 10.1002/ppsc.202000132. doi: 10.1002/ppsc.202000132
[18]	FU C, MAHADEVEGOWDA A, GRANT P S. Production of hollow and porous Fe₂O₃ from industrial mill scale and its potential for large-scale electrochemical energy storage applications[J]. Journal of Materials Chemistry A, 2016, 4(7):2597-2604. doi: 10.1039/C5TA09141A
[19]	HUANG X, YU H, CHEN J, et al. Ultrahigh rate capabilities of li-thium-ion batteries from 3D ordered hierarchically porous electro-des with entrapped active nanoparticles configuration[J]. Advan-ced Materials, 2014, 26(8):1296-1303.
[20]	CHEN J, XU J, ZHOU S, et al. Template-grown graphene/porous Fe₂O₃ nanocomposite：A high-performance anode material for pseu-docapacitors[J]. Nano Energy, 2015, 15:719-728. doi: 10.1016/j.nanoen.2015.05.021
[21]	FANG K, CHEN J, ZHOU X, et al. Decorating biomass-derived po-rous carbon with Fe₂O₃ ultrathin film for high-performance super-capacitors[J]. Electrochimica Acta, 2018, 261:198-205. doi: 10.1016/j.electacta.2017.12.140
[22]	ZHAO P, WANG N, HU W, et al. Anode electrodeposition of 3D mesoporous Fe₂O₃ nanosheets on carbon fabric for flexible solid-state asymmetric supercapacitor[J]. Ceramics International, 2019, 45(8):10420-10428. doi: 10.1016/j.ceramint.2019.02.101
[23]	SONG Z, LIU W, WEI W, et al. Preparation and electrochemical properties of Fe₂O₃/reduced graphene oxide aerogel(Fe₂O₃/rGOA) composites for supercapacitors[J]. Journal of Alloys and Compo-unds, 2016, 685:355-363.
[24]	SHAN D, YANG J, LIU W, et al. Biomass-derived three-dimensio-nal honeycomb-like hierarchical structured carbon for ultrahigh energy density asymmetric supercapacitors[J]. Journal of Materi-als Chemistry A, 2016, 4(35):13589-13602.
[25]	LI P, XIE H, WANG X, et al. Sustainable production of nano α-Fe₂O₃/N-doped biochar hybrid nanosheets for supercapacitors[J]. Sustainable Energy & Fuels, 2020, 4(9):4522-4530.
[26]	WANG Y, SHEN C, NIU L, et al. Hydrothermal synjournal of CuCo₂O₄/CuO nanowire arrays and RGO/Fe₂O₃ composites for high-perfor-mance aqueous asymmetric supercapacitors[J]. Journal of Materi-als Chemistry A, 2016, 4(25):9977-9985.
[27]	DONG T, DENG T, CHU X, et al. Carbon intermediate boosted Fe-ZIF derived alpha-Fe₂O₃ as a high-performance negative electrode for supercapacitors[J]. Nanotechnology, 2020, 31(13).Doi: 10.1088/1361-6528/ab5baf. doi: 10.1088/1361-6528/ab5baf
[28]	DESHMUKH P R, SOHN Y, SHIN W G. Electrochemical perfor-mance of facile developed aqueous asymmetric(Fe,Cr)₂O₃//MnO₂ supercapacitor[J]. Electrochimica Acta, 2018, 285:381-392. doi: 10.1016/j.electacta.2018.07.197
[29]	LI Y, KANG L, BAI G, et al. Solvothermal synjournal of Fe₂O₃ loaded activated carbon as electrode materials for high-performance elec-trochemical Capacitors[J]. Electrochimica Acta, 2014, 134:67-75. doi: 10.1016/j.electacta.2014.04.094
[30]	ZHANG S, YIN B, WANG Z, et al. Super long-life all solid-state asymmetric supercapacitor based on NiO nanosheets and α-Fe₂O₃ nanorods[J]. Chemical Engineering Journal, 2016, 306:193-203. doi: 10.1016/j.cej.2016.07.057
[31]	KARTHIKEYAN K, AMARESH S, LEE S N, et al. Fluorine-doped Fe₂O₃ as high energy density electroactive material for hybrid su-percapacitor applications[J]. Chemistry:An Asian Journal, 2014, 9(3):852-857. doi: 10.1002/asia.v9.3
