ZSM-5纳米薄片定向堆积合成分子筛团聚体

doi:10.19964/j.issn.1006-4990.2021-0278

摘要/Abstract

摘要：

开发了一种新型的纳米微晶silicate-1（S-2）的合成方法。与常规的silicate-1（S-1）相比,S-2具有较小的粒径和光滑的晶体表面。当S-2作为晶种合成纳米ZSM-5聚集体时,ZSM-5团聚体为尺寸为0.8~1.0 μm的单分散颗粒,构成团聚体的ZSM-5晶体为b轴厚度为60~80 nm的纳米薄片。ZSM-5纳米薄片沿着同一方向规则地堆叠形成独特的孔结构,该孔结构包括1.3 nm的均一孔道和25 nm的宽尺寸孔道。

关键词: ZSM-5团聚体, 晶种, 多级孔, 纳米薄片

Abstract:

A new synthetic method of nanocrystalline silicate-1（S-2） was developed.Compared with the conventional sili-cate-1（S-1）,S-2 had smaller particle size and smooth crystal surface.When S-2 was used as seed crystal to synthesize nano-ZSM-5 aggregates,the ZSM-5 aggregates were monodisperse particles with size of 0.8~1.0 μm,which were composed by the ZSM-5 crystals with the b-axis thickness of 60~80 nm.The ZSM-5 nanosheets were regularly stacked along the b-axis forming a unique pore structure,including a uniform pore size distribution with an average size of 1.3 nm and a wide pore size distribution of 25 nm.

Key words: ZSM-5 aggregates, seed, hierarchical pore, nanosheet

中图分类号:

TQ424.25

李孝国,米晓彤,曹辉,常洋,张永坤,李永恒. ZSM-5纳米薄片定向堆积合成分子筛团聚体[J]. 无机盐工业, 2022, 54(1): 112-116.

LI Xiaoguo,MI Xiaotong,CAO Hui,CHANG Yang,ZHANG Yongkun,LI Yongheng. Synthesis of ZSM-5 aggregates assembled by oriented stacking nanosheets[J]. Inorganic Chemicals Industry, 2022, 54(1): 112-116.

图/表 8

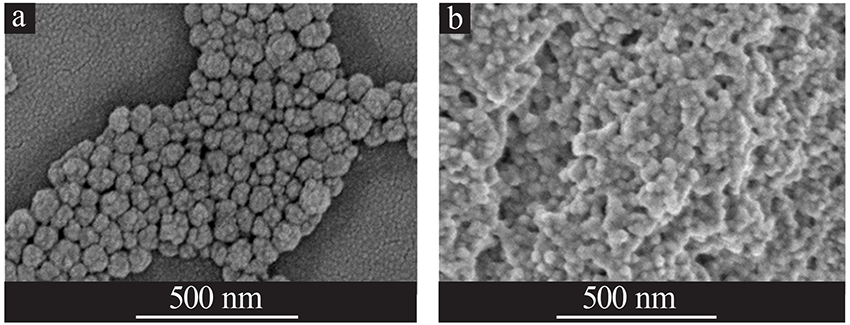

图1

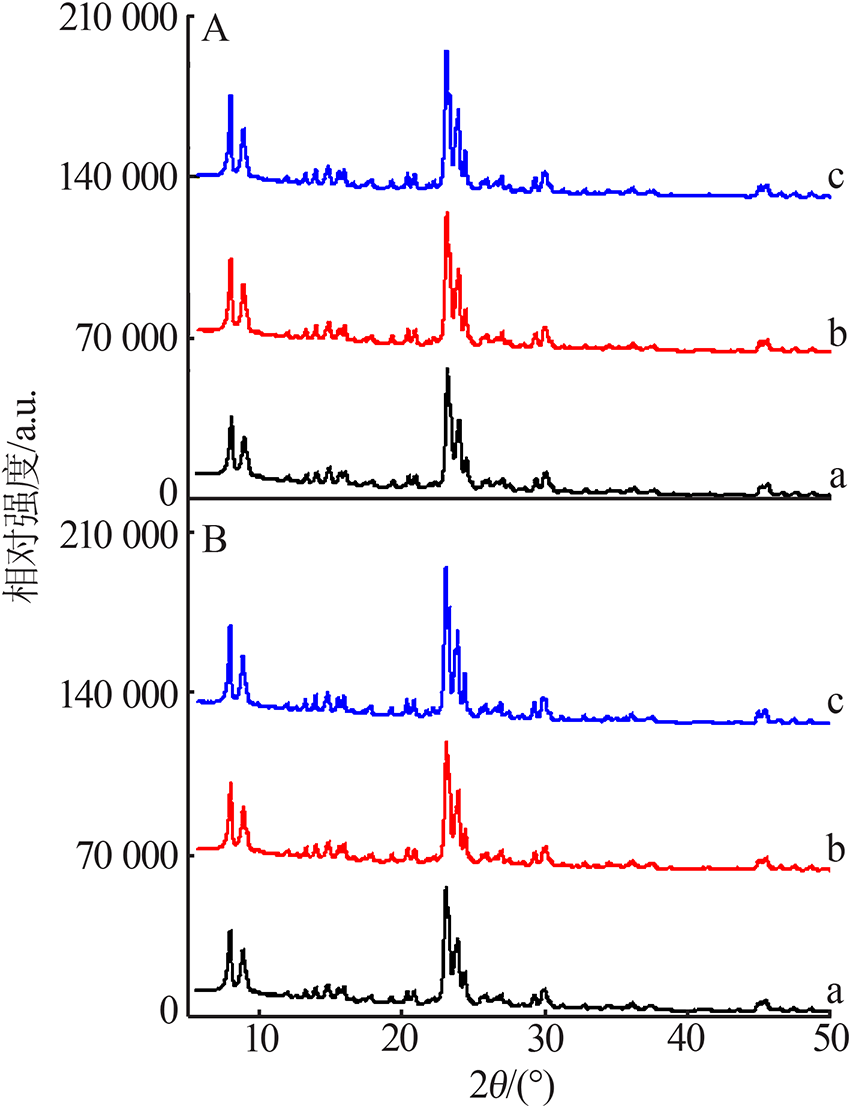

图2

表1

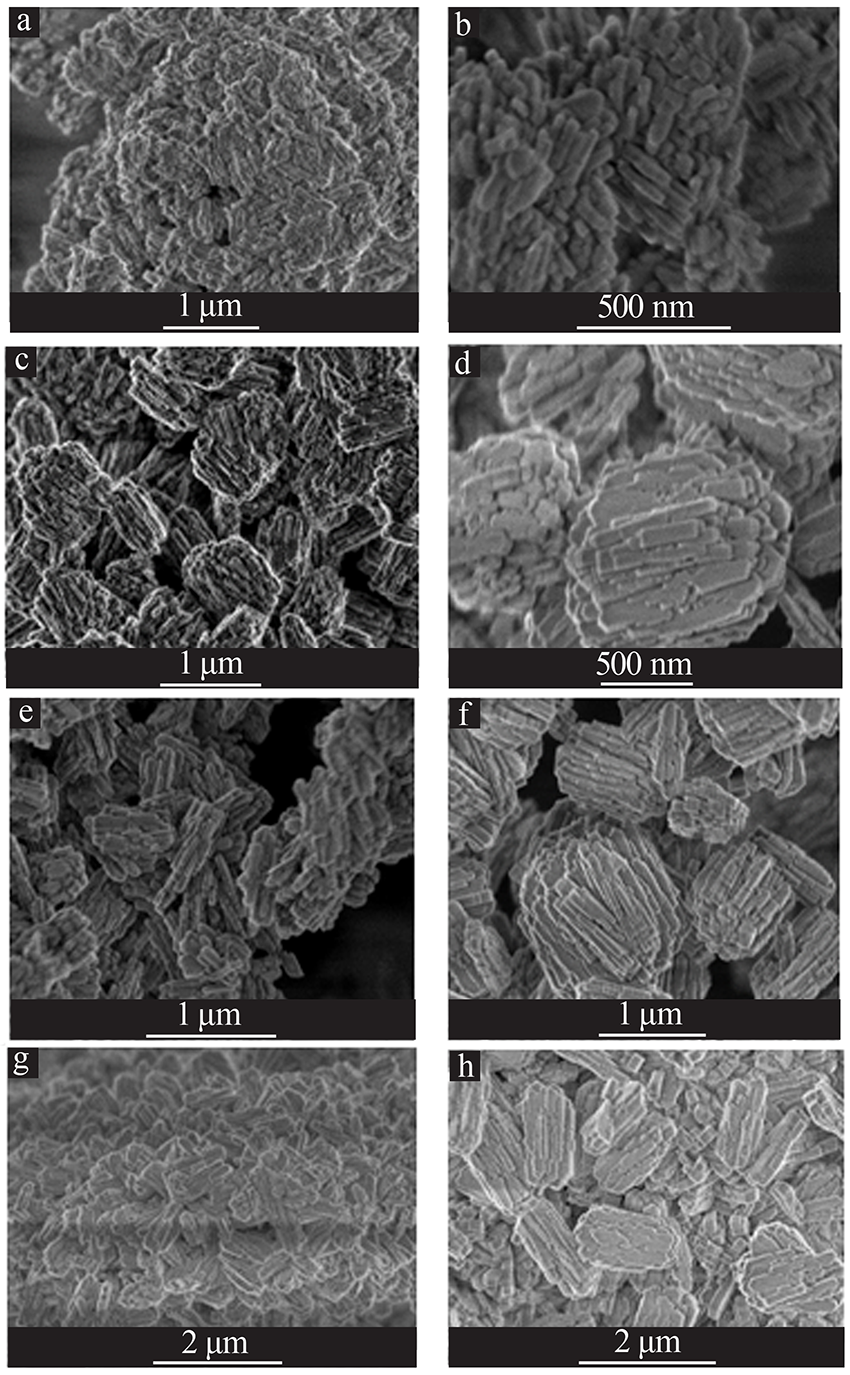

图3

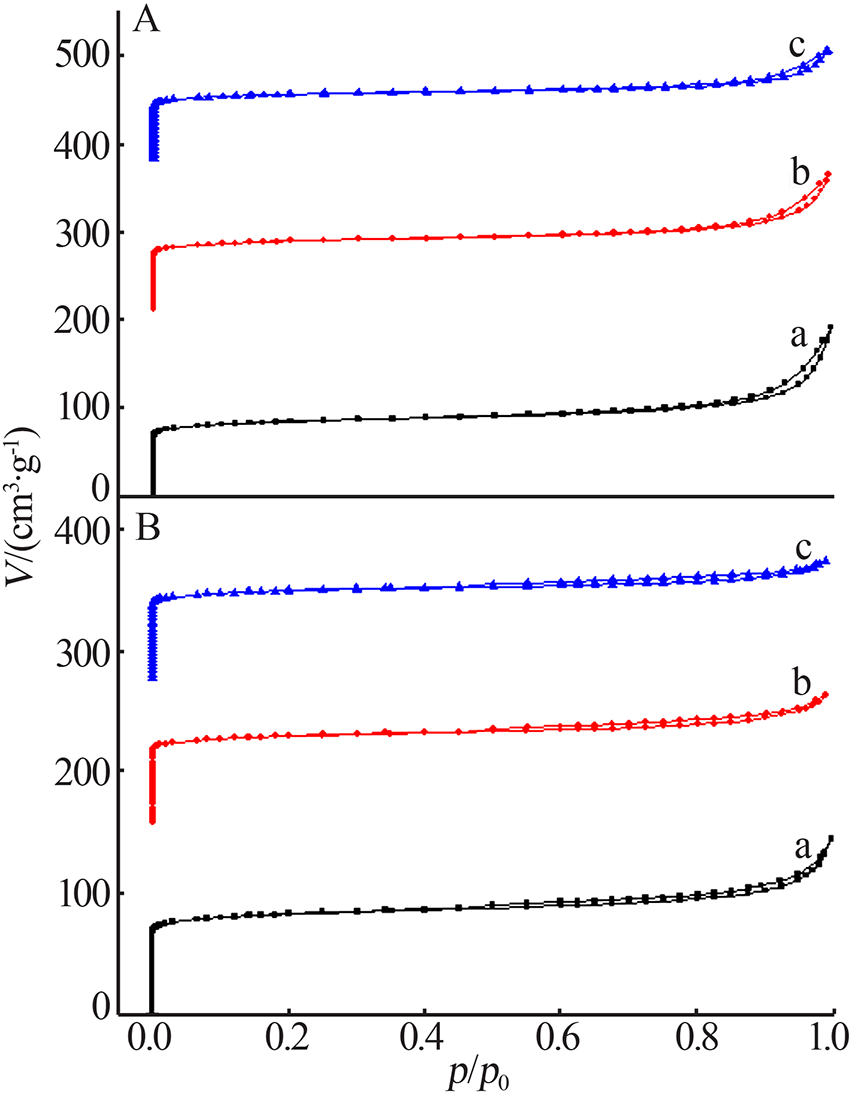

图4

表2

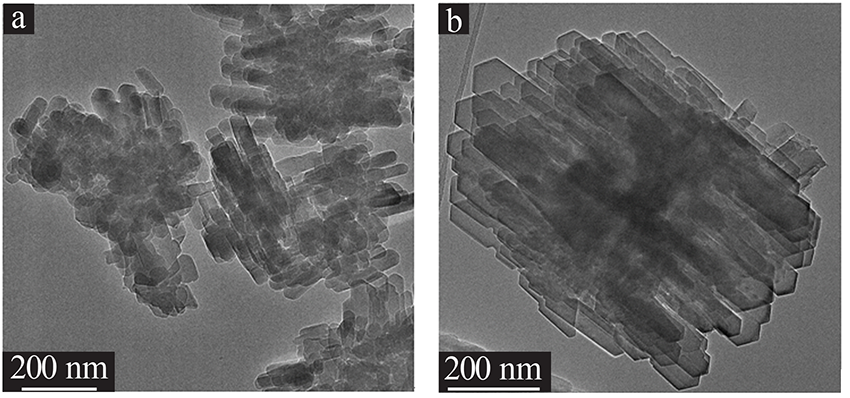

图5

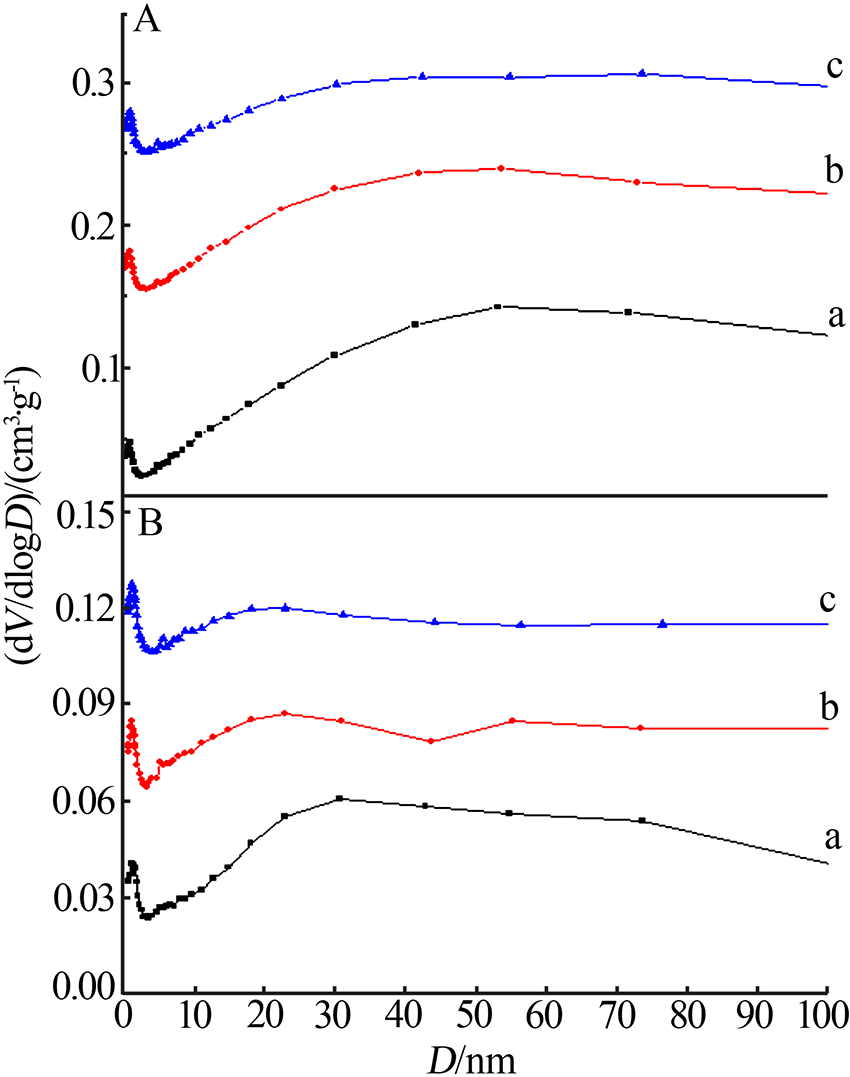

图6

参考文献 19

[1]	WU Z, ZHAO K, ZHANG Y, et al. Synjournal and consequence of aggregated nanosized ZSM-5 zeolite crystals for methanol to propy-lene reaction[J]. Industrial & Engineering Chemistry Research, 2019, 58:10737-10749. doi: 10.1021/acs.iecr.9b00502
[2]	DAI W, KOUVATAS C, TAI W, et al. Platelike MFI crystals with controlled crystal faces aspect ratio[J]. Journal of the American Che-mical Society, 2021, 143(4):1993-2004.
[3]	MINTOVA S, JABER M, VALTCHEV V. Nanosized microporous crystals:Emerging applications[J]. Chemical Society Reviews, 2015, 44(20):7207-7233. doi: 10.1039/C5CS00210A
[4]	ZHANG C, KWAK G, PARK H G, et al. Light hydrocarbons to BTEX aromatics over hierarchical HZSM-5:Effects of alkali treatment on catalytic performance[J]. Microporous and Mesoporous Materials, 2019, 276:292-301. doi: 10.1016/j.micromeso.2018.10.005
[5]	WANNAPAKDEE W, SUTTIPAT D, DUGKHUNTOD P, et al. Aro-matization of C5 hydrocarbons over Ga-modied hierarchical HZSM-5 nanosheets[J]. Fuel, 2018, 236:1243-1253. doi: 10.1016/j.fuel.2018.09.093
[6]	WANG N, HOU Y, SUN W, et al. Modulation of b-axis thickness within MFI zeolite:Correlation with variation of product diffusion and coke distribution in the methanol-to-hydrocarbons conversion[J]. Applied Catalysis B Environmental, 2019, 243:721-733. doi: 10.1016/j.apcatb.2018.11.023
[7]	HUANG X, WANG C, ZHU Y, et al. Facile synjournal of ZSM-5 na-nosheet arrays by preferential growth over MFI zeolite[100] face for methanol conversion[J]. Microporous and Mesoporous Materials, 2019, 288.Doi: 10.1016/j.micromeso.2019.109573. doi: 10.1016/j.micromeso.2019.109573
[8]	NA K, CHOI M, PARK W, et al. Pillared MFI zeolite nanosheets of a single-unit-cell thickness[J]. Journal of the American Chemical Society, 2010, 132(12):4169-4177. doi: 10.1021/ja908382n
[9]	FENG R, YAN X, HU X, et al. Phosphorus-modified b-axis oriented hierarchical ZSM-5 zeolites for enhancing catalytic performance in a methanol to propylene reaction[J]. Applied Catalysis A:General, 2020, 594.Doi: 10.1016/j.apcata.2020.117464. doi: 10.1016/j.apcata.2020.117464
[10]	ZHANG L, SONG Y, LI G, et al. F-assisted synjournal of a hierarchi-cal ZSM-5 zeolite for methanol to propylene reaction:A b-oriented thinner dimensional morphology[J]. RSC Advances, 2015, 5(75):61354-61363. doi: 10.1039/C5RA09561A
[11]	LIU Y, ZHOU X, PANG X, et al. Improved para-xylene selectivity in meta-xylene isomerization over zsm-5 crystals with relatively long b-axis length[J]. ChemCatChem, 2013, 5(6):1517-1523. doi: 10.1002/cctc.v5.6
[12]	边凯, 侯章贵, 段欣瑞等. 二维HZSM-5纳米片的合成及催化苯与稀乙烯烷基化制乙苯[J]. 高等学校化学学报, 2019, 40(4):784-792.
[13]	常洋, 李孝国, 侯章贵, 等. 低硅铝比纳米团聚体ZSM-5的合成工艺研究[J]. 无机盐工业, 2020, 52(6):92-95.
[14]	LIU Y, ZHOU X, PANG X, et al. Improved para-xylene selectivity in meta-xylene isomerization over zsm-5 crystals with relatively long b-axis length[J]. ChemCatChem, 2013, 5(6):1517-1523. doi: 10.1002/cctc.v5.6
[15]	NADA M H, LARSEN S C. Insight into seed-assisted template free synjournal of ZSM-5 zeolites[J]. Microporous and Mesoporous Ma-terials, 2017, 239:444-452.
[16]	HAMIDZADEH M, KOMEILI S, SAEIDI M. Seed-induced synthe-sis of ZSM-5 aggregates using the Silicate-1 as a seed:Character-ization and effect of the Silicate-1 composition[J]. Microporous and Mesoporous Materials, 2018, 268:153-161. doi: 10.1016/j.micromeso.2018.04.016
[17]	JAVDANI A, AHMADPOUR J, YARIPOUR F. Nano-sized ZSM-5 zeolite synthesized via seeding technique for methanol conversi-ons:A review[J]. Microporous and Mesoporous Materials, 2019, 284:443-458. doi: 10.1016/j.micromeso.2019.04.063
[18]	NIU X, GAO J, WANG K, et al. Influence of crystal size on the ca-talytic performance of H-ZSM-5 and Zn/H-ZSM-5 in the conver-sion of methanol to aromatics[J]. Fuel Processing Technology, 2017, 157:99-107. doi: 10.1016/j.fuproc.2016.12.006
[19]	GOODARZI F, HERRERO I P, KALANTZOPOULOS G N, et al. Synjournal of mesoporous ZSM-5 zeolite encapsulated in an ultra-thin protective shell of silicalite-1 for MTH conversion[J]. Micro-porous and Mesoporous Materials, 2019, 292.Doi: 10.1016/j.micro-meso.2019.109730. doi: 10.1016/j.micro-meso.2019.109730

样品	相对结晶度/%	样品	相对结晶度/%
S-1-1	81	S-2-1	84
S-1-2	90	S-2-2	92
S-1-3	97	S-2-3	100

样品	S_BET/ （m²·g^-1）	S_micro / （m²·g^-1）	S_ext/ （m²·g^-1）	V_total/ （cm³·g^-1）	V_micro/ （cm³·g^-1）	V_ext / （cm³·g^-1）
S-1-1	323	278	45	0.20	0.11	0.09
S-1-2	289	257	32	0.16	0.10	0.06
S-1-3	293	265	28	0.15	0.10	0.05
S-2-1	329	279	50	0.27	0.11	0.16
S-2-2	315	273	42	0.23	0.11	0.12
S-2-3	296	264	32	0.18	0.10	0.08
