多级孔钛硅分子筛制备及其催化羟基化性能

doi:10.11962/1006-4990.2018-0565

摘要/Abstract

摘要：

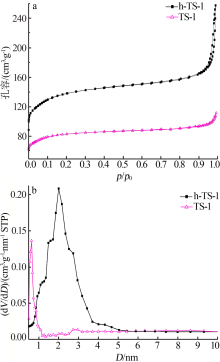

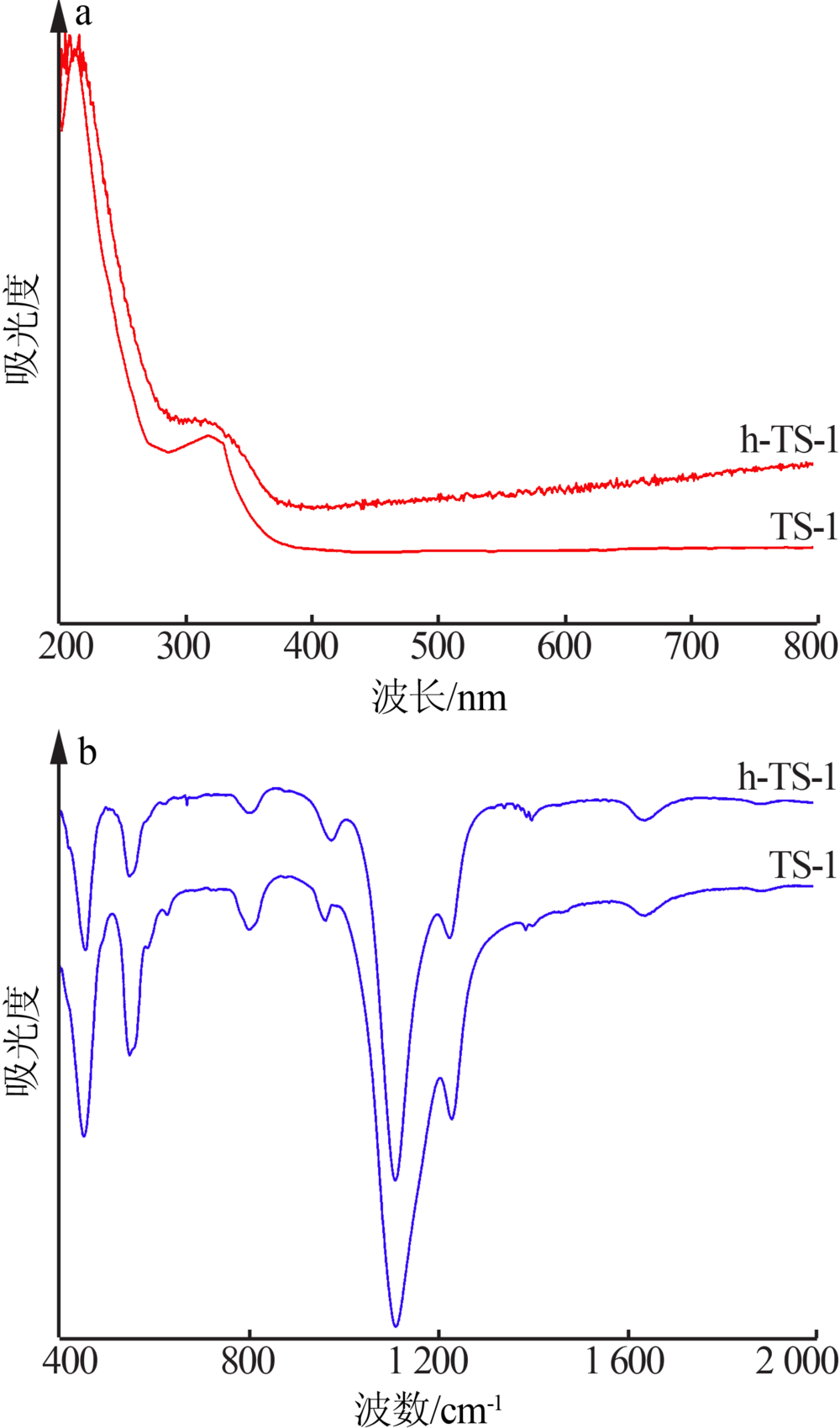

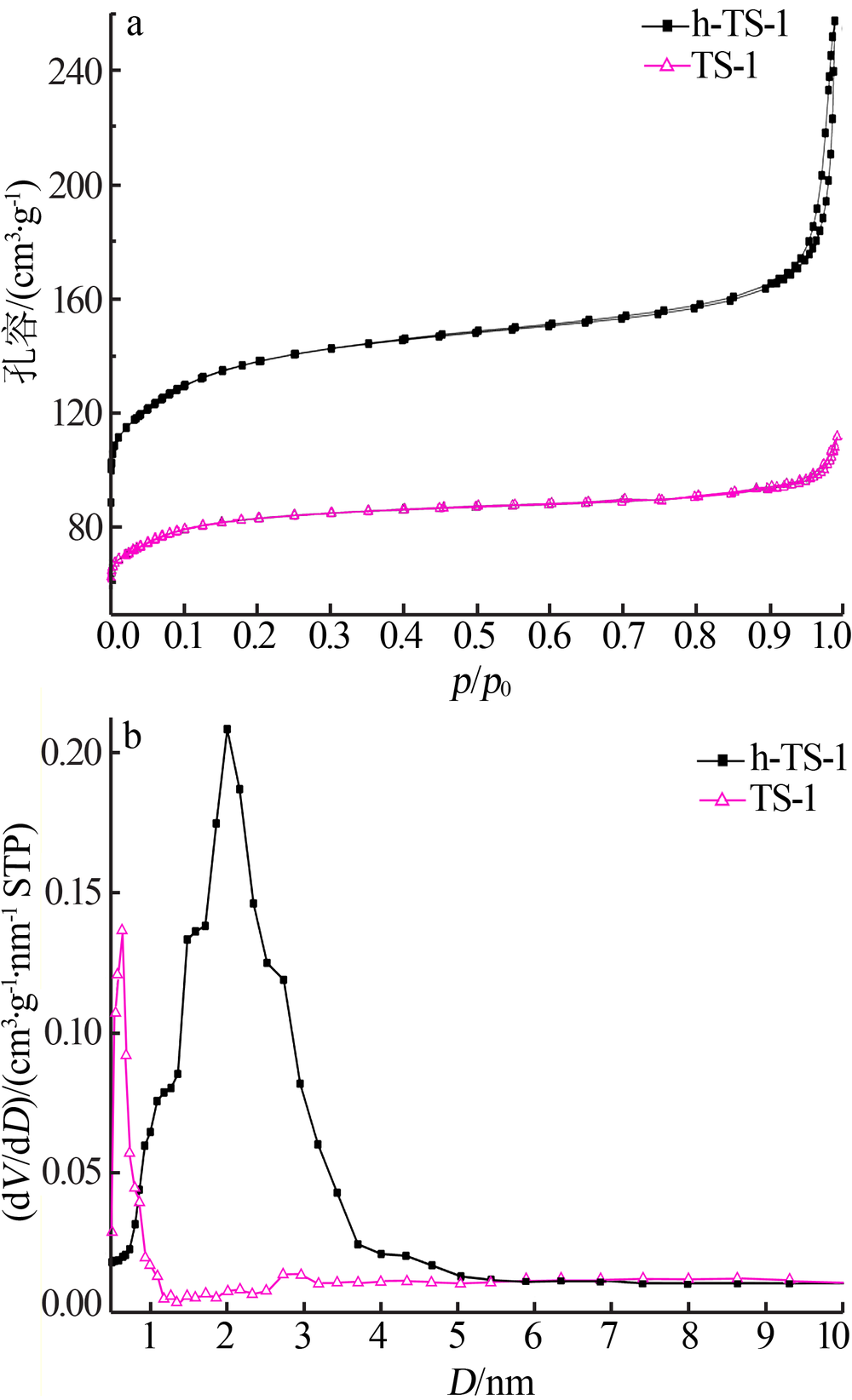

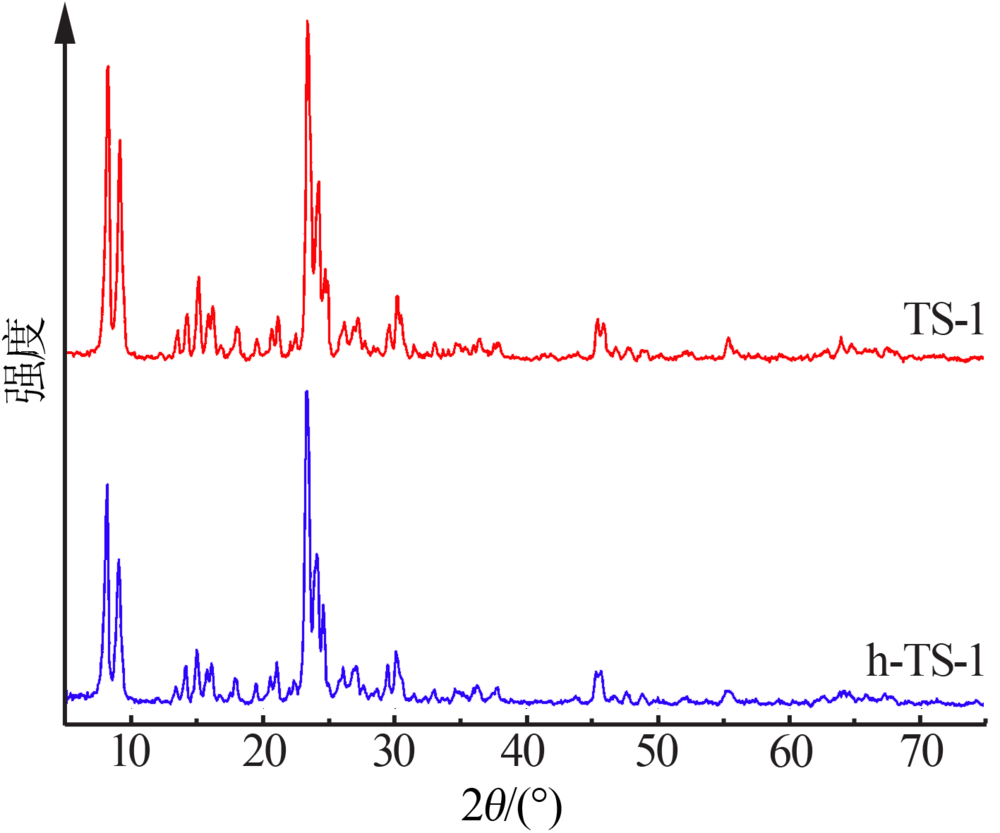

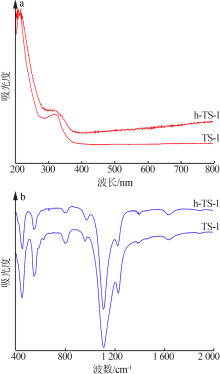

通过溶胶-凝胶法,以十六烷基三甲基溴化铵（CTAB）为模板剂,合成了多级孔钛硅分子筛（h-TS-1）。运用透射电子显微镜（TEM）、X射线衍射（XRD）、氮气等温吸附-脱附、紫外-可见漫反射光谱（DR UV-Vis）和傅里叶红外光谱（FT-IR）对h-TS-1的结构进行了表征;考察了h-TS-1在温和条件下用过氧化氢作氧化剂对直接羟基化苯和苯酚反应的催化活性。结果表明:h-TS-1除具有和TS-1相同的MFI结构和良好的晶型外,还同时具有微孔和介孔结构,平均孔径为2.67 nm;h-TS-1对目标反应的催化活性明显优于TS-1;h-TS-1具有良好的可重复利用性。

关键词: 多级孔钛硅分子筛, 羟基化, 溶胶-凝胶法, 苯酚, 苯二酚

Abstract:

Hierarchical titanium silicalite-1（h-TS-1） was synthesized by sol-gel method with cetyltrimethyl-ammonium bromide（CTAB） as mesopores template.Structural features of the h-TS-1 were characterized by transmission electron microscope（TEM）,X-ray diffraction（XRD）,N₂ adsorption-desorption,ultraviolet-visible diffuse reflectance spectroscopy（DR UV-vis） and Fourier transform infrared spectroscopy（FT-IR）.Catalytic performance of the h-TS-1 was investigated by the direct hydroxylation of benzene and phenol,using H₂O₂ as oxidant under mild conditions.The results indicated that the h-TS-1 not only possessed the same MFI topology and ideal crystal form as TS-1,but also had microporous and mesoporous structure,of which the average pore size was 2.67 nm.Compared with TS-1,the catalytic activity of h-TS-1 had been improved significantly.Furthermore,the h-TS-1 had a great capacity of reutilization.

Key words: hierarchical titanium silicalite-1, hydroxylation, sol-gel method, phenol, benzenediol

中图分类号:

O643.3

余天华,敖厚豫,黄启朋,吴静澜. 多级孔钛硅分子筛制备及其催化羟基化性能[J]. 无机盐工业, 2019, 51(9): 102-105.

Yu Tianhua,Ao Houyu,Huang Qipeng,Wu Jinglan. Preparation and catalytic hydroxylation performance of hierarchical titanium silicalite-1[J]. Inorganic Chemicals Industry, 2019, 51(9): 102-105.

图/表 6

图1

图2

图3

图4

表1

表2

参考文献 17

[1]	Taramasso M, Perego G, Notari B , et al.Preparation of porous crys talline synthetic material comprised of silicon and titanium oxides:US,4410501[P]. 1983-10-18.
[2]	Kim S K . High-performance microwave synthesized mesoporous TS-1zeolite for catalytic oxidation of cyclic olefins[J]. Industrial & Engineering Chemistry Resedrch, 2018,57(10):3567-3574.
[3]	Lu T L, Zou J P, Zhan Y Z , et al. Highly efficient oxidation of ethyl lactate to ethyl pyruvate catalyzed by TS-1 under mild conditions[J]. ACS Catalysis, 2018,8(2):1287-1296. doi: 10.1021/acscatal.7b03558
[4]	Pang C L . Direct ring C-H bond activation to produce cresols from toluene and hydrogen peroxide catalyzed by framework titanium in TS-1[J]. Journal of Catalysis, 2018,366(10):37-49.
[5]	Zhang T J, Chen X X, Chen G R , et al. Synjournal of anatase-free nano-sized hierarchical TS-1 zeolites and their excellent catalytic performance in alkene epoxidation[J]. Journal of Materials Chemistry A, 2018,6(20):9473-9479.
[6]	周惠, 黄华存, 董文华 . SCR脱硝催化剂失活及再生技术的研究进展[J]. 无机盐工业, 2017,49(5):9-13.
[7]	Peng H G, Li X H, Xu L , et al. Trimodel hierarchical yolk-shell porous materials TS-1@mesocarbon:Synjournal and catalytic applica tion[J]. Chinese Chemical Letters, 2013,24(7):559-562.
[8]	Zhou J, Hua Z L, Cui X Z , et al. Hierarchical mesoporous TS-1 zeolite:a highly active and extraordinarily stable catalyst for the selective oxidation of 2,3,6-trimethylphenol[J]. Chemical Communica tions, 2010,46(27):4994-4996.
[9]	Yang X Y, Chen L H, Li Y , et al. Hierarchically porous materials:synjournal strategies and structure design[J]. Chemical Society Reviews, 2017,46(2):481-558. doi: 10.1039/C6CS00829A
[10]	Du S T . A green surfactant-assisted synjournal of hierarchical TS-1 zeolites with excellent catalytic properties for oxidative desulfuriza tion[J]. Chemical Communications, 2016,52(16):3368-3371.
[11]	Wang W H, Li G, Liu L P , et al. Synjournal and catalytic performance of hierarchical TS-1 directly using agricultural products sucrose as meso/macropores template[J]. Microporous and Mesoporous Materials, 2013,179(6):165-171.
[12]	Li S S, Zhang A F, Liu M , et al. Synjournal and catalytic properties of hierarchical TS-1 in the presence of cationic organosilane surfactant[J]. Chinese Chemical Letters, 2011,22(12):303-305. doi: 10.1016/j.cclet.2010.06.036
[13]	Wang B R, Lin M, Peng X X , et al. Hierarchical TS-1 synthesized effectively by post-modification with TPAOH and ammonium hydroxide[J]. RSC Advances, 2016,6(51):44963-44971. doi: 10.1039/C6RA06657G
[14]	Serrano D P, Sanz R, Pizarro P , et al. Hierarchical TS-1 zeolite as an efficient catalyst for oxidative desulphurization of hydrocarbon fractions[J]. Applied Catalysis B:Environmental, 2014,146(3):35-42. doi: 10.1016/j.apcatb.2013.05.025
[15]	张严, 高琦, 吴华东 , 等. ZSM-5基复合多孔材料的研究进展[J]. 无机盐工业, 2018,50(7):6-11.
[16]	Mostafa M M M, Rao K N, Harun H S , et al. Synjournal and characterization of partially crystalline nanosized ZSM-5 zeolites[J]. Ceramics International, 2013,39(1):683-689. doi: 10.1016/j.ceramint.2012.06.079
[17]	Du S T, Sun Q M, Wang N , et al. Synjournal of hierarchical TS-1 zeolites with abundant and uniform intracrystalline mesopores and their highly efficient catalytic performance for oxidation desulfurization[J]. Journal of Materials Chemistry A, 2017,5(17):7992-7998.

样品	比表面积/ （m²·g^-1）	微孔孔容/ （cm³·g^-1）	介孔孔容/ （cm³·g^-1）	平均孔径/ nm
h-TS-1	434	0.173	0.212	2.67
TS-1	398	0.195	—	0.53

样品		苯羟基化^a		苯酚羟基化^b
样品		苯酚产率/%	苯酚选择性/%	苯二酚产率/%	苯二酚选择性/%
h-TS-1	使用1次	35.2	94.8	45.5	79.2
h-TS-1	使用5次	34.1	94.3	44.0	78.8
TS-1	使用1次	28.3	95.1	30.1	80.6
TS-1	使用5次	27.4	94.7	28.9	80.2
