利用铝热还原金属铬炉渣制备彩色氧化锆陶瓷

doi:10.11962/1006-4990.2020-0267

摘要/Abstract

摘要：

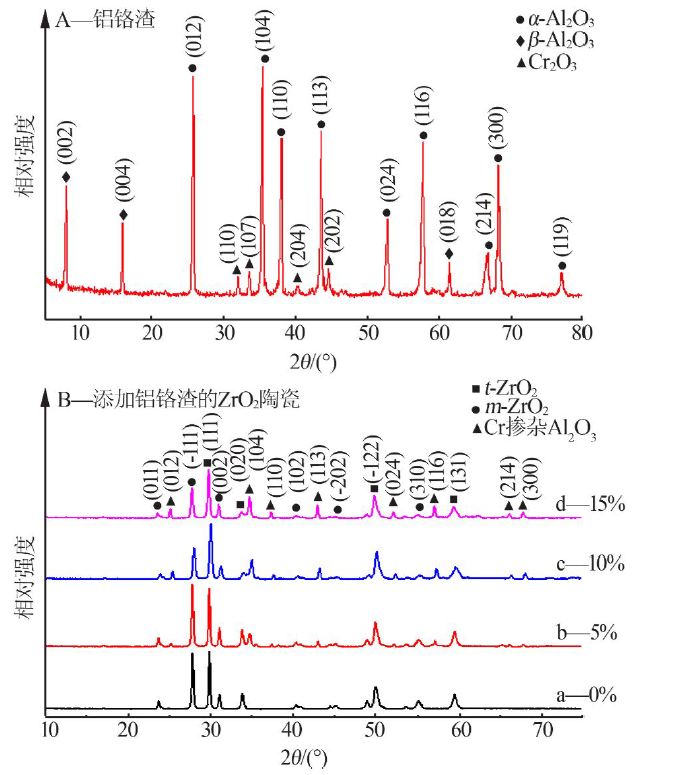

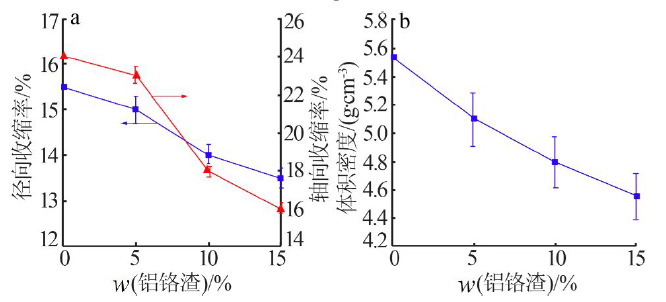

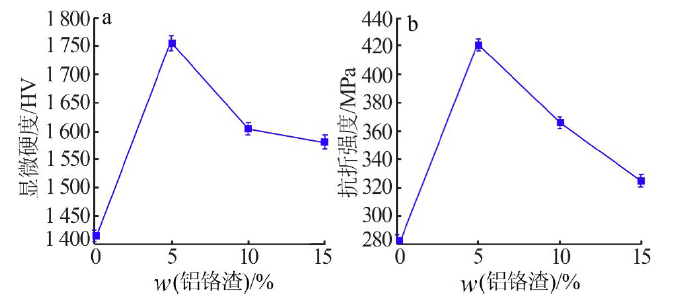

为提升氧化锆陶瓷的使用性能,采用氧化钇稳定的四方氧化锆为基体（yttria stabilized tetragonal zirconia,3Y-TZP）,将铝热法生产金属铬所得炉渣（铝铬渣）按照不同比例（质量分数为5%~15%）加入,利用无压烧结在1 400 ℃保温2 h制备出彩色氧化锆陶瓷。通过X射线衍射（XRD）、扫描电镜（SEM）、显微硬度计及万能材料试验机测试了试样的物相、显微结构及力学性能。结果表明：掺杂铝铬渣可以制备出粉红色系氧化锆复合陶瓷,其物相主要为四方氧化锆、单斜氧化锆和含铬的氧化铝,并且铝铬渣的加入促使更多的四方氧化锆保留到室温。铝铬渣的加入不利于试样的烧结致密性,随着其含量增加复合陶瓷烧结后的体积收缩率降低,基体内出现部分孔隙。但是,铝铬渣的加入提升了试样的力学性能,当其加入量为5%（质量分数）时,氧化锆复合陶瓷的显微硬度和抗折强度均达到最大值,分别为1 755.3 HV和421.3 MPa。

关键词: 彩色氧化锆陶瓷, 铝热还原, 炉渣, 陶瓷增韧, 力学性能

Abstract:

Colored zirconia ceramics were prepared by pressureless sintering at 1 400 ℃ for 2 h with yttrium stabilized zirco-nia（3Y-TZP） as substrate and slag from aluminothermic reduction（alumina-chrome slag,mass fraction of 5%~15%) as additive in order to improve the performance of ZrO₂ ceramics.The phase,microstructure and mechanical properties of samples were characterized by XRD,SEM,microhardness tester and universal material testing machine,respectively.It is demonstrated that the pink ZrO₂ composite ceramics can be prepared with alumina-chrome slag additive,which consists of tetragonal ZrO₂,monoclinal ZrO₂ and（Cr-doped）-Al₂O₃.Moreover,the addition of alumina-chrome slag promotes more tetra-gonal ZrO₂ to be retained at room temperature.The addition of alumina-chrome slag hindered the sintering compactness of samples.The sintering volume shrinkage rate of ZrO₂ composite ceramics was decreased by increasing the content of alumina-chrome slag and pores were observed in the substrate.However,the mechanical properties of composite ceramics was impro-ved by addition of aluminachrome slag.When the content of alumina-chrome slag was 5%,the microhardness and flexural strength of ZrO₂ ceramics reached the maximum value of 1 755.3 HV and 421.3 MPa,respectively.

Key words: colore zirconia ceramics, aluminothermic reduction, slag, ceramic toughening, mechanical properties

中图分类号:

TQ174

刘玉洪,尹春林,马顺友,颜欣,袁小超,冷建军,张进. 利用铝热还原金属铬炉渣制备彩色氧化锆陶瓷[J]. 无机盐工业, 2021, 53(3): 78-83.

Liu Yuhong,Yin Chunlin,Ma Shunyou,Yan Xin,Yuan Xiaochao,Leng Jianjun,Zhang Jin. Preparation of colored zirconia ceramics by adding alumina-chrome slag from aluminothermic reduction[J]. Inorganic Chemicals Industry, 2021, 53(3): 78-83.

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 36

[1]	Kamyshnaya K S, Khabas T A. Developing porous ceramics on the base of zirconia oxide with thin and permeable pores by crystalliza-tion of organic additive method[J]. IOP Conference Series:Materi-als Science and Engineering, 2016,156:012039.
[2]	邓雪萌, 张宝清, 林旭平, 等. 添加剂对氧化锆陶瓷抗热震性能的影响[J]. 稀有金属材料与工程, 2007,36(z1):391-394.
[3]	张帆, 王鑫, 张良, 等. ZrO₂陶瓷的微波烧结制备及其性能[J]. 硅酸盐学报, 2019,47(3):353-357.
[4]	凤亚军, 王兴庆. Y₂O₃对氧化锆陶瓷组织和性能的影响[J]. 上海大学学报:自然科学版, 2018,24(1):56-65.
[5]	林振汉. 氧化锆材料的特性及在结构陶瓷中的应用和发展[J]. 稀有金属快报, 2004,23(6):6-10.
[6]	熊炳昆. 二氧化锆制备工艺与应用[M]. 北京: 冶金工业出版社, 2008.
[7]	Chen Y Q, Fan B B, Yang B Q, et al. Microwave sintering and frac-ture behavior of zirconia ceramics[J]. Ceramics International, 2019,45(14):17675-17680. doi: 10.1016/j.ceramint.2019.05.334
[8]	Garvie R C, Hannink R H, Pascoe R T. Ceramic steel?[J]. Nature, 1975,258(5537):703-704.
[9]	苏雪筠, 吕明. Yb₂O₃、Al₂O₃、TiO₂对Yb-TZP材料性能的影响[J]. 华南理工大学学报:自然科学版, 2001,29(3):67-70.
[10]	Miyazaki H. The effect of TiO₂ additives on the structural stability and thermal properties of yttria fully-stabilized zirconia[J]. Journal of Thermal Analysis and Calorimetry, 2009,98(2):343-346.
[11]	Alonso J, Rodríguez-Rojas F, Borrero-López O, et al. Effect of sin-tering duration on the sliding-wear resistance of 3Y-TZP dental ceramics[J]. International Journal of Applied Ceramic Technology, 2019,16(5):1954-1961.
[12]	郑丽君, 张国栋, 曹杨, 等. 利用铝铬渣与废弃镁碳砖合成镁铝尖晶石材料[J]. 硅酸盐通报, 2013,32(8):1506-1509,1514.
[13]	刘代俊. 中国无机固体废弃物处理技术进展[J]. 无机盐工业, 2020,52(3):1-10.
[14]	曹杨, 高红军, 宋建义. 利用铝铬渣与氧化镁合成镁铝铬尖晶石原料[J]. 耐火材料, 2015,49(6):454-457.
[15]	张小旭, 梁永和, 朱逾倩, 等. 添加铝铬渣对刚玉-尖晶石浇注料性能的影响[J]. 耐火材料, 2018,55(3):199-202.
[16]	吴俊, 程雯, 全学军, 等. 铬铁矿无钙焙烧渣的酸浸解毒及浸出行为[J]. 无机盐工业, 2019,51(7):64-67.
[17]	刘丽菲. 高韧性彩色氧化锆陶瓷的制备及性能研究[D]. 长春:吉林大学, 2009.
[18]	张灿英, 朱海涛, 李长江, 等. 彩色氧化锆陶瓷的制备[J]. 稀有金属材料与工程, 2007,36(z1):266-268.
[19]	程磊. 彩色氧化锆陶瓷的制备工艺进展[J]. 陶瓷学报, 2018,39(5):29-34.
[20]	颜鑫. 彩色纳米碳酸钙的研制[J]. 无机盐工业, 2020,52(5):53-55.
[21]	吕浩东, 包金小, 郭文荣, 等. 绿色氧化锆陶瓷的制备方法及性能研究[J]. 内蒙古科技大学学报, 2019,38(1):100-106.
[22]	Manuel O, Agustin R, Gonzalez-Elipe R, et al. Preparation by hy-drolysis of aerosols and color properties of Cr-doped and Co-doped zircon powders[J]. Journal of the European Ceramic Society, 1998,18(7):821-830.
[23]	李远强, 盛绪敏. 添Al₂O₃对ZrO₂(Y₂O₃)粉末性能的影响[J]. 硅酸盐通报, 1994,13(6):11-16.
[24]	徐明霞, 段仁官. Al₂O₃添加量对Y-TZP陶瓷烧结及力学性能的影响[J]. 硅酸盐通报, 1997,16(4):40-42.
[25]	Qiu T, Wang Y C, Shen C Y. Mechanical behaviors of ZrO₂-Al₂O₃ ceramic composites with Y₂O₃ as stabilizer[J]. Journal of Rare Ear-ths, 2005,23(3):280-284.
[26]	周玉. 陶瓷材料学[M]. 哈尔滨: 哈尔滨工业大学出版社, 1995.
[27]	Chaiwong C, Yu L D, Schinarakis K, et al. Optical property modifi-cation of ruby and sapphire by N-ion implantation[J]. Surface and Coatings Technology, 2005,196(1/2/3):108-112.
[28]	尹蓉. 卢龙红刚玉的颜色成因及优化条件的研究[D]. 秦皇岛:燕山大学, 2006.
[29]	李光辉. 添加剂对致密氧化铬材料烧结性能的影响[D]. 天津:天津大学, 2008.
[30]	Callister W D, Johnson M L, Cutler I B, et al. Sintering chromium oxide with the aid of TiO₂[J]. Journal of the American Ceramic So-ciety, 1979,62(3/4):208-211.
[31]	Liang Y H, Li N, Qian X W, et al. Effect of additives on sintering of Cr₂O₃ in reductive atmosphere[J]. China′s Refractories, 2001,10(3):18-20.
[32]	Ownby P D, Jungquist G E. Final sintering of Cr₂O₃[J]. Journal of the American Ceramic Society, 1972,55(9):433-436.
[33]	徐雅琦. 致密扩散障极限电流氧传感器热应力分析及YSZ力学性能的研究[D]. 南昌:华东交通大学, 2014.
[34]	陈黎亮, 贾成厂. 各种添加剂对ZrO₂性能的影响[J]. 粉末冶金技术, 2008,26(2):138-145.
[35]	Imaev R M, Imaev V M, Khismatullin T G. Refining of the microst-ructure of cast intermetallic alloy Ti-43% Al-X(Nb,Mo,B) with the help of heat treatment[J]. Metal Science and Heat Treatment, 2006,48(1/2):81-84.
[36]	甘学贤, 张小珍, 宋秀梅, 等. 微量纳米氧化铝掺杂强化氧化锆陶瓷材料研究[J]. 陶瓷学报, 2019,40(4):535-539.
