无机盐工业 ›› 2021, Vol. 53 ›› Issue (3): 73-77.doi: 10.11962/1006-4990.2020-0204

• 环境·健康·安全 • 上一篇    下一篇

医药副产含磷废盐的提纯研究

李宁宇1,2(),孙晓蕾1,2,邹明璟1,2,孙秀云1,2(),韩卫清1,2,王连军1,2()

  1. 1.南京理工大学环境与生物工程学院,江苏南京 210094
    2.化工污染控制与资源化江苏省高校重点实验室
  • 收稿日期:2020-09-13 出版日期:2021-03-10 发布日期:2021-03-11
  • 通讯作者: 孙秀云,王连军
  • 作者简介:李宁宇(1996— ),女,硕士研究生,主要研究方向为固体废物处理处置与资源化;E-mail:435736696@qq.com
  • 基金资助:
    江苏省环保科研课题(医药中间体产生废盐的综合利用和安全填埋关键技术与管理政策研究及工程示范)(2017004)

Study on purification of phosphorus waste salt produced by medicine

Li Ningyu1,2(),Sun Xiaolei1,2,Zou Mingjing1,2,Sun Xiuyun1,2(),Han Weiqing1,2,Wang Lianjun1,2()

  1. 1. Department of Environmental Science and Engineering,Nanjing University of Science and Technology,Nanjing 210094,China
    2. Jiangsu Key Laboratory of Chemical Pollution Control and Resources Reuse
  • Received:2020-09-13 Online:2021-03-10 Published:2021-03-11
  • Contact: Sun Xiuyun,Wang Lianjun

摘要:

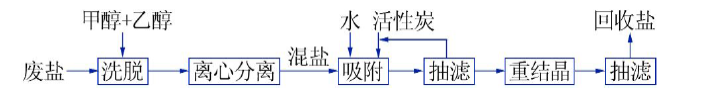

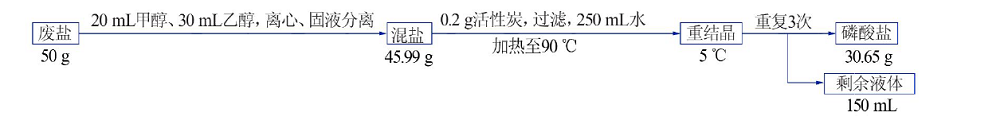

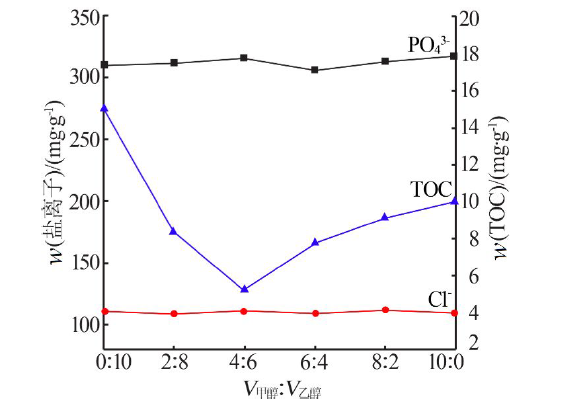

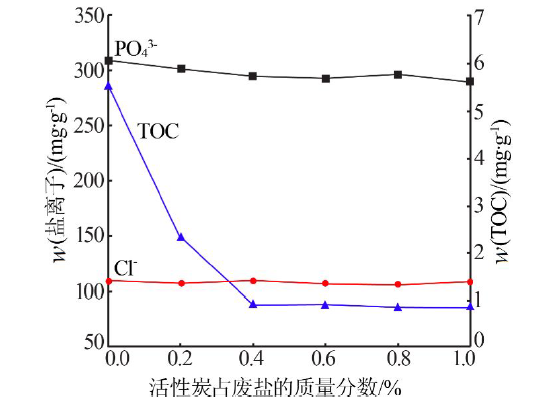

随着精细化工及中间体产品的发展,各类副产废盐量不断增加,由于其产生量大及难处理等特点,成为阻碍行业发展的一大瓶颈。主要开展了医药副产含磷废盐的提纯实验研究,针对废盐产生的途径和特性,采用洗脱剂(甲醇-乙醇)+活性炭混合洗脱与重结晶的方式,分别去除废盐中的有机物和氯化钠,回收可利用的磷酸盐,实现废盐的提纯资源化。当洗脱剂与废盐的体积质量比为1 mL/g、洗脱剂甲醇与乙醇的体积比为4∶6、活性炭用量为废盐质量的0.4%时,废盐中的有机物得到了有效去除。随后对得到的混盐进行重结晶得到回收磷酸盐,回收磷酸盐的纯度可达98%以上,符合工业磷酸盐行业标准的要求。将含磷废盐提纯回收磷酸盐,1 t废盐的处理成本约为174.24元,可回收0.61 t磷酸盐,实现了废盐的资源化再利用。

关键词: 废盐, 磷酸盐, 有机物, 提纯

Abstract:

With the development of fine chemicals and intermediate products,the amount of various types of by-product waste salts continues to increase.Due to its large volume and difficult to be treated,it has become to be a critical bottleneck that hin-ders the development of the industry.The purification experimental study of phosphorus-containing waste salt produced as by-product of medicine was carried out.According to the generation method and characteristics of waste salt,methanol/ethanol mixed with activated carbon were used to remove organic matter and sodium chloride in waste salt by elution and recrystal-lization.When the volume to mass ratio of eluent to waste salt is 1 mL/g,the volume ratio of eluent methanol to ethanol is 4∶6,and the mass dosage of activated carbon to the waste salt is 0.4%,the organism in the waste salt has been removed effectively.Subsequently,the obtained mixed salt is recrystallized with the purity of phosphate more than 98%,which meets the industrial phosphate standard.The treatment cost of waste salt is about 174.24 RMB/t and 0.61 t of phosphate can be reco-vered by the above purification and recovery process,realizing the reuse of waste salt.

Key words: waste salt, phosphate, organism, purification
