类球形低硫磷酸铁的制备技术研究

doi:10.11962/1006-4990.2019-0367

摘要/Abstract

摘要：

磷酸铁（FePO₄）是锂电池正极材料磷酸铁锂（LiFePO₄）的核心前驱体,FePO₄形貌及硫含量对合成的LiFePO₄材料性能有重要影响。为得到类球形低硫FePO₄产品,在传统液相沉淀法技术基础上做了改进优化,添加十六烷基三甲基溴化铵（CTAB）作为形貌助剂提高产品球形度,添加氨水作为配体形成磷酸铁铵配合物改善结晶过程,降低产品硫含量。结果表明：所制备的FePO₄产品硫质量分数低,达到2.6×10 ^-5,形貌为均一的微米类球形颗粒,D₅₀=11.4 μm,振实密度达到1.22 g/cm ³,有望成为制备高压实密度LiFePO₄材料的核心前驱体。

关键词: 正极材料, 低硫, 磷酸铁, 磷酸铁锂

Abstract:

FePO₄ is the core precursor of LiFePO₄.The morphology and sulfur content of FePO₄ products have important ef-fects on the properties of the synthesized LiFePO₄ materials.To obtain spherical-like and low-sulfur FePO₄ products,the tradi-tional liquid phase precipitation method was improved and optimized.Adding CTAB as a morphology additive to improve the sphericity of the products,and adding ammonia water as a ligand to form the ammonium ferric phosphate complex in order to improve the crystallization process and reduce the sulfur content of the product.The results showed that the prepared FePO₄ products have low sulfur content of up to 2.6×10 ^-5 and were homogeneous micro-spherical-like particles with D₅₀=11.4 μm and tap density of 1.22 g/cm ³ that are expected to be the core precursors for the preparation of high compacted deasity LiFePO₄ materials.

Key words: cathode material, low sulfur, iron phosphate, LiFePO₄

中图分类号:

TQ138.11

郭举,贾双珠. 类球形低硫磷酸铁的制备技术研究[J]. 无机盐工业, 2020, 52(5): 31-34.

Guo Ju,Jia Shuangzhu. Study of the method for the preparation of spherical-like and low sulfur FePO₄[J]. Inorganic Chemicals Industry, 2020, 52(5): 31-34.

图/表 5

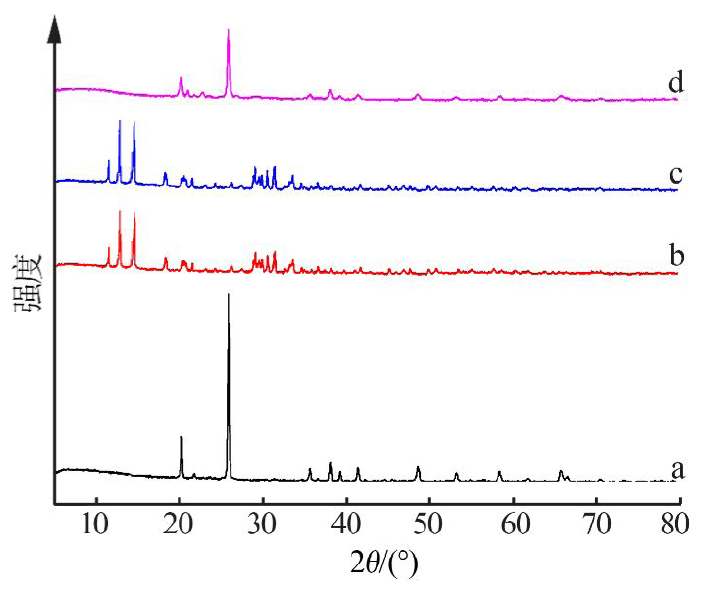

图1

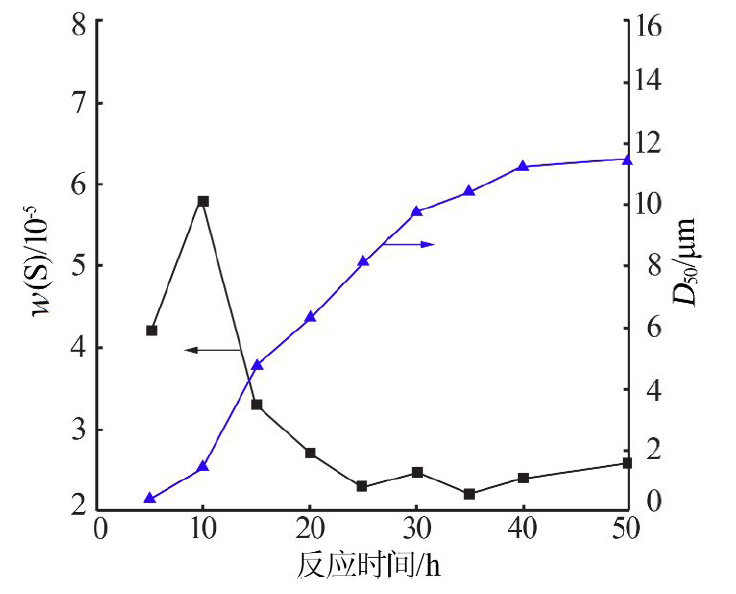

图2

图3

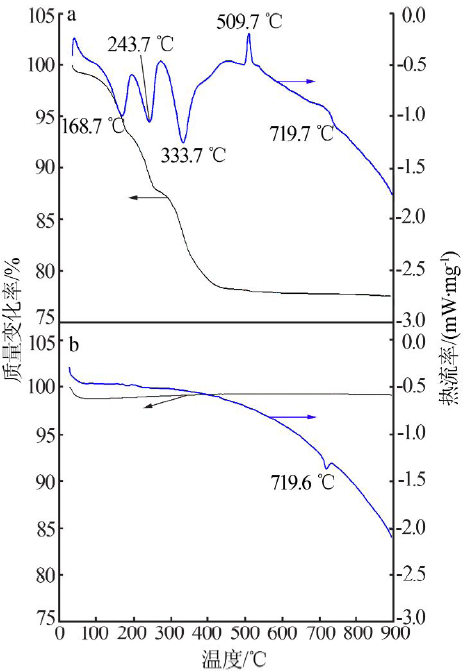

图4

表1

参考文献 21

[1]	Xia Y, Zhang W K, Huang H , et al. Selfassembled mesoporous LiPO₄ with hierarchical spindlelike architectures for highperformance lithiumion batteries[J]. Journal of Power Sources, 2011,196:5651-5658.
[2]	Kim D Y, Ju S H, Kang Y C . Finesized LiCoO₂ particles prepared by spraypyrolysis from polymeric precursor solution[J]. Materials Research Bulletin, 2007,42:362-370.
[3]	Zhang L Q, Noguchi H, Li D C , et al. Synjournal and electrochemistry of cubic rocksalt Li-Ni-Ti-O compounds in the phase diagram of LiNO₂-LiTiO₂-Li[Li_1/3Ti_2/3]O₂[J]. Journal of Power Sources, 2008,185:534-541.
[4]	Ravet N, Chouinard Y, Magnan J F , et al. Electroaetivity of Nature and synthetic tripbyl Re[J]. Power Sources, 2001,97/98:503-507. doi: 10.1016/S0378-7753(01)00727-3
[5]	苗萌, 马冬梅, 贺狄龙 . 磷酸铁锂动力电池失效的研究进展[J]. 电源技术, 2016,40(2):458-460.
[6]	Massarotti V, Capsoni D, Bini M . Nanosized from mechanically ac-tivated solid-state synjournal[J]. Journal of Solid State Chemistry, 2006,179(2):590-596. doi: 10.1016/j.jssc.2005.11.019
[7]	Wang Y G, Wang Y R, Hosono E J , et al. The design of a LiFePO₄/carbon nanocomposite with a core-shell structure and its synjournal by an in situpolymerization restriction method[J]. Angewandte Chemie International Edition, 2008,47(39):7461-7465.
[8]	Palomares V, Larramendi I R, Alonso J , et al. LiFePO₄ thin films grown by pulsed laser deposition:Effect of the substrate on the film structure and morphology[J]. Appilied Surface Science, 2010,256(8):2563-2568.
[9]	应皆荣, 高剑, 姜长印 , 等. 控制结晶法制备球形锂离子电池正极材料的研究进展[J]. 无机材料学报, 2006,21(2):291-297.
[10]	韩翀, 沈湘黔, 周建新 . LiFePO₄/Ni复合微球的制备[J]. 硅酸盐学报, 2008,36(4):559-564.
[11]	Lou X M, Zhang Y X . Synjournal of LiFePO₄/C cathode materials with bothhighrate capability and high tap density for lithiumion batteries[J]. J Mater. Chem., 2011,21:4156-4160.
[12]	时喜喜, 郭春雨, 易炜 , 等. 关于提高LiFePO₄振实密度的研究进展[J]. 电源技术, 2010,48(3):848-851.
[13]	雷敏, 应皆荣, 姜长印 , 等. 高密度球形LiFePO₄的合成及其性能[J]. 电源技术, 2006,30(1):11-13.
[14]	Liang Y C, Wen K C, Mao Y W , et al. Shape and size control of LiFePO₄ for high-performance lithium-ion batteries[J]. Chem.Elec-trol.Chem., 2015,2(9):1227-1237.
[15]	Zhao J, He J, Zhou J , et al. Facile synjournal for LiFePO₄ nanospheres in tridimensional porous carbon framework for lithium ion batteries[J]. The Journal of Physical Chemistry C, 2011,115(6):2888-2894.
[16]	Omenya F, Chernova N A, Zhang R , et al. Why substitution enhances the reactivity of LiFePO₄[J]. Chemistry of Materials, 2012,25(1):85-89. doi: 10.1021/cm303259j
[17]	Oh S W, Myung S T, Oh S M , et al. Double carbon coating of LiFePO₄ as high rate electrode for rechargeable lithium batteries[J]. Advanced Materials, 2010,22(43):4842-4845.
[18]	Fey G T K, Chen Y G, Kao H M . Electrochemical properties of LiFePO₄ prepared via ball-milling[J]. Journal of Power Sources, 2009,189(1):169-178.
[19]	骆艳华, 何楠, 佘世杰 , 等. 硫含量对LiFePO₄电化学性能的影响[J]. 现代化工, 2015,35(7):82-85.
[20]	雷敏, 应皆荣, 姜长印 , 等. 高密度球形LiFePO₄的合成及其性能[J]. 电源技术, 2006,30(1):11-13.
[21]	Oh S W, Myung S T, Oh S M , et al. Polyvinylpyrrolidone assisted synjournal of microscale C-LiFePO₄ with high tap density as positive electrode materials for lithium batteries[J]. Electrochim Acta, 2010,55:1193-1199.

反应时间/h	振实密度/（g·cm^-3）	反应时间/h	振实密度/（g·cm^-3）
5	0.89	30	1.20
10	1.03	50	1.22
20	1.14
