废旧风电FRP填料混凝土负载S-C3N5水泥涂层光催化性能研究

doi:10.19964/j.issn.1006-4990.2024-0525

Abstract

Abstract:

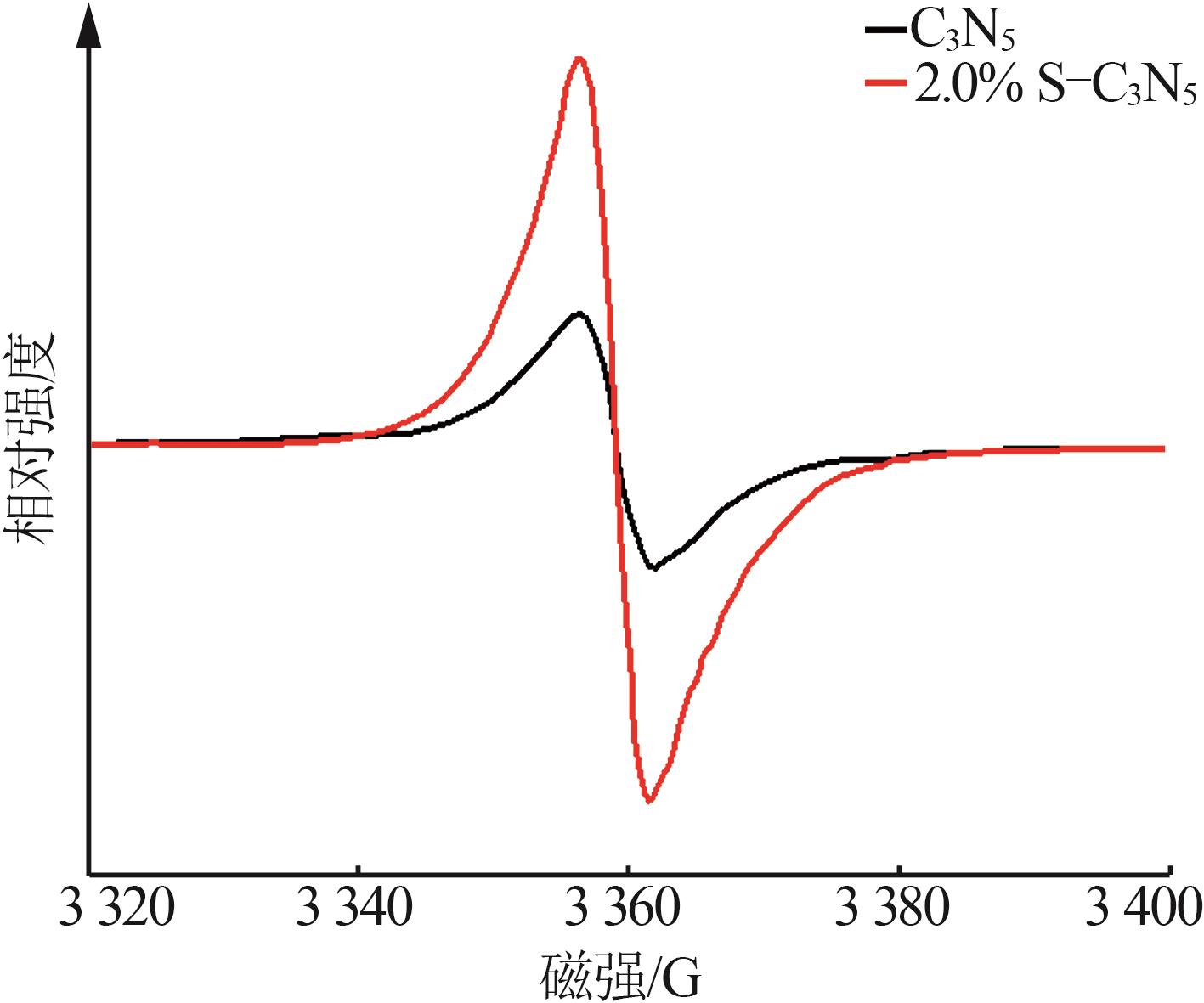

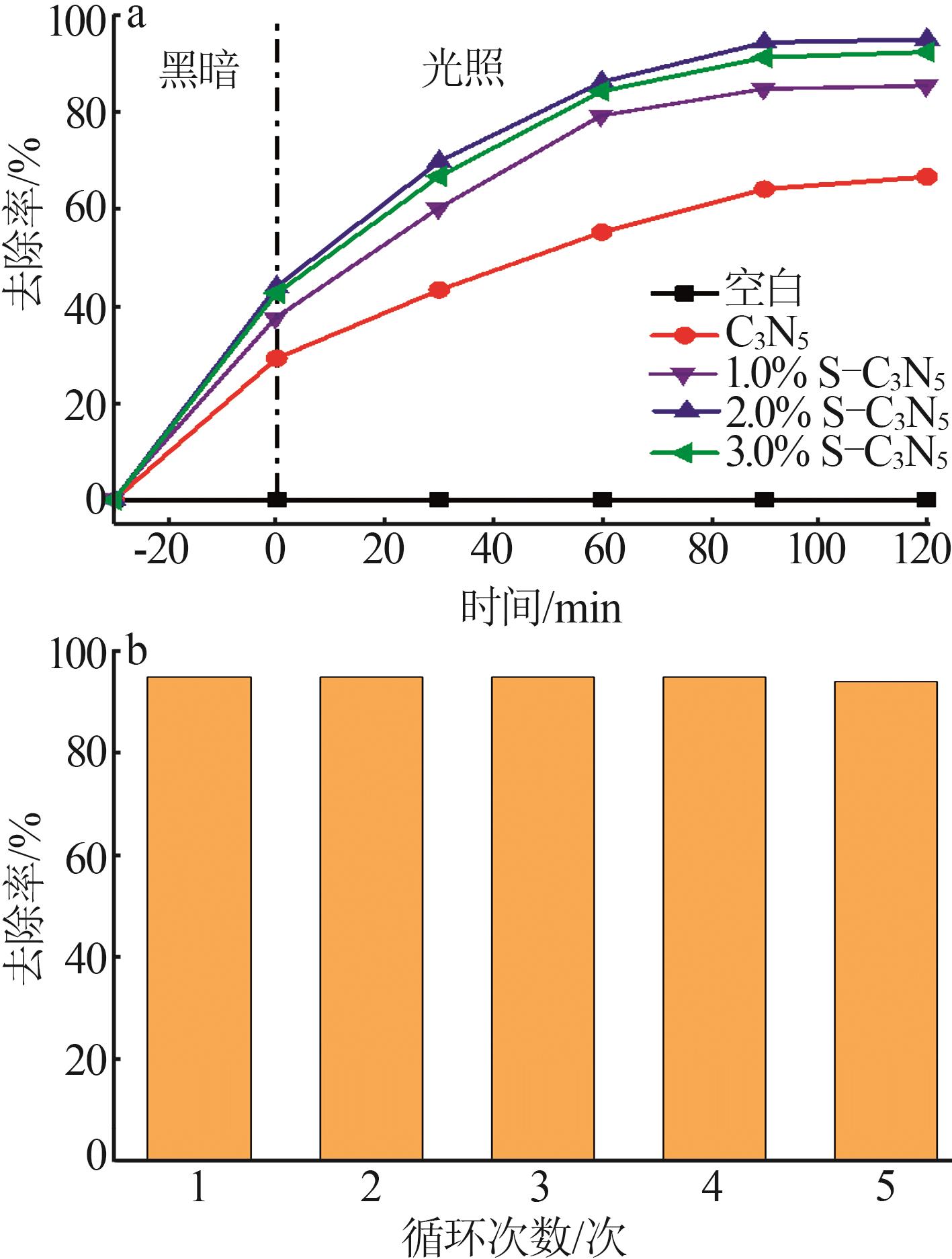

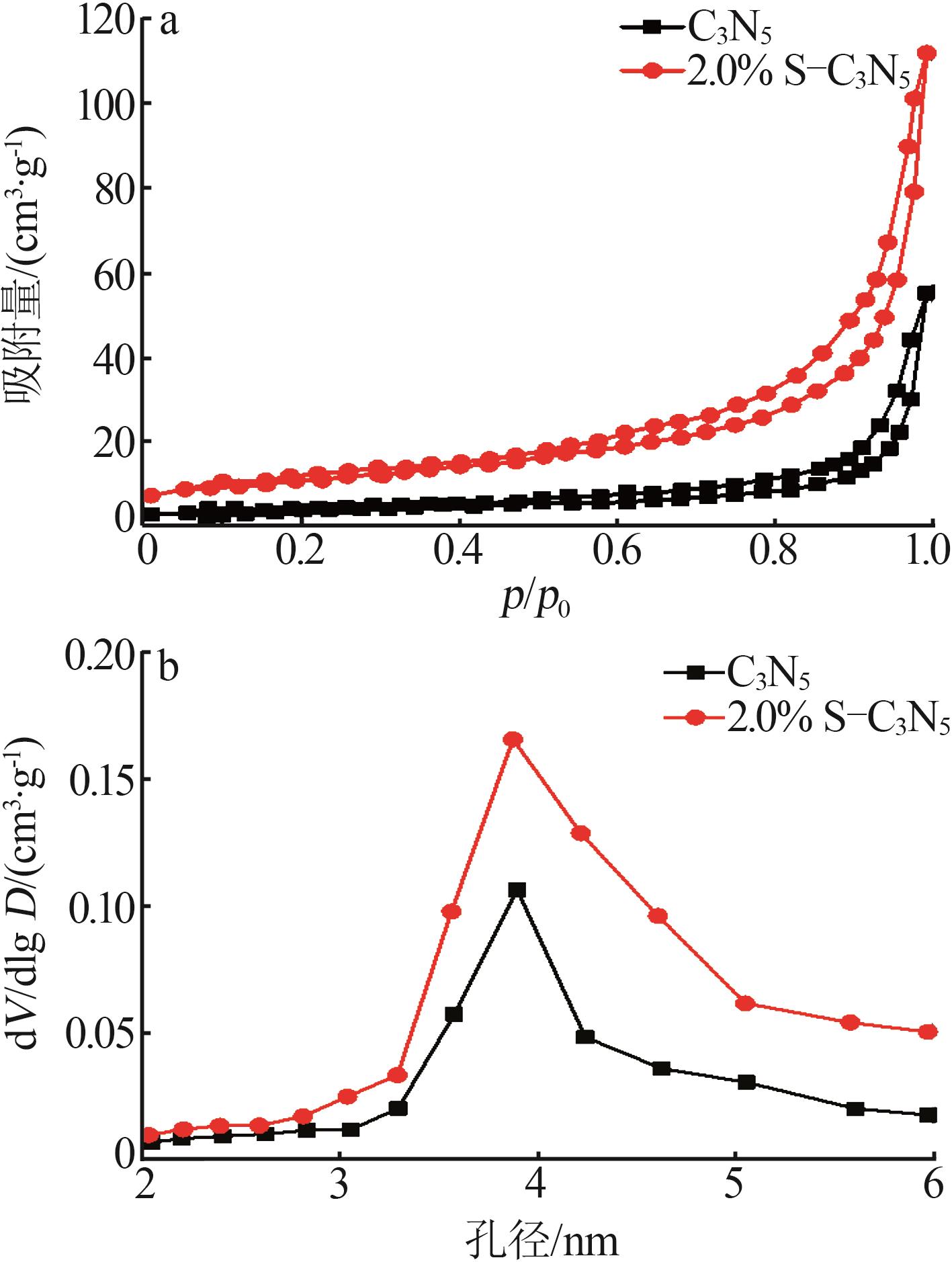

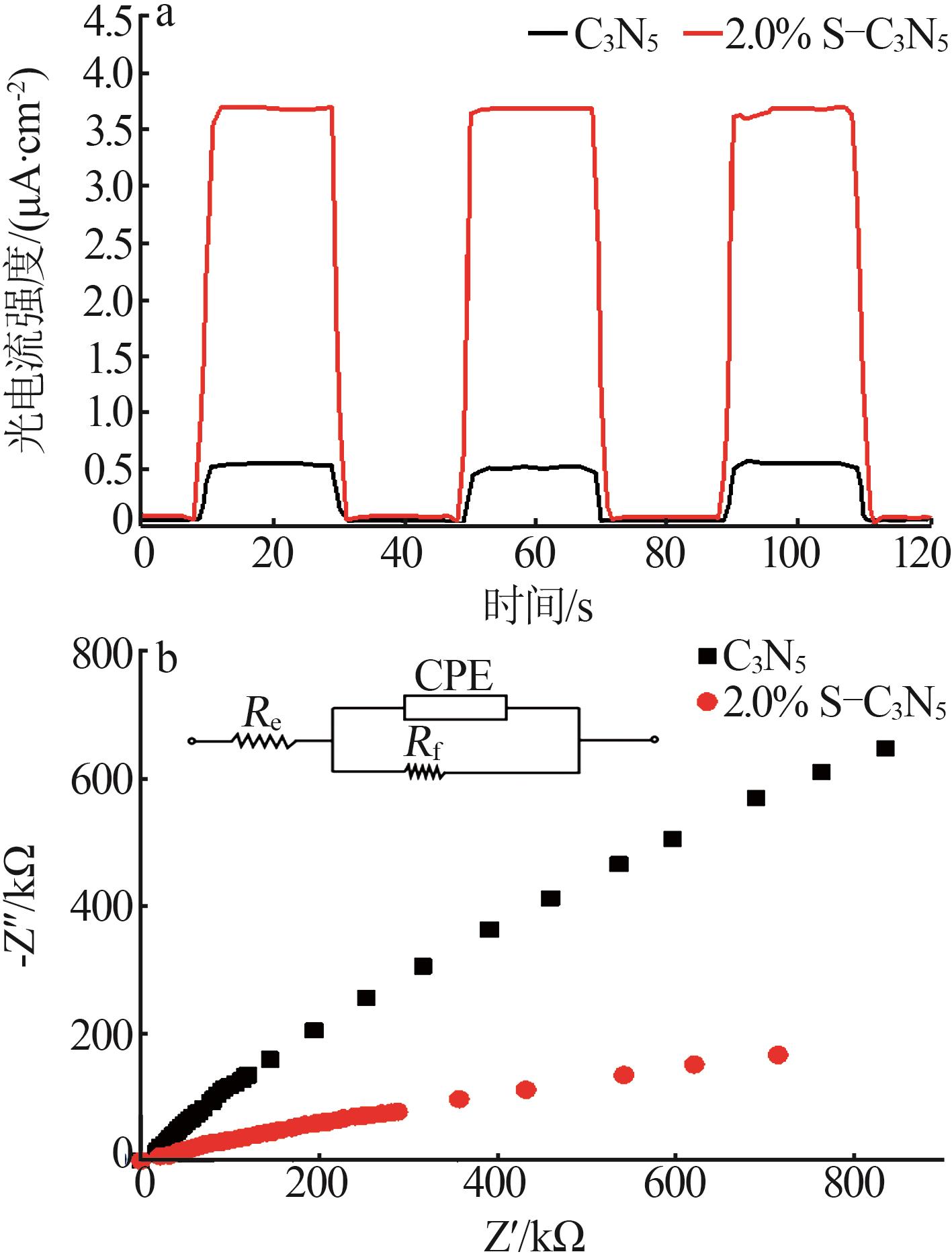

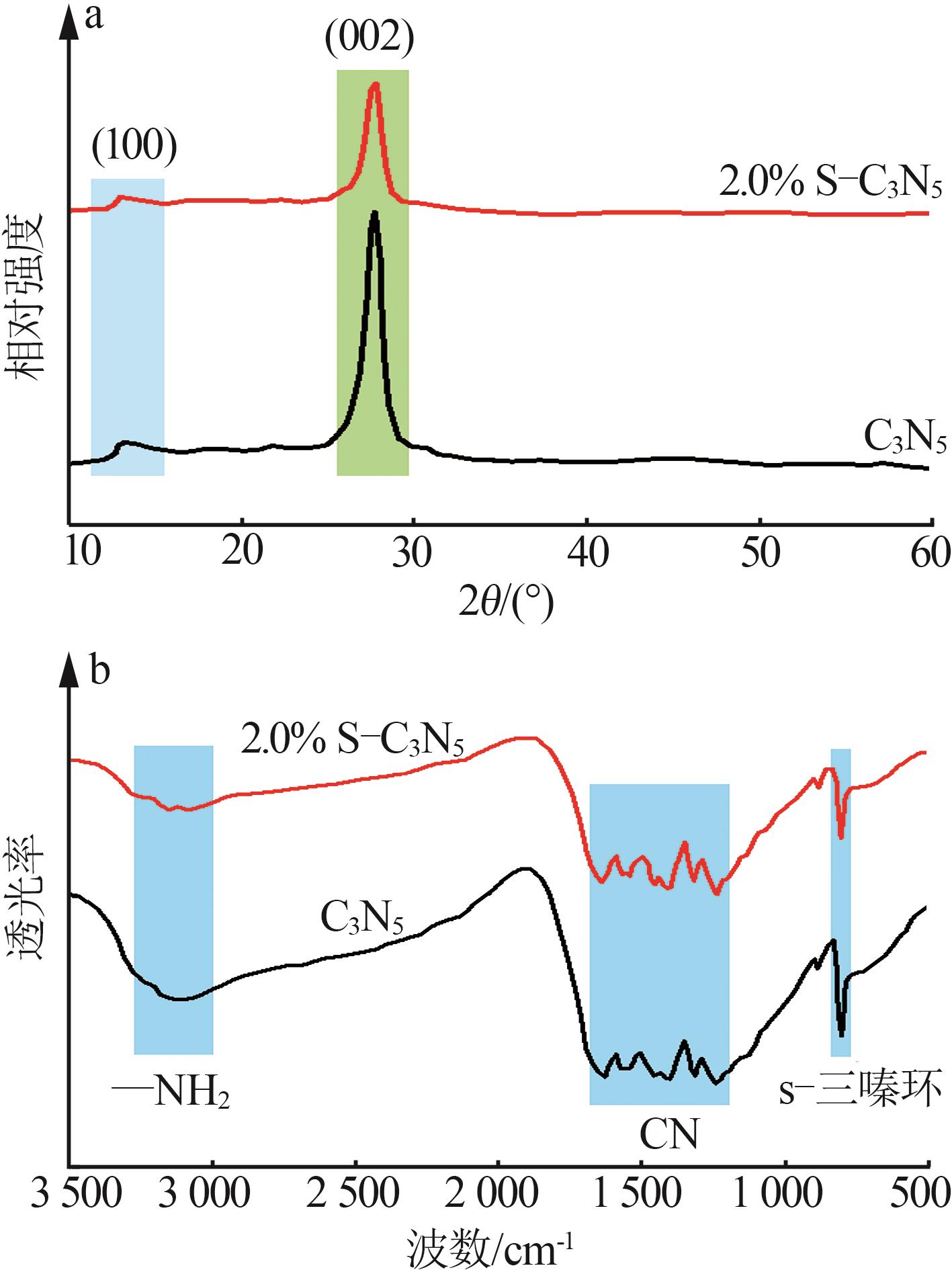

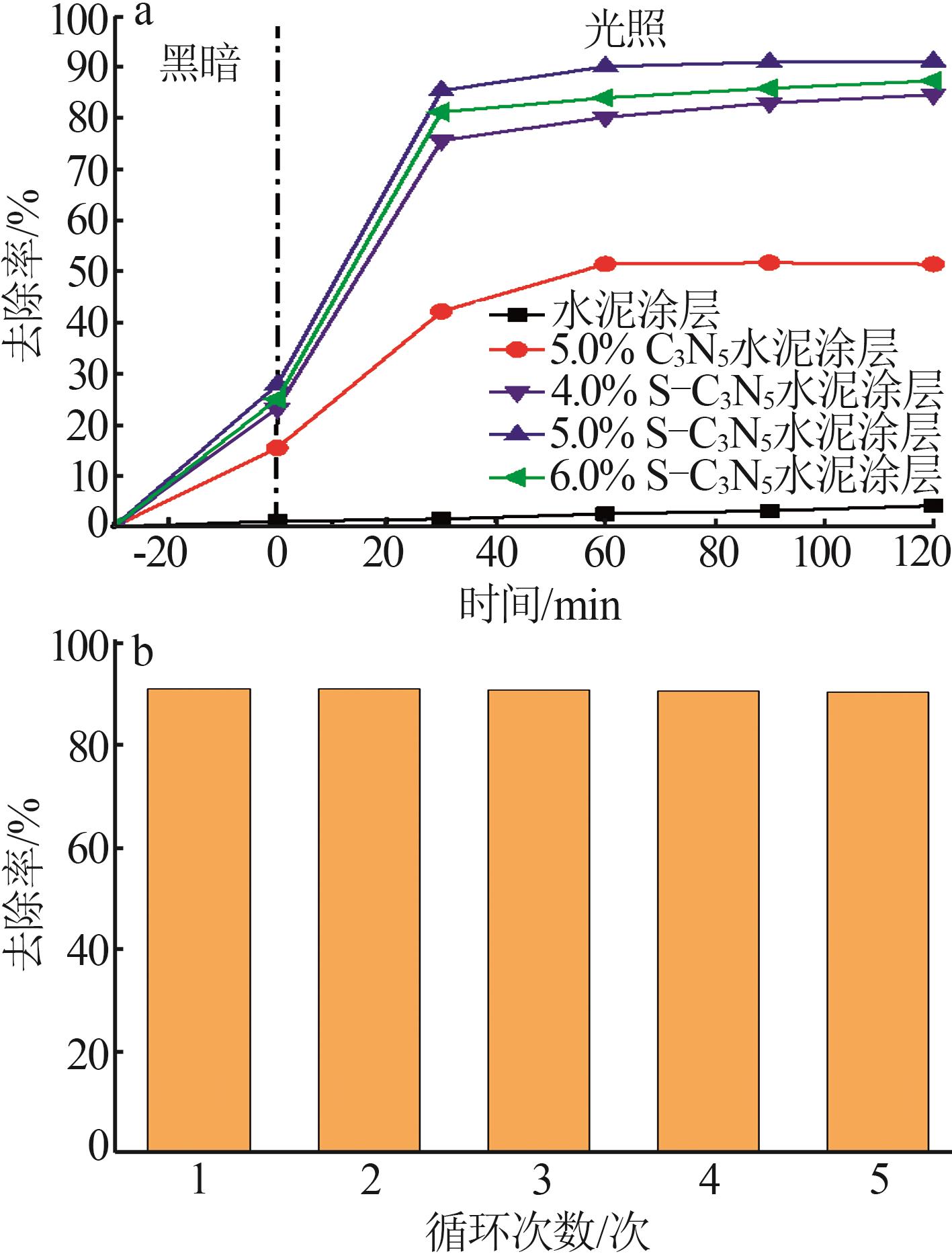

In order to solve the harm of HCHO gas released by indoor decoration and the problem of resource utilization of waste wind turbine blades，S-doped 2.0% nitrogen-rich carbon nitride（2.0% S-C₃N₅） photocatalyst was prepared by in-situ thermal polymerization using 3-amino-1，2，4-triazole as precursor and thiourea as sulfur source.X-ray diffraction（XRD），Fourier transform infrared spectroscopy（FT-IR），N₂ adsorption-desorption，UV-vis diffuse reflectance spectroscopy（UV-vis DRS），steady-state fluorescence spectroscopy（PL），electron paramagnetic resonance spectroscopy（EPR），transient photocurrent spectroscopy（TPC） and electrochemical impedance spectroscopy（EIS） were used to characterize the phase，group，specific surface area，spectral absorption，photoelectron-hole recombination，defects and electrochemical properties of the photocatalyst.After S doping，the efficient separation of photoelectron-holes and the enhancement of spectral response were achieved，which effectively improved the photocatalytic activity of C₃N₅ and achieved efficient removal of HCHO.The removal rate of HCHO reached 94.97%.The FRP filler concrete prepared by using the glass fiber reinforced resin matrix composite（FRP） after physical crushing of waste wind turbine blades as the reinforcing filler was used as the matrix，and the silicate cement paste doped with 2.0% S-C₃N₅ was used as the photocatalytic coating to construct the FRP reinforced concrete loaded with 2.0% S-C₃N₅ cement coating.The removal rate of HCHO by 2.0% S-C₃N₅ doped 5.0% coating under visible light was 91.05%.The doping of FRP and the coating of 2.0% S-C₃N₅ cement coating significantly improved the mechanical properties of ordinary concrete.Compared with ordinary concrete，the compressive strength and flexural strength of 28 d curing was increased by 18.97% and 20.00%，respectively.

Key words: FRP filled concrete, nitrogen-rich carbon nitride, photocatalytic cement coating, formaldehyde removal

CLC Number:

TQ125.1

ZHAO Xiaoli. Study on photocatalytic properties of S-C₃N₅ cement coating on waste wind power FRP filler concrete[J]. Inorganic Chemicals Industry, 2025, 57(9): 125-132.

Figures/Tables 13

Table 1

Fig.1

Fig.2

Fig.3

Table 2

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Table 3

Table 4

References 22

[1]	LIU Xiufan， LING Cancan， CHEN Xingdong，et al.Single Mn atom modulated molecular oxygen activation over TiO₂ for photocatalytic formaldehyde oxidation［J］.Journal of Colloid and Interface Science，2024，666：12-21.
[2]	俞慧，李思航，丁洋，等.基于不同净化原理的室内环境空气甲醛净化研究［J］.环境污染与防治，2023，45（10）：1387-1391，1401.
	YU Hui， LI Sihang， DING Yang，et al.Study on formaldehyde purification in indoor ambient air based on different purification principles［J］.Environmental Pollution & Control，2023，45（10）：1387-1391，1401.
[3]	WANG Jingquan， ZHANG Weijun， WU Huan，et al.Hydrothermal supramolecular preorganization synthesis of multi-morphological g-C₃N₄/Fe₂O₃ for photocatalytic removal of indoor formaldehyde under visible light［J］.Journal of Environmental Chemical Engineering，2023，11（2）：109395.
[4]	陈彰旭，朱丹琛，傅明连.g-C₃N₄/TiO₂复合材料制备及其处理罗丹明B研究［J］.无机盐工业，2023，55（7）：130-136.
	CHEN Zhangxu， ZHU Danchen， FU Minglian.Study on preparation of g-C₃N₄/TiO₂ composites and application for rhodamine B removal［J］.Inorganic Chemicals Industry，2023，55（7）：130-136.
[5]	MENG Deqin， GAO Sihang， CHENG Ziqi，et al.Study on CuO/g-C₃N₄ S-Scheme heterojunction for enhanced visible-light-driven photocatalytic degradation of xanthate［J］.Optical Materials，2023，143：114259.
[6]	LIAO Wenning， YANG Zhiquan， WANG Ying，et al.Novel Z-scheme Nb₂O₅/C₃N₅ photocatalyst for boosted degradation of tetracycline antibiotics by visible light-assisted activation of persulfate system［J］.Chemical Engineering Journal，2023，478：147346.
[7]	ZHANG Hongda， ZHAO Yunzhe， XU Guanghui，et al.Photocatalytic activation of sodium percarbonate by C₃N₅/C₂N₃ homojunction for rapid water purification：Efficient electron transfer of built-in electric field［J］.Chemical Engineering Journal，2024，491：151885.
[8]	SU Nan， CHENG Shasha， ZHANG Pingfan，et al.High-efficiency charge separation of Z-scheme 2D/2D C₃N₄/C₃N₅ nonmetal VdW heterojunction photocatalyst with enhanced hydrogen evolution activity and stability［J］.International Journal of Hydrogen Energy，2022，47（97）：41010-41020.
[9]	PENG Cong， HAN Lixiao， HUANG Jinming，et al.Comprehensive investigation on robust photocatalytic hydrogen production over C₃N₅ ［J］.Chinese Journal of Catalysis，2022，43（2）：410-420.
[10]	GUJRAL H S， SINGH G， YANG J H，et al.Mesoporous titanium carbonitride derived from mesoporous C₃N₅ for highly efficient hydrogen evolution reaction［J］.Carbon，2022，195：9-18.
[11]	YAO Jia， LIU Dong， ZHAO Bing，et al.Insight into the effect of B-doping on electronic structure and photocatalytic H₂ evolution performance of C₃N₅ nanosheets［J］.Journal of Photochemistry and Photobiology A：Chemistry，2023，436：114359.
[12]	FU Cheng， WU Tao， SUN Guowei，et al.Dual-defect enhanced piezocatalytic performance of C₃N₅ for multifunctional applicatio-ns［J］.Applied Catalysis B：Environmental，2023，323：122196.
[13]	CHEN Shengwang， SHENG Xiaoli， WANG Yanyun，et al.Thermally assisted in situ synthesis of C₃N₅/TiO₂ S-scheme heterojunctions with enhanced visible light response for photocatalytic hydrogen precipitation［J］.Applied Surface Science，2024，643：158600.
[14]	崔向东，刘思乐.g-C₃N₅纳米棒光电性能分析及对Cr（Ⅵ）和亚甲基蓝去除的研究［J］.无机盐工业，2024，56（10）：159- 168.
	CUI Xiangdong， LIU Sile.Study on photoelectric performance analysis of g-C₃N₅ nanorods and removal of Cr（Ⅵ） and methylene blue［J］.Inorganic Chemicals Industry，2024，56（10）：159- 168.
[15]	贺晓宇.基于氮化碳的光催化水泥混凝土制备与性能研究［J］.公路，2020，65（10）：292-296.
	HE Xiaoyu.Preparation and properties of photocatalytic cement concrete based on carbon nitride［J］.Highway，2020，65（10）：292-296.
[16]	吴林松，王星之，梅梦君，等.TiO₂透水混凝土配合比设计和光催化性能［J］.长江科学院院报，2023，40（12）：188-192，198.
	WU Linsong， WANG Xingzhi， MEI Mengjun，et al.Mix proportion design and photocatalytic performance of TiO₂ modified pervious concrete［J］.Journal of Changjiang River Scientific Research Institute，2023，40（12）：188-192，198.
[17]	郭湘立，冯艳文，郭勇.Ag-黑纳米TiO₂-电气石可见光催化材料的制备与应用研究［J］.涂料工业，2023，53（10）：55-60，68.
	GUO Xiangli， FENG Yanwen， GUO Yong.Preparation and application of plasma Ag-black nano TiO₂-micro tourmaline visible light catalytic material［J］.Paint & Coatings Industry，2023， 53（10）：55-60，68.
[18]	WANG Yin， LEI Shulai， ZHANG Xin，et al.First-principles study of nitrogen defect g-C₃N₄/WS₂ heterojunction on photocatalytic activity［J］.Current Applied Physics，2022，39：70-76.
[19]	董永浩，马爱琼，李金叶，等.热剥离法制备含缺陷g-C₃N₄纳米片及光催化性能［J］.稀有金属，2021，45（1）：47-54.
	DONG Yonghao， MA Aiqiong， LI Jinye，et al.Preparation of defective g-C₃N₄ nanosheets by thermal exfoliation and its photocatalytic performance［J］.Chinese Journal of Rare Metals，2021，45（1）：47-54.
[20]	卜义夫，刘思乐，闫海生，等.Z型异质结1D/2D g-C₃N₅/g-C₃N₄的构建及可见光催化降解甲基橙［J］.材料工程，2024，52（10）：170-182.
	BU Yifu， LIU Sile， YAN Haisheng，et al.Construction of Z-scheme heterojunction 1D/2D g-C₃N₅/g-C₃N₄ and visible photocatalytic degradation of methyl orange［J］.Journal of Materials Engineering，2024，52（10）：170-182.
[21]	马以宏，陈兴涛，汤雷.化学混凝-TiO₂/g-C₃N₅光催化降解处理印刷废水［J］.无机盐工业，2024，56（10）：151-158.
	MA Yihong， CHEN Xingtao， TANG Lei.Treatment of printing wastewater by chemical coagulation-TiO₂/g-C₃N₅ photocatalytic degradation［J］.Inorganic Chemicals Industry，2024，56（10）：151-158.
[22]	林淑瑾，罗盛洋，熊晓立.负载S-g-C₃N₄/MgAl-CLDH光催化砂浆的去污及水化性能研究［J］.硅酸盐通报，2024，43（1）：44-51.
	LIN Shujin， LUO Shengyang， XIONG Xiaoli.Decontamination and hydration performance of photocatalytic mortar loaded with S-g-C₃N₄/MgAl-CLDH［J］.Bulletin of the Chinese Ceramic Society，2024，43（1）：44-51.

w（CaO）	w（SiO₂）	w（Al₂O₃）	w（Fe₂O₃）	w（MgO）
57.19	22.51	7.23	4.53	2.38
w（K₂O）	w（TiO₂）	w（Na₂O）	w（SO₃）	烧失量
0.86	0.60	0.25	2.31	2.14

样品	w（C）/%	w（N）/%	w（S）/%
C₃N₅	37.66	62.34
2.0% S-C₃N₅	35.49	62.19	2.32

FRP 掺杂量/%	坍落度/mm	抗压强度/MPa			抗折强度/MPa
FRP 掺杂量/%	坍落度/mm	3 d	7 d	28 d	3 d	7 d	28 d
0	32.0	23.8	40.1	53.8	5.8	6.8	8.0
0.5	27.9	25.2	40.6	56.7	6.3	7.2	8.4
1.0	27.1	27.9	43.3	59.2	6.4	7.4	8.7
1.5	26.8	30.1	46.1	63.2	6.7	7.8	9.1
2.0	26.4	28.9	45.2	60.3	6.5	7.5	8.8

S-C₃N₅ 掺杂量/%	抗压强度/MPa			抗折强度/MPa
S-C₃N₅ 掺杂量/%	3 d	7 d	28 d	3 d	7 d	28 d
0	30.1	46.1	63.2	6.7	7.8	9.1
4.0	32.3	48.5	66.3	6.9	8.0	9.3
5.0	35.9	54.2	69.7	7.4	8.3	9.6
6.0	33.8	50.1	67.1	7.1	8.1	9.5
