聚羧酸酯减水剂接枝氧化石墨烯对水泥砂浆性能的研究

doi:10.19964/j.issn.1006-4990.2024-0484

Abstract

Abstract:

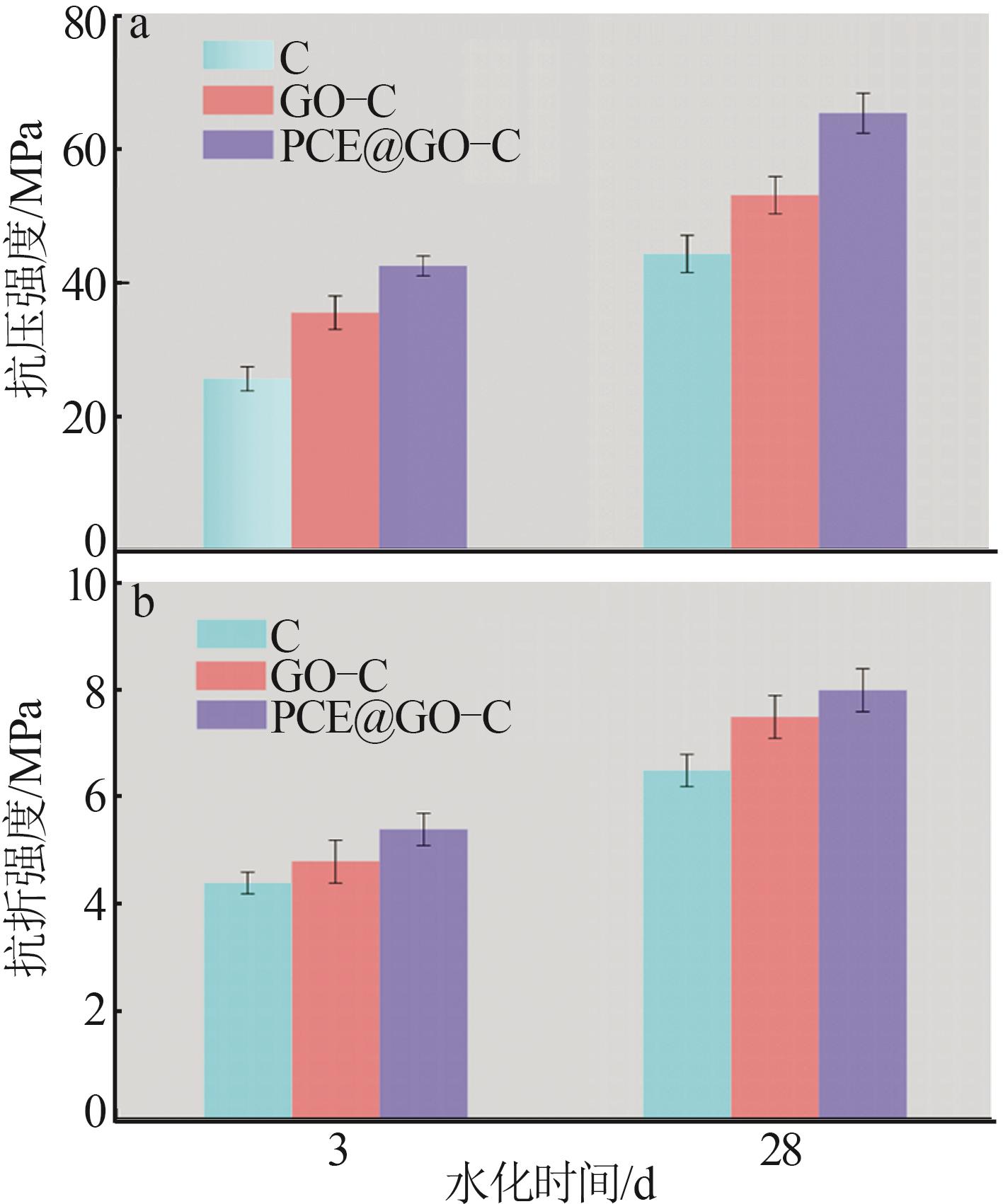

In this study，polycarboxylate superplasticizer（PCE） was used to graft onto graphene oxide（GO），thereby synthesizing a novel GO-based superplasticizer（PCE@GO）.The GO modification experiment was simple and feasible.It not only could overcome the agglomeration issue of GO in cement mortar but also enhanced the mechanical properties of the cement mortar by using grafted PCE@GO as a reinforcing material.The experimental results showed that PCE@GO could be uniformly dispersed in the cement solution，with obviously improved stability，due to the steric hindrance and electrostatic repulsion provided by the PC on the surface of GO，which prevented the agglomeration of GO.Furthermore，PCE@GO also significantly enhanced the mechanical properties of the cement paste：when 0.1%（mass fraction） content of PCE@GO was added，the flexural strength and compressive strength of the cement composite material at 28 d reached the maximum values of 8.0 MPa and 65.4 MPa，respectively，which were 6.7% and 23.2% higher than the GO samples with an addition of 0.1% PCE@GO.The addition of PCE@GO also improved the flowability of the cement mortar and reduced the crystal size of the hydration products，thereby enhancing the performance of the cured composite material.This study provided theory and experimental basis for designing and preparing high performance cement mortar materials，and had certain guiding significance for the application of GO-based materials in cement mortar.

Key words: cement mortars, graphene oxide, polycarboxylate superplasticizer, mechanical property

CLC Number:

TQ127.12

ZHANG Yu. Study on effect of polycarboxylate superplasticizer grafted with graphene oxide on properties of cement mortar[J]. Inorganic Chemicals Industry, 2025, 57(9): 46-52.

Figures/Tables 12

Fig.1

Table 1

Table 2

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Table 3

Fig.7

Fig.8

Fig.9

References 26

[1]	WANG Lei， ZENG Xiaoman， YANG Huamei，et al.Investigation and application of fractal theory in cement-based materials：A review［J］.Fractal and Fractional，2021，5（4）：247.
[2]	KAWASHIMA S， HOU Pengkun， CORR D J，et al.Modification of cement-based materials with nanoparticles［J］.Cement and Concrete Composites，2013，36：8-15.
[3]	王昱宁，黄灿煌，卢智毅，等.纤维加筋水泥基材料研究进展［J］.中国建筑金属结构，2023（3）：101-103.
	WANG Yuning， HUANG Canhuang， LU Zhiyi，et al.Research progress of fiber reinforced cement-based materials［J］.China Construction Metal Structure，2023（3）：101-103.
[4]	BASQUIROTO DE SOUZA F， YAO Xupei， LIN Junlin，et al.Effective strategies to realize high-performance graphene-reinforced cement composites［J］.Construction and Building Materials，2022，324：126636.
[5]	ASIM N， BADIEI M， SAMSUDIN N A，et al.Application of graphene-based materials in developing sustainable infrastructure：An overview［J］.Composites Part B：Engineering，2022，245：110188.
[6]	XU Zhong， HUANG Zhenpu， LIU Changjiang，et al.Experimental study on mechanical properties and microstructures of steel fiber-reinforced fly ash-metakaolin geopolymer-recycled concrete［J］.Reviews on Advanced Materials Science，2021，60（1）：578-590.
[7]	CAO Mingli， XU Ling， ZHANG Cong.Rheological and mechanical properties of hybrid fiber reinforced cement mortar［J］.Construction and Building Materials，2018，171：736-742.
[8]	ZHANG Peng， WANG Menghui， HAN Xu，et al.A review on properties of cement-based composites doped with graphene［J］.Journal of Building Engineering，2023，70：106367.
[9]	SHEIKH T M， ANWAR M P， MUTHOOSAMY K，et al.The mechanics of carbon-based nanomaterials as cement reinforcement：A critical review［J］.Construction and Building Materials，2021，303：124441.
[10]	王琴，齐国栋，王悦，等.氧化石墨烯在水泥基复合材料中应用的研究进展［J］.新型炭材料，2021，36（4）：729-750.
	WANG Qin， QI Guodong， WANG Yue，et al.Research progress on the effect of graphene oxide on the properties of cement-based composites［J］.New Carbon Materials，2021，36（4）：729-750.
[11]	ZENG Hongyan， QU Shen， TIAN Yun，et al.Recent progress on graphene oxide for next-generation concrete：Characterizations，applications and challenges［J］.Journal of Building Engineering，2023，69：106192.
[12]	SUO Yuxia， GUO Rongxin， XIA Haiting，et al.A review of graphene oxide/cement composites：Performance，functionality，me-chanisms，and prospects［J］.Journal of Building Engineering，2022，53：104502.
[13]	PARK S， LEE K S， BOZOKLU G，et al.Graphene oxide papers modified by divalent ions-enhancing mechanical properties via chemical cross-linking［J］.ACS Nano，2008，2（3）：572-578.
[14]	XIONG Guangqi， REN Yuanliang， WANG Chong，et al.Effect of power ultrasound assisted mixing on graphene oxide in cement paste：Dispersion，microstructure and mechanical properties［J］.Journal of Building Engineering，2023，69：106321.
[15]	YAN Xiantong， ZHENG Dapeng， YANG Haibin，et al.Study of optimizing graphene oxide dispersion and properties of the resulting cement mortars［J］.Construction and Building Materials，2020，257：119477.
[16]	魏致强，王远贵，齐孟，等.没食子酸协同聚羧酸减水剂分散氧化石墨烯及其对水泥砂浆性能的影响［J］.材料导报，2021，35（10）：10042-10047.
	WEI Zhiqiang， WANG Yuangui， QI Meng，et al.The synergistic effect of Gallic acid and polycarboxylic water-reducer on aqueous GO dispersion and the enhanced mechanical properties of cement mortar composites［J］.Materials Reports，2021，35（10）：10042-10047.
[17]	杨凌俊，袁小亚.氧化石墨烯复掺石墨烯对水泥砂浆力学性能的提升及机理研究［J］.功能材料，2019，50（12）：12089-12096.
	YANG Lingjun， YUAN Xiaoya.Enhanced mechanical performance of cement mortar co-blended by graphene-oxide and graphene and its mechanism［J］.Journal of Functional Materials，2019，50（12）：12089-12096.
[18]	赵丽平，王飞.胺功能化氧化石墨烯对水泥基复合材料性能的影响［J］.无机盐工业，2023，55（3）：66-70，112.
	ZHAO Liping， WANG Fei.Effect of amine-functionalized graphene oxide on mechanical properties of cement composites［J］.Inorganic Chemicals Industry，2023，55（3）：66-70，112.
[19]	王琴，詹达富，齐国栋，等.聚羧酸系减水剂对石墨烯分散性的影响［J］.新型炭材料，2020，35（5）：547-558.
	WANG Qin， ZHAN Dafu， QI Guodong，et al.Impact of the microstructure of polycarboxylate superplasticizers on the dispersion of graphene［J］.New Carbon Materials，2020，35（5）：547-558.
[20]	LIU Bao， WANG Liguo， PAN Ganghua，et al.Dispersion of graphene oxide modified polycarboxylate superplasticizer in cement alkali solution for improving cement composites［J］.Journal of Building Engineering，2022，57：104860.
[21]	张燕.氧化石墨烯表面修饰及其对聚合物的改性［D］.合肥：合肥工业大学，2015.
	ZHANG Yan.Surface modification of GO and modify to poly-mer［D］.Hefei：Hefei University of Technology，2015.
[22]	徐祥浩，李和生，葛燕燕，等.DCC缩合酯化法制备壳聚糖山梨酸酯的工艺研究［J］.中国食品学报，2014，14（4）：29-36.
	XU Xianghao， LI Hesheng， GE Yanyan，et al.Study on technology for preparing sorbic acid chitosan ester by DCC condensation method［J］.Journal of Chinese Institute of Food Science and Technology，2014，14（4）：29-36.
[23]	ZHAO Li， GUO Xinli， GE Chuang，et al.Mechanical behavior and toughening mechanism of polycarboxylate superplasticizer modified graphene oxide reinforced cement composites［J］.Composites Part B：Engineering，2017，113：308-316.
[24]	高乔.P·O42.5水泥与聚羧酸减水剂的适应性研究［J］.水泥工程，2024（3）：21-24，33.
	GAO Qiao.Research on the adaptability of P·O42.5 cement and polycarboxylic acid water reducing agent［J］.Cement Engineering，2024（3）：21-24，33.
[25]	FU Qiang， WANG Zhenhua， XUE Yingkun，et al.Catalysis and regulation of graphene oxide on hydration properties and microstructure of cement-based materials［J］.ACS Sustainable Chemistry & Engineering，2023，11（14）：5626-5643.
[26]	HOLZWARTH U， GIBSON N.The scherrer equation versus the ‘Debye-scherrer equation’［J］.Nature Nanotechnology，2011，6（9）： 534.
