镍改性钛系锂离子筛的制备及性能研究

doi:10.19964/j.issn.1006-4990.2024-0446

Abstract

Abstract:

In order to solve the problem of poor cycling performance caused by the dissolution loss of titanium-based lithium ion sieves（H₂TiO₃） during periodic cycling，it was aimed to improve the stability by changing the lattice structure with metal ion doping.The Ni-modified titanium-based lithium ion sieve（Ni-HTO） was prepared by utilizing ball milling for mixing，followed by high-temperature solid-state reaction and ion exchange.The effects of nickel doping on the structure，adsorption performance，and stability of the adsorbent were investigated，and its applicability in lithium extraction from salt lakes was assessed to provide insights for practical applications.The results showed that the dissolution of Ti⁴⁺ in the metatitanic acid ion sieve was reduced after Ni doping.Furthermore，the（002） interplanar spacing of the Ni-modified ion sieve was decreased，which significantly improved the adsorption selectivity for Li⁺.Specifically，the separation factor of Li⁺ to Mg²⁺ reached 281.23，with a saturated adsorption capacity of 30.5 mg/g.The granulated adsorbent（Ni-HTO） was used in the lithium extraction test of Laguocuo Salt Lake brine.The results showed that the adsorption capacity for Li⁺ remained around 9.55 g/L，the average Ti⁴⁺ dissolution loss rate was decreased from 0.68%（unmodified） to 0.20%，and the average selectivity was significantly improved after 20 cycles，which indicated that Ni-HTO had excellent adsorption properties，cyclic stability and selectivity.In summary，the Ni-modified titanium-based lithium ion sieve had great application potential in the field of lithium extraction from salt lakes.

Key words: adsorbent, titanium-based lithium ion sieve, doping, stability, salt lake brine

CLC Number:

TQ138.13

CHEN Mengmeng, XU Dekan, HUANG Jilong, TANG Zhilan, ZHANG Xu, TAN Chao, WANG Xiaohu, PENG Wenbo. Study on preparation and performance of Ni-modified titanium-based lithium ion sieve[J]. Inorganic Chemicals Industry, 2025, 57(9): 37-45.

Figures/Tables 13

Table 1

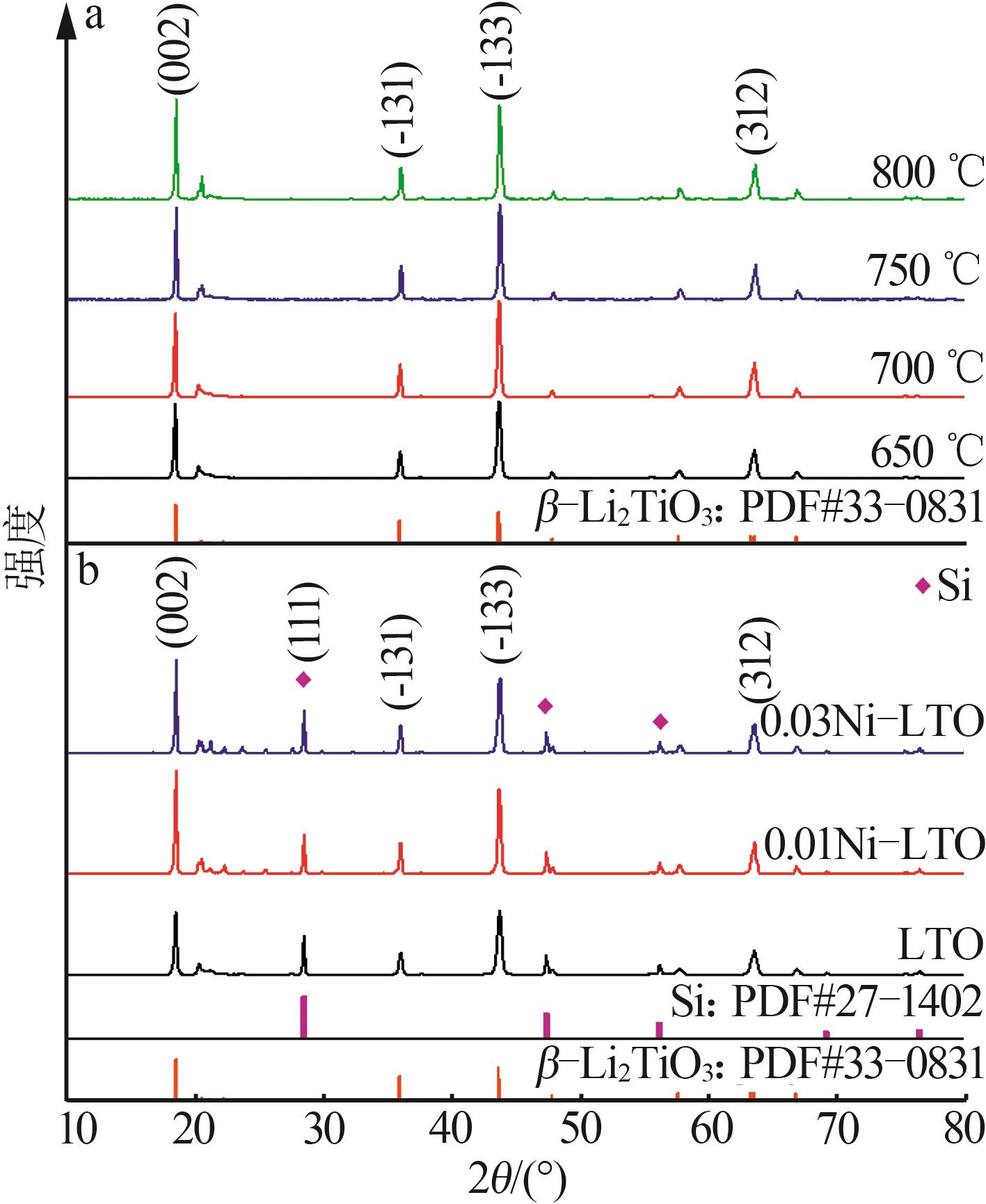

Fig.1

Table 2

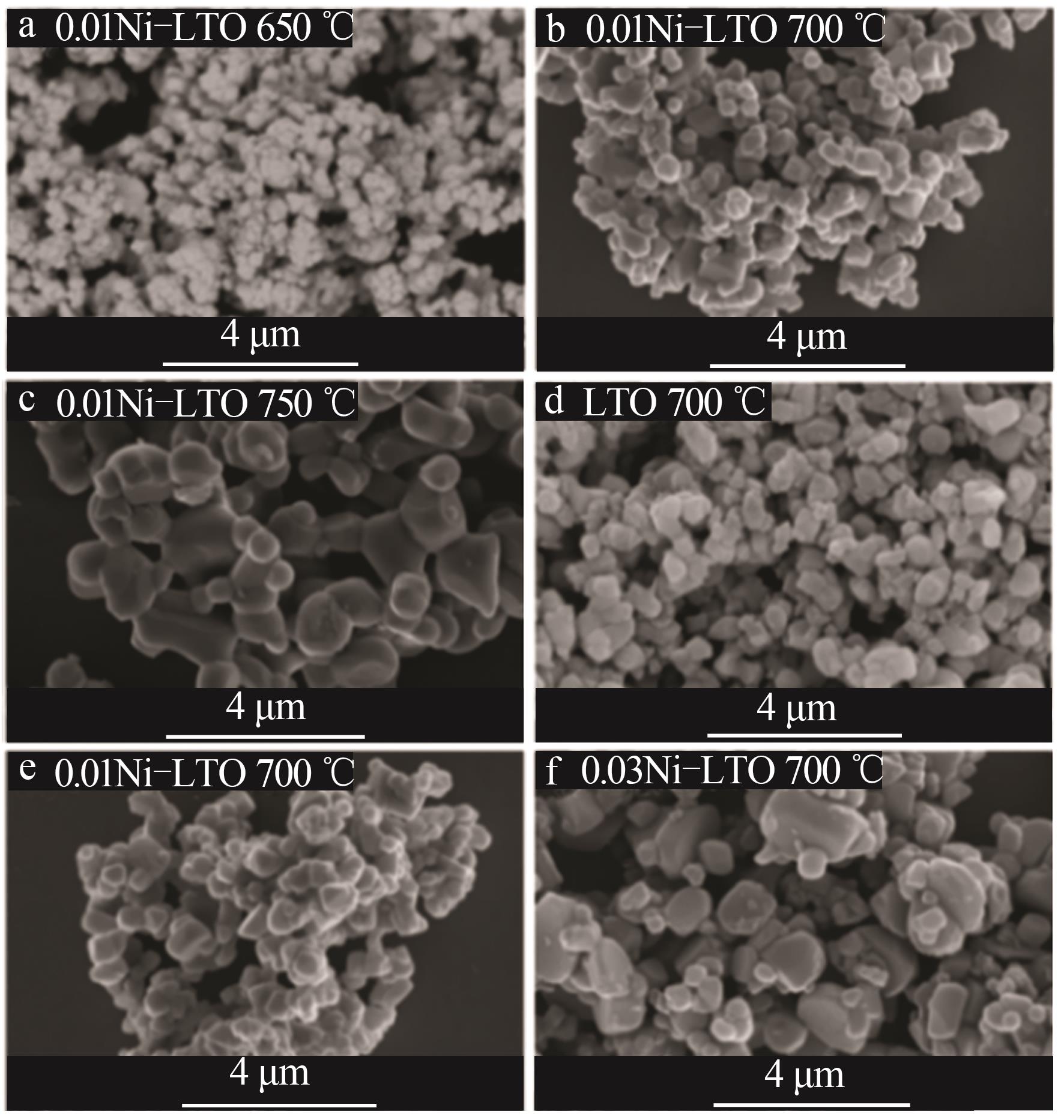

Fig.2

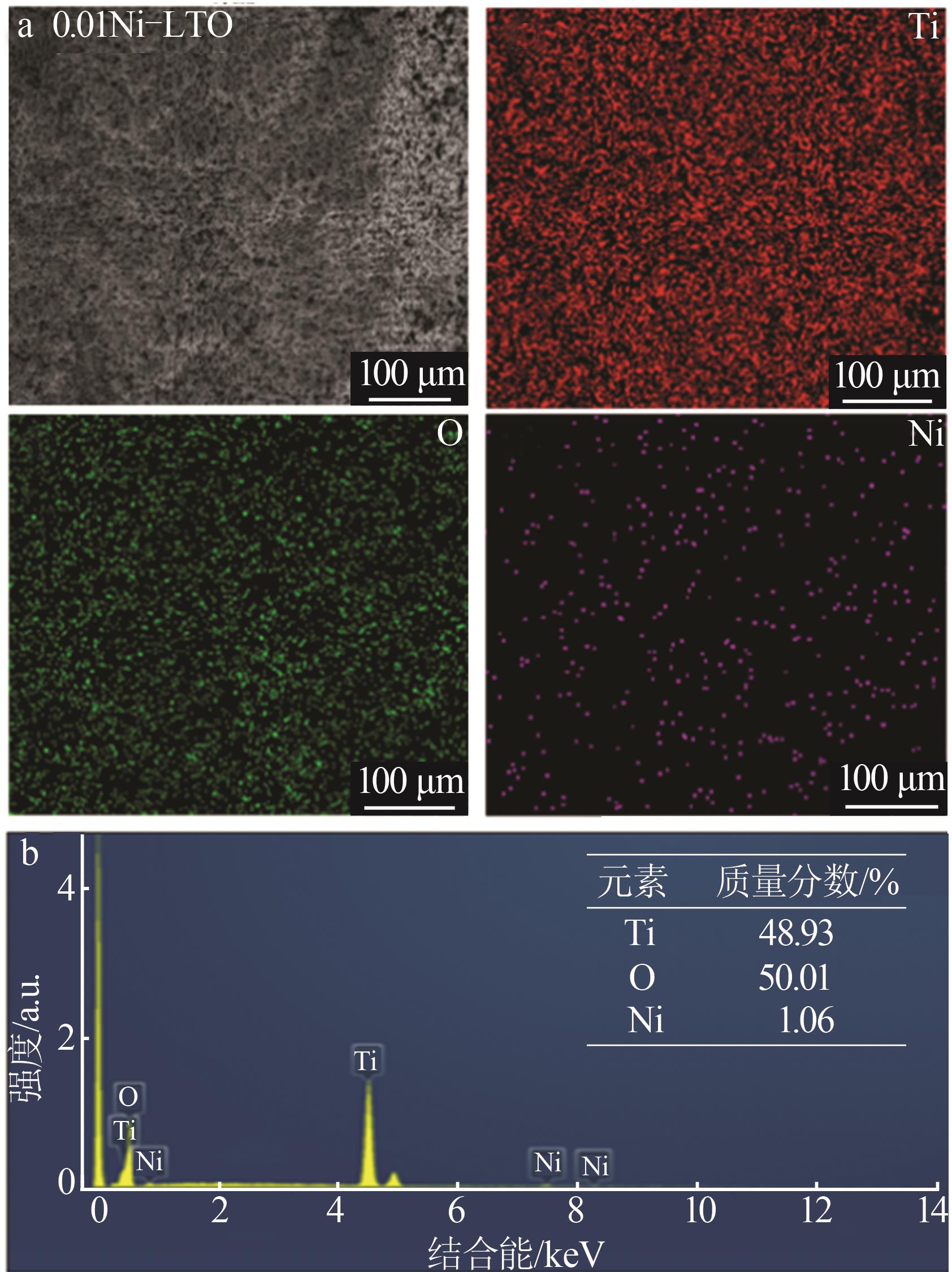

Fig.3

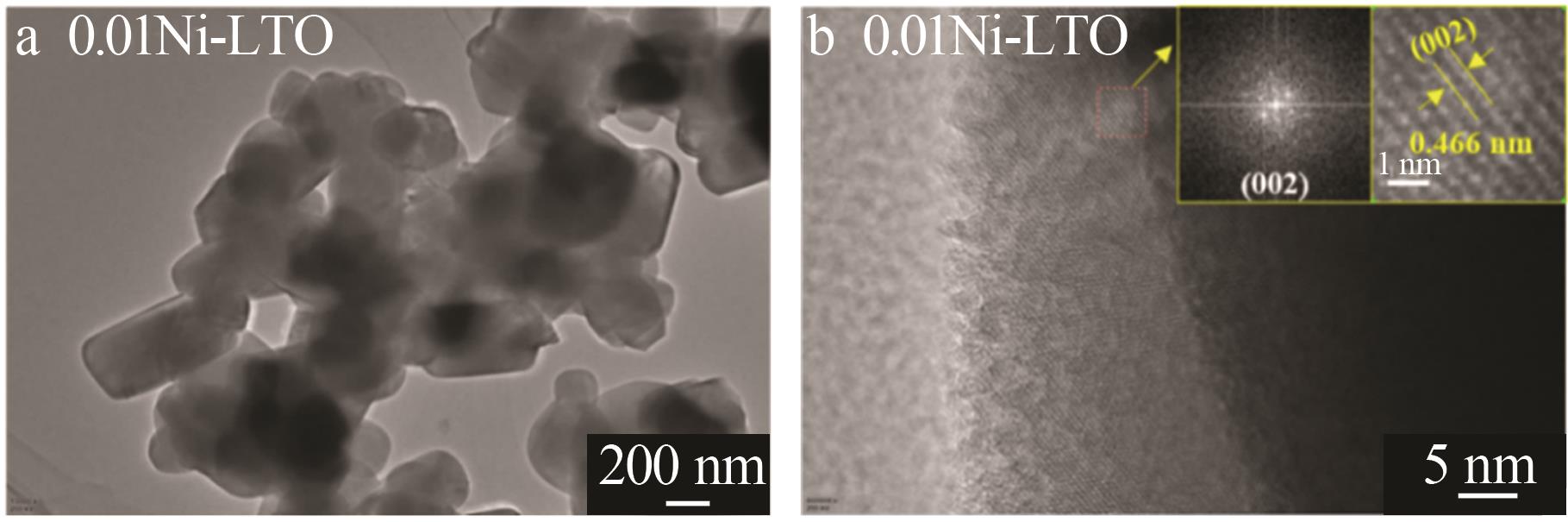

Fig.4

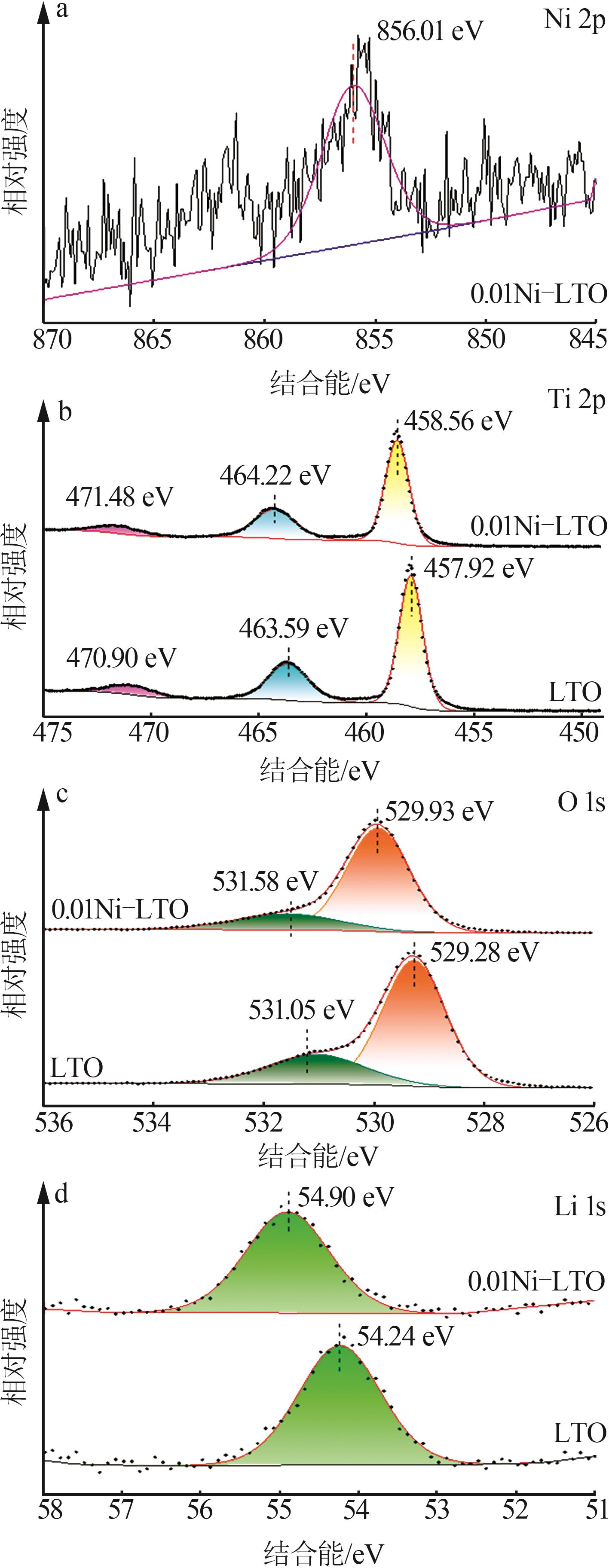

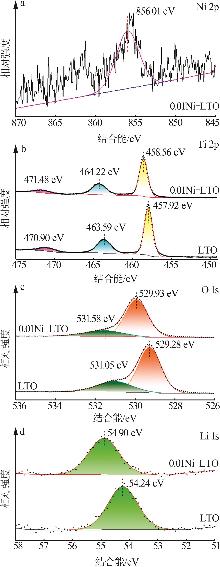

Fig.5

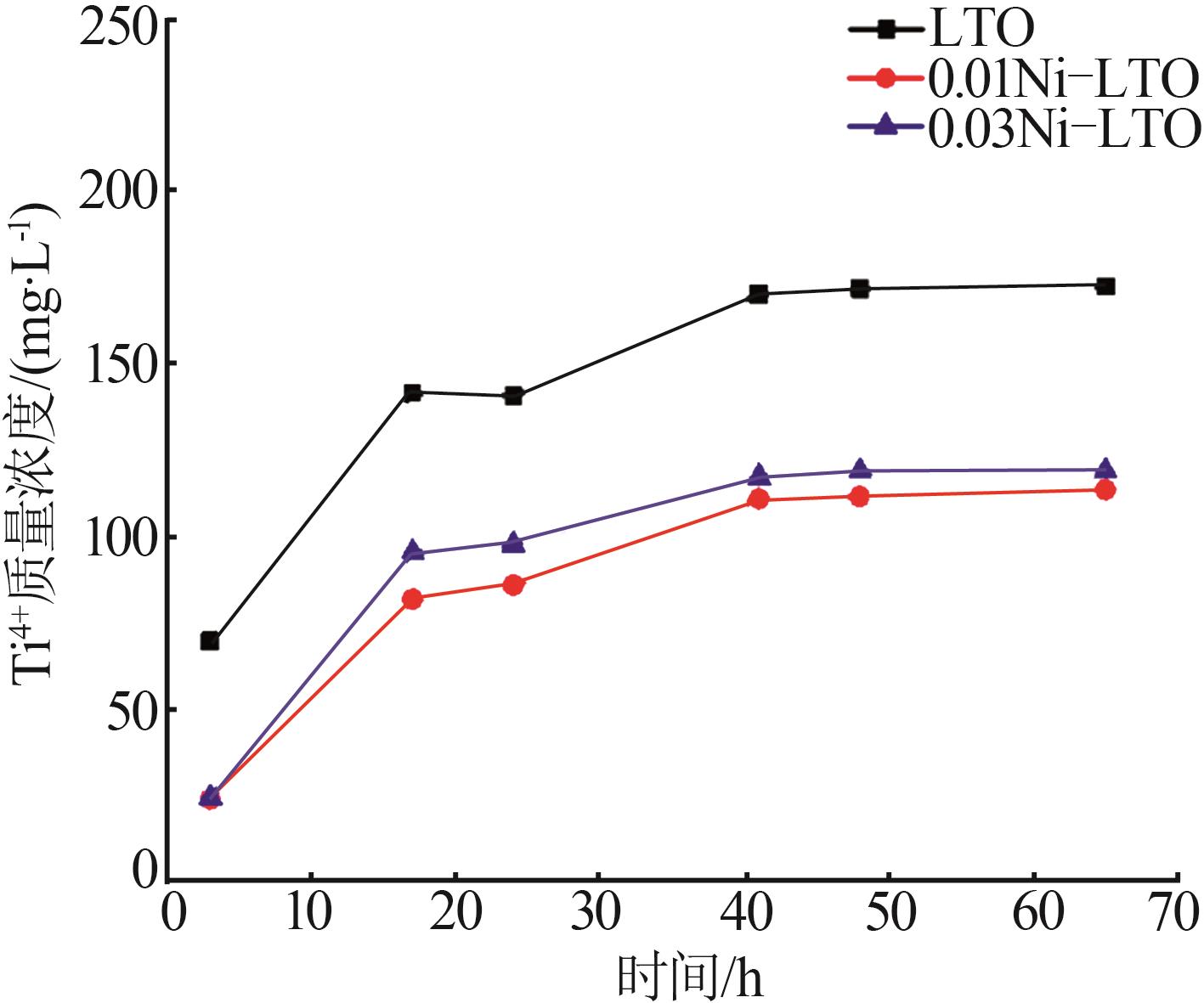

Fig.6

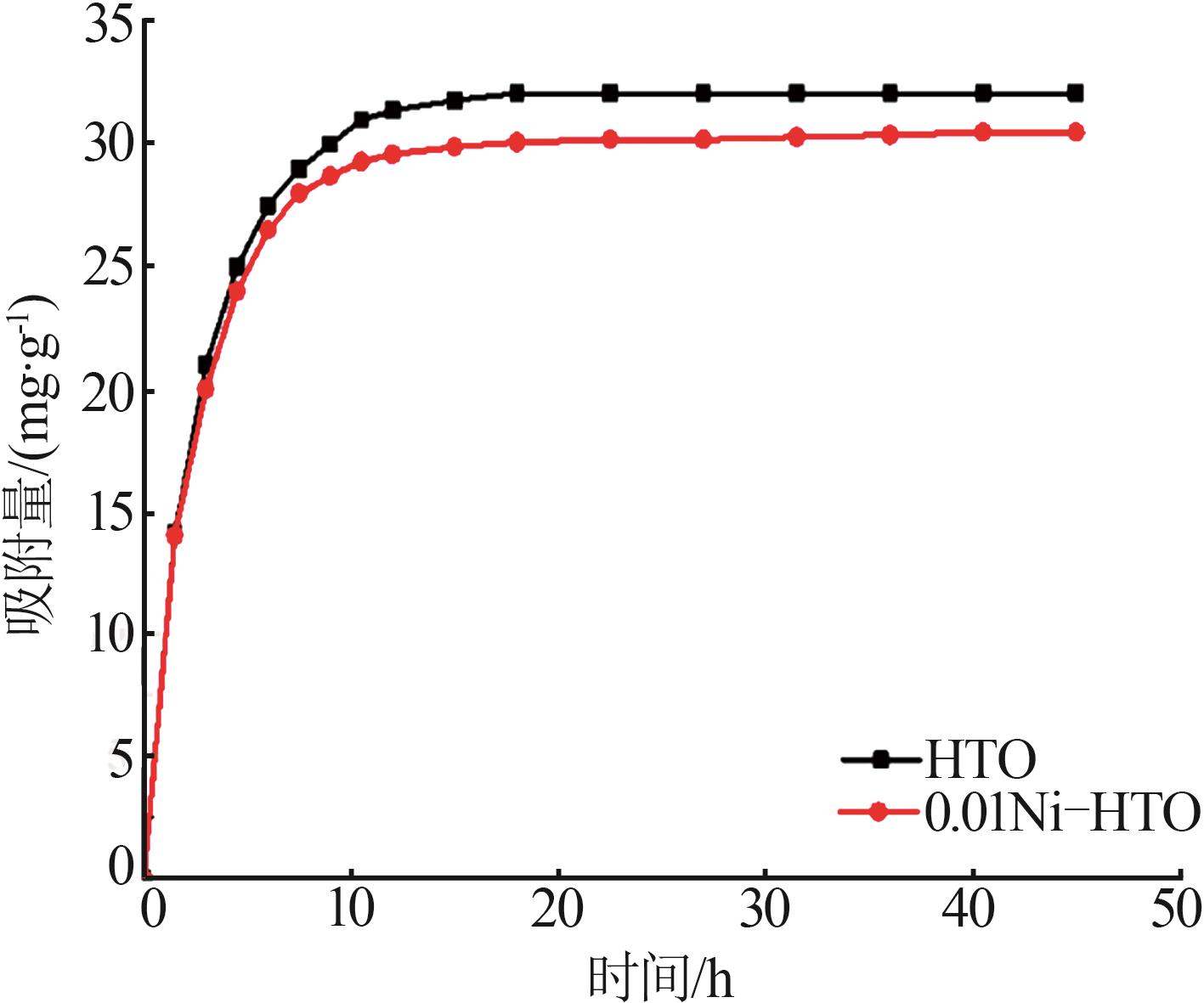

Fig.7

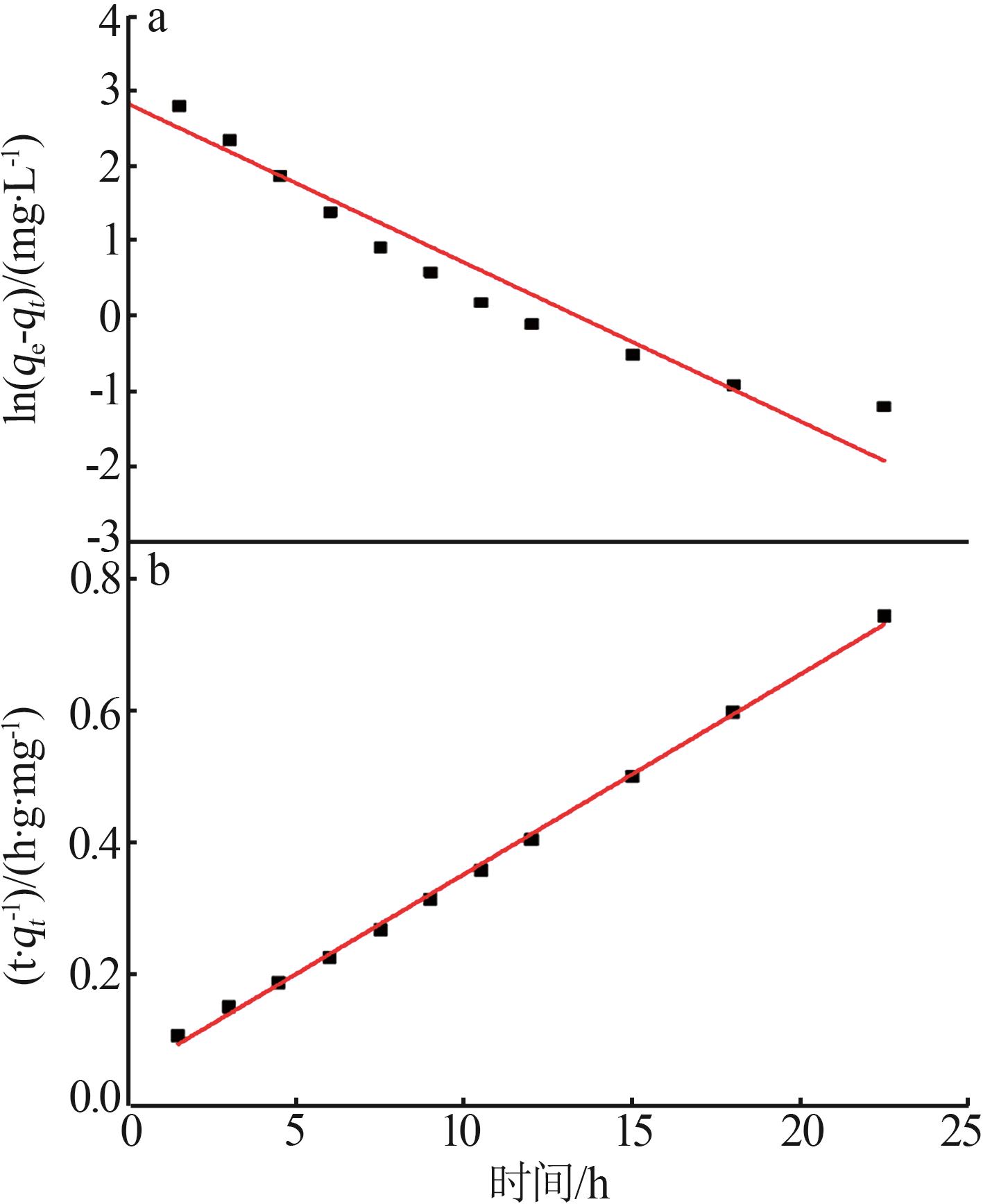

Fig.8

Table 3

Table 4

Separation effect of HTO and 0.01Ni-HTO on main metal ions in brine"

阳离子	HTO					0.01Ni-HTO
阳离子	ρ₀/（g·L^-1）	ρ_e/（g·L^-1）	K_d/（mL·g^-1）	$α N L i$	F_e/（mL·g^-1）	ρ₀/（g·L^-1）	ρ_e/（g·L^-1）	K_d/（mL·g^-1）	$α N L i$	F_e/（mL·g^-1）
Li⁺	0.24	0.14	142.86	1.00	82.54	0.24	0.16	109.68	1.00	64.41
Na⁺	12.98	12.75	3.61	39.57	3.54	12.98	12.93	0.70	156.69	0.77
K⁺	2.03	1.99	2.91	49.16	3.46	2.03	2.01	0.55	199.42	1.09
Mg²⁺	0.76	0.69	21.19	6.74	18.90	0.76	0.76	0.39	281.23	0.79

Table 4

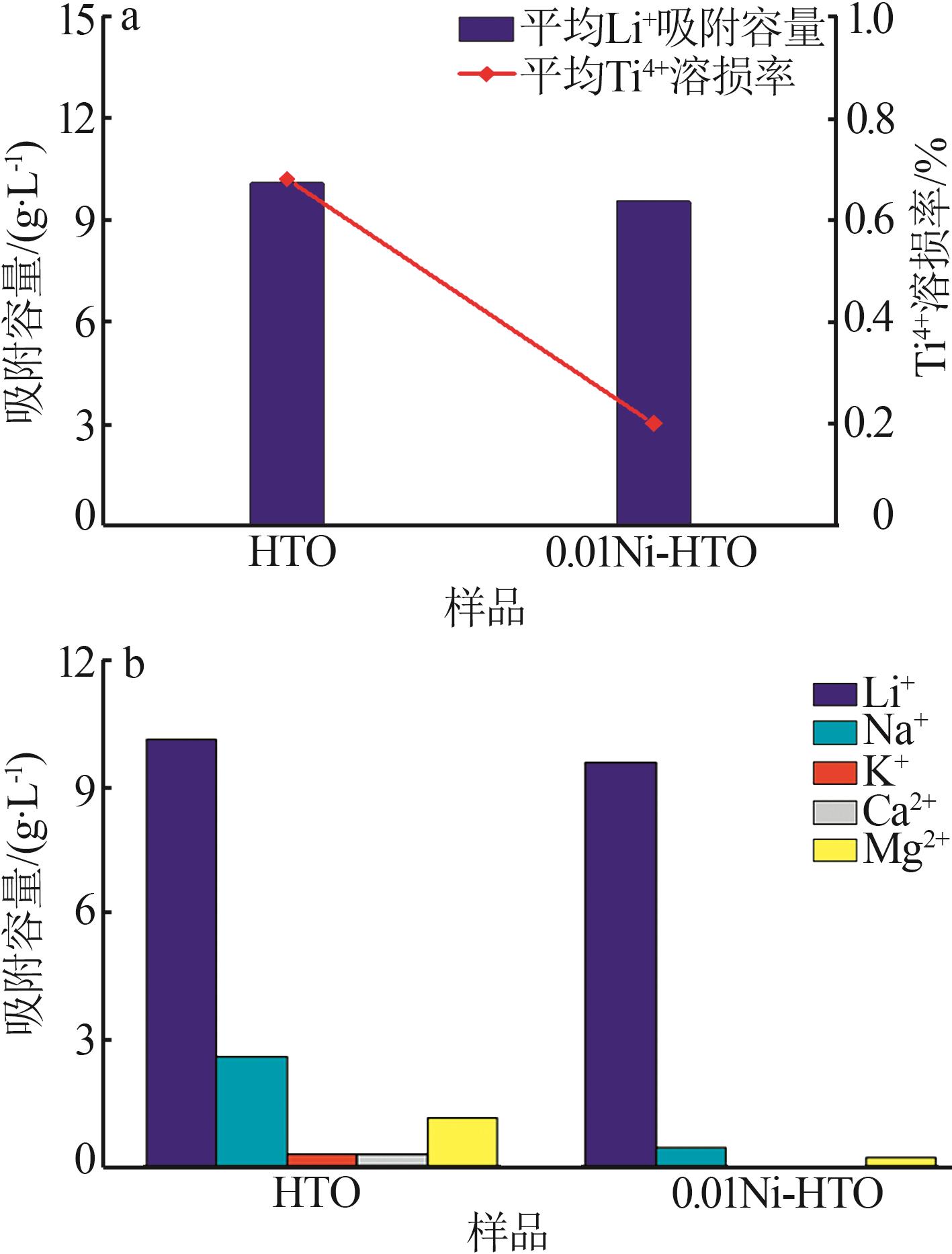

Fig.9

References 36

[1]	胡月，莫恒亮，李天玉，等.钛系锂离子筛粉体与PVDF树脂纺丝成型及性能研究［J］.无机盐工业，2023，55（11）：58-63.
	HU Yue， MO Hengliang， LI Tianyu，et al.Study on spinning molding and performance of Ti-based lithium ion sieve powder and PVDF resin［J］.Inorganic Chemicals Industry，2023，55（11）：58-63.
[2]	陈君，钟静，林森，等.铝基吸附剂固定床分离卤水锂资源过程研究［J］.无机盐工业，2023，55（1）：64-73.
	CHEN Jun， ZHONG Jing， LIN Sen，et al.Study on lithium separation from brine by aluminum-based adsorbent in fixed bed［J］.Inorganic Chemicals Industry，2023，55（1）：64-73.
[3]	魏沁，周豪杰，李子坤，等.锂离子电池负极预锂化技术研究进展［J］.炭素技术，2022，41（4）：20-23.
	WEI Qin， ZHOU Haojie， LI Zikun，et al.Research progress of prelithiation technology of anodes for lithium-ion batteries［J］.Carbon Techniques，2022，41（4）：20-23.
[4]	ALESSIA A， ALESSANDRO B， MARIA V G，et al.Challenges for sustainable lithium supply：A critical review［J］.Journal of Clean- er Production，2021，300：126954.
[5]	顾俊杰，李增荣，唐发满，等.用于盐湖卤水吸附法提锂的连续离子交换工艺研究［J］.无机盐工业，2020，52（7）：46-51.
	GU Junjie， LI Zengrong， TANG Faman，et al.Study on continuous ion exchange process applied in lithium extraction from salt lake brine with adsorption method［J］.Inorganic Chemicals Industry，2020，52（7）：46-51.
[6]	乜贞，伍倩，丁涛，等.中国盐湖卤水提锂产业化技术研究进展［J］.无机盐工业，2022，54（10）：1-12.
	NIE Zhen， WU Qian， DING Tao，et al.Research progress on industrialization technology of lithium extraction from salt lake brine in China［J］.Inorganic Chemicals Industry，2022，54（10）：1-12.
[7]	CHEN Shangqing， CHEN Zishen， WEI Zhenwei，et al.Titanium-based ion sieve with enhanced post-separation ability for high performance lithium recovery from geothermal water［J］.Chemical Engineering Journal，2021，410：128320.
[8]	LI Xianhui， MO Yinghui， QING Weihua，et al.Membrane-based technologies for lithium recovery from water lithium resources：A review［J］.Journal of Membrane Science，2019，591：117317.
[9]	吴静，任秀莲，魏琦峰.盐湖卤水中锂的分离提取研究进展［J］.无机盐工业，2020，52（12）：1-6.
	WU Jing， REN Xiulian， WEI Qifeng.Research progress on separation and extraction of lithium from salt-lake brine［J］.Inorganic Chemicals Industry，2020，52（12）：1-6.
[10]	甘仁香，侯昭飞，李军霞，等.基于双极膜电渗析的盐湖卤水制备氢氧化锂研究进展［J］.膜科学与技术，2023，43（3）：198-207，216.
	GAN Renxiang， HOU Zhaofei， LI Junxia，et al.Research progress of preparing lithium hydroxide from salt lake brine through bipolar membrane electrodialysis［J］.Membrane Science and Technology，2023，43（3）：198-207，216.
[11]	卫丽娜，康锦，李虎，等.盐湖提锂萃取剂及萃取体系研究进展［J］.无机盐工业，2021，53（5）：21-25.
	WEI Lina， KANG Jin， LI Hu，et al.Research progress of lithium extractants and extraction systems from salt lakes［J］.Inorganic Chemicals Industry，2021，53（5）：21-25.
[12]	OROOJI Y， NEZAFAT Z， NASROLLAHZADEH M，et al.Recent advances in nanomaterial development for lithium ion-sieving technologies［J］.Desalination，2022，529：115624.
[13]	XU Xin， CHEN Yongmei， WAN Pingyu，et al.Extraction of lithium with functionalized lithium ion-sieves［J］.Progress in Materials Science，2016，84：276-313.
[14]	唐娜，龚经款，项军.铝基锂吸附剂制备及其吸附性能研究［J］.无机盐工业，2020，52（8）：51-56.
	TANG Na， GONG Jingkuan， XIANG Jun.Preparation and adsorption properties of aluminum-based lithium adsorbent［J］.Inorganic Chemicals Industry，2020，52（8）：51-56.
[15]	纪志永，孙步云，袁俊生，等.锰基锂离子筛前体及其掺杂和表面修饰进展［J］.材料导报，2016，30（13）：17-22.
	JI Zhiyong， SUN Buyun， YUAN Junsheng，et al.Doping and surface modification of lithium manganese oxides used as ion-sieve precursor：A review［J］.Materials Review，2016，30（13）：17-22.
[16]	秦新博，高玺，何永平，等.钛系离子筛用于盐湖卤水锂提取的研究进展［J］.盐湖研究，2023，31（2）：91-101.
	QIN Xinbo， GAO Xi， HE Yongping，et al.Recent advances in lithium extraction from salt lake brine using Ti-based ion sieve ab-sorbent［J］.Journal of Salt Lake Research，2023，31（2）：91-101.
[17]	赵元元，陈海峰，刘云云，等.锰系锂离子筛的制备与改性的研究进展［J］.无机盐工业，2022，54（2）：21-29.
	ZHAO Yuanyuan， CHEN Haifeng， LIU Yunyun，et al.Research pro-gress on preparation and modification of manganese based lithium ion sieve［J］.Inorganic Chemicals Industry，2022，54（2）：21-29.
[18]	DAI Xianyang， ZHAN Honglong， QIAN Zhiqiang，et al.Al-doped H₂TiO₃ ion sieve with enhanced Li⁺ adsorption performance［J］.RSC Advances，2021，11（55）：34988-34995.
[19]	WANG Shulei， CHEN Xin， ZHANG Ying，et al.Lithium adsorption from brine by iron-doped titanium lithium ion sieves［J］.Particuology，2018，41：40-47.
[20]	ZHOU Suyu， GUO Xiaojing， YAN Xi，et al.Zr-doped titanium lithium ion sieve and EP-granulated composite：Superb adsorption and recycling performance［J］.Particuology，2022，69：100- 110.
[21]	WANG Shulei， ZHANG Min， ZHANG Ying，et al.High adsorption performance of the Mo-doped titanium oxide sieve for lithi- um ions［J］.Hydrometallurgy，2019，187：30-37.
[22]	PU Xinghong， DU Xinhe， JING Peng，et al.Interface and defect engineering enable fast and high-efficiency Li extraction of meta-titanic acid adsorbent［J］.Chemical Engineering Journal，2021，425：130550.
[23]	ZHANG Liyuan， SHUI Yi， ZHAO Lingling，et al.Preparation of Ni-doped Li₂TiO₃ using an inorganic precipitation-peptization method［J］.Coatings，2019，9（11）：701.
[24]	王肖虎，张许，王金荣，等.一种中空复合多级孔结构的高吸附容量吸附剂及其制备方法：中国，202211167092.3［P］.2022-12-09.
[25]	乔柱，郑建明，宋见峰，等.Si内标-X射线衍射法定量测定铁矿中Fe₃O₄、Fe₂O₃和SiO₂ ［J］.中国无机分析化学，2023，13（5）：463-468.
	QIAO Zhu， ZHENG Jianming， SONG Jianfeng，et al.Quantitative determination of Fe₃O₄，Fe₂O₃ and SiO₂ in iron ore by Si internal standard-X-ray diffraction method［J］.Chinese Journal of Inorganic Analytical Chemistry，2023，13（5）：463-468.
[26]	邹宇洲，谢瑜，刘慧楠，等.酸改性H₂TiO₃-锂吸附剂的制备及其性能研究［J］.材料研究与应用，2021，15（1）：34-40.
	ZOU Yuzhou， XIE Yu， LIU Huinan，et al.Study on the preparation and properties of acid-modified H₂TiO₃-Li adsorbent［J］.Materials Research and Application，2021，15（1）：34-40.
[27]	LI Lingjun， XU Ming， CHEN Zhaoyong，et al.High-performance lithium-rich layered oxide materials：Effects of chelating agents on microstructure and electrochemical properties［J］.Electrochimica Acta，2015，174：446-455.
[28]	WANG Shulei， ZHENG Shili， WANG Zheming，et al.Superior lithium adsorption and required magnetic separation behavior of iron-doped lithium ion-sieves［J］.Chemical Engineering Journal，2018，332：160-168.
[29]	DONG Shengde， ZHOU Yuan， Chunxi HAI，et al.Enhancedcathode performance：Mixed Al₂O₃ and LiAlO₂ coating of Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ ［J］.ACS Applied Materials & Interfaces，2020，12（34）：38153-38162.
[30]	MOSES A W， FLORES H G G， KIM J G，et al.Surface properties of LiCoO₂，LiNiO₂ and LiNi_1- _x Co _x O₂ ［J］.Applied Surface Science，2007，253（10）：4782-4791.
[31]	SHI Xichang， ZHANG Zhibing， ZHOU Dingfang，et al.Synthesis of Li⁺ adsorbent（H₂TiO₃） and its adsorption properties［J］.Transactions of Nonferrous Metals Society of China，2013，23（1）：253-259.
[32]	许乃才，史丹丹，边绍菊.纳米H₂TiO₃锂离子筛的制备及吸附性能研究［J］.应用化工，2023，52（7）：2016-2021，2024.
	XU Naicai， SHI Dandan， BIAN Shaoju.Preparation and adsorption performances of nano-H₂TiO₃ lithium-ion sieve［J］.Applied Chemical Industry，2023，52（7）：2016-2021，2024.
[33]	KIRIUKHIN M Y， COLLINS K D.Dynamic hydration numbers for biologically important ions［J］.Biophysical Chemistry，2002，99（2）：155-168.
[34]	TANSEL B， SAGER J， RECTOR T，et al.Significance of hydrated radius and hydration shells on ionic permeability during nanofiltration in dead end and cross flow modes［J］.Separation and Purification Technology，2006，51（1）：40-47.
[35]	MARCUS Y.Thermodynamics of solvation of ions.part 5：Gibbs free energy of hydration at 298.15 K［J］.Journal of the Chemical Society，Faraday Transaction，1991，87（18）：2995-2999.
[36]	袁艺珈，赖先熔，孙豪，等.掺铈钛系离子筛的合成及性能研究［J］.高校化学工程学报，2022，36（2）：226-234.
	YUAN Yijia， LAI Xianrong， SUN Hao，et al.Preparation and properties of Ce-doped titanium based ion sieve［J］.Journal of Chemical Engineering of Chinese Universities，2022，36（2）：226-234.

前驱体	前驱体三强峰的偏移角度/（°）
前驱体	（002）	（-131）	（-133）
LTO	0	0	0
0.01Ni-LTO	0.034	-0.023	-0.081
0.03Ni-LTO	0.035	-0.024	-0.082

准一级动力学拟合参数				准二级动力学拟合参数
k₁/h^-1	q_e/（mg·g^-1）	R²		k₂/（mg·g^-1·h^-1）	q_e/（mg·g^-1）	R²
0.211	16.88	0.928		0.030	28.30	0.998

National Inorganic Salts Information Center

Inorganic Acid-Base-Salt Committee of CIESC

Study on preparation and performance of Ni-modified titanium-based lithium ion sieve

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 36

Related Articles 15

Metrics

Comments

Recommended 0

[1]	ZHANG Longhua, ZHANG Zhichao. Study on synergistic modification to improve structural stability of ternary cathode material LiNi_0.9Co_0.05Mn_0.05O₂ [J]. Inorganic Chemicals Industry, 2025, 57(9): 82-87.
[2]	WANG Zhigang, HU Xiaodong, WANG Hui, XUE Lianggang, TIAN Jianqiang. Study on preparation of NO₂^- modified hydrotalcite and its corrosion resistance to steel bars [J]. Inorganic Chemicals Industry, 2025, 57(8): 74-81.
[3]	WANG Xiaoyu, DU Ruicheng, LI Yan, YANG Shuyan. Research advances in optimization and modification of TiO₂-based nanomaterials [J]. Inorganic Chemicals Industry, 2025, 57(7): 24-34.
[4]	YANG Jingjing, XU Chenchen, ZHU Liyan, KUAI Qiang, WU Bingdang, HUANG Tianyin. Study on adsorption and removal of nitroimidazole antibiotics in water by potassium carbonate-activated algae-based biochar [J]. Inorganic Chemicals Industry, 2025, 57(7): 99-109.
[5]	YAO Haiwei, MAO Rui, WANG Fei, YU Shui. Study on thermal stability of CC-OA-ZnO low eutectic solvent system [J]. Inorganic Chemicals Industry, 2025, 57(7): 87-92.
[6]	CHENG Yan, YU Tianyin, ZHANG Hongyang. Study on hydrothermal synthesis of A-type zeolite from rice husk ash [J]. Inorganic Chemicals Industry, 2025, 57(6): 43-48.
[7]	CHEN Tongtong, HAN Xianying, JIE Mengling, LI Jiangang. Synergistically enhanced properties of Na₄Fe₃（PO₄）₂P₂O₇/C material by Mo-Mn dual doping and carbon nanotube composite [J]. Inorganic Chemicals Industry, 2025, 57(5): 79-86.
[8]	TANG Zhenqiang, CAI Zongying, CAO Weigang, ZHENG Long. Research progress on synthesis and modification of olivine type lithium iron phosphate cathode materials [J]. Inorganic Chemicals Industry, 2025, 57(5): 55-63.
[9]	WANG Minrui, TIAN Guiying, ZHANG Ao, GE Junjie, ZHANG Lei, XIANG Jun, TANG Na. Study on granulation optimization for Al-based lithium adsorbent and its lithium recovery performance from brine [J]. Inorganic Chemicals Industry, 2025, 57(3): 36-42.
[10]	ZHANG Bao, QUAN Kaidong, WANG Yongfeng, HAN Fei, SHI Aiwen, LIU Xin, WANG Xiaomin. Study on fabrication of nanoflower-like Fe _y -NiCoS _x @NF catalysts and their application in hydrogen evolution and oxygen evolution during seawater electrolysis [J]. Inorganic Chemicals Industry, 2025, 57(2): 130-137.
[11]	SHEN Xiaoqian, ZHOU Fei, LIU Wanchen, XU Lu, WU Junshu. Study on synthesis of FeS modified calcium silicate hydrate composites and their total Cr removal performance [J]. Inorganic Chemicals Industry, 2025, 57(2): 57-67.
[12]	KONG Lingjie, LI Guangbi, XIE Jiahao, YANG Xinhui, BAI Xiaoqin. Research progress on lithium extraction technology from salt lake brine [J]. Inorganic Chemicals Industry, 2025, 57(1): 14-26.
[13]	XIONG Cailian, SUN Guobin, LI Heng, XING Feng. Study on structure and electrical properties of Ba（Zr_0.15Ti_0.85）O₃doped ceramics [J]. Inorganic Chemicals Industry, 2024, 56(8): 60-66.
[14]	XUE Shan, LIU Lu, DAI Jiansheng, LI Qing, FENG Ze, LI Yineng. Study on electrochemical properties of europium⁃doped LiFePO₄ cathode material for lithium⁃ion battery [J]. Inorganic Chemicals Industry, 2024, 56(8): 67-73.
[15]	WU Qingqing, XU Xuetang, WANG Fan. Study on capacitor performance of high⁃mass⁃loading ZnCo-based carbonate hydroxide electrode materials [J]. Inorganic Chemicals Industry, 2024, 56(7): 46-54.
