锌基复合电极原位水热合成和电化学性能研究

无机盐工业 ›› 2019, Vol. 51 ›› Issue (6): 21-24.

锌基复合电极原位水热合成和电化学性能研究

赵宇,张硕嘉,徐冰(),于越,孙小卉

大连交通大学辽宁省新能源电池重点实验室,辽宁大连 116028

收稿日期:2019-01-20 出版日期:2019-06-10 发布日期:2020-05-12
作者简介:赵宇（1974— ）,男,博士研究生,主要研究方向为基于超级电容器的电极材料的制备与应用,已发表文章5篇;E-mail：9339511@qq.com。
基金资助:
辽宁省自然科学基金项目(201602137)

Fabrication and electrochemical properties of Zn-based electrode materials

Zhao Yu,Zhang Shuojia,Xu Bing(),Yu Yue,Sun Xiaohui

Liaoning Provincial Key Laboratory of New Energy Battery,Dalian Jiaotong University,Dalian 116028,China

Received:2019-01-20 Published:2019-06-10 Online:2020-05-12

摘要/Abstract

摘要：

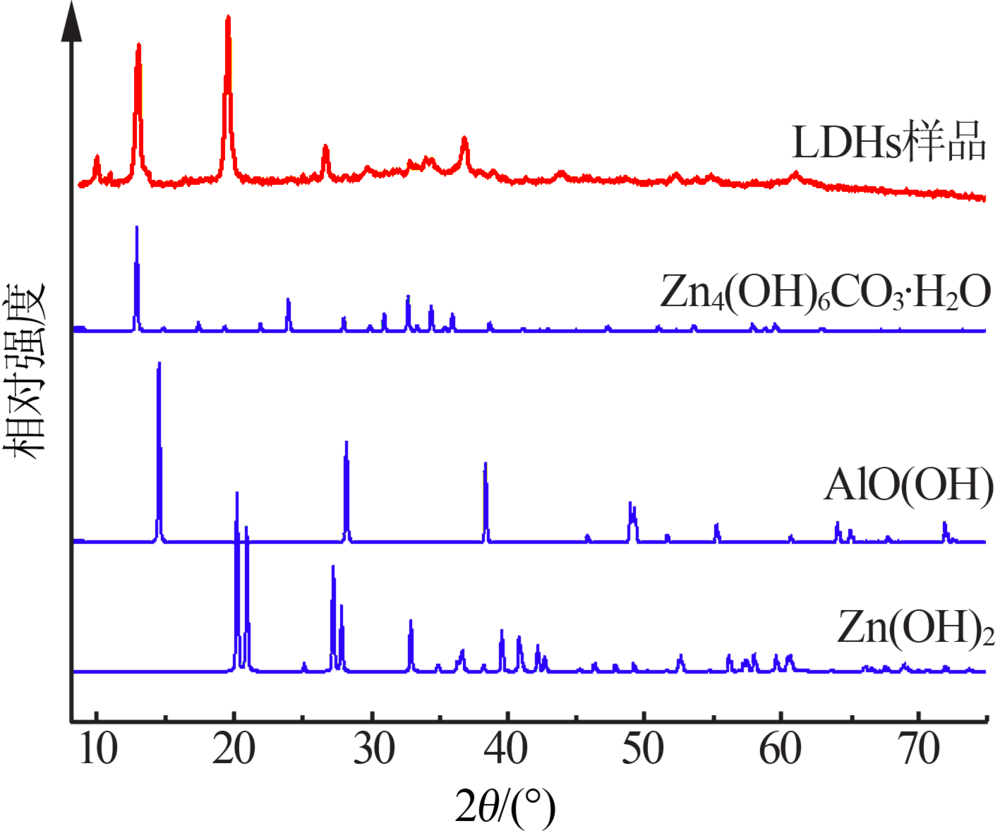

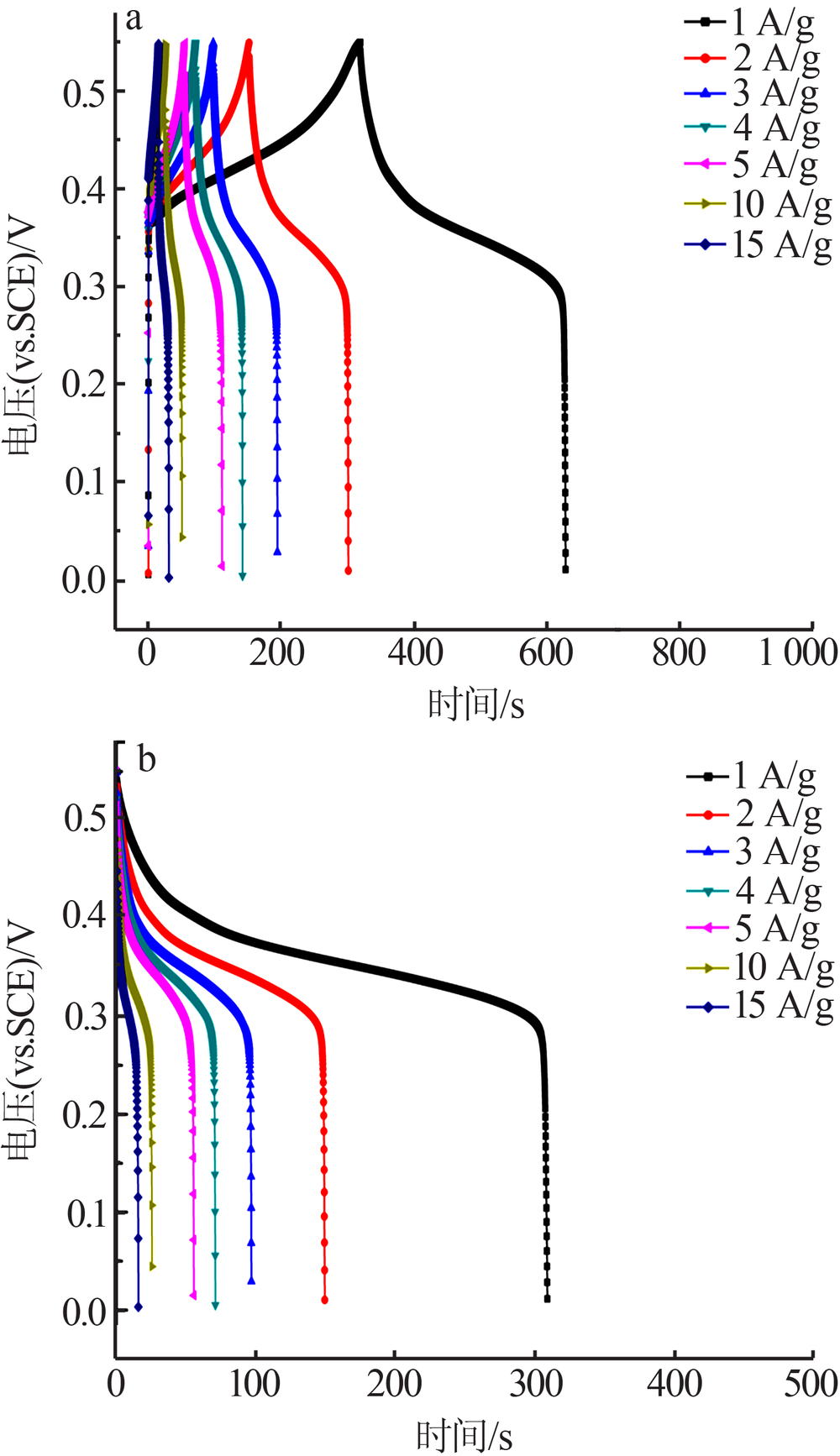

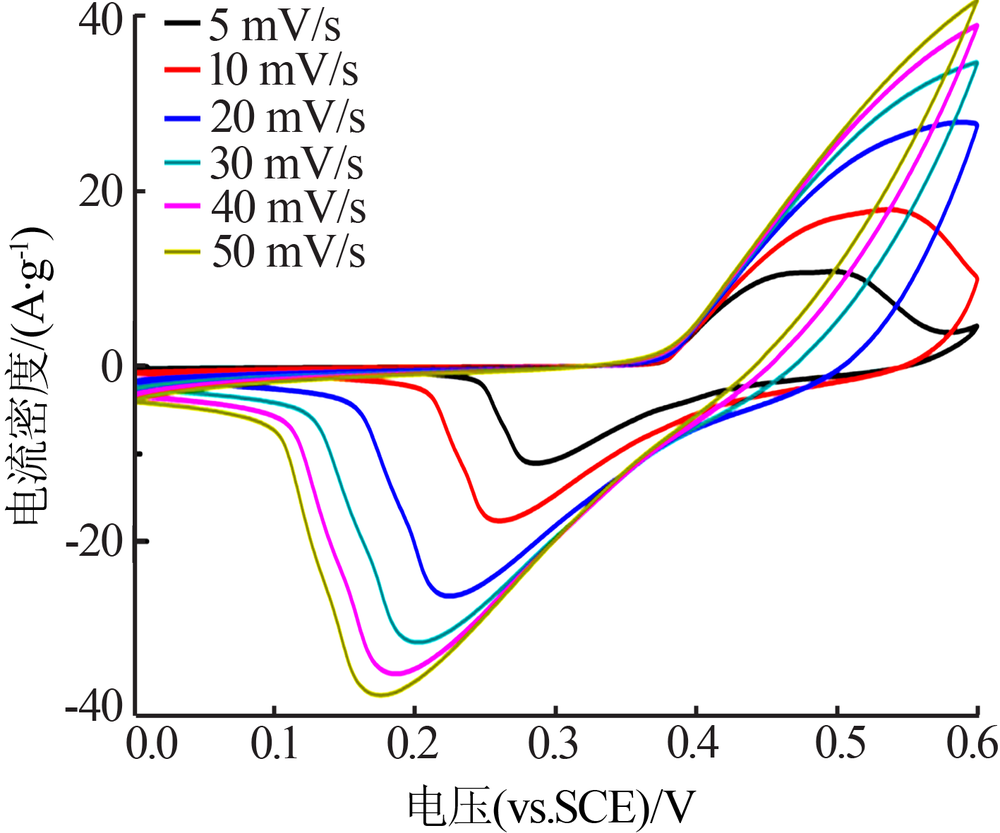

以硝酸锌、硝酸铝为前体,尿素为沉淀剂,采用水热法在泡沫镍表面原位生长锌基有序微纳米片状电极材料。采用X射线衍射、扫描电子显微镜、透射电子显微镜等手段对合成产物的结构和形貌进行了表征。研究结果表明,产物为少量铝掺杂的Zn_4-_xAl_x（OH）₆CO₃·H₂O层状双金属氢氧化物,形貌为正六边形片状结构,直径为1~2 μm,厚度为80~200 nm。以合成的锌基复合电极为工作电极,采用三电极体系进行电化学性能测试,结果显示电极呈现典型的赝电容性质,电流密度为5 A/g条件下电极质量比电容仍高达1 022.3 F/g。

关键词: 层状双金属氢氧化物, 水热法, 超级电容器

Abstract:

A zinc-based ordered micro-nano-plate electrode material was prepared in situ on the surface of foamed Ni by hy-drothermal method with Zn nitrate and Al nitrate as precursors and urea as precipitant.The structure and morphology of the product were studied and characterized by X-ray diffraction,scanning electron microscopy and transmission electron micro-scopy.The results showed that the product presented layered double hydroxides structure with a small amount of Al doping.The Zn_4-_xAl_x（OH）₆CO₃·H₂O appeared a regular hexagonal structure with a diameter of 1~2 μm and a thickness of 80~200 nm.The electrochemical test of the three-electrode system showed that the electrode presented typical pseudo capacitance proper-ties.The specific capacitance of in-situ ordered growth of Zn_4-_xAl_x（OH）₆CO₃·H₂O electrode was still as high as 1 022.3 F/gwhen the current density was 5 A/g.

Key words: layered double hydroxides, hydrothermal method, supercapacitor

中图分类号:

TQ138.13

赵宇,张硕嘉,徐冰,于越,孙小卉. 锌基复合电极原位水热合成和电化学性能研究[J]. 无机盐工业, 2019, 51(6): 21-24.

Zhao Yu,Zhang Shuojia,Xu Bing,Yu Yue,Sun Xiaohui. Fabrication and electrochemical properties of Zn-based electrode materials[J]. Inorganic Chemicals Industry, 2019, 51(6): 21-24.

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 12

[1]	Choudhary N, Li C, Moore J , et al. Asymmetric supercapacitor elec-trodes and devices[J]. Advanced Materials, 2017,29(21):1605336-1605350.
[2]	Zhang L L, Zhao X S . Carbon-based materials as supercapacitor elec-trodes[J]. Chemical Society Reviews, 2009,38(9):2520-2531.
[3]	Al-Thabaiti S A, Hahn R, Liu N , et al. NH₃ treatment of TiO₂ nano-tubes:from N-doping to semimetallic conductivity[J]. Chemical Co-mmunications, 2014,50(59):7960-7963.
[4]	朱建, 张秀芹, 金吉 , 等尿素水热法制备锌镁铝多元水滑石及形成机理[J]. 无机盐工业, 2016,48(3):39-42.
[5]	童孟良, 舒均杰, 王罗强 . 镁铝水滑石的制备与性能研究[J]. 无机盐工业, 2014,46(4):22-24,45.
[6]	Yan J, Yang Z . Based on the performance of hydrotalcite as anode ma-terial for a Zn-Ni secondary cell,a modification:PPY coated Zn-Al-LDH was adopted[J]. RSC Advances, 2016,6(88):85117-85124.
[7]	Sakr A, Zaki T, Saber O , et al. Synjournal of Zn-Al LDHs intercalated with urea derived anions for capturing carbon dioxide from natural gas[J]. Journal of the Taiwan Institute of Chemical Engineers, 2013,44(6):957-962.
[8]	Perez-Ramirez J, Mul G, Kapteijn F , et al. A spectroscopic study of the effect of the trivalent cation on the thermal decomposition beha-viour of Co-based hydrotalcites[J]. Journal of Materials Chemistry, 2001,11(10):2529-2536.
[9]	Fan X, Yang Z, Xie X , et al. The electrochemical behaviors of Zn-Al-La-hydrotalcite in Zn-Ni secondary cells[J]. Journal of Power Sources, 2013,241:404-409.
[10]	Saber O, Tagaya H . Preparation of a new nano-layered materials and organic-inorganic nano-hybrid materials,Zn-Si LDH[J]. Journal of Porous Materials, 2009,16(1):81-89.
[11]	Fan X, Yang Z, Long W , et al. The preparation and electrochemical performance of In(OH)₃-coated Zn-Al-hydrotalcite as anode ma-terial for Zn-Ni secondary cell[J]. Electrochimica Acta, 2013,92:365-370.
[12]	Zhang Y, Li H, Pan L , et al. Capacitive behavior of graphene-ZnO composite film for supercapacitors[J]. Journal of Electroanalytical Chemistry, 2009,634:68-71.
