AlCl3·6H2O在FeCl3-CaCl2-HCl-H2O体系中溶解度的模拟和测定

摘要/Abstract

摘要：

在25~60 ℃的条件下,采用静态法测定了AlCl₃·6H₂O在FeCl₃-CaCl₂-HCl-H₂O体系中的溶解度。同时以OLI软件为平台,采用Bromley-Zemaitis活度系数模型预测了该温度范围内AlCl₃·6H₂O在FeCl₃-CaCl₂-HCl-H₂O体系中的溶解度,并将实验和预测结果做了对比。结果表明,在FeCl₃-HCl-H₂O和CaCl₂-HCl-H₂O这2个体系中,温度对AlCl₃·6H₂O溶解度的影响均可忽略;在相同温度和盐酸浓度下,随着FeCl₃和CaCl₂浓度的增大,AlCl₃·6H₂O的溶解度均减小;在相同温度、相同FeCl₃和CaCl₂浓度下,盐酸浓度对AlCl₃·6H₂O在2个体系中溶解度的影响均显著,随着盐酸浓度的增大,AlCl₃·6H₂O的溶解度急剧减小。比较后发现,实验数据和模型预测值吻合良好。

关键词: AlCl₃·6H₂O, 溶解度, 静态法, Bromley-Zemaitis活度系数模型

Abstract:

The solubility of AlCl₃·6H₂O在FeCl₃-CaCl₂-HCl-H₂O system was determined by static method at a temperature of 25~60 ℃.Meanwhile,the solubility of AlCl₃·6H₂O in FeCl₃-CaCl₂-HCl-H₂O system within the temperature range was predicted by using the Bromley-Zemaitis activity co-efficient model embedded in the software on the platform of OLI,and the experimental results were compared with the simulated results.The results showed that in FeCl₃-HCl-H₂O and CaCl₂-HCl-H₂O systems,temperature had little influence on the solubility of AlCl₃·6H₂O and could be ignored in the two system.The solubility of AlCl₃·6H₂O decreased obviously with the increase of iron chloride and calcium chloride concentrations in the two systems.At the same temperature and the same concentration of FeCl₃ and CaCl₂,the concentration of hydrochloric acid had a significant effect on the solubility of AlCl₃·6H₂O in the two systems.The solubility of AlCl₃·6H₂O decreases sharply with the increase of hydrochloric acid concentration.It was found that the results were in good agreement by comparing the experimental data with the predicted values of the model.

Key words: AlCl₃·6H₂O, solubility, static method, Bromley-Zemaitis activity coefficient model

中图分类号:

TQ133.1

张婵,程文婷,成怀刚,郭彦霞,程芳琴. AlCl₃·6H₂O在FeCl₃-CaCl₂-HCl-H₂O体系中溶解度的模拟和测定[J]. 无机盐工业, 2019, 51(5): 61-65.

Zhang Chan,Cheng Wenting,Cheng Huaigang,Guo Yanxia,Cheng Fangqin. Simulation and determination of AlCl₃·6H₂O solubility in FeCl₃-CaCl₂-HCl-H₂O system[J]. Inorganic Chemicals Industry, 2019, 51(5): 61-65.

图/表 6

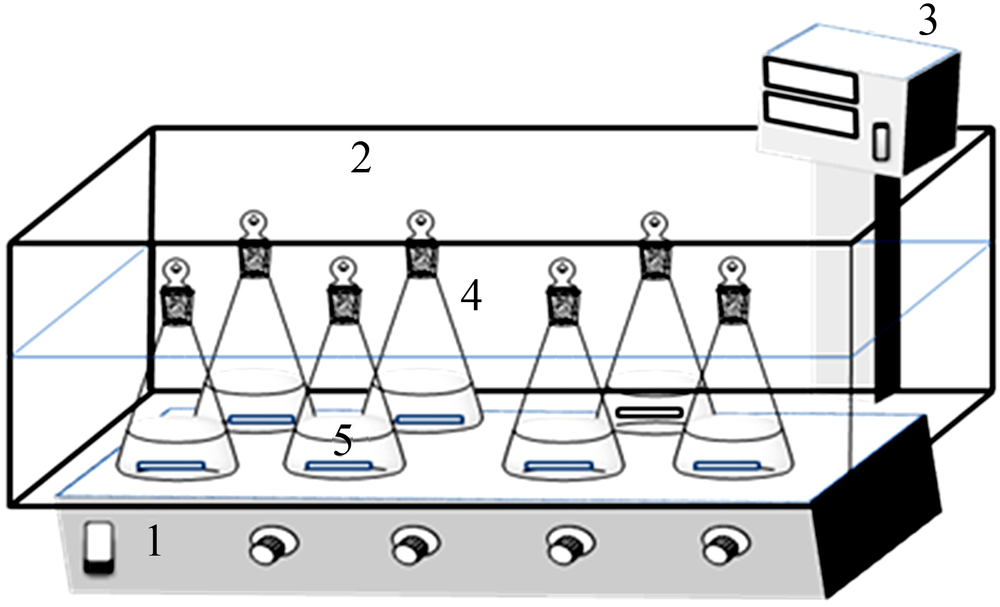

图1

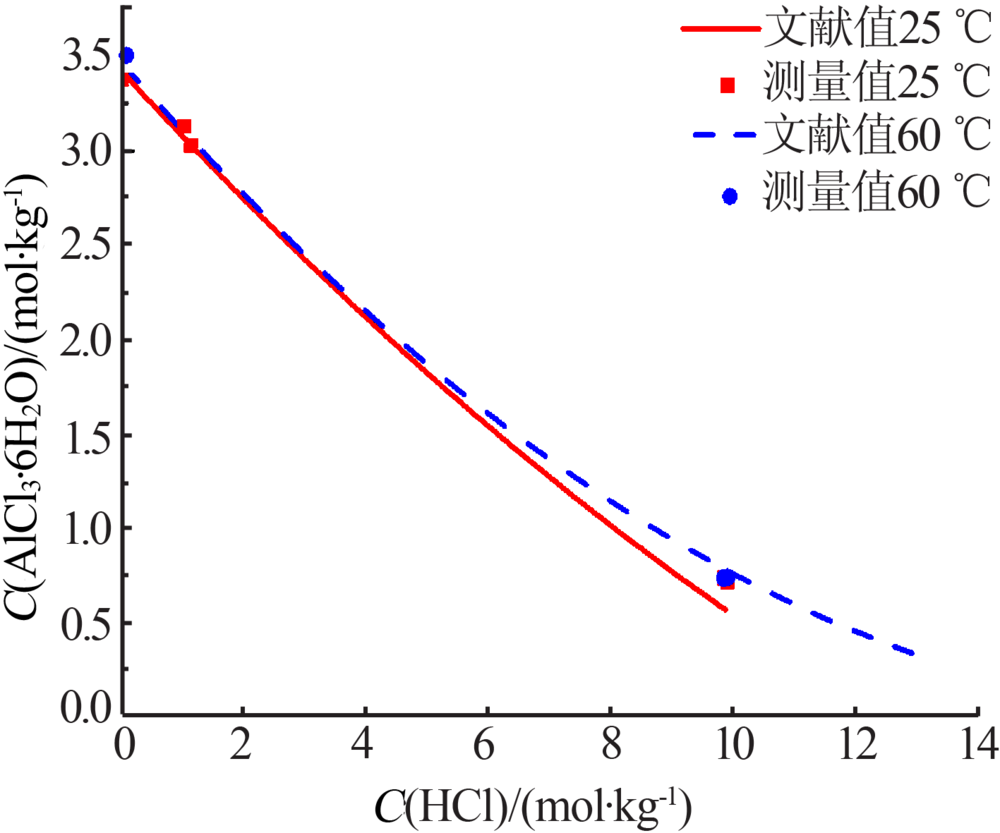

图2

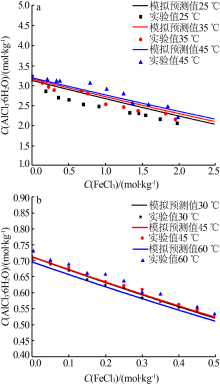

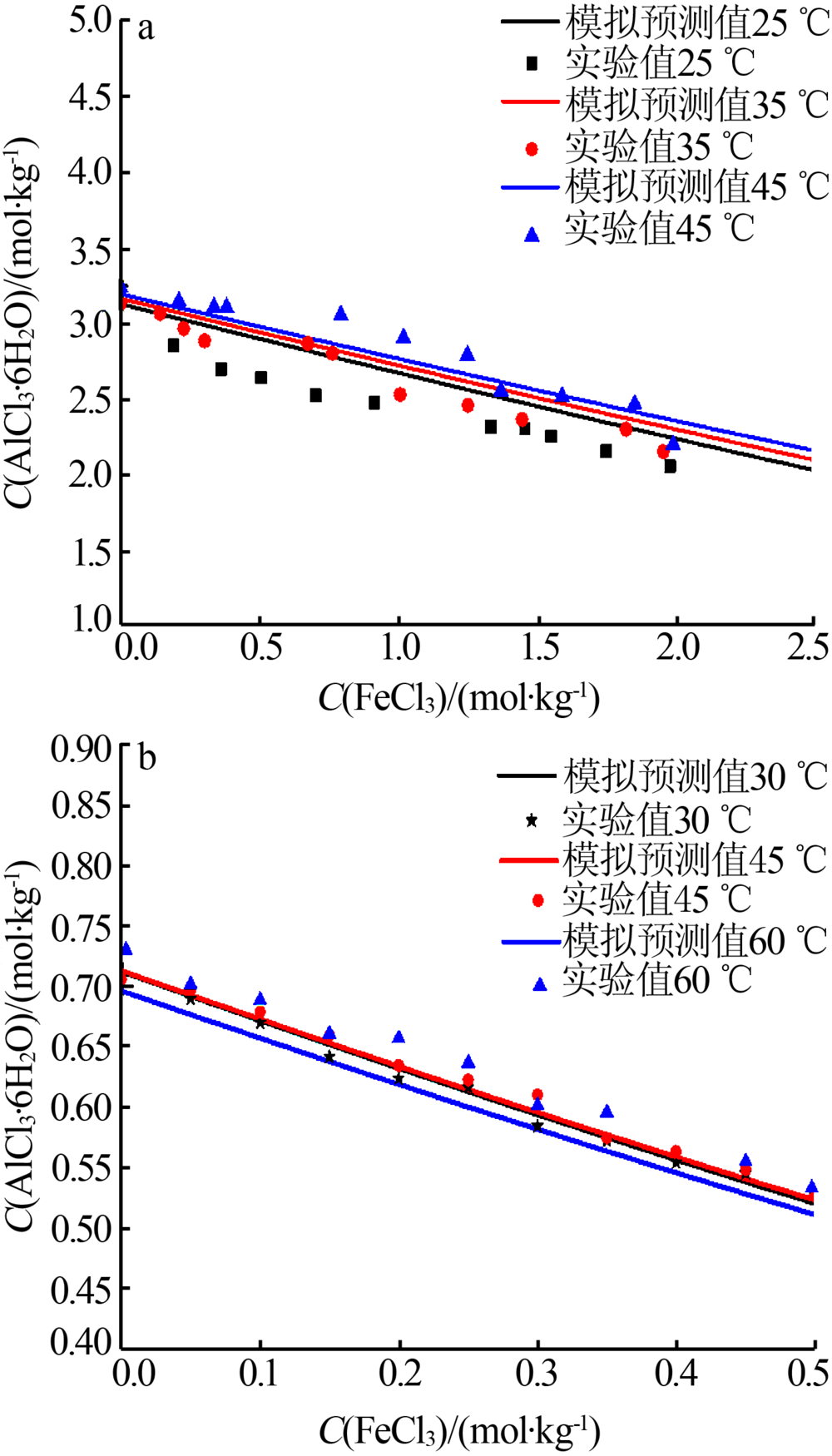

图3

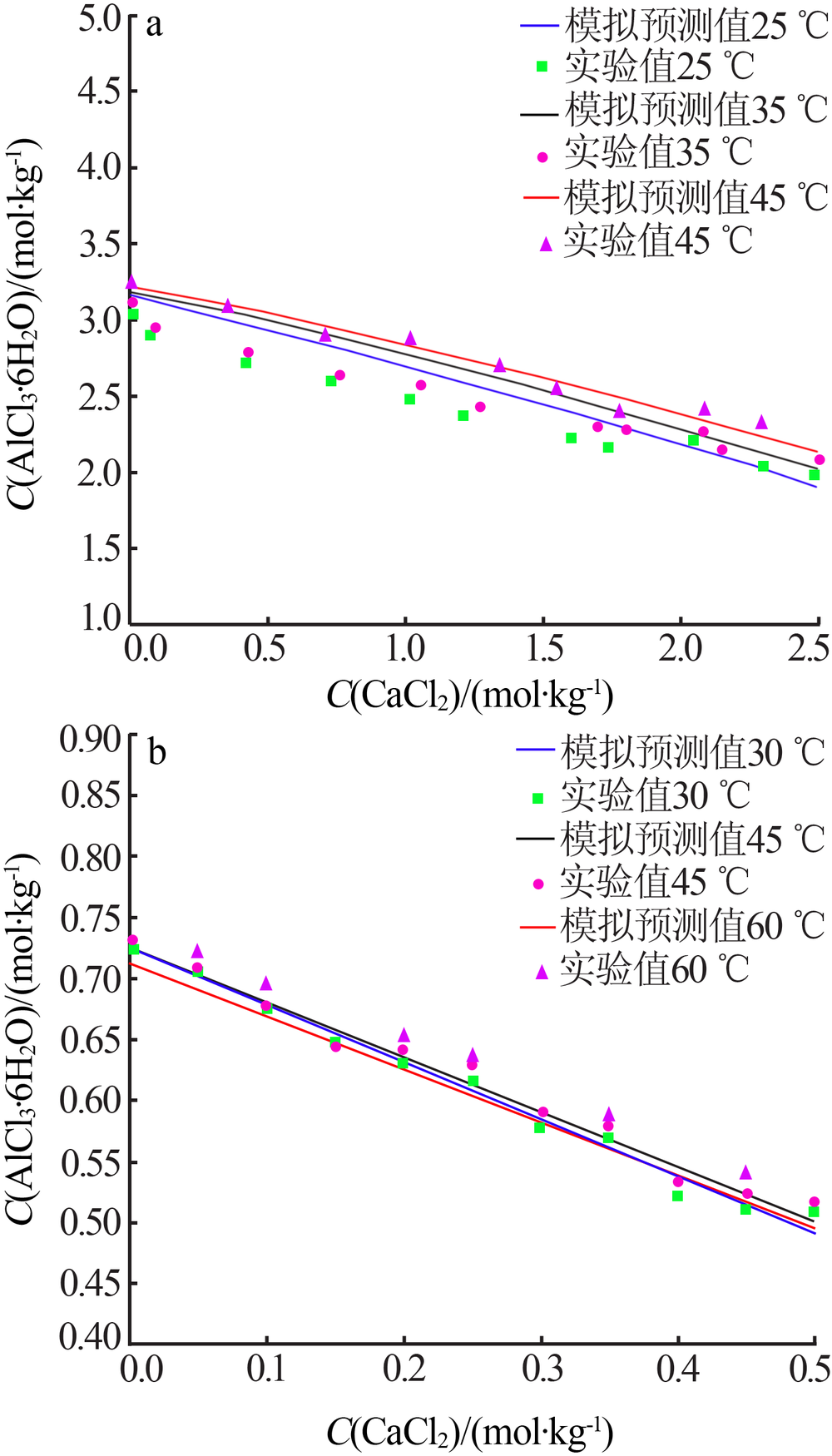

图4

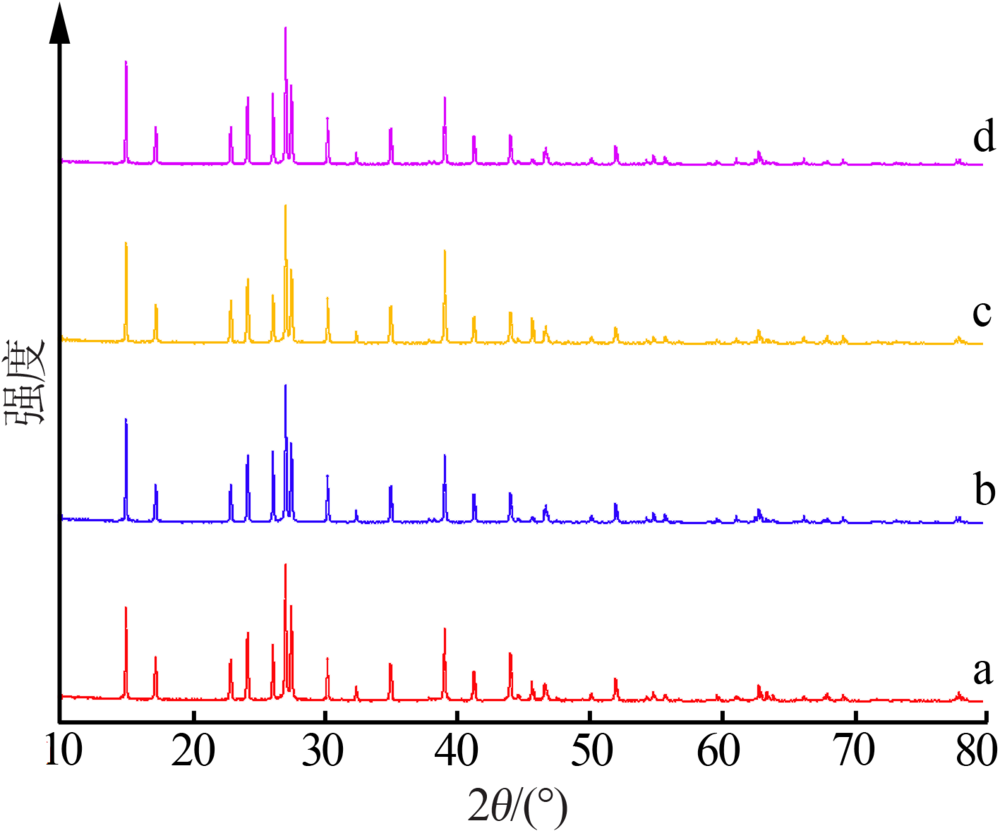

图5

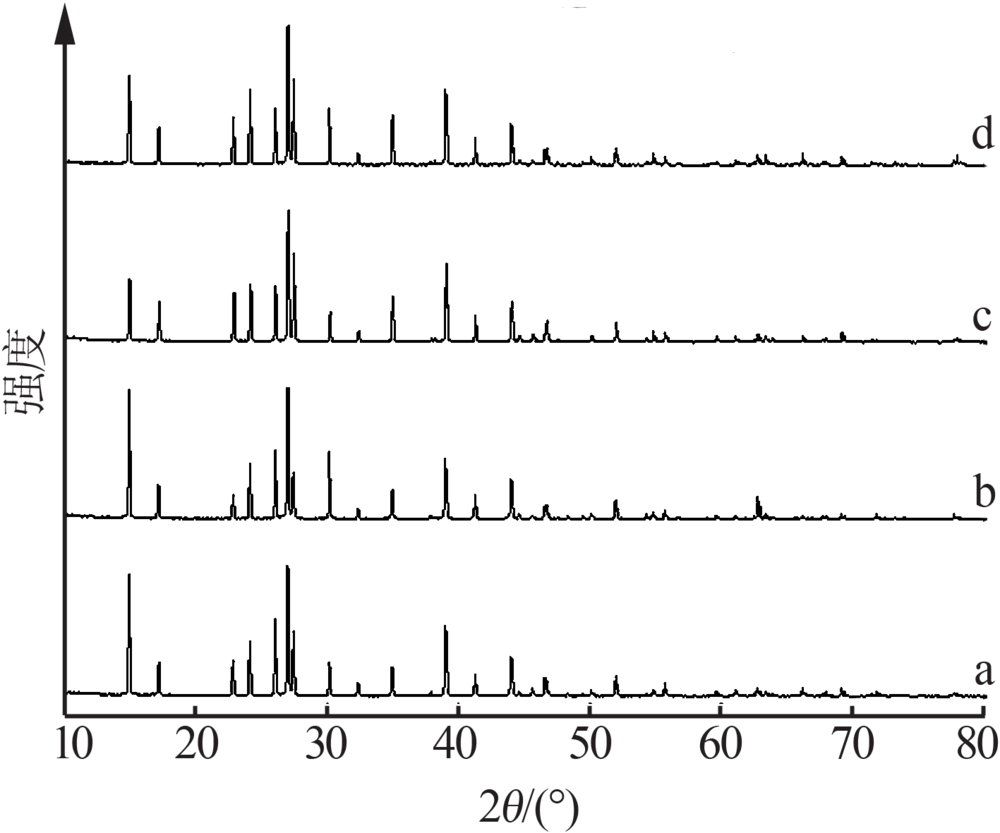

图6

参考文献 16

[1]	Takaara T, Sano D, Masago Y , et al. Surface-retained organic matterof Microcystisaeruginosa inhibiting coagulation with polyaluminum chloride in drinking water treatment[J]. Water Research, 2010,44(13):3781-3786. doi: 10.1016/j.watres.2010.04.030 pmid: 20570314
[2]	潘碌亭, 束玉保, 王键 , 等. 聚合氯化铝絮凝剂的制备技术研究现状与进展[J]. 工业用水与废水, 2008,39(3):21-25.
[3]	郑怀礼, 陆兰英, 范伟 , 等. 聚合氯化铝的制备及在微污染水处理中的应用[J]. 化学研究与应用, 2012,24(4):626-629.
[4]	孙天旭, 王立 . 三氯化铝系列催化剂在Friedel-Crafts 酰基化反应中的应用进展[J]. 精细石油化工, 2006,23(1):57-62.
[5]	Park H C, Park Y J, Stevens R . Synjournal of alumina from high purity alum derived from coal fly ash[J]. Materials Science & Engineering A, 2004,367(1/2):166-170.
[6]	Matjie R H, Bunt J R, van Heerden J H P . Extraction of alumina from coal fly ash generated from a selected low rank bituminous South African coal[J]. Minerals Engineering, 2005,18(3):299-310. doi: 10.1016/j.mineng.2004.06.013
[7]	Eisele J A, Bauer D J, Shanks D E . Bench-scale studies to recover alumina from clay by a hydrochloric acid process[J]. Industrial & Engineering Chemistry Product Research & Development, 1983,22(1):105-110.
[8]	Gao W C, Li Z B . A practical approach to produce Mg-Al spinel based on the modeling of phase equilibria for NH₄Cl-MgCl₂-AlCl₃-H₂O system[J]. AIChE Journal, 2013,59(6):1855-1867.
[9]	Yuan M X, Qiao X C, Yu J G . Phase equilibria of AlCl₃+FeCl₃+H₂O,AlCl₃+CaCl₂+H₂O,and FeCl₃+CaCl₂+H₂O at 298.15 K[J]. Journal of Chemical & Engineering Data, 2016,61(5):1749-1755.
[10]	Wang Junfeng, Camille Petit, Xiangping Zhang , et al. Phase equilibrium study of the AlCl₃-CaCl₂-H₂O system for the production of aluminum chloride hexahydrate from Ca-rich flue ash[J]. Journal of Chemical & Engineering Data, 2016,61(1):359-369.
[11]	Fátima Farelo, Cristina Fernandes, António Avelino . Solubilities for six ternary systems:NaCl+NH₄Cl+H₂O,KCl+NH₄Cl+H₂O,NaCl+LiCl+H₂O,KCl+LiCl+H₂O,NaCl+AlCl₃+H₂O,and KCl+AlCl₃+H₂O at T=(298 to 333) K[J]. Cheminform, 2010,36(40):1470-1477.
[12]	Brown R R, Daut G E, Mrazek R V , et al. Solubility and activity of aluminum chloride in aqueous hydrochloric acid solutions[R]. Albany,OR:Bureau of Mines , 1979.
[13]	André L, Christov C, Lassin A, et al. Pitzer ion-interaction parameters for Al(Ⅲ) in the {H+Na+K+Ca+Mg+Cl+H₂O} system up to salts solubility at 298.15 K[C]// Heidelberg:ABC-Salt Ⅳ Workshop 2015,2015.
[14]	胡程耀, 黄培 . 固体溶解度测定方法的近期研究进展[J]. 药物分析杂志, 2010,22(4):761-766.
[15]	付梦源, 程文婷, 程芳琴 . AlCl₃·6H₂O在Fe(Ⅲ)-K-Ca-Cl-H₂O体系中溶解度的测定[J]. 中国科技论文, 2015(24):2856-2862.
[16]	崔慧霞, 程文婷, 郭彦霞 , 等. 六水合氯化铝在不同氯化物体系中的溶解度现象研究[J]. 无机盐工业, 2013,45(5):9-12.
