氧化物电还原体系银/氯化银参比电极性能研究

摘要/Abstract

摘要：

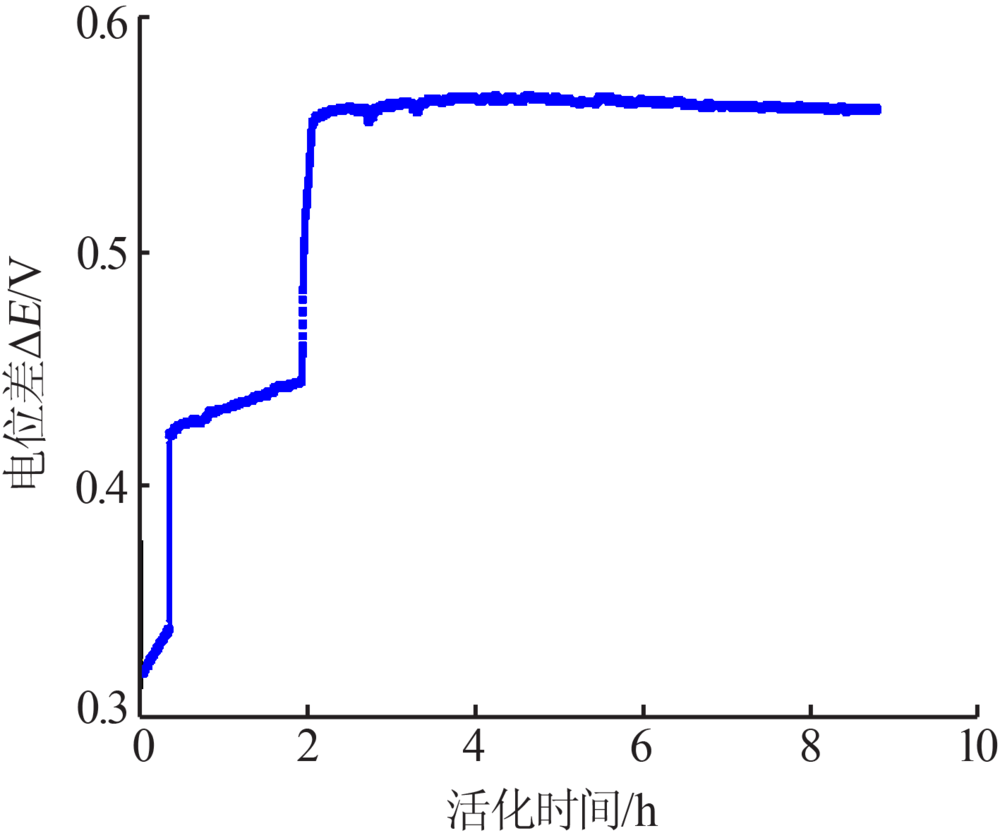

参比电极的研究是高温熔盐电化学必不可少的环节之一。以莫来石作为Ag/AgCl电极隔膜材料,制备了可用于在650 ℃的LiCl熔盐体系中开展氧化物电化学还原实验的Ag/AgCl参比电极。采用开路电位法考察了电极活化时间、可逆性、耐极化性、稳定性及重现性等性能。例如,初次使用的参比电极要经过2 h活化才能达到电位稳定。给予微弱电流后参比电极会发生极化,但极化电位基本能在断电后的几分钟内消除。结果表明,莫来石隔膜Ag/AgCl参比电极具有活化时间短、温度对电极可逆性影响小、耐极化性能、电位稳定性、平行性及重现性良好等特点。该参比电极的研制为将来开发性能更加稳定的可用于高温熔盐氧化物电化学还原的参比电极提供了一定的指导意义。

关键词: 熔盐, 莫来石隔膜, Ag/AgCl参比电极

Abstract:

The investigation on reference electrode is one of the indispensable links in molten salt electrochemistry.Using mullite as the Ag/AgCl electrode separator material,Ag/AgCl reference electrode was prepared which would be applied to electrochemical reduction of oxides in LiCl molten salt system at 650 ℃.Open circuit potential method was employed to investigate the reference electrode performances including activation time,reversibility,polarization resistance,stability and reproducibility,etc.For instance,the stable electrode potential was obtained after 2 h activation of new reference electrode.The reference electrode might be polarized when small electronic current passed,while the polarization potential could be eliminated in few minutes after electricity was cut off.The results indicated that the mullite membrane Ag/AgCl reference electrode had the characteristics of short activation time and good electrode reversibility,polarization resistance,potential stability,parallelism and reproducibility.The development of mullite membrane Ag/AgCl reference electrode was able to provide a certain guiding significance for the future development of a more stable reference electrode for the electrochemical reduction of oxides in high temperature molten salt.

Key words: molten salt, mullite membrane, Ag/AgCl reference electrode

中图分类号:

TQ131.22

程仲平,何辉,林如山,贾艳虹,肖益群,叶国安. 氧化物电还原体系银/氯化银参比电极性能研究[J]. 无机盐工业, 2019, 51(5): 49-52.

Cheng Zhongping,He Hui,Lin Rushan,Jia Yanhong,Xiao Yiqun,Ye Guoan. Study on performance of Ag/AgCl reference electrode in oxide electrochemical reduction system[J]. Inorganic Chemicals Industry, 2019, 51(5): 49-52.

图/表 9

图1

图2

表1

图3

图4

表2

图5

表3

图6

参考文献 13

[1]	Gourishankar K V, Redey L, Williamson M A . Electrochemical reduction of metal oxides in molten salts[R]. Illinois,US:Argonne National Lab., 2001.
[2]	Chen Z, She C F, Zheng H Y , et al. Electrochemical deposition of neodymium in LiF-CaF₂ from Nd₂O₃ assisted by AlF₃[J]. Electrochi-mica Acta, 2018,261:289-295.
[3]	Chen Z, She C F, Zheng H Y , et al. Study on the electrochemical coreduction of Gd(Ⅲ) and Al(Ⅲ) in LiF-CaF₂ melt[J]. Journal of the Electrochemical Society, 2018,165(9):D411-D416.
[4]	Alexander D T L, Schwandt C, Fray D J . The electro-deoxidation of dense titanium dioxide precursors in molten calcium chloride giving a new reaction pathway[J]. Electrochimica Acta, 2011,56(9):3286-3295.
[5]	Xie H W, Zhao H J, Liao J Y , et al. Electrochemically controllable coating of a functional silicon film on carbon materials[J]. Electro-chimica Acta, 2018,269:610-616.
[6]	Wang H, Siambun N J, Yu L P , et al. A robust alumina membrane reference electrode for high temperature molten salts[J]. Journal of the Electrochemical Society, 2012,159(9):H740-H746.
[7]	Kim D, Shelly X L . Simplified reference electrode for electrorefining of spent nuclear fuel in high temperature molten salt[R]. Idaho,US:Idaho National Laboratory, 2007.
[8]	马樟源, 徐之强, 李裕发 , 等. 高温熔盐中使用的陶瓷隔膜银—氯化银参比电极[J]. 中国腐蚀与防护学报, 1982,2(3):47-54.
[9]	谢中, 刘业翔 . 高温氯化物熔体参比电极[J]. 中国有色金属学报, 1998(4):668-672.
[10]	Bhatt A I, Snook G A . Reference electrodes for ionic liquids and molten salts[M] //Handbook of reference electrodes.Berlin:Springer,Springer, 2013: 189-227.
[11]	贾艳虹, 何辉, 林如山 , 等. 用于熔盐高硅硼玻璃隔膜银/氯化银参比电极研究[J]. 无机盐工业, 2015,47(3):60-63.
[12]	Gao P, Jin X B, Wang D H , et al. A quartz sealed Ag/AgCl reference electrode for CaCl₂ based molten salts[J]. Journal of Electroanaly-tical Chemistry, 2005,579(2):321-328.
[13]	朱新文, 东亮, 寿洪 . 低温固相反应合成莫来石的研究[J]. 中国粉体技术, 2000,6(s1):118-121.

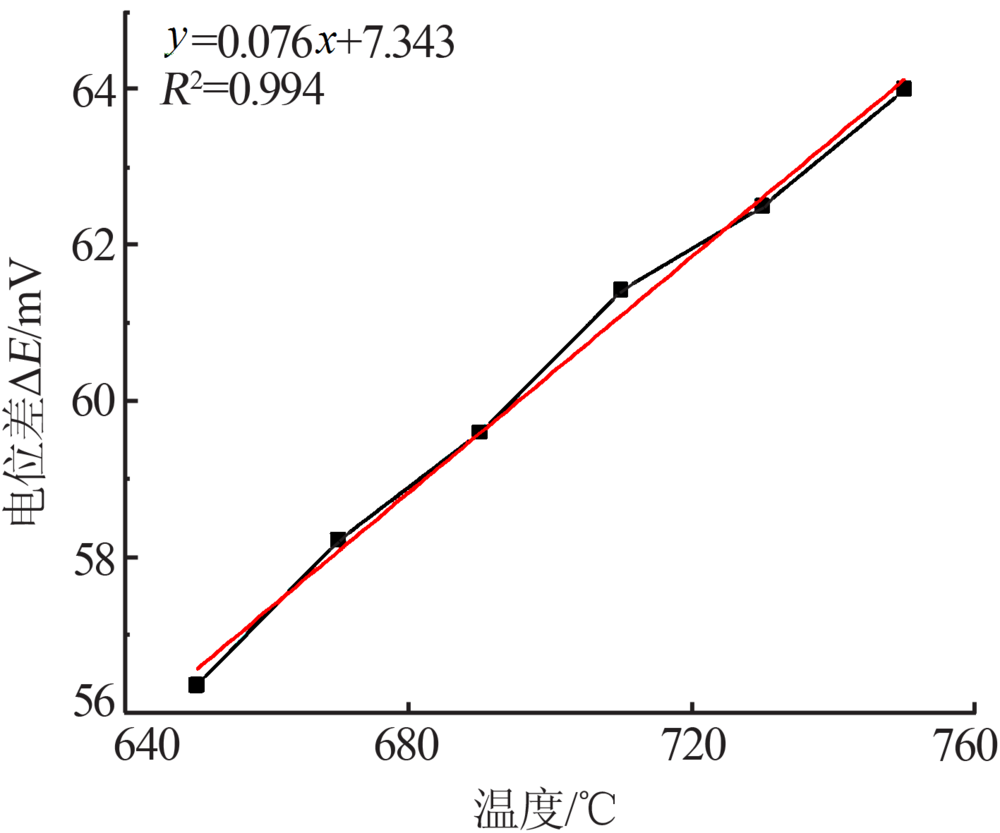

温度/ ℃	理论电位差/mV	实际电位差/mV	温度/ ℃	理论电位差/mV	实际电位差/mV
650	55.11	56.34	710	58.69	61.42
670	56.31	58.21	730	59.89	62.50
690	57.50	59.59	750	61.08	64.00

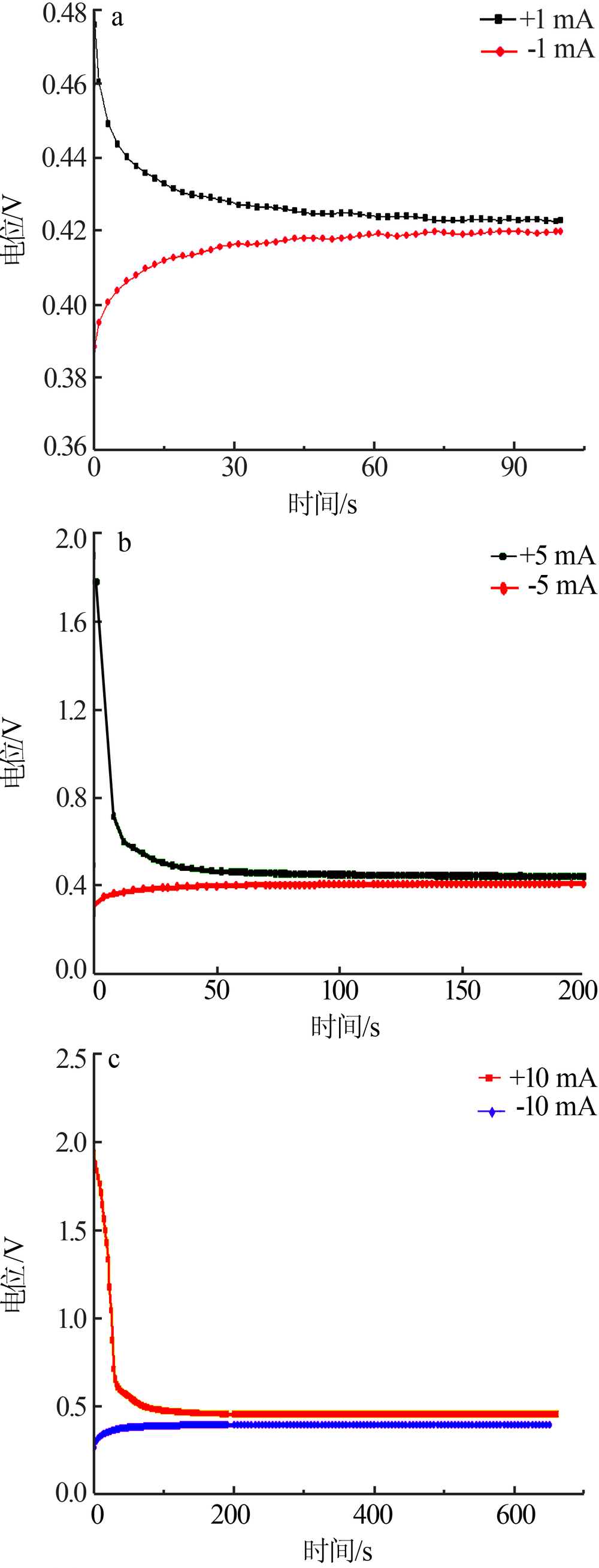

极化电流/mA	电位/ V	平衡时间/min	电位变化值/mV	极化电流/mA	电位/ V	平衡时间/min	电位变化值/mV
1	0.476	1.18	3	-5	0.315	1.83	15
-1	0.389	0.95	0	10	1.931	3.42	34
5	1.784	3.33	20	-10	0.265	2.83	27

参比电极	电位差/mV	参比电极	电位差/mV
1^#和2^#	3.3	7^#和8^#	-3.5
3^#和4^#	7.4	9^#和10^#	-10.4
5^#和6^#	-4.1
