煅烧温度对ZnGaZrO x /SAPO-34催化性能的影响

doi:10.19964/j.issn.1006-4990.2023-0233

摘要/Abstract

摘要：

在CO₂加氢制低碳烯烃（C₂⁼-C₄⁼）中，双功能催化剂的煅烧温度对其催化性能具有显著影响。基于此，采用共沉淀法制备了ZnGaZrO _x 氧化物，水热法制备了SAPO-34分子筛，然后对两者进行研磨制得ZnGaZrO _x /SAPO-34双功能催化剂，并考察煅烧温度对ZnGaZrO _x 和SAPO-34物化性质及催化性能的影响。通过XRD、XPS、H₂/CO₂/NH₃-TPD、SEM、N₂吸附-脱附和原位DRIFTS表征发现，在制备ZnGaZrO _x 过程中，当煅烧温度为650 ℃时，ZnGaZrO _x 具有最强的H₂和CO₂吸附活化能力，能有效提高HCOO*和CH₃O*的生成速率和浓度，促进甲醇产物生成；在制备SAPO-34过程中，当煅烧温度为450 ℃时，分子筛比表面积最大、晶粒尺寸最小、强酸位点的酸性最弱，能有效避免低碳烯烃发生二次加氢，从而获得较高的低碳烯烃选择性。最佳条件下合成的ZnGaZrO _x /SAPO-34双功能催化剂在反应温度为390 ℃、压力为3 MPa、空速为3 600 mL/（g∙h）条件下，CO₂转化率为28.3%，CO选择性仅为44.6%，C₂⁼-C₄⁼选择性为84.4%，C₂⁼-C₄⁼产率高达13.2%，且在反应100 h内催化性能无明显衰减。该工作为双功能催化剂的改性提供了新的研究思路。

关键词: CO₂加氢, 低碳烯烃, 煅烧温度, 氧空位, 酸性

Abstract:

In the hydrogenation of CO₂ to low-carbon olefins（C₂⁼-C₄⁼），the calcination temperature of the bifunctional catalyst has significant effects on its catalytic performance.Based on this，ZnGaZrO _x oxides were prepared by co-precipitation method and SAPO-34 molecular sieves were prepared by hydrothermal method，and then both of them were milled to produce ZnGaZrO _x /SAPO-34 bifunctional catalysts，and the effects of calcination temperature on the physicochemical properties and catalytic performance of ZnGaZrO _x and SAPO-34 were investigated.It was found by XRD，XPS，H₂/CO₂/NH₃-TPD，SEM，N₂ adsorption-desorption and in situ DRIFTS characterization that during the preparation of ZnGaZrO _x，when the calcination temperature was 650 ℃，ZnGaZrO _x had the strongest activation ability of H₂ and CO₂ adsorption，and it could effectively increase the rate and concentration of the generation of HCOO* and CH₃O* to promote the methanol product generation.During the preparation of SAPO-34，when the calcination temperature was 450 ℃，the molecular sieve had the largest specific surface area，the smallest grain size，and the weakest acidity of the strong acid site，which could effectively avoid the secondary hydrogenation of low-carbon olefins，thus obtaining higher selectivity of low-carbon olefins.The ZnGaZrO _x /SAPO-34 bifunctional catalysts synthesized under the optimal conditions showed a CO₂ conversion of 28.3%，a CO selectivity of only 44.6%，a C₂⁼-C₄⁼ selectivity of 84.4%，a C₂⁼-C₄⁼ yield of as high as 13.2% at a reaction temperature of 390 ℃，a pressure of 3 MPa，and an airspeed of 3 600 mL/（g∙h）.And the catalytic performance did not decay significantly within 100 h of reaction.This work provided a new research idea for the modification of bifunctional catalysts.

Key words: CO₂ hydrogenation, light olefins, calcination temperature, oxygen vacancy, acidity

中图分类号:

TQ426

杨坤, 任启霞, 董永刚, 刘飞, 姚梦琴, 曹建新. 煅烧温度对ZnGaZrO _x /SAPO-34催化性能的影响[J]. 无机盐工业, 2024, 56(2): 136-145.

YANG Kun, REN Qixia, DONG Yonggang, LIU Fei, YAO Mengqin, CAO Jianxin. Effect of calcination temperature on catalytic performance of ZnGaZrO _x /SAPO-34[J]. Inorganic Chemicals Industry, 2024, 56(2): 136-145.

图/表 11

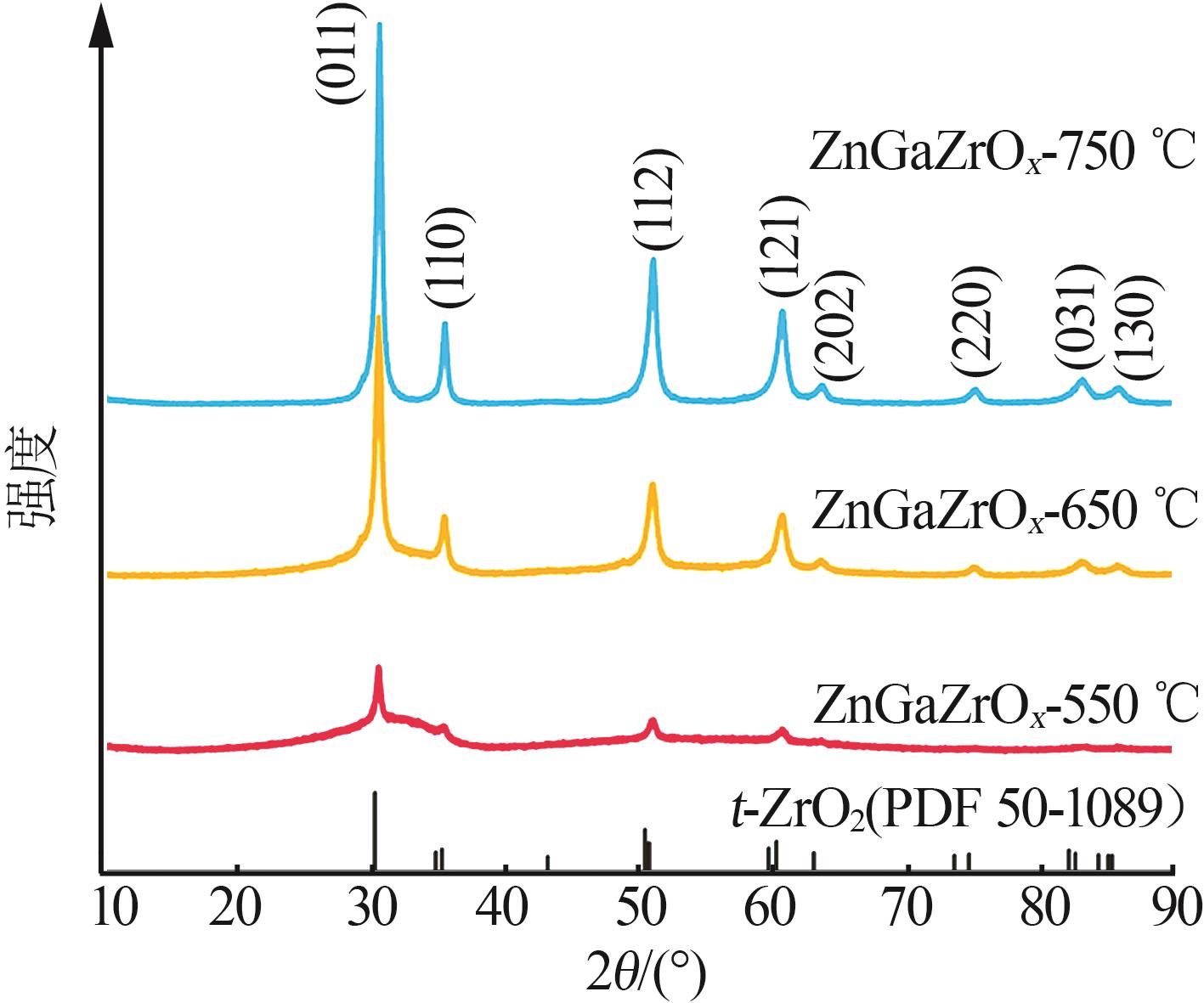

图1

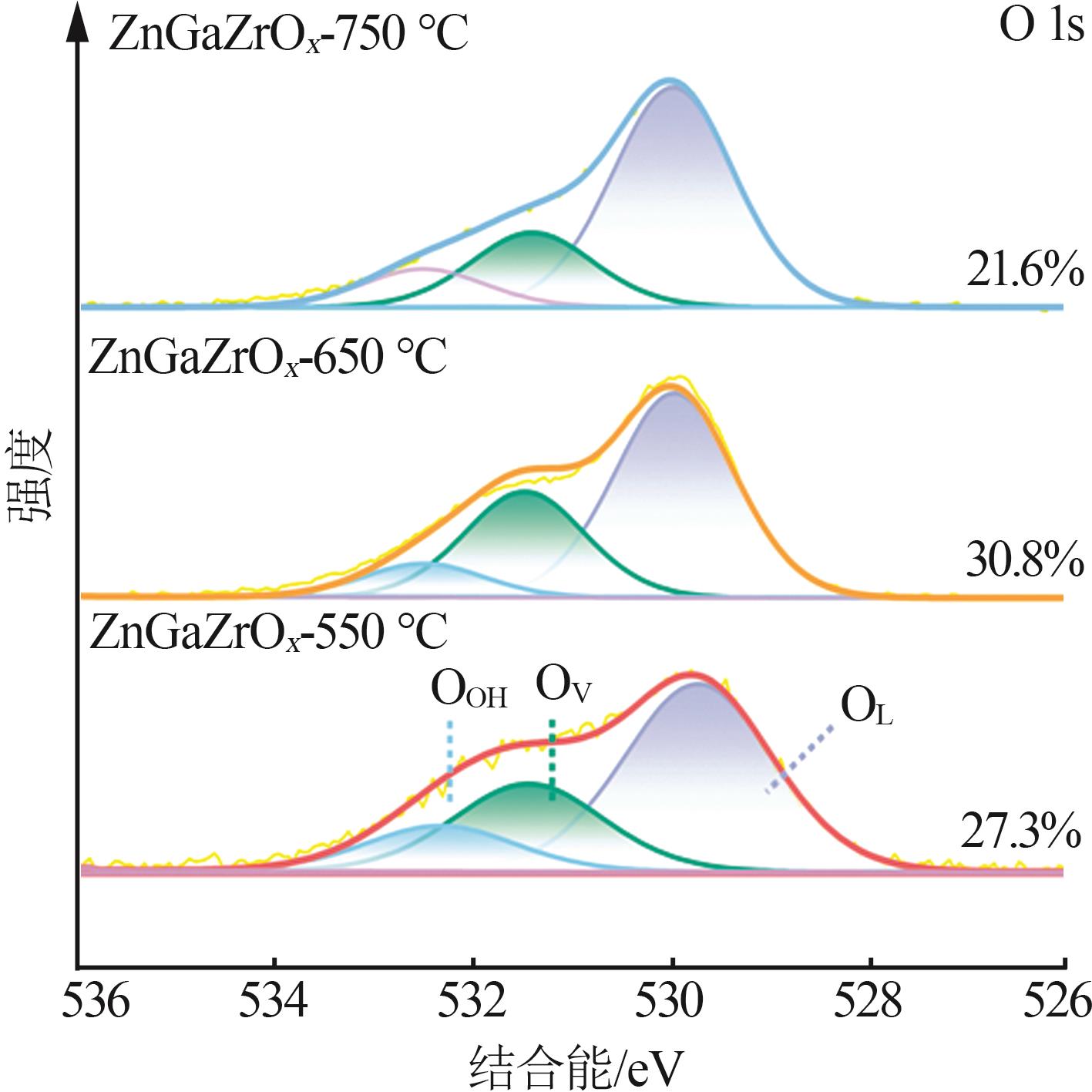

图2

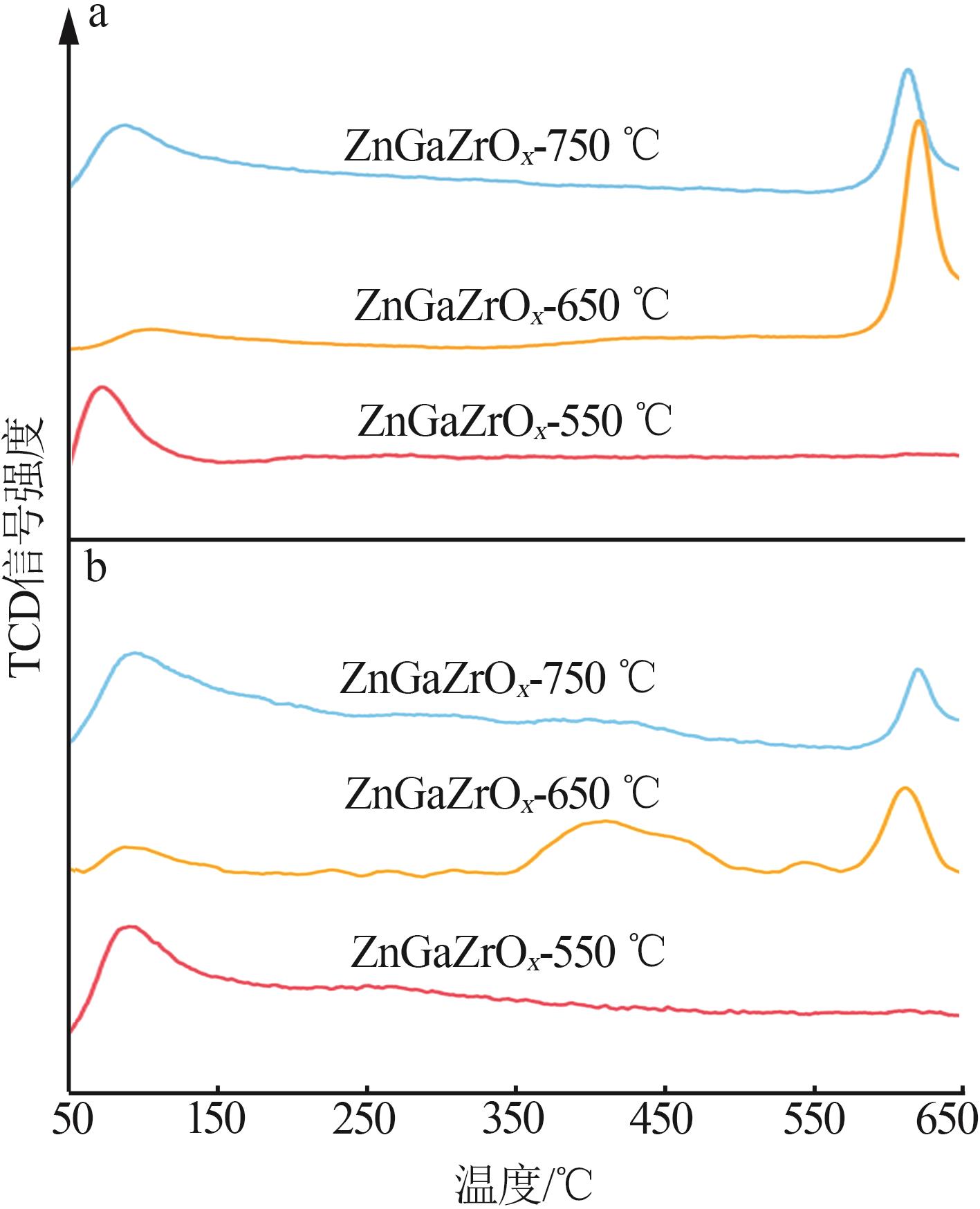

图3

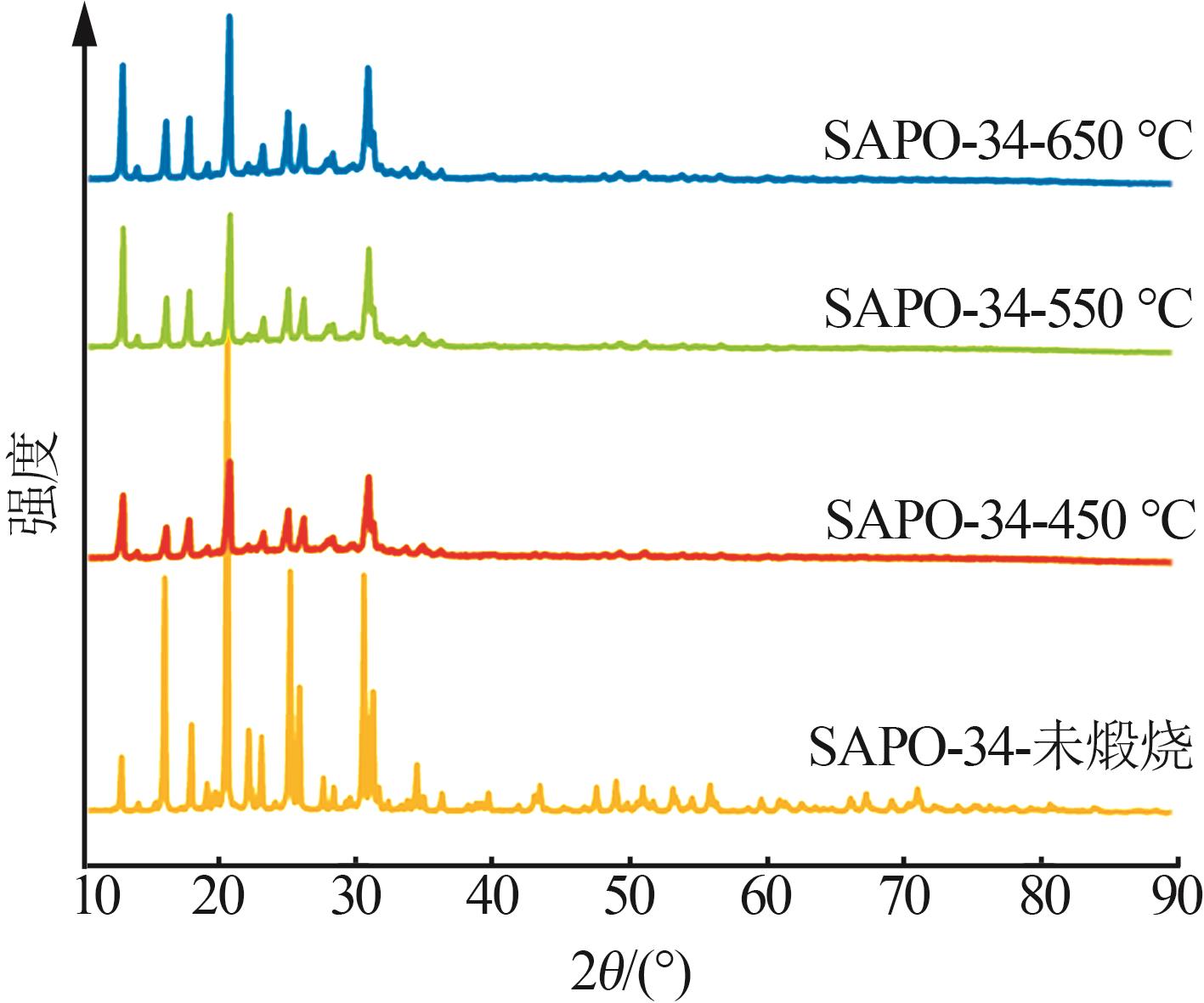

图4

表1

图5

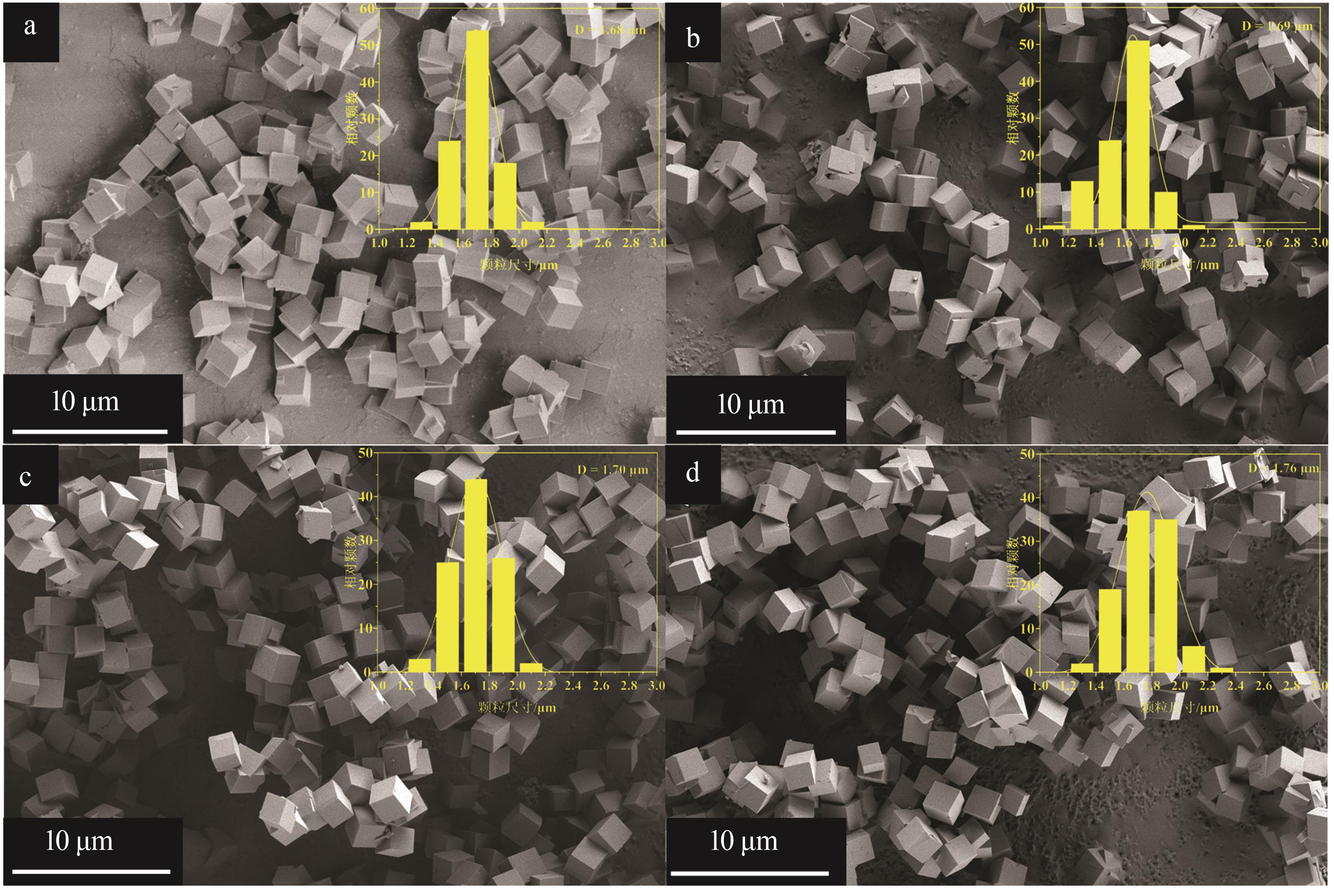

图6

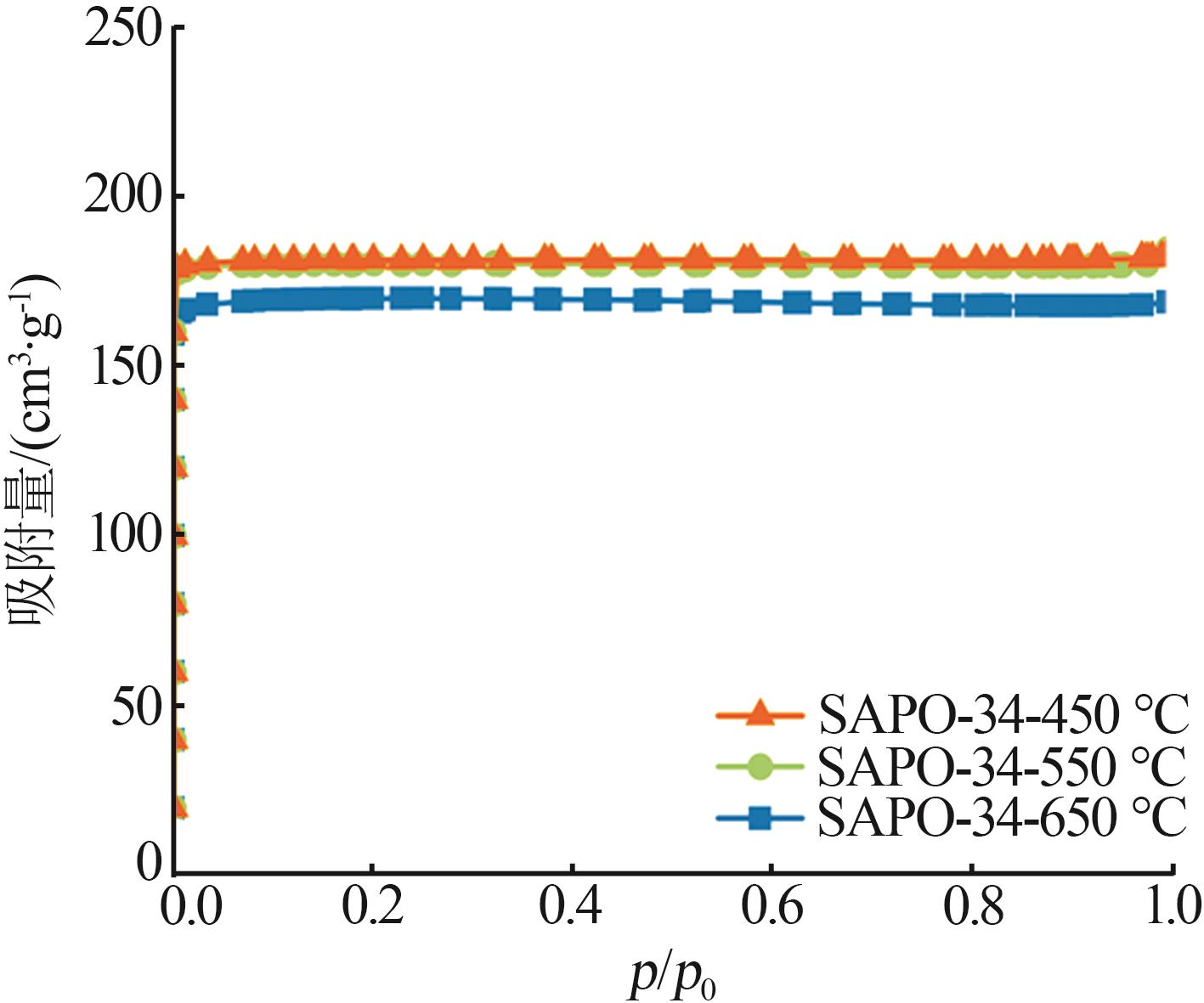

图7

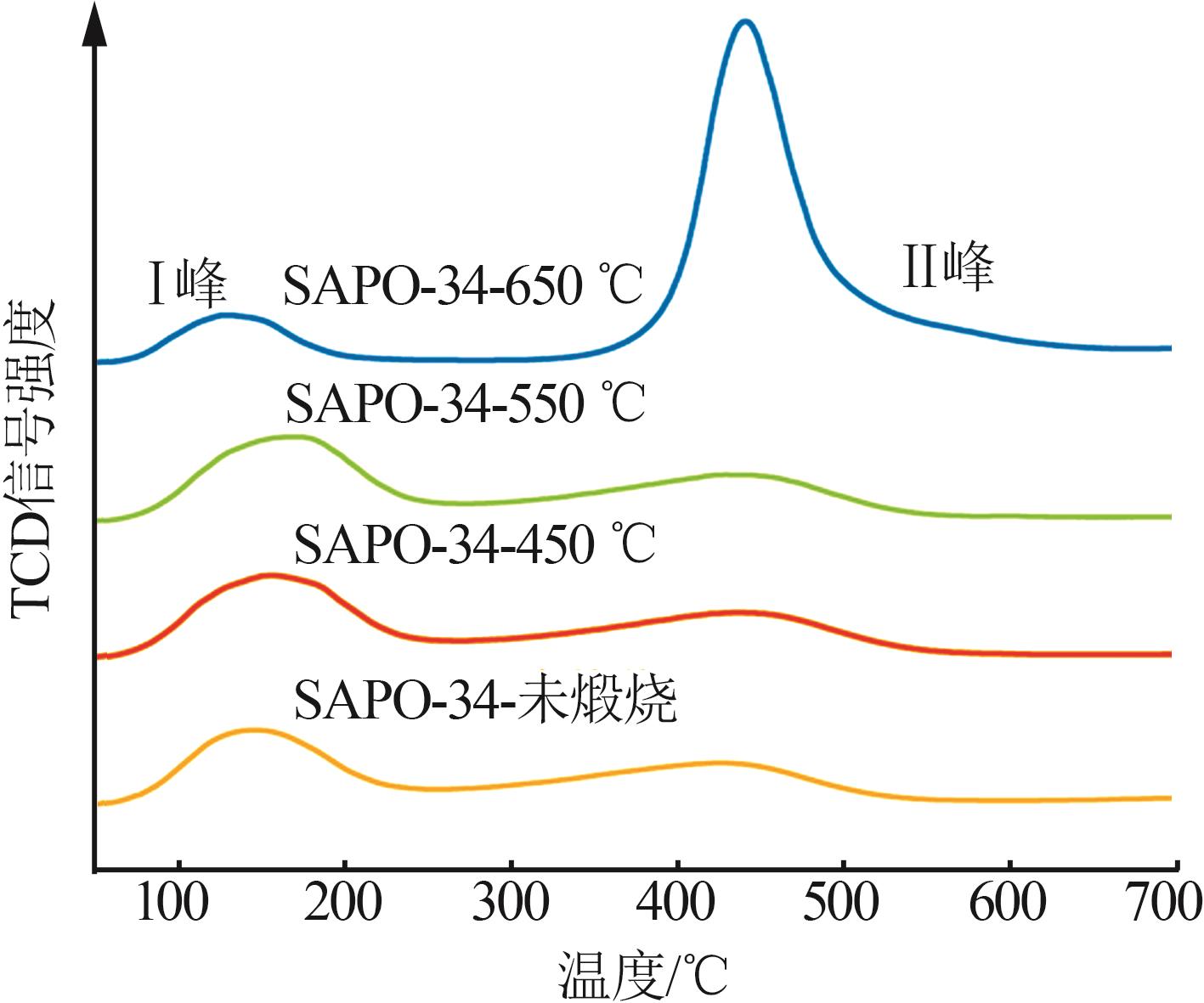

图8

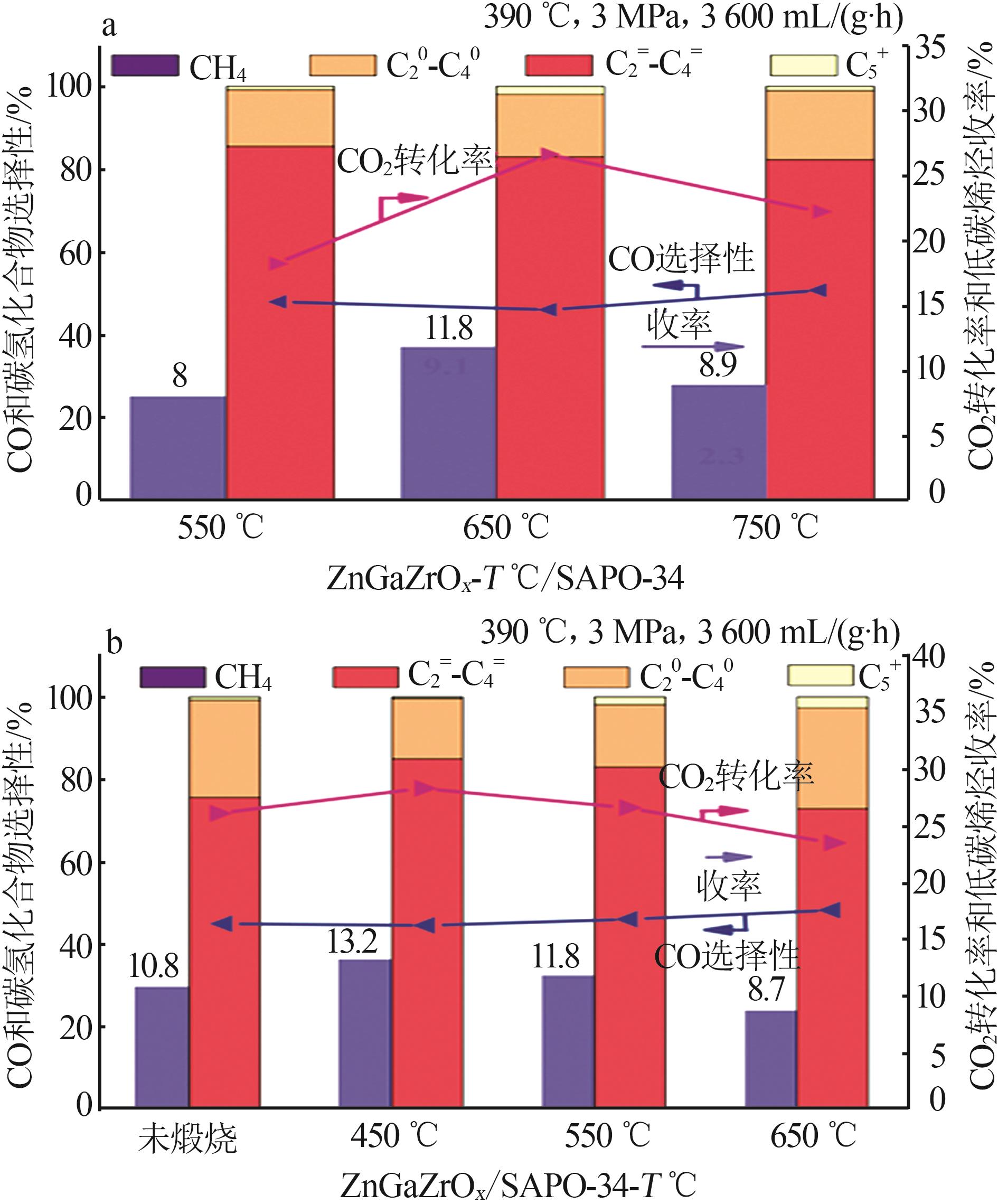

图9

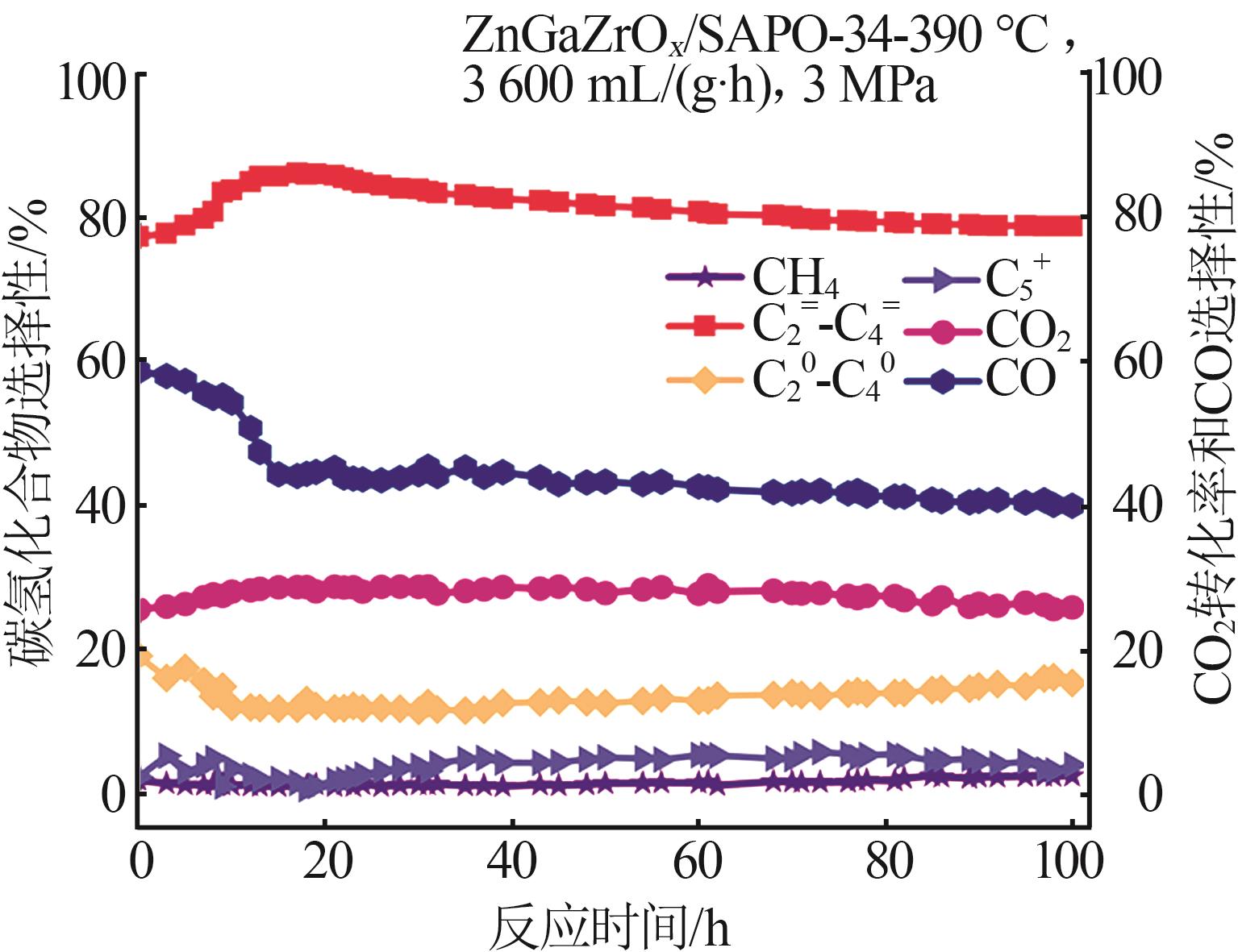

图10

参考文献 43

1	ALI N， BILAL M， NAZIR M S，et al.Thermochemical and electrochemical aspects of carbon dioxide methanation：A sustainable approach to generate fuel via waste to energy theme［J］.Science of the Total Environment，2020，712：136482.
2	CENTI G， IAQUANIELLO G， PERATHONER S.Can we afford to waste carbon dioxide？carbon dioxide as a valuable source of carbon for the production of light olefins［J］.ChemSusChem，2011，4（9）：1265-1273.
3	RAHMAN F A， AZIZ M M A， SAIDUR R，et al.Pollution to solution：Capture and sequestration of carbon dioxide（CO₂） and its utilization as a renewable energy source for a sustainable future［J］.Renewable and Sustainable Energy Reviews，2017，71：112-126.
4	ZHOU Wenguang， WANG Jinghan， CHEN P，et al.Bio-mitigation of carbon dioxide using microalgal systems：Advances and perspectives［J］.Renewable and Sustainable Energy Reviews，2017，76：1163-1175.
5	GOUD D， GUPTA R， MALIGAL-GANESH R，et al.Review of catalyst design and mechanistic studies for the production of olefins from anthropogenic CO₂ ［J］.ACS Catalysis，2020，10（23）：14258-14282.
6	WANG Dong， XIE Zhenhua， POROSOFF M D，et al.Recent advances in carbon dioxide hydrogenation to produce olefins and aromatics［J］.Chem，2021，7（9）：2277-2311.
7	WITOON T， NUMPILAI T， NUEANGNORAJ K，et al.Light olefins synthesis from CO₂ hydrogenation over mixed Fe-Co-K supported on micro-mesoporous carbon catalysts［J］.International Journal of Hydrogen Energy，2022，47（100）：42185-42199.
8	YANG Haiyan， ZHANG Chen， GAO Peng，et al.A review of the catalytic hydrogenation of carbon dioxide into value-added hydrocarbons［J］.Catalysis Science & Technology，2017，7（20）：4580-4598.
9	WANG Qiang， CHEN Yao， LI Zhenhua.Research progress of catalysis for low-carbon olefins synthesis through hydrogenation of CO₂ ［J］.Journal of Nanoscience and Nanotechnology，2019，19（6）：3162-3172.
10	ZHOU You， QI Liang， WEI Yingxu，et al.Methanol-to-olefin induction reaction over SAPO-34［J］.Chinese Journal of Catalysis，2016，37（9）：1496-1501.
11	XU Yanan， GAO Zhihong， PENG Li，et al.A highly efficient Cu/ZnO _x/ZrO₂ catalyst for selective CO₂ hydrogenation to metha- nol［J］.Journal of Catalysis，2022，414：236-244.
12	路香港，翟岩亮，张健，等.CO/CO₂加氢制低碳烯烃催化剂研究进展［J］.化工科技，2021，29（4）：70-74.
	LU Xianggang， ZHAI Yanliang， ZHANG Jian，et al.Research progress of catalysts for CO/CO₂ hydrogenation to light olefins［J］.Science & Technology in Chemical Industry，2021，29（4）：70-74.
13	LU Siyu， YANG Haiyan， ZHOU Zixuan，et al.Effect of In₂O₃ particle size on CO₂ hydrogenation to lower olefins over bifunctional catalysts［J］.Chinese Journal of Catalysis，2021，42（11）：2038-2048.
14	DANG Shanshan， GAO Peng， LIU Ziyu，et al.Role of zirconium in direct CO₂ hydrogenation to lower olefins on oxide/zeolite bifunctional catalysts［J］.Journal of Catalysis，2018，364：382-393.
15	GAO Peng， DANG Shanshan， LI Shenggang，et al.Direct production of lower olefins from CO₂ conversion via bifunctional catalysis［J］.ACS Catalysis，2018，8（1）：571-578.
16	ZHANG Peng， MA Lixuan， MENG Fanhui，et al.Boosting CO₂ hydrogenation performance for light olefin synthesis over GaZrO _x combined with SAPO-34［J］.Applied Catalysis B：Environmental，2022，305：121042.
17	ZHANG Wenyu， WANG Sen， GUO Shujia，et al.Effective conversion of CO₂ into light olefins over a bifunctional catalyst consisting of La-modified ZnZrO _x oxide and acidic zeolite［J］.Catalysis Science & Technology，2022，12（8）：2566-2577.
18	PARK G C， SEO T Y， PARK C H，et al.Effects of calcination temperature on morphology，microstructure，and photocatalytic performance of TiO₂ mesocrystals［J］.Industrial & Engineering Chemistry Research，2017，56（29）：8235-8240.
19	TAHERI A， BABAKHANI E G， TOWFIGHI J.Study of synthesis parameters of MIL-53（Al） using experimental design methodology for CO₂/CH₄ separation［J］.Adsorption Science & Technology，2018，36（1/2）：247-269.
20	KUWAHARA Y， MIHOGI T， HAMAHARA K，et al.A quasi-stable molybdenum sub-oxide with abundant oxygen vacancies that promotes CO₂ hydrogenation to methanol［J］.Chemical Science，2021，12（29）：9902-9915.
21	张鹏，孟凡会，杨贵楠，等.金属氧化物在OX-ZEO催化剂中催化CO _x 加氢制低碳烯烃研究进展［J］.化工进展，2022，41（8）：4159-4172.
	ZHANG Peng， MENG Fanhui， YANG Guinan，et al.Progress of metal oxide in OX-ZEO catalyst for CO _x hydrogenation to light olefins［J］.Chemical Industry and Engineering Progress，2022， 41（8）：4159-4172.
22	HE Hui， LIN Xueting， LI Shujun，et al.The key surface species and oxygen vacancies in MnO _x （0.4）-CeO₂ toward repeated soot oxidation［J］.Applied Catalysis B：Environmental，2018，223：134-142.
23	WANG Sen， WANG Pengfei， SHI Dezhi，et al.Direct conversion of syngas into light olefins with low CO₂ emission［J］.ACS Catalysis，2020，10（3）：2046-2059.
24	范兴其，姚梦琴，刘飞，等.制备方法对Al₂O₃-CeO₂物化性质及CO₂加氢制甲醇催化性能的影响［J］.人工晶体学报，2021，50（9）：1745-1755，1795.
	FAN Xingqi， YAO Mengqin， LIU Fei，et al.Effect of preparation methods on physicochemical properties of Al₂O₃-CeO₂ and its catalytic performance of CO₂ hydrogenation to methanol［J］.Journal of Synthetic Crystals，2021，50（9）：1745-1755，1795.
25	LIN Bingyu， WANG Rong， YU Xiujin，et al.Physicochemical characterization and H₂-TPD study of alumina supported ruthenium catalysts［J］.Catalysis Letters，2008，124（3）：178-184.
26	MILLER J T， MEYERS B L， MODICA F S，et al.Hydrogen temperature-programmed desorption（H₂ TPD） of supported pla-tinum catalysts［J］.Journal of Catalysis，1993，143（2）：395-408.
27	WANG Mengheng， WANG Ziwei， LIU Suhan，et al.Synthesis of hierarchical SAPO-34 to improve the catalytic performance of bifunctional catalysts for syngas-to-olefins reactions［J］.Journal of Catalysis，2021，394：181-192.
28	TIAN Pan， ZHAN Guowu， TIAN Jian，et al.Direct CO₂ hydrogenation to light olefins over ZnZrO _x mixed with hierarchically hollow SAPO-34 with rice husk as green silicon source and templa-te［J］.Applied Catalysis B：Environmental，2022，315：121572.
29	季超，武鲁明，李滨，等.甲醇制烯烃催化剂SAPO-34分子筛的改性研究进展［J］.无机盐工业，2022，54（7）：1-9，90.
	JI Chao， WU Luming， LI Bin，et al.Research progress on modification of SAPO-34 as catalyst for methanol to olefins［J］.Inorganic Chemicals Industry，2022，54（7）：1-9，90.
30	MA Yuanyuan， LI Zhifang， ZHAO Nan，et al.One-pot synthesis of CNT-SAPO-34 composite supported copper and cerium catalysts with excellent surface resistance to SO₂ and H₂O in NH₃-SCR［J］.Journal of Rare Earths，2023，41（9）：1344-1352.
31	LIU Xiaoliang， WANG Mengheng， YIN Haoren，et al.Tandem catalysis for hydrogenation of CO and CO₂ to lower olefins with bifunctional catalysts composed of spinel oxide and SAPO-34［J］.ACS Catalysis，2020，10（15）：8303-8314.
32	HUANG Fangtao， CAO Jianxin， WANG Le，et al.Enhanced catalytic behavior for methanol to lower olefins over SAPO-34 composited with ZrO₂ ［J］.Chemical Engineering Journal，2020，380：122626.
33	FUJIMOTO Y， SHU Y， MIYAKE K，et al.SAPO-34 zeolite nanocrystals coated with ZrO₂ as catalysts for methanol-to-olefin conversion［J］.ACS Applied Nano Materials，2021，4（8）：8321-8327.
34	李雯，詹国武，黄加乐，等.基于金属有机骨架和稻谷壳前体构筑ZnZrO _x &bio-SAPO-34双功能催化剂及CO₂加氢制低碳烯烃［J］.化工进展，2022，41（3）：1298-1308.
	LI Wen， ZHAN Guowu， HUANG Jiale，et al.Synthesis of ZnZrO _x & bio-SAPO-34 bifunctional catalysts derived from metal organic frameworks and rice husk template for CO₂ hydrogenation to light olefins［J］.Chemical Industry and Engineering Progress，2022，41（3）：1298-1308.
35	杨浪浪，孟凡会，张鹏，等.ZrCdO _x /SAPO-18双功能催化剂催化CO₂加氢合成低碳烯烃性能［J］.无机化学学报，2021，37（3）：448-456.
	YANG Langlang， MENG Fanhui， ZHANG Peng，et al.Catalytic performance for CO₂ hydrogenation to light olefins over ZrCdO _x /SAPO-18 bifunctional catalyst［J］.Chinese Journal of Inorganic Chemistry，2021，37（3）：448-456.
36	MENG Fanhui， LI Xiaojing， ZHANG Peng，et al.Highly active ternary oxide ZrCeZnO _x combined with SAPO-34 zeolite for direct conversion of syngas into light olefins［J］.Catalysis Today，2021，368：118-125.
37	RHODES M， POKROVSKI K， BELL A.The effects of zirconia morphology on methanol synthesis from CO and H₂ over Cu/ZrO₂ catalystsPart Ⅱ.Transient-response infrared studies［J］.Journal of Catalysis，2005，233（1）：210-220.
38	WANG Yuhao， GAO Wengui， LI Kongzhai，et al.Strong evidence of the role of H₂O in affecting methanol selectivity from CO₂ hydrogenation over Cu-ZnO-ZrO₂ ［J］.Chem，2020，6（2）：419-430.
39	XU Di， HONG Xinlin， LIU Guoliang.Highly dispersed metal doping to ZnZr oxide catalyst for CO₂ hydrogenation to methanol：Insight into hydrogen spillover［J］.Journal of Catalysis，2021，393：207-214.
40	KATTEL S， YAN Binhang， YANG Yixiong，et al.Optimizing binding energies of key intermediates for CO₂ hydrogenation to methanol over oxide-supported copper［J］.Journal of the American Chemical Society，2016，138（38）：12440-12450.
41	LIU Xiaoliang， ZHOU Wei， YANG Yudan，et al.Design of efficient bifunctional catalysts for direct conversion of syngas into lower olefins via methanol/dimethyl ether intermediates［J］.Che- mical Science，2018，9（20）：4708-4718.
42	MALIK A S， ZAMAN S F， AL-ZAHRANI A A，et al.Development of highly selective PdZn/CeO₂ and Ca-doped PdZn/CeO₂ catalysts for methanol synthesis from CO₂ hydrogenation［J］.Applied Catalysis A：General，2018，560：42-53.
43	SONG Jimin， LIU Sihang， YANG Chengsheng，et al.The role of Al doping in Pd/ZnO catalyst for CO₂ hydrogenation to metha-nol［J］.Applied Catalysis B：Environmental，2020，263：118367.

催化剂	D_size/nm	S_BET/（m^2.g^-1）	V_mirco/（cm^3.g^-1）	d_size/nm
SAPO-34-450 ℃	30.4	570	0.281	1.98
SAPO-34-550 ℃	33.0	566	0.280	2.00
SAPO-34-650 ℃	34.6	535	0.267	1.96
