g-C3N4/Bi2MoO6复合光催化剂的制备及性能研究

doi:10.19964/j.issn.1006-4990.2022-0038

摘要/Abstract

摘要：

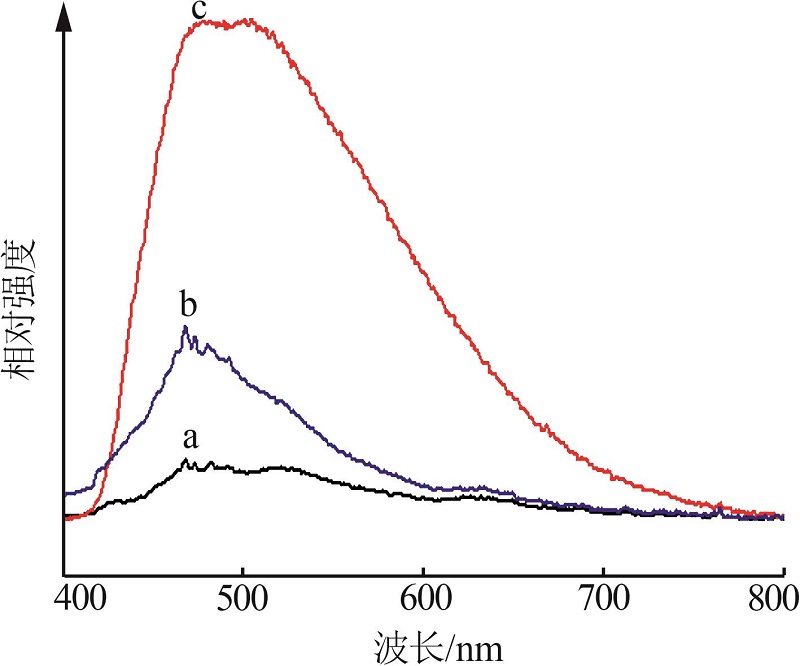

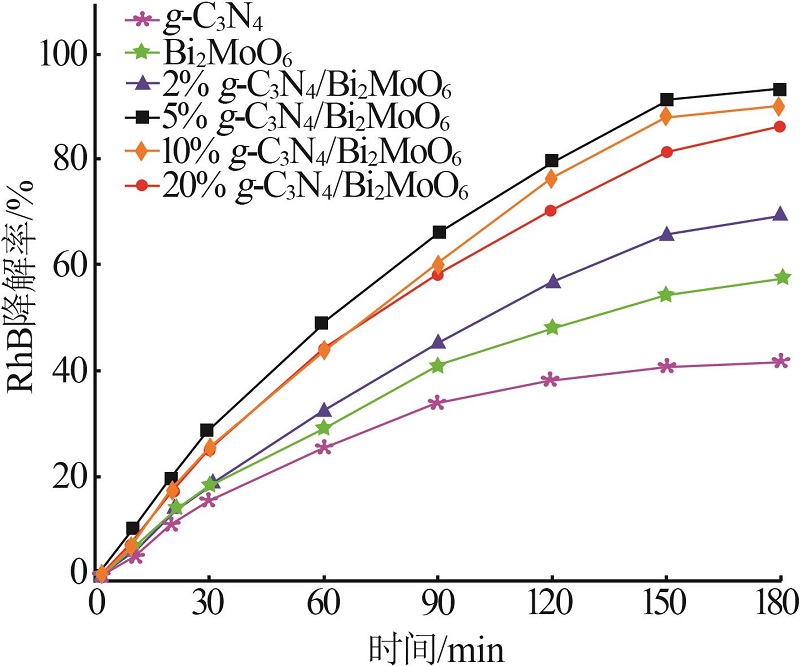

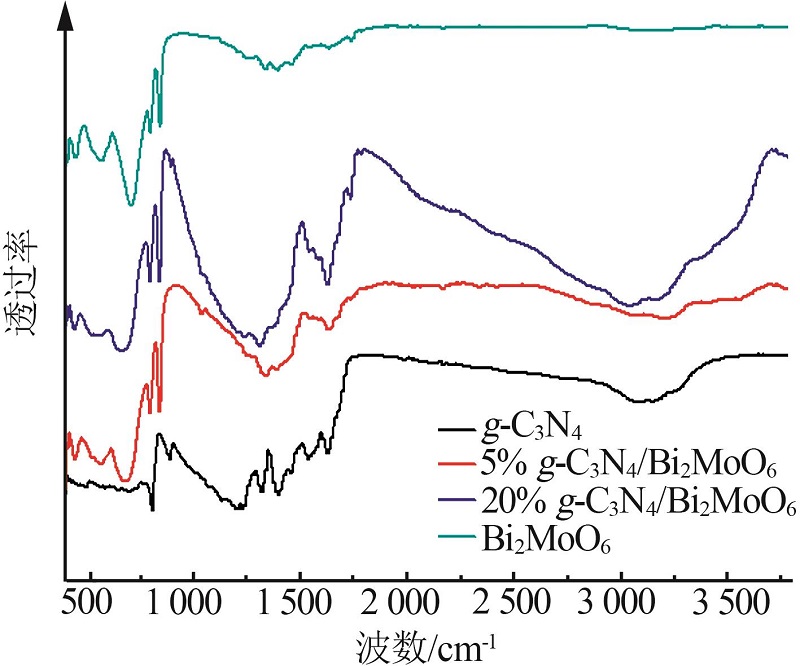

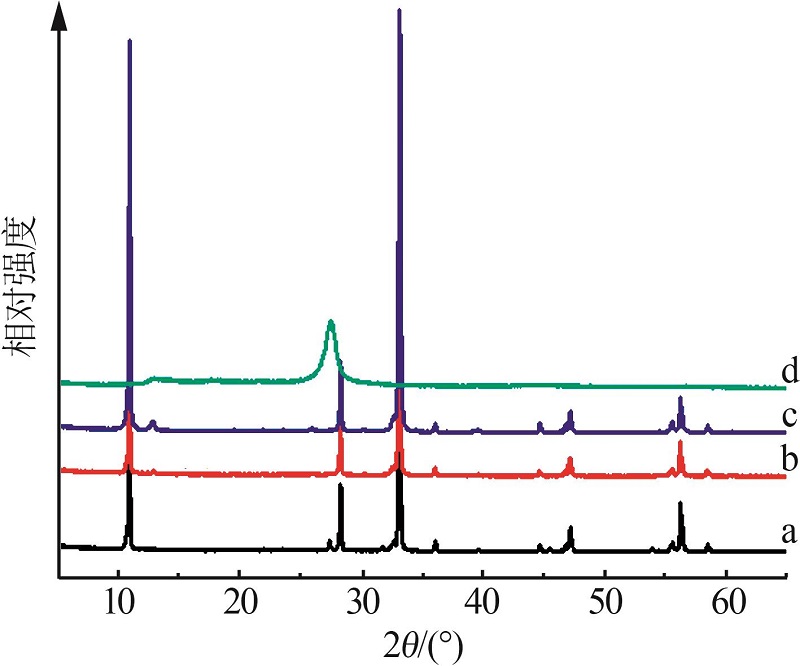

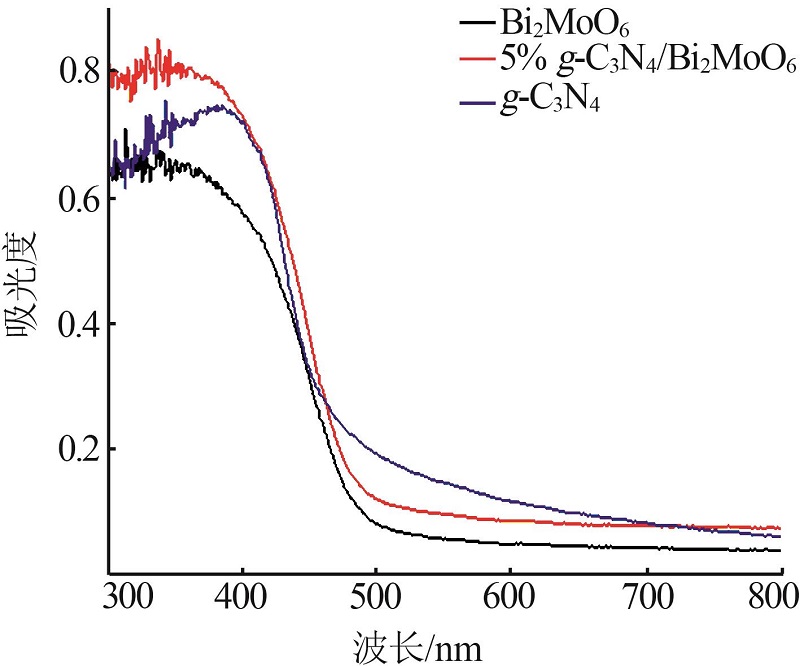

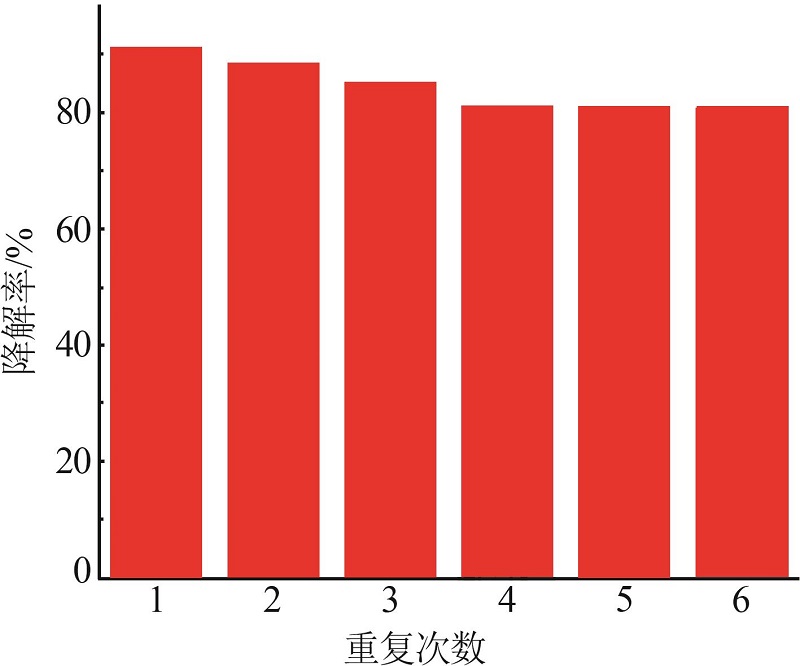

结合热缩聚法和水热法制备了g-C₃N₄/Bi₂MoO₆复合光催化剂，利用X射线衍射（XRD）、傅里叶红外光谱（FT-IR）、扫描电子显微镜（SEM）、透射电子显微镜（TEM）、氮气吸附-脱附曲线、紫外-可见漫反射光谱（UV-Vis DRS）、光致发光光谱（PL）等分析测试技术对材料的结构和性能进行了表征，研究了材料光催化降解罗丹明B（RhB）的效果。结果表明，与纯Bi₂MoO₆相比，g-C₃N₄/Bi₂MoO₆复合材料提高了对可见光的吸收能力，减小了带隙宽度，在可见光激发下提高了降解RhB的光催化活性。其中，5% g-C₃N₄/Bi₂MoO₆复合材料对RhB的降解率最高，在可见光照射180 min对RhB的降解率为93%；而同样条件下Bi₂MoO₆对RhB的降解率为58%。重复性实验表明，复合材料在RhB光降解过程中是稳定的，具有较好的应用潜力。

关键词: g-C₃N₄, 钼酸铋, 光催化, 罗丹明B

Abstract:

A series of g-C₃N₄/Bi₂MoO₆composite photocatalysts were synthesized by thermal condensation polymerization and hydrothermal method.The structure and performance of the materials were characterized by using X-ray diffraction（XRD），infrared spectrometer（FT-IR），scanning electron microscopy（SEM），transmission electron microscopy（TEM），N₂ adsorption and desorption process，UV-Vis diffusion reflection spectroscopy（UV-Vis DRS） and photoluminescence spectrum（PL）.The photocatalytic degradation of Rhodamine B（RhB） was studied.The results showed that compared with pure Bi₂MoO₆，the g-C₃N₄/Bi₂MoO₆composites improved absorbing ability in the visible light region，reduced the band gap width，and exhibited enhanced photocatalytic activity for RhB degradation under visible light irradiation.It was found that the 5% g-C₃N₄/Bi₂MoO₆ composite showed the highest photocatalytic activity for RhB，and the RhB degradation rate was 93% with visible light irradiation of 180 minutes.Under the same circumstances，the Bi₂MoO₆ degradation rate of RhB was 58%.The recovery test showed that the composites were rather stable during the RhB photodegradation，which had better application potential.

Key words: g-C₃N₄, Bi₂MoO₆, photocatalysis, RhB

中图分类号:

O643.3

褚佳欢,汤嘉成,朱媛,张进. g-C₃N₄/Bi₂MoO₆复合光催化剂的制备及性能研究[J]. 无机盐工业, 2022, 54(11): 131-136.

CHU Jiahuan,TANG Jiacheng,ZHU Yuan,ZHANG Jin. Study on preparation and properties of g-C₃N₄/Bi₂MoO₆composite photocatalysts[J]. Inorganic Chemicals Industry, 2022, 54(11): 131-136.

图/表 11

图1

图2

图3

图4

表1

图5

图6

图7

图8

图9

图10

参考文献 24

1	CAREY J H, LAWRENCE J, TOSINE H M.Photodechlorination of PCB′s in the presence of titanium dioxide in aqueous suspensions[J].Bulletin of Environmental Contamination and Toxicology,1976,16(6):697-701.
2	JATAV S, LIU Junying, HERBER M, et al.Facet engineering of bismuth molybdate via confined growth in a nanoscale template toward water remediation[J].ACS Applied Materials & Interfaces,2021,13(16):18713-18723.
3	LI Gui, YANG Weiyi, GAO Shuang, et al.Creation of rich oxygen vacancies in bismuth molybdate nanosheets to boost the photocatalytic nitrogen fixation performance under visible light illuminati-on[J].Chemical Engineering Journal,2021,404.Doi:10.1016/j.cej.2020.127115. doi: 10.1016/j.cej.2020.127115
4	KUMAR R, SUDHAIK A, RAIZADA P, et al.An overview on bismuth molybdate based photocatalytic systems：Controlled morphology and enhancement strategies for photocatalytic water purification[J].Journal of Environmental Chemical Engineering,2020,8(5).Doi:10.1016/j.jece.2020.104291. doi: 10.1016/j.jece.2020.104291
5	赵依凡,毛琦云,翟晓雅,等.钼酸铋光催化剂的结构缺陷调控[J].化学进展,2021,33(8):1331-1343.
	ZHAO Yifan, MAO Qiyun, ZHAI Xiaoya, et al.Structural defects regulation of bismuth molybdate photocatalyst[J].Progress in Che-mistry,2021,33(8):1331-1343.
6	SAYED M S, MOHAPATRA D, BAYNOSA M L, et al.Three-dimensional core-shell heterostructure of tungsten trioxide/bismuth molybdate/cobalt phosphate for enhanced photoelectrochemical water splitting[J].Journal of Colloid and Interface Science,2021,598: 348-357.
7	ONG W J, TAN L L, NG Y H, et al.Graphitic carbon nitride（g-C₃N₄）-based photocatalysts for artificial photosynthesis and environmental remediation：Are we a step closer to achieving sustainability？[J].Chemical Reviews,2016,116(12):7159-7329.
8	陈建军,乔岩,刘梓娴,等.金负载多孔g-C₃N₄纳米片制备及可见光催化产氢性能[J].无机盐工业,2022,54(3):132-136.
	CHEN Jianjun, QIAO Yan, LIU Zixian, et al.Preparation of Au-supported porous g-C₃N₄ nanosheets for photocatalytic H₂ evolution performance under visible-light[J].Inorganic Chemicals Industry,2022,54(3):132-136.
9	杨莉,李润泽,张黎,等.花簇状g-C₃N₄/Bi₂MoO₆微球的制备及其光催化降解模拟染料废水[J].精细化工,2021,38(5):1030-1037.
	YANG Li, LI Runze, ZHANG Li, et al.Preparation of flower-like g-C₃N₄/Bi₂MoO₆ microspheres and their photocatalytic degradation of simulated dye wastewater[J].Fine Chemicals,2021,38(5):1030-1037.
10	RAIZADA P, KUMAR A, SINGH P.Graphitic carbon nitride-based new advanced materials for photocatalytic applications[J].Current Analytical Chemistry,2021,17(2):150-165.
11	孟亚楚,李育珍,张艾明,等.Bi₂MoO₆/g-C₃N₄Z型异质结的合成及其光催化性能的研究[J].太原理工大学学报,2020,51(2):253-258.
	MENG Yachu, LI Yuzhen, ZHANG Aiming, et al.Synthesis and photocatalytic activity of Bi₂MoO₆/g-C₃N₄ Z-scheme heterojuncti-on[J].Journal of Taiyuan University of Technology,2020,51(2):253-258.
12	王秀.类石墨相氮化碳的改性及其在水污染治理中的应用[D].武汉：华中科技大学，2017.
	WANG Xiu.The modification of g-C₃N₄ and their application in wastewater treatment[D].Wuhan：Huazhong University of Science and Technology，2017.
13	王书红,刘新,孔斌,等.CeO₂/Bi₂MoO₆纳米复合材料的制备及其增强光催化降解性能研究[J].有色金属科学与工程,2019,10(2):68-76.
	WANG Shuhong, LIU Xin, KONG Bin, et al.Synthesis of CeO₂/Bi₂MoO₆ nanocomposites and their enhanced photocatalytic degradation performance[J].Nonferrous Metals Science and Engineering,2019,10(2):68-76.
14	YAN Tao, YAN Qing, WANG Xiaodong, et al.Facile fabrication of heterostructured g-C₃N₄/Bi₂MoO₆ microspheres with highly efficient activity under visible light irradiation[J].Dalton Transactions：Cambridge,England，2015,44(4):1601-1611.
15	LI Haiping, LIU Jingyi, HOU Wanguo, et al.Synthesis and characterization of g-C₃N₄/Bi₂MoO₆ heterojunctions with enhanced visible light photocatalytic activity[J].Applied Catalysis B：Environmental,2014,160/161: 89-97.
16	周杰,管国锋,朱蓓蓓,等. g-C₃N₄/ZnO复合材料的制备、表征及可见光催化性能[J].精细化工,2018,35(2):228-232，266.
	ZHOU Jie, GUAN Guofeng, ZHU Beibei, et al.Preparation，characterization and photocatalytic activities of g-C₃N₄/ZnO composites[J].Fine Chemicals,2018,35(2):228-232，266.
17	CHEN Daimei, HAO Qiang, WANG Zhihong, et al.Influence of phase structure and morphology on the photocatalytic activity of bismuth molybdates[J].CrystEngComm,2016,18(11):1976-1986.
18	LI Shijie, HU Shiwei, JIANG Wei, et al.Facile synthesis of cerium oxide nanoparticles decorated flower-like bismuth molybdate for enhanced photocatalytic activity toward organic pollutant degradation[J].Journal of Colloid and Interface Science,2018,530: 171-178.
19	熊芸,陈新,张静,等.BiOBr/UiO-66-（COOH）₂复合材料制备及光催化性能研究[J].无机盐工业,2021,53(12):150-155.
	XIONG Yun, CHEN Xin, ZHANG Jing, et al.Preparation and photocatalytic properties of BiOBr/UiO-66-（COOH）₂ composite materials[J].Inorganic Chemicals Industry,2021,53(12):150-155.
20	DARKHOSH F, LASHANIZADEGAN M, MAHJOUB A R, et al.One pot synthesis of CuFeO₂ @ expanding perlite as a novel efficient floating catalyst for rapid degradation of methylene blue under visible light illumination[J].Solid State Sciences,2019,91: 61-72.
21	HU Yongpan, HUANG Wei, WANG Hongshuai, et al.Metal-free photocatalytic hydrogenation using covalent triazine polymers[J].Angewandte Chemie,2020,132(34):14484-14488.
22	LI Ning, GAO Hang, WANG Xin, et al.Novel indirect Z-scheme g-C₃N₄/Bi₂MoO₆/Bi hollow microsphere heterojunctions with SPR-promoted visible absorption and highly enhanced photocatalytic performance[J].Chinese Journal of Catalysis,2020,41(3):426-434.
23	XIAO Ke, HUANG Hongwei, TIAN Na, et al.Mixed-calcination synthesis of Bi₂MoO₆/g-C₃N₄ heterojunction with enhanced visi-ble-light-responsive photoreactivity for RhB degradation and photocurrent generation[J].Materials Research Bulletin,2016,83: 172-178.
24	胡俊俊,丁同悦,陈奕桦,等.Ag₃PO₄/g-C₃N₄复合材料的制备及其光催化性能[J].精细化工,2021,38(3):483-488.
	HU Junjun, DING Tongyue, CHEN Yihua, et al.Preparation and photocatalytic application of Ag₃PO₄/g-C₃N₄ composites[J].Fine Chemicals,2021,38(3):483-488.

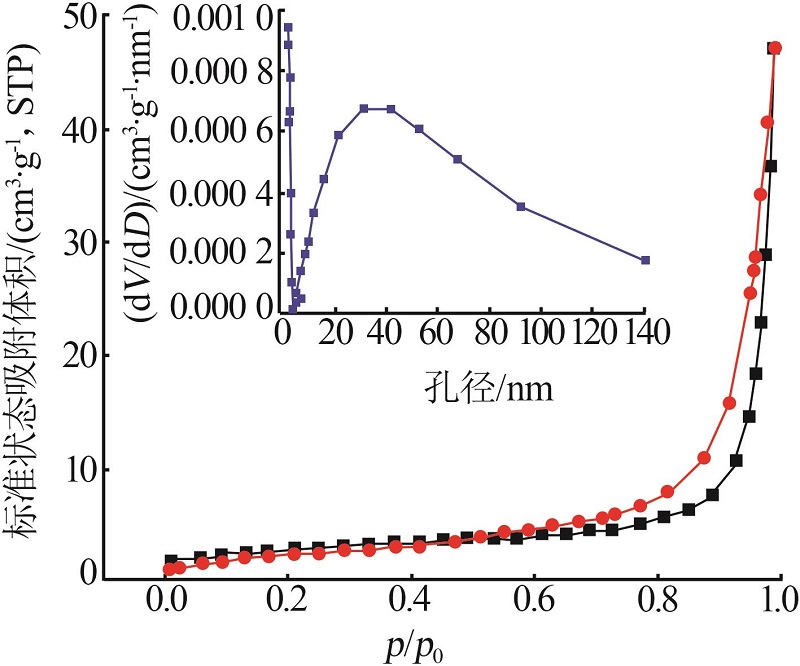

样品	比表面积/（m²?g^-1）	孔径/nm	孔容/（cm³?g^-1）
Bi₂MoO₆	3.356	13.047	0.010 9
5% g-C₃N₄/Bi₂MoO₆	9.841	29.558	0.022 7
