氢氧化铝活化对水热法制备勃姆石的影响

doi:10.19964/j.issn.1006-4990.2021-0772

摘要/Abstract

摘要：

采用氢氧化铝粉体为原料，活化后通过水热法制备勃姆石。研究了氢氧化铝活化对勃姆石颗粒尺寸的影响，并讨论了相关机理。研究结果表明:未活化氢氧化铝水热反应所得产物颗粒粒径为2 μm，经过加热（160~220 ℃）活化的氢氧化铝，水热反应所得产物的颗粒粒径在0.3~2 μm变化。对活化氢氧化铝和水热反应中间产物进行表征，由结构分析推测作用机制:氢氧化铝加热活化过程中生成少量勃姆石，这些勃姆石在氢氧化铝水热反应转化为勃姆石（AlOOH）的过程中成为晶种，活化温度升高和活化时间延长，勃姆石晶种数量增加，氢氧化铝水热反应所得产物的颗粒粒径减小，并且加快了水热反应速率。该工作有望提供一种氢氧化铝水热法制备勃姆石的新途径和相关基础理论。

关键词: 氢氧化铝, 水热法, 颗粒尺寸, 勃姆石, 加热活化

Abstract:

Boehmite was prepared by hydrothermal method with gibbsite powder as raw material after activation.The effect of gibbsite activation on boehmite grain size was investigated，and the action mechanism was discussed.The results showed that by using unactivated gibbsite as raw materials，the particle size of boehmite was about 2 μm and the particle size of boehmite changed in the range of 0.3 μm to 2 μm by using activated gibbsite（treated under 160~220 ℃） as raw materials.The activated aluminum hydroxide and hydrothermal reaction intermediates were characterized.The mechanism of action from structural analysis was inferred:A small amount of boehmite was formed during activation process.These boehmite became crystal seeds during the hydrothermal conversion of Al（OH）₃ to AlOOH.With increase of activation temperature or activation time， the number of boehmite crystal seeds was increased，the particle size of hydrothermal products（boehmite） was reduced，and hydrothermal reaction rate was speeded up.This work was expected to provide a new route for the preparation of boehmite and a theoretical basis.

Key words: gibbsite, hydrothermal, particle size, boehmite, heating activation

中图分类号:

TQ133.1

杨永钰,田朋,周若辉,徐前进,刘坤吉,宁桂玲. 氢氧化铝活化对水热法制备勃姆石的影响[J]. 无机盐工业, 2022, 54(9): 55-62.

YANG Yongyu,TIAN Peng,ZHOU Ruohui,XU Qianjin,LIU Kunji,NING Guiling. Effect of gibbsite activation on preparation of boehmite by hydrothermal method[J]. Inorganic Chemicals Industry, 2022, 54(9): 55-62.

图/表 10

图1

图2

图3

图4

图5

表1

图6

表2

图7

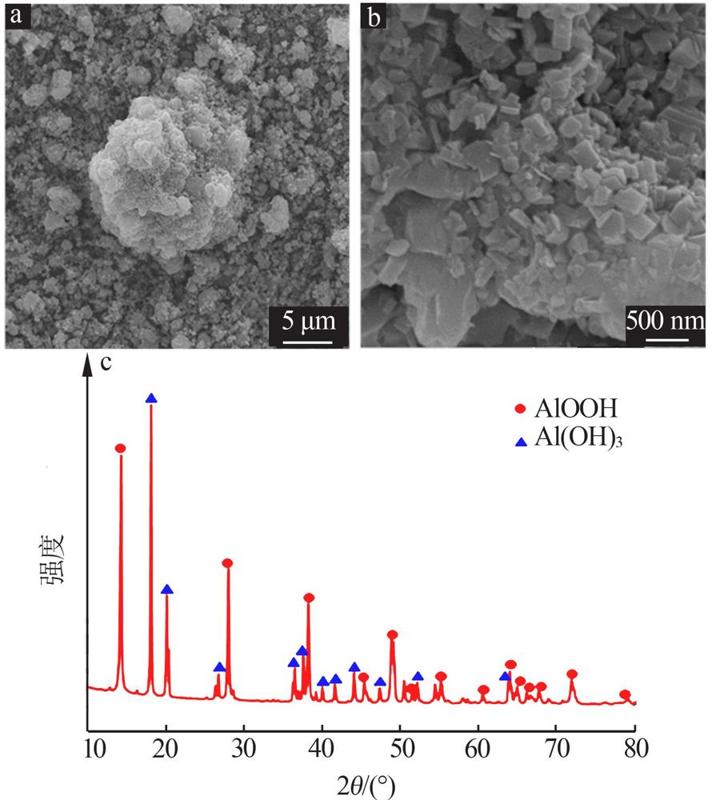

图8

参考文献 34

[1]	PARDO P， SERRANO F J， VALLCORBA O， et al.Enhanced lateral to basal surface ratio in boehmite nanoparticles achieved by hydrothermal aging[J].Crystal Growth & Design，2015，15（7）:3532-3538.
[2]	KANBARGI N， LESSER A J.Improving adhesion between aramid fibers and natural rubber through morphological and synthetic modification of the fibers[J].Journal of Applied Polymer Science，2018，135（24）.Doi:10.1002/app.45520. doi: 10.1002/app.45520.
[3]	OH C J， YI Y K， KIM S J， et al.Production of micro⁃crystalline boehmite from hydrothermal processing of Bayer plant alumina tri⁃hydrate[J].Powder Technology，2013，235:556-562.
[4]	WANG Song， ZHAO Guofeng， LIU Ye， et al.Microfibrous⁃structured Pd/AlOOH/Al-fiber with hydroxyl⁃enriched surfaces for the catalytic semihydrogenation of acetylene[J].Industrial & Engineer⁃ ing Chemistry Research，2019，58（36）:16431-16441.
[5]	杨永钰，高婷婷，田朋，等.无机超细粉体改性锂离子电池隔膜的研究进展[J].无机盐工业，2021，53（6）:49-58.
	YANG Yongyu， GAO Tingting， TIAN Peng， et al.Research progress of lithium⁃ion battery separator modified with inorganic ultrafine powder[J].Inorganic Chemicals Industry，2021，53（6）:49-58
[6]	LI Yaqian， YU Le， HU Weiren， et al.Thermotolerant separators for safe lithium⁃ion batteries under extreme conditions[J].Journal of Materials Chemistry A，2020，8（39）:20294-20317.
[7]	李长刚，赵萍，王维勋，等.微乳/水热法制备勃姆石[J].齐鲁工业大学学报，2017，31（5）:13-16.
	LI Changgang， ZHAO Ping， WANG Weixun， et al.Preparation of boehmite by microemulsion/hydrothermal method[J].Journal of Qilu University of Technology，2017，31（5）:13-16.
[8]	DUBEY S P， DWIVEDI A D， SILLANPÄÄ M， et al.Adsorption of As（V） by boehmite and alumina of different morphologies prepared under hydrothermal conditions[J].Chemosphere，2017，169:99-106.
[9]	JIANG Ru， LIU Haitao， CHENG Haifeng.Characterization for thermal evolution of boehmite precursor and preparation of alumina through a sol-gel process[J].Rare Metal Materials and Engineering，2018，47:188-192.
[10]	李帅帅，高志华，刘琰，等.催化剂中AlOOH比例对浆态床一步法合成二甲醚的影响[J].天然气化工:C1化学与化工，2018，43（2）:29-33.
	LI Shuaishuai， GAO Zhihua， LIU Yan， et al.Effect of AlOOH ratio in catalyst on one⁃step synthesis of dimethyl ether in slurry bed[J].Natural Gas Chemical Industry，2018，43（2）:29-33.
[11]	CHEN Xianfu， ZHANG Wei， LIN Yuqing， et al.Preparation of high⁃flux γ-alumina nanofiltration membranes by using a modified sol-gel method[J].Microporous and Mesoporous Materials，2015，214:195-203.
[12]	TCHOMGUI-KAMGA E， AUDEBRAND N， DARCHEN A.Effect of co⁃existing ions during the preparation of alumina by electrolysis with aluminum soluble electrodes:Structure and defluoridation activity of electro⁃synthesized adsorbents[J].Journal of Hazardous Materials，2013，254/255:125-133.
[13]	STAROWICZ M， STAROWICZ P， STYPUŁA B.Alumina⁃based nanoparticles obtained by anodic dissolution of Al in electrolytes with alcohol solvents[J].Journal of Solid State Electrochemistry，2014，18（11）:3065-3071.
[14]	OHTA Y， HAYAKAWA T， INOMATA T， et al.Novel nano boehmite prepared by solvothermal reaction of aluminum hydroxide gel in monoethanolamine[J].Journal of Nanoparticle Resear⁃ ch，2017，19（7）.Doi:10.1007/s11051-017-3918-3. doi: 10.1007/s11051-017-3918-3.
[15]	关昕，王晶，史忠祥.水热法制备薄水铝石粉体及其脱水动力学分析[J].大连交通大学学报，2018，39（4）:77-82.
	GUAN Xin， WANG Jing， SHI Zhongxiang.Preparation and kinetics of dehydration of boehmite by hydrothermal treatment[J].Journal of Dalian Jiaotong University，2018，39（4）:77-82.
[16]	OHTA Y， HAYAKAWA T， INOMATA T， et al.A blue photoluminescent nano boehmite prepared by a solvothermal reaction of aluminum hydroxide gel in monoethanolamine at low temperature[J].Chemistry Letters，2017，46（1）:32-34.
[17]	杨铎，史忠祥，王晶，等.多相氢氧化铝向薄水铝石相转变过程的微观结构研究[J].功能材料，2021，52（4）:4147-4152.
	YANG Duo， SHI Zhongxiang， WANG Jing， et al.Study on microstructure of multiphase aluminum hydroxide transition to boehmite phase[J].Journal of Functional Materials，2021，52（4）:4147-4152.
[18]	左少卿，杜晓辉，熊晓云，等.拟薄水铝石制备方法的研究进展[J].应用化工，2017，46（9）:1818-1821.
	ZUO Shaoqing， DU Xiaohui， XIONG Xiaoyun， et al.Research progress in preparation of pseudo⁃boehmite[J].Applied Chemical Industry，2017，46（9）:1818-1821.
[19]	SHEN S，NG W， CHIA L， et al.Morphology controllable synthesis of nanostructured boehmite and γ-alumina by facile dry gel conversion[J].Crystal Growth & Design，2012，12（10）:4987-4994.
[20]	PANASYUK G P， KOZEROZHETS I V， SEMENOV E A， et al.Mechanism of phase transformations of γ-Al₂O₃ and Al（OH）₃ into boehmite（AlOOH） during hydrothermal treatment[J].Inorganic Materials，2019，55（9）:929-933.
[21]	ZHANG Xin， CUI Wenwen， HU Jianzhi， et al.Transformation of gibbsite to boehmite in caustic aqueous solution at hydrothermal conditions[J].Crystal Growth & Design，2019，19（10）:5557-5567.
[22]	MEHTA S K， KALSOTRA A.Kinetics and hydrothermal transformation of gibbsite[J].Journal of Thermal Analysis，1991，37（2）:267-275.
[23]	JIAO Wenqian， WU Xuezhong， XUE Teng， et al.Morphological controlled growth of nanosized boehmite with enhanced aspect ratios in an organic additive⁃free cationic⁃anionic double hydrolysis method[J].Crystal Growth & Design，2016，16（9）:5166-5173.
[24]	KOZEROZHETS I V， PANASYUK G P， SEMENOV E A， et al.How acid medium affects the hydrothermal synthesis of boehmi⁃te[J].Russian Journal of Inorganic Chemistry，2020，65（10）:1529-1534.
[25]	LI Zheng， LIU Guihua， LI Xiaobin， et al.Effects of cation on the morphology of boehmite precipitated from alkaline solutions by adding gibbsite as seed[J].Crystal Growth & Design，2019，19（3）:1778-1785.
[26]	HUANG Wenqiang， LIU Guihua， QI Tiangui， et al.Effects of pH and ions on the morphological evolution of boehmite prepared by hydrothermal treatment of ultrafine Bayer gibbsite[J].CrystEngComm，2020，22（42）:6983-6992.
[27]	TSUCHIDA T.Hydrothermal synthesis of submicrometer crystals of boehmite[J].Journal of the European Ceramic Society，2000，20（11）:1759-1764.
[28]	ZHANG Xin， CUI Wenwen， PAGE K L， et al.Size and morphology controlled synthesis of boehmite nanoplates and crystal growth mechanisms[J].Crystal Growth & Design，2018，18（6）:3596-3606.
[29]	周俊文，王建立，宋为聪.低钠薄水铝石耐热阻燃剂的开发及应用[J].轻金属，2014（5）:16-19.
	ZHOU Junwen， WANG Jianli， SONG Weicong.Development and application of boehmite with low sodium for heat⁃resistant flame retardant[J].Light Metals，2014（5）:16-19.
[30]	高振昕，贺中央，郑小平，等.拜尔法三水铝石受热相变的形貌特征[J].硅酸盐学报，2008，36（S1）:117-123.
	GAO Zhenxin， HE Zhongyang， ZHENG Xiaoping， et al.Phase transformation and morphology of Bayer⁃gibbsite during heating[J].Journal of the Chinese Ceramic Society，2008，36（S1）:117-123.
[31]	陈博，陈小明，蒋学鑫.水和水蒸气辅助粗晶三水铝石转化为勃姆石的机制研究[J].岩石矿物学杂志，2021，40（6）:1197-1202.
	CHEN Bo， CHEN Xiaoming， JIANG Xuexin.The transformation mechanism of the macrogranular gibbsite to boehmite assisted by water and water vapor[J].Acta Petrologica et Mineralogica，2021，40（6）:1197-1202.
[32]	杨会宾，孙俊民，胡剑，等.三水铝石水热处理过程中的相变及其影响[J].轻金属，2017（2）:13-16，28.
	YANG Huibin， SUN Junmin， HU Jian， et al.Phase transition and influences of gibbsite in the hydrothermal process[J].Light Metals，2017（2）:13-16，28.
[33]	王迎，俞小花，冯攀，等.拜耳法制备高纯氧化铝过程中水热深度脱钠[J].过程工程学报，2018，18（1）:148-153.
	WANG Ying， YU Xiaohua， FENG Pan， et al.Deeply removing sodium by hydrothermal method in the process of preparing high pure alumina from bayer liquid[J].The Chinese Journal of Process Engineering，2018，18（1）:148-153.
[34]	许珂敬，杨新春，田贵山，等.采用引入晶种的水热合成法制备α-Al₂O₃纳米粉[J].硅酸盐学报，2001，29（6）:576-579.
	XU Kejing， YANG Xinchun， TIAN Guishan， et al.Preparation of nano⁃size α-Al₂O₃ powders by seeding hydrothermal synthesizing method[J].Journal of the Chinese Ceramic Society，2001，29（6）:576-579.

温度/℃	残余量/%	温度/℃	残余量/%
150	100.00	210	99.80
160	99.98	220	99.73
180	99.90	230	99.61
190	99.88	240	99.28
200	99.85

活化温度/℃	相对峰强	活化温度/℃	相对峰强
未活化	I₀	200	0.892I₀
160	0.965I₀	220	0.540I₀
180	0.954I₀
