基于CoFe2O4@C锂空气电池正极催化剂的研究

doi:10.11962/1006-4990.2020-0347

摘要/Abstract

摘要：

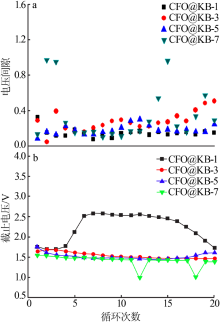

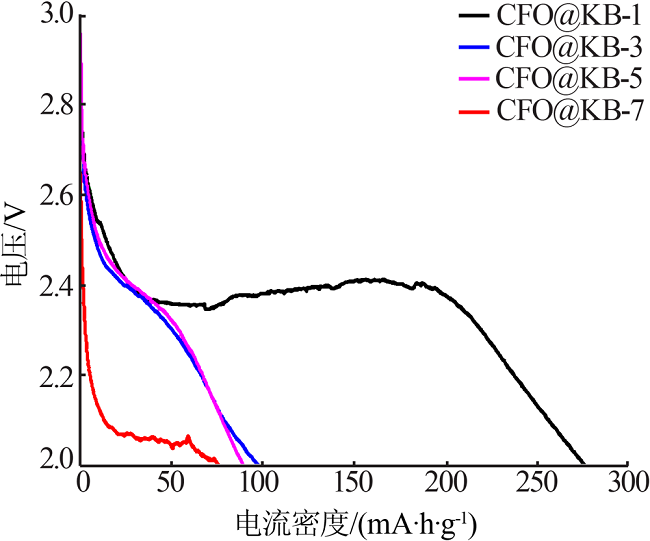

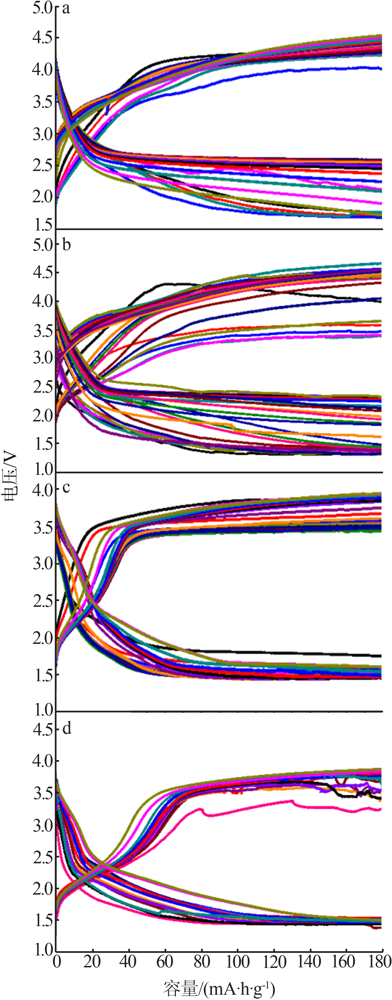

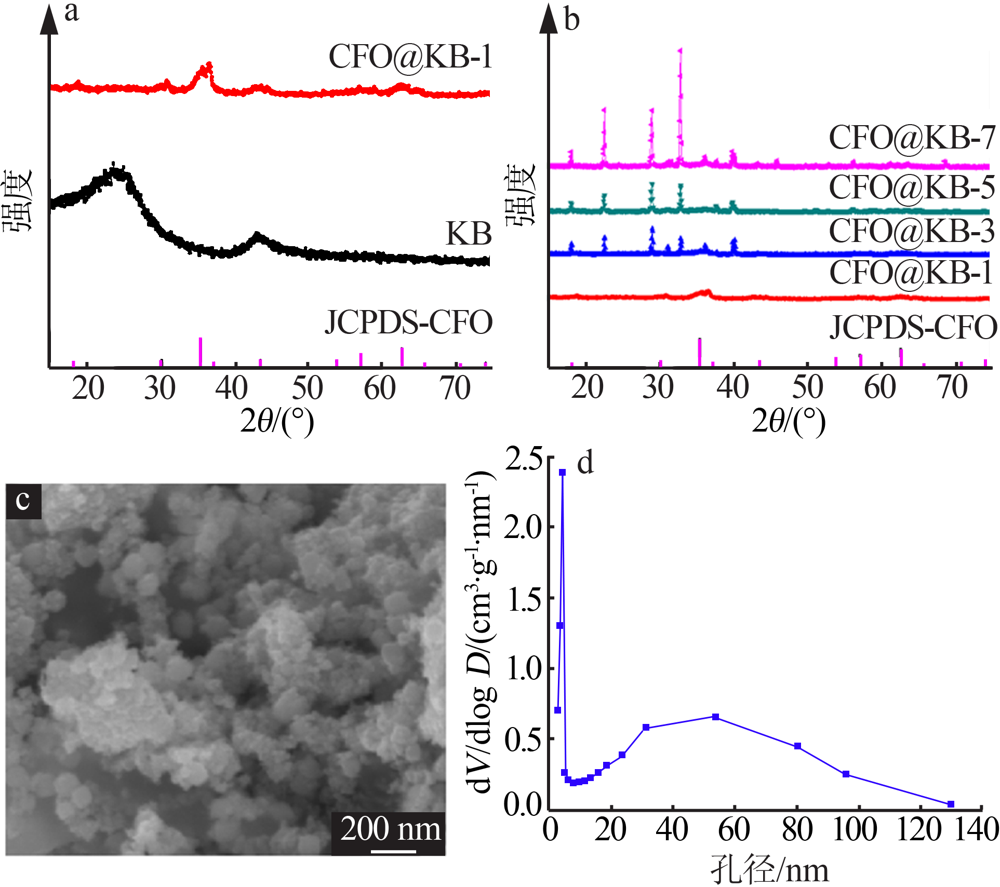

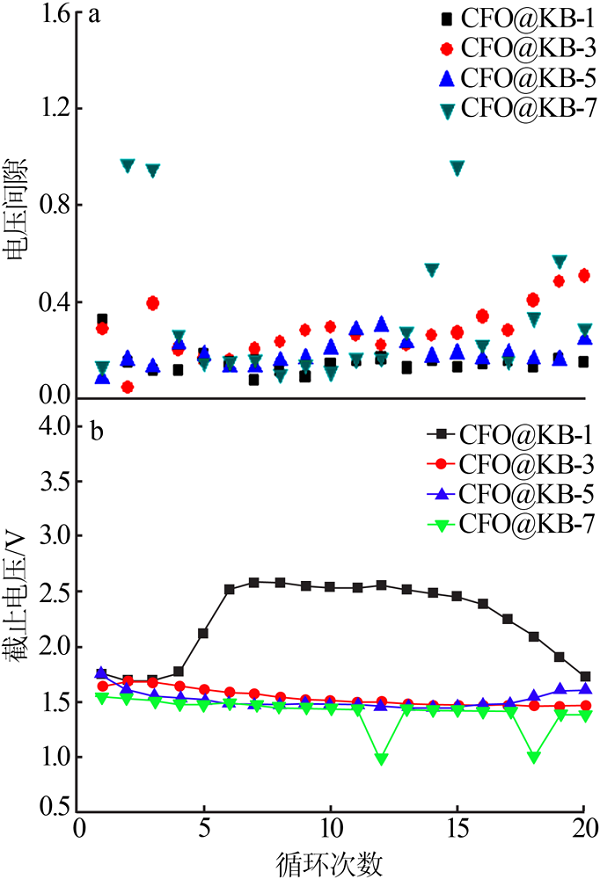

锂空气电池因其具有超高的能量密度从而引起了研究者们的广泛关注,但其研究处于初级阶段。其中找到合适的锂空气电池正极催化剂是目前研究的主要方向之一。通过溶胶-凝胶联合原位水热合成法成功实现了适用于锂空气电池正极的催化剂铁酸钴@科琴黑（CFO@KB）复合材料的制备。通过调整铁酸钴与科琴黑的质量比（1∶1、3∶1、5∶1、7∶1）,得到不同性能的CFO@KB复合物,并利用XRD表征其结构,发现本研究合成的铁酸钴为尖晶石型,且CFO@KB复合物仍然呈现其特征峰。当容量限制在180 mA·h/g（以电极材料计）、铁酸钴与科琴黑质量比为1∶1时,其复合物在锂空气电池中呈现出最好的限容循环稳定性和较高的放电截止电压。其充电电压和放电电压之间的电压差为0.2 V,小于现有相关文献中报道的值。

关键词: 正极催化剂, 锂空气电池, 限容循环, 截止电压

Abstract:

Li-air battery has attracted extensive attention due to its ultra-high energy density,but its research is in the pri-mary stage.One of the main aspects of current research is to find a suitable cathode catalyst for Li-air battery.The CoFe₂O₄@Ketjenblack（CFO@KB） materials as cathode catalyst for Li-air battery were successfully synthesized by sol-gel combined with in-situ hydrothermal synthesis method.By adjusting the mass ratio of CoFe₂O₄ to Ketjenblack（1∶1,3∶1,5∶1 and 7∶1）,CFO@KBcomposites with different properties were obtained.Structure of the composites was characterized by XRD.It was found that the synthesized CoFe₂O₄ in the study was spinel type,and CFO@KB composites still presented its characteristic peak.When the capacity was limited to 180 mA·h/g（based on electrode materials） and the mass ratio of CoFe₂O₄ to Ketjenblack was1∶1,the composites exhibited the best capacity limiting cycle stability and high cut-off voltage.The voltage difference between charging voltage and discharging voltage was 0.2 V,which was less than the reported value in the existing literature.

Key words: cathode catalyst, lithium-air battery, limited-capacity cycling, cut-off voltage

中图分类号:

TQ138.12

王相君,高利,许蕾,池永庆. 基于CoFe₂O₄@C锂空气电池正极催化剂的研究[J]. 无机盐工业, 2021, 53(5): 96-99.

Wang Xiangjun,Gao Li,Xu Lei,Chi Yongqing. Study on CoFe₂O₄@C as cathode catalyst of Li-air battery[J]. Inorganic Chemicals Industry, 2021, 53(5): 96-99.

图/表 5

图1

图2

图3

图4

图5

参考文献 20

[1]	吕慧. 锂-空气电池氧电极催化剂-纳米四氧化三铁及复合材料的制备与性能[D]. 徐州:中国矿业大学, 2015.
[2]	Bian W Y, Yang Z R, Strasser P, et al. A CoFe₂O₄/graphene nanohy-brid as an efficient bi-functional electrocatalyst for oxygen reduction and oxygen evolution[J]. Journal of Power Sources, 2014,250(3):196-203. doi: 10.1016/j.jpowsour.2013.11.024
[3]	Huang Z, Chi B, Jian L, et al. CoFe₂O₄@multi-walled carbon nanotu-bes integrated composite with nanosized architecture as a cathode ma-terial for high performance rechargeable lithium-oxygen battery[J]. Journal of Alloys Compounds, 2017,695:3435-3444. doi: 10.1016/j.jallcom.2016.12.015
[4]	Christensen J, Albertus P, Sanchez-Carrera R, et al. A critical re-view of Li/air batteries[J]. Journal of the Electrochemical Society, 2012,159(2):1-30.
[5]	孙东峰, 宋明, 韩一丹, 等. 二氧化钛/铁酸钴磁性光催化材料的制备及表征[J]. 无机盐工业, 2011,43(10):22-24.
[6]	Li J X, Zou M Z, Wen W W, et al. Spinel MFe₂O₄(M=Co,Ni) nano-particles coated on multi-walled carbon nanotubes as electrocataly-sts for Li-O₂ batteries[J]. Journal of Materials Chemistry, 2014,2(26):10257-10262.
[7]	杨柳, 闫芳, 彭邦华. CoFe₂O₄-CNTs纳米复合材料的制备、表征及其电催化析氧性能[J]. 石河子大学学报:自然科学版, 2016,34(1):80-84.
[8]	胡陈果, 叶翠兰, 陈杨. 碳纳米管膜电阻率的测定与导电机理[J]. 重庆大学学报:自然科学版, 2005,9:116-119.
[9]	陈霄, 柳杨, 徐涛, 等. 疏松多孔CoFe₂O₄-还原石墨烯电极复合材料的制备与性能[J]. 复合材料学报, 2019,36(3):646-653.
[10]	翁程杰, 史叶勋, 何大方, 等. 水热法制备还原氧化石墨烯及其导电性调控[J]. 化工学报, 2018,69(7):466-472.
[11]	Maass S, Finsterwalder F, Frank G, et al. Carbon support oxidation in PEM fuel cell cathodes[J]. Journal of Power Sources, 2008,176(2):444-451. doi: 10.1016/j.jpowsour.2007.08.053
[12]	刘冠良, 刘鹏, 余林, 等. 氮掺杂科琴黑碳材料的制备及电催化氧还原性能研究[J]. 无机盐工业, 2019,51(10):84-88.
[13]	Li J S, Zhou Z, Liu K, et al. Co₃O₄/Co-N-C modified ketjenblack carbon as an advanced electrocatalyst for Al-air batteries[J]. Jou-rnal of Power Sources, 2017,343:30-38.
[14]	Li Y Y, Wang L, He X M, et al. Boron-doped Ketjenblack based high performances cathode for rechargeable Li-O₂ batteries[J]. Journal of Energy Chemistry, 2016.Doi: 10.1016/j.jechem.2015.08.011. doi: 10.1016/j.jechem.2015.08.011
[15]	Her L J, Hong J L, Chang C C. Preparation and electrochemical characterizations of poly(3,4-dioxyethylenethiophene)/LiCoO₂-Ketjenblack composite cathode in lithium-ion battery[J]. Journal of Power Sources. 2006,157(1):457-463. doi: 10.1016/j.jpowsour.2005.07.047
[16]	汪文, 王方明, 刘滨, 等. 科琴黑和气相生长碳纤维对石墨烯微片/聚丙烯复合材料性能的影响[J]. 材料科学与工程学报, 2013,31(6):859-862.
[17]	许展铭. 多级孔道Co₃O₄薄膜的制备及其Li-O₂电池正极性质研究[D]. 哈尔滨:哈尔滨工业大学, 2013.
[18]	Takeshi, Ogasawara, Aurelie, et al. Rechargeable Li₂O₂ electrode for lithium batteries.[J]. Cheminform, 2006,128:1390-1393.
[19]	McCloskey B, Scheffler R, Speidelet A, et al. On the efficacy of electrocatalysis in nonaqueous Li-O₂ batteries[J]. Journal of Ame-rian Chemical Society, 2011.Doi: 10.1021/ja207229n. doi: 10.1021/ja207229n
[20]	Bruce P, Freunberger S, Hardwick L, et al. Li-O₂ and Li-S batteri-es with high energy storage[J]. Nature Materials, 2012,11:19-29. doi: 10.1038/nmat3191
