二氧化硅掺杂钛酸锶钡陶瓷的介电性能与电卡效应

doi:10.11962/1006-4990.2019-0266

摘要/Abstract

摘要：

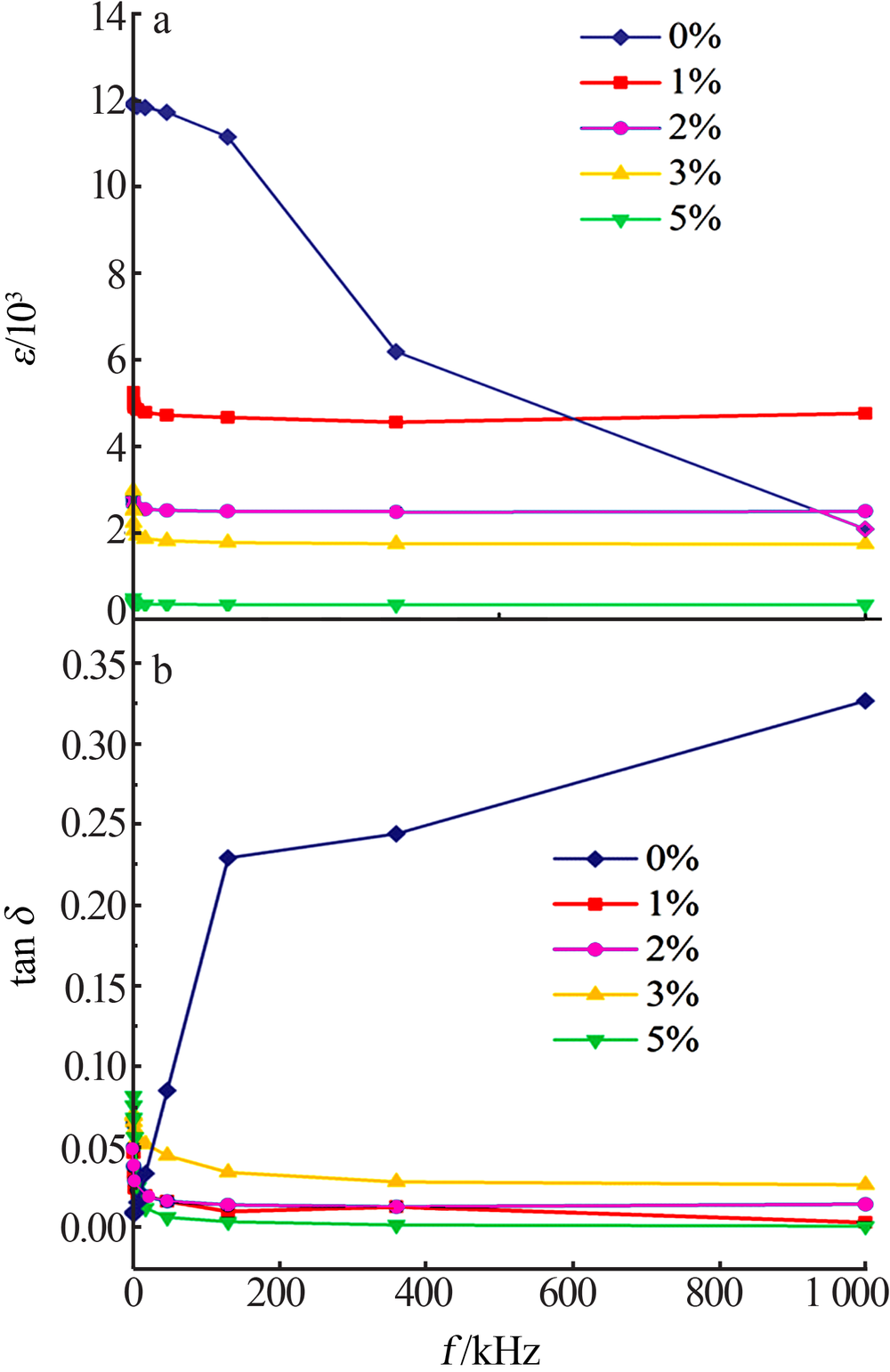

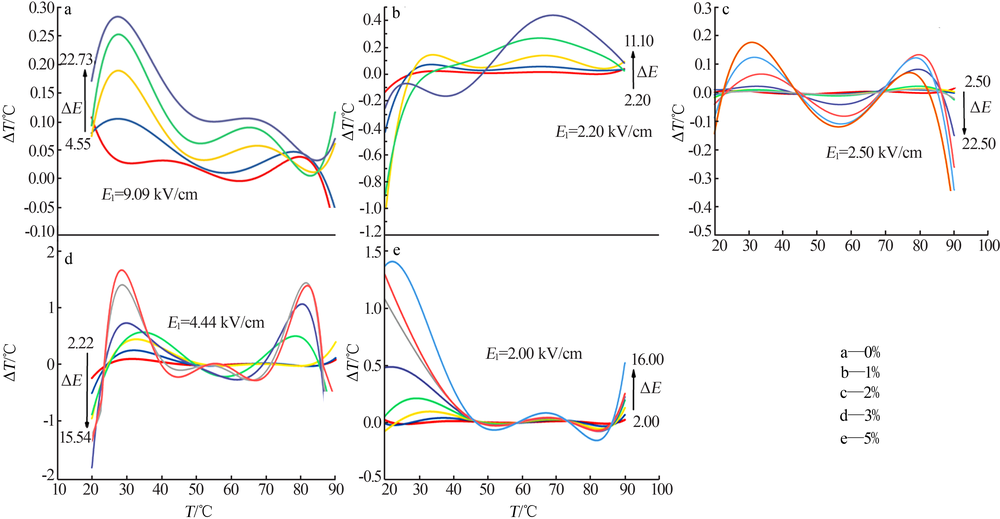

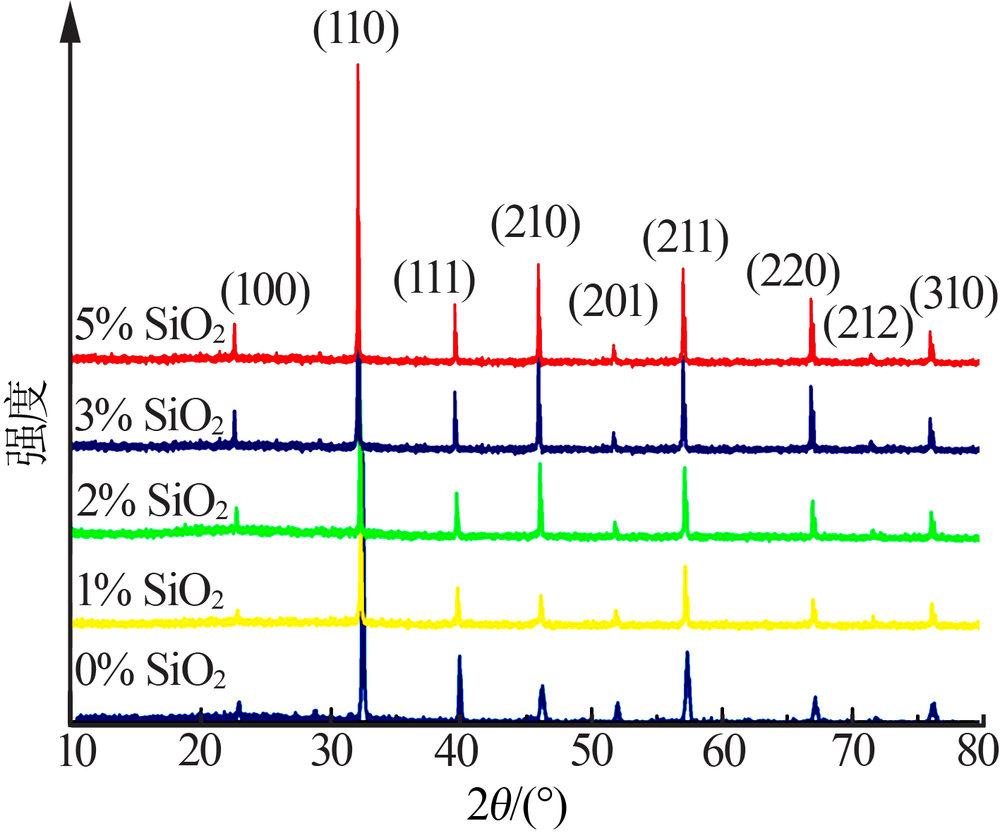

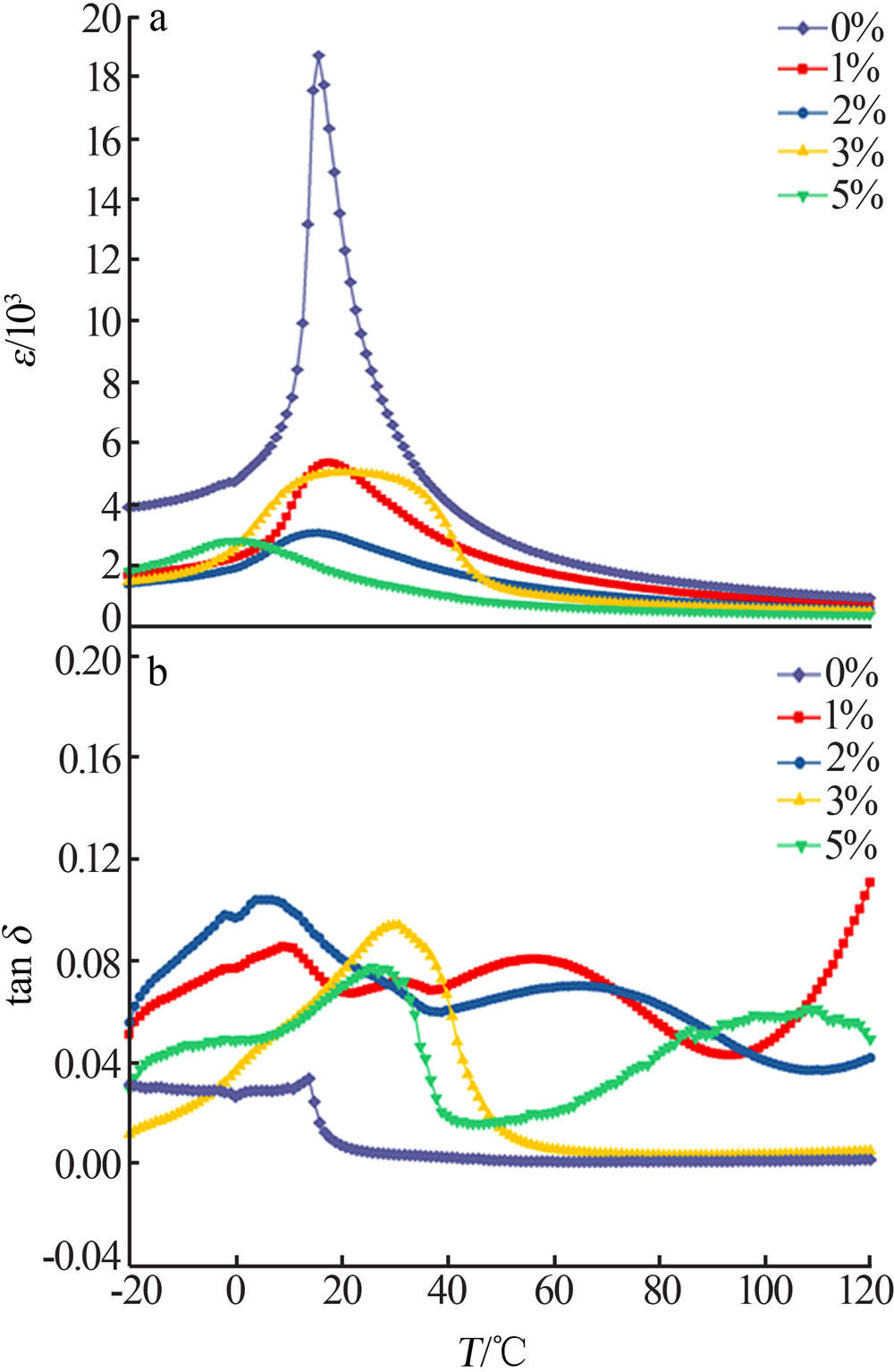

采用传统的固相反应法制备二氧化硅（SiO₂）掺杂钛酸锶钡（Ba_0.65Sr_0.35TiO₃,BST）陶瓷（BST+x%SiO₂）,研究了掺杂二氧化硅对BST陶瓷的物相、微观形貌、介电性能及电卡效应的影响。结果表明：掺杂二氧化硅并未改变BST陶瓷的晶型结构,但有助于提升晶粒的均匀性和材料介电性能频率的稳定性。随着二氧化硅掺杂量增加,BST陶瓷的介电常数呈现单调递减趋势,介电弥散特性逐渐增强。二氧化硅的掺杂有利于提升BST陶瓷的电卡性能,其中BST+3%SiO₂陶瓷具有最优的电卡效应,在30 ℃下可获得最大电卡绝热温变（ΔT_max）,ΔT_max和ΔT_max/ΔE分别为1.6 ℃、8.00×10 ^-7 ℃·m/V,电卡效应半峰宽（T_span）为10 ℃左右。

关键词: 钛酸锶钡陶瓷, 二氧化硅, 介电性能, 电卡效应

Abstract:

SiO₂doped barium strontium titanate（Ba_0.65Sr_0.35TiO₃,BST） ceramics（BST+x%SiO₂） were prepared by traditional solidstate reaction method.The effects of SiO₂ doping on the phase,morphology,dielectric properties and electrocaloric effect of BST ceramics were studied.The results showed that doping SiO₂ didn′t change the crystal structure of BST ceramics,but improved the uniformity of grain and the frequency stability of dielectric properties of BST ceramics.With the increase of SiO₂ content,the dielectric constant decreased monotonously,the dielectric dispersion characteristics increased gradually.The doping of SiO₂ was beneficial to improve the electrocaloric performance of BST ceramics.Among them,BST+3% SiO₂ ceramic possessedthe best electrocaloric effect,and the temperature of the maximum electrocaloric adiabatic temperature change （ΔT_max) was 30 ℃.Its ΔT_max and ΔT_max/ΔE were 1.6 ℃ and 8.00×10 ^-7 ℃·m/V respectively,the half-width of the electrocaloric effect（T_span）was about 10 ℃.

Key words: barium strontium titanate, silica, dielectric properties, electrocaloric effect

中图分类号:

TQ174.752

欧阳林虹,王文倩,王文伟,吴洁茹,薛昊. 二氧化硅掺杂钛酸锶钡陶瓷的介电性能与电卡效应[J]. 无机盐工业, 2020, 52(3): 39-44.

Ouyang Linhong,Wang Wenqian,Wang Wenwei,Wu Jieru,Xue Hao. Dielectric properties and electrocaloric effect of SiO₂ doped Ba_0.65Sr_0.35TiO₃ ceramics[J]. Inorganic Chemicals Industry, 2020, 52(3): 39-44.

图/表 7

图1

图2

图3

图4

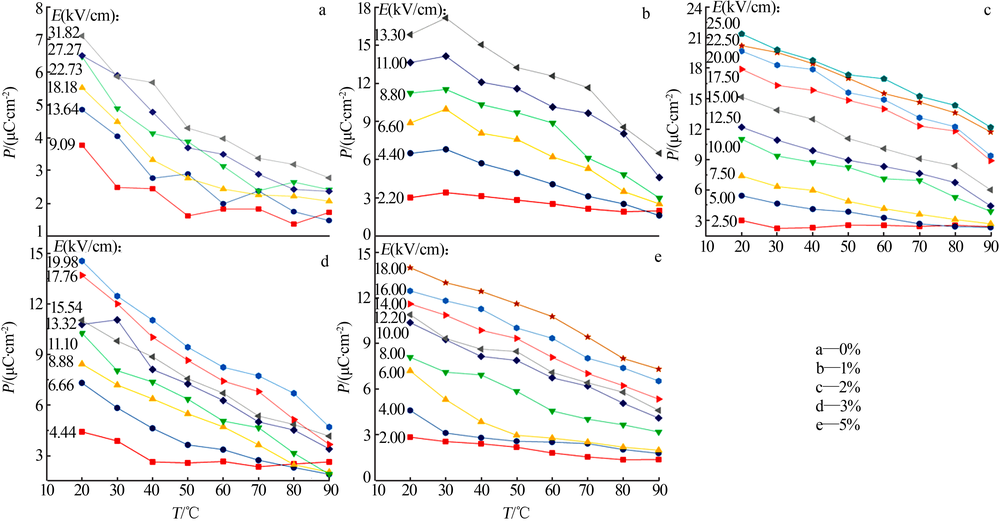

图5

表1

图6

参考文献 20

[1]	Wiseman G G, Kuebler J K . Electrocaloric effect in ferroelectric rochelle salt[J]. Physical Review, 1963,131(5):2023-2027.
[2]	Wu H H, Cohen R E . Polarization rotation and the electrocaloric ef-fect in barium titanate[J]. Journal of Physics:Condensed Matter, 2017,29(48):485704.
[3]	Tuttle B A, Payne D A . The effects of microstructure on the electro-caloric properties of Pb(Zr,Sn,Ti)O₃ ceramics[J]. Ferroelectrics, 1981,37(1):603-606.
[4]	Fuith A, Kabelka H, Birks E , et al. Thermodynamic properties at the phase transition of Pb(Zr,Sn,Ti)O₃ solid solutions[J]. Ferroelectri-cs, 2000,237(1):153-159.
[5]	Ge P Z, Tang X G, Liu Q X , et al. Energy storage properties and elec-trocaloric effect of Ba_0.65Sr_0.35TiO₃ ceramics near room temperatu-re[J]. Journal of Materials Science:Materials in Electronics, 2018,29(2):1075-1081.
[6]	Kumar M, Rani S, Bhatnagar M C , et al. Structure,ferroelectric and gas sensing properties of sol-gel derived(Ba,Sr)(Ti,Zr)O₃ thin films[J]. Materials Chemistry & Physics, 2008,107(2/3):399-403.
[7]	Xu Z, Qiang H . Enhanced electrocaloric effect in Mn+Y co-doped BST ceramics near room temperature[J]. Materials Letters, 2017,191:57-60.
[8]	Liu X Q, Chen T T, Wu Y J , et al. Enhanced electrocaloric effects in spark plasma-sintered Ba_0.65Sr_0.35TiO₃-based ceramics at room temperature[J]. Journal of the American Ceramic Society, 2013,96(4):1021-1023.
[9]	Wu T, Pu Y, Gao P , et al. Influence of Sr/Ba ratio on the energy stor-age properties and dielectric relaxation behaviors of strontium bari-um titanate ceramics[J]. Journal of Materials Science:Materials in Electronics, 2013,24(10):4105-4112.
[10]	陈锋, 刘秋香 . (Ba_0.8Sr_0.2)_1-1.5_xBi_xTiO₃陶瓷的弥散相变和高温介电异常研究[J]. 广东工业大学学报, 2016,33(5):69-76.
[11]	Tang X F, Tang Z L, Zhou Z G . Complex impedance spectra of BaTiO₃ based PTCR ceramics[J]. Journal of Inorganic Materials, 2000,15(6):1037-1042.
[12]	Arlt G, Peusens H . The dielectric constant of coarse grained BaTiO₃ ceramics[J]. Ferroelectrics, 1983,48(1):213-224.
[13]	Buessem W R, Cross L E, Goswami A K . Phenomenological theory of high permittivity in fine-grained barium titanate[J]. Journal of the American Ceramic Society, 1966,49(1):33-36.
[14]	张庆猛, 董桂霞, 崔建东 , 等. BaO-SiO₂-B₂O₃玻璃添加剂对Ba_0.4Sr_0.6TiO₃陶瓷致密度和介电性能的影响[J]. 材料导报, 2008,22(Z2):339-341,347.
[15]	庄后荣, 杨继安, 李艳红 , 等. 钛酸锶钡陶瓷的制备及介电性能[J]. 粉末冶金材料科学与工程, 2012,17(5):650-656.
[16]	Bai Y, Qin S, Nie W , et al. Influence of microstructure features on electrocaloric effect in ferroelectric ceramics[J]. Ceramics Interna-tional, 2018,44(7):8263-8269.
[17]	Hong X K, Hu G J, Chen J , et al. Structural and electric properties of sol-gel-derived Ba_0.9Sr_0.1TiO₃ multilayers[J]. Journal of the Am-erican Ceramic Society, 2007,90(4):1280-1282.
[18]	Yoo J H, Gao W, Yoon K H . Pyroelectric and dielectric bolometer properties of Sr modified BaTiO₃ ceramics[J]. Journal of Materials Science, 1999,34(21):5361-5369.
[19]	陈墨 . 热压烧结PLZT陶瓷的电卡特性及温区展宽效应研究[D]. 武汉:华中科技大学, 2017.
[20]	Valant M . Electrocaloric materials for future solid-state refrigeration technologies[J]. Progress in Materials Science, 2012,57(6):980-1009.

陶瓷材料	ρ/ （g·cm^-3）	C_E/ （J·kg^-1·℃^-1）	陶瓷材料	ρ/ （g·cm^-3）	C_E/ （J·kg^-1·℃^-1）
BST+0%SiO₂	5.62	500	BST+3%SiO₂	5.69	831
BST+1%SiO₂	5.46	756	BST+5%SiO₂	5.44	885
BST+2%SiO₂	5.58	757
