氧化铈-二氧化硅介孔材料制备及对铜离子的吸附性能

doi:10.11962/1006-4990.2020-0049

摘要/Abstract

摘要：

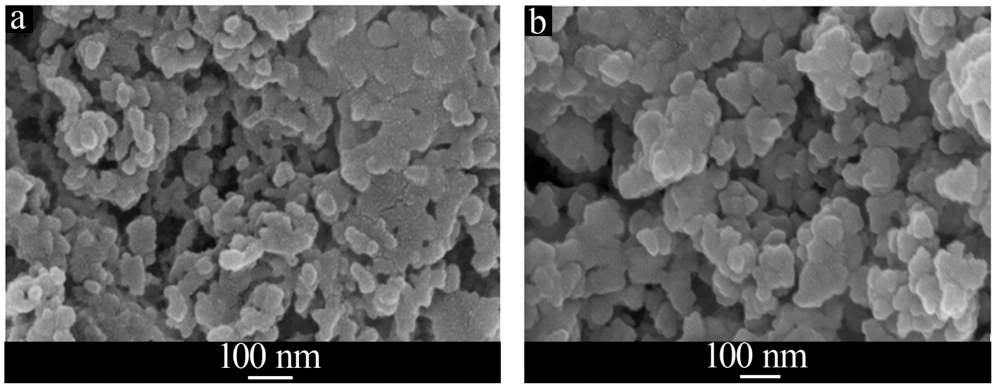

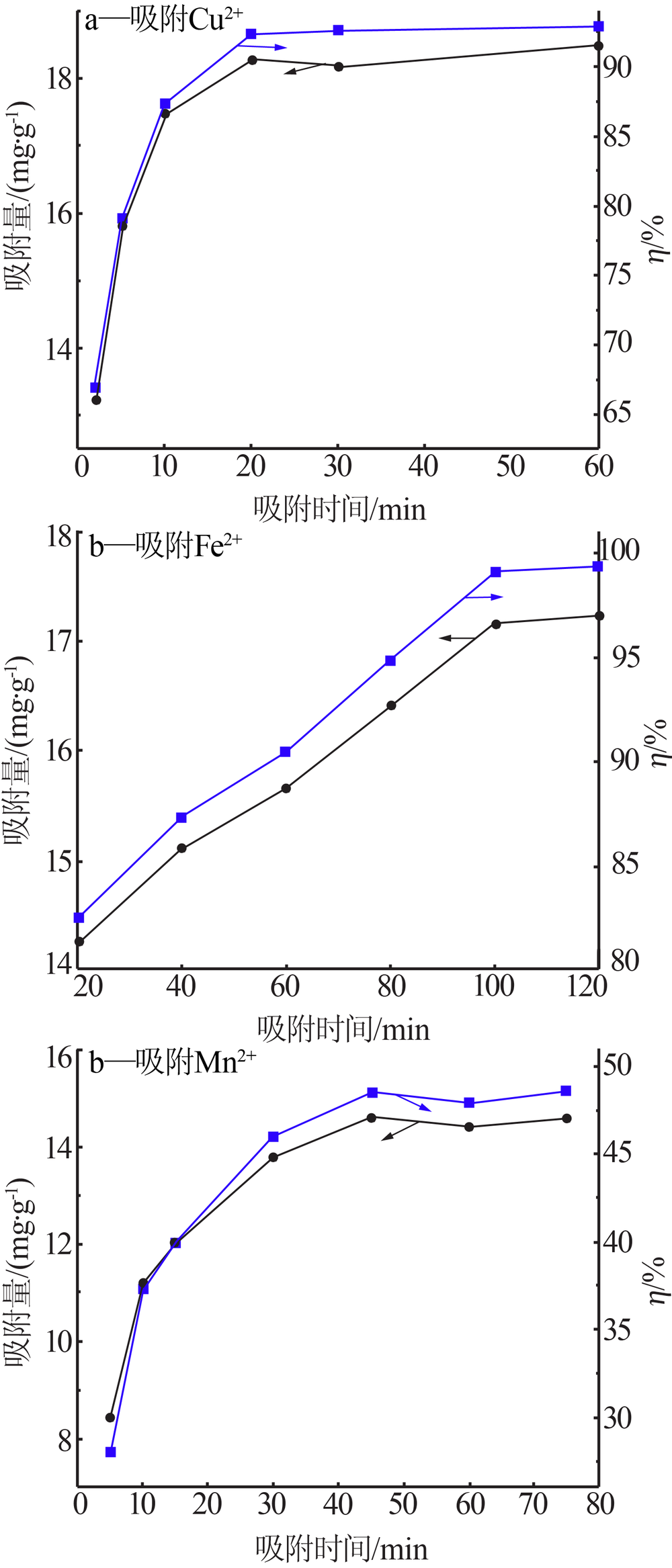

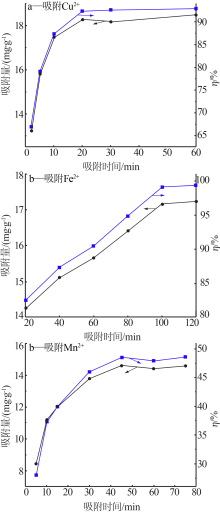

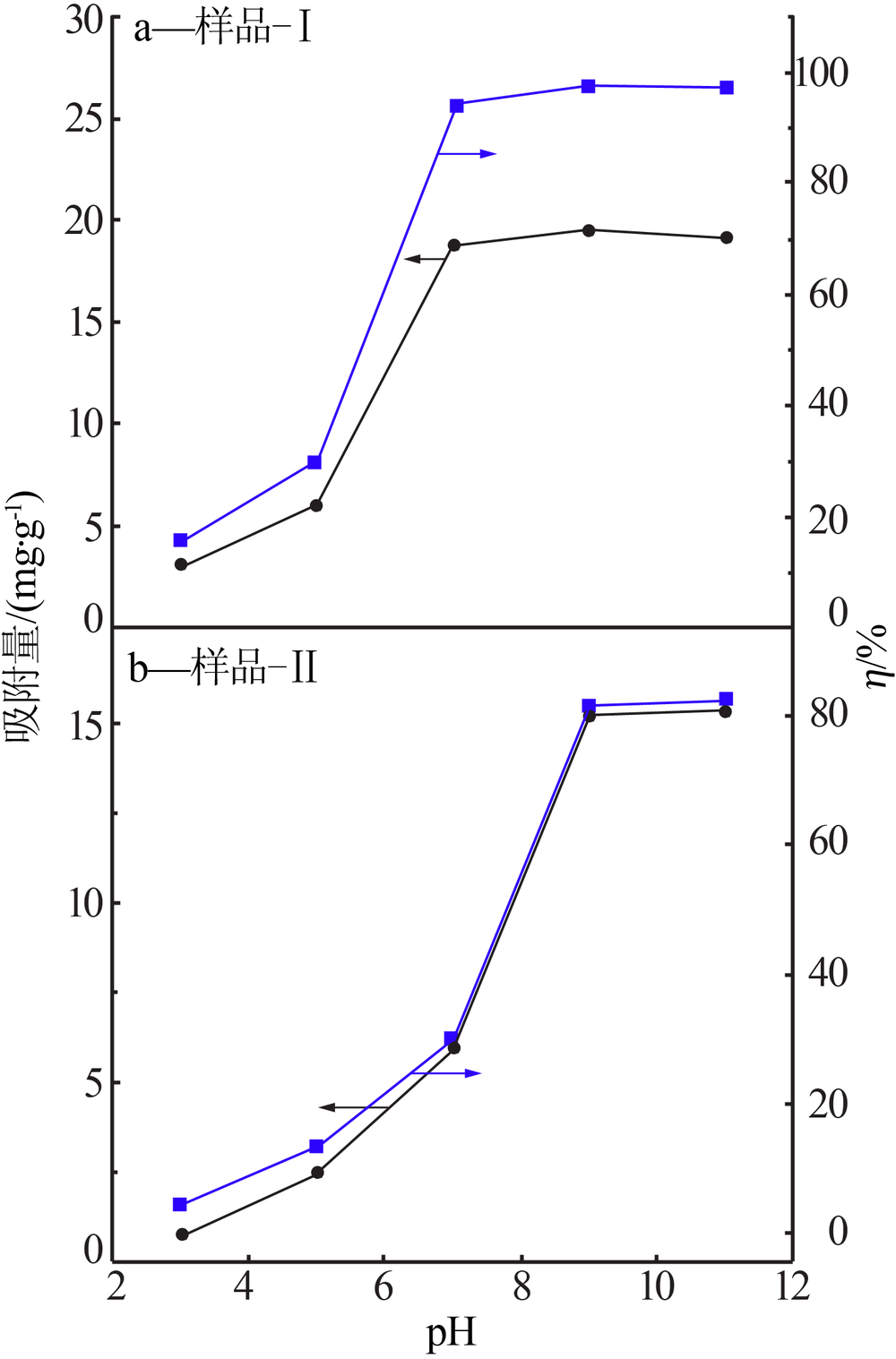

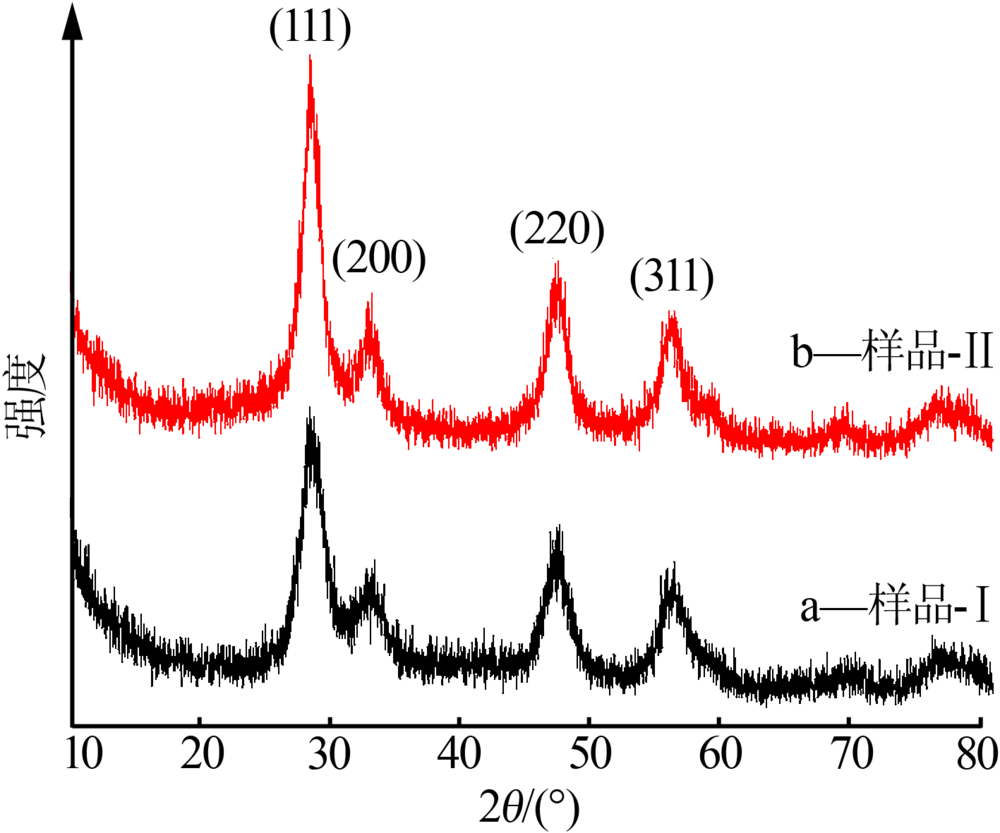

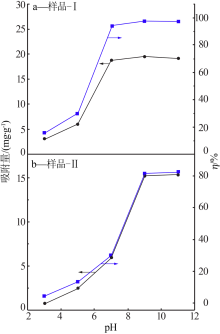

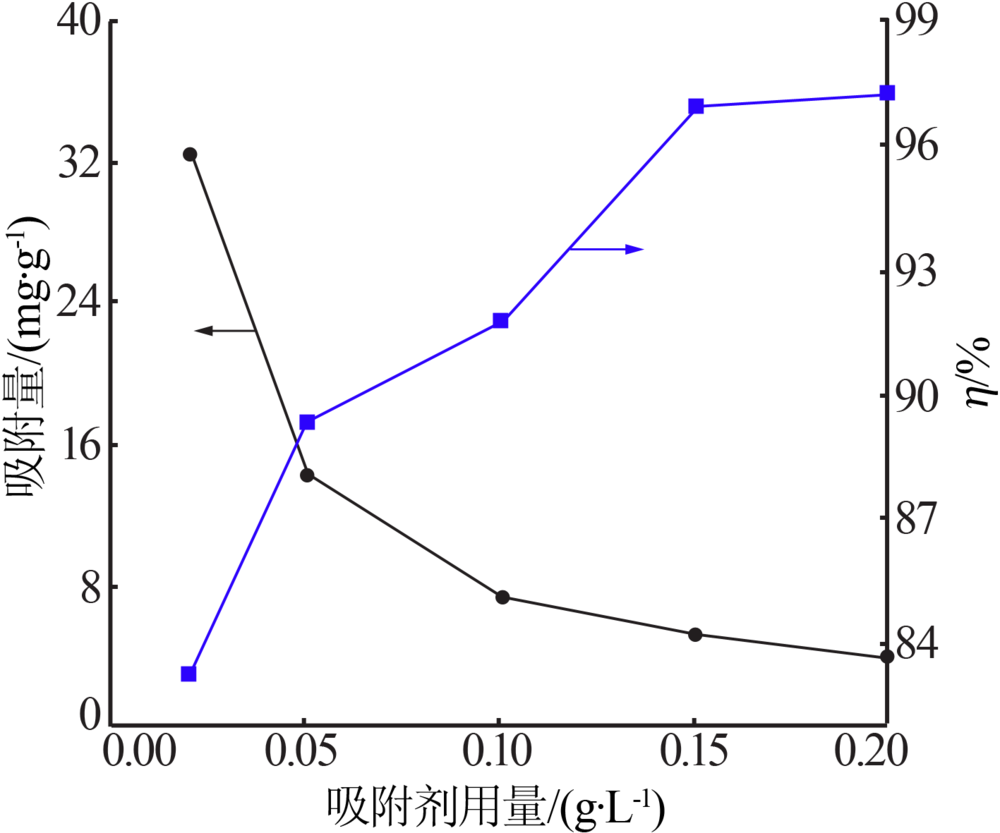

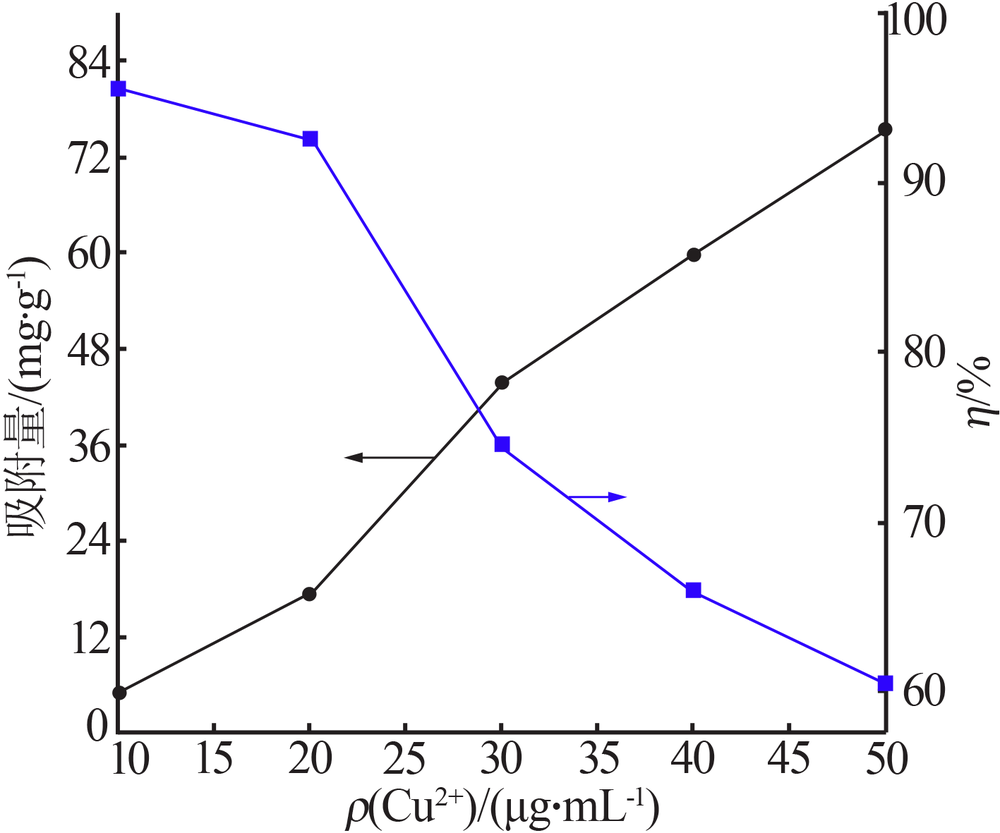

采用共沉淀法和沉淀浸渍法制备了纳米氧化铈-二氧化硅（CeO₂-SiO₂）介孔材料吸附剂,主要考察了其对水中铜离子（Cu²⁺）的吸附行为。通过X射线衍射（XRD）、扫描电镜（SEM）和氮吸附（BET）等手段对合成的介孔材料进行了性能表征,并通过静态吸附实验分析了溶液pH、溶液初始金属离子质量浓度、吸附剂用量、吸附时间等条件对介孔材料吸附Cu²⁺性能的影响。结果表明：共沉淀法制备的纳米CeO₂-SiO₂介孔材料对Cu²⁺的去除效果较沉淀浸渍法要好;当溶液pH=7.0时CeO₂-SiO₂介孔材料对Cu²⁺的吸附效果最好,20 min时基本达到吸附平衡;溶液初始Cu²⁺浓度增大Cu²⁺去除率降低,Cu²⁺累计吸附量增大;随着吸附剂用量增加Cu²⁺去除率增大,当CeO₂-SiO₂吸附剂用量为0.15 g/L时对Cu²⁺的去除率趋于稳定;CeO₂-SiO₂吸附剂对不同金属离子吸附性能由大到小的顺序为Cu²⁺、Fe²⁺、Mn²⁺,该吸附过程均符合准二级动力学模型。

关键词: 氧化铈-二氧化硅, 介孔材料, 铜离子, 吸附性能

Abstract:

The CeO₂-SiO₂ mesoporous material adsorbent was prepared by co-precipitaion method and precipitation impregnation method.Adsorption behavior of CeO₂-SiO₂ for Cu ²⁺ ions in water was studied.The prepared material were characterized by XRD,SEM and BET etc.,and the effect of the conditions,such as pH of solution, initial concentration of metal ion in solution,adsorbent amount and adsorption time,on the adsorption property of CeO₂-SiO₂ was analyzed by static adsorption experiment.The results showed that the removal effect of CeO₂-SiO₂ mesoporous material prepared by co-precipitaion method for Cu²⁺ was better than precipitation impregnation method.The best adsorption efficiency of CeO₂-SiO₂ mesoporous material for Cu²⁺ was obtained at pH=7.0 and then the adsorption equilibrium was almost reached at 20 min.With the increasing of the initial concentration of Cu²⁺ in solution, the removal rate of Cu²⁺ decreased and the cumulative adsorption quantity of Cu²⁺ increased.The removal rate of Cu²⁺increased with the increasing of the adsorbent amount,and the removal rate of Cu²⁺ tended to be stable when the amount of CeO₂-SiO₂ adsorbent was 0.15 g/L.The adsorption property of CeO₂-SiO₂ adsorption for different metal ions was acording from big to small as follows：Cu²⁺,Fe²⁺ and Mn²⁺,which met the quasi second-order kinetic model.

Key words: CeO₂-SiO₂, mesoporous material, copper ion, adsorption property

中图分类号:

TQ133.3

李友凤,敖克厚,樊磊磊,黄志刚. 氧化铈-二氧化硅介孔材料制备及对铜离子的吸附性能[J]. 无机盐工业, 2020, 52(12): 34-39.

Li Youfeng,Ao Kehou,Fan Leilei,Huang Zhigang. Preparation of CeO₂-SiO₂ mesoporous material and its adsorption property for copper ions[J]. Inorganic Chemicals Industry, 2020, 52(12): 34-39.

图/表 10

图1

图2

表1

图3

图4

图5

图6

图7

图8

表2

参考文献 20

[1]	Dy W Q, Cao W, Zhou H. Optimization and the mechanism in treattment of heavy metals wastewater with magnetic biochar[J]. Acta Scientiae Circumstantiae, 2018,38(2):492-500.
[2]	Lu P, Nuhfer N T, Kelly S, et al. Lead coprecipitation with iron oxyhydroxide nano-particles[J]. Geochimica et Cosmochimica Acta, 2011,75(16):4547-4561.
[3]	Fu F L, Wang Q. Removal of heavy metal ions from wastewaters:A review[J]. Journal of Environmental Management, 2011,92(3):407-418. pmid: 21138785
[4]	Niu Y L, Hu W, Guo M M, et al. Preparation of cotton-based fibrous adsorbents for the removal of heavy metal ions[J]. Carbohydrate Polymers, 2019,225:115218. pmid: 31521284
[5]	Bessbousse H, Rhlalou T, Verchere J F, et al. Sorption and filtration of Hg(Ⅱ) ions from aqueous solutions with a membrane containing poly(ethyleneimine) as a complexing polymer[J]. Journal of Membrane Science, 2008,325(2):997-1006.
[6]	Vatanpour V, Madaeni S S, Zinadini S, et al. Development of ion imprinted technique for designing nickel ion selective membrane[J]. Journal of Membrane Science, 2011,373(1):36-42.
[7]	Nilchi A, Hadjmohammadi M, Garmarodi S R, et al. Studies on the adsorption behavior of trace amounts of ⁹⁰Sr²⁺,¹⁴⁰La³⁺,⁶⁰Co²⁺,Ni²⁺ and Zr⁴⁺ cations on synthesized inorganic ion exchangers[J]. Journal of Hazardous Materials, 2009,167(1):531-535.
[8]	Kumniawan T A, Chan G Y S, Lo W H, et al. Physico-chemical treatment techniques for wastewater laden with heavy metals[J]. Chemical Engineering Journal, 2006,118(1/2):83-89.
[9]	张帆, 李菁, 谭建华, 等. 吸附法处理重金属废水的研究进展[J]. 化工进展, 2013,32(11):2749-2756.
[10]	Ma L P, Mao Y, Chen J T, et al. Removal of Cd-Pb-Hg heavy metal ion from simulation MSW incineration flue gas by modified mineral adsorbents[J]. Frontier of Environment Science, 2014,3(3):109-118.
[11]	Wei J P, Li H Q, Liu Y Y, et al. A review on heavy metal ions adsorption from water by graphene oxide and its composites[J]. Journal of Molecular Liquids, 2017,230:496-504.
[12]	孙天一, 赵志伟, 时文歆, 等. 磁性CeO₂-Fe₃O₄复合材料光催化/吸附去除水中As(Ⅲ)[J]. 环境科学, 2018,38(8):3108-3117.
[13]	田志茗, 高艳丽, 孙美玉. 纳米CeO₂的制备及其吸附苯酚性能的研究[J]. 石油化工, 2011,40(11):1242-1246.
[14]	李荣辉, 郏义征. 氧化铈纳米晶的制备和除砷动力学研究[J]. 水处理技术, 2019,45(1):66-69,74.
[15]	张金洋, 黄敏, 李琴, 等. 纳米CeO₂吸附剂的制备及对六价铬的吸附性能[J]. 人工晶体学报, 2018,47(8):1662-1669.
[16]	王帆, 韦悦周, 王开拓, 等. CeO₂@SiO₂微球吸附剂的制备及对氟离子的高校吸附[J]. 广西大学学报:自然科学版, 2018,43(6):2355-2363.
[17]	李友凤, 刘国清, 曾令玮, 等. Fe₂O₃-CeO₂光催化剂的制备及其催化性能[J]. 石油学报:石油加工, 2018,34(5):912-919.
[18]	Tseng R L, Wu F C, Juang R S. Characteristics and applications of the Lagergren′s first-order equation for adsorption kinetics[J]. Journal of the Taiwan Institute of Chemical Engineers, 2010,41(6):661-669.
[19]	Ho Y S, Mckay G. Pseudo-second order model for sorption processes[J]. Process Biochemistry, 1999,34(5):451-465.
[20]	黄君涛, 熊帆, 谢伟立, 等. 吸附法处理重金属废水研究进展[J]. 水处理技术, 2006,32(2):9-12.

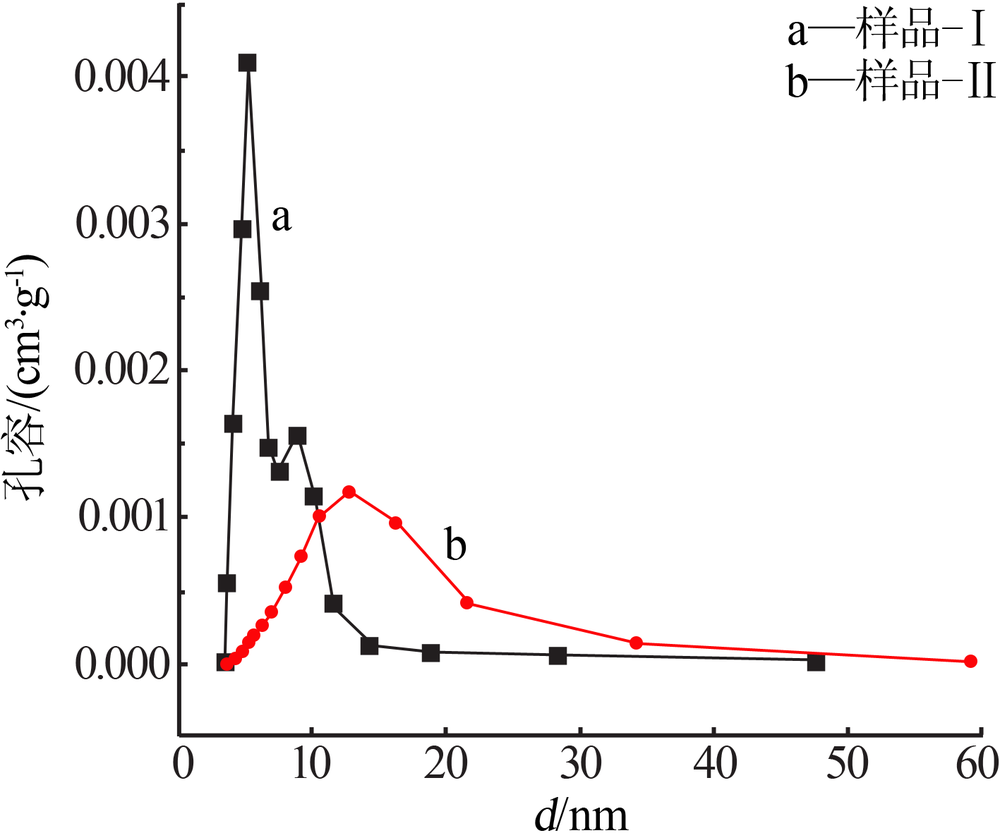

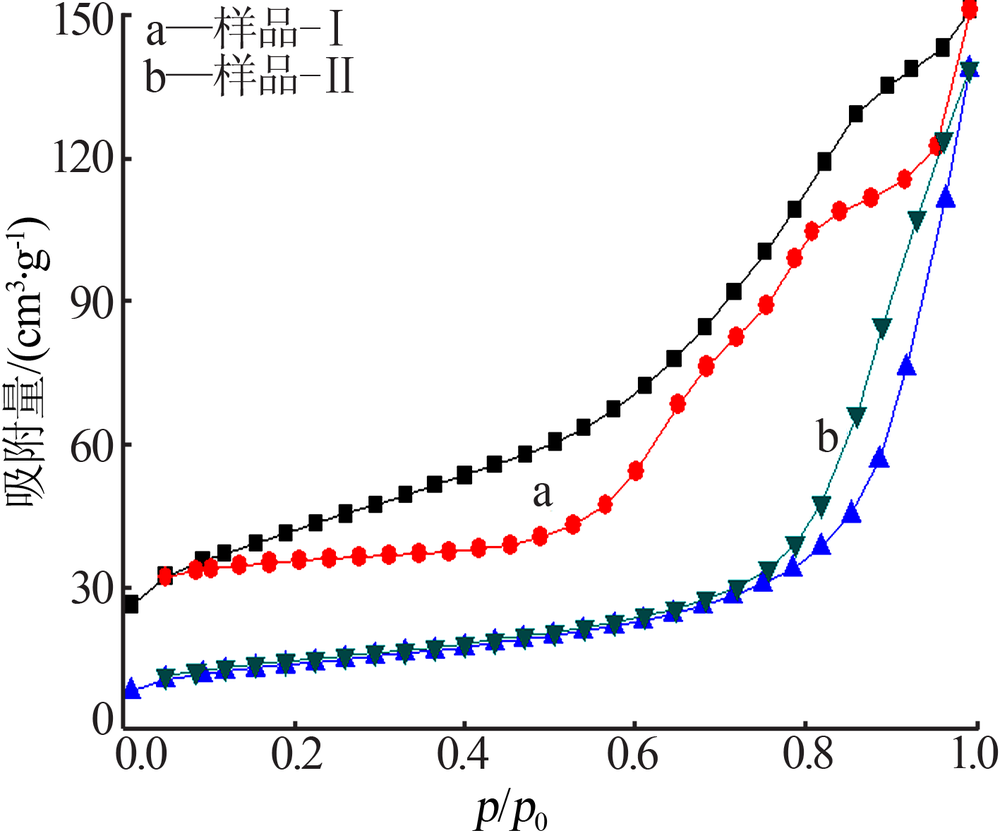

样品	A/（m²·g^-1）	V/（cm³·g^-1）	d_p /nm
样品-Ⅰ	147.599 6	0.233 8	6.336
样品-Ⅱ	112.154 7	0.214 6	17.771

动力学模型		R²	k	Q_e
一级动力学模拟	Cu²⁺	0.406 2	0.015 90	8.95
二级动力学模拟	Cu²⁺	0.999 9	0.052 33	19.30
	Fe²⁺	0.997 6	0.054 83	18.20
	Mn²⁺	0.998 9	0.064 31	15.50
