纳米氧化铝浆料制备及用于改性锂电池正极材料

doi:10.19964/j.issn.1006-4990.2023-0062

Abstract

Abstract:

In order to develop a more simple and efficient method of alumina modified cathode materials，and improve the rate and cycle performance of lithium battery cathode materials，the preparation of nano-alumina slurry with Ammonium polyacrylate（PAANH₄） as dispersant and the coating of nano-alumina on the cathode material LiNi_0.8Co_0.1Mn_0.1O₂ were studied.Through the experiment，it was optimized that the particle size of nano-alumina was smaller and uniform，when the addition amount of PAANH₄ was 4% ，and the milling time was 8 h.This nano-alumina slurry was used to modify the cathode material of lithium ion battery.It was found that the addition of alumina did not change the surface morphology，particle size and crystal structure of the cathode material.In the electrochemical performance test，when the alumina coating amount was 0.3%（mass fraction），better enhanced rate performance was obtained，and when the alumina coating amount was 0.5%（mass fraction），better cycling stability was obtained.At 1C rate，the capacity retention rates of uncoated and 0.5%（mass fraction）alumina-coated cathode materials were 75.61% and 84.93% after 100 times，respectively.

Key words: nano-alumina slurry, surface modification, cathode material, lithium-ion battery

CLC Number:

TQ133.1

TIAN Peng, XU Jingang, XU Qianjin, LIU Kunji, PANG Hongchang, NING Guiling. Preparation of nano-alumina slurry and its application in modifying lithium-ion battery cathode material[J]. Inorganic Chemicals Industry, 2023, 55(12): 43-49.

Figures/Tables 5

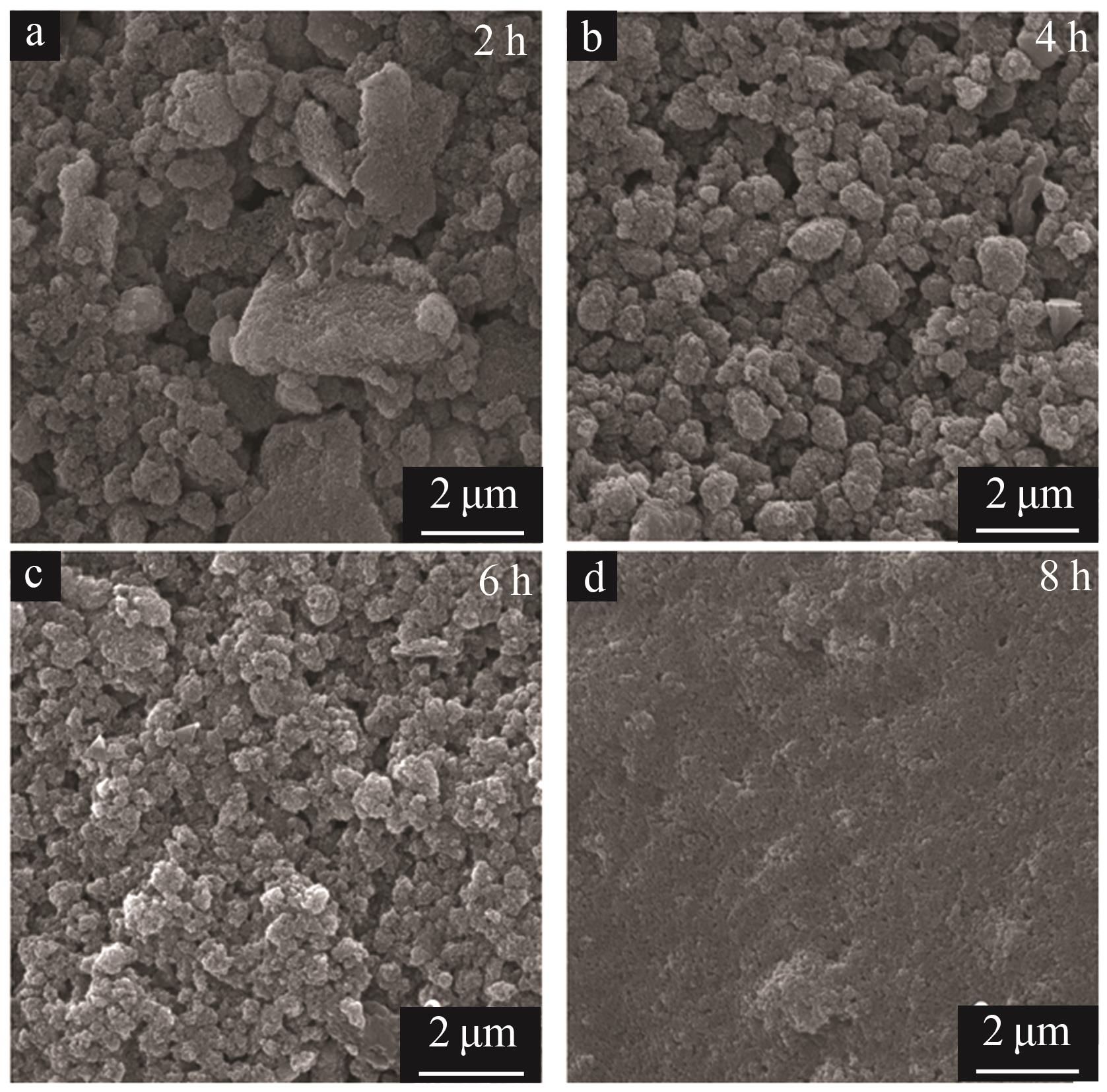

Fig.1

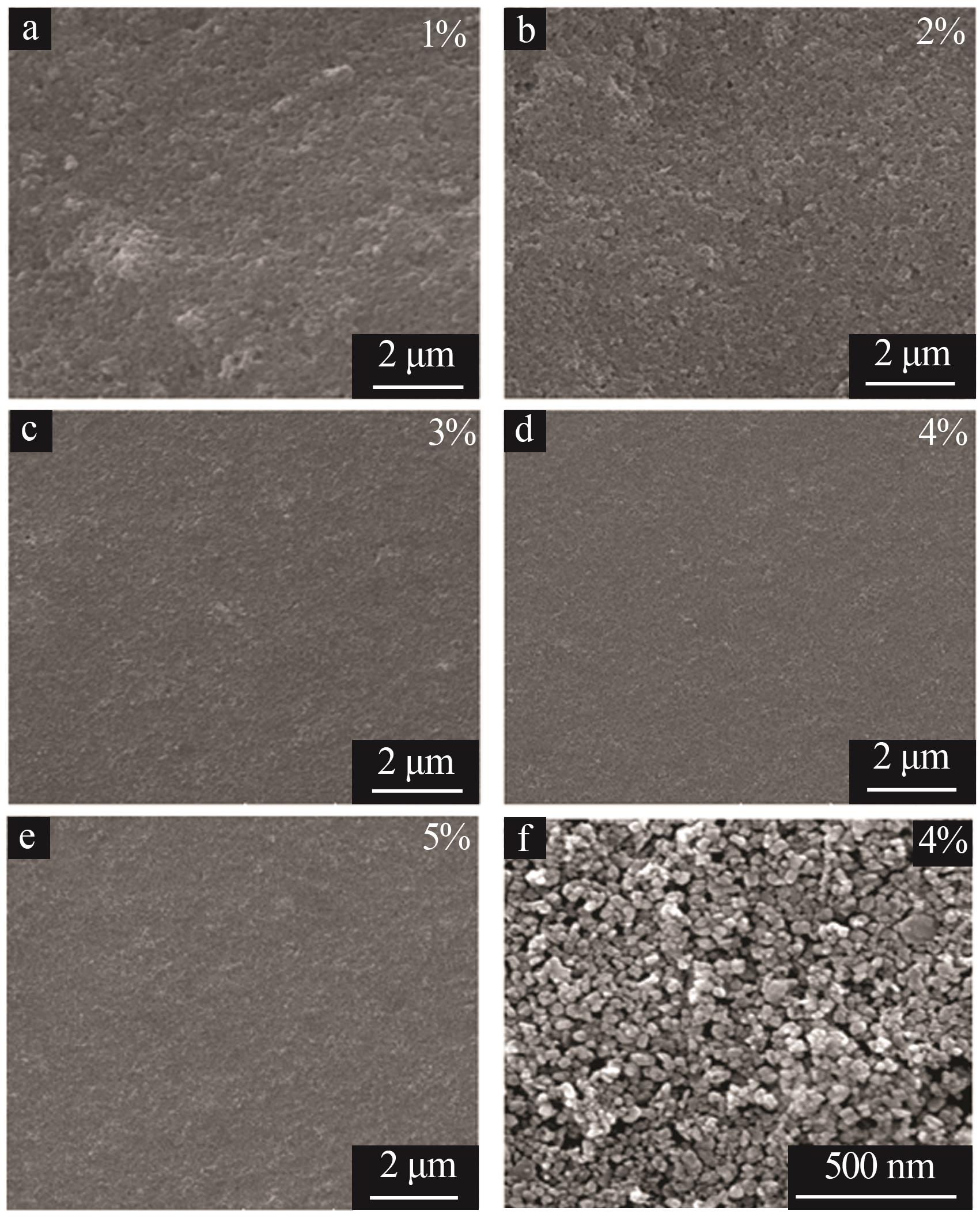

Fig.2

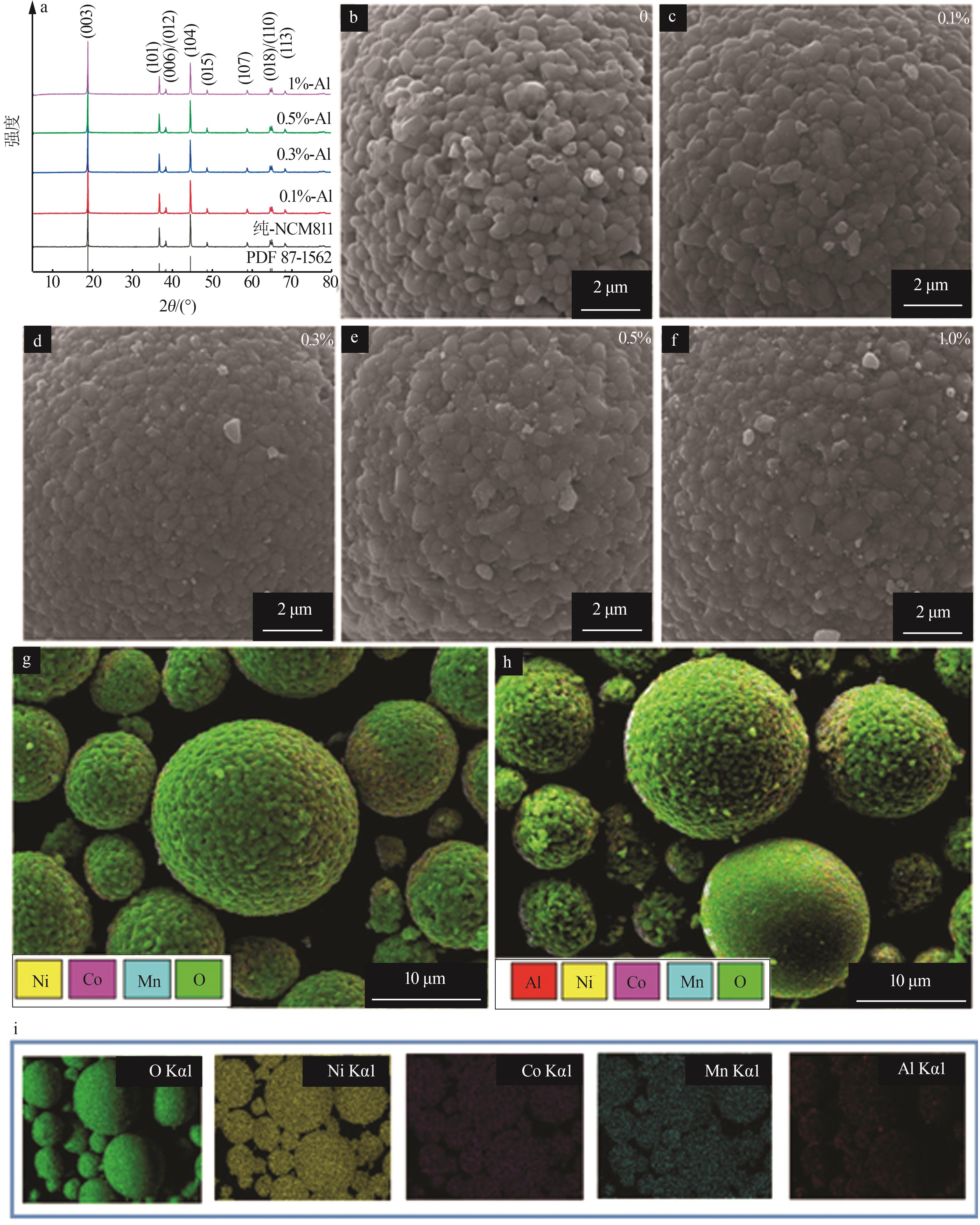

Fig.3

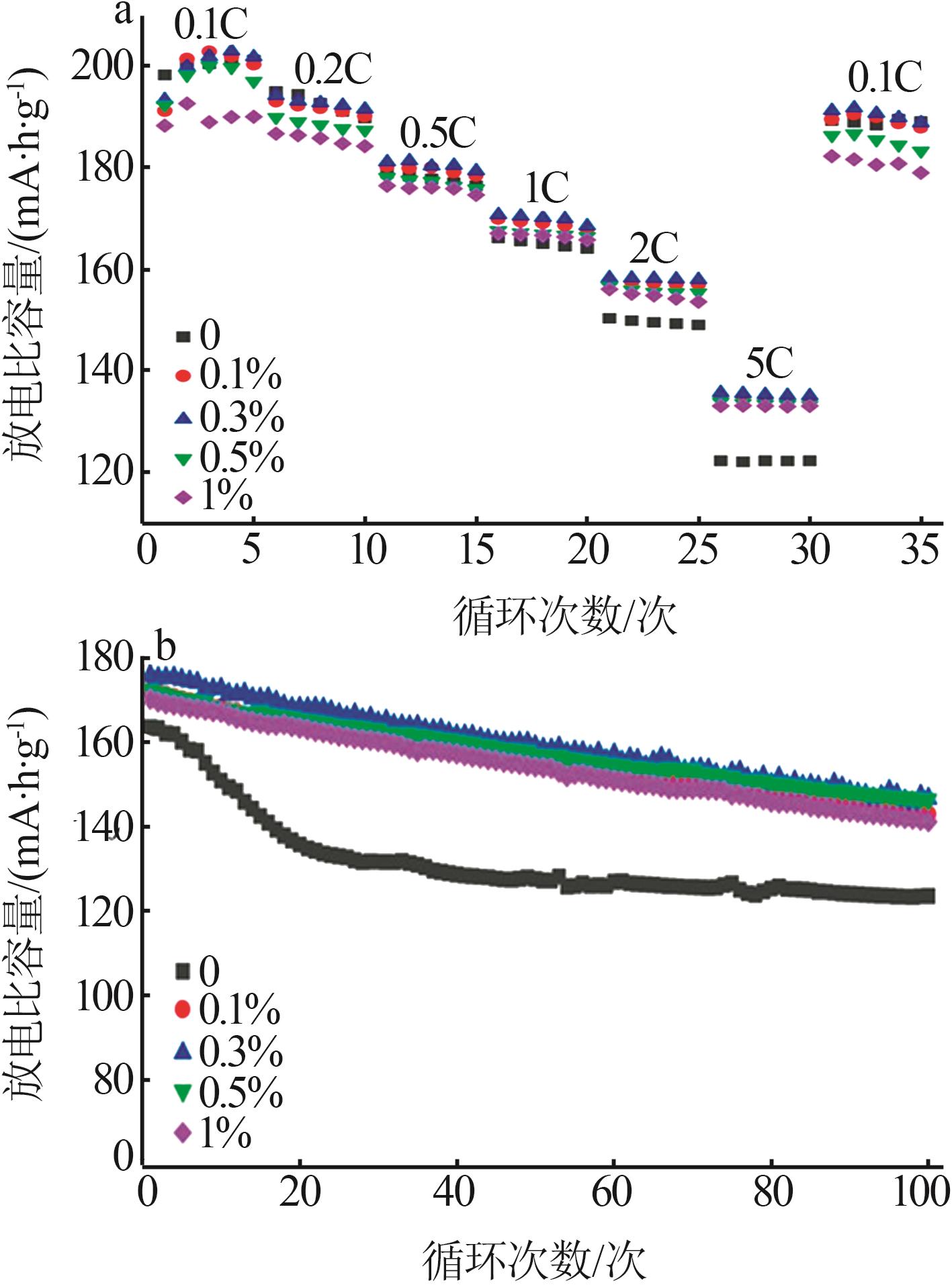

Fig.4

Table 1

References 42

1	ZHAO Shuoqing， GUO Ziqi， YAN Kang，et al.Towards high-energy-density lithium-ion batteries：Strategies for developing high-capacity lithium-rich cathode materials［J］.Energy Storage Materials，2021，34：716-734.
2	SHAFIQ S， IRSHAD U BIN， AL-MUHAINI M，et al.Reliability evaluation of composite power systems：Evaluating the impact of full and plug-in hybrid electric vehicles［J］.IEEE Access，2020，8：114305-114314.
3	EL-HENDAWI M， WANG Zhanle， PARANJAPE R，et al.Electric vehicle charging model in the urban residential sector［J］.Energies，2022，15（13）：4901.
4	WU Weitiao， LIN Yue， LIU Ronghui，et al.Online EV charge scheduling based on time-of-use pricing and peak load minimization：Properties and efficient algorithms［J］.IEEE Transactions on Intelligent Transportation Systems，2022，23（1）：572-586.［LinkOut］
5	OR T， GOURLEY S W D， KALIYAPPAN K，et al.Recycling of mixed cathode lithium-ion batteries for electric vehicles：Current status and future outlook［J］.Carbon Energy，2020，2（1）：6-43.
6	GOODENOUGH J B， PARK K S.The Li-ion rechargeable battery：A perspective［J］.Journal of the American Chemical Society，2013， 135（4）：1167-1176.
7	ZHAO Shuoqing， YAN Kang， ZHANG Jinqiang，et al.Reaction mechanisms of layered lithium-rich cathode materials for high-energy lithium-ion batteries［J］.Angewandte Chemie International Edition，2021，60（5）：2208-2220.
8	LEE W， MUHAMMAD S， SERGEY C，et al.Advances in the cathode materials for lithium rechargeable batteries［J］.Angewandte Chemie（International Ed.in English），2020，59（7）：2578-2605.
9	ZHOU Dingyanyan， GUO Xiaotian， ZHANG Qinyi，et al.Nickel-based materials for advanced rechargeable batteries［J］.Advanced Functional Materials，2022，32（12）：2107928.
10	YU Haifeng， WANG Shouliang， HU Yanjie，et al.Lithium-conductive LiNbO₃ coated high-voltage LiNi_0.5Co_0.2Mn_0.3O₂ cathode with enhanced rate and cyclability［J］.Green Energy & Environment，2022，7（2）：266-274.
11	HU Qiao， HE Yufang， REN Dongsheng，et al.Targeted masking enables stable cycling of LiNi_0.6Co_0.2Mn_0.2O₂ at 4.6V［J］.Nano Energy，2022，96：107123.
12	KIM H K， KANG H S， SANTHOSHKUMAR P，et al.Surface modification of Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ with perovskite LaFeO₃ for high voltage cathode materials［J］.RSC Advances，2021，11（35）：21685-21694.
13	WOOD D L， WOOD M， LI Jianlin，et al.Perspectives on the relationship between materials chemistry and roll-to-roll electrode manufacturing for high-energy lithium-ion batteries［J］.Energy Storage Materials，2020，29：254-265.
14	AMIN R， MURALIDHARAN N， PETLA R K，et al.Research advances on cobalt-free cathodes for Li-ion batteries-the high voltage LiMn_1.5Ni_0.5O₄ as an example［J］.Journal of Power Sources，2020，467.Doi：10.1016/j.jpowsour.2020.228318.
15	NISAR U， MURALIDHARAN N， ESSEHLI R，et al.Valuation of surface coatings in high-energy density lithium-ion battery cathode materials［J］.Energy Storage Materials，2021，38：309-328.
16	徐前进，徐金钢，田朋，等.氧化铝包覆锂离子电池正极材料的研究进展［J］.无机盐工业，2023，55（1）：46-55，117.
	XU Qianjin， XU Jingang， TIAN Peng，et al.Research progress of alumina coated cathode materials for lithium-ion batteries［J］.Inorganic Chemicals Industry，2023，55（1）：46-55，117.
17	MA Ben， HUANG Xiao， LIU Zhaofeng，et al.Al₂O₃ coated single-crystalline hexagonal nanosheets of LiNi_0.6Co_0.2Mn_0.2O₂ cathode materials for the high-performance lithium-ion batteries［J］.Journal of Materials Science，2022，57（4）：2857-2869.
18	LI Yan， LIU Xiang， REN Dongsheng，et al.Toward a high-voltage fast-charging pouch cell with TiO₂ cathode coating and enhanced battery safety［J］.Nano Energy，2020，71：104643.
19	LI Yunyan， LI Xifei， HU Junhua，et al.ZnO interface modified LiNi_0.6Co_0.2Mn_0.2O₂ toward boosting lithium storage［J］.Energy & Environmental Materials，2020，3（4）：522-528.
20	WEI Jian， LIANG Di， JI Yuxuan，et al.Enhanced electrochemical performance of cobalt oxide layers coated LiNi₀.₈Co 0.1Mn0.₁O₂by polyvinylpyrrolidone-assisted method cathode for Li-ion batteri-es［J］.Journal of Colloid and Interface Science，2022，616：520- 531.
21	JUNG H， PARK W， HOLDER J，et al.Electrochemical properties of high nickel content Li（Ni_0.7Co_0.2Mn_0.1）O₂ with an alumina thin-coating layer as a cathode material for lithium ion batteries［J］.Journal of Nanoscience and Nanotechnology，2020，20（10）：6505-6511.
22	SUN Hao， REN Yurong， LIU Zhen，et al.Enhanced electrochemical properties of Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ coated with Al₂O₃ nano-film［J］.Vacuum，2021，183：109757.
23	HERZOG M J， ESKEN D， JANEK J.Improved cycling performance of high-nickel NMC by dry powder coating with nanostructured fumed Al₂O₃，TiO₂，and ZrO₂：A comparison［J］.Batteries & Supercaps，2021，4（6）：1003-1017.
24	YU Han， HE Xiaoqing， LIANG Xinhua.AlF₃-Al₂O₃ ALD thin-film-coated Li_1.2Mn_0.54Co_0.13Ni_0.13O₂ particles for lithium-ion batteries：Long-term protection［J］.ACS Applied Materials & Interfaces，2022，14（3）：3991-4003.
25	KIM Y J， KIM H， KIM B，et al.Electrochemical stability of thin-film LiCoO₂ cathodes by aluminum-oxide coating［J］.Chemistry of Materials，2003，15（7）：1505-1511.
26	胡继林，刘琼，罗祎格，等.球磨时间及测试条件对氧化铝粉体粒度分析的影响［J］.无机盐工业，2017，49（4）：64-67.
	HU Jilin， LIU Qiong， LUO Yige，et al.Effects of milling time and testing conditions on particle size analysis of alumina powde-rs［J］.Inorganic Chemicals Industry，2017，49（4）：64-67.
27	李仲谨，王芬，魏红，等.聚丙烯酸铵对氧化铝料浆分散行为的研究［J］.陶瓷，2002（5）：27-30.
28	CHEN Gang， PENG Biyou， HAN Rui，et al.A robust carbon coating strategy toward Ni-rich lithium cathodes［J］.Ceramics International，2020，46（13）：20985-20992.
29	YANG Chengsheng， LI Yuyu， ZHANG Xuanxuan，et al.Enhanced cyclic stability of LiNi_0.8Co_0.1Mn_0.1O₂（NCM811） by AlF₃ coating via atomic layer deposition［J］.Ionics，2022，28（10）：4547-4554.
30	陈良丹，邹伟，吴亮，等.纳米Al₂O₃包覆富锂锰基正极材料Li_1.2Ni_0.13Co_0.13Mn_0.54O₂的性能研究［J］.高等学校化学学报，2020，41（6）：1329-1336.
	CHEN Liangdan， ZOU Wei， WU Liang，et al.Nano-Al₂O₃ coated Li-rich cathode material Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ for highly improved lithium-ion batteries［J］.Chemical Journal of Chinese Universities，2020，41（6）：1329-1336.
31	KIMURA N， SEKI E， TOOYAMA T，et al.STEM-EELS analysis of improved cycle life of lithium-ion cells with Al₂O₃-coated LiNi_0.8Co_0.1Mn_0.1O₂ cathode active material［J］.Journal of Alloys and Compounds，2021，869：159259.
32	RAMASAMY H V， SINHA S， PARK J，et al.Enhancement of electrochemical activity of Ni-rich LiNi₀.₈Mn 0.1Co0.₁O₂by precisely controlled Al2O3 nanocoatings via atomic layer depositi-on［J］.Journal of Electrochemical Science and Technology，2019，10（2）：196-205.
33	ZHANG Hailin， XU Jiaqiang， ZHANG Jiujun.Surface-coated LiNi_0.8Co_0.1Mn_0.1O₂（NCM811） cathode materials by Al₂O₃，ZrO₂，and Li₂O-2B₂O₃ thin-layers for improving the performance of lithium ion batteries［J］.Frontiers in Materials，2019，6.Doi：10.3389/fmats.2019.00309.
34	KIM J H， PARK J S， CHO S H，et al.Stabilizing the surface of Ni-rich cathodes via facing-target sputtering for high-performance lithium-ion batteries［J］.Journal of Materials Chemistry A，2022，10（47）：25009-25018.
35	CAO Guolin， JIN Zhuomin， ZHU Jie，et al.A green Al₂O₃ metal oxide coating method for LiNi_0.5Co_0.2Mn_0.3O₂ cathode material to improve the high voltage performance［J］.Journal of Alloys and Compounds，2020，832：153788.
36	DONG Mingxia， WANG Zhixing， LI Hangkong，et al.Metallurgy inspired formation of homogeneous Al₂O₃ coating layer to improve the electrochemical properties of LiNi_0.8Co_0.1Mn_0.1O₂ cathode material［J］.ACS Sustainable Chemistry & Engineering，2017，5（11）：10199-10205.
37	ZHU Wenchang， HUANG Xue， LIU Tingting，et al.Ultrathin Al₂O₃ coating on LiNi_0.8Co_0.1Mn_0.1O₂ cathode material for enhanced cycleability at extended voltage ranges［J］.Coatings，2019，9（2）.Doi：10.3390/coatings9020092.
38	WU Yingqiang， LI Mengliu， WAHYUDI W，et al.Performance and stability improvement of layered NCM lithium-ion batteries at high voltage by a microporous Al₂O₃ sol-gel coating［J］.ACS Omega，2019，4（9）：13972-13980.
39	SHI Yang， ZHANG Minghao， QIAN Danna，et al.Ultrathin Al₂O₃ coatings for improved cycling performance and thermal stability of LiNi_0.5Co_0.2Mn_0.3O₂ cathode material［J］.Electrochimica Acta，2016，203：154-161.
40	ZHENG Lituo， HATCHARD T D， OBROVAC M N.A high-quality mechanofusion coating for enhancing lithium-ion battery cathode material performance［J］.MRS Communications，2019，9（1）：245-250.
41	ZHAI Haowei， GONG Tianyao， XU Bingqing，et al.Stabilizing polyether electrolyte with a 4 V metal oxide cathode by nanoscale interfacial coating［J］.ACS Applied Materials & Interfaces，2019，11（32）：28774-28780.
42	冯耀华.高镍型锂离子电池正极材料LiNi0 .8Co 0.1Mn0.1O2制备及改性［D］.兰州：兰州理工大学，2020.
	FENG Yaohua.Synthesis and modification of LiNi 0.8Co0.₁Mn0.1O2 rich nickel cathode materials for lithium-ion batteries［D］.Lanzhou：Lanzhou University of Technology，2020.

正极材料	改性方法	循环容量保持率/%
NCM811^［37］	ALD	73.87（0.1C，100次）
NCM811 ^［34］	溅射法	88.30（1C，100次）
NCM622 ^［38］	浸渍法	82.00（0.5C，100次）
NCM523^［39］	ALD	76.80（1C，30次）
NCM622^［40］	干法	85.00（1C，100次）
NCM^［41］	ALD	84.70（1C/3，80次）
NCM811^［42］	浸渍法	82.67（0.5C，100次）
NCM811（本工作）	—	84.93（1C，100次）

[1]	YANG Fu, XIE Yulong. Study on preparation and Na⁺ doping modification of ternary material LiNi_0.65Co_0.15Mn_0.2O₂ [J]. Inorganic Chemicals Industry, 2025, 57(3): 43-49.
[2]	SONG Jiaxi, JI Renfei, CHEN Jun, LIN Sen, YU Jianguo. Research on characteristics analysis and pretreatment on deeply deactivated power battery ternary cathode materials [J]. Inorganic Chemicals Industry, 2025, 57(2): 44-49.
[3]	ZHANG Yanyan, LI Donghong, LIU Yonghe, ZHANG Yang, KANG Le, WANG Yi. Study on surface treatment of alumina filler [J]. Inorganic Chemicals Industry, 2025, 57(1): 77-82.
[4]	TIAN Peng, ZHANG Haoran, XU Jingang, MOU Chenxi, XU Qianjin, NING Guiling. Study on aluminum sol modified anode and cathode materials for lithium ion batteries [J]. Inorganic Chemicals Industry, 2024, 56(9): 44-53.
[5]	CHEN Xue, OUYANG Quansheng, SHAO Jiaojing. Recent research progress of lithium-sulfur batteries based on solid-solid reaction mechanism [J]. Inorganic Chemicals Industry, 2024, 56(9): 12-23.
[6]	SU Baocai, ZHANG Qin, XIE Yuanjian, CAI Pingxiong, PAN Yuanfeng. Advances in synthesis methods and structural modification of LiMnFePO₄ materials [J]. Inorganic Chemicals Industry, 2024, 56(7): 28-36.
[7]	WANG Junting, MA Hang, ZHA Zuotong, WAN Banglong, ZHANG Zhenhuan. Research progress of iron phosphate industrial wastewater treatment process [J]. Inorganic Chemicals Industry, 2024, 56(6): 26-33.
[8]	ZHAO Tianting, ZHU Delun, YANG Lin, ZHOU Xinlei. Preparation and process optimization of porous silicon anode materials for lithium-ion battery [J]. Inorganic Chemicals Industry, 2024, 56(5): 31-38.
[9]	YANG En, SHEN Hongyan, LIU Youzhi. In situ modification of superfine magnesium hydroxide with silicon polyether [J]. Inorganic Chemicals Industry, 2024, 56(4): 42-49.
[10]	ZHOU Haitao, WEN Chengqin, ZHENG Ling, SUN Jie. Research on boron nitride modified film for cathode interface of metallic lithium battery [J]. Inorganic Chemicals Industry, 2024, 56(4): 85-89.
[11]	LIU Dexin, MA Tengyue, AN Jinling, LIU Jinrong, HE Weiyan. Study on cathode material design and electrochemical properties of manganese-based sodium ion battery [J]. Inorganic Chemicals Industry, 2024, 56(3): 51-55.
[12]	ZHOU Huang, HU Xiaoping, REN Wen, CAO Xinxin. Preparation and sodium storage properties of sulfur-doped Na₃（VOPO₄）₂F cathode materials [J]. Inorganic Chemicals Industry, 2024, 56(2): 30-37.
[13]	GE Jianhua, XIE Minyan, OUYANG Quansheng, SHAO Jiaojing. Advances in regeneration processes of cathode materials for spent power batteries [J]. Inorganic Chemicals Industry, 2024, 56(12): 79-87.
[14]	ZHAO Runze, QIAN A′niu. Research progress of lithium recovery for spent lithium-ion batteries and preparation in battery-grade lithium carbonate [J]. Inorganic Chemicals Industry, 2024, 56(12): 70-78.
[15]	LIU Jiasheng, LUO Xiaoqiang, HOU Cuihong, XUE Lingwei. Effects of fluorine doping on electrochemical behavior of LiMn_0.8Fe_0.2PO₄/C cathode materials [J]. Inorganic Chemicals Industry, 2024, 56(11): 45-50.

National Inorganic Salts Information Center

Inorganic Acid-Base-Salt Committee of CIESC

Preparation of nano-alumina slurry and its application in modifying lithium-ion battery cathode material

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 5

References 42

Related Articles 15

Metrics

Comments

Recommended 0
