盐湖卤水电化学提锂技术研究进展

doi:10.19964/j.issn.1006-4990.2024-0451

Abstract

Abstract:

With the growth of demand for new energy vehicles，electronic products and energy storage batteries，the demand for lithium resources has risen sharply.Extracting lithium from salt lake brine can not only alleviate the shortage of resources，but also help optimize the energy structure.Electrochemical lithium extraction technology has become the focus of research because of its high selectivity，low energy consumption，versatility and environmental friendliness.The latest progress of electrochemical lithium extraction was reviewed，including active material electrode and electrochemical lithium extraction system.LiFePO₄，LiMn₂O₄ and LiNi _x Co _y Mn_1-_x_-_y O₂ electroactive materials had received extensive attention due to their good selectivity and adsorption properties.However，in the actual brine with high salinity，the optimization and modification of electroactive materials and the design of different types of salt lakes were still the focus of attention in the industrial progress of electrochemical lithium extraction technology.In terms of system design，the use of capacitive deionization（CDI），electrodialysis（ED），ion pumps，electrochemically switched ion exchange（ESIX），and rocking chair systems，comprehensive consideration of cost，energy consumption and efficiency，reflected the dual goals of economic and environmental protection，indicating the development of technology in the sustainable direction.

Key words: electrochemistry, electroactive substance, lithium extraction system, selectivity

CLC Number:

TQ131.11

LI Changwen, ZHAN Honglong, QIAO Yingjun, SHI Chenglong, QIAN Zhiqiang. Research progress of electrochemical extraction of lithium from salt lake brine[J]. Inorganic Chemicals Industry, 2025, 57(7): 1-13.

Figures/Tables 19

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Table 1

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Fig.17

Table 2

References 80

[1]	GUAN Peiyuan， ZHOU Lu， YU Zhenlu，et al.Recent progress of surface coating on cathode materials for high-performance lithium-ion batteries［J］.Journal of Energy Chemistry，2020，43：220-235.
[2]	陈海霞，严红，孙云龙，等.锂资源提取技术研究进展［J］.无机盐工业，2024，56（1）：9-22.
	CHEN Haixia， YAN Hong， SUN Yunlong，et al.Research progress of lithium resource extraction technology［J］.Inorganic Chemicals Industry，2024，56（1）：9-22.
[3]	马珍.盐湖锂资源高效分离提取技术研究进展［J］.无机盐工业，2022，54（10）：22-29.
	MA Zhen.Research progress on efficient separation and extraction technology of lithium resources in salt lakes［J］.Inorganic Chemicals Industry，2022，54（10）：22-29.
[4]	CHEN Linlin， CHAO Yanhong， LI Xiaowei，et al.Engineering a tandem leaching system for the highly selective recycling of valuable metals from spent Li-ion batteries［J］.Green Chemistry，2021，23（5）：2177-2184.
[5]	蒋晨啸，陈秉伦，张东钰，等.我国盐湖锂资源分离提取进展［J］.化工学报，2022，73（2）：481-503.
	JIANG Chenxiao， CHEN Binglun， ZHANG Dongyu，et al.Progress in isolating lithium resources from China salt lake brine［J］.CIESC Journal，2022，73（2）：481-503.
[6]	乜贞，伍倩，丁涛，等.中国盐湖卤水提锂产业化技术研究进展［J］.无机盐工业，2022，54（10）：1-12.
	NIE Zhen， WU Qian， DING Tao，et al.Research progress on industrialization technology of lithium extraction from salt lake brine in China［J］.Inorganic Chemicals Industry，2022，54（10）：1-12.
[7]	朱瑞松，曹靖，刘陶然，等.全球非常规卤水的提锂技术及产业化研究进展［J］.无机盐工业，2023，55（11）：1-11.
	ZHU Ruisong， CAO Jing， LIU Taoran，et al.Research progress of lithium extraction technology and industrialization of unconventional brines in global［J］.Inorganic Chemicals Industry，2023，55（11）：1-11.
[8]	ZHANG Licheng， LI Jinfeng， LIU Ruirui，et al.Recovery of lithium from salt lake brine with high Na/Li ratio using solvent extraction［J］.Journal of Molecular Liquids，2022，362：119667.
[9]	LUO Qinglong， DONG Mingzhe， LI Quan，et al.Improve the durability of lithium adsorbent Li/Al-LDHs by Fe³⁺ substitution and nanocomposite of FeOOH［J］.Minerals Engineering，2022，185：107717.
[10]	LU Qichen， LIU Peng， ZHOU Tianyi，et al.Recent progress on electro-sorption technology for lithium recovery from aqueous sources［J］.Nano Research，2024，17（4）：2563-2573.
[11]	郭志远，纪志永，陈华艳，等.电化学提锂技术中电极材料和电极体系的研究进展［J］.化工进展，2020，39（6）：2294-2303.
	GUO Zhiyuan， JI Zhiyong， CHEN Huayan，et al.Progress of electrode materials and electrode systems in electrochemical lithium extraction process［J］.Chemical Industry and Engineering Progress，2020，39（6）：2294-2303.
[12]	吴静，任秀莲，魏琦峰.盐湖卤水中锂的分离提取研究进展［J］.无机盐工业，2020，52（12）：1-6.
	WU Jing， REN Xiulian， WEI Qifeng.Research progress on separation and extraction of lithium from salt-lake brine［J］.Inorganic Chemicals Industry，2020，52（12）：1-6.
[13]	KANOH H，OOI K， MIYAI Y，et al.Selective electroinsertion of lithium ions into a Pt/λ-MnO₂ electrode in the aqueous phase［J］.Langmuir，1991，7（9）：1841-1842.
[14]	王晓丽，杨文胜.电化学提锂体系及其电极材料的研究进展［J］.化工学报，2021，72（6）：2957-2971.
	WANG Xiaoli， YANG Wensheng.Research progress of electrochemical lithium extraction systems and electrode materials［J］.CIESC Journal，2021，72（6）：2957-2971.
[15]	陈颖，乔英钧，钱志强，等.电化学吸附提锂中Li⁺传输机制概述［J］.盐湖研究，2023，31（2）：81-90.
	CHEN Ying， QIAO Yingjun， QIAN Zhiqiang，et al.Research progress on transport mechanism of lithium ions during electrochemical adsorption［J］.Journal of Salt Lake Research，2023，31（2）：81-90.
[16]	ZHAN Honglong， QIAO Yingjun， QIAN Zhiqiang，et al.Electrochemical behaviors of porous spherical spinel H_1.6Mn_1.6O₄ with high Li⁺ adsorption capacity［J］.Separation and Purification Tech- nology，2023，305：122485.
[17]	TARASCON J M， ARMAND M.Issues and challenges facing rechargeable lithium batteries［J］.Nature，2001，414（6861）：359- 367.
[18]	LV Xiao， ZHAO Xin， WU Shunqing，et al.A scheme for the generation of Fe-P networks to search for low-energy LiFePO₄ crystal structures［J］.J.Mater.Chem.A，2017，5：14611-14618.
[19]	HU Jiangtao， HUANG Weiyuan， YANG Luyi，et al.Structure and performance of the LiFePO₄ cathode material：From the bulk to the surface［J］.Nanoscale，2020，12（28）：15036-15044.
[20]	LU Yihua， LI Jiagen， ZHAO Yu，et al.Lithium clustering during the lithiation/delithiation process in LiFePO₄ olivine-structured materials［J］.ACS Omega，2019，4（24）：20612-20617.
[21]	MOLENDA J， MOLENDA M.Composite cathode material for Li-ion batteries based on LiFePO₄ system［M］//CUPPOLETTI J.Metal，ceramic and polymeric composites for various uses.Rijeka：InTech，2011.
[22]	ZHAO Zhongwei， SI Xiufen， LIU Xuheng，et al.Li extraction from high Mg/Li ratio brine with LiFePO₄/FePO₄ as electrode materials［J］.Hydrometallurgy，2013，133：75-83.
[23]	PASTA M， BATTISTEL A， LA MANTIA F.Batteries for lithium recovery from brines［J］.Energy & Environmental Science，2012，5（11）：9487-9491.
[24]	DU Miao， GUO Jinzhi， ZHENG Shuohang，et al.Direct reuse of LiFePO₄ cathode materials from spent lithium-ion batteries：Extracting Li from brine［J］.Chinese Chemical Letters，2023，34（6）：107706.
[25]	YAN Gangbin， KIM G， YUAN Renliang，et al.The role of solid solutions in iron phosphate-based electrodes for selective electrochemical lithium extraction［J］.Nature Communications，2022，13：4579.
[26]	LI Jinghui， FAN Wenlei， QIN Wei，et al.The regeneration process of FePO₄ in electrochemical lithium extraction：The role of alkali ions［J］.Chemical Engineering Journal，2024，493：152476.
[27]	XIONG Jiachun， HE Lihua， ZHAO Zhongwei.Lithium extraction from high-sodium raw brine with Li_0.3FePO₄ electrode［J］.Desalination，2022，535：115822.
[28]	LIU Xuheng， CHEN Xingyu， ZHAO Zhongwei，et al.Effect of Na⁺ on Li extraction from brine using LiFePO₄/FePO₄ electrodes［J］.Hydrometallurgy，2014，146：24-28.
[29]	LIU Chong， LI Yanbin， LIN Dingchang，et al.Lithium extraction from seawater through pulsed electrochemical intercalation［J］.Joule，2020，4（7）：1459-1469.
[30]	ZHU Weigang， XU Wenhua， LIU Dongfu，et al.Ionic transport kinetics of selective electrochemical lithium extraction from brin- es［J］.Electrochimica Acta，2024，475：143519.
[31]	YIN Ruixin， ZHU Weigang， ZHAO Zhongwei，et al.Lithium recovery from brine by PEG-modified porous LiFePO₄/FePO₄ electrode system［J］.Separation and Purification Technology，2024，338：126375.
[32]	ZHANG Junyan， SU Wenjing， YI Bin，et al.A new strategy for the preparation of highly stable and high-capacity electrodes for green electrochemical extraction of lithium［J］.Chemical Engineering Journal，2023，454：140416.
[33]	ZHANG Junyi， ZHOU Yuan， Chunxi HAI，et al.Enhancing lithium extraction efficiency from salt lake brines through three-dimensional conductive network-incorporated thick electrodes［J］.Separation and Purification Technology，2024，334：126010.
[34]	XU Wenhua， LIU Dongfu， LIU Xuheng，et al.Highly selective and efficient lithium extraction from brines by constructing a novel multiple-crack-porous LiFePO₄/FePO₄ electrode［J］.Desalination，2023，546：116188.
[35]	XIAO Weiji， XIN Chao， LI Sibai，et al.Insight into fast Li diffusion in Li-excess spinel lithium manganese oxide［J］.Journal of Materials Chemistry A，2018，6（21）：9893-9898.
[36]	MISSONI L L， MARCHINI F， DEL POZO M，et al.A LiMn₂O₄-polypyrrole system for the extraction of LiCl from natural brine［J］.Journal of the Electrochemical Society，2016，163（9）：A1898-A1902.
[37]	ZHAN Honglong， QIAO Yingjun， QIAN Zhiqiang，et al.Manganese-based spinel adsorbents for lithium recovery from aqueous solutions by electrochemical technique［J］.Journal of Industrial and Engineering Chemistry，2022，114：142-150.
[38]	ZHAN Honglong， QIAO Yingjun， QIAN Zhiqiang，et al.Engineering ion diffusion and electron transfer dual pathways within porous spherical H_1.6Mn_1.6O₄ for highly efficient Li⁺ separation［J］.Chemical Engineering Journal，2024，497：154859.
[39]	ZHOU Guolang， LI Xiaowei， CHEN Linlin，et al.Construction of porous disc-like lithium manganate for rapid and selective electrochemical lithium extraction from brine［J］.Chinese Journal of Chemical Engineering，2023，54：316-322.
[40]	GU Jun， ZHOU Guolang， CHEN Linlin，et al.Particle size control and electrochemical lithium extraction performance of LiMn₂O₄ ［J］.Journal of Electroanalytical Chemistry，2023，940：117487.
[41]	TIAN Guiying， GAO Jian， WANG Minrui，et al.Structural stabilization of Cr-doped spinel LiMn₂O₄ for long-term cyclability towards electrochemical lithium recovery in original brine［J］.Electrochimica Acta，2024，475：143361.
[42]	LUO Guiling， ZHU Lin， LI Xiaowei，et al.Electrochemical lithi-um ions pump for lithium recovery from brine by using a surface stability Al₂O₃-ZrO₂ coated LiMn₂O₄ electrode［J］.Journal of Energy Chemistry，2022，69：244-252.
[43]	LUO Guiling， LI Xiaowei， CHEN Linlin，et al.Electrochemical recovery lithium from brine via taming surface wettability of regeneration spent batteries cathode materials［J］.Applied Energy，2023，337：120890.
[44]	ZHAO Xiaoyu， JIAO Yaoxin， XUE Peijie，et al.Efficient lithium extraction from brine using a three-dimensional nanostructured hybrid inorganic-gel framework electrode［J］.ACS Sustainable Chemistry & Engineering，2020，8（12）：4827-4837.
[45]	WANG Yunhao， ZHANG Junxiang， CHENG Zeyu，et al.Hydrophilic modification using polydopamine on core-shell Li_1.6Mn_1.6O 4@ Carbon electrodes for lithium extraction from lake brine［J］.ACS Sustainable Chemistry & Engineering，2022，10（27）：8970-8979.
[46]	GU Jun， CHEN Linlin， FAN Linjing，et al.Multistage regulation of LiMn₂O₄ electrode for electrochemical lithium extraction from salt-lake［J］.Desalination，2024，586：117828.
[47]	HU Bin， WANG Yiwen， ZHANG Boshuang，et al.Go-encapsulat-ed La-doped lithium manganese oxide assemblies to enhance lithium extraction performance in capacitive deionization［J］.Separation and Purification Technology，2024，348：127693.
[48]	MENG Xiaorong， JING Yue， LI Jiaming，et al.Electrochemical recovery of lithium from brine by highly stable truncated octahedral LiNi_0.05Mn_1.95O₄ ［J］.Chemical Engineering Science，2024，283：119400.
[49]	YANG Chaofan， ZHANG Xiaosong， HUANG Mengyi，et al.Preparation and rate capability of carbon coated LiNi_1/3Co_1/3Mn_1/3O₂ as cathode material in lithium ion batteries［J］.ACS Applied Materials & Interfaces，2017，9（14）：12408-12415.
[50]	WANG Faxing， LIU Yu， WANG Xiaowei，et al.Aqueous rechargea-ble battery based on zinc and a composite of LiNi_1/3Co_1/3Mn_1/3O₂［J］.ChemElectroChem，2015，2（7）：1024-1030.
[51]	LAWAGON C P， NISOLA G M， CUEVAS R A I，et al.Li_1-xNi_0.33Co_1/3Mn_1/3O₂/Ag for electrochemical lithium recovery from brine［J］.Chemical Engineering Journal，2018，348：1000-1011.
[52]	WU You， SHI Pitong， ZHONG Yijun，et al.Improved performance of a Ni，Co-doped LiMn₂O₄ electrode for lithium extraction from brine［J］.Energy & Fuels，2023，37（5）：4083-4093.
[53]	ZHAO Xiaoyu， FENG Minghui， JIAO Yaoxin，et al.Lithium extraction from brine in an ionic selective desalination battery［J］.Desalination，2020，481：114360.
[54]	GAMAETHIRALALAGE J G， SINGH K， SAHIN S，et al.Recent advances in ion selectivity with capacitive deionization［J］.Energy & Environmental Science，2021，14（3）：1095-1120.
[55]	XING Wenle， LIANG Jie， TANG Wangwang，et al.Versatile applications of capacitive deionization（CDI）-based technologies［J］.Desalination，2020，482：114390.
[56]	KIM S，JOO H， MOON T，et al.Rapid and selective lithium recovery from desalination brine using an electrochemical system［J］.Environmental Science：Processes & Impacts，2019，21（4）：667- 676.
[57]	SIEKIERKA A， TOMASZEWSKA B， BRYJAK M.Lithium capturing from geothermal water by hybrid capacitive deionization［J］.Desalination，2018，436：8-14.
[58]	ZHANG Xudong， ZUO Kuichang， ZHANG Xiaori，et al.Selective ion separation by capacitive deionization（CDI） based technologies：A state-of-the-art review［J］.Environmental Science：Water Research & Technology，2020，6（2）：243-257.
[59]	KIM S， LEE J， KANG J S，et al.Lithium recovery from brine using a λ-MnO₂/activated carbon hybrid supercapacitor system［J］.Chemosphere，2015，125：50-56.
[60]	SIEKIERKA A， KUJAWA J， KUJAWSKI W，et al.Lithium dedicated adsorbent for the preparation of electrodes useful in the ion pumping method［J］.Separation and Purification Technology，2018，194：231-238.
[61]	LEE J B， PARK K K， EUM H M，et al.Desalination of a thermal power plant wastewater by membrane capacitive deionization［J］.Desalination，2006，196（1/2/3）：125-134.
[62]	SHI Wenhui， LIU Xiaoyue， YE Chenzeng，et al.Efficient lithium extraction by membrane capacitive deionization incorporated with monovalent selective cation exchange membrane［J］.Separation and Purification Technology，2019，210：885-890.
[63]	SUN Ying， WANG Yunhao， LIU Yang，et al.Highly efficient lithium extraction from brine with a high sodium content by adsorption-coupled electrochemical technology［J］.ACS Sustainable Chemistry & Engineering，2021，9（33）：11022-11031.
[64]	GMAR S， CHAGNES A.Recent advances on electrodialysis for the recovery of lithium from primary and secondary resources［J］.Hydrometallurgy，2019，189：105124.
[65]	CHEN Qingbai， JI Zhiyong， LIU Jie，et al.Development of recovering lithium from brines by selective-electrodialysis：Effect of coexisting cations on the migration of lithium［J］.Journal of Membrane Science，2018，548：408-420.
[66]	WANG Wenguang， HONG Guanghui， ZHANG Yanqiu，et al.Designing an energy-efficient multi-stage selective electrodialysis process based on high-performance materials for lithium extraction［J］.Journal of Membrane Science，2023，675：121534.
[67]	ZHAO Zhongwei， LIU Gui， JIA Hang，et al.Sandwiched liquid-membrane electrodialysis：Lithium selective recovery from salt lake brines with high Mg/Li ratio［J］.Journal of Membrane Science，2020，596：117685.
[68]	TRÓCOLI D R， ERINMWINGBOVO C， LA MANTIA P F.Optimized lithium recovery from brines by using an electrochemical ion-pumping process based on λ-MnO₂ and nickel hexacyanoferrate［J］.ChemElectroChem，2017，4（1）：143-149.
[69]	ZHANG Xuefeng， WANG Jie， ZHANG Zhonglin，et al.Modelling of pseudocapacitive ion adsorption of electrochemically switched ion exchange based on electroactive site concentration［J］.Separation and Purification Technology，2022，286：120451.
[70]	ZHAO Xiaoyu， YANG Shuo， HOU Yongdan，et al.Recent progress on key materials and technical approaches for electrochemical lithium extraction processes［J］.Desalination，2023，546：116189.
[71]	DU Xiao， HAO Xiaogang， WANG Zhongde，et al.Electroactive ion exchange materials：Current status in synthesis，applications and future prospects［J］.Journal of Materials Chemistry A，2016，4（17）：6236-6258.
[72]	NIU Junjian， YAN Wenjun， SONG Xiaoyuan，et al.An electrically switched ion exchange system with self-electrical-energy recuperation for efficient and selective LiCl separation from brine lakes［J］.Separation and Purification Technology，2021，274：118995.
[73]	ZHANG Zheng， DU Xiao， WANG Qiang，et al.A scalable three-dimensional porous λ-MnO₂/rGO/Ca-alginate composite electroactive film with potential-responsive ion-pumping effect for selective recovery of lithium ions［J］.Separation and Purification Technology，2021，259：118111.
[74]	WANG Qiang， DU Xiao， GAO Fengfeng，et al.A novel H_1.6Mn_1.6O₄/reduced graphene oxide composite film for selective electroche-mical capturing lithium ions with low concentration［J］.Separation and Purification Technology，2019，226：59-67.
[75]	WANG Peifen， DU Xiao， CHEN Tian，et al.A novel electroactive PPy/HKUST-1 composite film-coated electrode for the selective recovery of lithium ions with low concentrations in aqueous solutions［J］.Electrochimica Acta，2019，306：35-44.
[76]	HE Lihua， XU Wenhua， SONG Yunfeng，et al.New insights into the application of lithium-ion battery materials：Selective extraction of lithium from brines via a rocking-chair lithium-ion battery system［J］.Global Challenges，2018，2（2）：1700079.
[77]	XU Wenhua， HE Lihua， ZHAO Zhongwei.Lithium extraction from high Mg/Li brine via electrochemical intercalation/de-intercalation system using LiMn₂O₄ materials［J］.Desalination，2021，503：114935.
[78]	GUO Zhiyuan， JI Zhiyong， WANG Jing，et al.Development of electrochemical lithium extraction based on a rocking chair system of LiMn₂O₄/Li_1- _x Mn₂O₄：Self-driven plus external voltage driven［J］.Separation and Purification Technology，2021，259：118154.
[79]	GUO Zhiyuan， JI Zhiyong， WANG Jing，et al.Electrochemical lithium extraction based on “rocking-chair” electrode system with high energy-efficient：The driving mode of constant current-constant voltage［J］.Desalination，2022，533：115767.
[80]	ZENG Yiwen， LI Wanpeng， WAN Zhixin，et al.Electrochemically mediated lithium extraction for energy and environmental sustainability［J］.Advanced Functional Materials，2024，34（33）：2400416.

电极材料	吸附容量/ （mg·g^-1）	分离因子	容量保留率/循环次数	能耗/ （W·h·mol^-1）
LiMn₂O₄^［39］	4.85	—	70%/30	—
B-LMO^［40］	20.60	—	87%/30	15.2
H_1.6Mn_1.6O₄^［37］	34.40	—	86%/5	—
Cr-LiMn₂O₄^［41］	21.85	—	99%/100	2.16
AlZr-LMO^［42］	49.92	—	58%/30	—
ZnO-rLMO^［43］	13.12	—	—	—
PPy/Al₂O₃/LMO^［44］	12.84	—	92%/30	—
PDA-C@HMO^［45］	65.60	—	90%/10	—
PAA-CP-LMO^［46］	24.70	—	84%/30	—
GO/La-LMO^［47］	9.23	126（Li/Mg）	83%/100	—
LiNi_0.05Mn_1.95O₄^［48］	25.87	—	100%/5	13.42
LiFePO₄^［24］	14.62	210.5（Li/Na）	60%/13	0.11
LiFePO₄^［26］	14.50	188.68（Li/Na）	80%/5	—
Li_0.3FePO₄^［27］	25.00	138.00（Li/Na）	90%/100	—
PEG/LiFePO₄^［31］	35.20	—	91%/60	—
LFP/rGO^［33］	36.78	—	90%/8	—
PEG/LiFePO₄^［34］	27.30	—	86%/100	—
Li_1-_x Ni_1/3Co_1/3Mn_1/3O₂^［51］	10.83	32.18（Li/Na）	—	2.60
LiNi_0.025Co_0.025Mn_1.95O₂^［52］	12.91	—	98%/50	2.12
rGO/LiNi_0.6Co_0.2Mn_0.2O₂^［53］	13.84	—	81%/30	1.40

系统类型	技术特点	优势	劣势

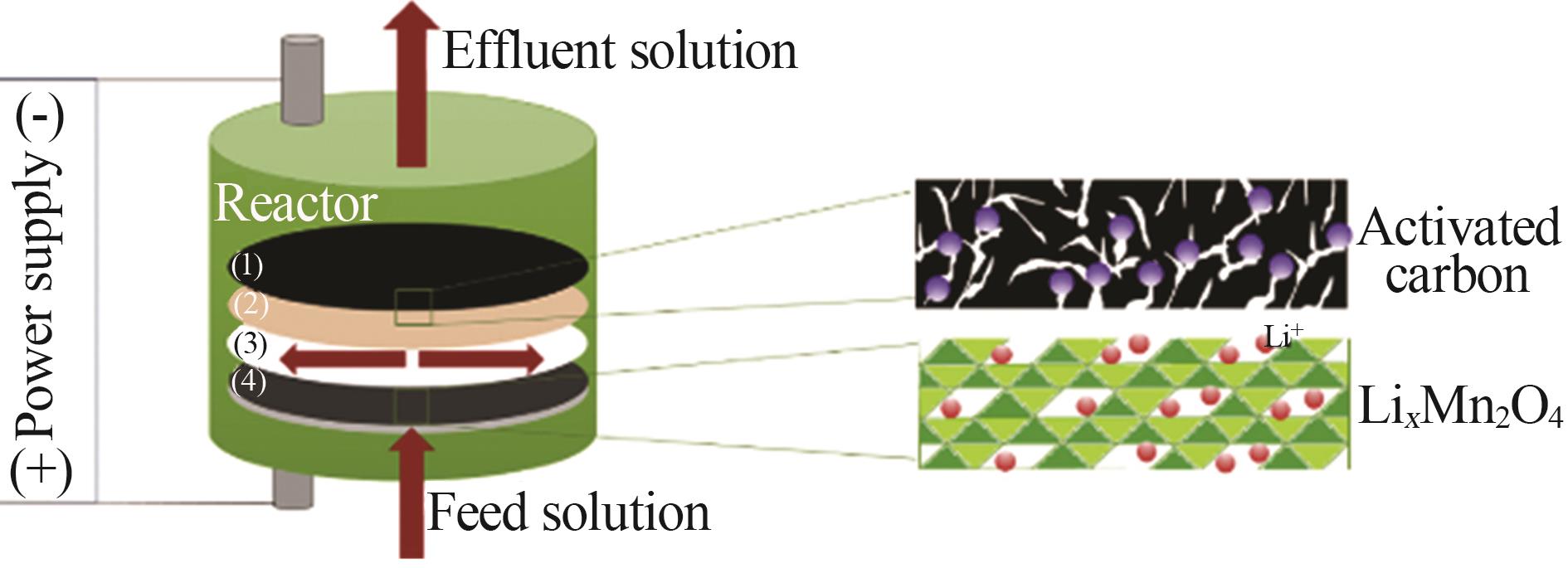

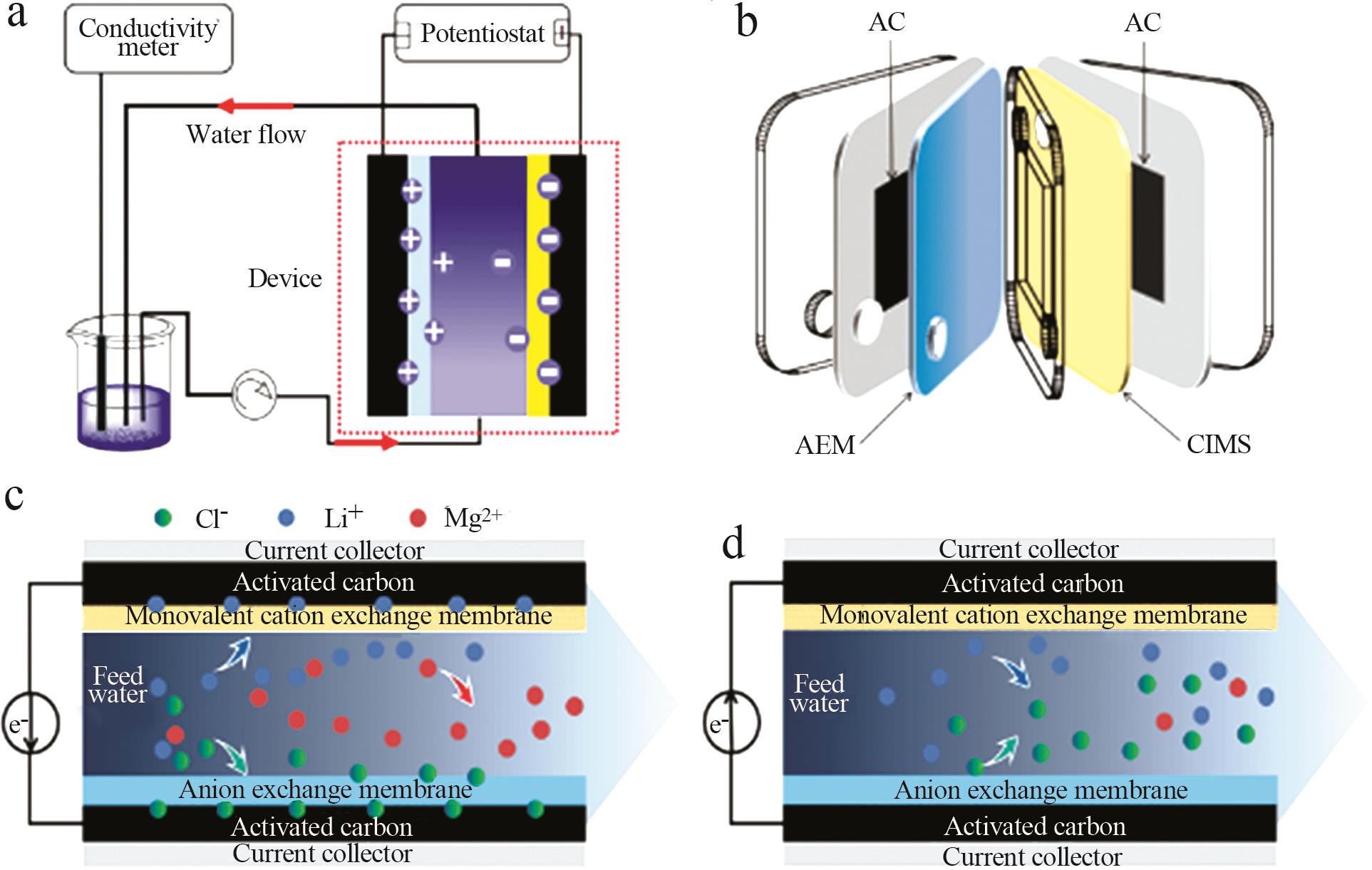

电容去离子（CDI）	通过电极吸附溶液中的Li⁺，改变电压实现Li⁺的吸附和释放	能耗低、操作简单、环境友好；适用于低浓度锂盐溶液	对高浓度的锂盐溶液吸附效率低；受到电极材料和寿命限制

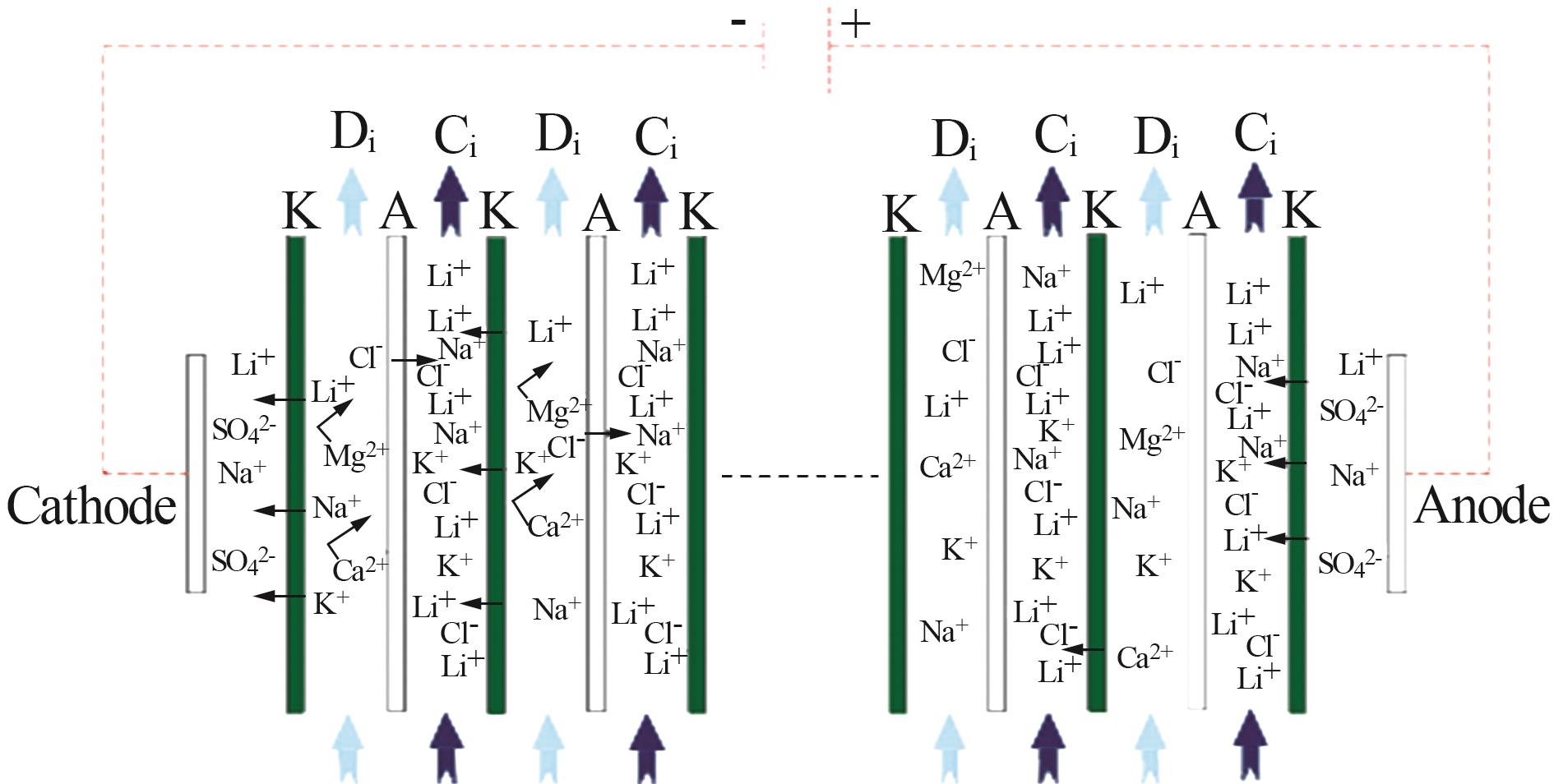

电渗析（ED）	通过离子交换膜在电场作用下分离Li⁺	可连续操作和规模化生产；较高的锂回收率和纯度	膜的污染和寿命问题；较高的能耗和运营成本

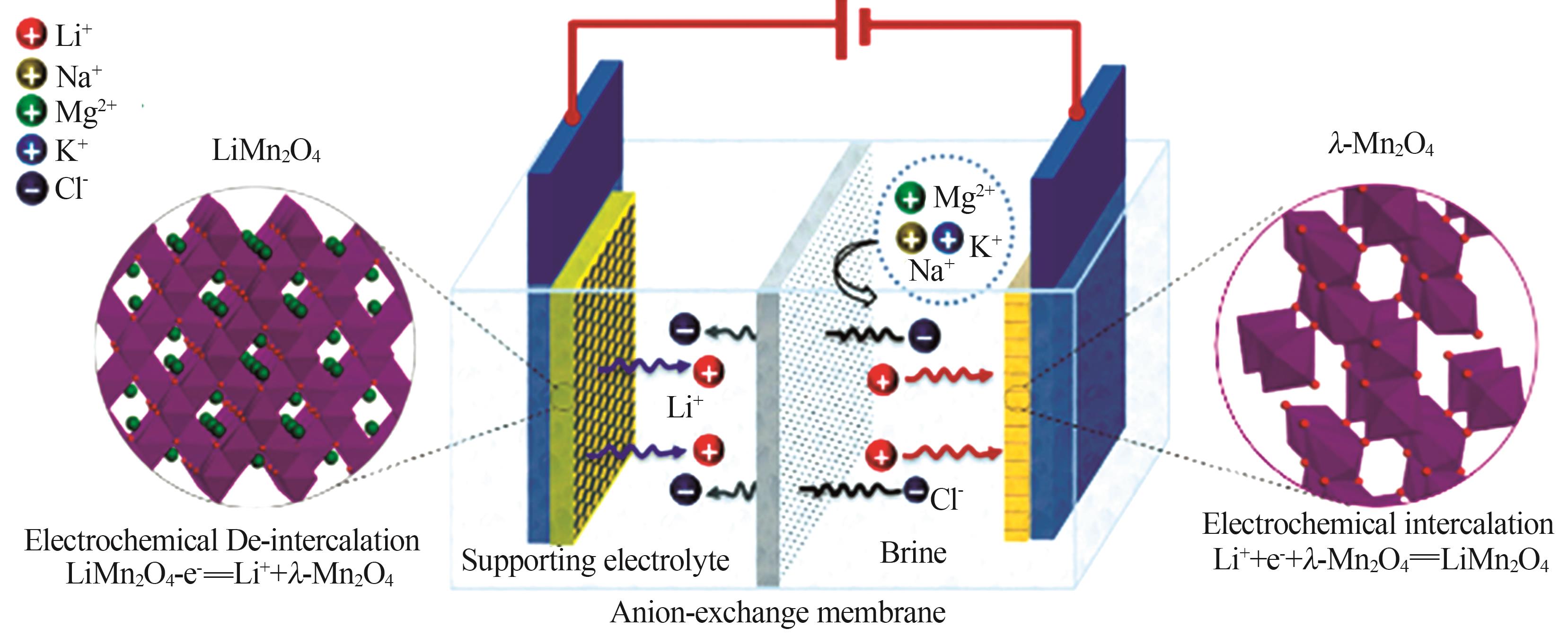

离子泵	通过电场直接高精度控制Li⁺的迁移，适用于高纯度锂产品的应用	对Li⁺选择性高；提锂纯度高	技术复杂；成本高

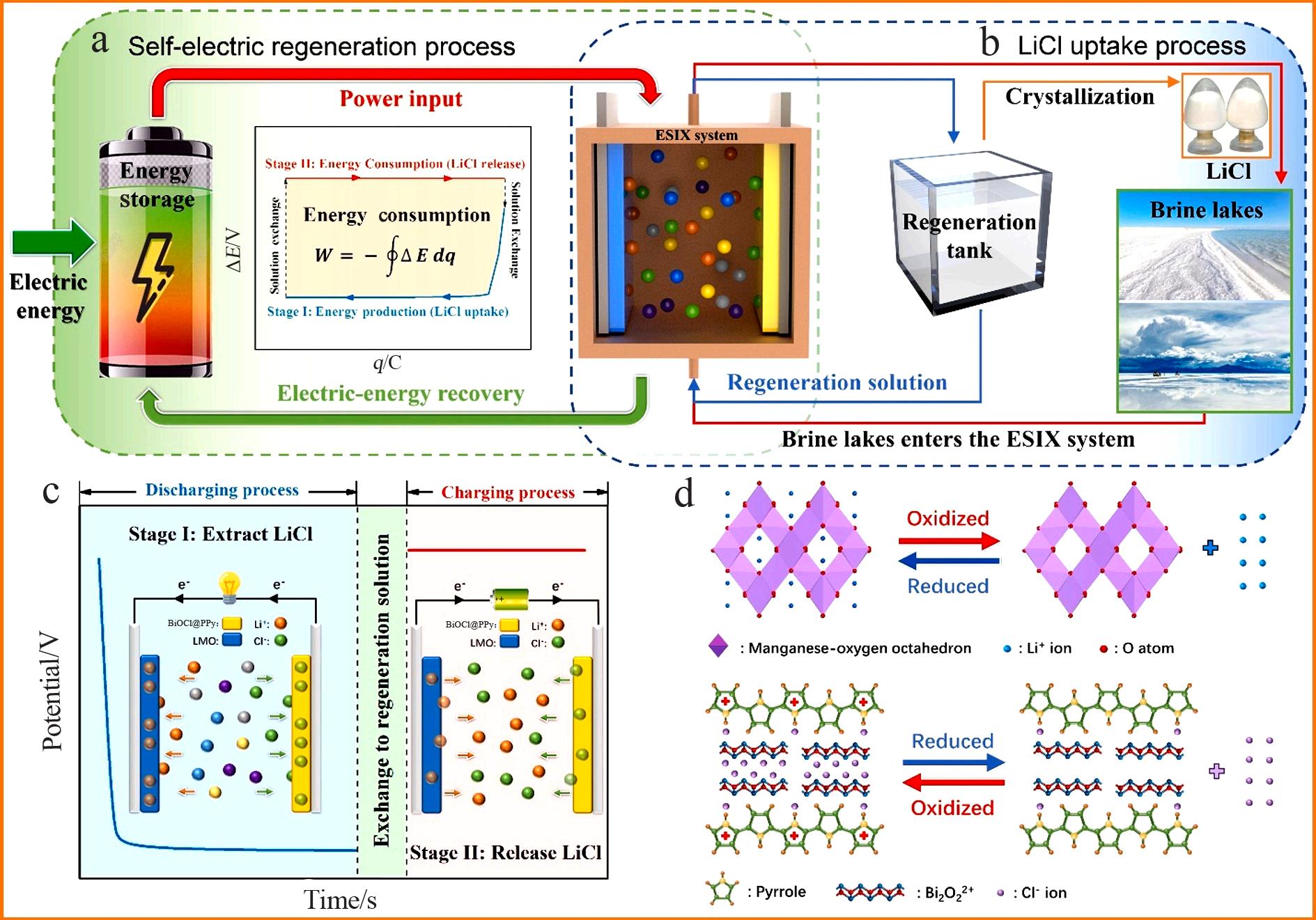

电化学开关离子交换（ESIX）	结合了电化学和离子交换的优点，利用电场控制离子交换材料的吸附和释放Li⁺	可实现高效Li⁺回收，减少化学试剂的使用	技术相对新颖，需进一步研究和优化

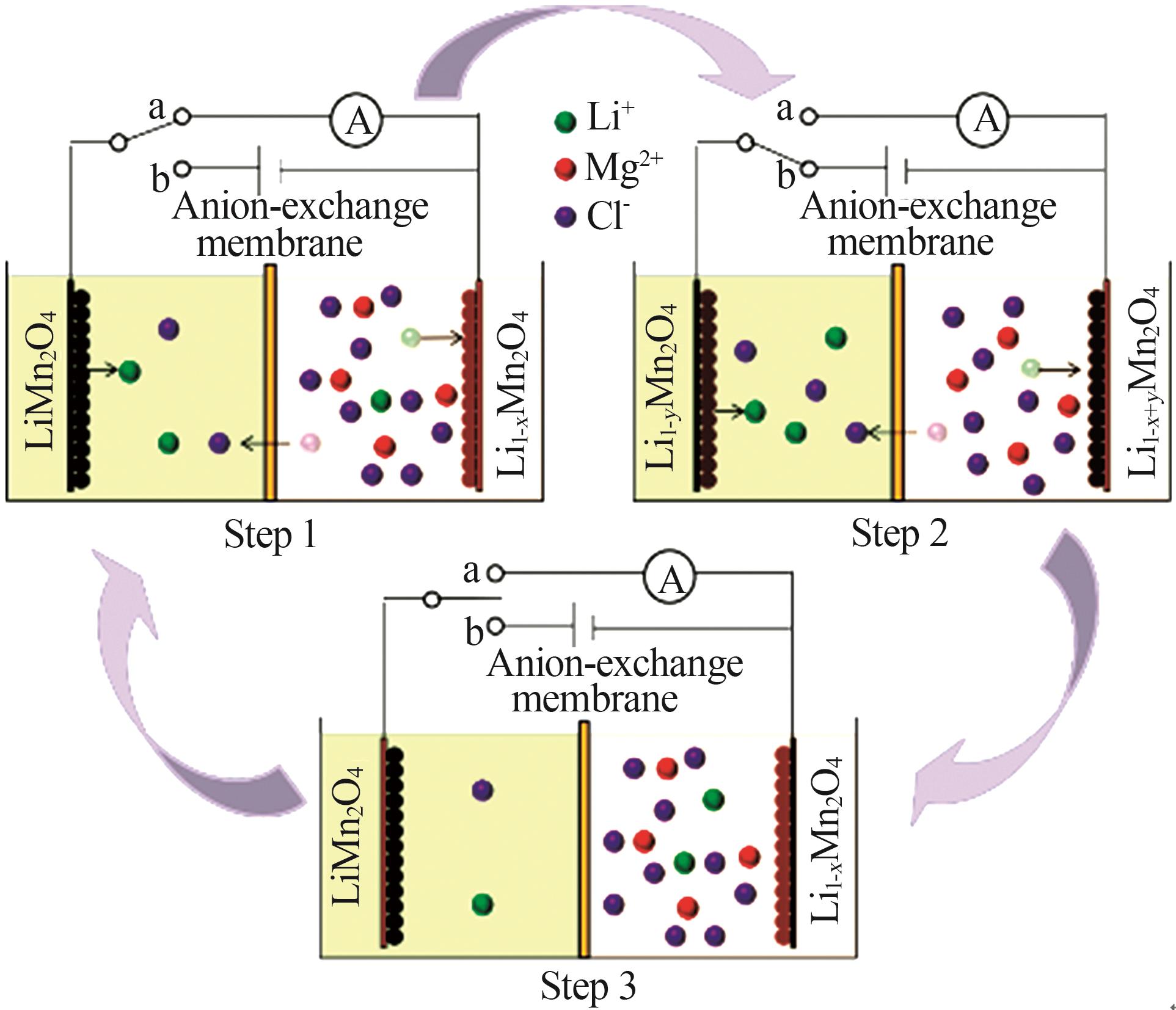

摇椅式系统	通过摇动增强电极和溶液间的物质传递，实现小规模锂提取	强化处理效率、适合动态操作；可应对复杂的锂盐溶液成分	设备成本和维护要求高；摇动机制可能影响设备稳定性
