基于铁法工艺制备电池级磷酸铁技术的研究

doi:10.19964/j.issn.1006-4990.2024-0450

Abstract

Abstract:

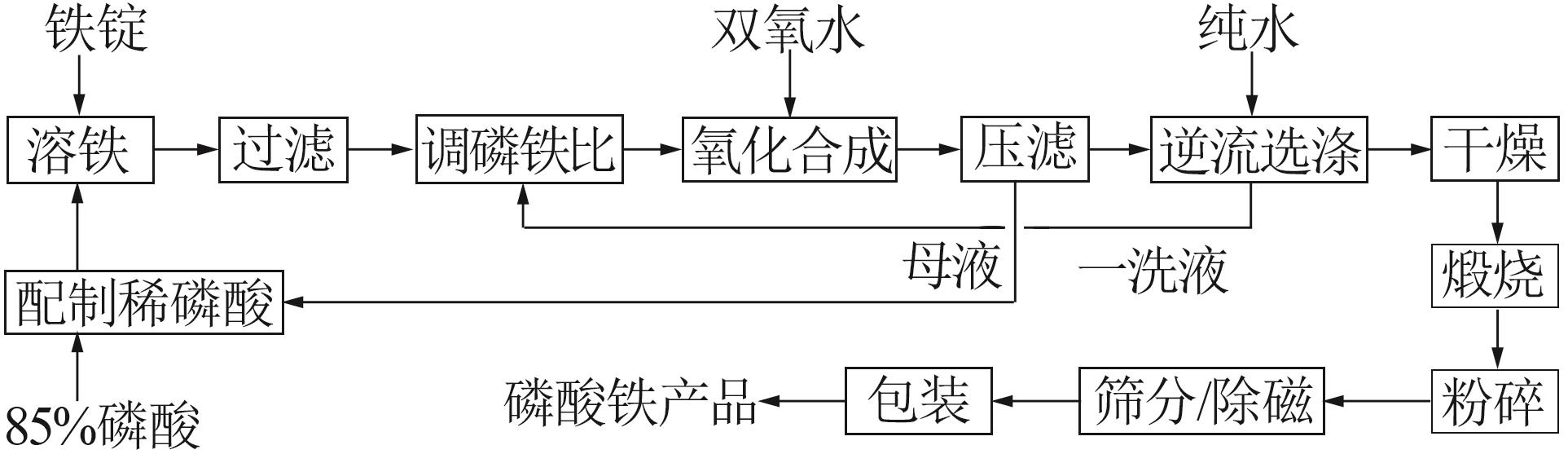

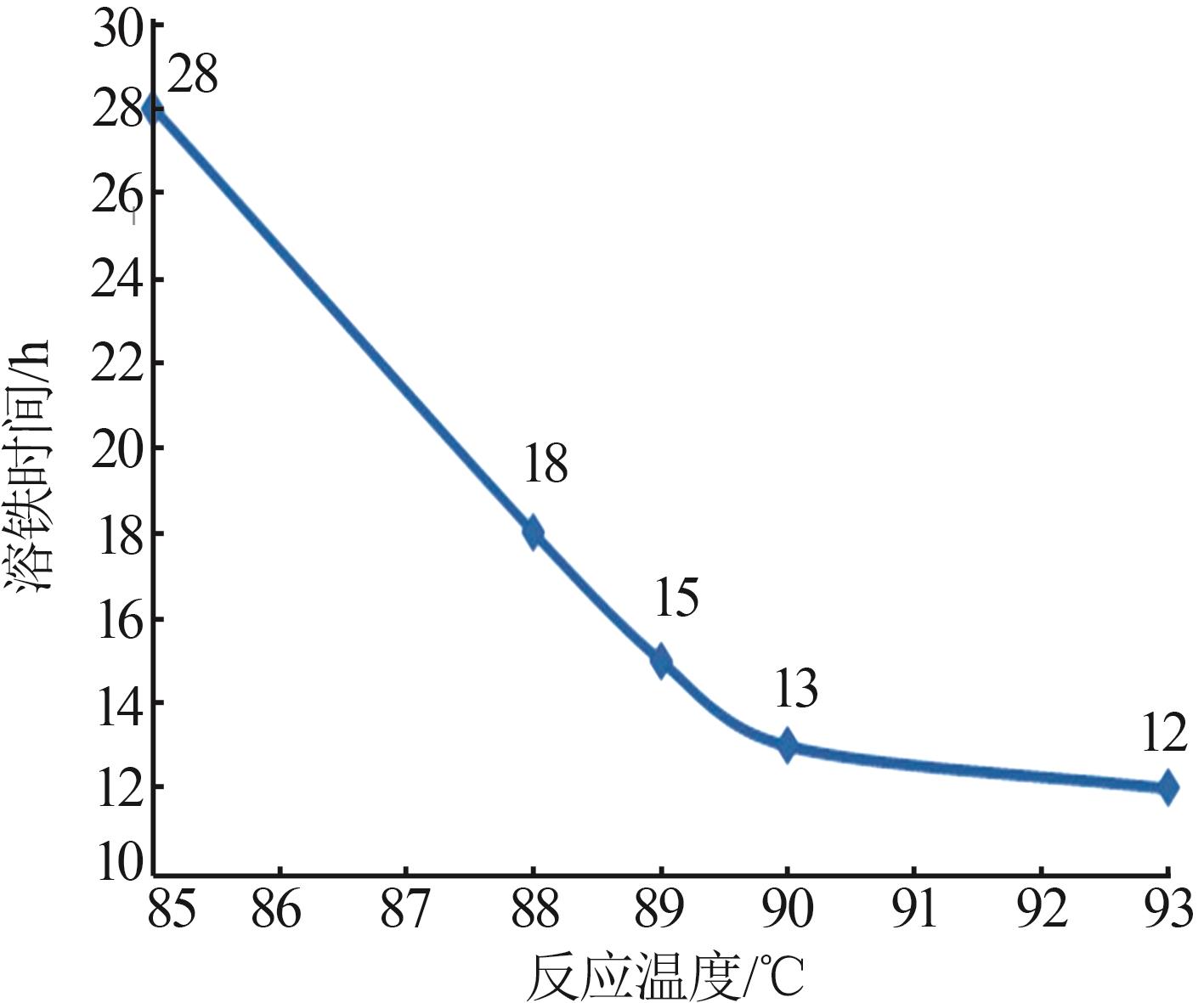

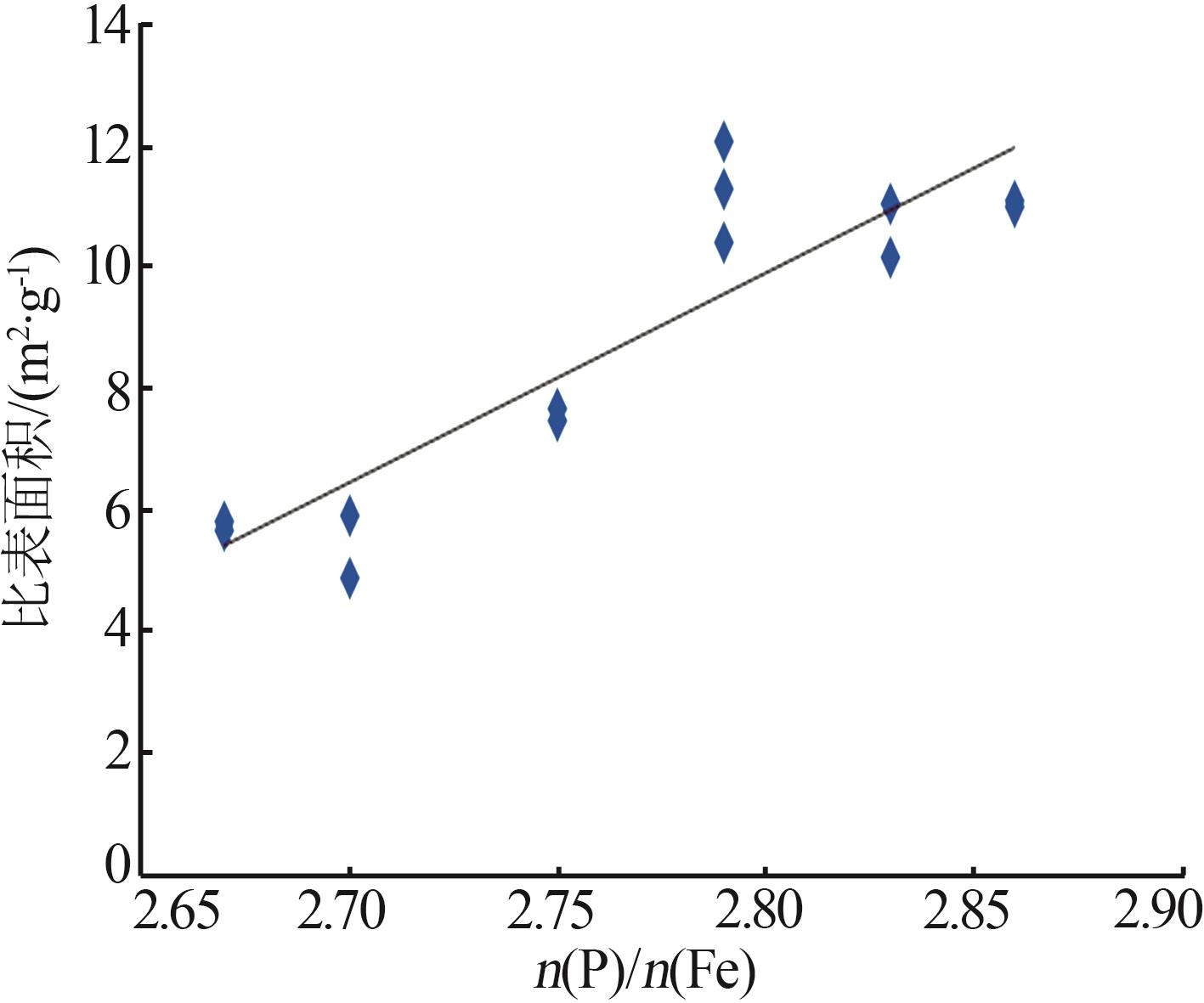

In order to obtain the industrial production technology conditions for ferric phosphate by using pure iron，Yunnan Yuntianhua Co.，Ltd.，R&D Center after completing the small-scale exploratory experiment and model verification experiment，built a 1 000 t/a pilot plant for ferric phosphate production.The process used high-purity iron ingots（99.9%），purified phosphoric acid（85.0%），and 27.5% hydrogen peroxide as raw materials to produce ferric phosphate by the process of phosphoric acid dissolving iron，hydrogen peroxide oxidizing and precipitating dihydrogen phosphate.The process required the phosphate dihydrogen phosphate solution Fe²⁺mass fraction to be controlled as the target during the phosphoric acid dissolving process，and the optimized process conditions were as follows：phosphoric acid mass fraction of 26%~27%，dissolving temperature of 88~90 ℃，and dissolving time of 13~15 h.Suggestions were also given for the storage of phosphate dihydrogen phosphate solution.When the mass fraction of the phosphate dihydrogen phosphate Fe²⁺ was controlled at 44~46 g/L and the n（P）∶n（Fe） ratio was（2.65~2.75）∶1，the optimized oxidation precipitation process conditions for producing products with specific surface area as the target were as follows：the initial oxidation temperature of 62~64 ℃，and the hydrogen peroxide feeding time of 50~60 min.The final ferric phosphate product had a P mass fraction of 20.40%~20.70%，Fe mass fraction of 36.18%~36.58%，n（Fe）∶n（P） of （0.970~0.985）∶1，particle size D₅₀ of 3~5 μm，specific surface area of 6~9 m²/g，bulk density greater than 0.60 g/cm³，magnetic impurities controlled below 0.5 mg/kg，and all the indicators met the requirements for battery-grade ferric phosphate.

Key words: iron ingots, phosphate soluble iron, storage of ferrous dihydrogen phosphate solution, oxidation precipitation, battery grade ferric phosphate

CLC Number:

TQ138.1

NI Shuanglin, MA Hang, XUE He′nan, WAN Banglong, YAN Yinxian, ZHANG Jinyuan, CHEN Zhanghong, WEI Xing, CHEN Yunjian, DU Jianbo, DAI Jinfeng. Study on iron-based process for preparing battery-grade ferric phosphate[J]. Inorganic Chemicals Industry, 2025, 57(9): 73-81.

Figures/Tables 13

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

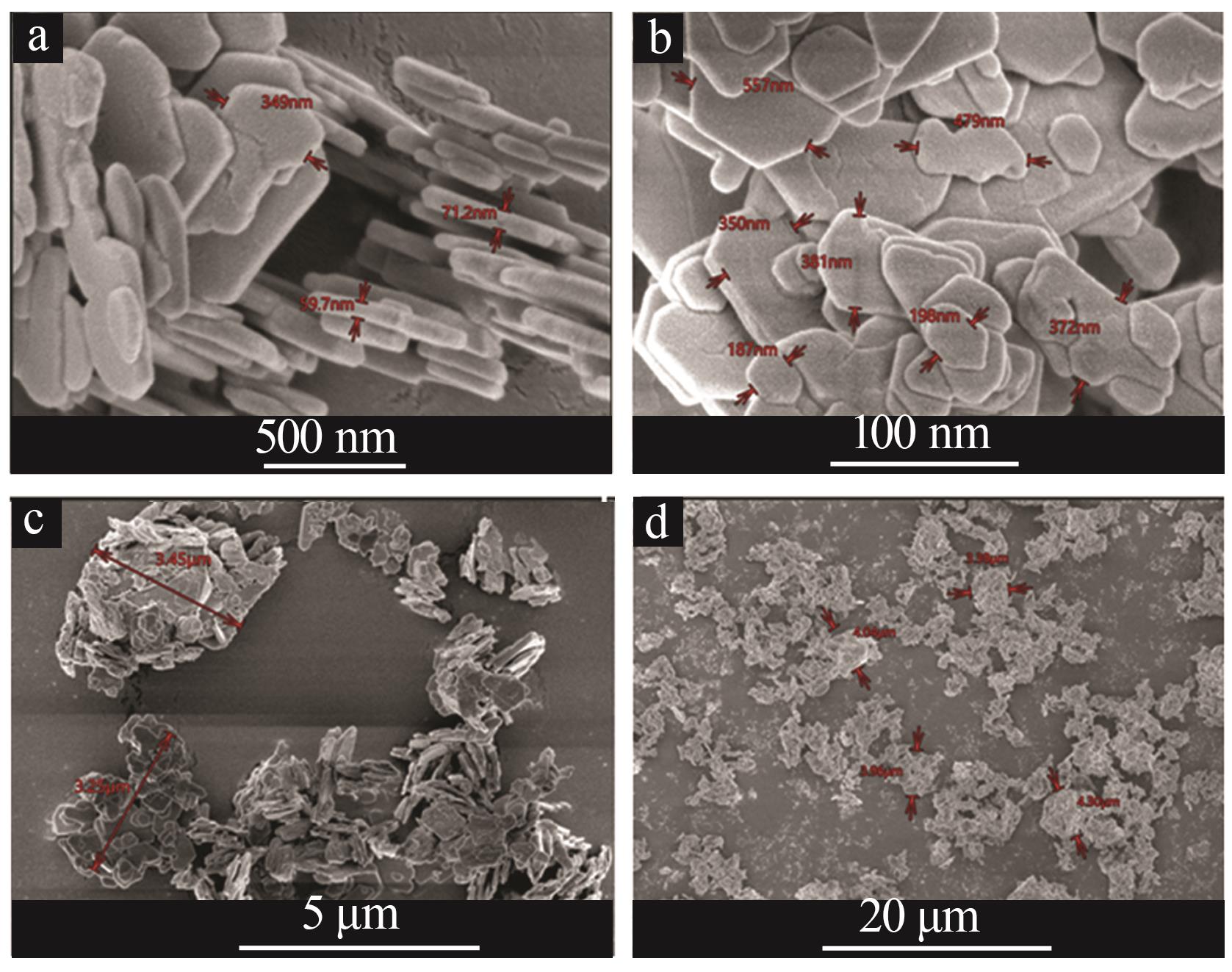

Fig.11

Table 1

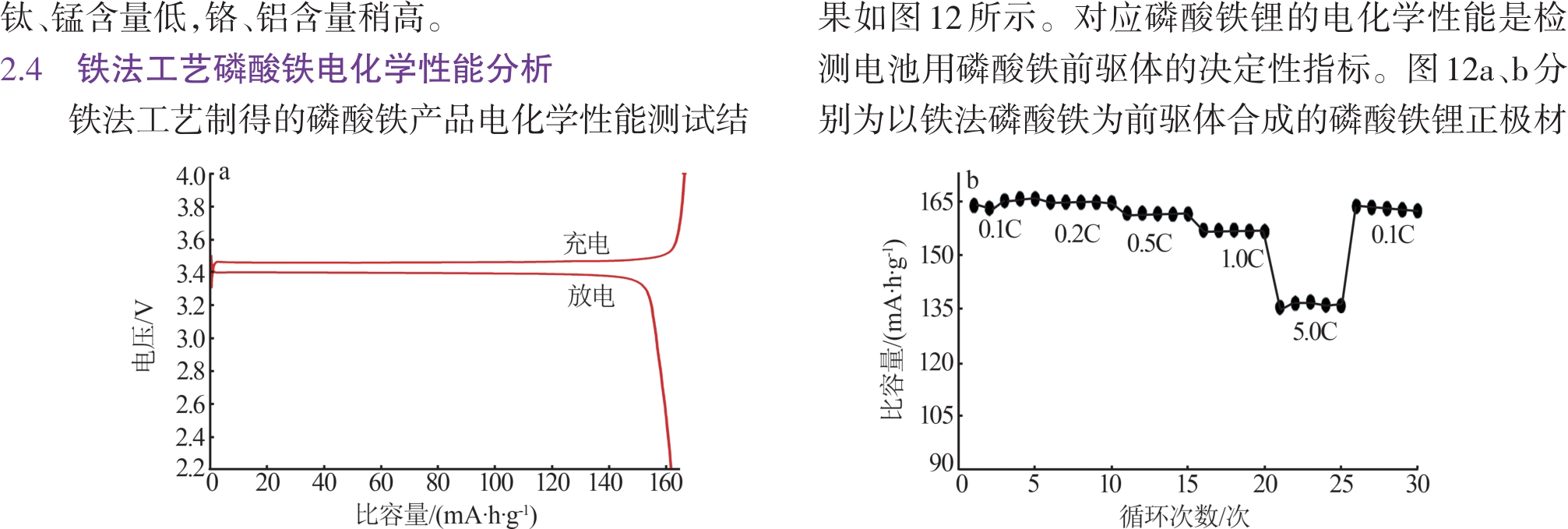

Fig.12

References 13

[1]	OKADA S， YAMAMOTO T， OKAZAKI Y，et al.Cathode properties of amorphous and crystalline FePO₄ ［J］.Journal of Power Sources，2005，146（1/2）：570-574.
[2]	袁文龙，王碧侠，赵瑛，等.用钛白副产硫酸亚铁合成磷酸铁前驱体［J］.有色金属工程，2023，13（7）：61-68.
	YUAN Wenlong， WANG Bixia， ZHAO Ying，et al.Synthesis of iron phosphate precursor from by-product ferrous sulfate of titanium dioxide［J］.Nonferrous Metals Engineering，2023，13（7）：61-68.
[3]	王紫涵，李军，陈明，等.硝酸铁和磷酸共沉淀法制备电池级磷酸铁工艺研究［J］.无机盐工业，2023，55（7）：51-57.
	WANG Zihan， LI Jun， CHEN Ming，et al.Study on preparation of battery grade ferric phosphate by co-precipitation of ferric nitrate and phosphoric acid［J］.Inorganic Chemicals Industry，2023，55（7）：51-57.
[4]	李加勇，白志鹏，郑清清.一种制备锂电池用LiFePO₄的方法［J］.电源技术，2023，47（8）：1002-1005.
	LI Jiayong， BAI Zhipeng， ZHENG Qingqing.A method for synthetizing LiFePO₄ used in lithium ion batteries［J］.Chinese Journal of Power Sources，2023，47（8）：1002-1005.
[5]	刘万丰，肖仁贵，林倩，等.磷铁制备电池级磷酸铁放大实验研究［J］.无机盐工业，2015，47（5）：75-78.
	LIU Wanfeng， XIAO Rengui， LIN Qian，et al.Amplification experiments of preparing battery-grade ferric phosphate by ferrophosphorus［J］.Inorganic Chemicals Industry，2015，47（5）：75-78.
[6]	苏勇杰，张勇，陈喆，等.圆片状超细二水磷酸铁的制备与表征［J］.武汉工程大学学报，2018，40（1）：66-70.
	SU Yongjie， ZHANG Yong， CHEN Zhe，et al.Preparation and char-acterization of ultrafine disc shaped ferric phosphate dihydrate［J］.Journal of Wuhan Institute of Technology，2018，40（1）：66-70.
[7]	李永佳，魏润宏，鲁劲华，等.电池级磷酸铁的制备及性能［J］.化工进展，2021，40（4）：2227-2233.
	LI Yongjia， WEI Runhong， LU Jinhua，et al.Preparation and performance of FePO₄ precursor for LiFePO₄ ［J］.Chemical Industry and Engineering Progress，2021，40（4）：2227-2233.
[8]	闫银贤，马航，万邦隆，等.铁法磷酸铁的工业化制备及其电化学应用［J］.云南化工，2024，51（2）：80-83.
	YAN Yinxian， MA Hang， WAN Banglong，et al.Industrial preparation and electrochemical application of iron phosphate by pure iron method［J］.Yunnan Chemical Technology，2024，51（2）：80-83.
[9]	宋依桐，李成威，刘钢，等.水雾化铁粉制备微纳米磷酸铁的实验研究［J］.辽宁科技大学学报，2020，43（4）：241-244，250.
	SONG Yitong， LI Chengwei， LIU Gang，et al.Experimental study on preparation of micro-nano iron phosphate with water-atomized iron powder［J］.Journal of University of Science and Technology Liaoning，2020，43（4）：241-244，250.
[10]	王红强，柯君雄，王镖，等.以冷轧板为铁源制备片状磷酸铁［J］.化工管理，2023（22）：143-146.
	WANG Hongqiang， KE Junxiong， WANG Biao，et al.Preparation of flaky shaped FePO₄ with cold rolled plate as iron source［J］.Chemical Engineering Management，2023（22）：143-146.
[11]	马航，倪双林，万邦隆，等.一种连续氧化工艺制备磷酸铁的方法：中国，116534824A［P］.2023-08-04.
[12]	苏勇杰.以还原铁粉为铁源制备磷酸铁的基础研究［D］.武汉：武汉工程大学，2019.
	SU Yongjie.Basic research on Preparation of ferric phosphate from reduced iron powder as iron source［D］.Wuhan：Wuhan Institute of Technology，2019.
[13]	TAKAHASHI M， TOBISHIMA S， TAKEI K，et al.Characterization of LiFePO₄ as the cathode material for rechargeable lithium batteries［J］.Journal of Power Sources，2001，97：508-511.

指标项	w（Fe）/ %	w（P）/ %	n（Fe）/n（P）	振实密度/ （g·cm^-3）		比表面积/ （m²·g^-1）		粒度（D₅₀）/μm		w（磁性物）/%		w（H₂O）/ %	w（Ca）/ %	w（Mg）/ %
HG/T 4701—2021（Ⅰ）	35.7~36.7	20.0~21.1	0.96~1.0	≥0.6		3~16		1~9		≤0.000 25		≤0.5	≤0.01	≤0.06
自制（铁法工艺）	36.18~36.58	20.40~20.70	0.970~0.985	0.60~0.85		6~9		3~5		≤0.000 05		≤0.24	≤0.002 7	≤0.000 2
铵法两步法工艺	36.32	20.93	0.962	0.82		8.71		4.57		≤0.000 02		≤0.33	≤0.001 6	≤0.001 2
指标项	w（Na）/ %	w（K）/ %	w（Cu）/ %	w（Mn）/ %	w（Al）/ %		w（Ti）/ %		w（Co）/ %		w（Pb）/ %		w（Cr）/ %	w（S）/ %
HG/T 4701—2021（Ⅰ）	≤0.02	≤0.02	≤0.003	≤0.1	≤0.05		≤0.18		—		—		—	≤0.03
自制（铁法工艺）	≤0.001 1	≤0.000 98	≤0.000 4	≤0.001 2	≤0.005 6		≤0.000 05		≤0.000 19		≤0.000 89		≤0.002 6	≤0.000 3
铵法两步法工艺	≤0.000 5	≤0.000 39	≤0.000 2	≤0.002 5	≤0.000 3		≤0.000 26		≤0.000 14		≤0.000 86		≤0.000 9	≤0.004 6
