硫酸法和氯化法钛白初品表面性能和分散性能研究

doi:10.19964/j.issn.1006-4990.2023-0596

摘要/Abstract

摘要：

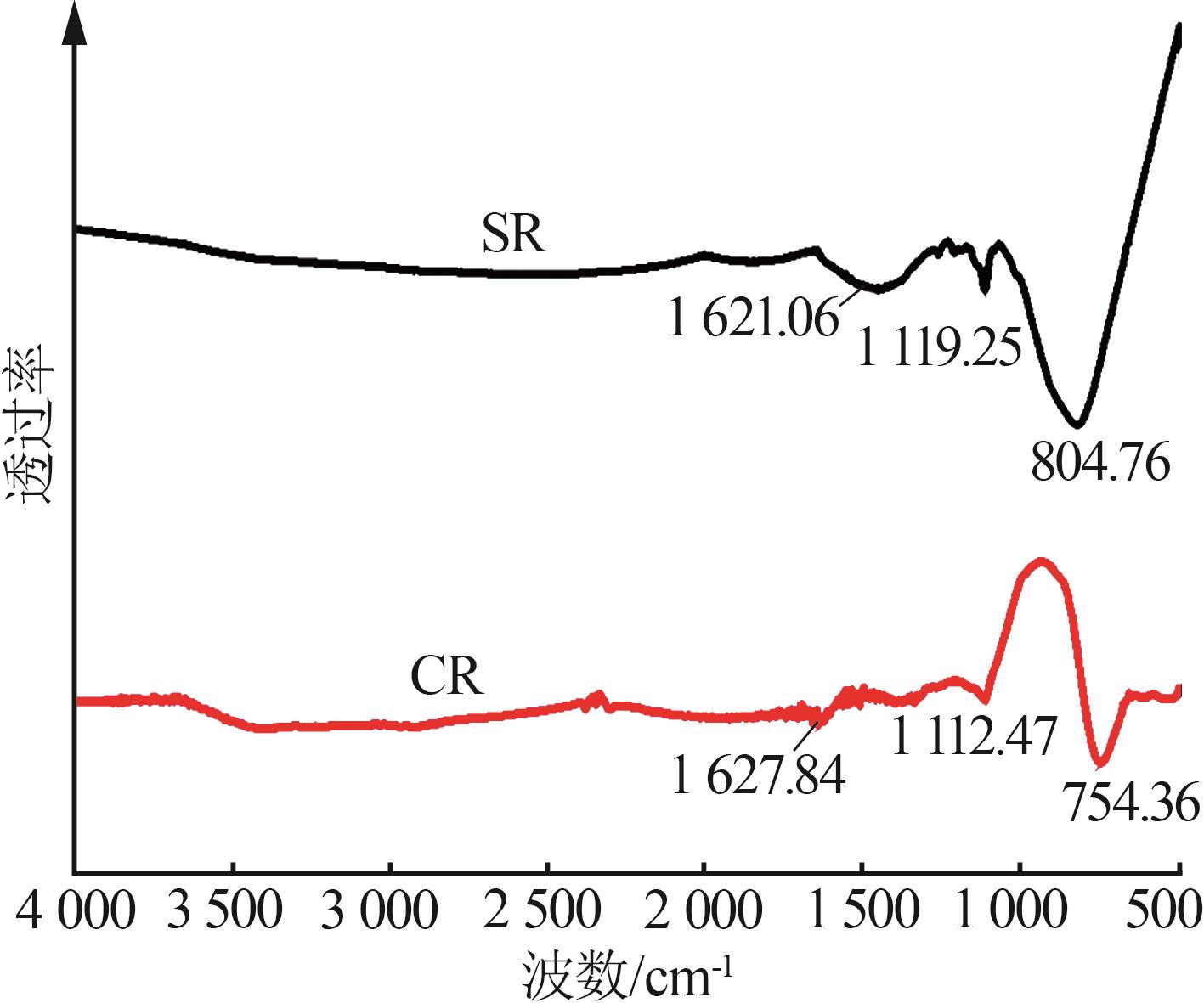

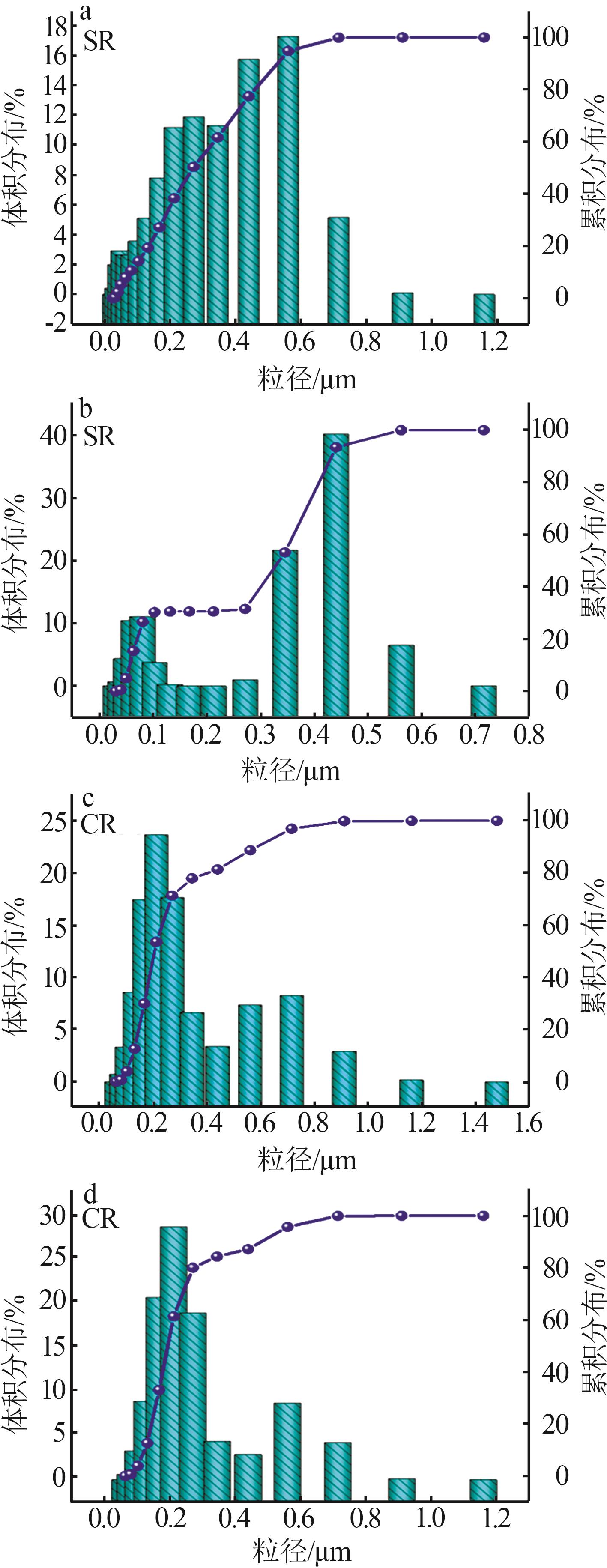

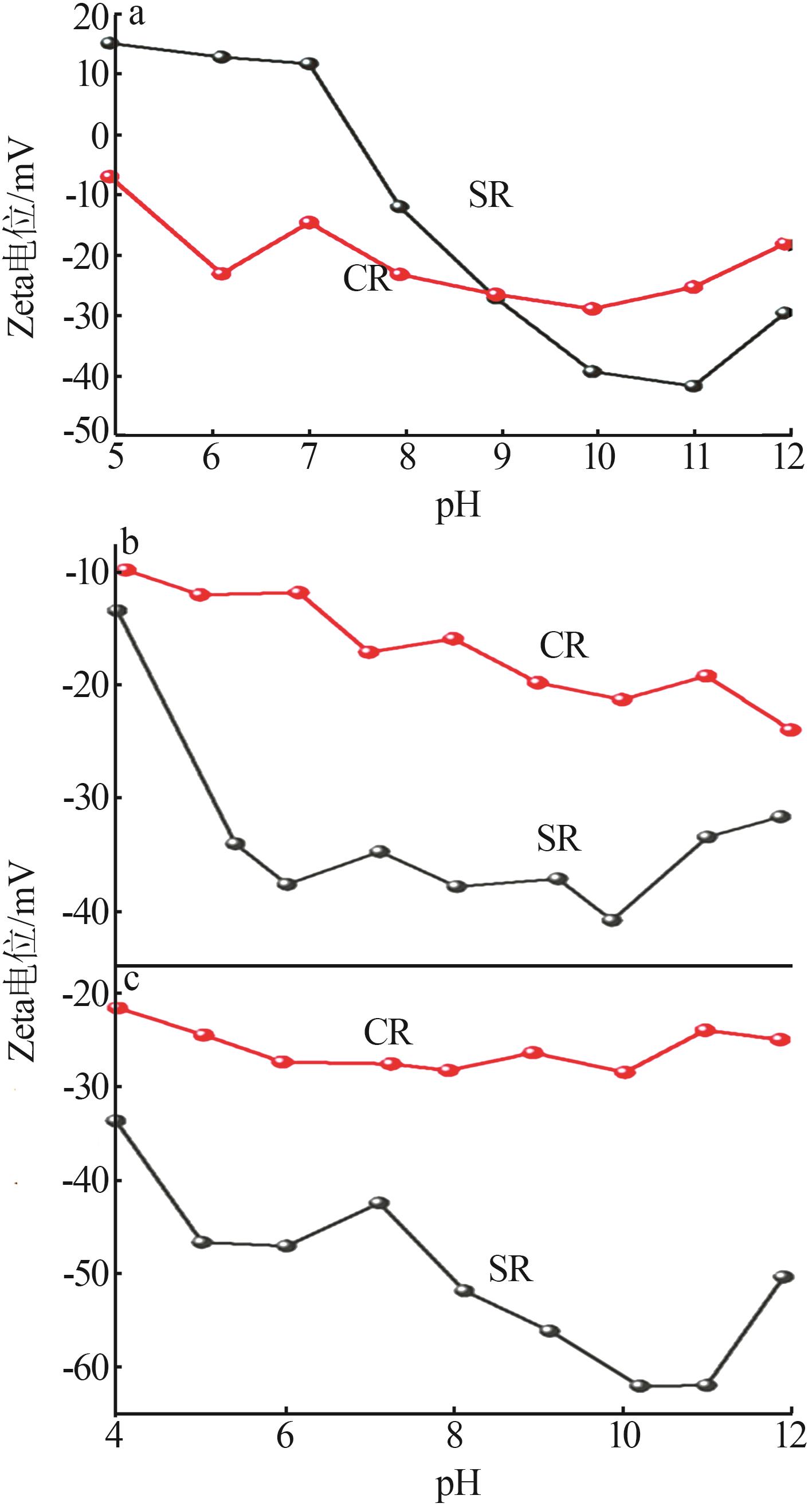

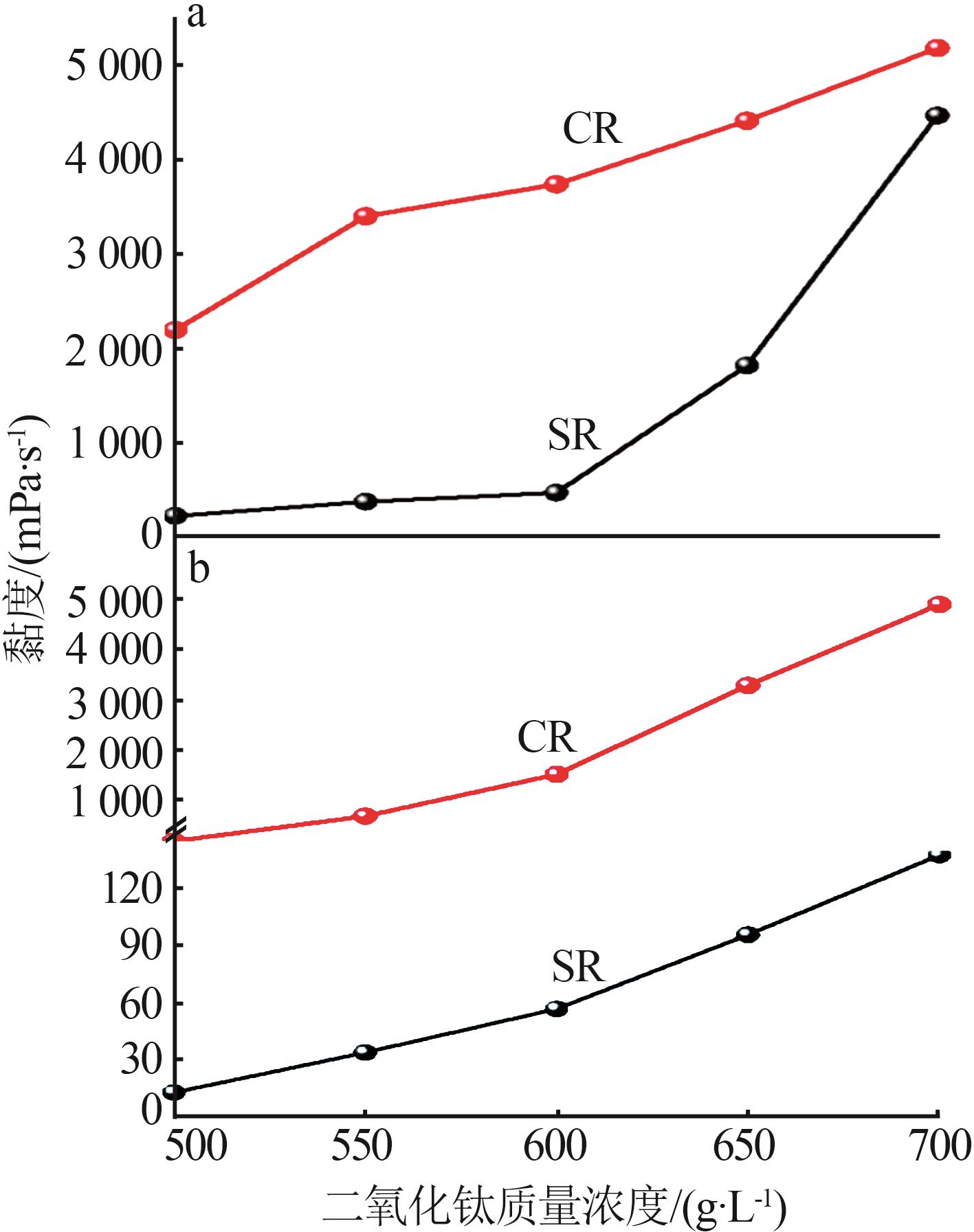

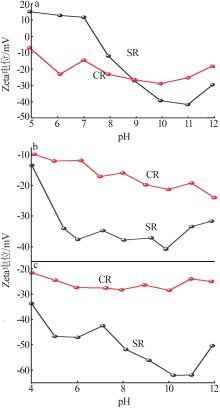

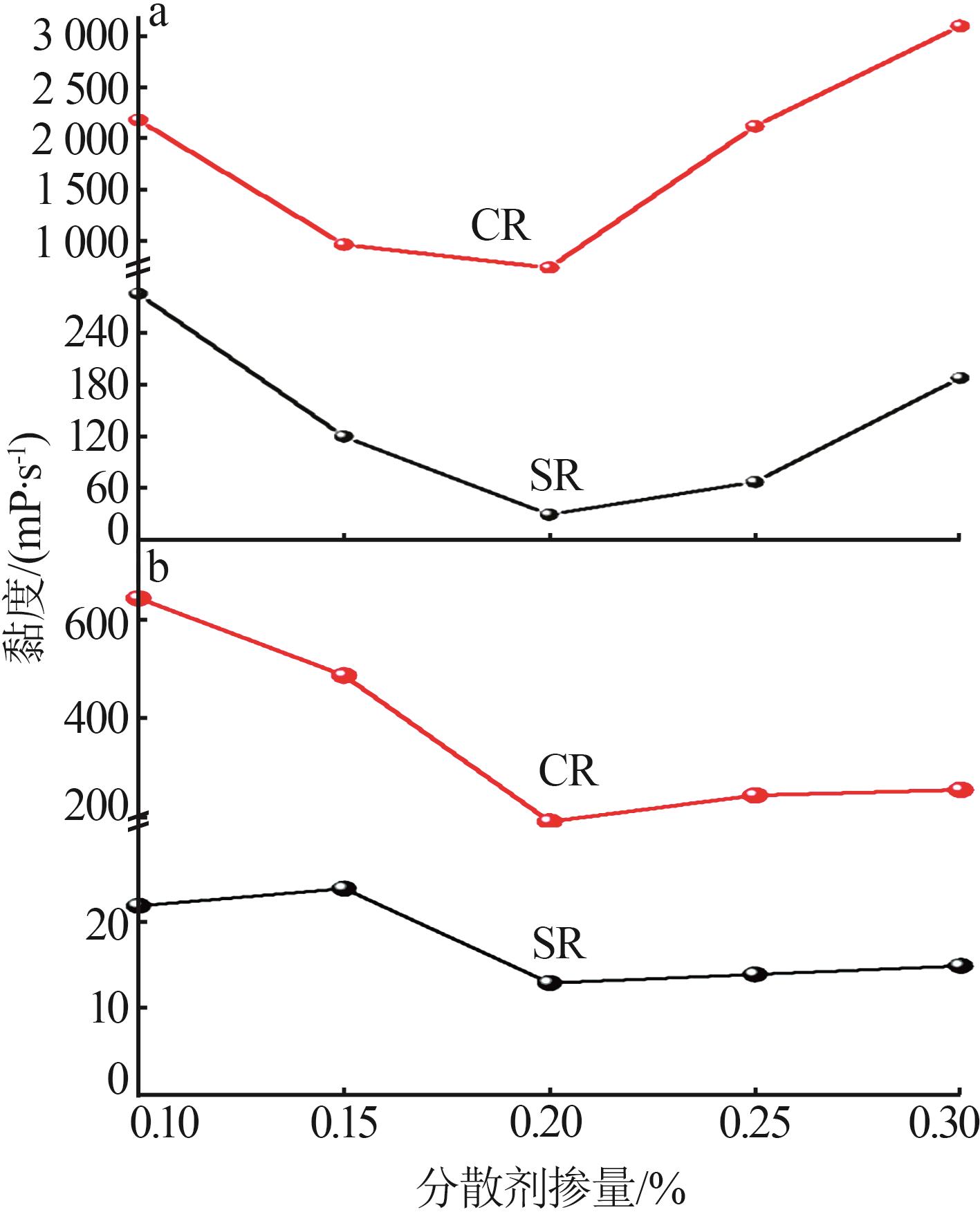

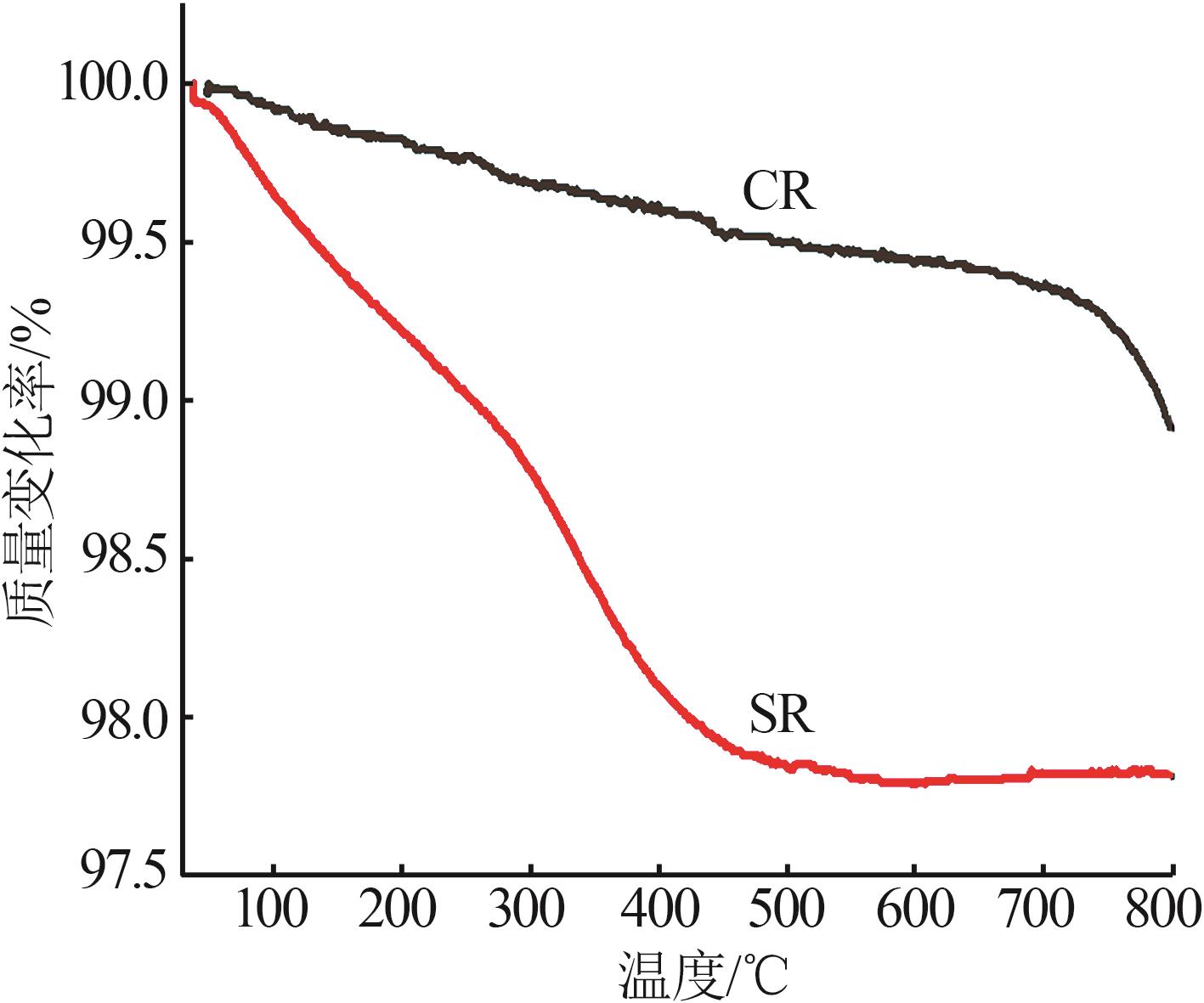

钛白粉初品的水润湿分散性对无机包膜及应用性能至关重要。鉴于硫酸法和氯化法钛白初品表面性质的不同，对其进行钛白粉分散性的差异性能研究。对比分析了两种钛白粉浆料的黏度、粒度分布和Zeta电位差异，采用SEM、FT-IR、XPS、TG及表面接触角测量等方法对不同初品进行了形貌和结构表征。结果表明，在相同的浓度、pH、分散剂及其投加量条件下，硫酸法初品相较于氯化法初品在打浆后的黏度更低，Zeta电位的绝对值更高。XPS、TG及表面能的分析结果均表明，硫酸法初品具有更多的表面羟基和更高的表面能，因此更容易被水润湿和分散，展现出更优的分散性能。此外，在分散剂A质量分数为0.2%、TiO₂质量浓度为700 g/L条件下，硫酸法初品浆料黏度为138 mPa·s、Zeta电位为-62 mV；氯化法初品浆料黏度为4 927 mPa·s、Zeta电位为-28.4 mV，表明硫酸法初品的浆料黏度较低，分散性更好，水湿润分散性也更为优异。通过分析研究不同工艺制备的钛白初品的表面结构，建立了表面结构与水分散性之间的构效关系，这为开发高端钛白粉提供了借鉴和思路。

关键词: 二氧化钛, 表面羟基, 分散性, 黏度

Abstract:

The water wettability and dispersibility of titanium dioxide is very important for the inorganic coating and application performance.Based on the different surface properties of titanium dioxide prepared by sulfuric acid method and chlorination method，the dispersion difference of titanium dioxide was studied in this paper.The slurry viscosity，particle size distribution and zeta potential of the two kinds of titanium dioxide were compared and analyzed.The morphology and structural properties of the different products were characterized by SEM，FT-IR，XPS，TG and surface contact angle measurement.The results showed that at the same concentration，the same pH，the same dispersant and its dosage，the viscosity of the titanium dioxide by sulfuric acid method was lower than that of the chlorination method after beating，and the absolute value of zeta potential was higher.XPS，TG and surface energy showed that the titanium dioxide by sulfuric acid method had more surface hydroxyl groups and surface energy，which was easier to be wetted and dispersed by water，and had better dispersion performance.In addition，when the dosage of dispersant A was 0.2% and the concentration of TiO₂ was 700 g/L，the viscosity of the sulfuric acid method initial slurry was 138 mPa·s with a Zeta potential of -62 mV，and the viscosity of the chloride method initial slurry was 4 927 mPa·s，with a Zeta potential of -28.4 mV.The results showed that the slurry viscosity of the sulfuric acid method was lower，the dispersion was better，and the water wetting dispersion was better.The structure-activity relationship between surface structure and water dispersity was established by analyzing the surface structure of titanium dioxide with different processes，which provided reference and ideas for the development of high-end titanium dioxide.

Key words: titanium dioxide, surface hydroxyl group, dispersibility, viscosity

中图分类号:

TQ621.1

全远霞, 全学军, 柯良辉, 李礼. 硫酸法和氯化法钛白初品表面性能和分散性能研究[J]. 无机盐工业, 2024, 56(11): 123-131.

QUAN Yuanxia, QUAN Xuejun, KE Lianghui, LI Li. Study on surface characteristics and dispersion properties of titanium dioxide base particles by sulfate and chloride processes[J]. Inorganic Chemicals Industry, 2024, 56(11): 123-131.

图/表 12

图1

图2

图3

图4

表1

图5

表2

图6

图7

图8

图9

图10

参考文献 37

1	MATHAI S， SHAJI P S.Different coating methods of titanium dioxide on metal substrates for orthopedic and dental applications：A review［J］.Asian Journal of Chemistry，2021，34（1）：9-17.
2	LIANG Ying， HUANG Guohe， XIN Xiaying，et al.Black titanium dioxide nanomaterials for photocatalytic removal of pollutants：A review［J］.Journal of Materials Science & Technology，2022，112：239-262.
3	GUAN Rengui， HE Zhijuan， LIU Shanshan，et al.A novel photoelectrochemical approach for efficient assessment of TiO₂ pigments weatherability［J］.Powder Technology，2021，380：334- 340.
4	VYBOISHCHIK A V， KOSTIUNINA I L.Contemporary methods of production and application of pigments obtained from titanium dioxide［J］.IOP Conference Series：Materials Science and Engineering，2018，451：012004.
5	LUO Ke， YOON Y L， PARK H，et al.Effect of organic acids on the morphology and particle size of titanium dioxide（E171） in processed food［J］.Journal of Hazardous Materials，2022，432：128666.
6	TIAN Congxue.Calcination intensity on rutile white pigment production via short sulfate process［J］.Dyes and Pigments，2016，133：60-64.
7	TAYLOR M L， MORRIS G E， SMART R ST C.Influence of aluminum doping on titania pigment structural and dispersion properties［J］.Journal of Colloid and Interface Science，2003，262（1）：81-88.
8	王海波，陈新红，吴小平，等.砂磨次数对钛白初品质量的影响［J］.钢铁钒钛，2017，38（3）：34-37.
	WANG Haibo， CHEN Xinhong， WU Xiaoping，et al.Effect of sand milling times on the quality of TiO₂ initial product［J］.Iron Steel Vanadium Titanium，2017，38（3）：34-37.
9	陈新红，王荣凯，李礼.升温速率对金红石型二氧化钛颜料性能的影响研究［J］.钢铁钒钛，2020，41（2）：20-23，28.
	CHEN Xinhong， WANG Rongkai， LI Li.Effects of heating rate on pigment properties of rutile TiO₂ ［J］.Iron Steel Vanadium Titanium，2020，41（2）：20-23，28.
10	ŠTENGL V， BAKARDJIEVA S， ŠUBRT J，et al.Titania aerogel prepared by low temperature supercritical drying［J］.Microporous and Mesoporous Materials，2006，91（1/2/3）：1-6.
11	KHUSNUN N F， JALIL A A， ABDULLAH T A T，et al.Influence of TiO₂ dispersion on silica support toward enhanced amine assisted CO₂ photoconversion to methanol［J］.Journal of CO2 Utilization，2022，58：101901.
12	ZHANG Yunsheng， YIN Hengbo， WANG Aili，et al.Deposition and characterization of binary Al₂O₃/SiO₂ coating layers on the surfaces of rutile TiO₂ and the pigmentary properties［J］.Applied Surface Science，2010，257（4）：1351-1360.
13	LIU Yumin， ZHANG Yunsheng， GE Chen，et al.Evolution mecha-nism of alumina coating layer on rutile TiO2 powders and the pigmentary properties［J］.Applied Surface Science，2009，255（16）：7427-7433.
14	LIU Jiaqi， ZHANG Fengmei， DOU Shengping，et al.Adsorption of serine at the anatase TiO₂/water interface：A combined ATR-FT-IR and DFT study［J］.The Science of the Total Environment，2022，807：150839.
15	ERDEM B， HUNSICKER R A， SIMMONS G W，et al.XPS and FT-IR surface characterization of TiO₂ particles used in polymer encapsulation［J］.Langmuir，2001，17（9）：2664-2669.
16	MANSO M， VALADAS S， PESSANHA S，et al.Characterization of Japanese color sticks by energy dispersive X-ray fluorescence，X-ray diffraction and Fourier transform infrared analysis［J］.Spectrochimica Acta Part B：Atomic Spectroscopy，2010，65（4）：321-327.
17	KREBS F， HÖFFT O， ENDRES F.Investigations on the electrochemistry and reactivity of tantalum species in 1-Butyl-1-methylpyrrolidinium bis（trifluoromethylsulfonyl）amide using X-ray photoelectron spectroscopy（in situ and ex-situ XPS）［J］.Applied Surface Science，2023，608：155130.
18	ROBERT B， FLAUD V， ESCALIER R，et al.XPS study of Ge-Se-Te surfaces functionalized with organosilanes［J］.Applied Surface Science，2023，607：154921.
19	GONZÁLEZ V J， VÁZQUEZ E， VILLAJOS B，et al.Eco-friendly mechanochemical synthesis of titania-graphene nanocomposites for pesticide photodegradation［J］.Separation and Purification Technology，2022，289：120638.
20	MA Dan， TAO E， YANG Shuyi.Efficient removal of Cu（Ⅱ） with graphene oxide-titanium dioxide/sodium alginate composite beads：Preparation，characterization，and adsorption mechanism［J］.Journal of Environmental Chemical Engineering，2021，9（6）：106501.
21	DONG Xiongbo， SUN Zhiming， JIANG Lei，et al.Investigation on the film-coating mechanism of alumina-coated rutile TiO₂ and its dispersion stability［J］.Advanced Powder Technology，2017， 28（8）：1982-1988.
22	LAMPIMÄKI M， SCHREIBER S， ZELENAY V，et al.Exploring the environmental photochemistry on the TiO₂（110） surface in situ by near ambient pressure X-ray photoelectron spectrosco-py［J］.The Journal of Physical Chemistry C，2015，119（13）：7076-7085.
23	ZHAO Jie， MILANOVA M， WARMOESKERKEN M M C G，et al.Surface modification of TiO₂ nanoparticles with silane coupling agents［J］.Colloids and Surfaces A：Physicochemical and Engineering Aspects，2012，413：273-279.
24	JIN Xiaotong， ZHANG Tianqi， YUAN Kangkang，et al.Unveiling temperature-modified electrospun TiO₂ nanofibers with size-driven microstructure evolution and enhanced photocatalytic effect［J］.Optical Materials，2022，123：111840.
25	SAEED A M EL， FATTAH M A E， DARDIR M M.Synthesis and characterization of titanium oxide nanotubes and its performance in epoxy nanocomposite coating［J］.Progress in Organic Coatings，2015，78：83-89.
26	DUAN Xiaoli， JIN Guoliang， ZHANG Luyao，et al.Insight into the pyrolysis of 3，7-dinitro-1，3，5，7-tetraazabicyclo［3，3，1］nonan（DPT） based on ReaxFF MD simulations and TG-FT-IR-MS techniques［J］.Fuel，2023，331：125860.
27	BLAKE T D， FERNÁNDEZ-TOLEDANO J C， DE CONINCK J.A possible way to extract the dynamic contact angle at the molecular scale from that measured experimentally［J］.Journal of Colloid and Interface Science，2023，629：660-669.
28	HUMINIC A， HUMINIC G， FLEACA C，et al.Influence of solid surface，temperature and concentration on contact angle of water-FeC nanofluid［J］.International Communications in Heat and Mass Transfer，2021，128：105650.
29	TANAKA T， TAKAYANAGI T.Quantum reactive scattering calculations of H+F2 and Mu+F2 reactions on a new ab initio potential energy surface［J］.Chemical Physics Letters，2010，496（4/5/6）：248-253.
30	WEI Xiaoyu， JIANG Shidong， KLÖCKNER A，et al.An integral equation method for the Cahn-Hilliard equation in the wetting problem［J］.Journal of Computational Physics，2020，419：109521.
31	COSTELLO M J， JOHNSEN S， GILLILAND K O，et al.Predicted light scattering from particles observed in human age-related nuclear cataracts using Mie scattering theory［J］.Investigative Ophthalmology & Visual Science，2007，48（1）：303-312.
32	PAZOKIFARD S， MIRABEDINI S M， ESFANDEH M，et al.Silane grafting of TiO₂ nanoparticles：Dispersibility and photoactivity in aqueous solutions［J］.Surface and Interface Analysis，2012， 44（1）：41-47.
33	XU Q， ZHAO J， XU H，et al.Dispersion of TiO₂ particles and preparation of SiO₂ coating layers on the surfaces of TiO₂ ［J］.Materials Research Innovations，2015，19（sup5）：S5-142-S5-145.Doi：10.1179/1432891715Z.0000000001351.
34	MATHAN KUMAR P， PARAMASIVAM V， BEEMARAJ R K，et al.Investigate the characterization and synthesis process of titanium dioxide nanoparticles［J］.Materials Today：Proceedings，2022，52：1140-1142.
35	PANDEY F P， SINGH S.Time resolved fluorescence and Raman properties，and zeta potential of zinc ferrite nanoparticles dispersed nematic liquid crystal 4′-heptyl-4-biphenylcarbonitrile （7CB）［J］.Journal of Molecular Liquids，2020，315：113820.
36	FORTUNATO G， TENNICHE A， GOTTARDO L，et al.Development of poly-（ethylene terephthalate） masterbatches incorporating highly dispersed TiO₂ nanoparticles：Investigation of morphologies by optical and rheological procedures［J］.European Polymer Journal，2014，57：75-82.
37	KOSMULSKI M， MĄCZKA E.Zeta potential and particle size in dispersions of alumina in 50-50 w/w ethylene glycol-water mixture［J］.Colloids and Surfaces A：Physicochemical and Engineering Aspects，2022，654：130168.

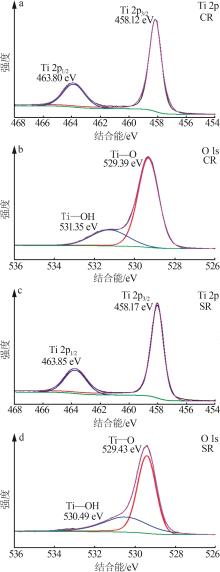

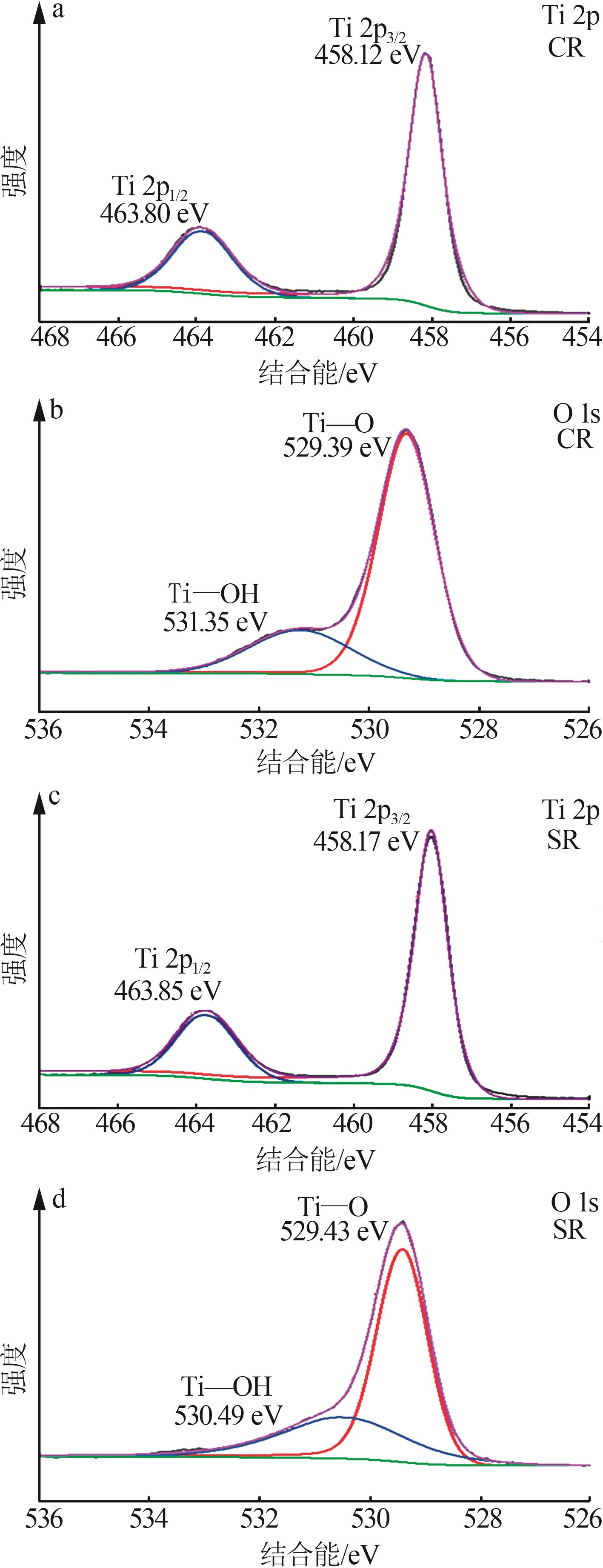

样品	物种	电子结合能/eV	XPS分峰拟合面积	表面物种数/（个·nm^-2）
1^#氯化法钛白初品	Ti—O	529.39	184 073.01	6.89
1^#氯化法钛白初品	Ti—OH	531.35	59 405.32	2.22
2^#硫酸法钛白初品	Ti—O	529.43	144 208.37	6.45
2^#硫酸法钛白初品	Ti—OH	530.49	50 092.13	2.24
