基于4-巯基苯甲酸和聚乙烯亚胺功能化纳米银的Cr3+检测研究

doi:10.19964/j.issn.1006-4990.2023-0143

摘要/Abstract

摘要：

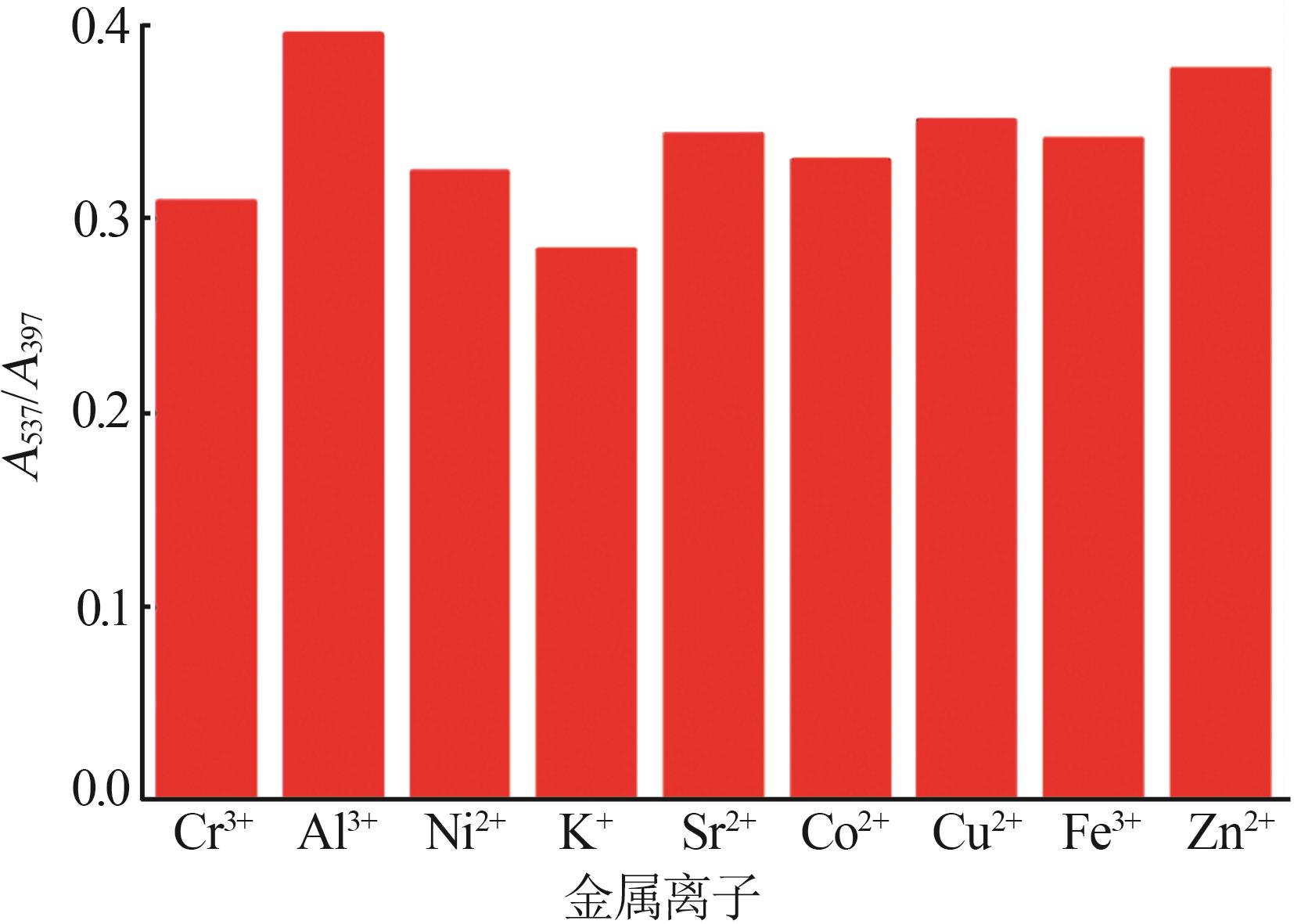

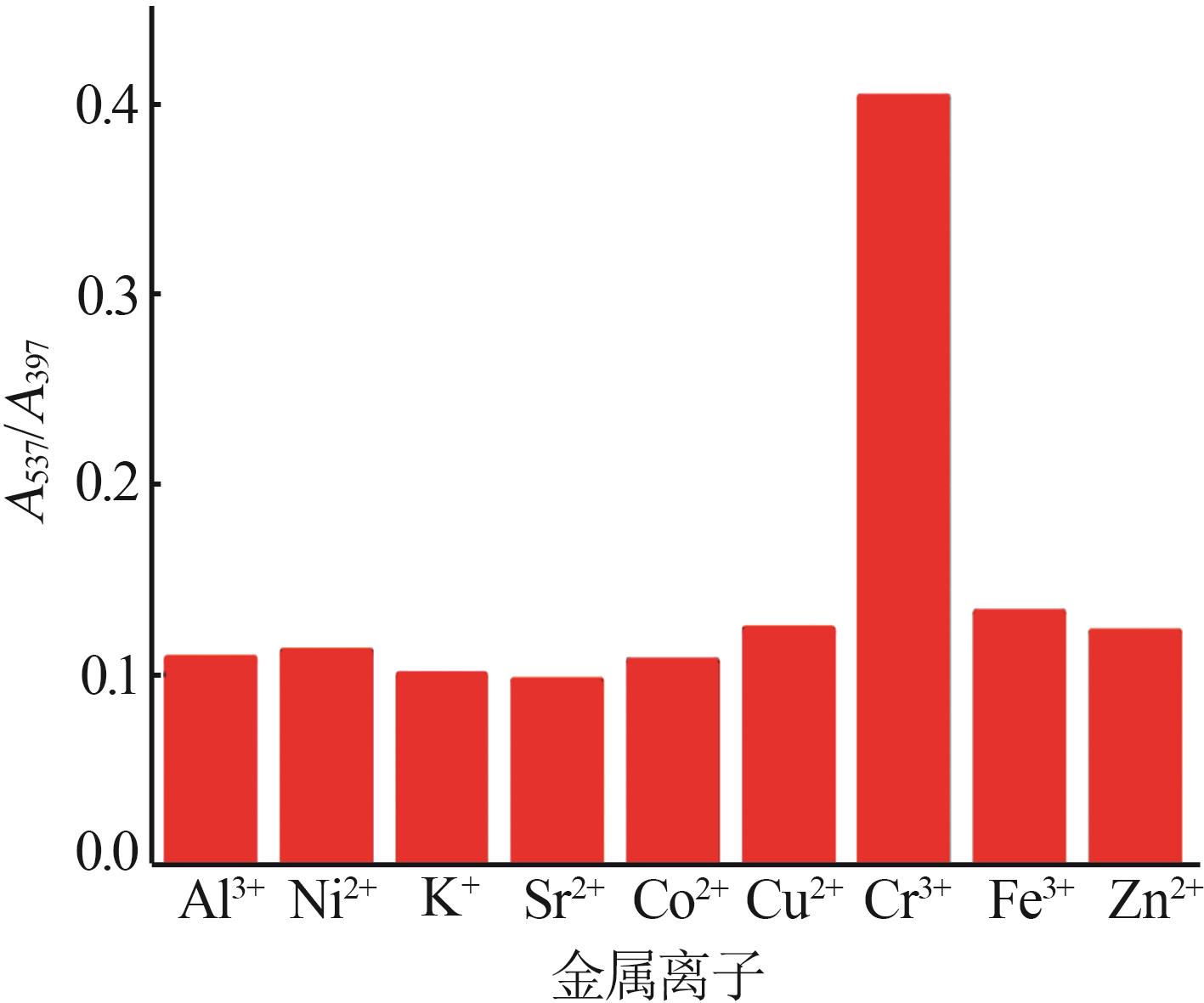

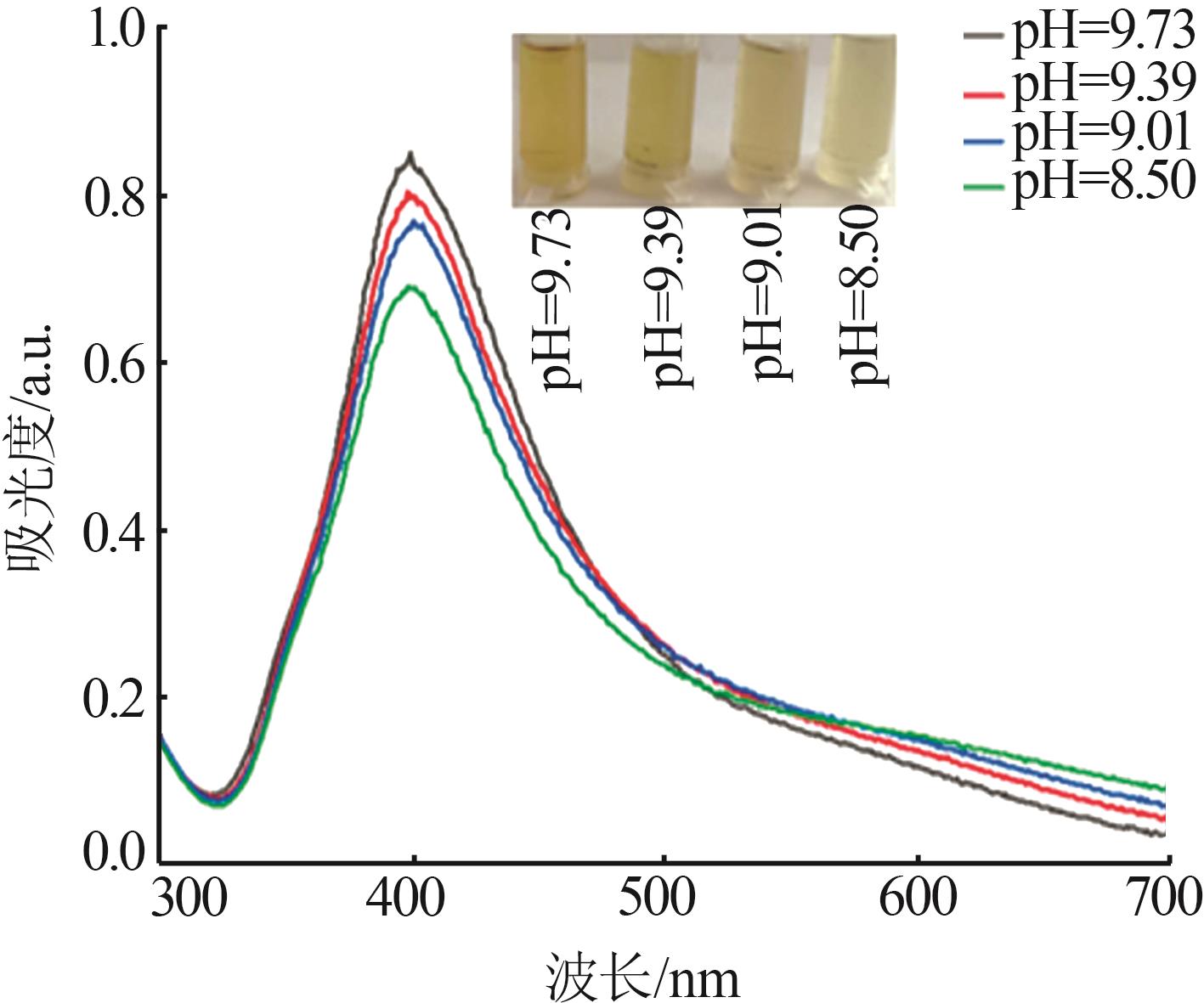

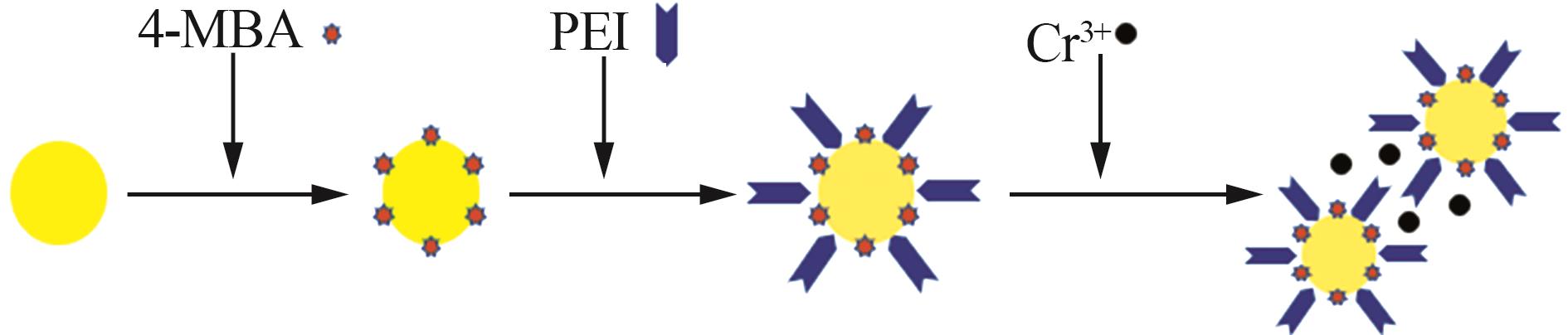

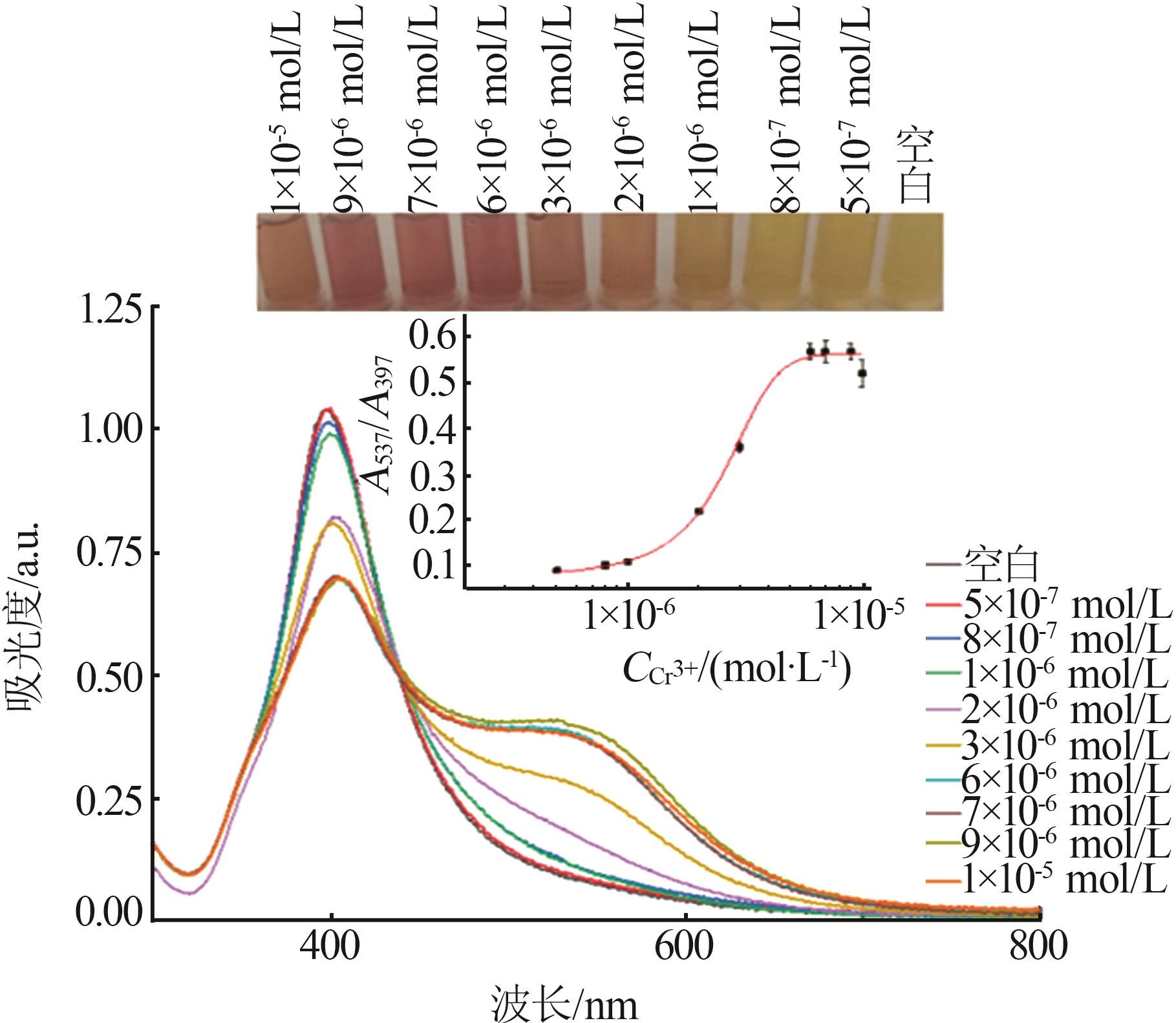

水体中重金属离子含量过高会导致生态环境及人体健康的严重损害，检测水体中重金属离子含量十分重要。针对目前重金属离子检测灵敏度的问题，合成了4-巯基苯甲酸和聚乙烯亚胺修饰的纳米银材料，并构建了水溶液中铬离子检测体系。考察了不同修饰剂的浓度、体系pH对检测体系的影响。研究结果表明，当4-巯基苯甲酸浓度为1×10^-6 mol/L、聚乙烯亚胺质量浓度为2×10^-8 g/mL、pH=9.73时，该检测体系对Cr³⁺具有良好的检测效果，在最优条件下检测限可达8×10^-7 mol/L。另外，该检测体系能够有效抵抗Al³⁺、Ni²⁺、K⁺、Sr²⁺、Co²⁺、Cu²⁺、Fe³⁺、Zn²⁺的干扰。在Cr³⁺浓度为8×10^-7~1×10^-5mol/L时，符合曲线方程y=0.059 06+0.504 02/［1+10^{（2.593 49×10 -}^x^）×569 909.68］（R²=0.997）。该研究在检测污水中Cr³⁺浓度方面具有较大的应用价值。

关键词: 纳米银, 铬离子, 聚乙烯亚胺

Abstract:

Heavy metal ions in water caused serious damage to the ecological environment and human health.Therefore，it is great significant to detect heavy metal ions in water ecological environment.Aiming at improving the sensitivity for heavy metal detection in aqueous solution，functional silver nanoparticles modified by 4-mercaptobenzoic acid and polyethyleneimine were synthesized to construct the detection system for chromium ions.The effects of different concentrations of modifiers and the pH of the detection system on the detection system were investigated.The results showed that the detecting platform had great results when the concentration of 4-mercaptobenzoic acid and polyethyleneimine were 1×10^-6 mol/L and 2×10^-8 g/mL，respectively，and the pH value was 9.73.Under the optimum conditions，the detection limit of Cr³⁺ could reach as low as 8×10^-7 mol/L with the curve equation（R²=0.997） from 1×10^-5 mol/L to 8×10^-7 mol/L.In addition，the detection system could effectively resist the interferents of Al³⁺，Ni²⁺，K⁺，Sr²⁺，Co²⁺，Cu²⁺，Fe³⁺，Zn²⁺.At Cr³⁺ concentration of 8×10^-7~1×10^-5 mol/L，it was followed the curve equation y=0.059 06+0.504 02/［1+10^{（2.593 49×10 -}^x^）×569 909.68］（R²=0.997）.It had great application value in detecting the concentration of Cr³⁺ in sewage.

Key words: silver nanoparticles, chromium ion, polyethyleneimine

中图分类号:

TQ136.11

祖明华, 曹亚鹏, 李衡, 刘玉敏, 张志昆. 基于4-巯基苯甲酸和聚乙烯亚胺功能化纳米银的Cr³⁺检测研究[J]. 无机盐工业, 2024, 56(4): 78-84.

ZU Minghua, CAO Yapeng, LI Heng, LIU Yumin, ZHANG Zhikun. Study on Cr³⁺ detection based silver nanoparticles modified with 4-mercaptobenzoic acid and polyethyleneimine[J]. Inorganic Chemicals Industry, 2024, 56(4): 78-84.

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表1

参考文献 20

1	BILGIC A. Fabrication of mono BODIPY-functionalized Fe₃O₄@SiO₂@TiO₂ nanoparticles for the photocatalytic degradation of rhodamine B under UV irradiation and the detection and removal of Cu（Ⅱ） ions in aqueous solutions［J］. Journal of Alloys and Compounds， 2022， 899：163360.
2	TANG Xu， HAN Juan， WANG Yun， et al. A multifunctional Schiff base as a fluorescence sensor for Fe^{3 +} and Zn^{2 +} ions，and a colorimetric sensor for Cu^{2 +} and applications［J］. Spectrochimica Acta Part A：Molecular and Biomolecular Spectroscopy， 2017， 173：721-726.
3	HWANG S M， KIM C. Fluorescent detection of Zn²⁺ and Cu²⁺ by a phenanthrene-based multifunctional chemosensor that acts as a basic pH indicator［J］. Inorganica Chimica Acta， 2018， 482：375- 383.
4	WAHEED A， MANSHA M， ULLAH N. Nanomaterials-based electrochemical detection of heavy metals in water：Current status，challenges and future direction［J］. Trends in Analytical Chemistry， 2018， 105：37-51.
5	陈志刚，乔丹，许小红，等. 泡沫分离法去除废水中的Cr（Ⅲ）离子［J］. 环境工程学报， 2016， 10（7）：3623-3628.
	CHEN Zhigang， QIAO Dan， XU Xiaohong， et al. Foam separation method for removing Cr（Ⅲ） ion from wastewater［J］. Chinese Journal of Environmental Engineering， 2016， 10（7）：3623-3628.
6	ZHANG Yuan， XUE Tianxiang， CHENG Liangfen， et al. Smartphone-assisted colorimetric biosensor for on-site detection of Cr³⁺ ion analysis［J］. Analytica Chimica Acta， 2022， 1199：339603.
7	FEIST B， MIKULA B， PYTLAKOWSKA K， et al. Preconcentration via ion associated complexes combined with inductively coupled plasma optical emission spectrometry for determination of heavy metals［J］. Talanta， 2012， 88：391-395.
8	KASSIM N S ABU， GHAZALI S A I S M， LIYANA BOHARI F， et al. Assessment of heavy metals in wastewater plant effluent and lake water by using atomic absorption spectrophotometry［J］. Materials Today：Proceedings， 2022， 66：3961-3964.
9	WANG Zhenzhen， DEGUCHI Y， YAN Junjie， et al. Rapid detection of trace heavy metals using laser breakdown time-of-flight mass spectrometry［J］. Procedia Environmental Sciences， 2013， 18：329-337.
10	LEI Zirong， CHEN Luqiong， HU Kan， et al. Non-aqueous phase cold vapor generation and determination of trace cadmium by atomic fluorescence spectrometry［J］. Spectrochimica Acta Part A：Molecular and Biomolecular Spectroscopy， 2018， 203：522- 527.
11	ANWAR A， MINHAZ A， KHAN N A， et al. Synthesis of gold nanoparticles stabilized by a pyrazinium thioacetate ligand：A new colorimetric nanosensor for detection of heavy metal Pd（Ⅱ）［J］. Sensors and Actuators B：Chemical， 2018， 257：875-881.
12	WANG Jingting， YANG Xu， CUI Mengyao， et al. A high-sensitive and durable electrochemical sensor based on Geobacter-dominated biofilms for heavy metal toxicity detection［J］. Biosensors and Bioelectronics， 2022， 206：114146.
13	WEI Lifei， PU Haochen， WANG Zhengxiang， et al. Estimation of soil arsenic content with hyperspectral remote sensing［J］. Sensors， 2020， 20（14）：4056.
14	燕芳，邹粮徽，王志春. 太赫兹时域光谱技术的重金属离子吸附检测方法研究［J］. 光谱学与光谱分析， 2018， 38（4）：1044-1048.
	YAN Fang， ZOU Lianghui， WANG Zhichun. Detection of adsorption for heavy metals ions based on terahertz time domain spectroscopy［J］. Spectroscopy and Spectral Analysis， 2018， 38（4）：1044-1048.
15	TAMILSELVAN S， SONIYA R M， VASANTHARAJA R， et al. Silver nanoparticles based spectroscopic sensing of eight metal ions in aqueous solutions［J］. Environmental Research， 2022， 212：113585.
16	YU Yaming， HONG Ying， WANG Yanqi， et al. Mecaptosuccinic acid modified gold nanoparticles as colorimetric sensor for fast detection and simultaneous identification of Cr³⁺ ［J］. Sensors and Actuators B：Chemical， 2017， 239：865-873.
17	MEMON R， MEMON A ALI， BALOUCH A， et al. Highly selective nanomolar level colorimetric sensing of Cr³⁺ through biosynthesized gold nanoparticles in the presence of Cr⁶⁺ ［J］. Optik， 2021， 248：168188.
18	KAILASA S K， CHANDEL M， MEHTA V N， et al. Influence of ligand chemistry on silver nanoparticles for colorimetric detection of Cr³⁺ and Hg²⁺ ions［J］. Spectrochimica Acta Part A：Molecular and Biomolecular Spectroscopy， 2018， 195：120-127.
19	SHARIF T， NIAZ A， NAJEEB M， et al. Isonicotinic acid hydrazide-based silver nanoparticles as simple colorimetric sensor for the detection of Cr³⁺ ［J］. Sensors and Actuators B：Chemical， 2015， 216：402-408.
20	ZHOU Ying， ZHAO Hong， HE Yujian， et al. Colorimetric detection of Cu²⁺ using 4-mercaptobenzoic acid modified silver nano-particles［J］. Colloids and Surfaces A：Physicochemical and Engineering Aspects， 2011， 391（1/2/3）：179-183.

样品	实际浓度/ （mol∙L^-1）	检测浓度/ （mol∙L^-1）	回收率/ %
1	3×10^-6	3.3×10^-6	110.0
2	3×10^-6	3.16×10^-6	105.3
3	3×10^-6	3.2×10^-6	106.7
4	6×10^-6	5.3×10^-6	88.3
5	6×10^-6	5.1×10^-6	85.0
