铜离子掺杂CsPbCl3量子点光学性能及稳定性探究

doi:10.19964/j.issn.1006-4990.2022-0049

摘要/Abstract

摘要：

近年来,钙钛矿因其特殊的结构受到广泛的关注。其中,全无机钙钛矿量子点作为下一代发光材料更因其优异的发光性能得到了广泛的研究和关注。但是因为其本身的铅（Pb）元素带来的毒性和较差的稳定性,钙钛矿量子点在生产和应用方面依然面临着诸多阻碍。为了解决这些难题,介绍了一种铜离子（Cu²⁺）B位掺杂CsPbCl₃钙钛矿量子点。采用了热注射的方法成功地将Cu²⁺引入CsPbCl₃钙钛矿量子点中。研究发现,Cu²⁺掺杂CsPbCl₃量子点能够保持初始四方晶体结构。由于Cu²⁺的掺杂,有效地消除了CsPbCl₃量子点的表面缺陷,从而通过辐射途径促进了激子复合,提高了CsPbCl₃量子点的发光性质。通过稳定性对比测试发现,一段时间内,Cu²⁺掺杂CsPbCl₃量子点在水中的发光强度明显高于CsPbCl₃量子点。

关键词: Cu²⁺掺杂, CsPbCl₃, 量子点, 光学性能

Abstract:

In recent years,perovskites have attracted extensive attention because of their special structure.Among them,all inorganic perovskite quantum dots,as the next generation of luminescent materials,have received abroad research and attention because of their excellent luminescent properties.However,due to the toxicity and poor stability of Pb,perovskite quantum dots still face many obstacles in production and application.In order to solve these problems,a Cu²⁺ ion B-site doped CsPbCl₃ perovskite quantum dot was introduced.Cu²⁺ was successfully doped into CsPbCl₃ perovskite quantum dots by hot injection.It was found that Cu²⁺-doped CsPbCl₃ quantum dots still maintained the initial tetragonal crystal structure.Due to the doping of Cu²⁺ ions,the surface defects of CsPbCl₃ quantum dots were effectively eliminated,which promoted exciton recombination through radiation and improved the luminescence properties of CsPbCl₃ quantum dots.Through the stability test,it was revealed that the luminescence intensity of Cu²⁺-doped CsPbCl₃ quantum dots in water was significantly higher than that of CsPbCl₃ quantum dots in certain time.

Key words: Cu²⁺-doped, CsPbCl₃, quantum dot, optical properties

中图分类号:

TB34

江谋策,潘春阳. 铜离子掺杂CsPbCl₃量子点光学性能及稳定性探究[J]. 无机盐工业, 2022, 54(10): 116-120.

JIANG Mouce,PAN Chunyang. Study on optical properties and stability of Cu²⁺-doped CsPbCl₃ quantum dots[J]. Inorganic Chemicals Industry, 2022, 54(10): 116-120.

图/表 6

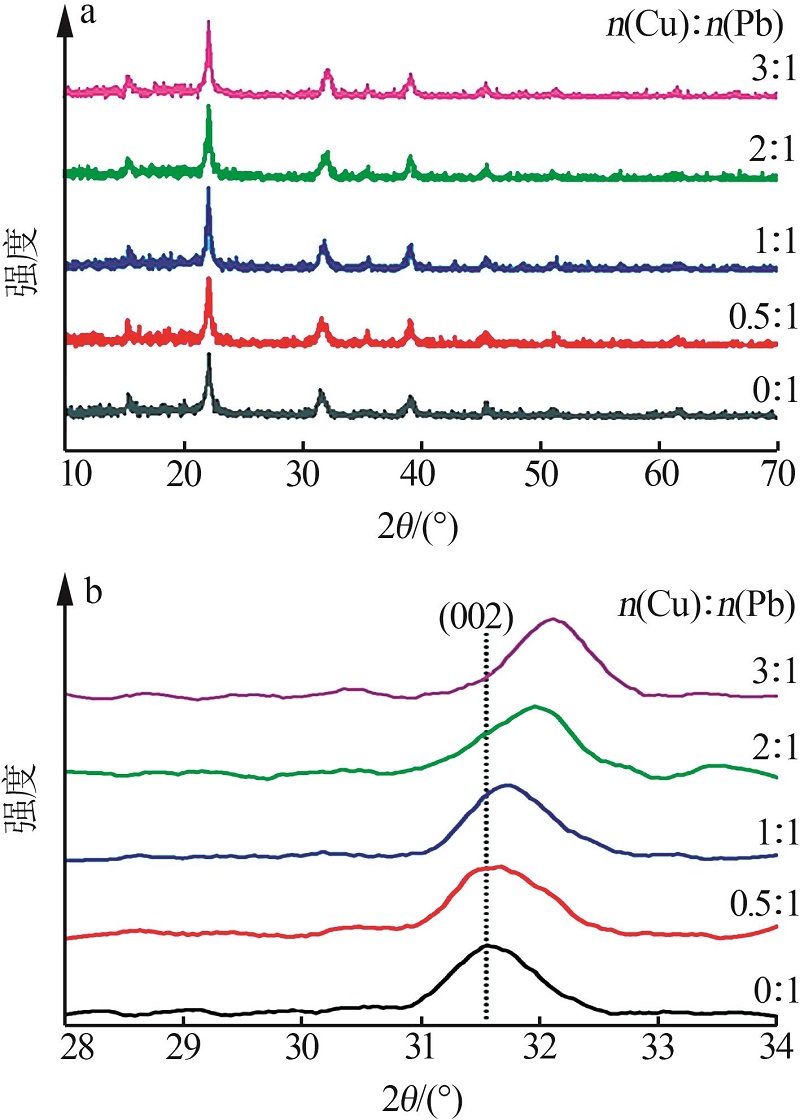

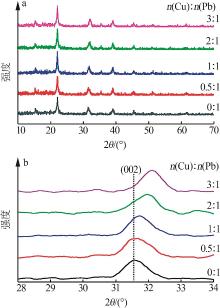

图1

图2

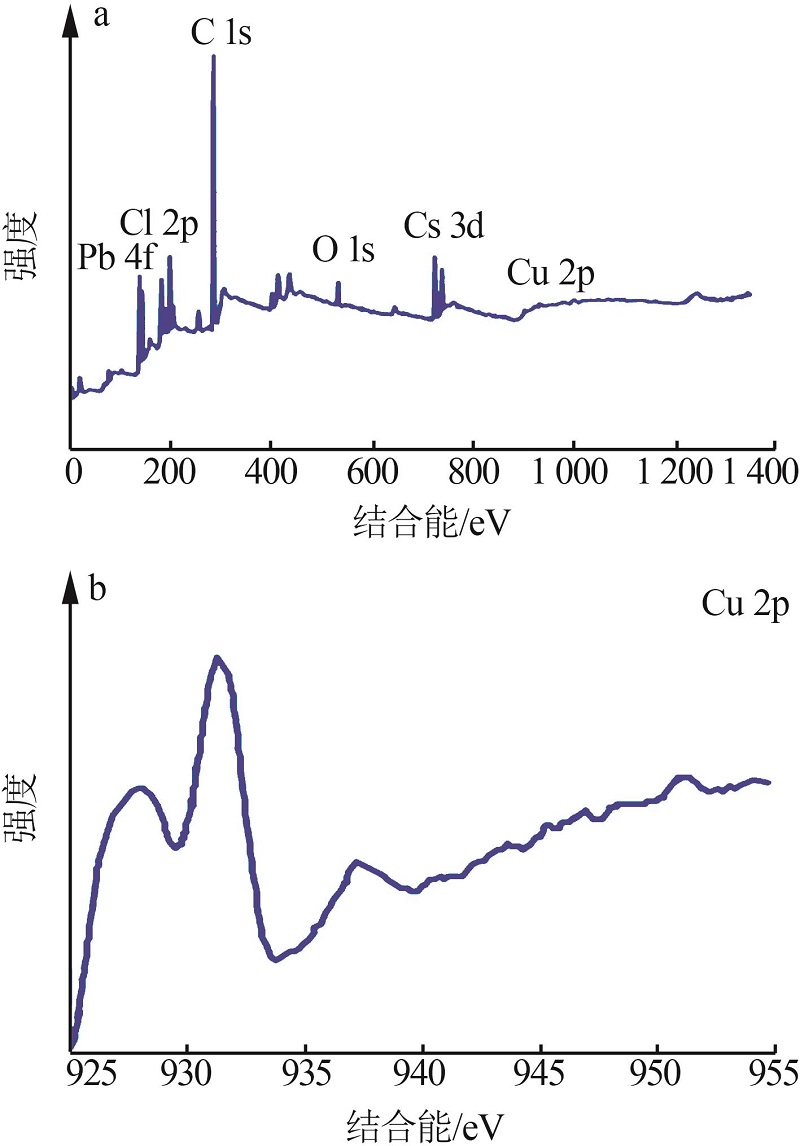

图3

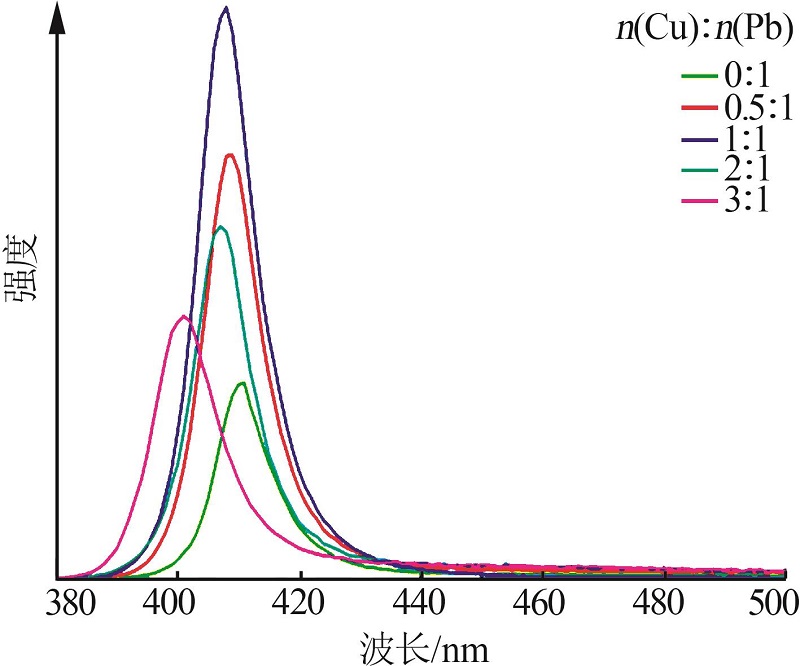

图4

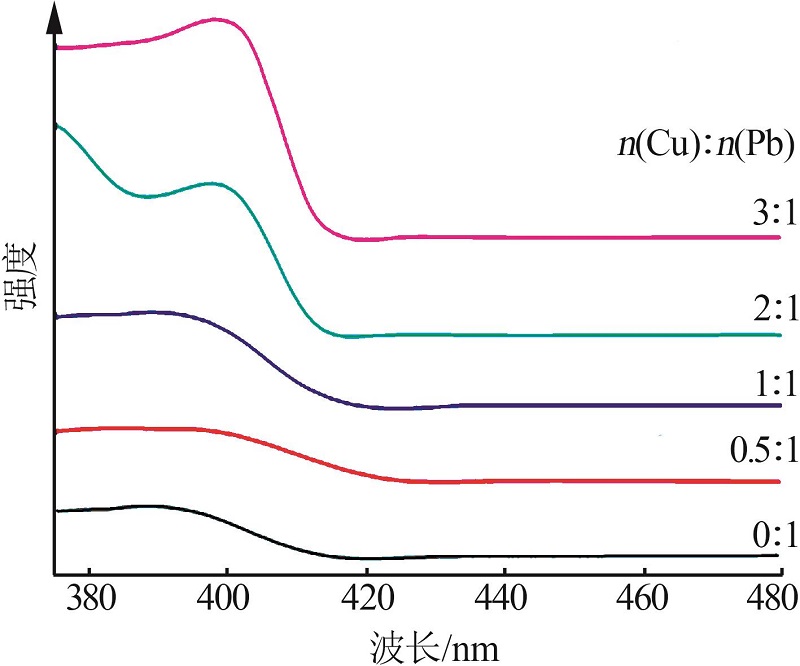

图5

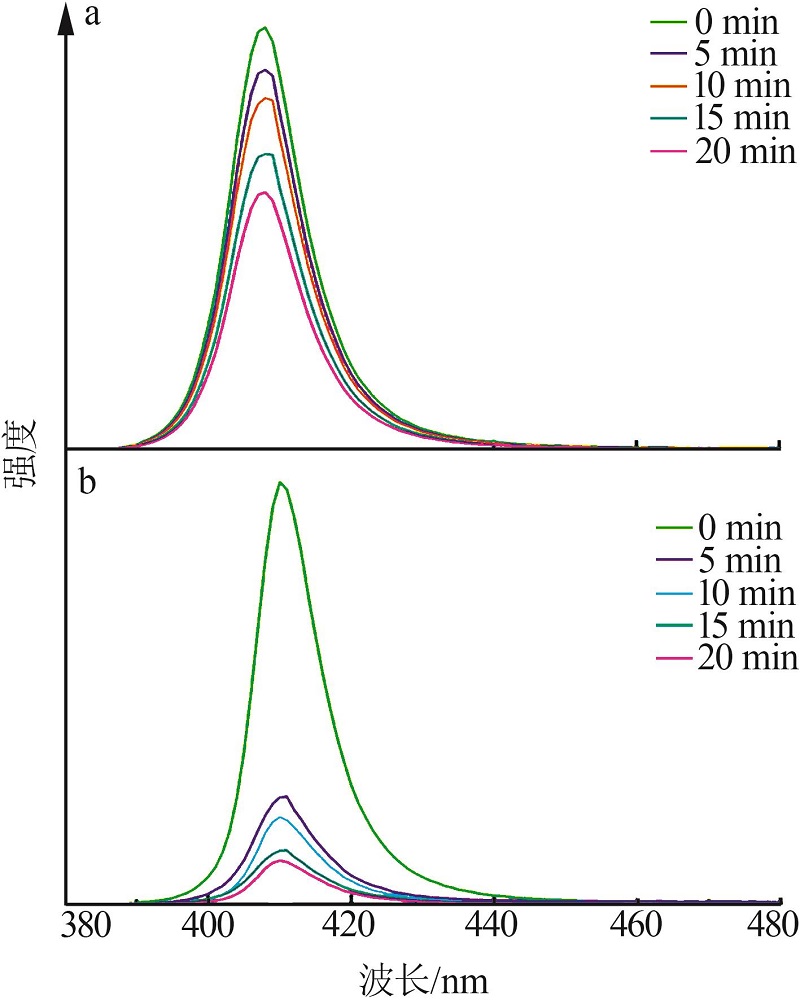

图6

参考文献 15

[1]	朱梦梦, 白珏垚, 陈人杰, 等. B位离子掺杂全无机钙钛矿量子点的合成及性能研究进展[J].应用化学, 2021, 38(12): 1541-1555.
	ZHU Mengmeng, BAI Jueyao, CHEN Renjie, et al.Synthesis and properties of B-site doped all-inorganic perovskite quantum dots[J].Chinese Journal of Applied Chemistry, 2021, 38(12): 1541-1555.
[2]	胡驰.石墨烯/二氧化钛的制备及钙钛矿太阳能电池性能研究[J].无机盐工业, 2018, 50(8): 49-51.
	HU Chi.Preparation of graphene/TiO₂ and performance of perovs-kite solar cells[J].Inorganic Chemicals Industry, 2018, 50(8): 49-51.
[3]	贾磊.钙钛矿太阳能电池性能研究新进展[J].无机盐工业, 2016, 48(1): 78.
	JIA Lei.New development in performance study of perovskite solar cells[J].Inorganic Chemicals Industry, 2016, 48(1): 78.
[4]	曾凡菊, 谭永前, 胡伟, 等. Ba²⁺离子掺杂CsPbBr₃蓝光量子点合成及其光学性能[J].发光学报, 2022, 43(1): 69-76.
	ZENG Fanju, TAN Yongqian, HU Wei, et al.Synthesis and optical properties of barium doped CsPbBr₃ blue luminescence quantum dots[J].Chinese Journal of Luminescence, 2022, 43(1): 69-76.
[5]	ZHANG Feng, ZHONG Haizheng, CHEN Cheng, et al.Brightly luminescent and color-tunable colloidal CH₃NH₃PbX₃（X=Br,I,Cl） quantum dots:Potential alternatives for display technology[J].ACS Nano, 2015, 9(4): 4533-4542.
[6]	SWARNKAR A, CHULLIYIL R, RAVI V K, et al.Colloidal CsPbBr₃ perovskite nanocrystals:Luminescence beyond traditional quantum dots[J].Angewandte Chemie（International Ed.in English）, 2015, 54(51): 15424-15428.
[7]	TONG Yu, BLADT E, AYGÜLER M F, et al.Highly luminescent cesium lead halide perovskite nanocrystals with tunable composition and thickness by ultrasonication[J].Angewandte Chemie（International Ed.in English）, 2016, 55(44): 13887-13892.
[8]	殷录桥, 张豆豆, 王胜, 等. 基于CsPbBr₃钙钛矿量子点的白光LED器件的电流稳定性研究[J].光学学报, 2021, 41(19): 200-207.
	YIN Luqiao, ZHANG Doudou, WANG Sheng, et al.Research on current stability of white LED devices based on CsPbBr₃ perovs-kite quantum dots[J].Acta Optica Sinica, 2021, 41(19): 200-207
[9]	徐蔚姌, 蔡园园.全无机钙钛矿CsPbX₃在发光显示领域的研究进展[J].新型工业化, 2021, 11(9): 1-4, 17.
	XU Weiran, CAI Yuanyuan.Research progress of all inorganic perovskite CsPbX₃ in the field of luminescence display[J].The Journal of New Industrialization, 2021, 11(9): 1-4, 17.
[10]	朱雨轩, 杨波波, 郭春凤, 等. Bi基无铅钙钛矿的制备及其应用研究综述[J].照明工程学报, 2021, 32(5): 90-96.
	ZHU Yuxuan, YANG Bobo, GUO Chunfeng, et al.A review of the preparation and application of Bi-based lead-free perovskite[J].China Illuminating Engineering Journal, 2021, 32(5): 90-96.
[11]	王栋, 兰月梅, 刘劝, 等. 白光LED用CsPbBr₃钙钛矿量子点玻璃制备及其稳定性[J].发光学报, 2021, 42(12): 1863-1871.
	WANG Dong, LAN Yuemei, LIU Quan, et al.Preparation and stability of CsPbBr₃ perovskite quantum dots glass for white LED[J].Chinese Journal of Luminescence, 2021, 42(12): 1863-1871.
[12]	胡泽浩, 陈婷, 徐彦乔, 等. 表面包覆策略:提高全无机铯铅卤钙钛矿纳米晶的稳定性及其在照明显示领域的应用[J].化学进展, 2021, 33(9): 1614-1626.
	HU Zehao, CHEN Ting, XU Yanqiao, et al.Surface coating strategy:From improving the luminescence stability to lighting and display applications of all-inorganic cesium lead halide perovs- kite nanocrystals[J].Progress in Chemistry, 2021, 33(9): 1614-1626.
[13]	JELLICOE T C, RICHTER J M, GLASS H F J, et al.Synthesis and optical properties of lead-free cesium tin halide perovskite nanocrystals[J].Journal of the American Chemical Society, 2016,138(9): 2941-2944.
[14]	PROTESESCU L, YAKUNIN S, BODNARCHUK M I, et al.Nanocrystals of cesium lead halide perovskites（CsPbX₃,X=Cl,Br,and I）:Novel optoelectronic materials showing bright emission with wide color gamut[J].Nano Letters, 2015, 15(6): 3692-3696.
[15]	LIU Wenyong, LIN Qianglu, LI Hongbo, et al.Mn²⁺-doped lead halide perovskite nanocrystals with dual-color emission controlled by halide content[J].Journal of the American Chemical Society, 2016, 138(45): 14954-14961.
