Ag3PO4/g-C3N4异质结催化剂可见光降解黄连素

doi:10.19964/j.issn.1006-4990.2021-0398

摘要/Abstract

摘要：

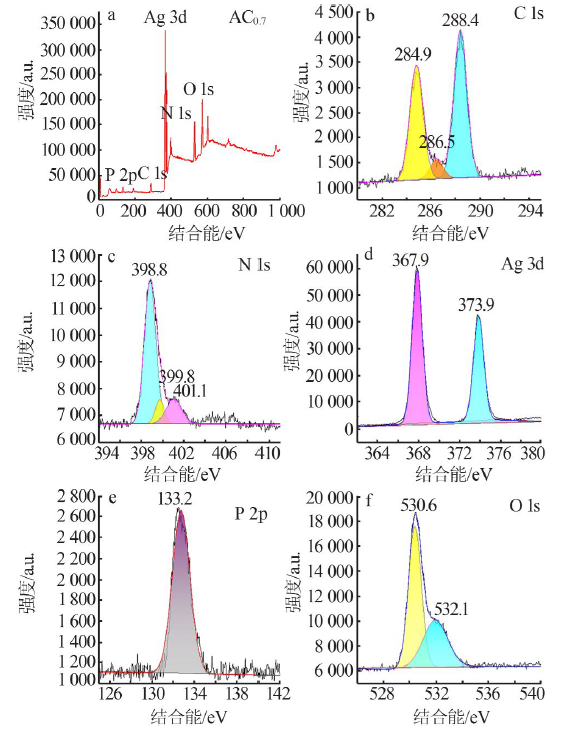

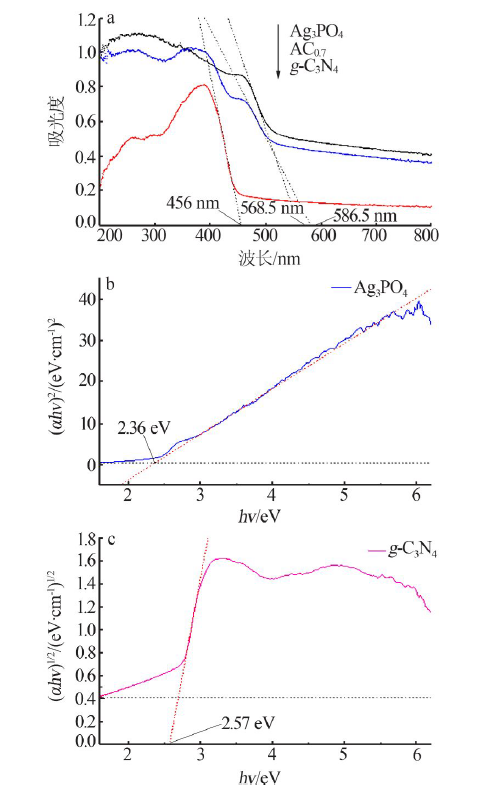

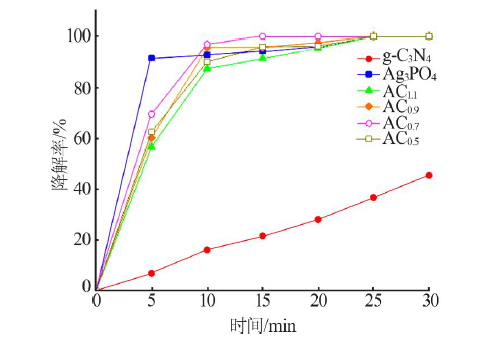

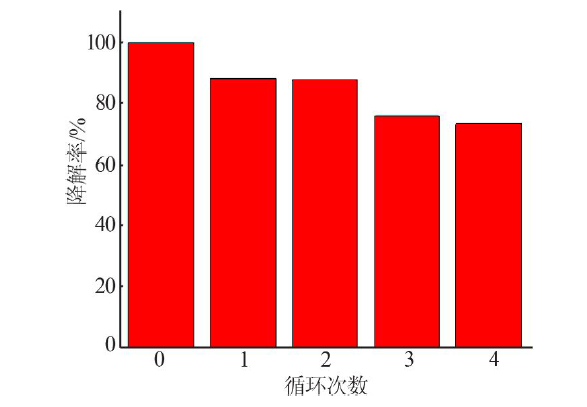

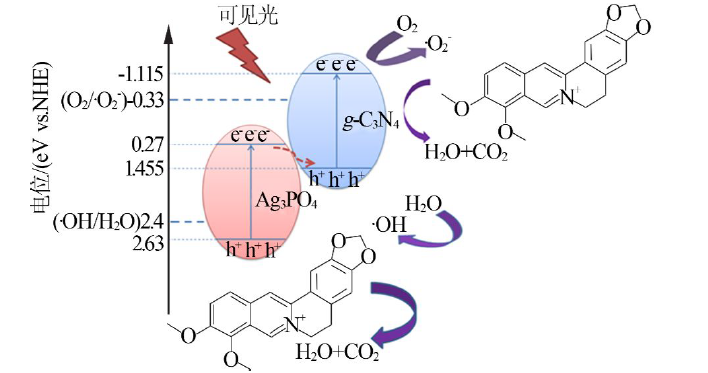

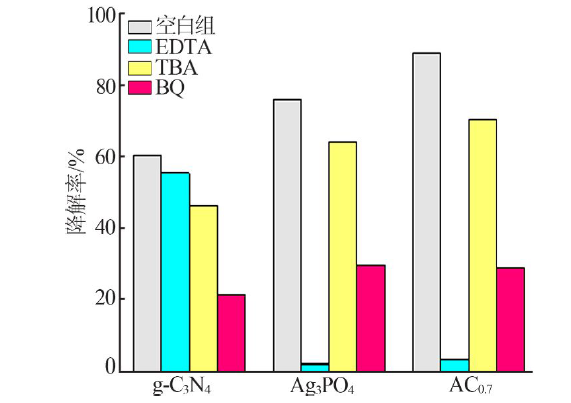

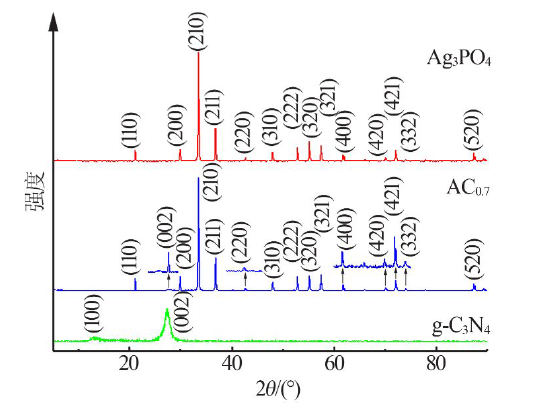

采用原位生长法制备Ag₃PO₄/g-C₃N₄异质结催化剂,在可见光照射下,催化氧化降解废水中的药物大分子黄连素。通过X射线衍射（XRD）、扫描电镜（SEM）、X射线光电子能谱（XPS）、紫外-可见漫反射光谱（UV-vis DRS）分析催化剂的组成和结构,并测试了Ag₃PO₄/g-C₃N₄降解黄连素的光催化活性。结果表明：利用可见光照射,g-C₃N₄掺杂量为0.7 g时,Ag₃PO₄/g-C₃N₄对黄连素的光催化降解活性最好,可见光反应15 min降解率达到100%,重复4次实验后降解率降至73.2%,其具有较好的光稳定性。自由基捕获实验证明h⁺和·O₂^-在降解黄连素废水中起主要作用,结合UV-vis DRS分析可知,Ag₃PO₄/g-C₃N₄遵循Z型异质结机理。

关键词: 原位生长法, Ag₃PO₄/g-C₃N₄, 可见光, 黄连素, 光降解

Abstract:

Ag₃PO₄/g-C₃N₄ heterojunction catalyst was synthetized by in-situ growth method,and under visible light emission,the degradation of medicine macromolecular berberine in wastewater was catalyzed oxidation.The composition and structure of the catalyst were analyzed by X-ray diffraction（XRD）,scanning electron microscopy（SEM）,X-ray photoelectron spectroscopy（XPS） and ultraviolet visible diffuse reflectance spectroscopy（UV-vis DRS）.The photocatalytic activity of Ag₃PO₄/g-C₃N₄for the degradation of berberine was tested.The results showed that when the doping amount of g-C₃N₄ was 0.7 g,the photocatalytic degradation activity of Ag₃PO₄/g-C₃N₄ for berberine was the best under visible light irradiation.The degradation rate reached 100% after 15 min of visible light reaction.After four repeated experiments,the degradation rate was decreased to 73.2%,which had good light stability.Free radical capture experiments showed that h⁺ and ·O₂ ^- played major role in the degradation of berberine wastewater.Combined with UV-vis DRS analysis,Ag₃PO₄/g-C₃N₄ followed the Z-type heterojunction mechanism.

Key words: in situ growth method, Ag₃PO₄/g-C₃N₄, visible light, berberine, photodegradation

中图分类号:

O643.36

汲畅,王国胜. Ag₃PO₄/g-C₃N₄异质结催化剂可见光降解黄连素[J]. 无机盐工业, 2022, 54(4): 175-180.

JI Chang,WANG Guosheng. Degradation of berberine by visible light over Ag₃PO₄ /g-C₃N₄ heterojunction catalyst[J]. Inorganic Chemicals Industry, 2022, 54(4): 175-180.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 28

[1]	MALHOTRA B, KULKARNI G T, DHIMAN N, et al. Recent advances on Berberis aristata emphasizing berberine alkaloid including phytochemistry,pharmacology and drug delivery system[J]. Journal of Herbal Medicine, 2021, 27:1-11.
[2]	王国胜, 齐飞, 高艺伟, 等. 小檗红碱及其衍生物的制备与应用研究进展[J]. 云南化工, 2020, 47(12):1-5,8.
[3]	AHMED T, GILANI A, ABDOLLAHI M, et al. Berberine and neurodegeneration:A review of literature[J]. Pharmacol.Rep., 2015, 67(5):1-10.
[4]	艾翠玲, 郭锐敏, 许俊鸽. CdS-TiO₂的制备、表征及其可见光下对黄连素的光催化降解[J]. 水处理技术, 2013, 39(3):67-72.
[5]	MARTINEZ J L. Environmental pollution by antibiotics and by antibiotic resistance determinants[J]. Environmental Pollution, 2009, 157(11):2893-2902. doi: 10.1016/j.envpol.2009.05.051
[6]	LI Juan, WANG Liangjie, LIU Yongqiang, et al. Removal of berberine from wastewater by MIL-101(Fe):Performance and mechanism[J]. ACS Omega, 2020, 5(43):27962-27971. doi: 10.1021/acsomega.0c03422 pmid: 33163779
[7]	凌琪, 陈婷娜, 伍昌年, 等. CCD法优化铁碳微电解盐酸黄连素废水条件研究[J]. 环境科学与技术, 2019, 42(6):94-100.
[8]	管玉江, 陈彬, 王子波, 等. 陶瓷介孔膜耦合光催化处理黄连素废水[J]. 水处理技术, 2015, 41(3):28-32.
[9]	李向东, 冯启言. 水解—好氧处理制药废水的试验研究[J]. 环境科学与技术, 2006, 29(1):82-83.
[10]	GUO Changsheng, CHEN Miao, WU Linlin, et al. Nanocomposites of Ag₃PO₄ and phosphorus-doped graphitic carbon nitride for ketamine removal[J]. ACS Applied Nano Materials, 2019, 2:2817-2829. doi: 10.1021/acsanm.9b00295
[11]	WANG Qiyang, CAI Jie, ZHANG Lina. In situ synjournal of Ag₃PO₄/cellulose nanocomposites with photocatalytic activities under sunlight[J]. Cellulose, 2014, 21(5) :3371-3382. doi: 10.1007/s10570-014-0340-1
[12]	隋美蓉, 顾修全, 韩翠平, 等. 可见光响应型Z型Ag₃PO₄异质光催化材料研究进展[J]. 化工新型材料, 2017, 45(8):37-39.
[13]	LI Chunmei, YU Siyu, DONG Hongjun, et al. Z-scheme mesoporous photocatalyst constructed by modification of Sn₃O₄ nanoclusters on g-C₃N₄ nanosheets with improved photocatalytic performance and mechanism insight[J]. Applied Catalysis B:Environmental, 2018, 238:284-293. doi: 10.1016/j.apcatb.2018.07.049
[14]	TANG Chunni, LIU Enzhou, FAN Jun, et al. Graphitic-C₃N₄-hybridized Ag₃PO₄ tetrahedron with reactive{111} facets to enhance the visible-light photocatalytic activity[J]. RSC Advances, 2015, 5(112):91979-91987. doi: 10.1039/C5RA18096A
[15]	NAGAJYOTHI P C, SREEKANTH T V M, RAMARAGHAVULU R, et al. Photocatalytic dye degradation and hydrogen production activity of Ag₃PO₄/g-C₃N₄ nanocatalyst[J]. Journal of Materials Science:Materials in Electronics, 2019, 30(16):14890-14901. doi: 10.1007/s10854-019-01860-6
[16]	ZHOU Li, ZHANG Wei, CHEN Ling, et al. Z-scheme mechanism of photogenerated carriers for hybrid photocatalyst Ag₃PO₄/g-C₃N₄ in degradation of sulfamethoxazole[J]. Journal of Colloid And Interface Science, 2017, 487:410-417. doi: 10.1016/j.jcis.2016.10.068
[17]	KUMAR S, SURENDAR T, BARUAH A, et al. Synjournal of a novel and stable g-C₃N₄-Ag₃PO₄ hybrid nanocomposite photocatalyst and study of the photocatalytic activity under visible light irradiation[J]. Journal of Materials Chemistry A, 2013, 1(17):5333-5340. doi: 10.1039/c3ta00186e
[18]	张鑫鑫, 徐莉, 李磊, 等. 微量Ag₃PO₄改性 g-C₃N₄的可见光催化活性研究[J]. 河北科技大学学报, 2015, 36(3):255-262.
[19]	XIU Zhiliang, BO Hai, WU Yongzhong, et al. Graphite-like C₃N₄ modified Ag₃PO₄ nanoparticles with highly enhanced photocatalytic activities under visible light irradiation[J]. Applied Surface Science, 2014, 289(1):394-399. doi: 10.1016/j.apsusc.2013.10.175
[20]	高闯闯, 刘海成, 孟无霜, 等. Ag₃PO₄/g-C₃N₄复合光催化剂的制备及其可见光催化性能[J]. 环境科学, 2021, 42(5):1-16.
[21]	乔帅, 赵朝成, 贺凤婷, 等. 原位沉积法制备 g-C₃N₄ /Ag₃PO₄复合光催化剂降解卡马西平的性能研究[J]. 材料导报, 2020, 34(10):19010-19017.
[22]	CAO Wenrong, GUI Zhenyou, CHEN Lifang, et al. Facile synjournal of sulfate-doped Ag₃PO₄ with enhanced visible light photocatalystic activity[J]. Applied Catalysis B:Environmental, 2017, 200:681-689. doi: 10.1016/j.apcatb.2016.07.030
[23]	徐婧, 石睿, 朱永法 .单层 g-C₃N₄的制备及其光电性能研究[C]// 中国化学会,中国太阳能学会.第十三届全国太阳能光化学与光催化学术会议, 2012.
[24]	CHEN Fei, YANG Qi, LI Xiaoming, et al. Hierarchical assembly of graphene-bridged Ag₃PO₄/Ag/BiVO₄(040) Z-scheme photocatalyst:An efficient,sustainable and heterogeneous catalyst with enhanced visible-light photoactivity towards tetracycline degradation under visible light irradiation[J]. Applied Catalysis B:Environmental, 2017, 200:330-342. doi: 10.1016/j.apcatb.2016.07.021
[25]	CHENG Fuxing, YAN Jing, ZHOU Chenjuan, et al. An alkali treating strategy for the colloidization of graphitic carbon nitride and its excellent photocatalytic performance[J]. Journal of Colloid and Interface Science, 2016, 468:103-109. doi: S0021-9797(16)30044-3 pmid: 26835580
[26]	WANG Yunfang, LIU Jianxin, WANG Yawen, et al. Regeneration of novel visible-light-driven Ag/Ag₃PO₄@C₃N₄ hybrid materials and their high photocatalytic stability[J]. Materials Science in Semiconductor Processing, 2014, 25:330-336. doi: 10.1016/j.mssp.2014.02.017
[27]	CHEN Jiayi, XIAO Xinyan, WANG Yi, et al. Fabrication of hierarchical sheet-on-sheet WO₃/g-C₃N₄ composites with enhanced photocatalytic activity[J]. Journal of Alloys and Compounds, 2019, 777:325-334. doi: 10.1016/j.jallcom.2018.10.404
[28]	胡俊俊, 丁同悦, 陈奕桦, 等. Ag₃PO₄/g-C₃N₄复合材料的制备及其光催化性能[J]. 精细化工, 2021, 38(3):483-488.
