二维纳米片基复合相变储热材料研究进展

doi:10.19964/j.issn.1006-4990.2021-0181

摘要/Abstract

摘要：

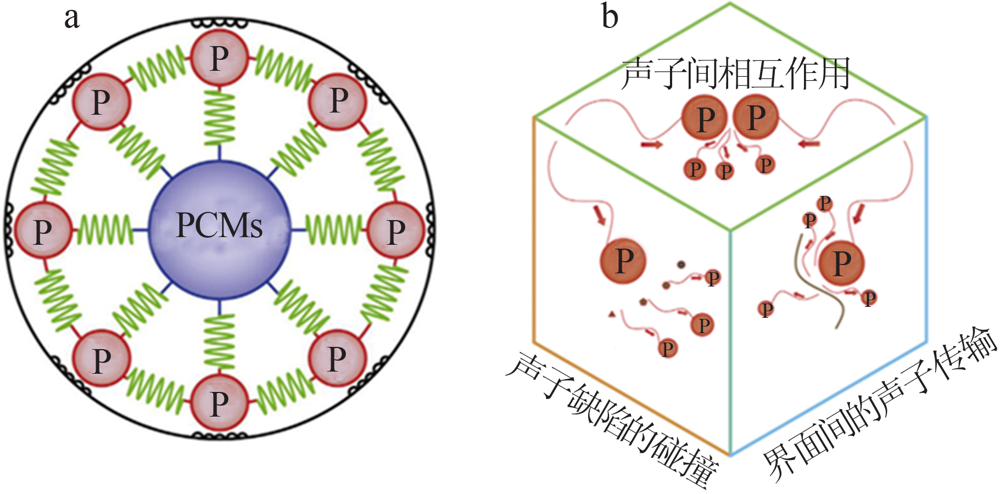

相变材料（PCMs）作为潜热储存和释放的介质,能够解决热能供需矛盾,从而缓解能源危机。纯相变材料具有能量密度高、温度范围广、能量输出稳定性强等优点,但其热导率低和在相变过程发生渗漏的缺点阻碍了其广泛的应用和发展。通过将PCMs与二维纳米片复合,PCMs热导率低和渗漏问题被有效解决。通过在导热机理方面进行详细阐述的基础上,综述了近几年来有关碳基二维纳米片、六方氮化硼（h-BN）纳米片、二硫化钼等复合储热材料的研究进展,为高性能二维纳米片基复合PCMs的设计提供一定的研究思路。

关键词: 储热, 相变材料, 二维纳米片, 热导率

Abstract:

Phase change materials（PCMs） are latent heat energy storage and release media,which can solve the contradiction between heat energy supply and demand,thereby alleviating the energy crisis.Pure phase change materials have the advan-tages of high energy density,wide temperature,strong energy output stability,etc.,but their low thermal conductivity and the shortcomings of leakage during the phase change process hinder their wide application and development.By combining PCMs with two-dimensional nanosheets,the low thermal conductivity and leakage problems of PCM are effectively solved.Based on detailed description of the thermal conduction mechanism,the research progress of two-dimensional nanosheet composite heat storage materials in recent years was reviewed,such as carbon-based two-dimensional nanosheets,hexagonal boron ni-tride（h-BN） nanosheets,molybdenum disulfide,etc.It provided research strategies for the design of high-performance two-dimensional nanosheet-based composite PCMs.

Key words: thermal storage, phase change materials, two-dimensional nanosheet, thermal conductivity

中图分类号:

TU52

闫琛,刘汉涛. 二维纳米片基复合相变储热材料研究进展[J]. 无机盐工业, 2022, 54(2): 30-37.

YAN Chen,LIU Hantao. Research progress on two-dimensional nanosheet-based composite phase change materials for thermal energy storage[J]. Inorganic Chemicals Industry, 2022, 54(2): 30-37.

图/表 8

图1

图2

图3

表1

图4

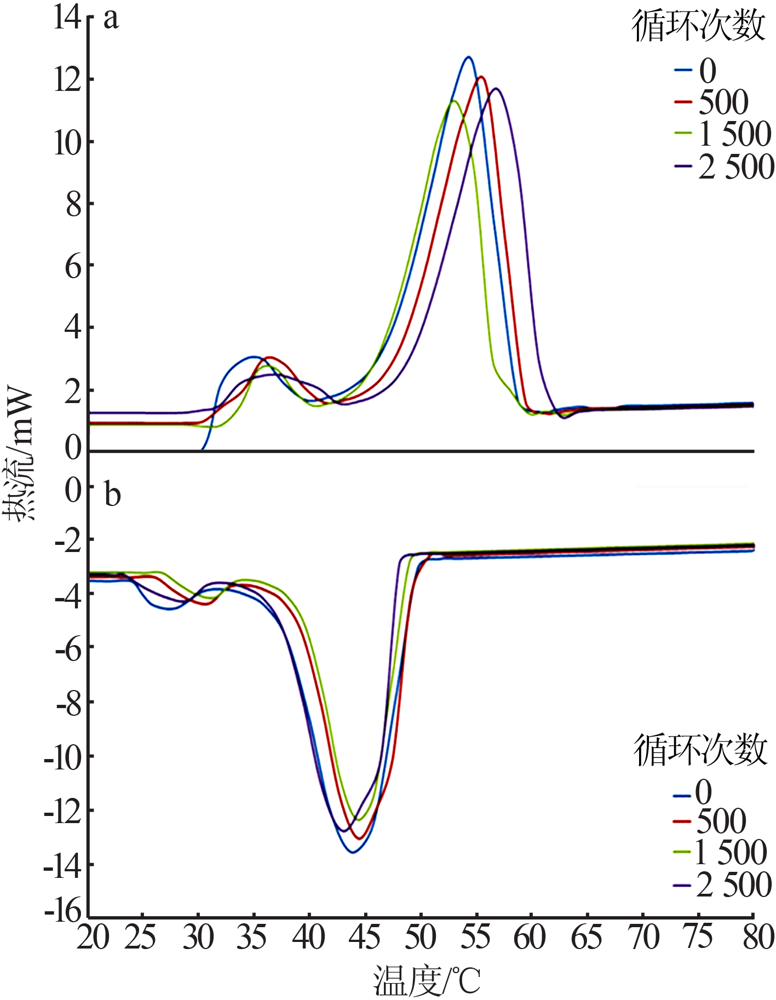

图5

图6

表2

参考文献 37

[1]	MENG L R, GUO L J, LI X Y, et al. Salt hydrate based phase change materials for thermal energy storage-A review[J]. Energy Storage Science and Technology, 2017, 6(4):623-632.
[2]	张贺磊, 方贤德, 赵颖杰. 相变储热材料及技术的研究进展[J]. 材料导报, 2014, 28(13):26-32.
[3]	李秋玫, 季旭, 兰青, 等. 无机水合盐相变储热材料的过冷及导热性能研究进展[J]. 云南师范大学学报:自然科学版, 2021, 41(1):19-24.
[4]	MINNICH A J. Advances in the measurement and computation of thermal phonon transport properties[J]. Journal of Physics:Conden-sed Matter, 2015, 27.Doi: 10.1088/0953-8984/27/5/053202.
[5]	FRANKLIN A, KNOX E. Emergence without limits:The case of pho-nons[J]. Studies in History and Philosophy of Modern Physics, 2018, 64:68-78.
[6]	ZENG J L, CAO Z, YANG D W, et al. Thermal conductivity enhan-cement of Ag nanowires on an organic phase change material[J]. Journal of Thermal Analysis and Calorimetry, 2010, 101(1):385-389.
[7]	WU S F, YAN T, KUAI Z H, et al. Thermal conductivity enhance-ment on phase change materials for thermal energy storage:A revi-ew[J]. Energy Storage Materials, 2020, 25:251-295.
[8]	NOVOSELOV K S, GEIM A K, MOROZOV S V, et al. Electric field effect in atomically thin carbon films[J]. Science, 2004, 306(5696):666-669.
[9]	WARZOHA R J, FLEISCHER A S. Improved heat recovery from pa- raffin-based phase change materials due to the presence of percola-ting graphene networks[J]. International Journal of Heat and Mass Transfer, 2014, 79:314-323.
[10]	LI J F, LU W, ZENG Y B, et al. Simultaneous enhancement of latent heat and thermal conductivity of docosane-based phase change material in the presence of spongy graphene[J]. Solar Energy Ma-terials and Solar Cells, 2014, 128:48-51.
[11]	PAVLA H, GALINA S, JANA P, et al. Improvement of thermal en-ergy accumulation by incorporation of carbon nanomaterial into magnesium chloride hexahydrate and magnesium nitrate hexahy-drate[J]. Renewable Energy, 2021, 168:1015-1026.
[12]	QI G Q, LIANG C L, BAO R Y, et al. Polyethylene glycol based shape-stabilized phase change material for thermal energy storage with ultra-low content of graphene oxide[J]. Solar Energy Materi-als and Solar Cells, 2014, 123:171-177.
[13]	MEHRALI M, LATIBARI S T, MEHRALI M, et al. Shape-stabilized phase change materials with high thermal conductivity based on paraffin/graphene oxide composite[J]. Energy Conversion and Ma-nagement, 2013, 67:275-282.
[14]	JIN Z Y, TIAN Y Y, XU X X, et al. Experimental investigation on graphene oxide/SrCl₂·6H₂O modified CaCl₂·6H₂O and the resulting thermal performances[J]. Materials, 2018, 11(9).Doi: 10.3390/ma11091507.
[15]	ZHAO Y J, WANG R Z, WANG L W, et al. Development of highly conductive KNO₃/NaNO₃ composite for TES(thermal energy stor-age)[J]. Energy, 2014, 70:272-277.
[16]	WU Y P, WANG T. Hydrated salts/expanded graphite composite with high thermal conductivity as a shape-stabilized phase change material for thermal energy storage[J]Energy Conversion and Ma-nagement, 2015, 101:164-171.
[17]	XIA L, ZHANG P. Thermal property measurement and heat trans-fer analysis of acetamide and acetamide/expanded graphite compo-site phase change material for solar heat storage[J]Solar Energy Materials and Solar Cells, 2011, 95(8):2246-2254.
[18]	WU S, LI T X, YAN T, et al. High performance form-stable expanded graphite/stearic acid composite phase change material for modular thermal energy storage[J]. International Journal of Heat and Mass Transfer, 2016, 102:733-744.
[19]	LIN Z Y, MCNAMARA A, LIU Y, et al. Exfoliated hexagonal boron nitride-based polymer nanocomposite with enhanced thermal con-ductivity for electronic encapsulation[J]. Composites Science and Technology, 2014, 90:123-128.
[20]	FANG X, FAN L W, DING Q, et al. Thermal energy storage perfor-mance of paraffin-based composite phase change materials filled with hexagonal boron nitride nanosheets[J]. Energy Conversion and Management, 2014, 80:103-109.
[21]	GU J W, MENG X D, TANG Y S, et al. Hexagonal boron nitride/polymethyl-vinyl siloxane rubber dielectric thermally conductive composites with ideal thermal stabilities[J]. Composites Part A- Applied Science and Manufacturing, 2017, 92:27-32.
[22]	BARHEMMATI-RAJAB N, ZHAO W H. Investigation into boron nitride nanoparticle effects on thermal properties of calcium chlo-ride hexahydrate (CaCl₂·6H₂O) as a phase change material[J]. MRS Communications, 2018, 8(4):1439-1444.
[23]	JIANG Y L, SHI X J, FENG Y Z, et al. Enhanced thermal conduc-tivity and ideal dielectric properties of epoxy composites contain-ing polymer modifıed hexagonal boron nitride[J]. Composites Part A, 2018, 107:657-664.
[24]	GUO Y Q, LYU Z Y, YANG X T, et al. Enhanced thermal conduc-tivities and decreased thermal resistances of functionalized boron nitride/polyimide composites[J]. Composites Part B-Engineering, 2019, 164:732-739.
[25]	CHO H, TOKOI Y, TANAKA S, et al. Modification of BN nano-sheets and their thermal conducting properties in nanocomposite-fılm with polysiloxane according to the orientation of BN[J]. Composites Science and Technology, 2011, 71:1046-1052.
[26]	MA X Y, WU S Y, YI Z M, et al. The effect mechanism of functio-nalization on thermal conductivity of boron nitride nanosheets/paraffin composites[J]. International Journal of Heat and Mass Tra-nsfer, 2019, 137:790-798.
[27]	MADATHIL P K, BALAGI N, SAHA P, et al. Preparation and characterization of molten salt based nanothermic fluids with en-hanced thermal properties for solar thermal applications[J]. App-lied Thermal Engineering, 2016, 109:901-905.
[28]	DU X S, QIU J H, DENG S, et al. Ti₃C₂T_x@PDA-integrated polyu-rethane phase change composites with superior solar-thermal con-version efficiency and improved thermal conductivity[J]. ACS Sustainable Chemistry and Engineering, 2020, 8:5799-5806.
[29]	SHENG X X, DONG D X, LU X, et al. MXene-wrapped bio-based pomelo peel foam/polyethylene glycol composite phase change ma-terial with enhanced light-to-thermal conversion efficiency,ther-mal energy storage capability and thermal conductivity[J]. Compo-sites Part A, 2020, 138.Doi: 10.1016/j.compositesa.2020.106067.
[30]	CUI H, LIAO W, MI X, et al. Study on functional and mechanical properties of cement mortar with graphite-modified microencapsu-lated phase-change materials[J]. Energy Build, 2015, 105:273-284.
[31]	HE Y, ZHANG X, ZHAN Y J, et al. Utilization of lauric acid-myri-stic acid/expanded graphite phase change materials to improve ther-mal properties of cement mortar[J]. Energy and Buildings, 2016, 133:547-558.
[32]	WANG X, YU H, LI L, et al. Experimental assessment on a kind of composite wall incorporated with shape-stabilized phase change materials(SSPCMs)[J]. Energy and Buildings, 2016, 128:567-574.
[33]	LING Z Y, WEN X Y, ZHANG Z G, et al. Thermal management performance of phase change materials with different thermal con-ductivities for Li-ion battery packs operated at low temperatures[J]. Energy, 2018, 144:977-983.
[34]	JIANG G W, HUANG J H, FU Y S, et al. Thermal optimization of composite phase change material/expanded graphite for Li-ion ba-ttery thermal management[J]. Applied Thermal Engineering, 2016, 108:1119-1125.
[35]	LIN C, XU S, CHANG G, et al. Experiment and simulation of a LiFePO₄,battery pack with a passive thermal management system using composite phase change material and graphite sheets[J]. Jo-urnal of Power Sources, 2015, 275:742-749.
[36]	SUN L L, XIANG N, YUAN Y P, et al. Experimental investigation on performance comparison of solar water heating-phase change material system and solar water heating system[J]. Energies, 2019, 12(12).Doi: 10.3390/en12122347.
[37]	XIAO Q Q, CAP J H, ZHANG Y X, et al. The application of solar-to-thermal conversion phase change material in novel solar water heating system[J]. Solar Energy, 2020, 199:484-490.

相变材料	添加剂	负载量（质量分数）/%	热导率/ （W·m^-1·K^-1）	过冷度/ ℃	相变潜热/ （J·g^-1）

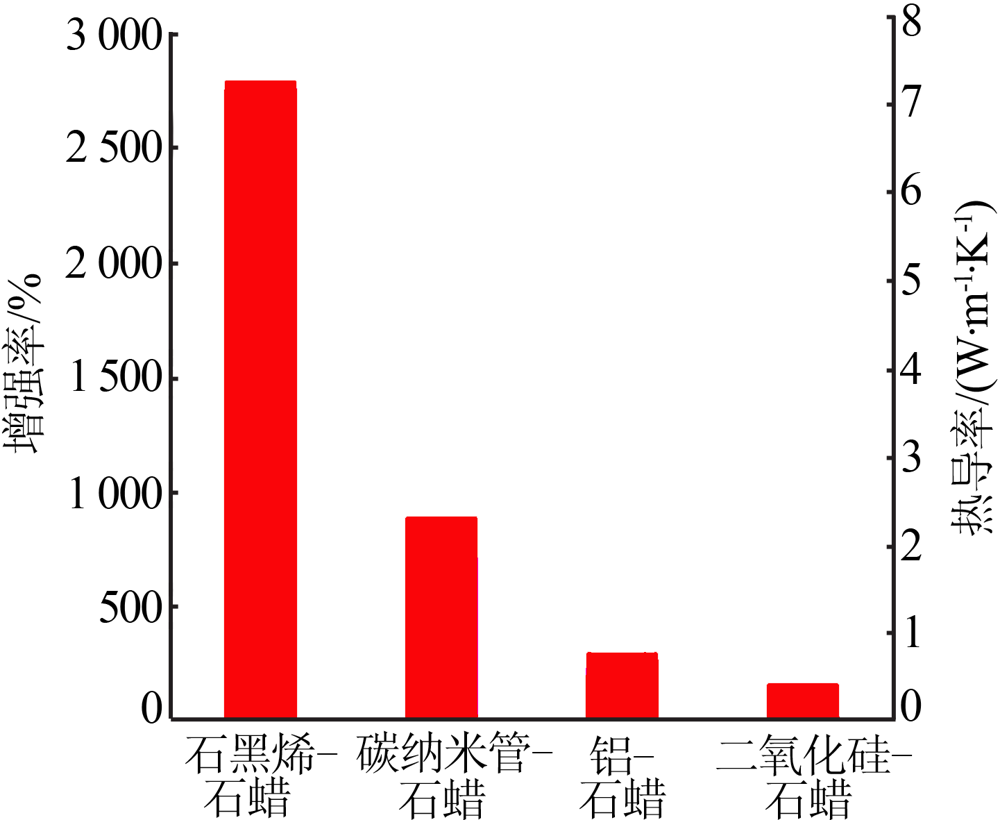

石蜡^[9]	石墨烯	20	7.25	—	—
正二十二烷^[10]	石墨烯	—	0.59	—	256.1→262.2
Mg（NO₃）₂·6H₂O^[11]	石墨烯	3	0.99	30 →2.2	—
聚乙二醇^[12]	氧化石墨烯	4	—	—	157.9→142.8
石蜡^[13]	氧化石墨烯	51.7	0.985	—	—
CaCl₂·6H₂O^[14]	氧化石墨烯/SrCl₂·6H₂O	—	—	25.4 → 0.3	191→207.88
Solar Salt^[15]	膨胀石墨烯	15	50.78	—	104.2→89.0
水合盐^[16]	膨胀石墨烯	13	3.643	27.66→14.94	—
乙酰胺^[17]	膨胀石墨烯	10	2.61	24.49→0.39	194.92→163.71
硬脂酸^[18]	膨胀石墨烯	25	23.27	1.73→1.03	—

相变材料	添加剂	负载量/ %	热导率/ （W·m^-1·K^-1）	相变潜热/ （J·g^-1）
环氧树脂^[19]	六方氮化硼	5 （质量分数）	0.32	—

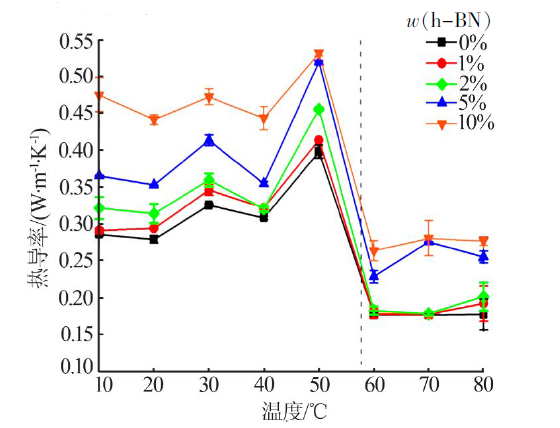

石蜡^[20]	六方氮化硼	10 （质量分数）	0.53	199.77→177
硅氧烷橡胶^[21]	六方氮化硼	40 （体积分数）	1.110	—
CaCl₂·6H₂O^[22]	六方氮化硼	0.5 （质量分数）	1.867	129.31→114.90

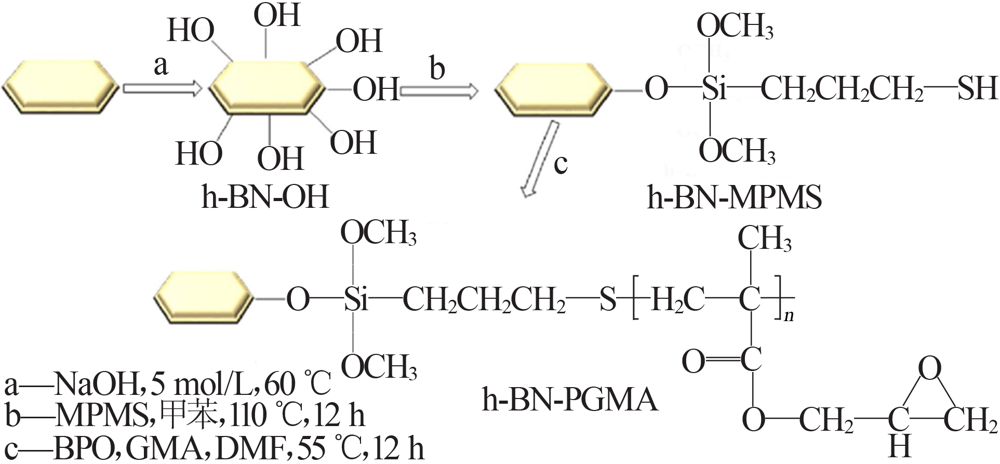

环氧树脂^[23]	修饰六方氮化硼	15 （质量分数）	1.198	—
聚酰亚胺^[24]	修饰六方氮化硼	30 （质量分数）	0.71	—

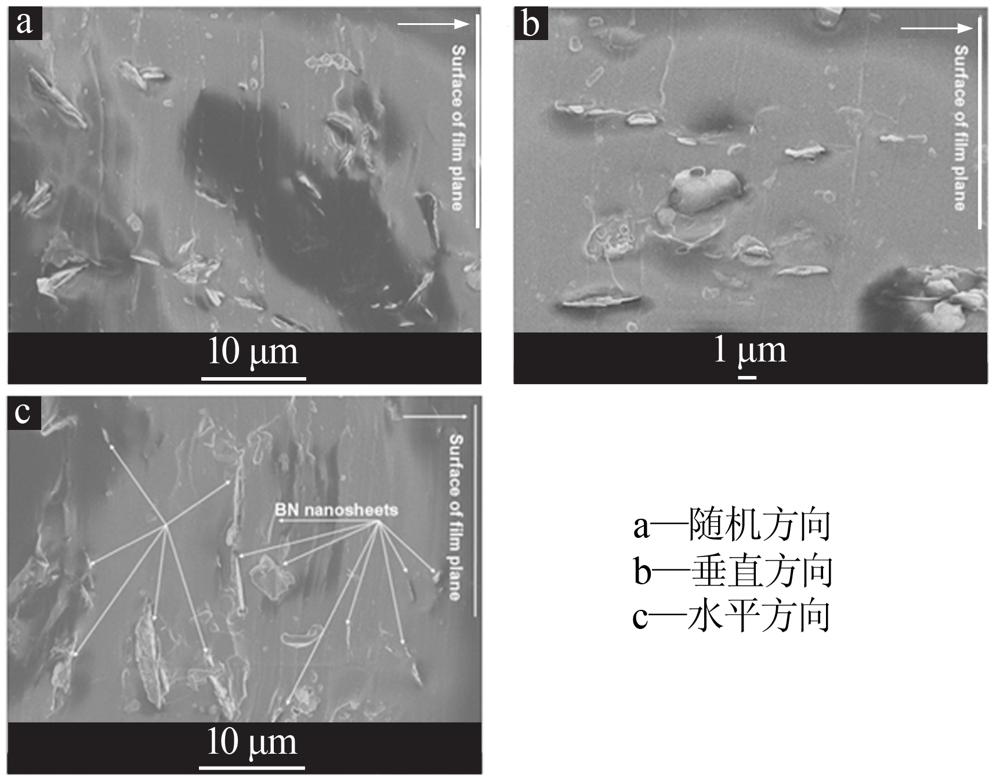

聚硅氧烷^[25]	修饰六方氮化硼	5 （体积分数）	1.72	—
