封闭处理对建筑结构钢锌系磷酸盐转化膜性能的影响

doi:10.19964/j.issn.1006-4990.2020-0606

无机盐工业 ›› 2021, Vol. 53 ›› Issue (10): 92-97.doi: 10.19964/j.issn.1006-4990.2020-0606

封闭处理对建筑结构钢锌系磷酸盐转化膜性能的影响

王丹净^1,²(),李景魁³

1.无锡商业职业技术学院艺术设计学院,江苏无锡 214000
2.中国矿业大学力学与土木工程学院
3.无锡商业职业技术学院机电技术学院

收稿日期:2020-11-11 出版日期:2021-10-10 发布日期:2021-10-11
作者简介:王丹净（1977— ）,女,博士,副教授、工程师,研究方向为建筑工程材料、表面工程等;E-mail： wang_214000@126.com。
基金资助:
十三五国家重大研发计划基金项目子课题(2017YFC500702);国家自然科学基金面上项目(51678563)

Effect of sealing treatment on properties of zinc phosphate conversion film on building structural steel

Wang Danjing^1,²(),Li Jingkui³

1. College of Art and Design,Wuxi Vocational Institute of Commerce,Wuxi 214000,China
2. School of Mechanics and Civil Engineering,China University of Mining and Technology
3. School of Mechanical and Electrical Technology,Wuxi Vocational Institute of Commerce

Received:2020-11-11 Published:2021-10-10 Online:2021-10-11

摘要/Abstract

摘要：

以建筑结构钢作基体制备锌系磷酸盐转化膜,并采用不同类型封闭液对磷酸盐转化膜进行封闭处理,研究了封闭处理对磷酸盐转化膜的微观形貌、表面成分、厚度和耐蚀性能的影响。结果表明：封闭处理对磷酸盐转化膜的宏观形貌和厚度没有显著性影响,但是微观形貌、表面成分和耐蚀性能存在差异。未封闭及封闭处理后磷酸盐转化膜的表面成分都以锌、氧和磷元素为主,封闭处理后磷酸盐转化膜表面趋于平整、致密性改善、耐蚀性能明显提高,主要归因于不同类型封闭液都起到填补晶粒间缝隙的作用,阻止腐蚀介质向磷酸盐转化膜内部渗透。采用硅酸钠和硝酸铈配成的封闭液封闭处理后的磷酸盐转化膜表面更加平整致密,其溶液电阻和电荷转移电阻均最大,分别达到58.2、4.02×10³ Ω·cm ²,且具有最大的相位角和最宽的频率范围。该磷酸盐转化膜的耐蚀性能更好,腐蚀耐久性也较理想,具有应用潜力,有望用作建筑结构钢表面防护层。

关键词: 锌系磷酸盐转化膜, 建筑结构钢, 封闭处理, 微观形貌, 表面成分, 耐蚀性能

Abstract:

Zinc phosphate conversion film was prepared on building structural steel,and it was sealed with different types of sealing solution.The effect of sealing treatment on the microstructure,surface components,thickness and corrosion resistance of phosphate conversion film were studied.The results showed that sealing treatment had no significant influence on the macrostructure and thickness of phosphate conversion film,but there were some differences in the microstructure,surface components and corrosion resistance of phosphate conversion film.The surface components of unsealed and sealed phosphate conversion film were mainly Zn,O and P.After sealing treatment,the surface of phosphate conversion film tended to be flat,the compactness was improved,and the corrosion resistance was significantly improved,which was mainly attributed to that different types of sealing solution play a role in filling the grain gaps and preventing the corrosive medium from penetrating into the phosphate conversion film.The phosphate conversion film sealed with the sealing solution containing sodium silicate and cerium nitrate had smoother surface,the solution resistance and charge transfer resistance were the biggest,which was 58.2 Ω·cm ² and 4.02×10³ Ω·cm ² respectively,and it had the greatest phase angle and the widest range of frequency.This phosphating film exhibited excellent corrosion resistance and ideal corrosion durability with application potential,and was expected to be used as the surface protection layer for building structural steel.

Key words: zinc phosphate conversion film, building structural steel, sealing treatment, microstructure, surface components, corrosion resistance

中图分类号:

TQ126.35

王丹净,李景魁. 封闭处理对建筑结构钢锌系磷酸盐转化膜性能的影响[J]. 无机盐工业, 2021, 53(10): 92-97.

Wang Danjing,Li Jingkui. Effect of sealing treatment on properties of zinc phosphate conversion film on building structural steel[J]. Inorganic Chemicals Industry, 2021, 53(10): 92-97.

图/表 11

表1

表2

图1

表3

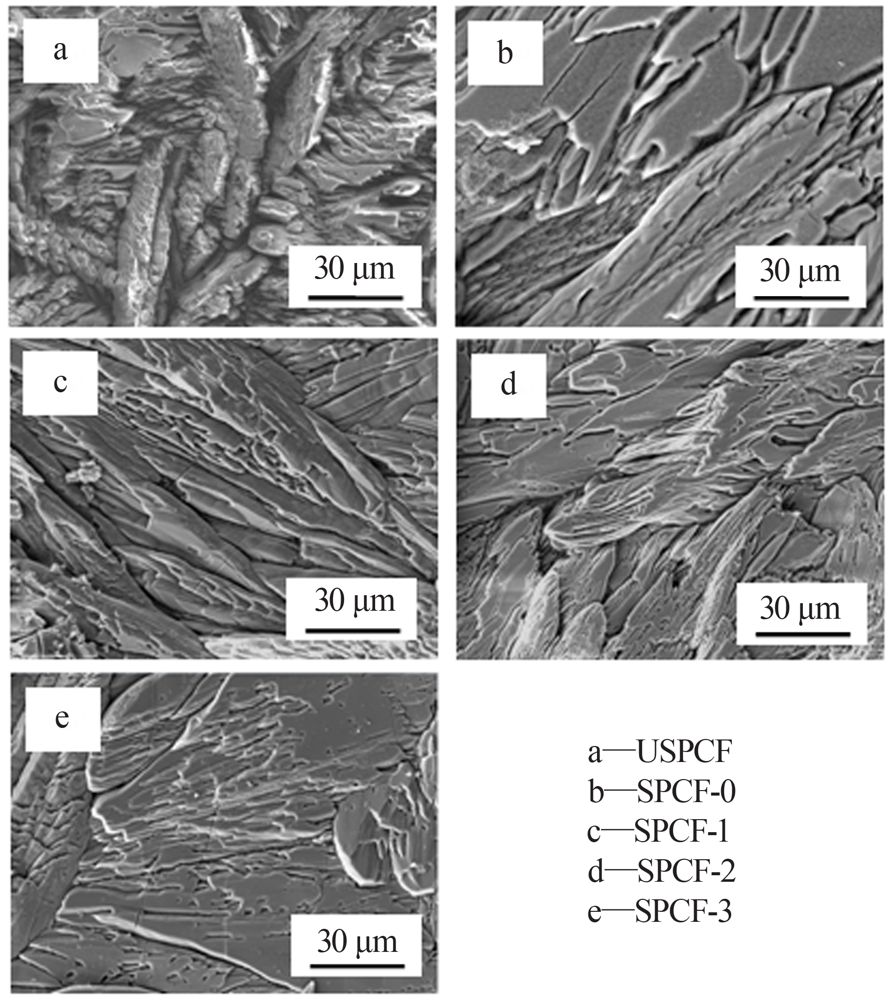

图2

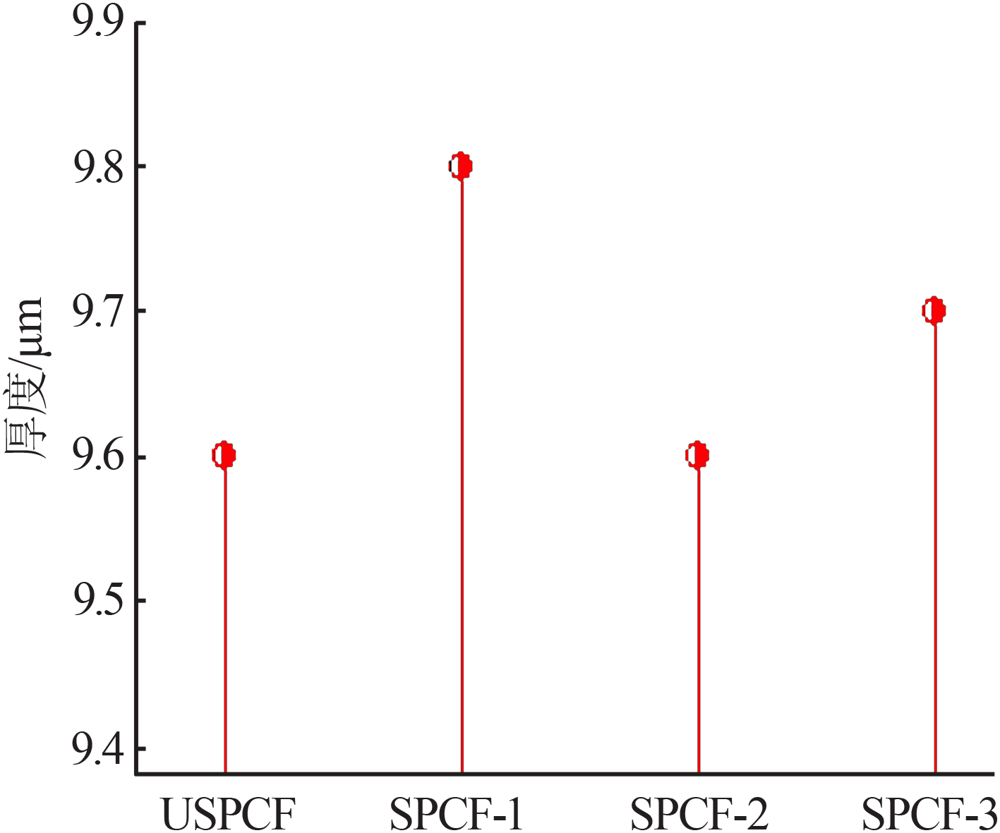

图3

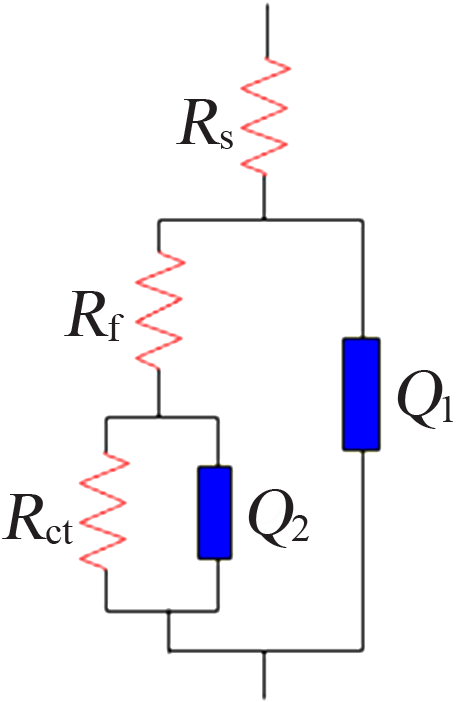

图4

表4

表5

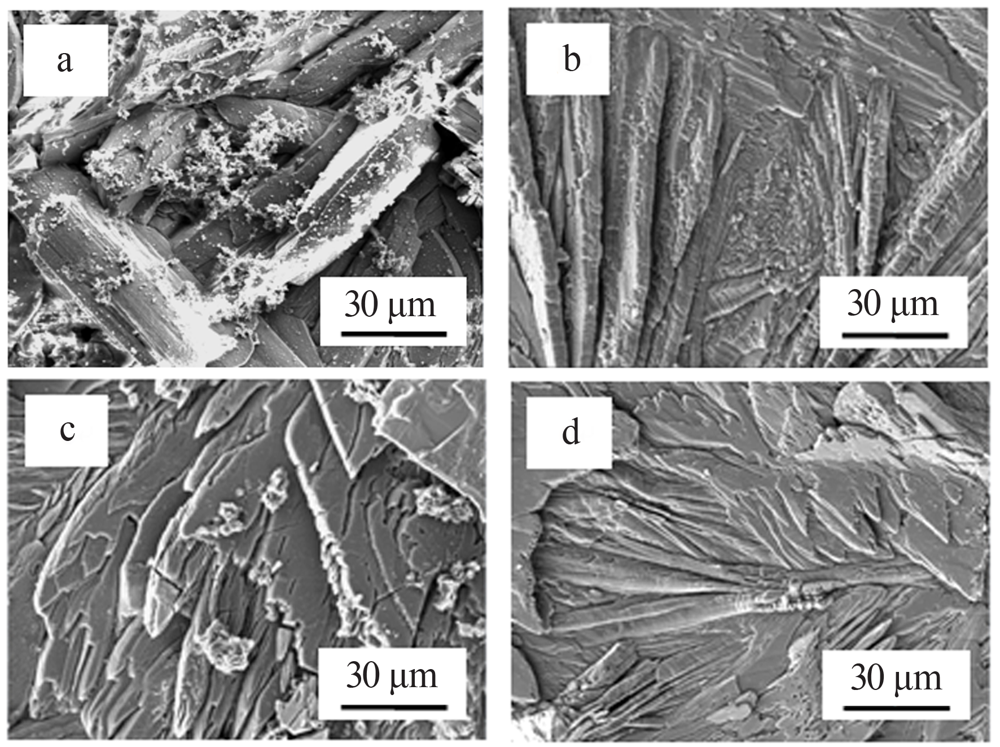

图5

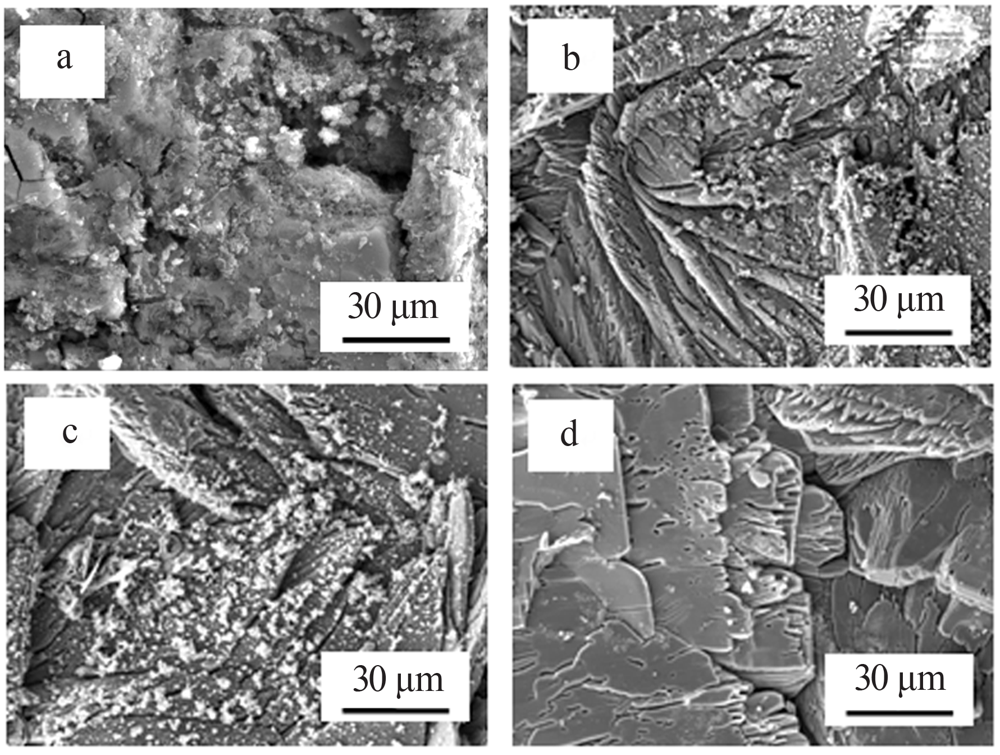

图6

参考文献 18

[1]	王瑶, 邵忠财, 王鑫, 等. 稀土元素对镁合金磷酸盐转化膜性能的影响[J]. 电镀与环保, 2019, 39(2):30-33.
[2]	Verbruggen H, Baert K, Terryn H, et al. Molybdate-phosphate conv-ersion coatings to protect steel in a simulated concrete pore soluti-on[J]. Surface and Coatings Technology, 2019, 361:280-291.
[3]	Lin B L, Lu J T. Self-healing mechanism of composite coatings obta-ined by phosphating and silicate sol post-sealing[J]. Transactions of Nonferrous Metals Society of China, 2014(24):2723-2728.
[4]	An K, An C Q, Yang C N, et al. Effect of phosphating and post-se-aling on the corrosion resistance of electro-galvanized steel[J]. International Journal of Electrochemical Science, 2017, 12(3):2102-2111.
[5]	林碧兰, 卢锦堂, 孔纲. 几种改进磷化膜耐蚀性对比和自修复性初探[J]. 表面技术, 2010, 39(1):37-40.
[6]	邵红红, 陈婷婷, 祁昌洋, 等. 封闭处理对316L不锈钢超声场下磷化膜性能的影响[J]. 中国表面工程, 2017, 30(1):63-69.
[7]	Abdel-Gawad S A. Enhancing corrosion resistance of galvanized steel by phosphating and silicate post-sealing[J]. International Jo-urnal of Eelectrochemical Science, 2018, 13(3):2688-2704.
[8]	Saraswathy V, Karthick S P. Effect of ecofriendly sealing coat agai-nst corrosion protection of steel rebars in concrete[J]. Corrosion En-gineering,Science and Technology, 2014, 49(5):327-334.
[9]	孔纲, 林碧兰, 刘军. 热镀锌层磷化膜硝酸铈封闭后处理的研究[J]. 材料保护, 2008, 41(2):8-10.
[10]	牟世辉. 锌锰系磷化膜硅烷封闭工艺研究[J]. 电镀与精饰, 2012, 34(7):41-43.
[11]	刘新院. 24Cr2Ni4W合金钢黑色磷化膜的制备及性能研究[D]. 沈阳:沈阳理工大学, 2012.
[12]	吴海江, 卢锦堂. 钼酸盐封闭后处理的热镀锌钢板硅烷膜的耐蚀性[J]. 物理化学学报, 2009, 25(9):1743-1748.
[13]	Dong Q, Ba Z, Jia Y, et al. Effect of solution concentration on seal-ing treatment of Mg-Al hydrotalcite film on AZ91D Mg alloy[J]. Journal of Magnesium and Alloys, 2017, 5(3):320-325.
[14]	徐伟, 薛茂权, 白建波. 铝添加量对烧结合成Ti₃SiC₂的影响及其耐蚀性研究[J]. 无机盐工业, 2019, 51(4):23-26.
[15]	Kong W C, Shen H, Gao J X, et al. Electrochemical corrosion be-havior of HVOF sprayed WC-12Co coating on H13 hot work mould steel[J]. Anti-Corrosion Methods and Materials, 2019, 66(6):827-834.
[16]	阳建君, 旷焕, 田金旺, 等. 2A96铝合金表面含三价铬转化膜制备及其电化学性能研究[J]. 包装学报, 2019, 11(1):80-86.
[17]	杨少华, 张丹城, 田亚斌, 等. 5083铝镁合金在不同浓度NaCl溶液中的腐蚀研究[J]. 有色金属科学与工程, 2018, 9(2):1-5.
[18]	曾凤春, 谢万如, 任旺, 等. 氯碱生产环境下金属阳极电解槽的腐蚀探讨与防护方法研究[J]. 无机盐工业, 2015, 47(5):45-47.

试剂	质量浓度/（g·L^-1）	试剂	质量浓度/（g·L^-1）
氧化锌	28~32	磷酸	6~10
硝酸	8.5~14	氯酸钠	1.5~2.5

类型	成分	工艺条件
封闭液1	铬酸盐20 g/L	70 ℃,10 min
封闭液2	硅酸钠14 g/L	80 ℃,10 min
封闭液3	硅酸钠14 g/L,硝酸铈50 mg/L	80 ℃,10 min

物质	元素质量分数/%
物质	Zn	O	P	Cr	C	Na	Si
USPCF	38.06	37.66	13.57	—	10.71	—	—
SPCF-1	38.12	37.79	13.39	1.47	9.23	—	—
SPCF-2	38.24	37.86	14.20	—	5.51	3.05	1.14
SPCF-3	38.22	37.80	13.97	—	4.87	3.81	1.33

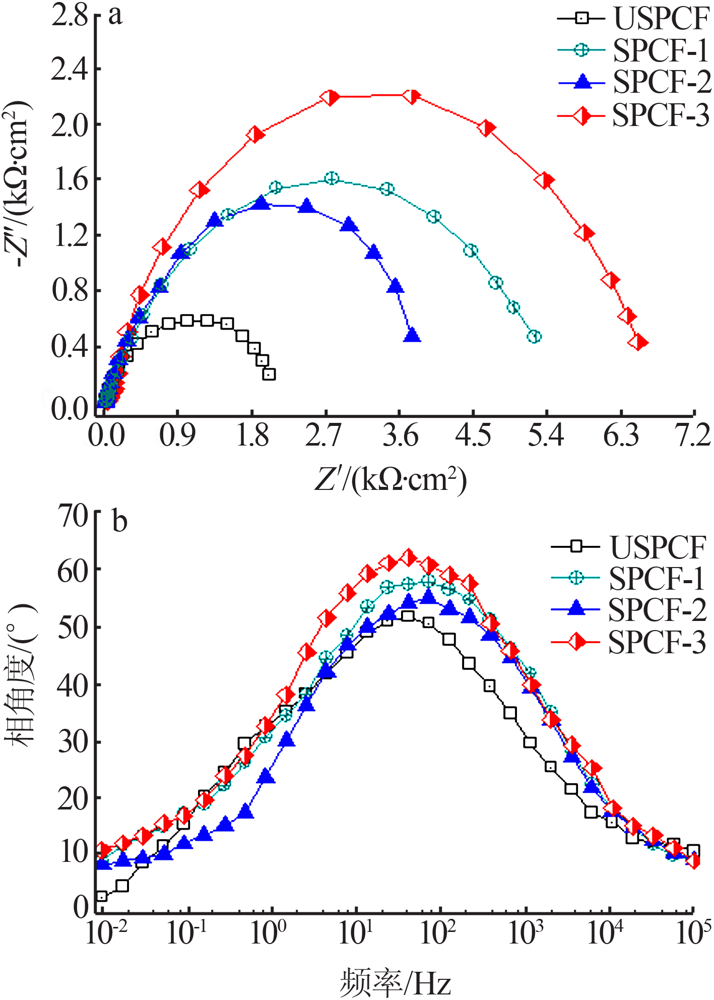

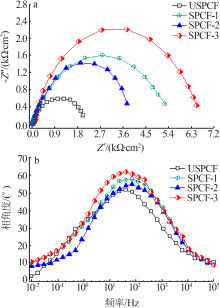

物质	R_s/（Ω·cm²）	R_ct /（Ω·cm²）
USPCF	28.2	1.41×10³
SPCF-1	49.1	2.98×10³
SPCF-2	43.5	2.46×10³
SPCF-3	58.2	4.02×10³

浸泡时间/h	腐蚀情况
浸泡时间/h	USPCF	SPCF-1	SPCF-2	SPCF-3
12	未腐蚀,黑灰色	未腐蚀,黑灰色	未腐蚀,黑灰色	未腐蚀,黑灰色
36	轻度腐蚀,局部呈黄褐色	出现腐蚀迹象	出现腐蚀迹象	未腐蚀,黑灰色
60	腐蚀程度加重,腐蚀面积约占20%	出现腐蚀迹象	轻度腐蚀, 局部呈黄褐色	未腐蚀,黑灰色
84	腐蚀较严重,腐蚀面积接近30%	轻度腐蚀,腐蚀面积约占10%	腐蚀程度加重,腐蚀面积接近20%	轻度腐蚀, 局部呈黄褐色
120	腐蚀很严重,腐蚀面积超过50%	腐蚀程度加重, 腐蚀面积超过 20%	腐蚀较严重,腐蚀面积超过30%	轻度腐蚀, 腐蚀面积超过10%
