铁酸镁光催化剂合成与多种染料降解活性对比研究

doi:10.11962/1006-4990.2019-0653

摘要/Abstract

摘要：

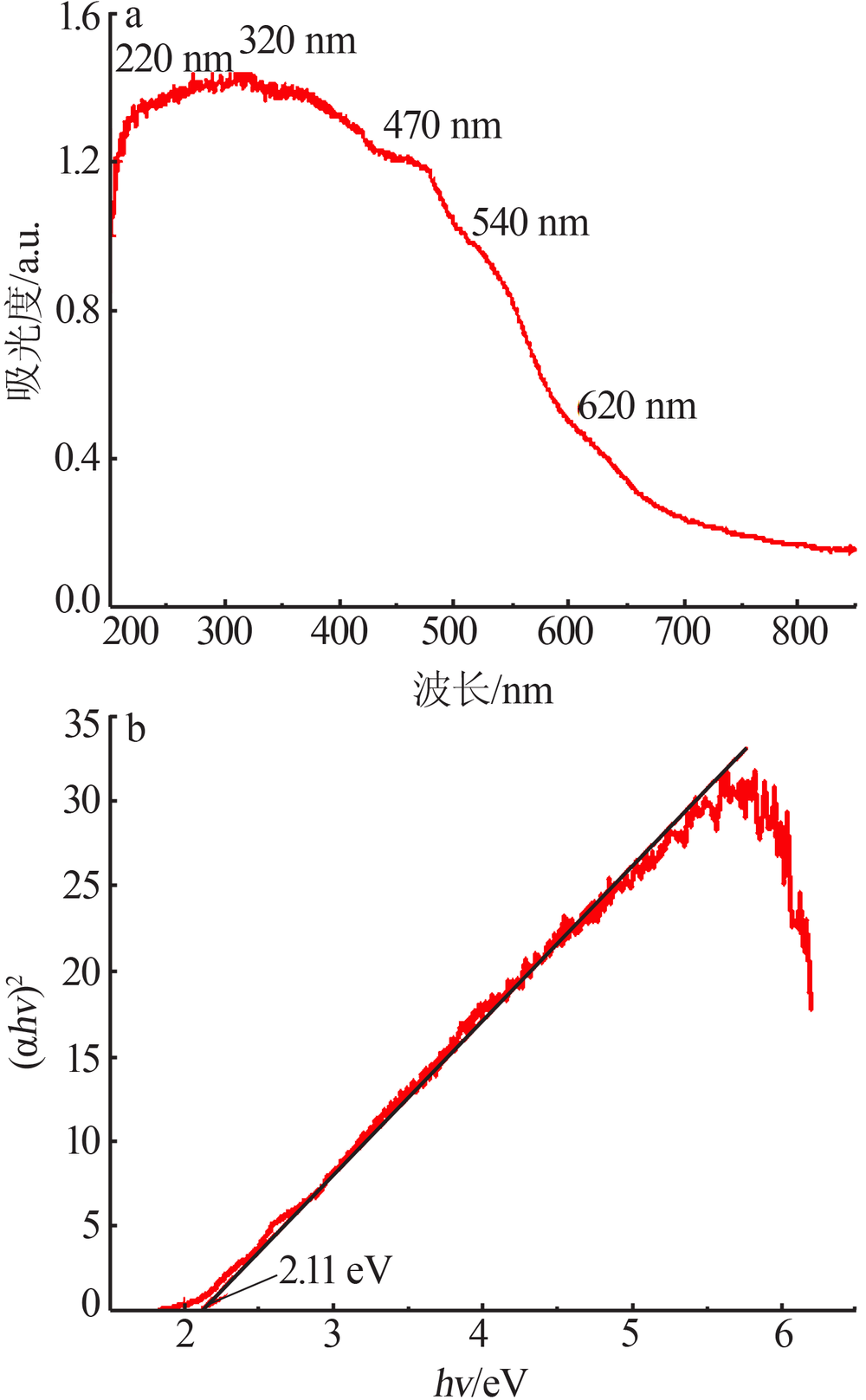

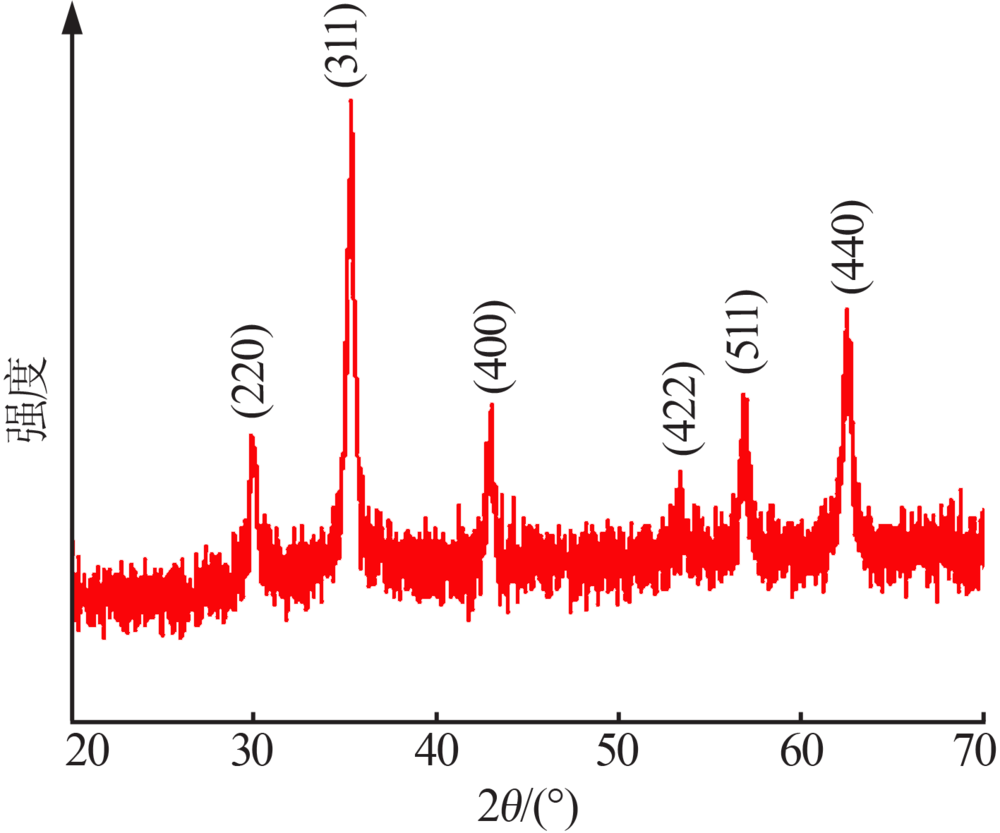

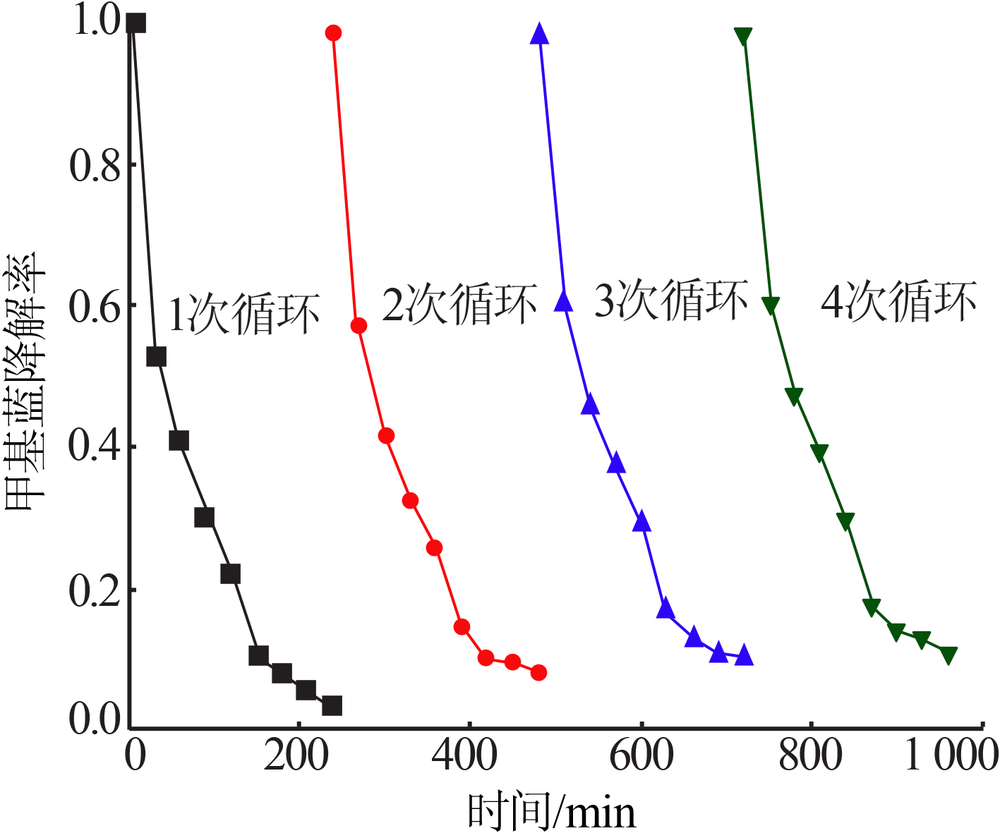

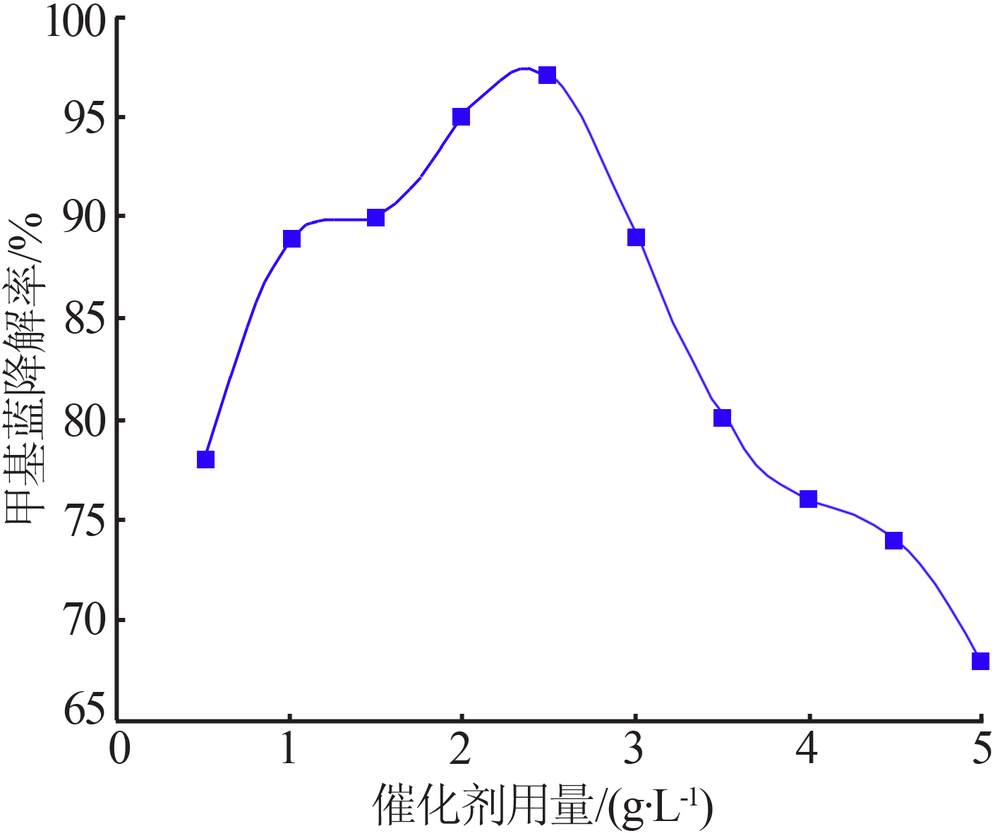

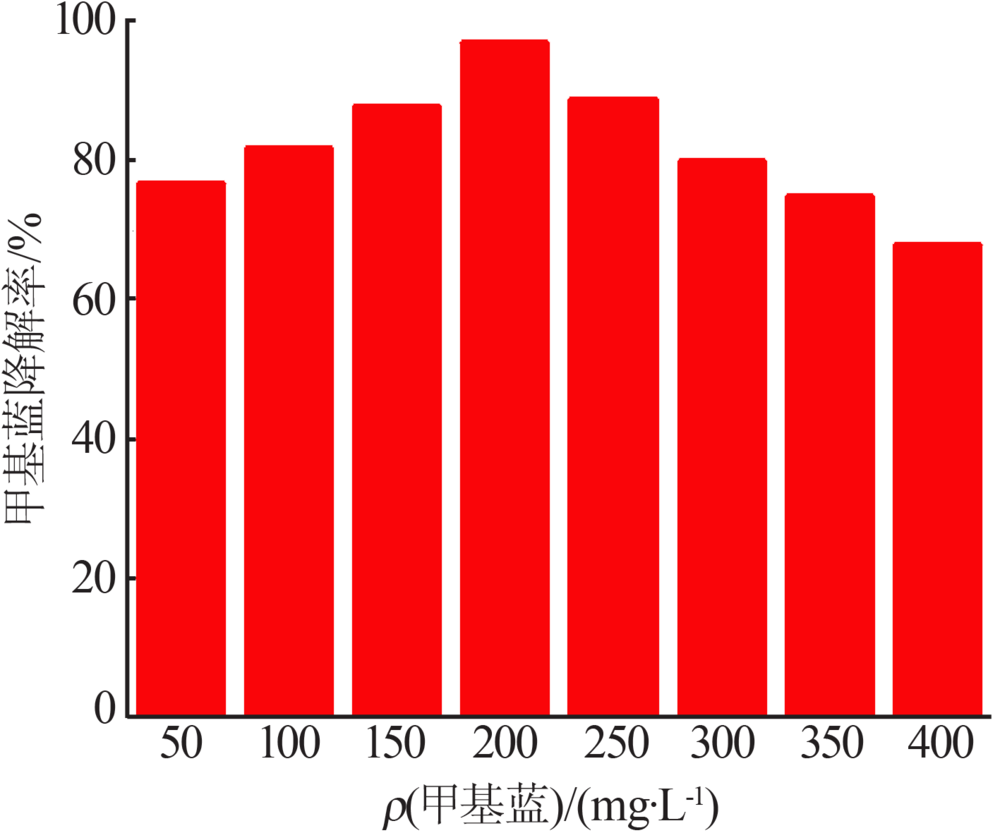

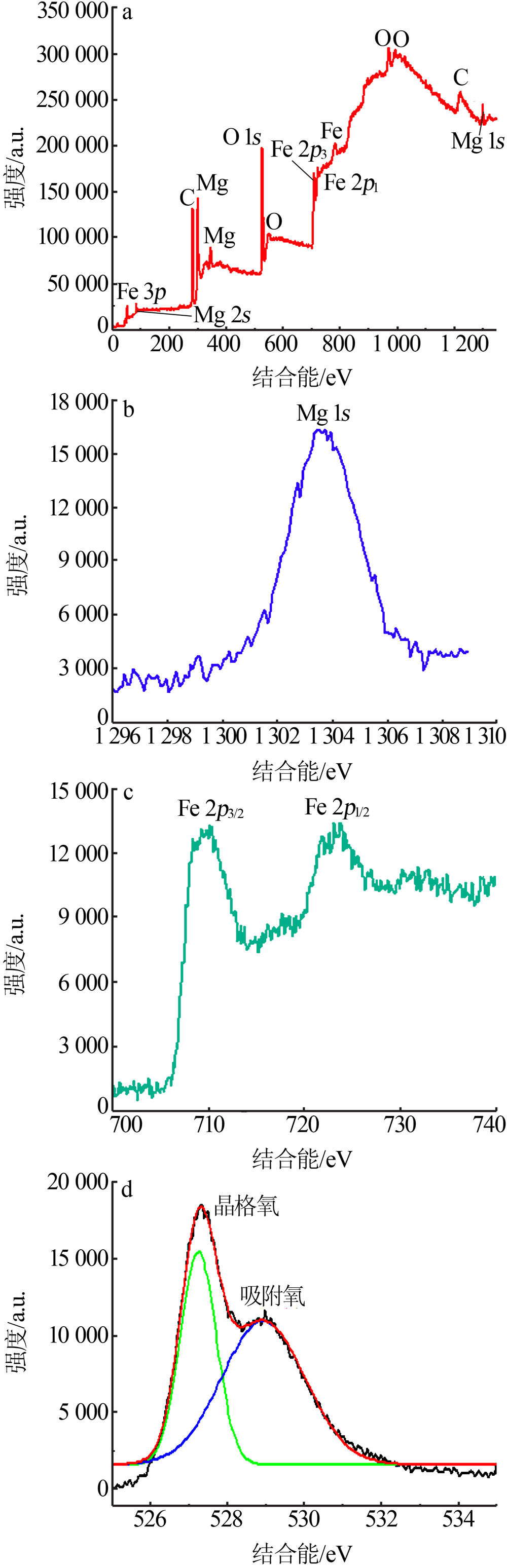

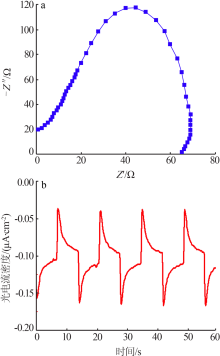

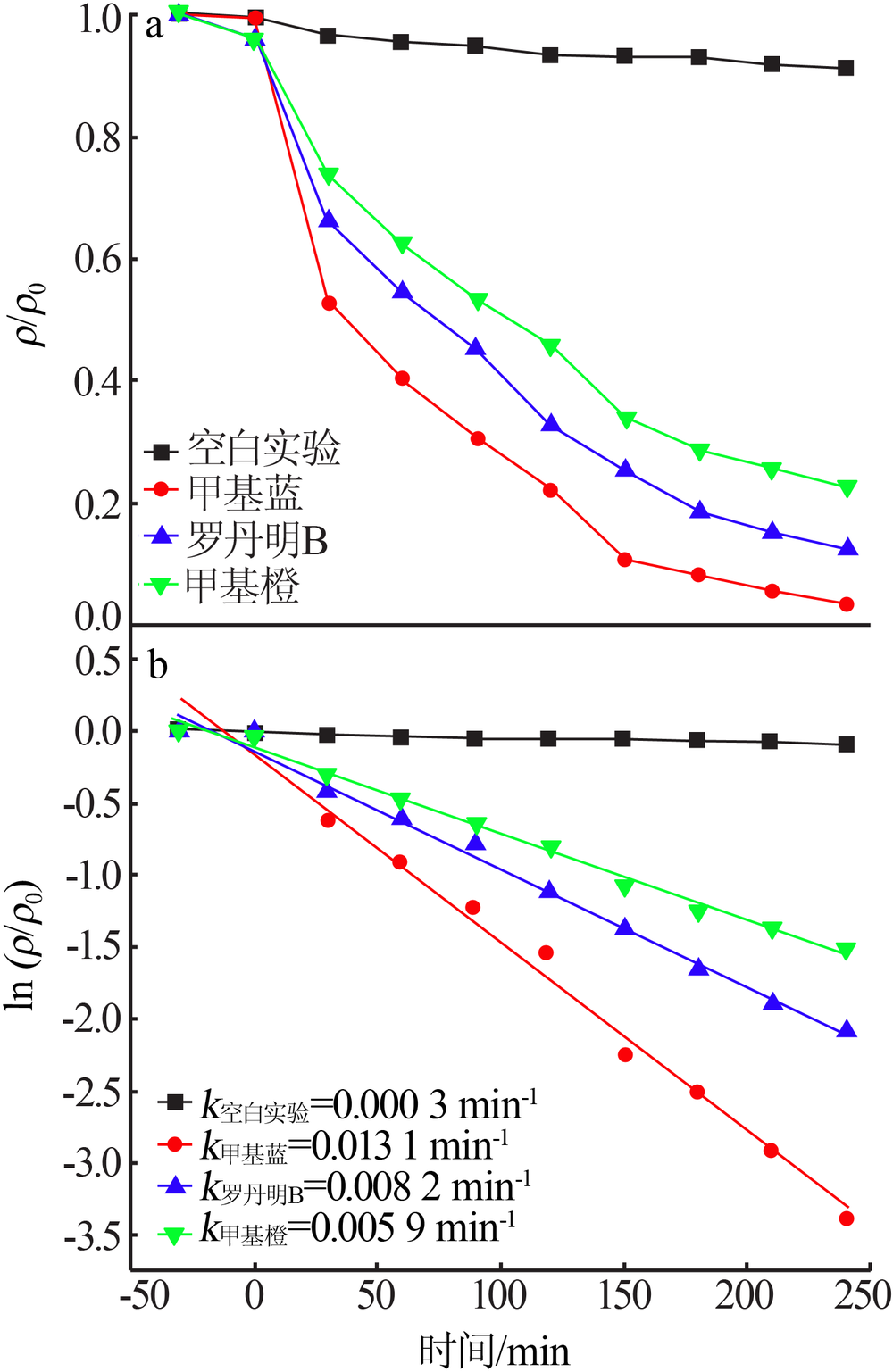

以硝酸镁、硝酸铁和氢氧化钠作为初始材料,采用水热法合成了铁酸镁光催化剂。X射线粉末衍射（XRD）和X射线光电子能谱（XPS）分析表明,合成的铁酸镁为纯的立方相,空间群为Fd-3m（227）,晶粒尺寸约为25 nm。通过光学性质分析发现,铁酸镁光催化剂在200~700 nm处具有较强的光吸收能力,其能带值约为2.11 eV。以甲基蓝、罗丹明B和甲基橙为考察对象,研究了铁酸镁光催化剂对3种染料的光催化降解效果。光催化实验表明,铁酸镁光催化剂对甲基蓝具有最佳的降解效果,最佳的催化剂用量为2.5 g/L,最佳的染料质量浓度为200 mg/L。

关键词: 水热法, 铁酸镁, 光催化剂, 降解效果, 染料浓度

Abstract:

Magnesium ferrite photocatalyst was synthesized by hydrothermal method with magnesium nitrate,iron nitrate and sodium hydroxide as initial materials.X-ray powder diffraction（XRD） and X-ray photoelectron spectroscopy（XPS） analysis showed that the synthesized magnesium ferrite was a pure cubic phase with a space group of Fd-3m（227） and a grain size of about 25 nm.Through the analysis of optical properties,it was found that the photocatalyst of magnesium ferrite had strong light absorption capacity at 200~700 nm,and its energy band value was about 2.11 eV.The photocatalytic degradation effici-ency of methyl blue,Rhodamine B and methyl orange of magnesium ferrite photocatalyst was studied.Photocatalytic experi-ments showed that magnesium ferrite photocatalyst had the best degradation efficiency for the methyl blue,the best catalyst dosage was 2.5 g/L,and the best dye concentration was 200 mg/L.

Key words: hydrothermal method, magnesium ferrite, photocatalyst, degradation efficiency, dye concentration

中图分类号:

TQ132.2

刘莹. 铁酸镁光催化剂合成与多种染料降解活性对比研究[J]. 无机盐工业, 2020, 52(11): 103-107.

Liu Ying. Synthesis of magnesium ferrite photocatalyst and degradation activity of various dyes[J]. Inorganic Chemicals Industry, 2020, 52(11): 103-107.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 18

[1]	王东. 黄河流域水污染防治问题与对策[J]. 民主与科学, 2018,175(6):26-27.
[2]	Mills A, Davies R H, Worsley D. Water purification by semiconduc-tor photocatalysis[J]. Chem.Soc.Rev., 1993,22:417-425.
[3]	Hoffmann M R, Martin S T, Choi W, et al. Environmental applicati-ons of semiconductor photocatalysis[J]. Chem.Rev., 1995,95:69-96.
[4]	Shahid M, Jingling L, Ali Z, et al. Photocatalytic degradation of me-thylene blue on magnetically separable MgFe₂O₄ under visible light irradiation[J]. Mater.Chem.Phys., 2013,139:566-571.
[5]	Meng L, Bai H Y, Da Z L, et al. Electrospinning synjournal and pho-tocatalytic property of CaFe₂O₄/MgFe₂O₄ heterostructure for degrada-tion of tetracycline[J]. Cryst.Res.Technol., 2015,50:244-249.
[6]	Verma S, Joy P A, Khollam Y B, et al. Synjournal of nanosized MgFe₂O₄ powders by microwave hydrothermal method[J]. Mater.Lett., 2004,58(6):1092-1095.
[7]	Shen Y, Wu Y, Li X, et al. One-pot synjournal of MgFe₂O₄ nanosph-eres by solvothermal method[J]. Mater.Lett., 2013,96:85-88.
[8]	Li Y N, Chu Y Q, Qin Q Z. Nanocrystalline ZnFe₂O₄ and Ag-doped ZnFe₂O₄ films used as new anode materials for Li-ion batteries[J]. J.Electrochem.Soc., 2004,151:A1077-A1083.
[9]	武伦鹏, 赵莲花, 张海明, 等. 光电流法研究TiO₂薄膜表面吸附氧对光催化活性的影响[J]. 物理化学学报, 2007,23(5):765-768.
[10]	杨晓红. MgAl₂O₄:Ce荧光粉辐照合成及发光机理研究[J]. 无机盐工业, 2019,51(9):30-35.
[11]	Lin J, Zong R, Zhou M, et al. Photoelectric catalytic degradation of methylene blue by C60-modified TiO₂ nanotube array[J]. Appl.Catal.B:Environ., 2009,89(3/4):425-431.
[12]	Zhu S, Xu T, Fu H, et al. Synergetic effect of Bi₂WO₆ photocatalyst with C60 and enhanced photoactivity under visible irradiation[J]. Environ.Sci.Technol., 2007,41(17):6234-6239.
[13]	杨玉萍, 王良广, 张玉涛. 不同制备方法对氧化铁/氧化铝催化剂催化活性的影响研究[J]. 无机盐工业, 2017,49(9):78-81.
[14]	沈昱, 魏浩然, 吴艳波, 等. 铁酸锰纳米球的溶剂热法制备及其可见光催化性能[J]. 大连交通大学学报, 2015,36(2):70-73.
[15]	魏君, 李志奎. 多酸/二氧化钛复合光催化剂的制备及光催化苯胺的研究[J]. 分子科学学报, 2012,28(1):94-98.
[16]	Konstantinou I K, Albanis T A. TiO₂-assisted photocatalytic degra-dation of azo dyes in aqueous solution:kinetic and mechanistic in-vestigations[J]. Appl.Catal.B:Environ., 2004,49(1):1-14.
[17]	王仕发, 杨华, 县涛, 等. 纳米YMn₂O₅半导体可见光催化剂[J]. 无机材料学报, 2011,26(11):1164-1168.
[18]	薛红艳. 纳米铁酸钙的光催化活性与催化机理研究[J]. 无机盐工业, 2017,49(9):85-88.

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会
