黄磷渣与硫酸钠-氯化钠制备高温复合相变储能材料

doi:10.19964/j.issn.1006-4990.2022-0140

Abstract

Abstract:

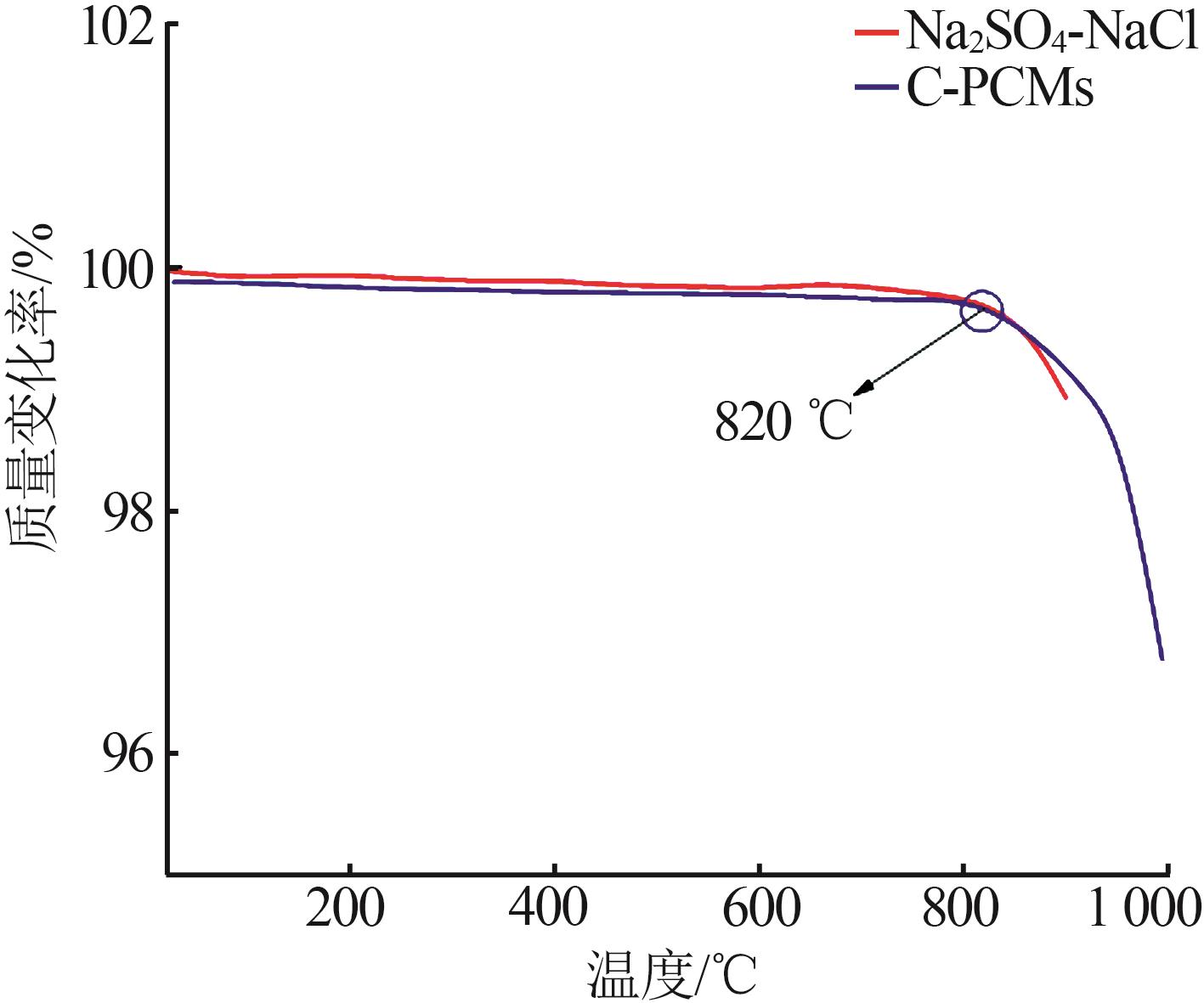

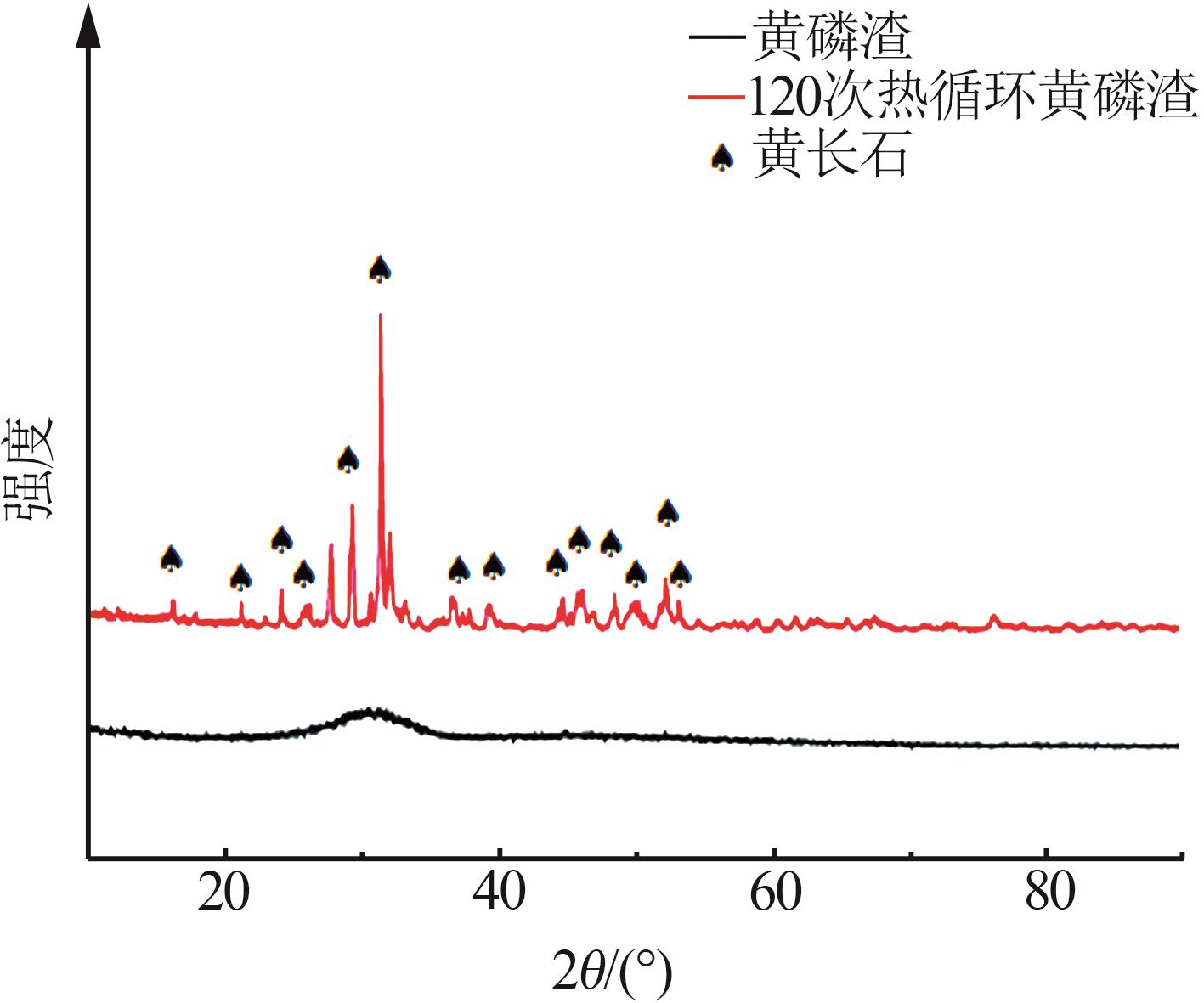

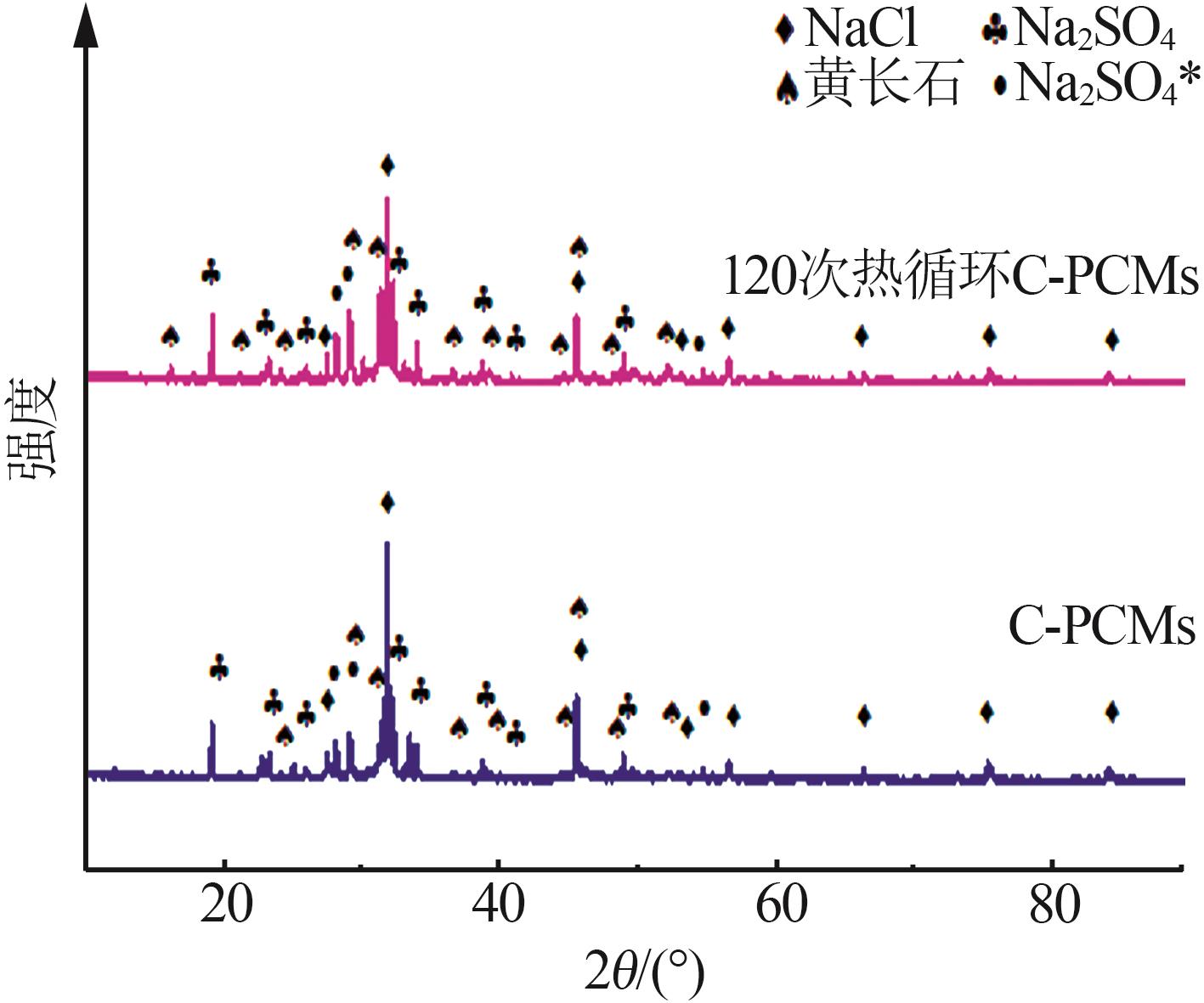

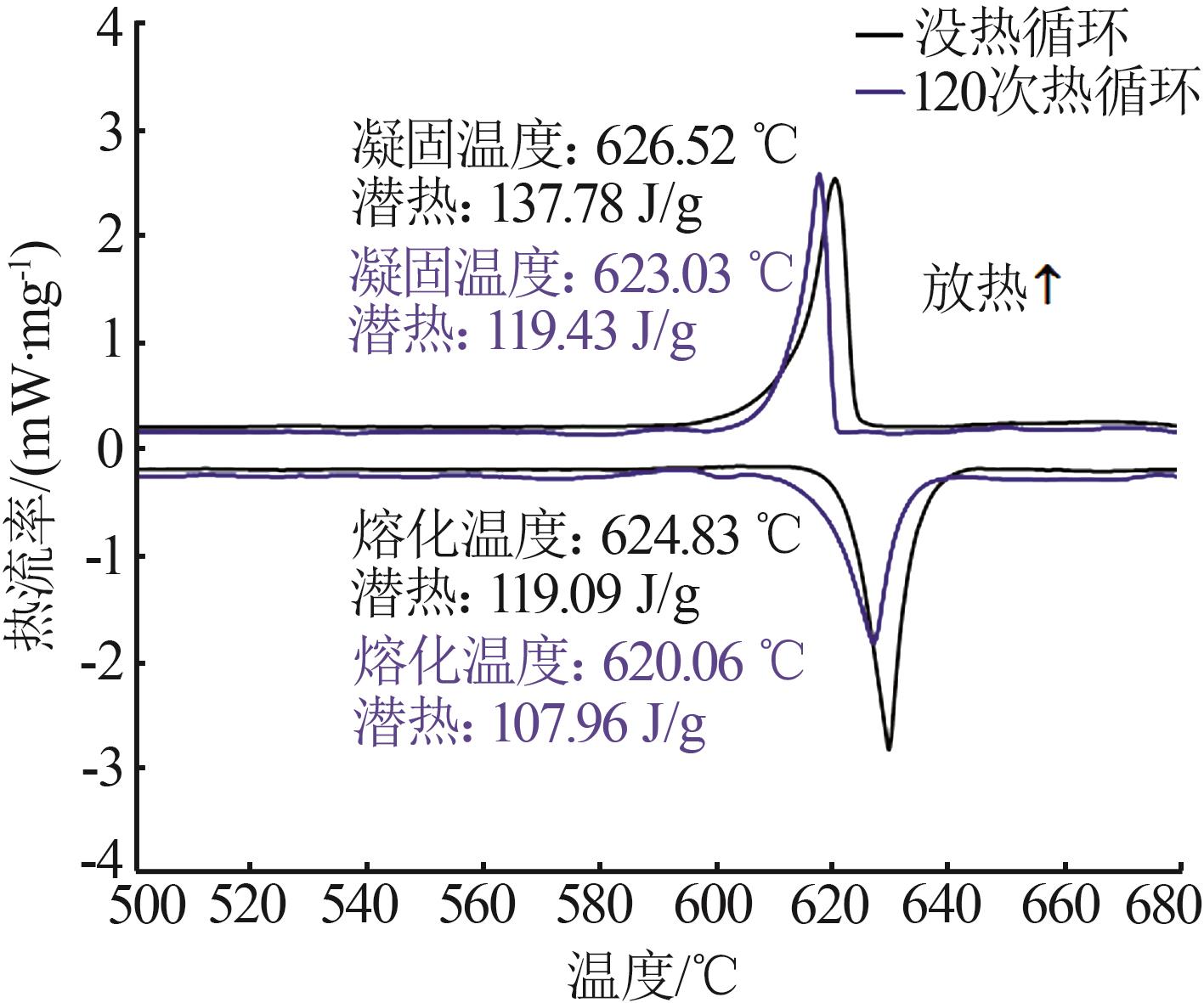

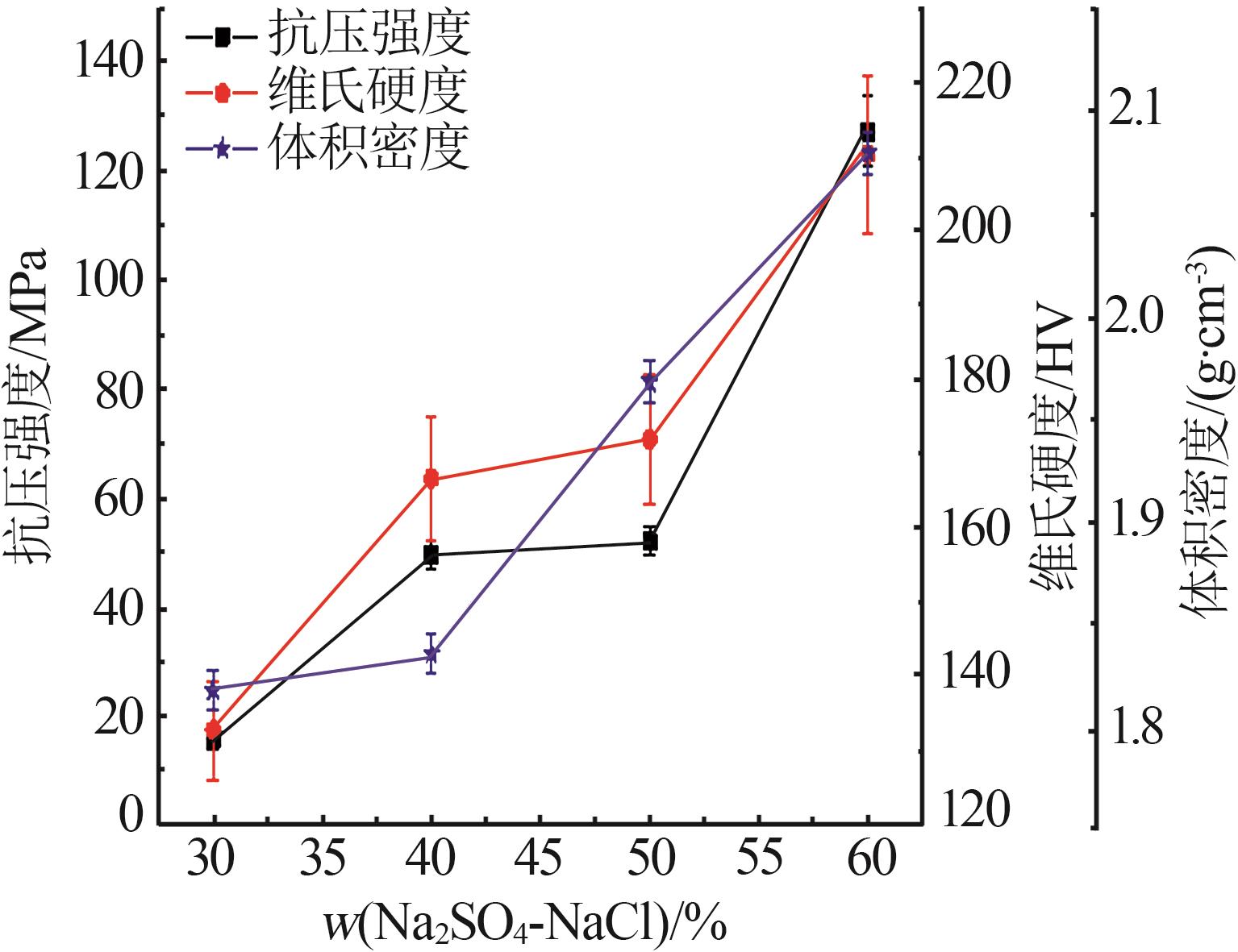

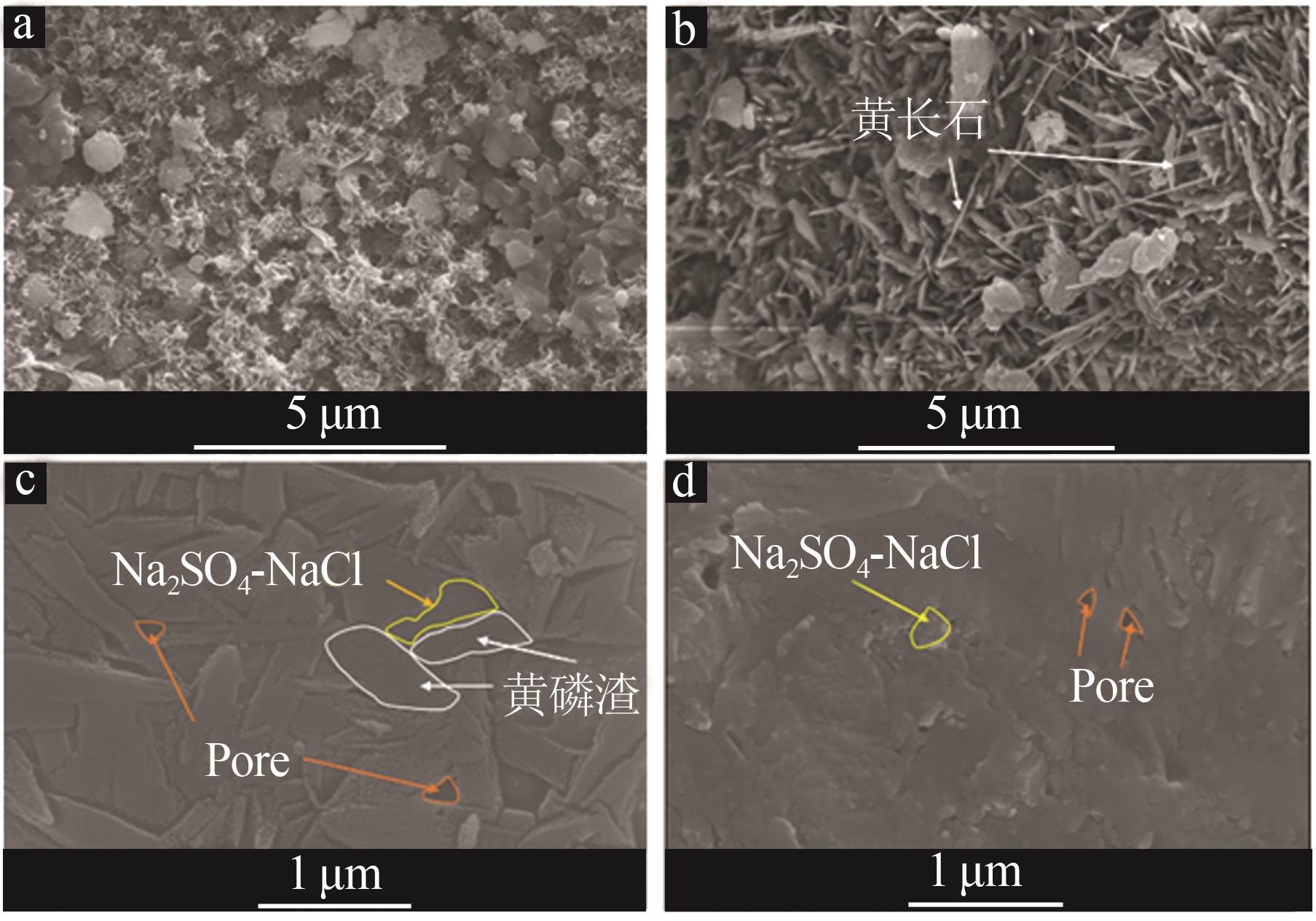

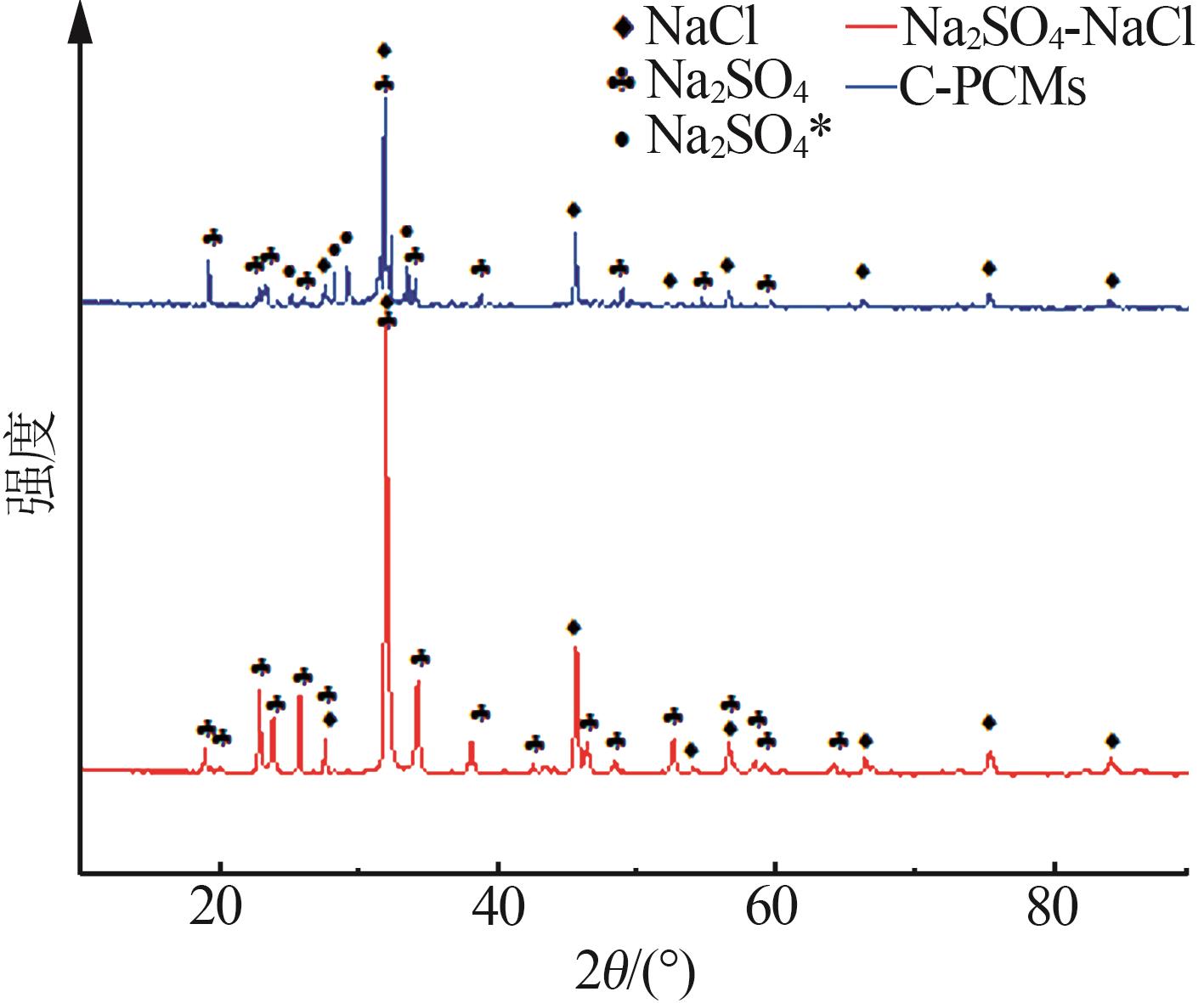

The high temperature composite phase change energy storage materials（C-PCMs） were prepared by mixed sintering method using yellow phosphorus slag and Na₂SO₄-NaCl as raw materials.The chemical compatibility，mechanical properties，phase change characteristics and thermal stability of C-PCMs were analyzed by XRD，SEM and TG-DSC.The results showed that the phase change material Na₂SO₄-NaCl had less erosive effect on yellow phosphorus slag under high temperature environment，and both had good chemical compatibility.With the increase of Na₂SO₄-NaCl content，the structure of C-PCMs was tended to be densified，and the mechanical strength and latent heat value were gradually increased.When the content of phase change material Na₂SO₄-NaCl was exceeded 60%（mass fraction），the C-PCMs had obvious leakage phenomenon.When the content of phase change material Na₂SO₄-NaCl was 60%（mass fraction），the compressive strength，Vickers hardness，bulk density and latent heat of C-PCMs were 122.30 MPa，208.90 HV，2.08 g/cm³ and 119.09 J/g，respectively.After 120 thermal cycles，the Na₂SO₄-NaCl in the C-PCMs did not leak，and the phase change properties remained good.

Key words: yellow phosphorus slag, Na₂SO₄-NaCl, phase change materials

CLC Number:

TQ110.3

HE Haodong,YANG Lin,CAO Jianxin. Preparation of high temperature composite phase change energy storage materials by yellow phosphorus slag and Na₂SO₄-NaCl[J]. Inorganic Chemicals Industry, 2023, 55(2): 126-131.

Figures/Tables 15

Table 1

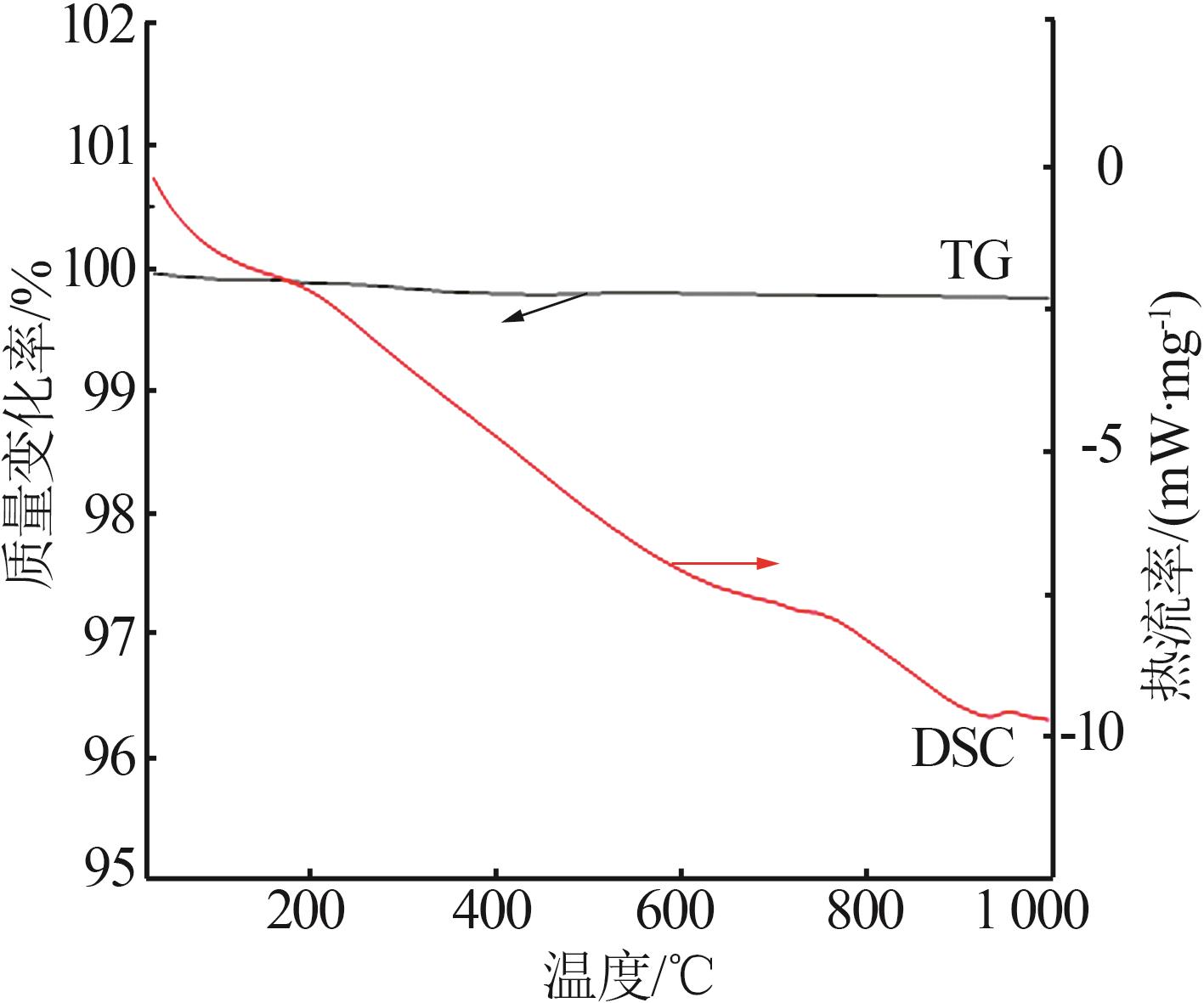

Fig.1

Fig.2

Fig.3

Table 2

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Table 3

Fig.10

Table 4

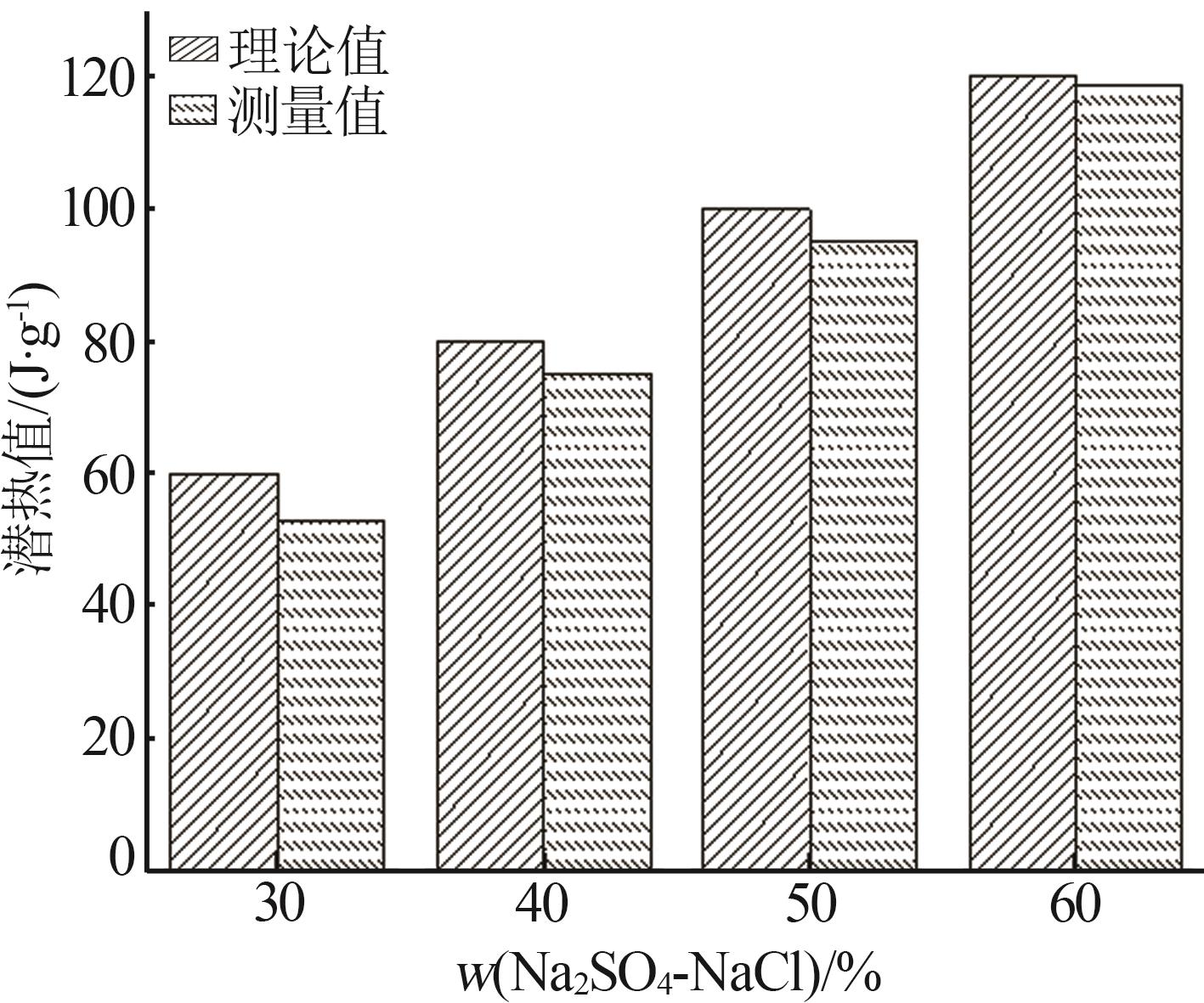

Fig.11

References 16

1	SU Zhennan， LI Xianhai.Study on preparation and interfacial transition zone microstructure of red mud-yellow phosphorus slag-cement concrete[J].Materials （Basel，Switzerland），2021，14（11）.Doi：10.3390/MA14112768 . doi: 10.3390/MA14112768
2	ZHANG Zengqi， WANG Qiang， YANG Jun.Hydration mechanisms of composite binders containing phosphorus slag at different temperatures[J].Construction and Building Materials，2017，147：720-732.
3	SHENG Yanping， ZHANG Ben， YAN Yu，et al.Effects of phosphorus slag powder and polyester fiber on performance characteristics of asphalt binders and resultant mixtures[J].Construction and Building Materials，2017，141：289-295.
4	ZHOU Jun， SHU Zhu， HU Xiaohua，et al.Direct utilization of liquid slag from phosphorus-smelting furnace to prepare cast stone as decorative building material[J].Construction and Building Materials，2010，24（5）：811-817.
5	LIU Hongpan， MA Liping， HUANG Xiaofeng，et al.Phase transformation of glass-ceramics produced by naturally cooled yellow pho-
	sphorus slag during calcination[J].Journal of Alloys and Compo-unds，2017，712：510-516.
6	JIANG Ming， LIU Hongpan， FAN Xide，et al.Predicting gaseous pollution of sintered brick preparation from yellow phosphorus slag[J].Polish Journal of Environmental Studies，2019，28（3）：1719-1725.
7	CABEZA L F， DE GRACIA A， ZSEMBINSZKI G，et al.Perspectives on thermal energy storage research[J].Energy，2021，231.Doi：10.1016/j.energy.2021.120943 . doi: 10.1016/j.energy.2021.120943
8	MOFIJUR M， MAHLIA T， SILITONGA A，et al.Phase change materials（PCM） for solar energy usages and storage：An overview[J].Energies，2019，12（16）.Doi：10.3390/en12163167 . doi: 10.3390/en12163167
9	JIANG Feng， LING Xiang， ZHANG Lingling，et al.Modified diatomite-based porous ceramic to develop shape-stabilized NaNO₃ salt with enhanced thermal conductivity for thermal energy storage[J].Solar Energy Materials and Solar Cells，2021，231.Doi：10.1016/j.solmat.2021.111328 . doi: 10.1016/j.solmat.2021.111328
10	LV Peizhao， LIU Chenzhen， RAO Zhonghao.Review on clay mineral-based form-stable phase change materials：Preparation，characterization and applications[J].Renewable and Sustainable Energy Reviews，2017，68：707-726.
11	ZHANG Yuanbo， LIU Jicheng， SU Zijian，et al.Utilizing blast furnace slags（BFS） to prepare high-temperature composite phase change materials（C-PCMs）[J].Construction and Building Materials，2018，177：184-191.
12	ANAGNOSTOPOULOS A， NAVARRO M E， STEFANIDOU M，et al.Red mud-molten salt composites for medium-high temperature thermal energy storage and waste heat recovery applicatio-ns[J].Journal of Hazardous Materials，2021，413.Doi：10.1016/j.jhazmat.2021.125407 . doi: 10.1016/j.jhazmat.2021.125407
13	李紫瑞，邢冬娴，汤建伟，等.磷石膏基复合相变材料的制备及储热性能研究[J].无机盐工业，2022，54（4）：34-39.
	LI Zirui， XING Dongxian， TANG Jianwei，et al.Study on preparation and heat storage performance of phosphogypsum-based composite phase change materials[J].Inorganic Chemicals Industry，2022，54（4）：34-39.
14	GUO Qiang， WANG Tao.Preparation and characterization of sodium sulfate/silica composite as a shape-stabilized phase change material by sol-gel method[J].Chinese Journal of Chemical Engineering，2014，22（3）：360-364.
15	JIA Wenbing， WANG Chaoming， WANG Tingjun，et al.Preparation and performances of palmitic acid/diatomite form-stable composite phase change materials[J].International Journal of Energy Research，2020，44（6）：4298-4308.
16	FENG Lili， ZHAO Wei， ZHENG Jie，et al.The shape-stabilized phase change materials composed of polyethylene glycol and various mesoporous matrices（AC，SBA-15 and MCM-41）[J].Solar Energy Materials and Solar Cells，2011，95（12）：3550-3556.

样品编号	w（Na₂SO₄-NaCl）/%	w（黄磷渣）/ %	烧结样品后目视观察情况
H1	30	70	没有泄漏
H2	40	60	没有泄漏
H3	50	50	没有泄漏
H4	60	40	没有泄漏
H5	70	30	轻微泄漏和变形
H6	80	20	严重泄漏和变形

样品	无热循环的质量/g	120次热循环后的质量/g
H1	2.68	2.64
H2	2.42	2.39
H3	2.14	2.11
H4	2.31	2.29

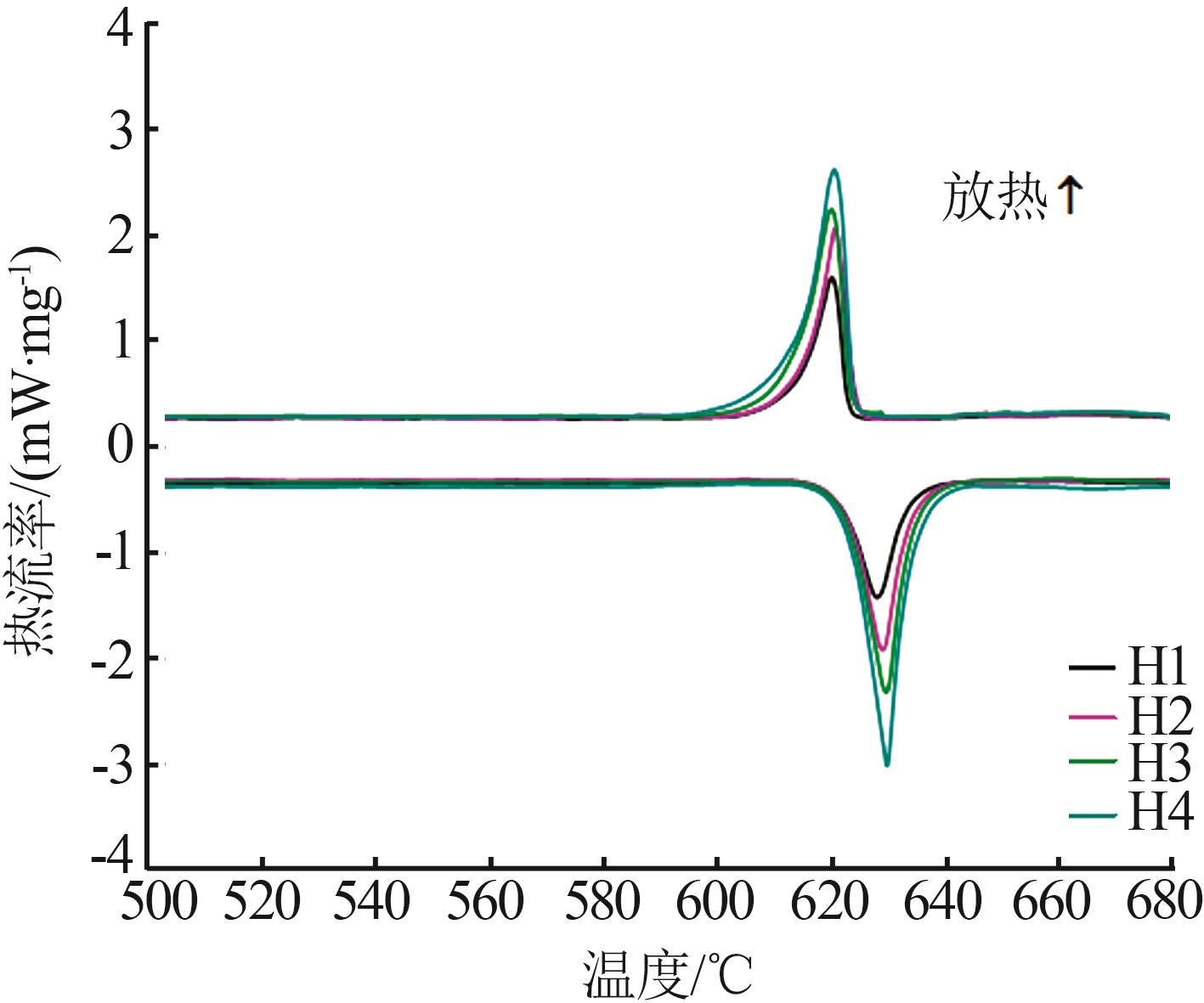

样品	熔化			凝固
样品	起始温度/℃	峰值温度/℃	潜热值/ （J·g^-1）	起始温度/℃	峰值温度/℃	潜热值/ （J·g^-1）
H1	623.64	630.11	52.95	625.29	622.49	67.68
H2	624.46	630.88	75.33	626.62	623.04	70.53
H3	624.42	631.32	95.20	625.83	622.62	103.05
H4	624.83	631.64	119.09	626.52	623.32	137.78
