无机盐工业 ›› 2023, Vol. 55 ›› Issue (7): 89-96.doi: 10.19964/j.issn.1006-4990.2022-0598
收稿日期:
2022-10-10
出版日期:
2023-07-10
发布日期:
2023-07-13
作者简介:
张鹏(1982— ),男,博士,副教授,研究方向为混凝科学与技术;E-mail:zhangpeng388@126.com。
基金资助:
ZHANG Peng1,2,3(), DONG Shanshan1, WANG Yulu2, ZHAO Yuelong1
Received:
2022-10-10
Published:
2023-07-10
Online:
2023-07-13
摘要:

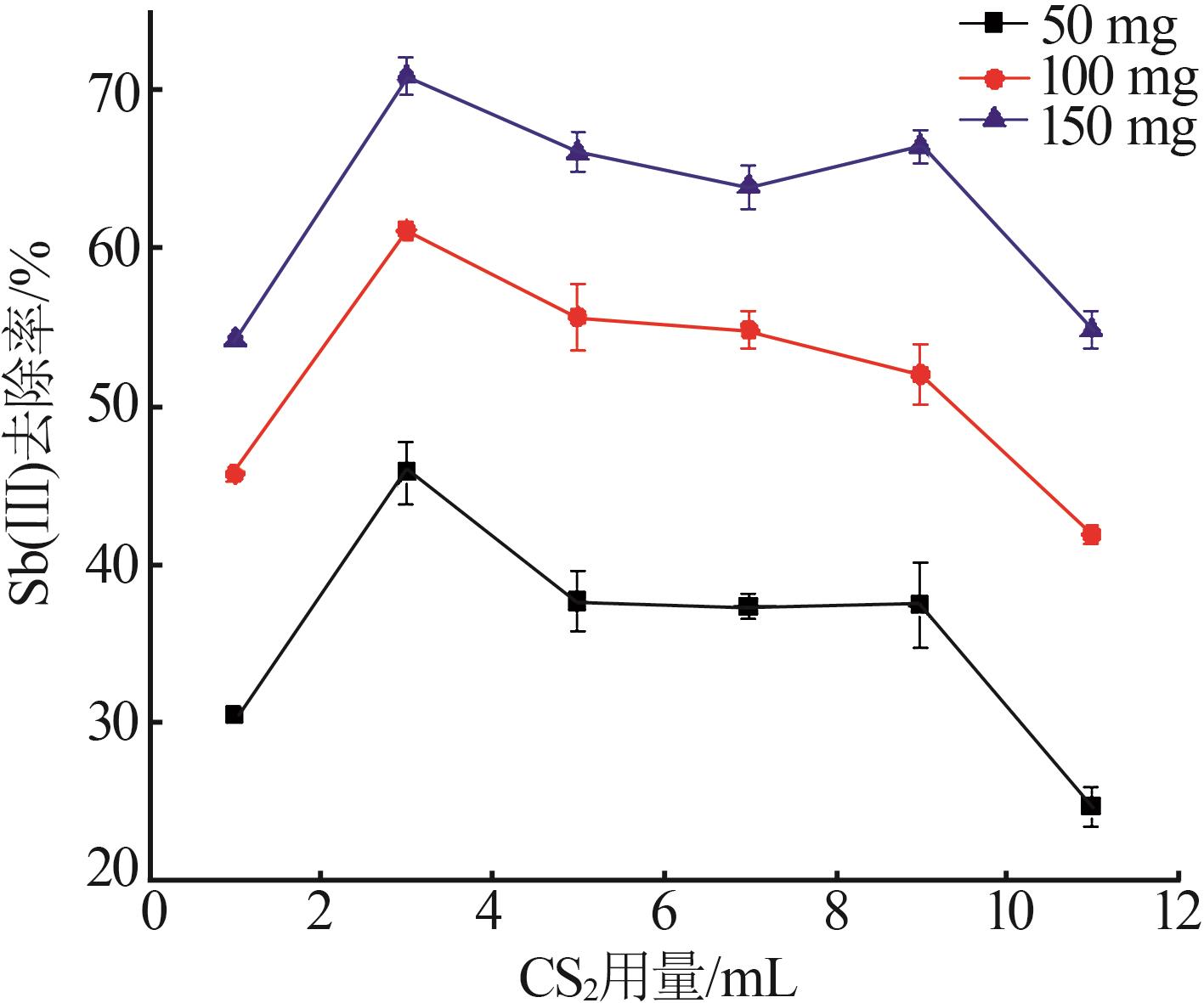

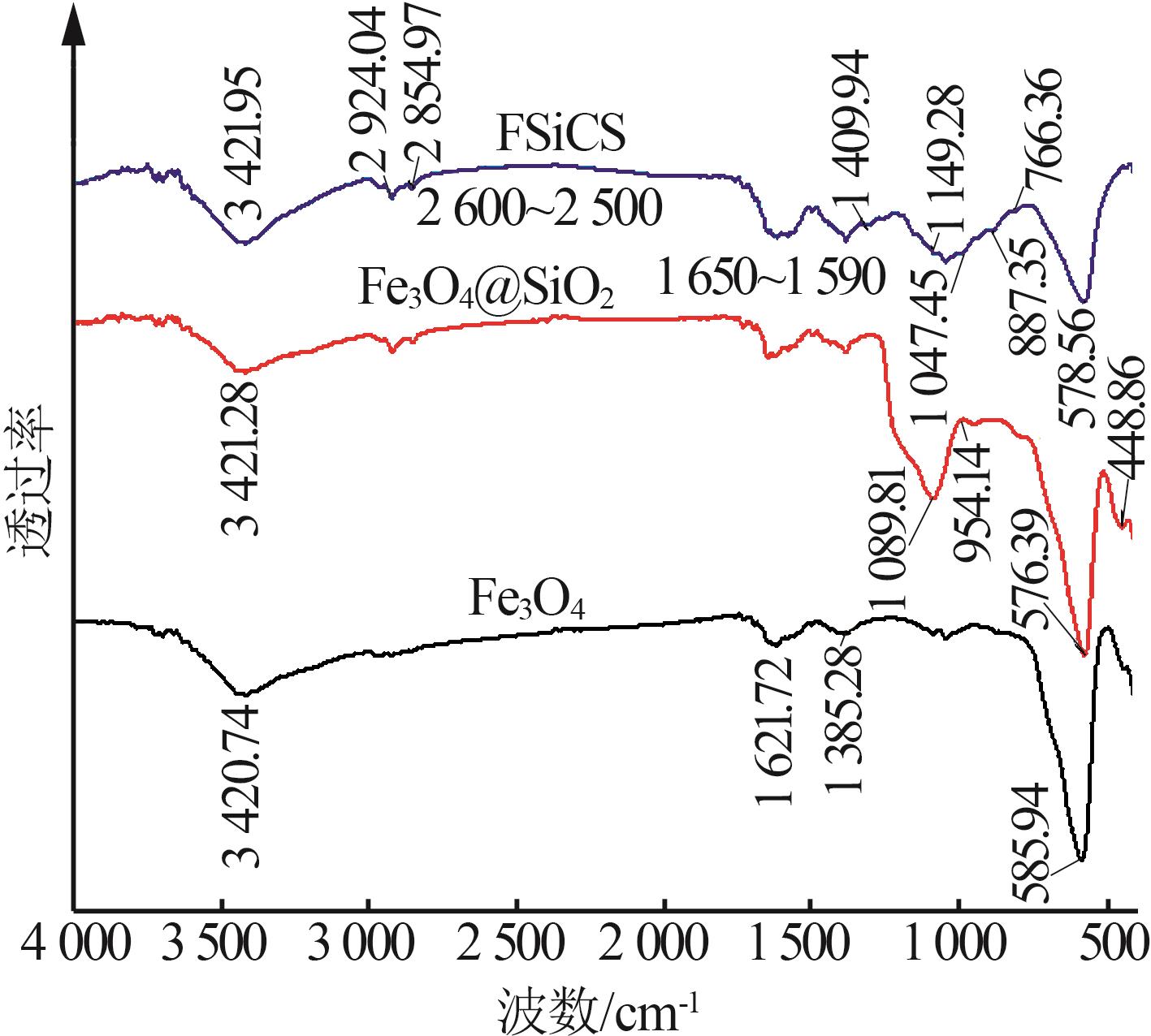

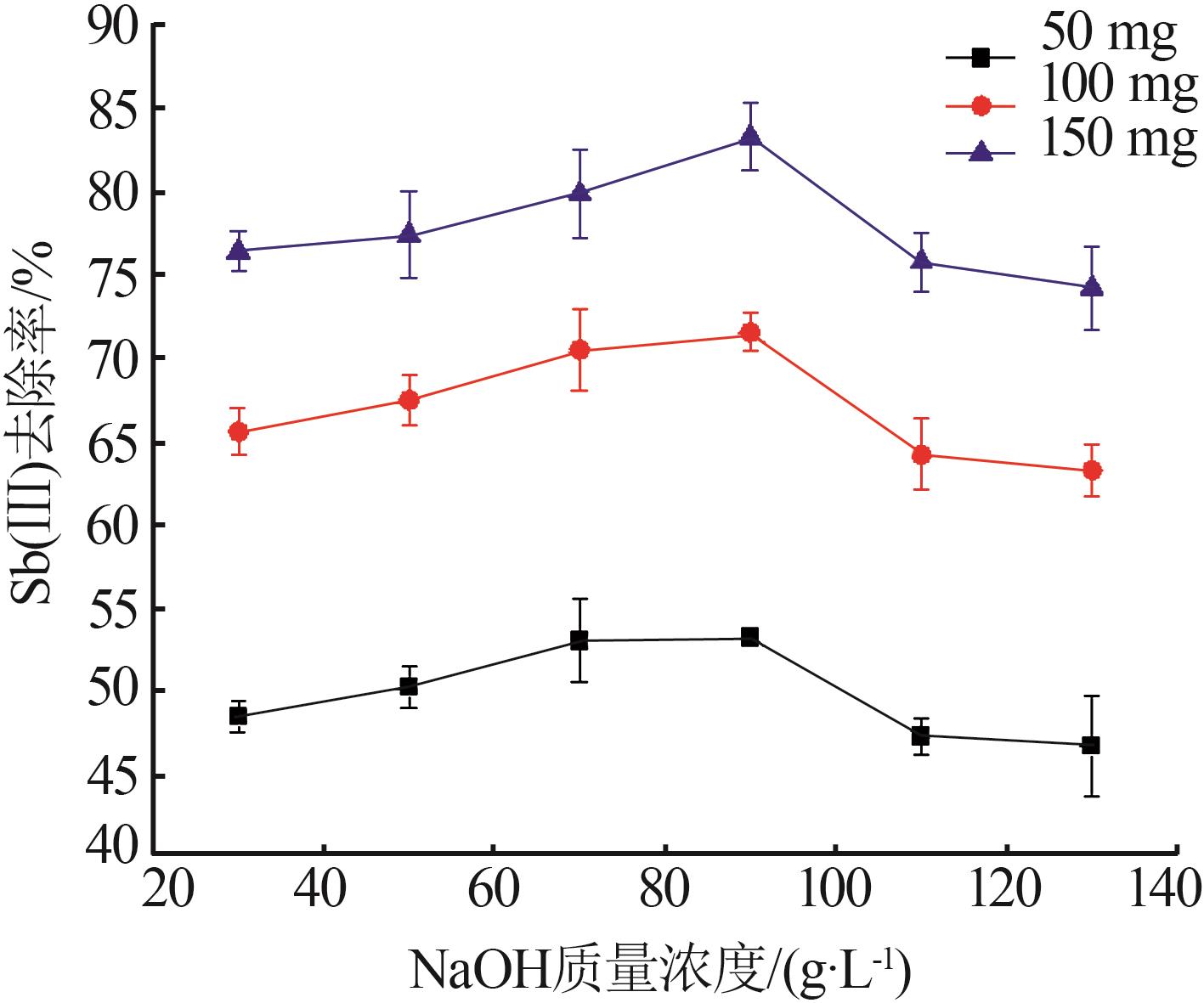

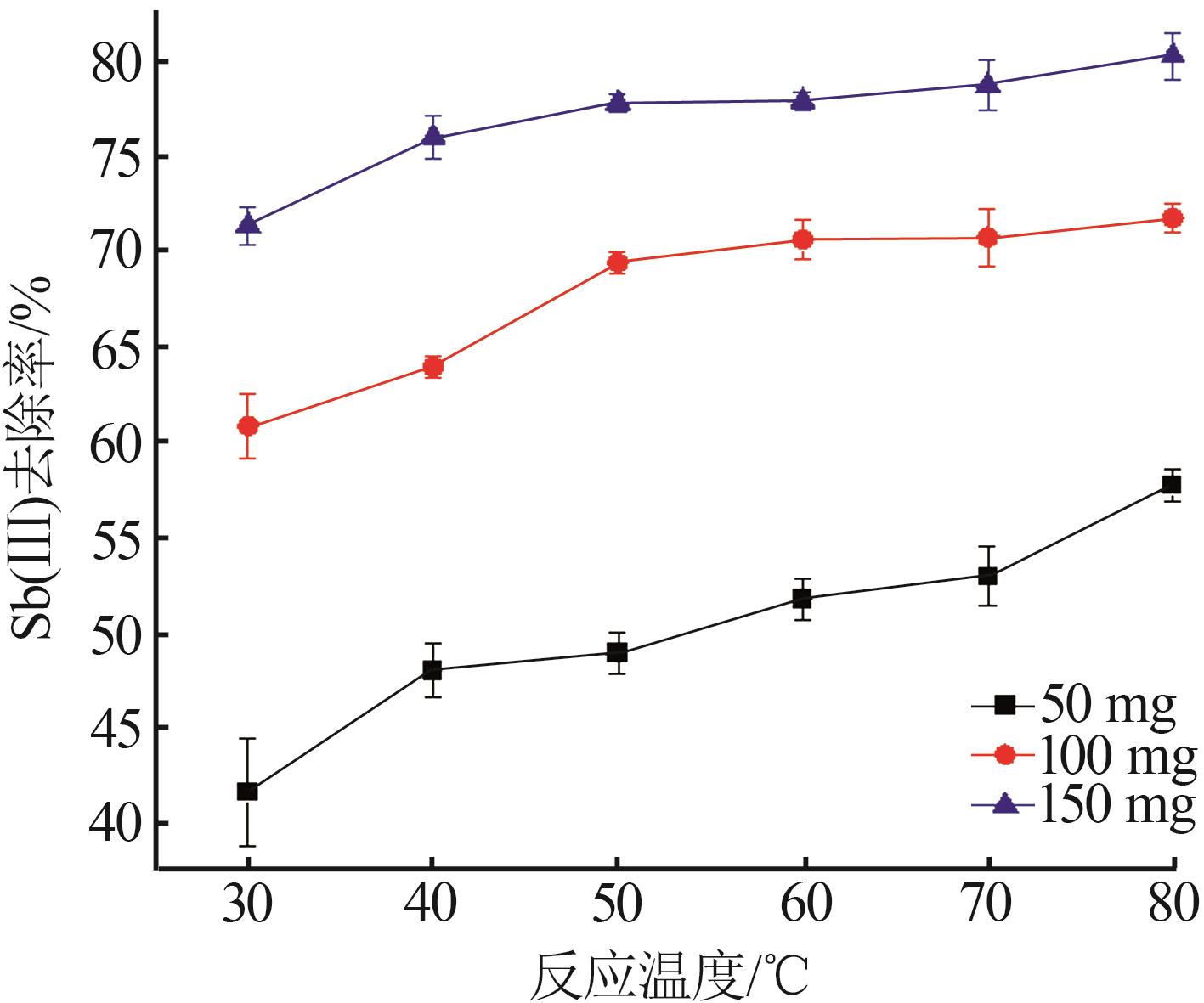

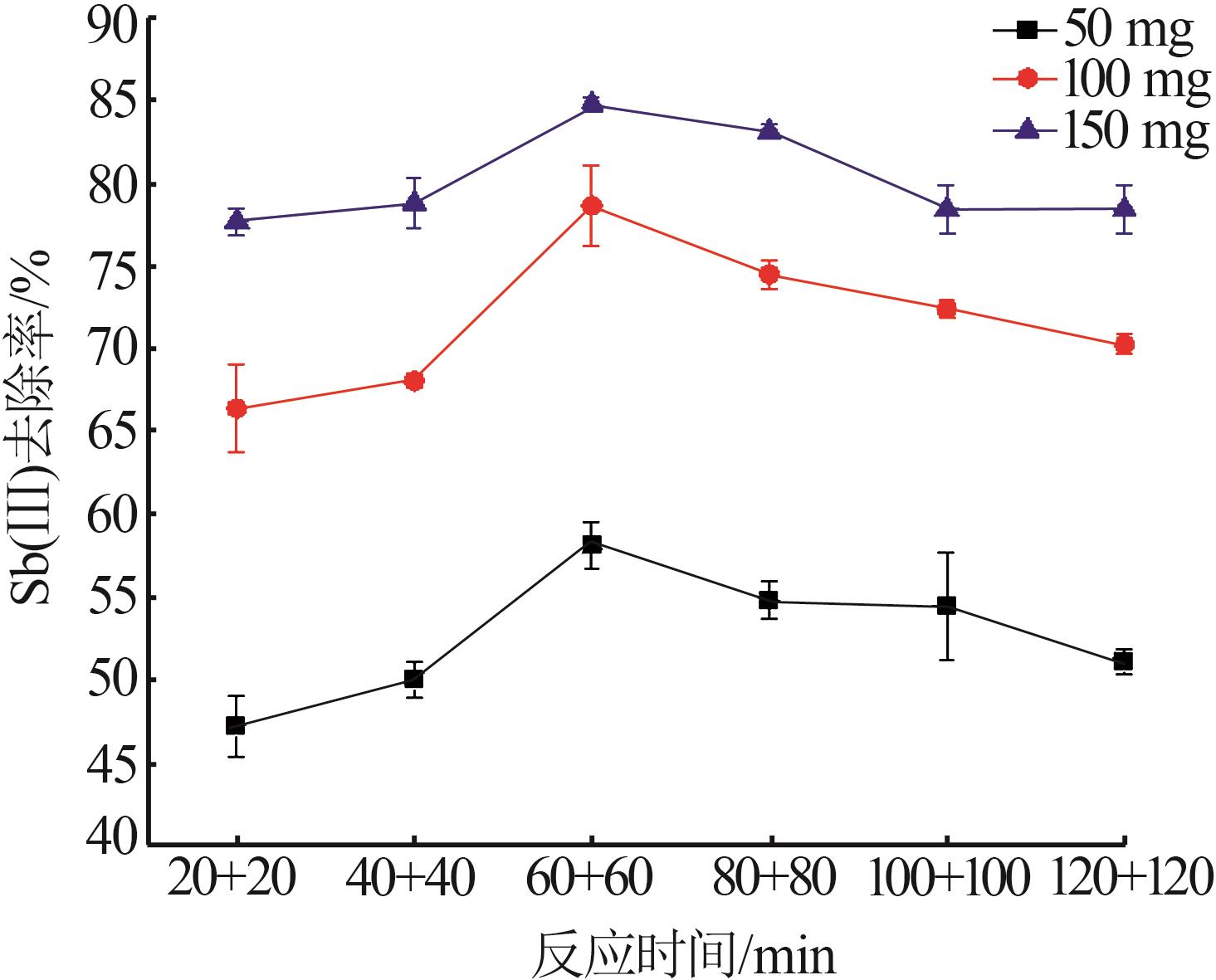

以壳聚糖、二硫化碳、四氧化三铁为原料,戊二醛为交联剂,采用超声波辅助合成了一种核-壳结构的磁性黄原酸化壳聚糖重金属捕集剂(FSiCS)。通过测定水溶液中Sb(Ⅲ)的去除率来评价FSiCS的性能。当CS2用量为3.0 mL、NaOH质量浓度为90 g/L、反应时间为60 min+60 min、超声功率为160 W、戊二醛用量为150 μL、反应温度为50 ℃时,合成的FSiCS性能最佳。通过傅里叶红外光谱仪(FTIR)、扫描电镜(SEM)对其进行结构表征。FTIR分析表明,FSiCS中含有—SH、N—C=S、C=S、C—S等含硫基团或化学键,能够与Sb(Ⅲ)发生配位作用;SEM分析表明,FSiCS的粒径为100~250 nm,呈圆球形或棱角分明的多边形。
中图分类号:
张鹏, 董珊珊, 王雨露, 赵月龙. 磁性黄原酸化壳聚糖合成及表征[J]. 无机盐工业, 2023, 55(7): 89-96.
ZHANG Peng, DONG Shanshan, WANG Yulu, ZHAO Yuelong. Synthesis and characterization of magnetic xanthogenated chitosan[J]. Inorganic Chemicals Industry, 2023, 55(7): 89-96.
1 | 张天羽,李聪颖,孙赛军,等.锑的地球化学性质与华南锑矿带成因初探[J].岩石学报,2020,36(1):44-54. |
ZHANG Tianyu, LI Congying, SUN Saijun,et al.Geochemical characteristics of antimony and genesis of antimony deposits in South China[J].Acta Petrologica Sinica,2020,36(1):44-54. | |
2 | 杨昆仑,周家盛,吕丹,等.铁基复合材料的制备及其对水中锑的去除[J].化学进展,2017,29(11):1407-1421. |
YANG Kunlun, ZHOU Jiasheng, Dan LÜ,et al.Preparation and application of iron-based composite materials for the removal of antimony from aqueous solution[J].Progress in Chemistry,2017,29(11):1407-1421. | |
3 | Ting LÜ, ZHANG Shuang, QI Dongming,et al.Enhanced demulsification from aqueous media by using magnetic chitosan-based flocculant[J].Journal of Colloid and Interface Science,2018,518:76-83. |
4 | 向香源,黄阳,冯启明,等.壳聚糖改性纳米FeS除锑性能研究[J].环境工程,2018,36(12):87-92,102. |
XIANG Xiangyuan, HUANG Yang, FENG Qiming,et al.Study on antimony removal capacity of chitosan modified nano FeS[J].Environmental Engineering,2018,36(12):87-92,102. | |
5 | LONG Xiaojing, WANG Tianning, HE Mengchang.Simultaneous removal of antimony and arsenic by nano-TiO2-crosslinked chitosan(TA-chitosan) beads[J].Environmental Technology,2022. Doi:10.1080/09593330.2022.2048084 . |
6 | 贾双珠,李长安,刘品祯,等.壳聚糖的应用研究进展[J].精细与专用化学品,2022,30(1):25-30. |
JIA Shuangzhu, LI Chang'an, LIU Pinzhen,et al.Research progress of application for chitosan[J].Fine and Specialty Chemicals,2022,30(1):25-30. | |
7 | 刘义,张淑琴,任大军,等.不同官能团改性壳聚糖吸附重金属的研究进展[J].化学试剂,2022,44(4):495-503. |
LIU Yi, ZHANG Shuqin, REN Dajun,et al.Research progress on adsorption of heavy metals by modified chitosan with different functional groups[J].Chemical Reagents,2022,44(4):495-503. | |
8 | ZHU Hongshan, WU Jin, FANG Ming,et al.Synthesis of a core-shell magnetic Fe3O4-NH2@PmPD nanocomposite for efficient removal of Cr(Ⅵ) from aqueous media[J].RSC Advances,2017,7(58):36231-36241. |
9 | LIU Yong, JIA Shaoyi, WU Qian,et al.Studies of Fe3O4-chitosan nanoparticles prepared by co-precipitation under the magnetic field for lipase immobilization[J].Catalysis Communications,2011,12(8):717-720. |
10 | DONG Liming, SHAN Chengyang, LIU Yuan,et al.Characterization and mechanistic study of heavy metal adsorption by facile synthesized magnetic xanthate-modified chitosan/polyacrylic acid hydrogels[J].International Journal of Environmental Research and Public Health,2022,19(17):11123. |
11 | Long LÜ, CHEN Nan, FENG Chuanping,et al.Heavy metal ions removal from aqueous solution by xanthate-modified cross-linked magnetic chitosan/poly(vinyl alcohol) particles[J].RSC Advanc- es,2017,7(45):27992-28000. |
12 | TANHAEI B, AYATI A, SILLANPÄÄ M.Magnetic xanthate modified chitosan as an emerging adsorbent for cationic azo dyes removal:Kinetic,thermodynamic and isothermal studies[J].International Journal of Biological Macromolecules,2019,121:1126-1134. |
13 | 李黎,马力,李鹤.磁性壳聚糖微球的制备及表征[J].中国组织工程研究,2020,24(4):577-582. |
LI Li, MA Li, LI He.Preparation and characterization of magnetic chitosan microspheres[J].Chinese Journal of Tissue Engineering Research,2020,24(4):577-582. | |
14 | 刘盛,朱红祥,王进,等.超声波法黄原酸化壳聚糖的制备[J].化工进展,2015,34(7):1956-1961. |
LIU Sheng, ZHU Hongxiang, WANG Jin,et al.Preparation of xanthation chitosan with ultrasonic assistance[J].Chemical Industry and Engineering Progress,2015,34(7):1956-1961. | |
15 | 王馨,王刚,杨凯,等.新型高分子絮凝剂黄原酸化壳聚糖 |
的制备及除铜性能[J].环境污染与防治,2018,40(2):133- 138. | |
WANG Xin, WANG Gang, YANG Kai,et al.Preparation of novel macromolecule flocculant xanthated chitosan and its removal performance for copper ions[J].Environmental Pollution & Control,2018,40(2):133-138. | |
16 | 曾淼,张廷安,吕国志,等.黄原酸化交联壳聚糖的制备及表征[J].高分子材料科学与工程,2014,30(6):174-177. |
ZENG Miao, ZHANG Tingan, Guozhi LÜ,et al.Preparation and characterization of xanthated crosslinked chitosan[J].Polymer Materials Science & Engineering,2014,30(6):174-177. | |
17 | 王刚.重金属絮凝剂聚乙烯亚胺基黄原酸钠的制备及性能研究[D].兰州:兰州交通大学,2013. |
WANG Gang.Study on preparation and properties of heavy metal flocculant sodium polyethyleneimine xanthate[D].Lanzhou:Lanzhou Jiaotong University,2013. | |
18 | CHANG Qing, WANG Gang.Study on the macromolecular coagulant PEX which traps heavy metals[J].Chemical Engineering Science,2007,62(17):4636-4643. |
19 | 宋庆平,孟祥瑞,王崇侠,等.新型黄原酸壳聚糖对铅离子 |
的吸附及机理研究[J].离子交换与吸附,2014,30(2):115- 123. | |
SONG Qingping, MENG Xiangrui, WANG Chongxia,et al.Adsorption performance and mechanism of lead ions adsorbed on xanthated chitosan[J].Ion Exchange and Adsorption,2014,30(2):115-123. | |
20 | 李宏达,张连红,蒋林时,等.超声波合成三(4-乙酰氨基苯基)甲烷[J].辽宁石油化工大学学报,2019,39(5):26-29. |
LI Hongda, ZHANG Lianhong, JIANG Linshi,et al.Ultrasonic synthesis of tris-(4-acetamidphenyl) methane[J].Journal of | |
Liaoning Shihua University,2019,39(5):26-29. | |
21 | 刘犇,郎印海,朱春苗,等.诺氟沙星吸附剂生物炭-壳聚糖复合微球的制备优化[J].环境科学研究,2018,31(6):1138-1143. |
LIU Ben, LANG Yinhai, ZHU Chunmiao,et al.Optimal preparation of biochar-chitosan composite microspheres for highly efficient adsorption of norfloxacin[J].Research of Environmental Sciences,2018,31(6):1138-1143. | |
22 | 陈新,邵正中,黄郁芳,等.不同交联剂含量对戊二醛交联壳聚糖膜结构与性能影响的研究[J].化学学报,2000,58(12):1654-1659. |
CHEN Xin, SHAO Zhengzhong, HUANG Yufang,et al.Influence of crosslinking agent content on structure and properties of glutaraldehyde crosslinked chitosan membranes[J].Acta Chimica Sinica,2000,58(12):1654-1659. | |
23 | 郭睿,王超,杨江月,等.螯合絮凝剂EPPCX的制备及对Pb2+、Cu2+捕集性能研究[J].环境科学学报,2017,37(4):1396-1403. |
GUO Rui, WANG Chao, YANG Jiangyue,et al.Preparation of heavy metal chelating flocculant EPPCX and its removal performance for Pb2+ and Cu2+ [J].Acta Scientiae Circumstantiae,2017,37(4):1396-1403. | |
24 | SUN Xitong, YANG Liangrong, XING Huifang,et al.Synthesis of polyethylenimine-functionalized poly(glycidyl methacrylate) ma- |
gnetic microspheres and their excellent Cr(Ⅵ) ion removal properties[J].Chemical Engineering Journal,2013,234:338-345. | |
25 | GUO Xueyi, MAO Fangfang, WANG Weijia,et al.Sulfhydryl-modified Fe3O4@SiO2 core/shell nanocomposite:Synthesis and toxicity assessment in vitro[J].ACS Applied Materials & Interfaces,2015,7(27):14983-14991. |
26 | ZHU He, SHEN Yi, WANG Qin,et al.Highly promoted removal of Hg(Ⅱ) with magnetic CoFe2O4@SiO2 core-shell nanoparticles modified by thiol groups[J].RSC Advances,2017,7(62):39204-39215. |
27 | MA Jiangya, SHI Jun, DING Houcheng,et al.Synthesis of cationic polyacrylamide by low-pressure UV initiation for turbidity water flocculation[J].Chemical Engineering Journal,2017,312:20-29. |
28 | ZHU Guocheng, LIU Junfei, YIN Jun,et al.Functionalized polyacrylamide by xanthate for Cr(Ⅵ) removal from aqueous soluti- |
on[J].Chemical Engineering Journal,2016,288:390-398. | |
29 | 张鹏,张伟,廖为雄.絮凝剂CTS-GSH的合成及其除铬性能[J].过程工程学报,2018,18(2):312-317. |
ZHANG Peng, ZHANG Wei, LIAO Weixiong.Synthesis of chitosan-glutathione and its performance of chromium removal[J].The Chinese Journal of Process Engineering,2018,18(2):312-317. | |
30 | 高玲玲,王振宇,饶伟丽,等.骨胶原蛋白-壳聚糖共混膜中分子间作用红外光谱分析[J].农业工程学报,2018,34(3):285-291. |
GAO Lingling, WANG Zhenyu, RAO Weili,et al.Molecular interaction analysis between collagen and chitosan blend film based on infrared spectroscopy[J].Transactions of the Chinese Society of Agricultural Engineering,2018,34(3):285-291. | |
31 | 李莉,王震洲,师鹏,等.硫脲νN—C=S红外光谱研究[J].红外技术,2017,39(1):95-102. |
LI Li, WANG Zhenzhou, SHI Peng,et al.Infrared spectroscopy study of thiourea νN—C=S[J].Infrared Technology,2017,39(1):95-102. | |
32 | ILAIYARAJA P, KUMAR SINGHA DEB A, PONRAJU D,et al.Xanthate functionalized PAMAM dendrimer(XFPD) chelating ligand for treatment of radioactive liquid wastes[J].Journal of Environmental Chemical Engineering,2015,3(2):1047-1054. |
上接第 88 页) | |
flotation techniques[J].Chemosphere,2022,287:132231. | |
33 | KHATIR M Z, ABDOLLAHY M, KHALESI M R,et al.The selective separation of neodymium from aluminum using ion flotati- on[J].Minerals Engineering,2022,180:107480. |
34 | CHO S H, KIM J Y, CHUN J H,et al.Ultrasonic formation of nanobubbles and their zeta-potentials in aqueous electrolyte and surfactant solutions[J].Colloids and Surfaces A:Physicochemical and Engineering Aspects,2005,269(1/2/3):28-34. |
35 | TAKAHASHI M. ζ potential of microbubbles in aqueous solutions:Electrical properties of the gas-water interface[J].The Journal of Physical Chemistry B, 2005,109:21858-21864. |
36 | MEEGODA J N, HEWAGE S A, BATAGODA J H.Application of the diffused double layer theory to nanobubbles[J].Langmuir:the ACS Journal of Surfaces and Colloids,2019,35(37):12100-12112. |
37 | WILLS B A, FINCH J A.Wills' mineral processing technology[M].8th ed.Boston:Elsevier,2016:265-380. |
38 | PENG Weijun, CHANG Luping, LI Peiya,et al.An overview on the surfactants used in ion flotation[J].Journal of Molecular Liquids,2019,286:110955. |
39 | MICHEAU C, SCHNEIDER A, GIRARD L,et al.Evaluation of ion separation coefficients by foam flotation using a carboxylate surfactant[J].Colloids and Surfaces A:Physicochemical and Engineering Aspects,2015,470:52-59. |
40 | SMITH R M, MARTELL A E, MOTEKAITIS R J.NIST critically selected stability constants of metal complexes database[Z].NIST standard reference database 46,2004. |
41 | CHIRKST D E, LOBACHEVA O L, BERLINSKII I V,et al.Recovery and separation of Ce3+ and Y3+ ions from aqueous solutions by ion flotation[J].Russian Journal of Applied Chemistry,2009,82(8):1370-1374. |
42 | ARSLAN F, BULUT G.Ion flotation and its applications on concentration,recovery,and removal of metal ions from solutions[J].Physicochemical Problems of Mineral Processing,2022,58(5):152061. |
