钴掺杂聚合氮化碳光催化还原二氧化碳性能研究

doi:10.19964/j.issn.1006-4990.2022-0222

摘要/Abstract

摘要：

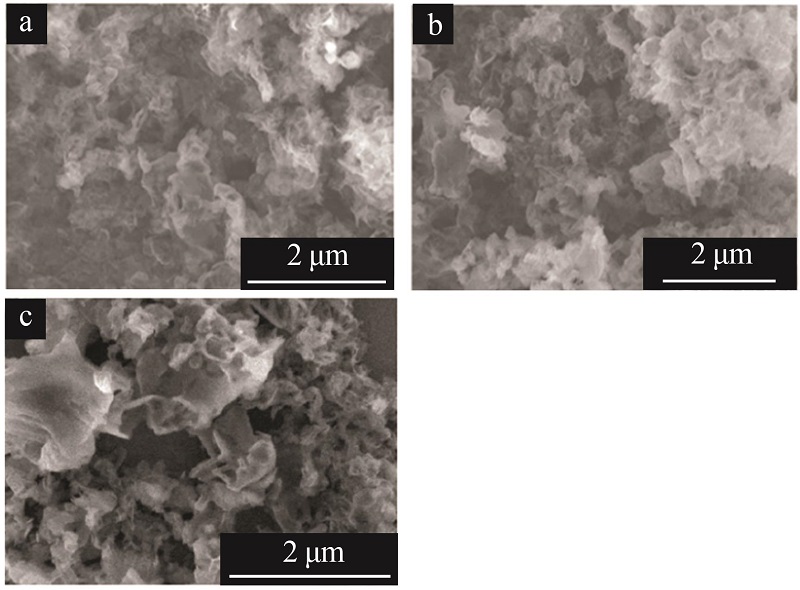

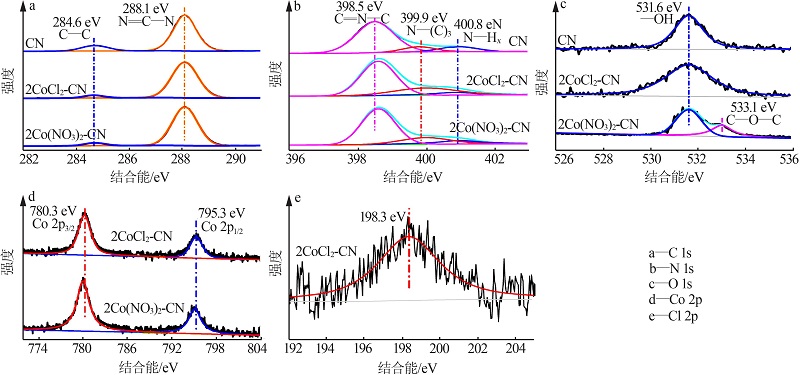

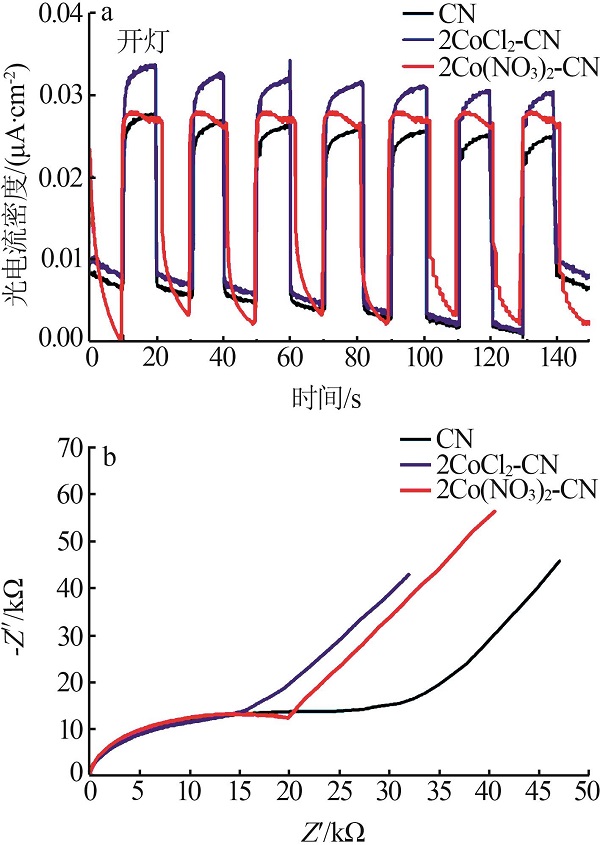

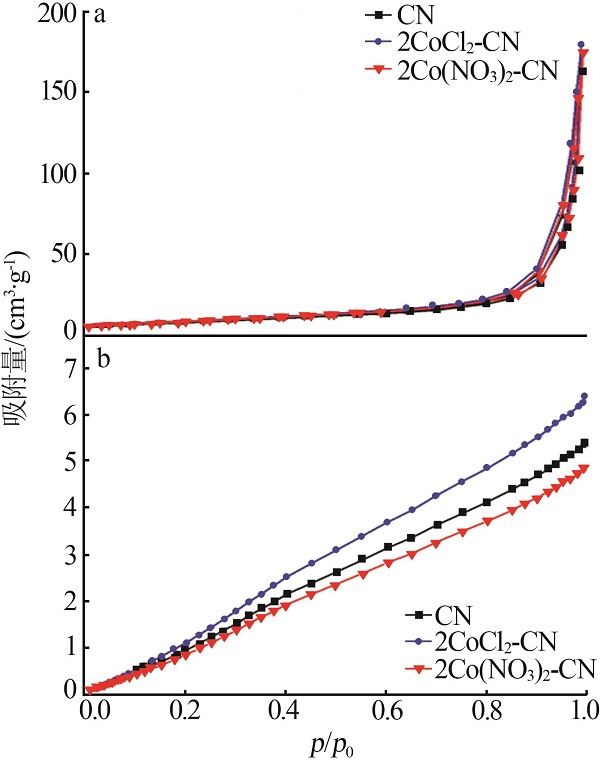

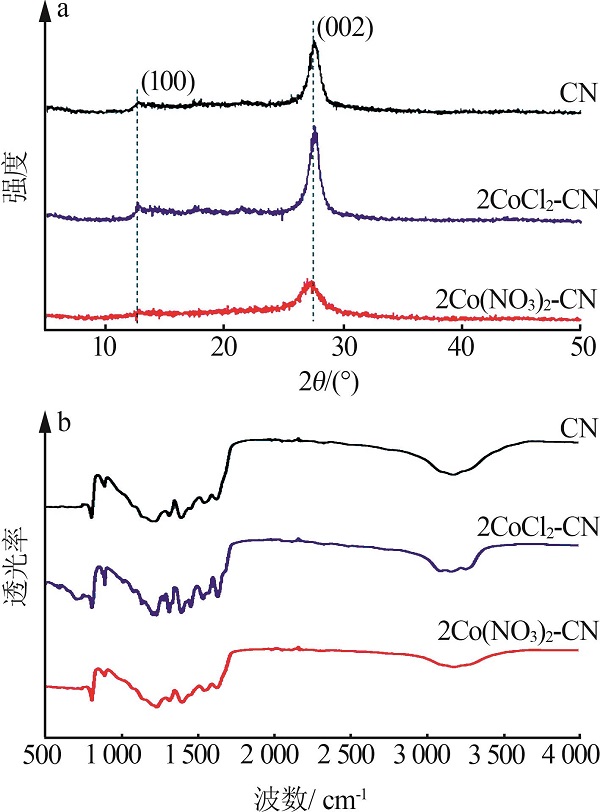

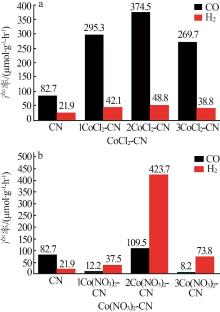

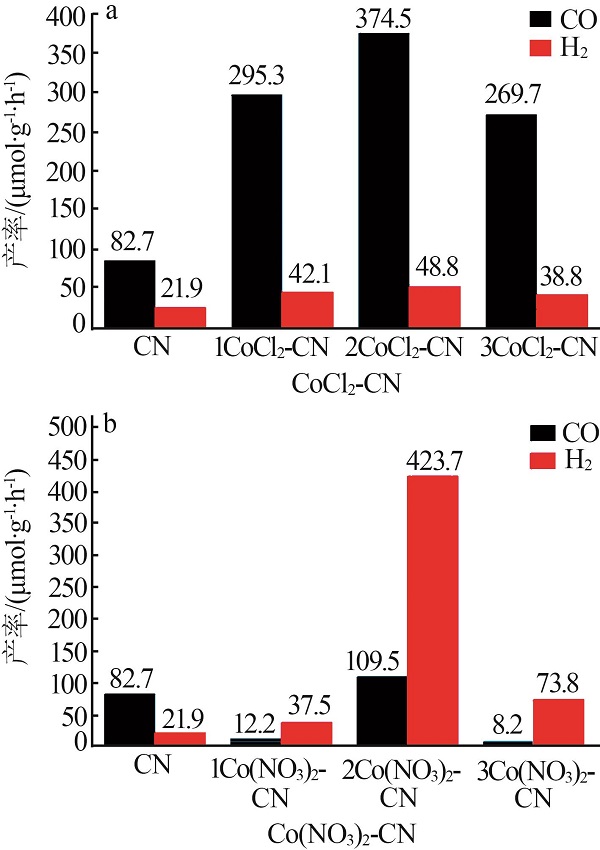

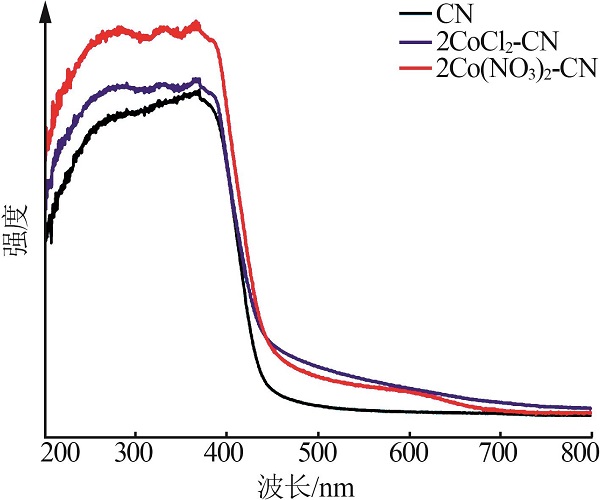

聚合氮化碳（CN）具有可见光响应、化学性质稳定、廉价易得、无毒等优点，在光催化领域得到了广泛的研究和应用，但是存在比表面积较小、电子-空穴对易复合等不足之处，严重限制了其光催化性能。以尿素和常见的两种钴盐[CoCl₂和Co（NO₃）₂]为前驱体，通过一步煅烧法制备了钴（Co）掺杂CN，研究了不同Co源对材料光催化还原二氧化碳（CO₂）性能的影响。实验证明，由适量氯化钴（CoCl₂）为Co源得到的Co掺杂CN，其光催化还原CO₂生成一氧化碳（CO）的速率可由纯CN的82.7 μmol/（g·h）提升至374.5 μmol/（g·h），同时CO选择性由79.1%提高至88.5%；而以硝酸钴[Co（NO₃）₂]为Co源得到的Co掺杂CN倾向于产氢，其光催化还原CO₂性能基本不能得到提升。通过对光催化剂进行电感耦合等离子体（ICP）、X射线衍射（XRD）、傅里叶红外光谱（FT-IR）、X射线光电子能谱（XPS）、紫外-可见漫反射光谱（UV-Vis DRS）、扫描电镜（SEM）、物理吸附和光电化学测试等表征，分析了材料的结构以及光催化性能提升的原因。

关键词: 聚合氮化碳, 金属掺杂, 光催化, 二氧化碳还原

Abstract:

Polymeric carbon nitride（CN） has been widely studied and applied in the field of photocatalysis benefiting from its visible light response，high chemical stability，low cost，easy preparation and non-toxicity.However，its shortcomings，such as small specific surface area and easy recombination of electron-hole pairs，seriously limit its photocatalytic performance.Co doped CN was prepared by one-step calcination of urea and two widely used cobalt salts[CoCl₂and Co（NO₃）₂] as precursors，and the effects of different Co sources on the photocatalytic CO₂ reduction performance of the products were studied.The results showed that the photocatalytic CO₂ reduction performance of CN doped with appropriate amount of Co by using CoCl₂as Co source was improved.The CO generation rate was increased from 82.7 μmol/（g·h）for pure CN to 374.5 μmol/（g·h），and the CO selectivity was increased from 79.1% to 88.5%.By contrast，Co doped CN using Co（NO₃）₂ as Co source was tended to produce hydrogen，and its photocatalytic CO₂ reduction performance was not improved.The photocatalysts were characterized by inductively coupled plasma（ICP），X-ray diffraction（XRD），fourier infrared spectroscopy（FT-IR），X-ray photoelectron spectroscopy（XPS），UV-Vis diffusion reflection spectroscopy（UV-Vis DRS），scanning electron microscopy（SEM），physical adsorption，photoelectrochemical test and etc.，and the material structure and the reasons for the improvement of the photocatalytic performance were analyzed.

Key words: polymeric carbon nitride, metal doping, photocatalysis, carbon dioxide reduction

中图分类号:

O643.3

李佳慧,王欢,李克艳,郭新闻. 钴掺杂聚合氮化碳光催化还原二氧化碳性能研究[J]. 无机盐工业, 2022, 54(11): 124-130.

LI Jiahui,WANG Huan,LI Keyan,GUO Xinwen. Study on photocatalytic CO₂ reduction performance of Co doped polymeric carbon nitride[J]. Inorganic Chemicals Industry, 2022, 54(11): 124-130.

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 25

1	李书文,周严,汪铁林.BiVO₄/rGO复合物的制备及其光催化还原CO₂研究[J].无机盐工业,2019,51(11):82-87.
	LI Shuwen, ZHOU Yan, WANG Tielin.Study on preparation and photocatalysis-reduction for CO₂ of BiVO₄/rGO composite[J].Inorganic Chemicals Industry,2019,51(11):82-87.
2	唐兰勤,贾茵,朱志尚,等.光催化二氧化碳还原研究进展[J].物理学进展,2021,41(6):254-263.
	TANG Lanqin, JIA Yin, ZHU Zhishang, et al.Development of functional materials for photocatalytic reduction of CO₂ [J].Progress in Physics,2021,41(6):254-263.
3	RICHTER R, MING Tingzhen, DAVIES P, et al.Removal of non-CO₂ greenhouse gases by large-scale atmospheric solar photocatalysis[J].Progress in Energy and Combustion Science,2017,60: 68-96.
4	CAO Shaowen, LOW J， YU Jiaguo, et al.Polymeric photocatalysts based on graphitic carbon nitride[J].Advanced Materials,2015,27(13):2150-2176.
5	LI Zhou, ZHANG Huayang, SUN Hongqi, et al.Recent advances in non-metal modification of graphitic carbon nitride for photocatalysis：A historic review[J].Catalysis Science&Technology,2016,6: 7002-7023.
6	HUANG Peipei, HUANG Jiahao, PANTOVICH S A, et al.Selective CO₂ reduction catalyzed by single cobalt sites on carbon nitride under visible-light irradiation[J].Journal of the American Chemical Society,2018,140(47):16042-16047.
7	班昌胜,李军,金央,等.超分子前体制备g-C₃N₄/g-C₃N₄同质结及光催化性能研究[J].无机盐工业,2022,54(3):125-131.
	BAN Changsheng, LI Jun, JIN Yang, et al.Study on preparation of g-C₃N₄/g-C₃N₄ homojunction by supramolecular precursor and its photocatalytic property[J].Inorganic Chemicals Industry,2022,54(3):125-131.
8	李佳慧,李克艳,宋春山,等.聚合氮化碳的制备、改性及光催化还原二氧化碳性能研究[J].无机盐工业,2021,53(12):21-28.
	LI Jiahui, LI Keyan, SONG Chunshan, et al.Study on preparation，modification and carbon dioxide photocatalytic reduction performance of polymeric carbon nitride[J].Inorganic Chemicals Industry,2021,53(12):21-28.
9	CHANG Fei, XIE Yunchao, LI Chenlu, et al.A facile modification of g-C₃N₄ with enhanced photocatalytic activity[J].Applied Surface Science,2013,280: 967-974.
10	LUO Lei, ZHANG Anfeng, JANIK M J, et al.Facile fabrication of metal-free urchin-like g-C₃N₄ with superior photocatalytic activity[J].RSC Advances,2016,97(6):94496-94501.
11	YANG Xiaohang, GUO Zilong, ZHANG Xiaoyu, et al.The effect of indium doping on the hydrogen evolution performance of g-C₃N₄ based photocatalysts[J].New Journal of Chemistry,2021,45(2):544-550.
12	JIANG Longbo, YANG Jinjuan, YUAN Xingzhong, et al.Defect engineering in polymeric carbon nitride photocatalyst：Synthesis，properties and characterizations[J].Advances in Colloid and Interface Science,2021,296.Doi:10.1016/j.cis.2021.102523. doi: 10.1016/j.cis.2021.102523
13	CAO Shihai, CHEN Huan, JIANG Fang, et al.Nitrogen photofixation by ultrathin amine-functionalized graphitic carbon nitride na-nosheets as a gaseous product from thermal polymerization of urea[J].Applied Catalysis B：Environmental,2018,224: 222-229.
14	ZHOU Sheng, LIU Ying, LI Jianmei, et al.Facile in situ synthesis of graphitic carbon nitride（g-C₃N₄）-N-TiO₂ heterojunction as an efficient photocatalyst for the selective photoreduction of CO₂ to CO[J].Applied Catalysis B：Environmental,2014,158/159: 20-29.
15	ZHANG Xiandi, YAN Jia, ZHENG Fangyuan, et al.Designing charge transfer route at the interface between WP nanoparticle and g-C₃N₄ for highly enhanced photocatalytic CO₂ reduction reaction[J].Applied Catalysis B：Environmental,2021,286.Doi:10.1016/j.apcatb.2021.119879. doi: 10.1016/j.apcatb.2021.119879
16	LONG Mingce, CAI Weimin, CAI Jun, et al.Efficient photocatalytic degradation of phenol over Co₃O₄/BiVO₄ composite under visible light irradiation[J].ChemInform,2007,38(4).Doi:10.1002/chin.200704017. doi: 10.1002/chin.200704017
17	WANG Yiou, MUSTAFA K B, SAVIO J A M, et al.Linker-controlled polymeric photocatalyst for highly efficient hydrogen evolution from water[J].Energy&Environmental Science,2017,10.Doi:10.1039/C7EE01109A. doi: 10.1039/C7EE01109A
18	JIANG Wenjun, RUAN Qiushi, XIE Jijia, et al.Oxygen-doped carbon nitride aerogel：A self-supported photocatalyst for solar-to-chemical energy conversion[J].Applied Catalysis B：Environmental,2018,236: 428-435.
19	Li W, Li W, Guo Z, et al.Synthesis of atomically thin g-C₃N₄ nanosheets via supercritical CO₂ doping with single-atom cobalt for photocatalytic hydrogen evolution[J].ACS Applied Materials & Interfaces,2021.Doi:10.1021/acsami.1c13933. doi: 10.1021/acsami.1c13933
20	ZHANG Zishu, GAO Ying, LI Peng, et al.Highly sensitive fluorescence detection of chloride ion in aqueous solution with Ag-modified porous g-C₃N₄ nanosheets[J].Chinese Chemical Letters,2020,31(10):2725-2729.
21	宛刚.过渡金属单原子电催化剂的可控制备和性能研究[D].上海：中国科学院大学（中国科学院上海硅酸盐研究所），2018.
	WAN Gang.Towards the structural and catalytic evolution in transition-metal-centered single-site electrocatalysts：Controlled synthesis and electrocatalytic properties[D].Shanghai：Shanghai Institute of Ceramics，Chinese Academy of Sciences，2018.
22	XU Jiaqi, JU Zhengyu, ZHANG Wei, et al.Efficient infrared-light-driven CO₂ reduction over ultrathin metallic Ni-doped CoS₂ nano-sheets[J].Angewandte Chemie International Edition,2021,60(16):8705-8709.
23	ZHAI Qingge, XIE Shunji, FAN Wenqing, et al.Photocatalytic conversion of carbon dioxide with water into methane：Platinum and copper（I） oxide co-catalysts with a core-shell structure[J].Angewandte Chemie,2013,125(22):5888-5891.
24	LIU Tongyao, HAO Lin, BAI Liqi, et al.Z-scheme junction Bi 2O2（NO3）（OH）/g-C3N4 for promoting CO₂photoreduction[J].Chemical Engineering Journal，2022，429.Doi:10.1016/j.cej.2021.132268. doi: 10.1016/j.cej.2021.132268
25	YANG Xi, TIAN Zhen, CHEN Yufang, et al.In situ synthesis of 2D ultrathin cobalt doped g-C₃N₄ nanosheets enhances photocatalytic performance by accelerating charge transfer[J].Journal of Alloys and Compounds,2021,859.Doi:10.1016/j.jallcom.2020.157754. doi: 10.1016/j.jallcom.2020.157754
