纳米MOFs及其衍生物在超级电容器中的研究进展

doi:10.19964/j.issn.1006-4990.2021-0226

摘要/Abstract

摘要：

金属有机框架（MOFs）材料因其大的比表面积、可调控的孔道结构和丰富的活性位点引起了国内外学者们的广泛关注。近年来MOFs基材料广泛应用于能量储存与转化领域,但大多数MOFs基材料的低稳定性和低导电性等缺陷限制了其实际应用。通过对MOFs基材料进行改性,如采用共轭度高的有机配体以增加MOFs材料的稳定性,或MOFs衍生物以提高其氧化还原活性位点和导电性,从而达到提高MOFs基电极材料的电化学性能。主要介绍了原始MOFs及其衍生材料如碳材料、金属氧化物、金属硫化物、金属氢氧化物和金属磷化物等在超级电容器电极材料中的最新研究进展。研究表明,多金属MOFs材料或多金属MOFs衍生物有利于提高电极材料的电化学性能,而导电MOFs材料或MOFs衍生物中的碳材料有利于提高电极材料的导电性。最后对MOFs基电极材料在电化学储能领域中的研究做出了展望,指出MOFs基材料的形貌、组分和导电性是未来研究的发展方向。

关键词: 纳米MOFs, MOFs衍生物, 超级电容器

Abstract:

Metal-organic frameworks（MOFs） have attracted extensive attention due to their large specific surface areas,controllable pore structures and abundant active sites.Recently,MOFs-based materials were widely used in the field of ener-gy storage and conversion; however,the low stability and low conductivity of most MOFs-based materials limit their practical applications.By modifying MOFs based materials,such as the use of high conjugated organic ligands could increase the stabi-lity of MOFs materials or MOFs derivatives could improve their redox active sites and electrical conductivity,thus,the elec-trochemical performances of MOFs-based electrode materials can be improved.In this review,we mainly introduce progress of the pristine MOFs and MOFs derivatives including carbon materials,metal oxides,metal sulfides,metal hydroxide and metal phosphide, etc.in the field of supercapacitor.The results show that multi-metallic MOFs or their derivatives are beneficial to improve the electrochemical performances,the conductive MOFs and the carbon materials,which are derived from MOFs materials,are beneficial to improve the electrical conductivity of electrode materials.Finally, the outlook and prospect of MOFs-based electrode materials for electrochemical energy storage are also point out.The morphology, components and conductivity of the electrode materials are research develop direction in the future work.

Key words: nanoMOFs, MOFs derivatives, supercapacitor

中图分类号:

TN304.21

沈威,王思楠,梁雪梅,韦金云,潘玉洁,农甜甜,周燕,谭学才,黄在银. 纳米MOFs及其衍生物在超级电容器中的研究进展[J]. 无机盐工业, 2021, 53(6): 79-86.

Shen Wei,Wang Sinan,Liang Xuemei,Wei Jinyun,Pan Yujie,Nong Tiantian,Zhou Yan,Tan Xuecai,Huang Zaiyin. Research progress of nano MOFs and their derivatives for supercapacitors[J]. Inorganic Chemicals Industry, 2021, 53(6): 79-86.

图/表 12

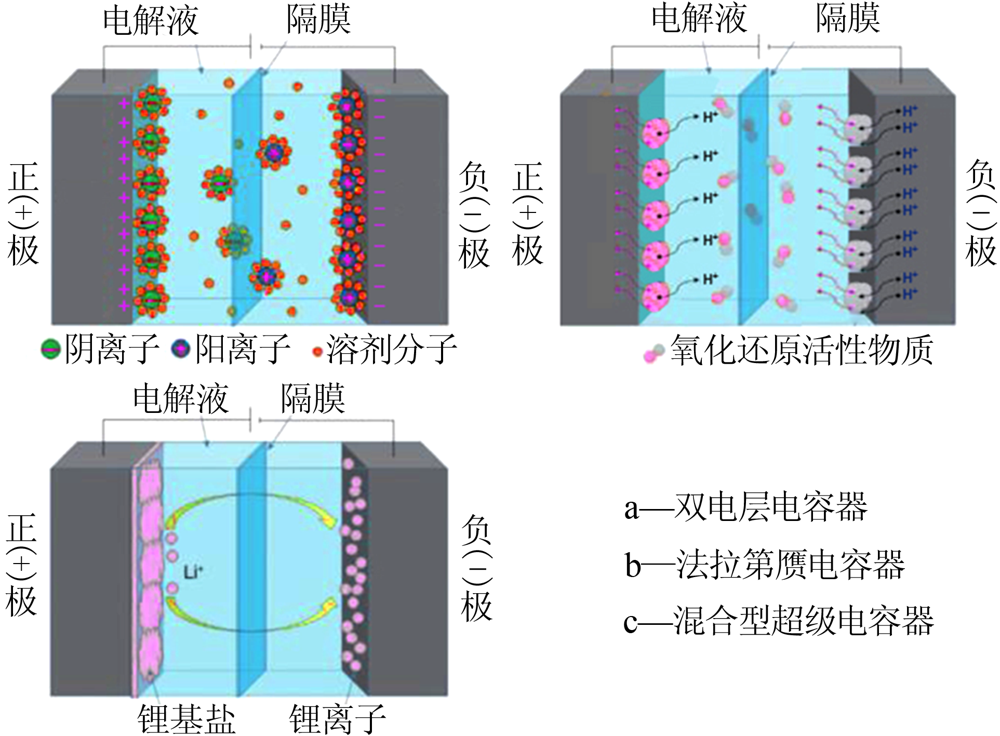

图1

表1

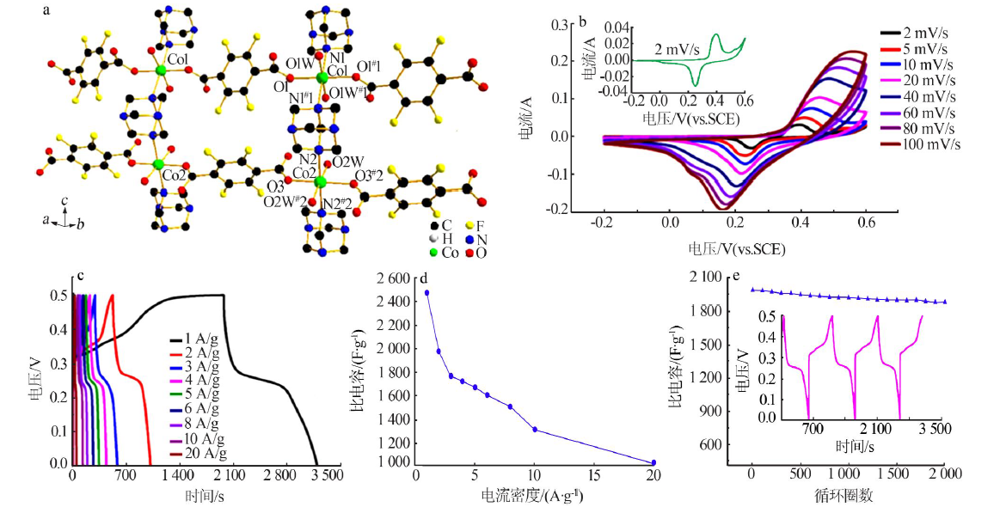

图2

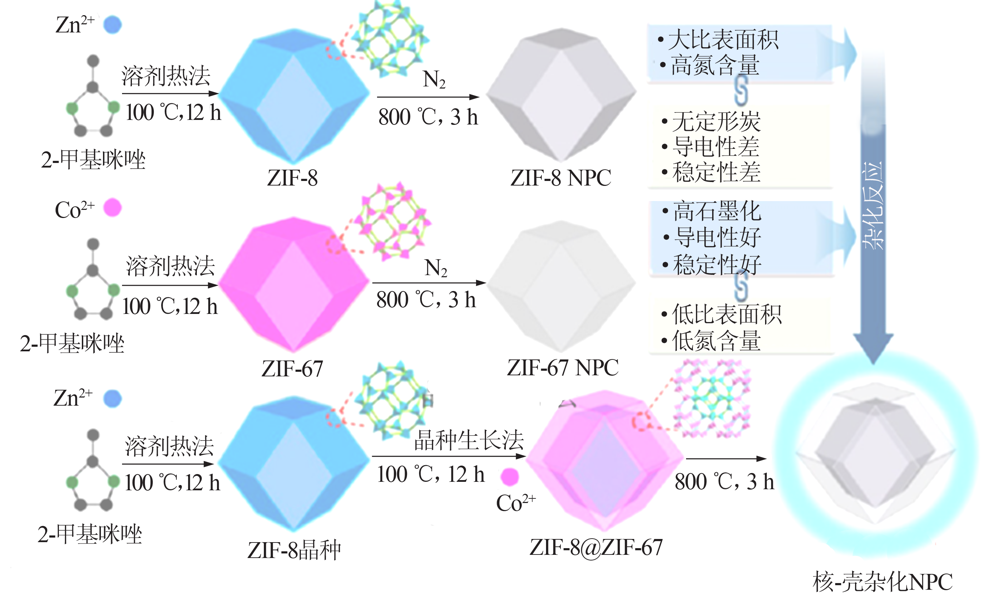

图4

表2

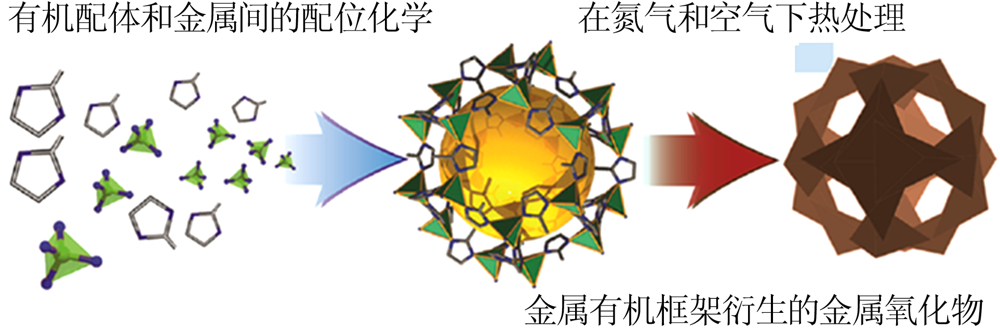

图5

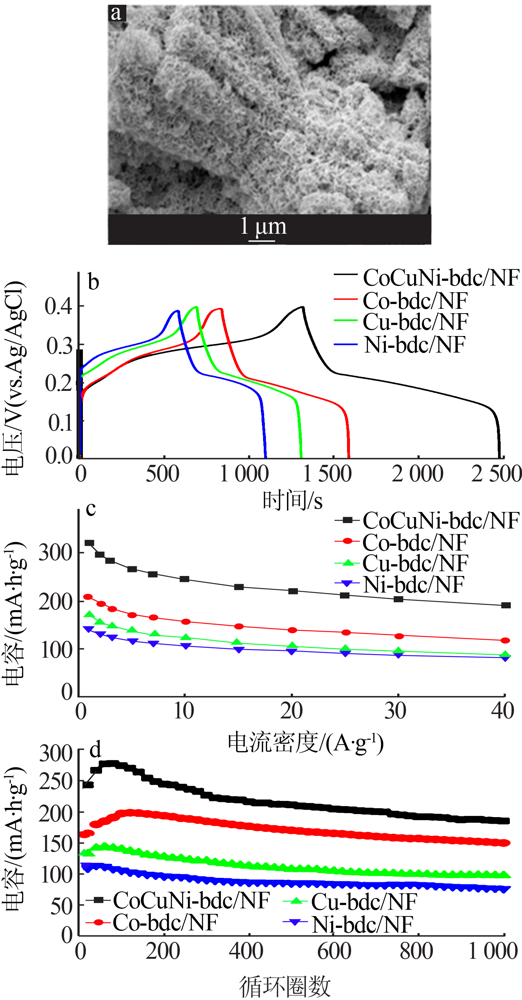

图3

图6

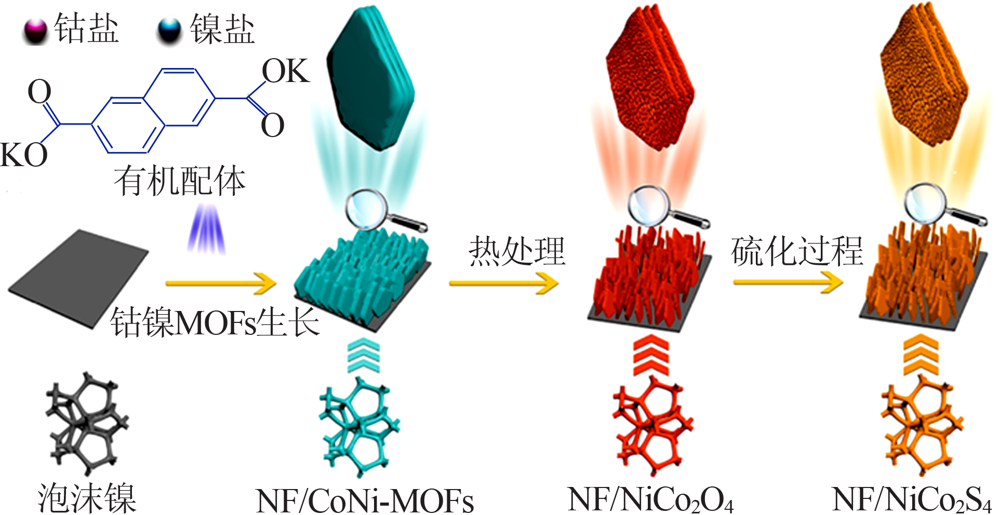

图7

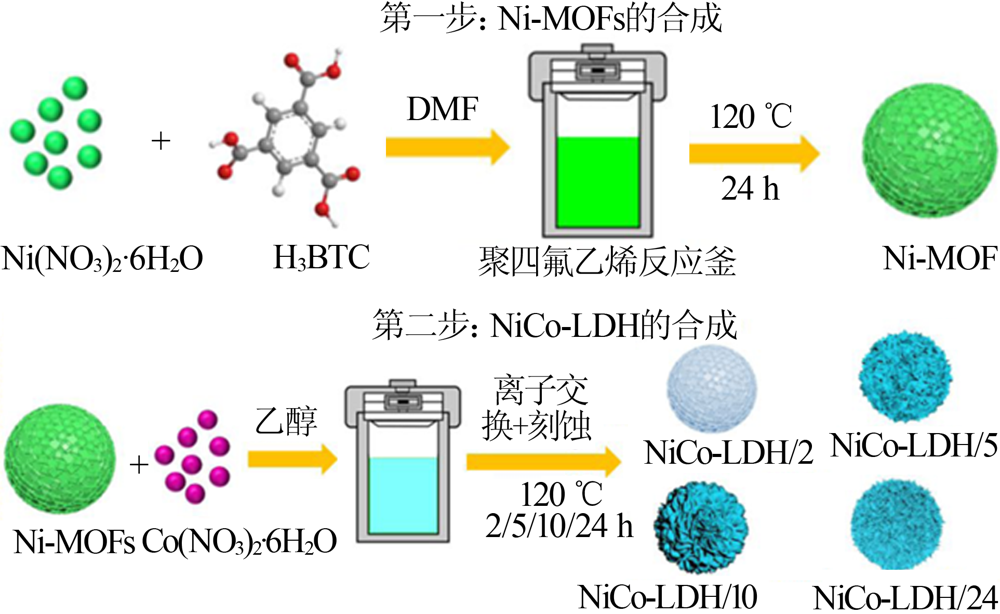

图8

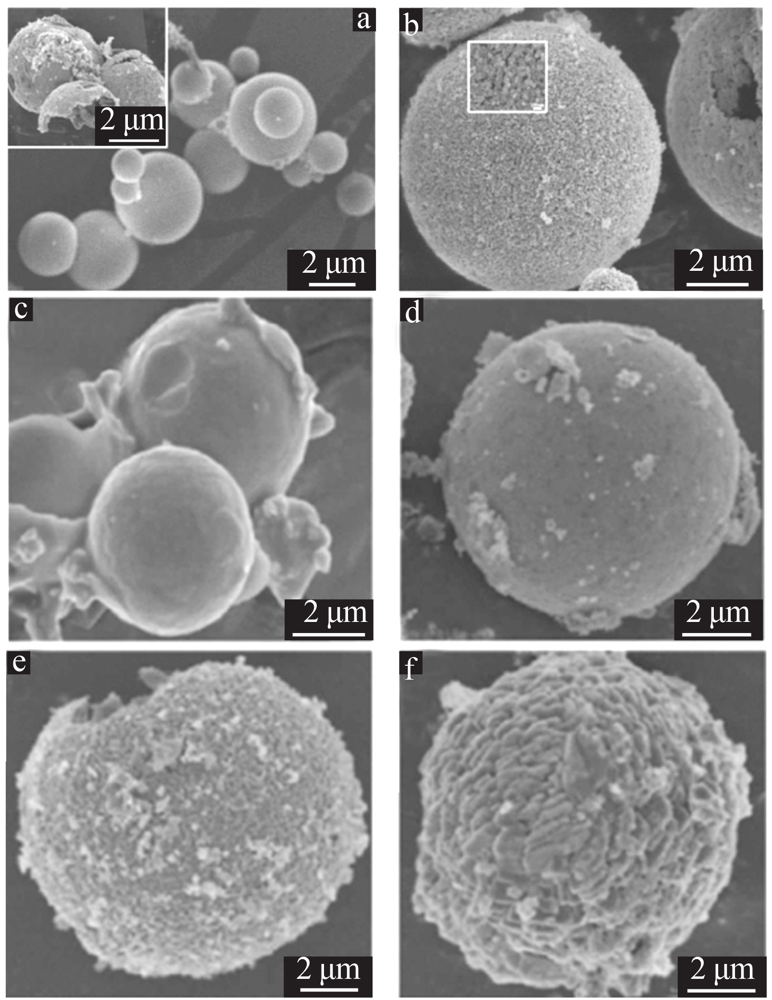

图9

图10

参考文献 54

[1]	Shao Y, El-Kady M F, Sun J, et al. Design and mechanisms of asy-mmetric supercapacitors[J]. Chemical Reviews, 2018,118(18):9233-9280. doi: 10.1021/acs.chemrev.8b00252
[2]	Chen X, Paul R, Dai L M, et al. Carbon-based supercapacitors for efficient energy storage[J]. National Science Review, 2017,4(3):453-489. doi: 10.1093/nsr/nwx009
[3]	Trickett C A, Helal A, Al Maythalony B A, et al. The chemistry of metal-organic frameworks for CO₂ capture,regeneration and conver-sion[J]. Nature Reviews Materials, 2017,2:17045-17060. doi: 10.1038/natrevmats.2017.45
[4]	Wei Y S, Zhang M, Zou R Q, et al. Metal-organic framework-based catalysts with single metal sites[J]. Chemical Reviews, 2020,120(21):12089-12174. doi: 10.1021/acs.chemrev.9b00757
[5]	Zhang Y M, Yuan S, Day G, et al. Luminescent sensors based on me-tal-organic frameworks[J]. Coordination Chemistry Reviews, 2018,354:28-45. doi: 10.1016/j.ccr.2017.06.007
[6]	Xiao X, Zou L L, Pang H, et al. Synjournal of micro/nanoscaled metal-organic frameworks and their direct electrochemical applications[J]. Chemical Society Reviews, 2020,49(1):301-331. doi: 10.1039/c7cs00614d pmid: 31832631
[7]	Wang L, Han Y Z, Feng X, et al. Metal-organic frameworks for ener-gy storage:Batteries and supercapacitors[J]. Coordination Chem-istry Reviews, 2016,307:361-381.
[8]	陈丹, 杨蓉, 张卫华, 等. 有机金属骨架材料在电化学储能领域中的研究进展[J]. 化工进展, 2018,37(2):628-636.
[9]	李怡霏, 陈言权, 陈雪珂, 等. 金属有机骨架材料在超级电容器中的应用进展[J]. 上海工程技术大学学报, 2019,33(2):97-101.
[10]	Liu X, Shi C, Zhai C, et al. A Cobalt-based layered metal-organic framework as an ultrahigh capacity supercapacitor electrode mate-rial[J]. ACS Applied Materials & Interfaces, 2016,8(7):4585-4591.
[11]	Yang J, Ma Z, Gao W, et al. Layered structural Co-based MOF with conductive network frames as a new supercapacitor electrode[J]. Chemistry-A European Journal, 2017,23(3):631-636. doi: 10.1002/chem.201604071
[12]	Li W H, Ding K, Tian H R, et al. Conductive metal-organic frame-work nanowire array electrodes for high-performance solid-state supercapacitors[J]. Advanced Functional Materials, 2017,27.Doi: 10.1002/adfm.201770165.
[13]	Liu J, Zhou Y, Xie Z, et al. Conjugated copper-catecholate frame-work electrodes for efficient energy storage[J]. Angewandte Che-mie International Edition, 2020,59(3):1081-1086.
[14]	Yang J, Xiong P, Zheng C, et al. Metal-organic frameworks:a new promising class of materials for a high performance supercapacitor electrode[J]. Journal of Materials Chemistry A, 2014,39(2):16640-16644.
[15]	Yang C, Li X, Yu L, et al. A new promising Ni-MOF superstruc-ture for high-performance supercapacitors[J]. Chemical Commu-nications, 2020,56(12):1803-1806.
[16]	Chi Y, Yang W, Xing Y, et al. Ni/Co bimetallic organic framework nanosheet assemblies for high-performance electrochemical energy storage[J]. Nanoscale, 2020,12(19):10685-10692. doi: 10.1039/D0NR02016H
[17]	Gholipour-Ranjbar H, Soleimani M, Naderi H R, et al. Application of Ni/Co-based metal-organic frameworks(MOFs) as an advanced electrode material for supercapacitors[J]. New Journal of Chemi-stry, 2016,40(11):9187-9193.
[18]	Wang Y, Liu Y, Wang H, et al. Ultrathin NiCo-MOF nanosheets for high-performance supercapacitor electrodes[J]. ACS Applied Energy Materials, 2019,2(3):2063-2071. doi: 10.1021/acsaem.8b02128
[19]	Liang Y, Yao W, Duan J, et al. Nickel cobalt bimetallic metal-orga-nic frameworks with a layer-and-channel structure for high-per-formance supercapacitors[J]. Journal of Energy Storage, 2021,33. Doi: 10.1016/j.est.2020.102149.
[20]	Yang J, Zheng C, Xiong P, et al. Zn-doped Ni-MOF material with a high supercapacitive performance[J]. Journal of Materials Che-mistry A, 2014,2(44):19005-19010.
[21]	Ma H M, Yi J W, Li S, et al. Stable bimetal-MOF ultrathin nano-sheets for pseudocapacitors with enhanced performance[J]. Inor-ganic Chemistry, 2019,58(15):9543-9547.
[22]	Mohd Zain N K, Vijayan B L, Misnon I I, et al. Direct growth of triple cation metal-organic framework on a metal substrate for elec-trochemical energy storage[J]. Industrial & Engineering Chemistry Research, 2018,58(2):665-674. doi: 10.1021/acs.iecr.8b03898
[23]	Liang Z, Qu C, Guo W, et al. Pristine metal-organic frameworks and their composites for energy storage and conversion[J], Advanced Materials, 2018,30(37).Doi: 10.1002/adma.201702891.
[24]	Hou C C, Xu Q. Metal-organic frameworks for energy[J], Advanc-ed Energy Materials, 2018,9(23).Doi: 10.1002/aenm.201801307.
[25]	Zheng S, Li X, Yan B, et al. Transition-metal(Fe,Co,Ni) based metal-organic frameworks for electrochemical energy storage[J]. Advanced Energy Materials, 2017,7(18).Doi: 10.1002/aenm.201602733.
[26]	Zhao Z, Liu S, Zhu J, et al. Hierarchical nanostructures of nitrogen-doped porous carbon polyhedrons confined in carbon nanosheets for high-performance supercapacitors[J]. ACS Applied Materials & Interfaces, 2018,10(23):19871-19880.
[27]	Gan Q, Liu S, Zhao K, et al. Graphene supported nitrogen-doped porous carbon nanosheets derived from zeolitic imidazolate frame-work for high performance supercapacitors[J]. RSC Advances, 2016,6(82):78947-78953. doi: 10.1039/C6RA15776A
[28]	Yao Y, Liu P, Li X, et al. Nitrogen-doped graphitic hierarchically porous carbon nanofibers obtained via bimetallic-coordination or-ganic framework modification and their application in supercapac-itors[J]. Dalton Transactions, 2018,47(21):7316-7326. doi: 10.1039/C8DT00823J
[29]	Cao X M, Sun Z J, Zhao S Y, et al. MOF-derived sponge-like hier-archical porous carbon for flexible all-solid-state supercapacito-rs[J]. Materials Chemistry Frontiers, 2018,2(9):1692-1699. doi: 10.1039/C8QM00284C
[30]	Liu Y, Li G, Guo Y, et al. Flexible and binder-free hierarchical po-rous carbon film for supercapacitor electrodes derived from MOFs/CNT[J]. ACS Applied Materials & Interfaces, 2017,9(16):14043-14050.
[31]	Zhang Y Z, Wang Y, Xie Y L, et al. Porous hollow Co₃O₄ with rhom-bic dodecahedral structures for high-performance supercapacito-rs[J]. Nanoscale, 2014,6(23):14354-14359. doi: 10.1039/C4NR04782F
[32]	Wei G, Zhou Z, Zhao X, et al. Ultrathin metal-organic framework nanosheet-derived ultrathin Co₃O₄ nanomeshes with robust oxygen-evolving performance and asymmetric supercapacitors[J]. ACS Applied Materials & Interfaces, 2018,10(28):23721-23730.
[33]	Yang J, Wei F, Sui Y, et al. Co₃O₄ nanocrystals derived from a ze-olitic imidazolate framework on Ni foam as high-performance su-percapacitor electrode material[J]. RSC Advances, 2016,6(66):61803-61808. doi: 10.1039/C6RA11272B
[34]	Ensafi A A, Moosavifard S E, Rezaei B, et al. Engineering onion-like nanoporous CuCo₂O₄ hollow spherees derived from bimetal-organic frameworks for high-performance asymmetric supercapacitors[J]. Journal of Materials Chemistry A, 2018,6(22):10497-10506. doi: 10.1039/C8TA02819B
[35]	Javed M S, Shaheen N, Hussain S, et al. An ultra-high energy den-sity flexible asymmetric supercapacitor based on hierarchical fab-ric decorated with 2D bimetallic oxide nanosheets and MOF-deri-ved porous carbon polyhedral[J]. Journal of Materials Chemistry A, 2019,7(3):946-957. doi: 10.1039/C8TA08816K
[36]	Guan B Y, Kushima A, Yu L, et al. Coordination polymers derived general synjournal of multishelled mixed metal-oxide particles for hybrid supercapacitors[J], Advanced Materials, 2017,29(17). Doi: 10.1002/adma.201605902.
[37]	Jiang Z, Lu W, Li Z, et al. Synjournal of amorphous cobalt sulfide polyhedral nanocages for high performance supercapacitors[J]. Journal of Materials Chemistry A, 2014,2(23):8603-8606. doi: 10.1039/C3TA14430E
[38]	Zou K Y, Liu Y C, Jiang Y F, et al. Benzoate acid-dependent lattice dimension of Co-MOFs and MOF-derived CoS ₂@CNTs with tun-able pore diameters for supercapacitors[J]. Inorganic Chemistry, 2017,56(11):6184-6196. doi: 10.1021/acs.inorgchem.7b00200
[39]	Sun S, Luo J, Qian Y, et al. Metal-organic framework derived hon-eycomb Co₉S₈@C composites for high-performance supercapacito-rs[J]. Advanced Energy Materials, 2018,8(25).Doi: 10.1002/aenm.201801080.
[40]	Qu C, Zhang L, Meng W, et al. MOF-derived α-NiS nanorods on graphene as an electrode for high-energy-density supercapacito-rs[J]. Journal of Materials Chemistry A, 2018,6(9):4003-4012. doi: 10.1039/C7TA11100B
[41]	Tian D, Chen S, Zhu W, et al. Metal-organic framework derived hierarchical Ni/Ni₃S₂ decorated carbon nanofibers for high-perfor-mance supercapacitors[J]. Materials Chemistry Frontiers, 2019,3(8):1653-1660. doi: 10.1039/C9QM00296K
[42]	Li Z X, Yang B L, Jiang Y F, et al. Metal-directed assembly of five 4-connected MOFs:One-pot syntheses of MOF-derived M_xS_y@C composites for photocatalytic degradation and supercapacitors[J]. Crystal Growth & Design, 2018,18(2):979-992. doi: 10.1021/acs.cgd.7b01463
[43]	Yang Y, Li M L, Lin J N, et al. MOF-derived Ni₃S₄ encapsulated in 3D conductive network for high-performance supercapacitor[J]. Inorganic Chemistry, 2020,59(4):2406-2412. doi: 10.1021/acs.inorgchem.9b03263 pmid: 32030979
[44]	Ouyang Y, Zhang B, Wang C, et al. Bimetallic metal-organic frame-work derived porous NiCo₂S₄ nanosheets arrays as binder-free elec-trode for hybrid supercapacitor[J]. Applied Surface Science, 2021,542.Doi: 10.1016/j.apsusc.2020.148621.
[45]	Liu Y, Ma Z, Niu H, et al. MOF-derived Co₉S₈ polyhedrons on NiCo₂S₄ nanowires for high-performance hybrid supercapacitors[J]. Inorganic Chemistry Frontiers, 2020,7(21):4092-4100. doi: 10.1039/D0QI00651C
[46]	Zheng L, Song J, Ye X, et al. Construction of self-supported hier-archical NiCo-S nanosheet arrays for supercapacitors with ultra-high specific capacitance[J]. Nanoscale, 2020,12(25):13811-13821. doi: 10.1039/D0NR02976A
[47]	Wang S F, Xiao Z Y, Zhai S R, et al. Construction of strawberry-like Ni₃S₂@Co₉S₈ heteronanoparticle-embedded biomass-derived 3D N-doped hierarchical porous carbon for ultrahigh energy den-sity supercapacitors[J]. Journal of Materials Chemistry A, 2019,7(29):17345-17356. doi: 10.1039/C9TA05145G
[48]	Ramachandran R, Lan Y, Xu Z X, et al. Construction of NiCo-lay-ered double hydroxide microspheres from Ni-MOFs for high-per-formance asymmetric supercapacitors[J]. ACS Applied Energy Materials, 2020,3(7):6633-6643. doi: 10.1021/acsaem.0c00790
[49]	Jin H, Yuan D, Zhu S, et al. Ni-Co layered double hydroxide on carbon nanorods and graphene nanoribbons derived from MOFs for supercapacitors[J]. Dalton Transactions, 2018,47(26):8706-8715. doi: 10.1039/C8DT01882K
[50]	Liu S, Xu Y, Wang C, et al. Metal-organic framework derived Ni₂P/C hollow microspheres as battery-type electrodes for battery-supercapacitor hybrids[J]. ChemElectroChem, 2019,6(21):5511-5518. doi: 10.1002/celc.v6.21
[51]	Jiang L, Yan M, Sun L, et al. Hierarchical CoP@Ni₂P core-shell nanosheets for ultrahigh energy density asymmetric supercapaci-tors[J]. Inorganic Chemistry Frontiers, 2020,7(16):3030-3038. doi: 10.1039/D0QI00024H
[52]	Salunkhe R R, Kaneti Y V, Kim J, et al. Nanoarchitectures for me-tal-organic framework-derived nanoporous carbons toward super-capacitor applications[J]. Accounts of Chemical Research, 2016,49(12):2796-2806. pmid: 27993000
[53]	李璐, 高长青, 刘怡琳, 等. 氮杂化介孔碳制备方法及在超级电容器中的应用进展[J]. 无机盐工业, 2021,53(3):24-29.
[54]	Salunkhe R R, Kaneti Y V, Yamauchi Y. Metal-organic framework-derived nanoporous metal oxides toward supercapacitor applica-tions:Progress and prospects[J]. ACS Nano, 2017,11(6):5293-5308. doi: 10.1021/acsnano.7b02796 pmid: 28613076

电极材料	比电容/ （F·g^-1）	电流密度/ （A·g^-1）	电极材料	比电容/ （F·g^-1）	电流密度/ （A·g^-1）
Co-LMOFs^[10]	2 474.00	1.0	Ni/Co-MOFs^[17]	1 049.00	1.00
Co-MOFs^[11]	2 564.00	1.0	NiCo-MOFs Nanosheets^[18]	1 202.10	1.00
Cu-CAT Nanowire^[12]	202.00	0.5	NiCo-MOFs^[19]	1 333.00	2.00
Cu-DBC^[13]	479.00	0.2	Zn-doped Ni-MOFs^[20]	1 620.00	0.25
Ni-MOFs^[14]	1 127.00	0.5	NiCo-BDC^[21]	1 700.40	1.00
Ni-MOFs^[15]	1 518.80	1.0	CoCuNi-bdc/NF^[22]	2 892.00	1.00
NiCo- MOFs-1^[16]	901.60	5.0

电极材料		比电容/ （F·g^-1）	电流密度/ （A·g^-1）
碳材料	NCP-CNS^[26]	300.0	1.0
	NPCN/G^[27]	306.4	0.2
	NGHPCF^[28]	326.0	0.5
	C-S-900^[29]	369.0	10 mV/s
	carbon polyhedrons-CNT^[30]	381.2	5 mV/s
金属氧化物	Co₃O₄^[31]	1 110.0	12.5
	Co₃O₄^[32]	1 216.4	1.0
	Co₃O₄^[33]	1 680.0	0.5
	CuCo₂O₄^[34]	1 700.0	2.0
	Zn-Co-O@CC^[35]	1 750.0	1.5
	Ni-Co oxide^[36]	1 900.0	2.0
金属硫化物	CoS^[37]	1 812.0	5 mV/s
	CoS₂@CNTs^[38]	825.0	0.5
	Co₉S₈@C^[39]	1 887.0	1.0
	NiS/rGO^[40]	744 C/g	1.0
	Ni/Ni₃S₂/CNFs^[41]	830.0	0.2
	NiS₂@C^[42]	833.0	0.5
	Ni₃S₄/CNTs^[43]	1 489.9	1.0
	NiCo₂S₄^[44]	1 354.4 C/g	1.0
	NiCo₂S₄/Co₉S₈^[45]	2 390.2	1.0
	NiCo-S^[46]	3 724.0	1.0
	Ni₃S₂@Co₉S₈/N-HPC^[47]	1 970.5	0.5
金属氢氧化物	NiCo-LDHs^[48]	1 272 C/g	2.0
金属氢氧化物	NiCo-LDH/GNR^[49]	1 765.0	1.0
金属磷化物	Ni₂P/C^[50]	1 676.0	1.0
金属磷化物	CoP@Ni₂P^[51]	2 644.0	1.0
