γ-氧化铁/山梨酸/银-二氧化钛的制备及抗菌性能

doi:10.19964/j.issn.1006-4990.2021-0115

摘要/Abstract

摘要：

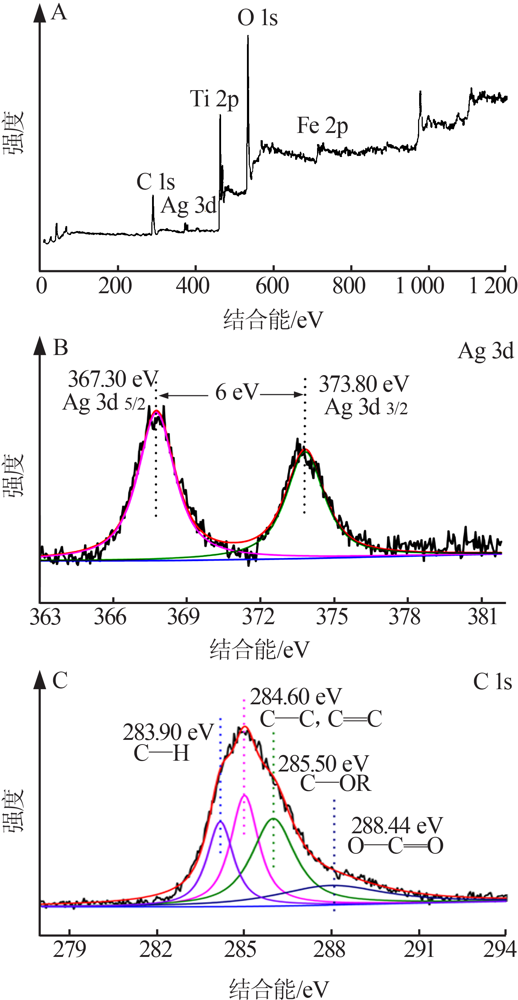

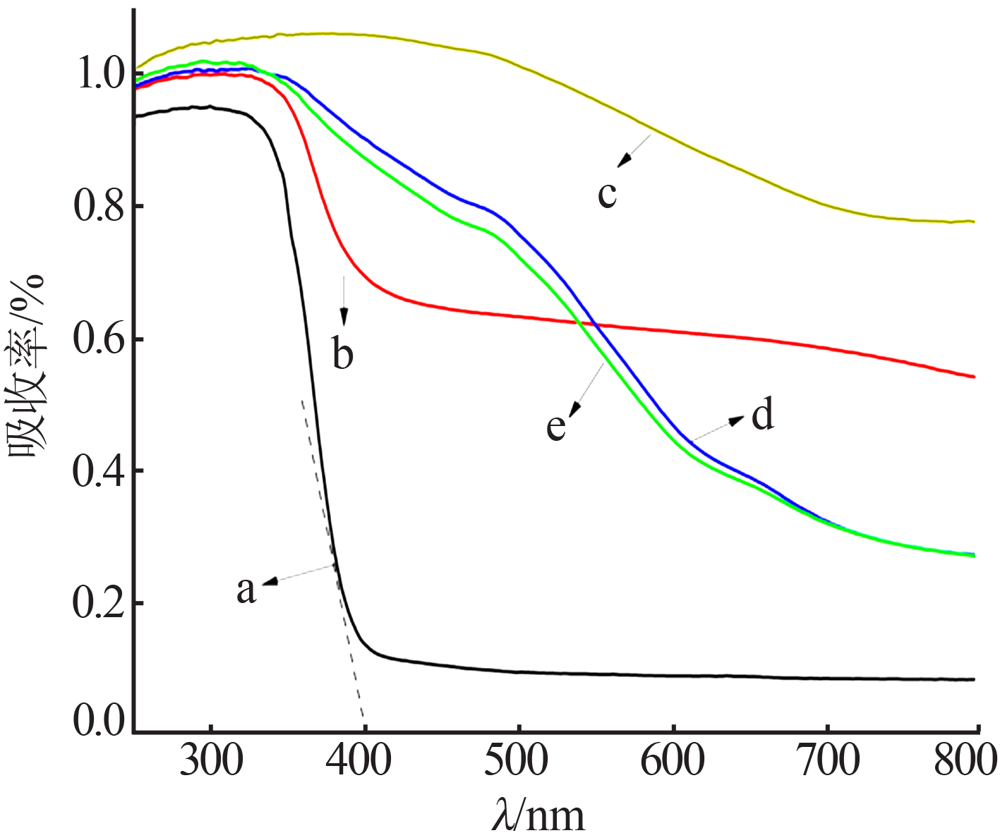

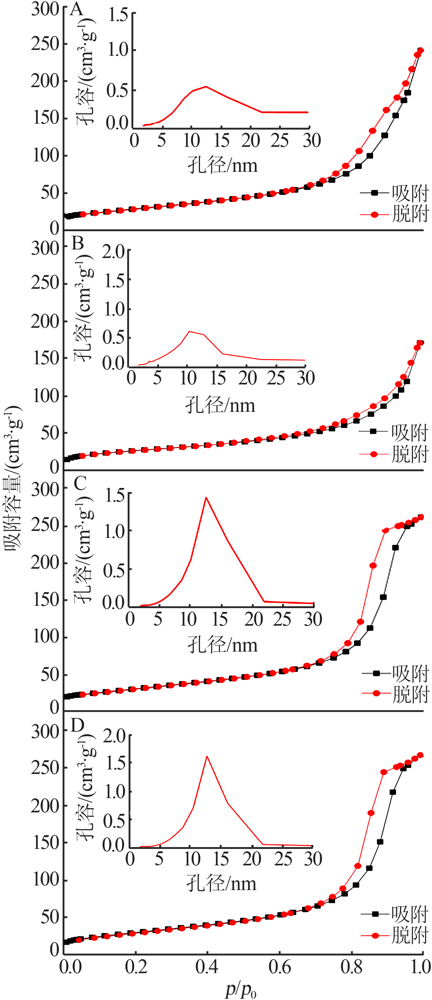

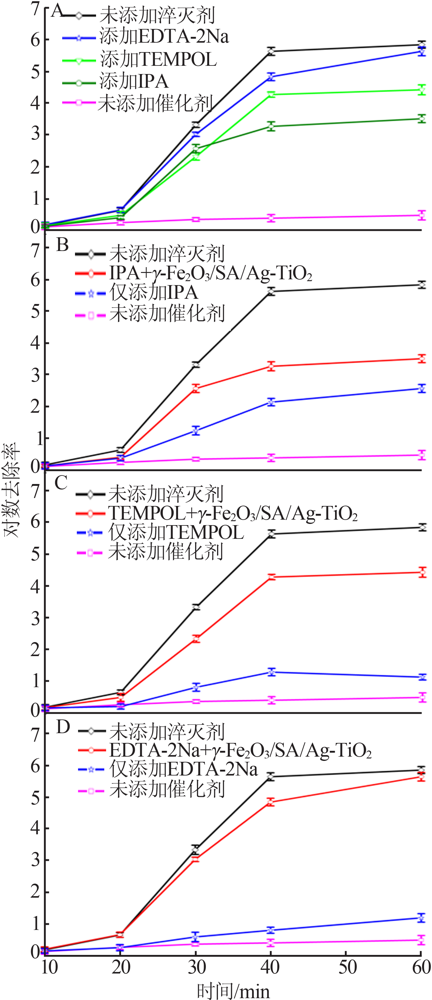

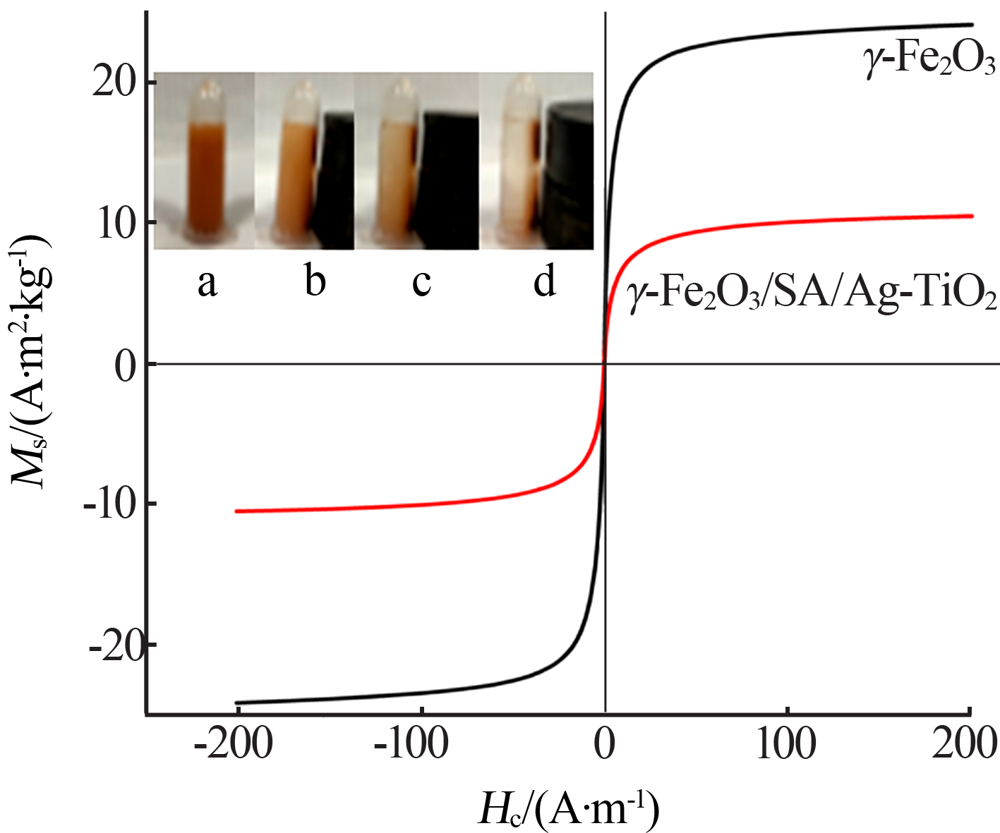

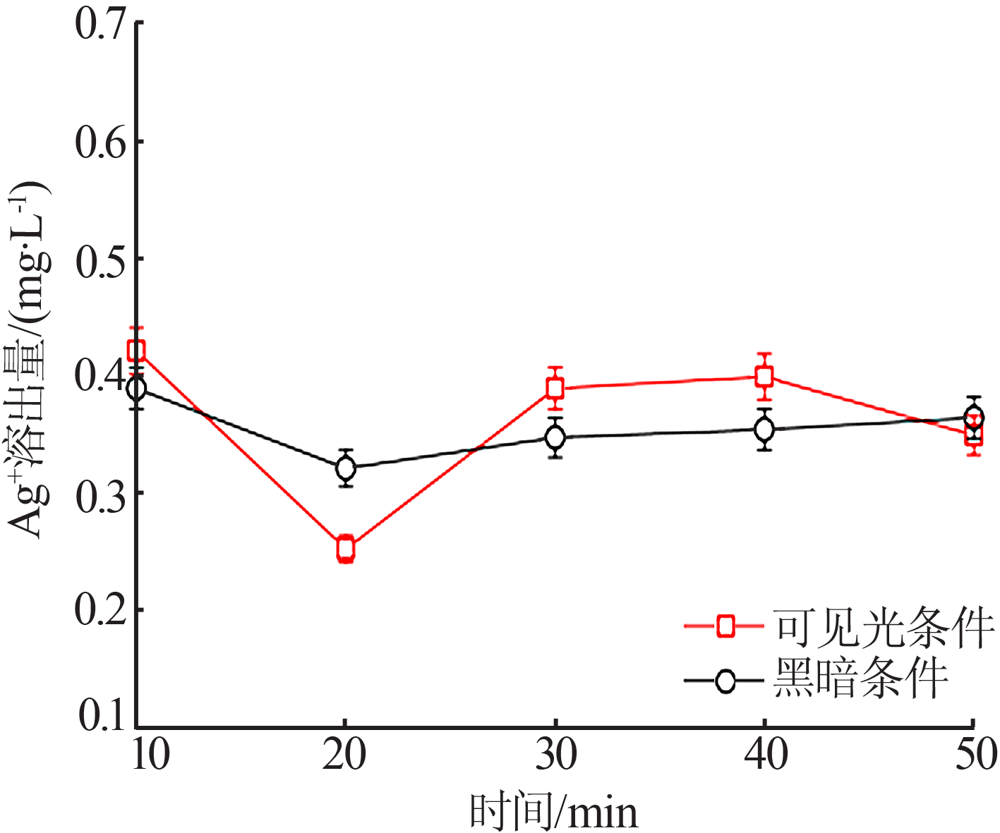

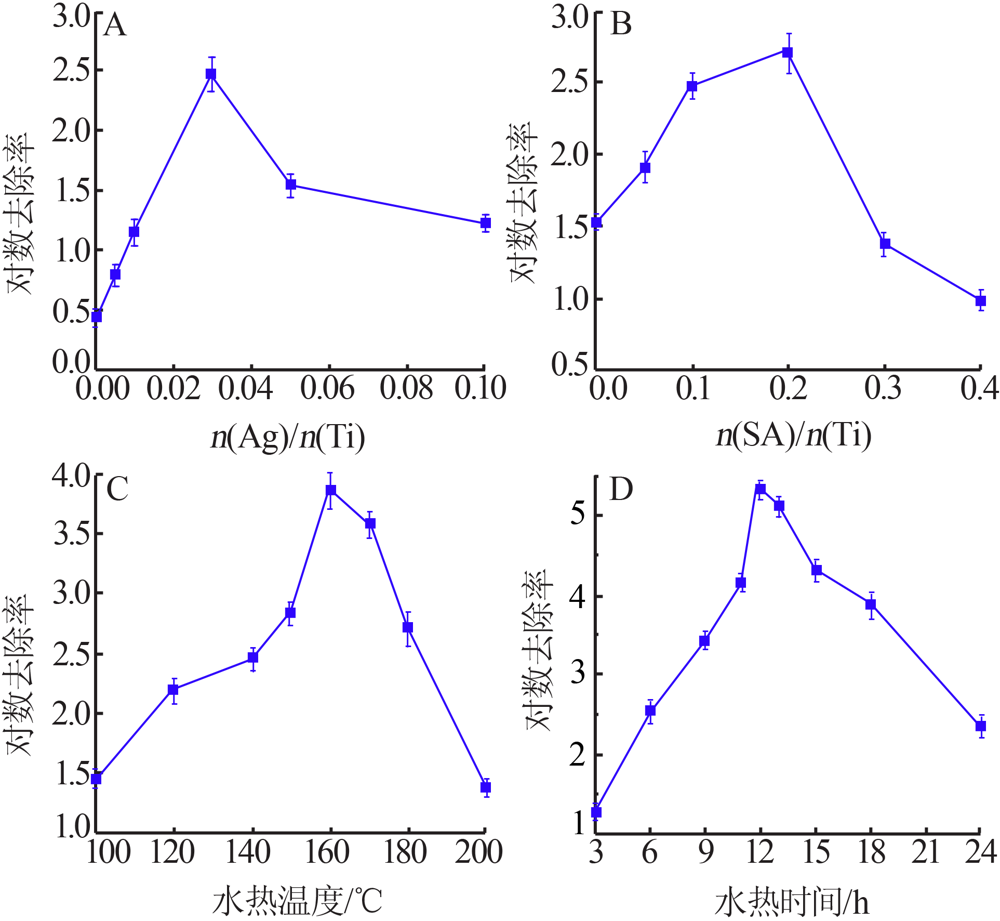

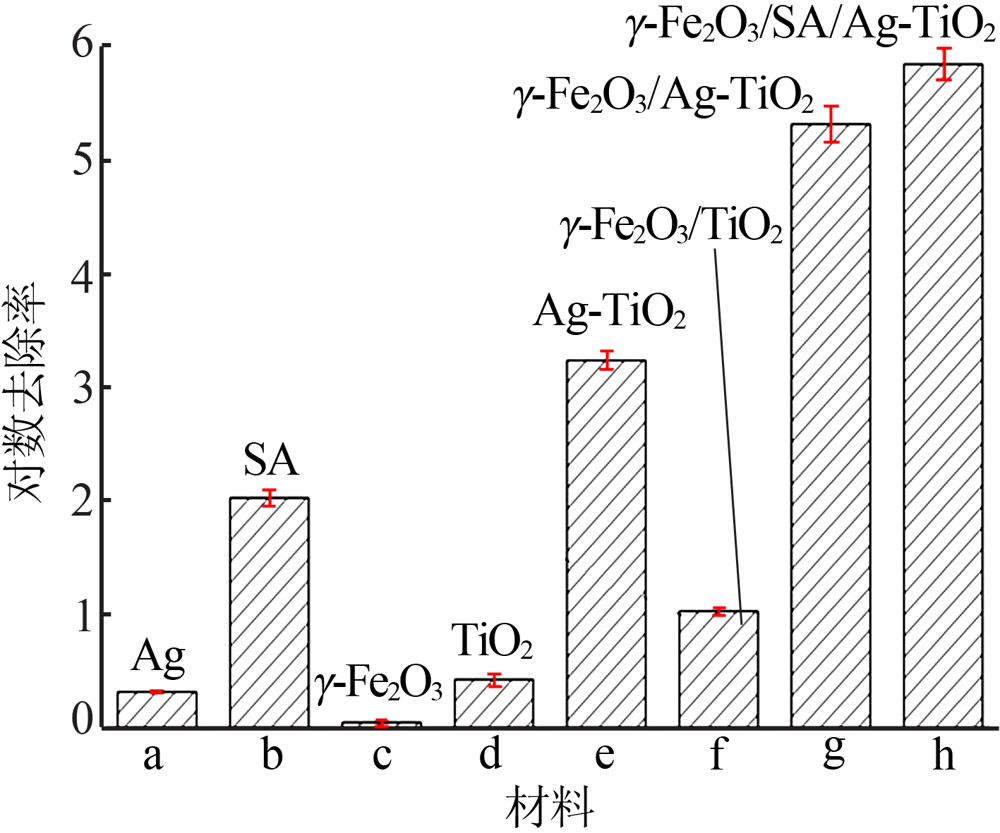

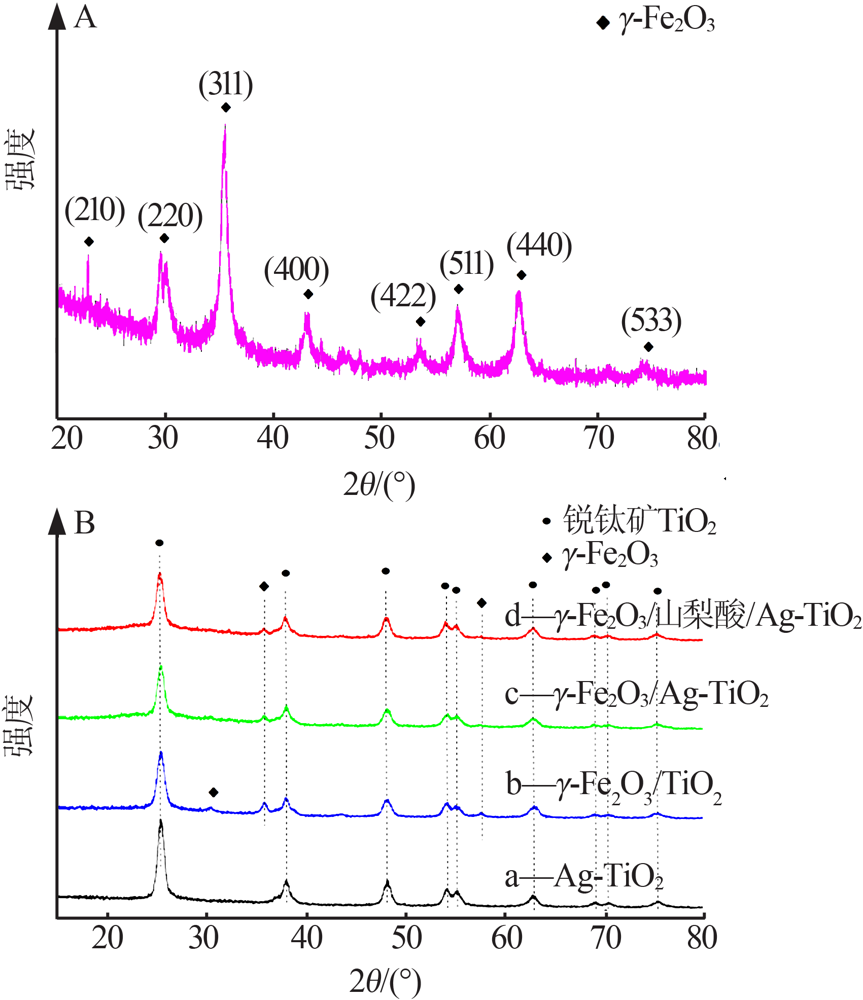

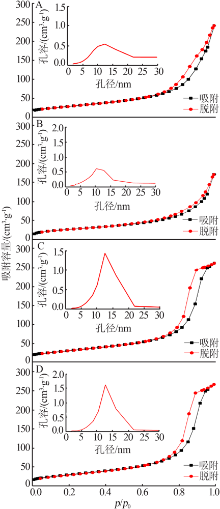

采用溶胶凝胶-水热法制备了γ-氧化铁/山梨酸/银-二氧化钛催化剂。以可见光驱动下对大肠埃希氏菌的对数去除率为评价指标,获得了催化剂的最佳制备参数：n（银）/n（钛）=0.03、n（山梨酸）/n（钛）=0.2、水热温度为160 ℃、水热时间为12 h。利用X射线衍射（XRD）、X射线光电子能谱（XPS）、BET法比表面积（BET）、高倍扫描电镜（FESEM）等表征方法对其结构、表面特性、光学性能和磁性性能进行分析。催化剂的物化性能优异：构成为纯锐钛矿二氧化钛、顺磁性γ-氧化铁和单质银,山梨酸以单齿方式与二氧化钛结合;外观为类球形构成的比表面积为125.726 m²/g的介孔结构;可响应200~800 nm全波段光;是饱和磁化强度为10.478 A·m²/kg的超顺磁材料。自由基淬灭试验确定活性氧（ROS）影响抗菌活性的顺序从大到小依次为·OH、O₂^·-、h⁺。自由基、游离银离子和山梨酸构成协同抗菌体系,使催化剂在可见光和黑暗条件下均具有良好的抗菌活性,对数去除率分别为5.91和2.54。

关键词: γ-氧化铁, 山梨酸, 银-二氧化钛, 大肠埃希氏菌, 抗菌机理

Abstract:

Catalyst of γ-Fe₂O₃/SA/Ag-TiO₂ was synthesized by the sol-gel hydrothermal method.The optimal preparation pa-rameters of γ-Fe₂O₃/SA/Ag-TiO₂ were obtained,in which the log reduction of E.coli under visible light was adopted as the evaluation index.The results,such as n（Ag）/n（Ti）,n（SA）/n（Ti）,hydrothermal temperature,and hydrothermal time were de-termined as 0.03,0.2,160 ℃,and 12 h,respectively.XRD,XPS,BET,FESEM and other characterization methods were used to analyze the structure,surface properties,optical properties and magnetic properties.The catalyst had excellent physical and chemical properties.γ-Fe₂O₃/SA/Ag-TiO₂ consisted of pure anatase,elemental silver,sorbic acid,and paramagnetic γ-Fe₂O₃,among which sorbic acid was combined with TiO₂ in a unidentate manner.The surface structure analysis indicated that the photocatalyst showed regular spherical,and constituted a mesoporous structure with a specific surface area of 125.726 m ²/g.It was proved that the photocatalyst could absorb the full wavelength light of 200~800 nm through optical performance analysis.The saturation magnetization of the material was 10.478 A·m²/kg,which was paramagnetic material.The main ROS,affecting the antibacterial activity of γ-Fe₂O₃/SA/Ag-TiO₂,were determined by the free radical trapping tests.The results were as follow-ing：·OH、O₂ ^·-、h⁺.Free radicals,free Ag⁺ and sorbic acid formed a synergistic antibacterial system,which made the photocata-lyst exhibited strong antibacterial activity under visible light and dark conditions,with the logarithmic removal rates of 5.91 and 2.54,respectively.

Key words: γ-Fe₂O₃, sorbic acid, Ag-TiO₂, E.coil, antibacterial mechanism

中图分类号:

O614
O644

吴丽娜,张向军,林清娴. γ-氧化铁/山梨酸/银-二氧化钛的制备及抗菌性能[J]. 无机盐工业, 2021, 53(12): 156-162.

WU Lina,ZHANG Xiangjun,LIN Qingxian. Synthesis and antibacterial performance of γ-Fe₂O₃/sorbic acid/Ag-TiO₂[J]. Inorganic Chemicals Industry, 2021, 53(12): 156-162.

图/表 10

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 23

[1]	SU H, LIU Y, PAN C, et al. Persistence of antibiotic resistance genes and bacterial community changes in drinking water treatment sys- sem:From drinking water source to tap water[J]. Science of The To- tal Environment, 2018, 616-617:453-461.
[2]	MATSUNAGA T, TOMODA R, NAKAJIMA T, et al. Photoelectroche- mical sterilization of microbial-cells by semiconductor powders[J]. FEMS Microbiology Letters, 1985, 29(1/2):211-214. doi: 10.1111/fml.1985.29.issue-1-2
[3]	OUYANG X, LI X, YAN H, et al. Preparation and characterization of nanosized TiO₂ powders by gaseous detonation method[J]. Mate- rials Science and Engineering B:Advanced Functional Solid-State Materials, 2008, 153(1/2/3):21-24.
[4]	DESHMUKH S P, PATIL S M, MULLANI S B, et al. Silver nanopar- ticles as an effective disinfectant:A review[J]. Materials Science & Engineering C:Materials for Biological Applications, 2019, 97:954-965.
[5]	李萌, 贺晓静, 王会珍, 等. Ag-TiO₂纳米棒阵列的抗菌性和光催化性能研究[J]. 表面技术, 2016, 45(5):181-186.
[6]	王国军. 山梨酸(钾)的性能及其应用[J]. 中国食品, 2011(11):56-58.
[7]	MAHMOODI V, BASTAMI T R, AHMADPOUR A. Solar energy ha- rvesting by magnetic-semiconductor nanoheterostructure in water treatment technology[J]. Environmental Science and Pollution Re- search, 2018, 25(9):8268-8285.
[8]	SANZONE G, ZIMBONE M, CACCIATO G, et al. Ag/TiO₂ nanoco- mposite for visible light-driven photocatalysis[J]. Superlattices and Microstructures, 2018, 123:394-402. doi: 10.1016/j.spmi.2018.09.028
[9]	YANG Y, LIU E, DAI H, et al. Photocatalytic activity of Ag-TiO₂- graphene ternary nanocomposites and application in hydrogen evolu- tion by water splitting[J]. International Journal of Hydrogen Ener- gy, 2014, 39(15):7664-7671.
[10]	YE L, LIU J, GONG C, et al. Two different roles of metallic Ag on Ag/AgX/BiOX(X=Cl,Br) visible light photocatalysts:Surface pl- asmon resonance and Z-scheme bridge[J]. ACS Catalysis, 2012, 2(8):1677-1683. doi: 10.1021/cs300213m
[11]	KOLI V B, DHODAMANI A G, DELEKAR S D, et al. In situ sol- gel synjournal of anatase TiO₂-MWCNTs nanocomposites and their photocatalytic applications[J]. Journal of Photochemistry and Pho- tobiology A:Chemistry, 2017, 333:40-48.
[12]	BAGHERI S, HIR Z A M, YOUSEFI A T, et al. Progress on mesopo- rous titanium dioxide:Synjournal,modification and applications[J]. Microporous and Mesoporous Materials, 2015, 218:206-222. doi: 10.1016/j.micromeso.2015.05.028
[13]	WILKE C M, WUNDERLICH B, GAILLARD J, et al. Synergistic bacterial stress results from exposure to nano-Ag and nano-TiO₂ mixtures under light in environmental media[J]. Environmental Science & Technology, 2018, 52(5):3185-3194. doi: 10.1021/acs.est.7b05629
[14]	李静, 倪刚, 韩影. 磁性γ-Fe₂O₃/La/Bi₂WO₆复合材料的制备及其光催化性能的研究[J]. 化学研究与应用, 2017, 29(2):227-231.
[15]	WEI W, YU D, HUANG Q. Preparation of Ag/TiO₂ nanocomposites with controlled crystallization and properties as a multifunctional material for SERS and photocatalytic applications[J]. Spectrochi- mica Acta Part A:Molecular and Biomolecular Spectroscopy, 2020, 243.Doi: 10.1016/j.saa.2020.118793. doi: 10.1016/j.saa.2020.118793
[16]	黄奇峰, 高淑梅, 陈国庆, 等. 山梨酸钾的三维荧光光谱特性分析[J]. 江南大学学报:自然科学版, 2012, 11(3):336-340.
[17]	SUWANNARUANG T, RIVERA K K P, NERAMITTAGAPONG A, et al. Effects of hydrothermal temperature and time on uncalcin- ed TiO₂ synjournal for reactive red 120 photocatalytic degrada- tion[J]. Surface & Coatings Technology, 2015, 271:192-200. doi: 10.1016/j.surfcoat.2014.12.041
[18]	艾翠玲, 李凌云, 王文骄, 等. β-In₂S₃的水热合成及合成条件对其光催化降解土霉素的影响[J]. 环境化学, 2017, 36(5):1112-1121.
[19]	徐正侠, 杨继涛, 刘康, 等. 溶剂热法合成锐钛矿型二氧化钛纳米晶的形状演化规律[J]. 物理化学学报, 2016, 32(2):581-588.
[20]	艾翠玲, 吴丽娜, 张嵘嵘, 等. γ-Fe₂O₃/Ag/TiO₂的制备与抗菌性能[J]. 高等学校化学学报, 2019, 40(4):645-651.
[21]	LIU W, GE H, DING X, et al. Cubic nano-silver-decorated mangan- ese dioxide micromotors:Enhanced propulsion and antibacterial performance[J]. Nanoscale, 2020, 12(38):19655-19664. doi: 10.1039/D0NR06281B
[22]	MAI L, WANG D, ZHANG S, et al. Synjournal and bactericidal abi- lity of Ag/TiO₂ composite films deposited on titanium plate[J]. App- lied Surface Science, 2010, 257(3):974-978.
[23]	AZIMI S, NEZAMZADEH-EJHIEH A. Enhanced activity of clino- ptilolite-supported hybridized PbS-CdS semiconductors for the photocatalytic degradation of a mixture of tetracycline and ceph- alexin aqueous solution[J]. Journal of Molecular Catalysis A:Che- mical, 2015, 408:152-160.
