MgAl2O4:Ce荧光粉辐照合成及发光机理研究

doi:10.11962/1006-4990.2019-0094

摘要/Abstract

摘要：

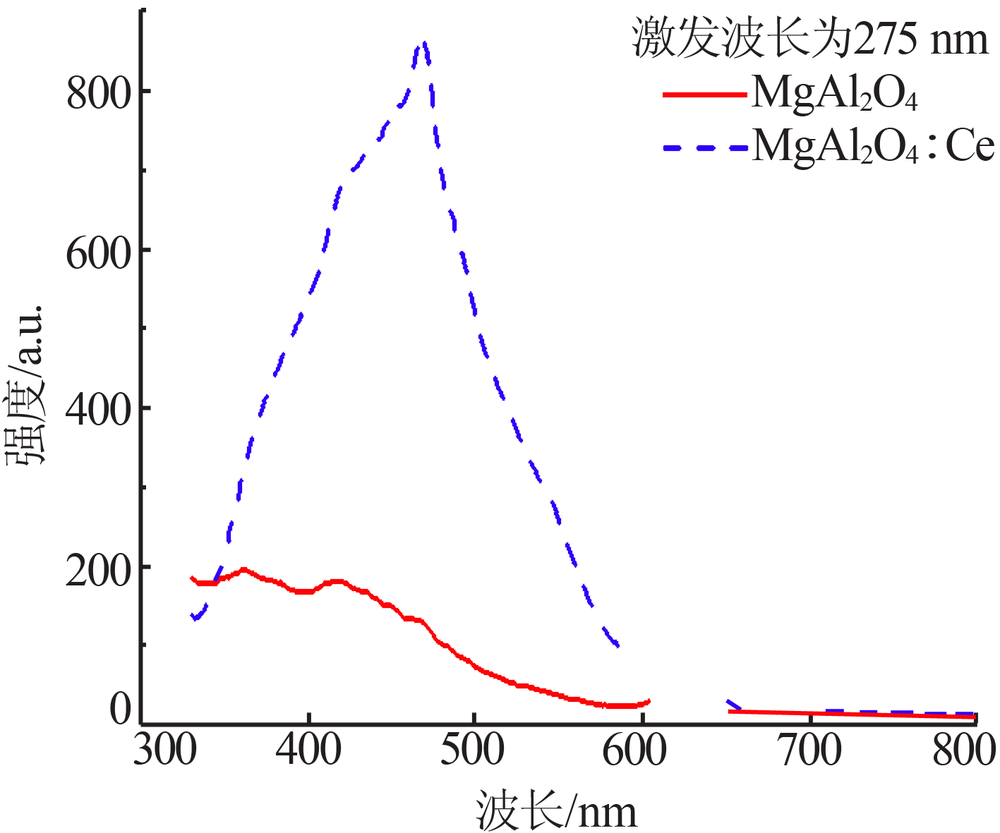

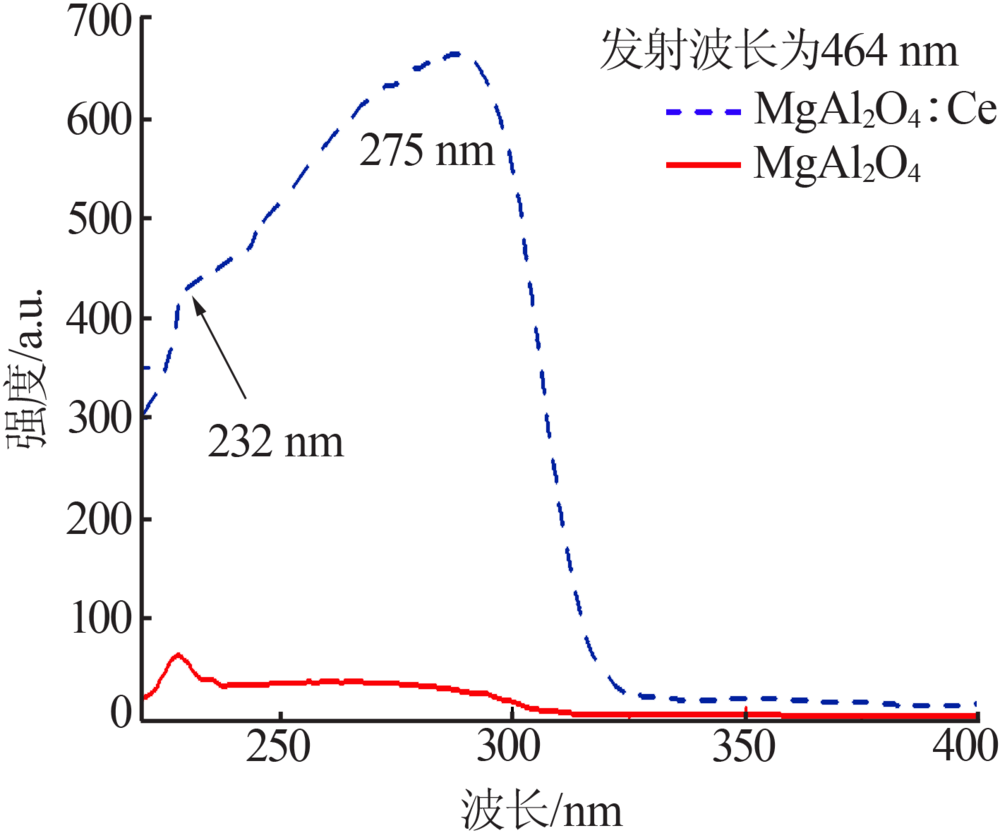

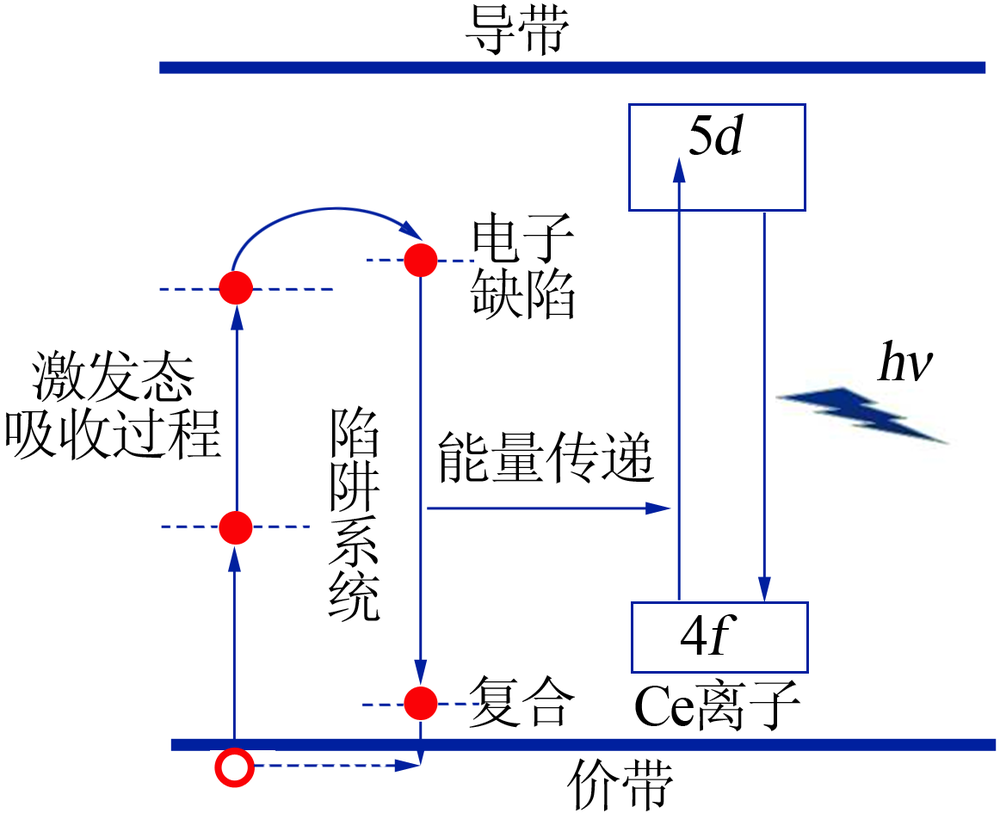

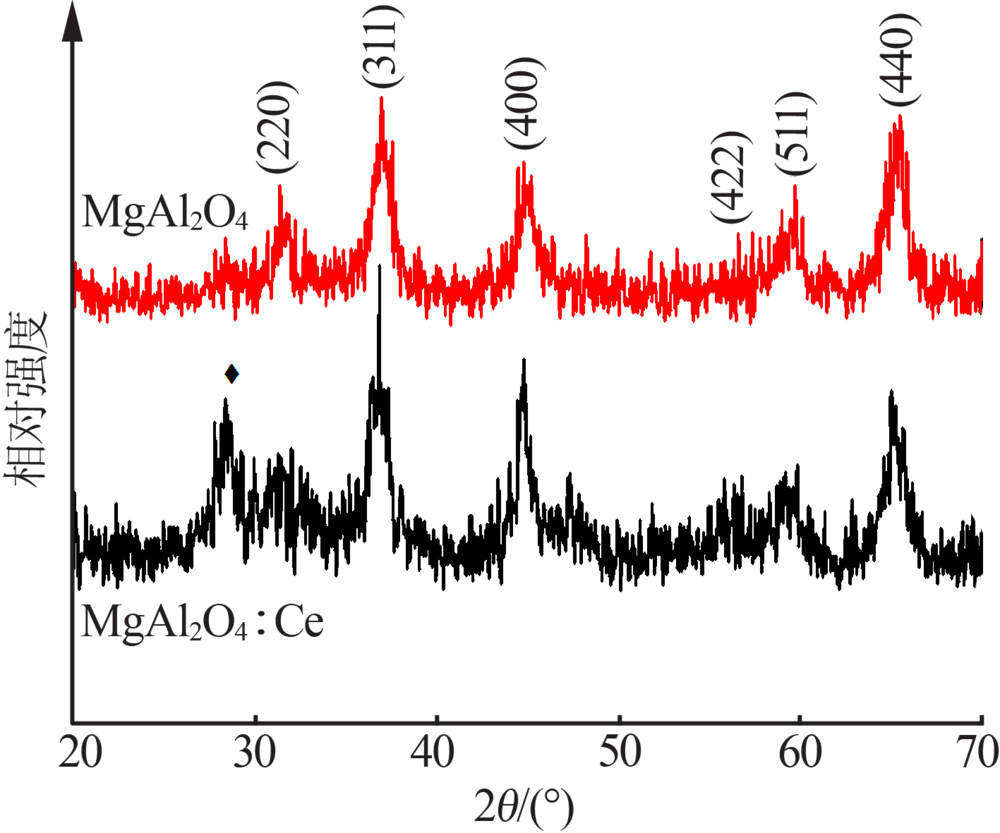

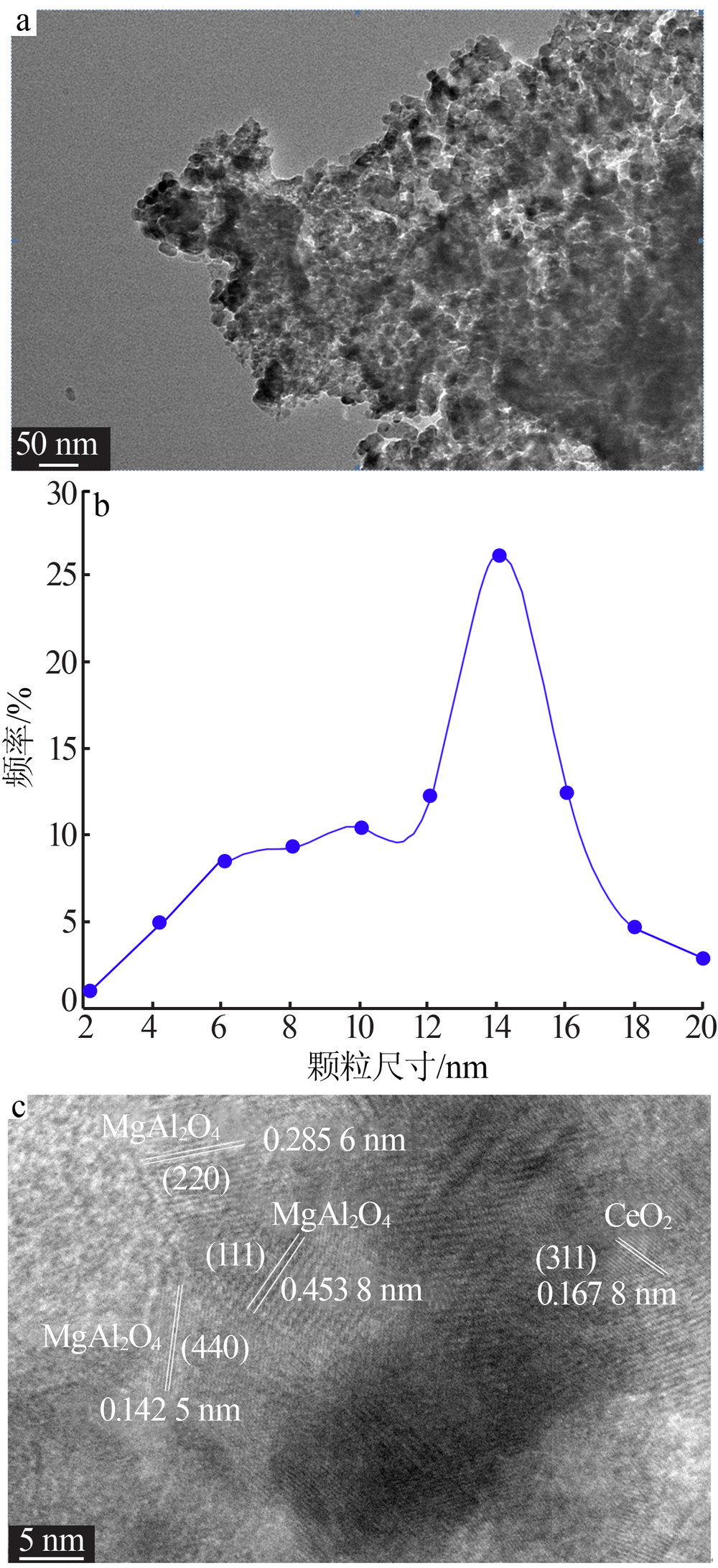

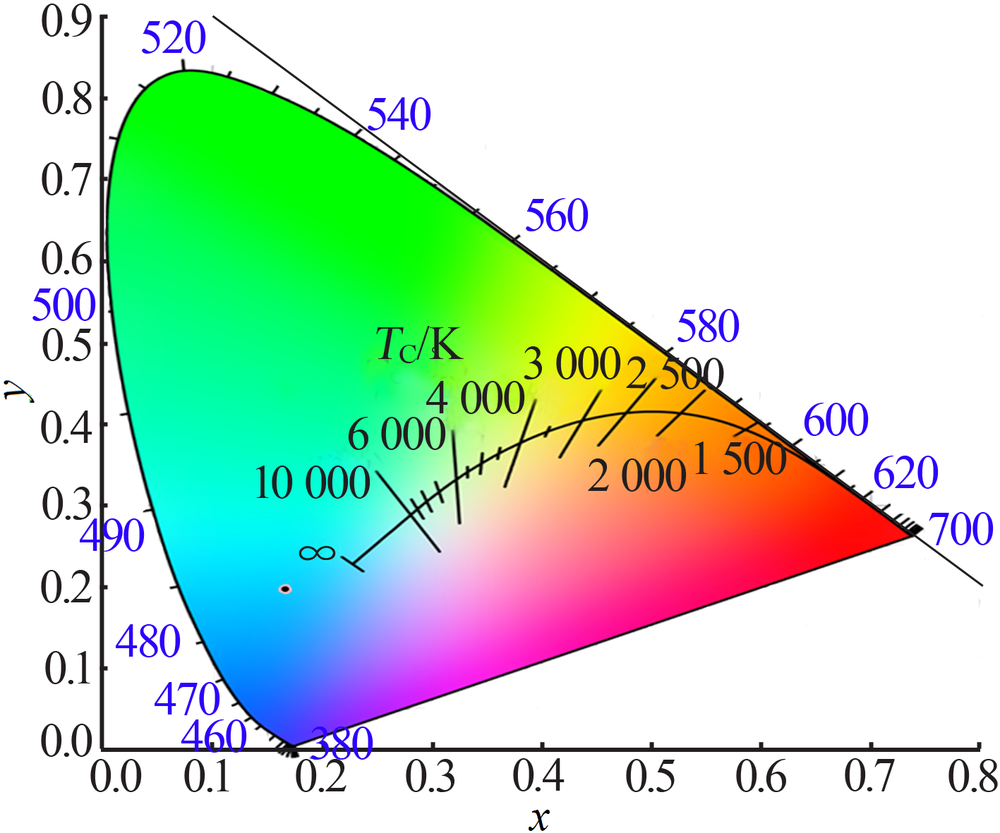

通过伽马射线辐照辅助聚丙烯酰胺凝胶法合成了MgAl₂O₄和MgAl₂O₄:Ce荧光粉。通过X射线粉末衍射仪（XRD）、透射电子显微镜（TEM）、紫外可见分光光度计和荧光分光光度计研究了MgAl₂O₄:Ce荧光粉的晶体结构、表面形貌、光学性质和发光性质;基于实验所获得的结果,分析了纳米级MgAl₂O₄:Ce荧光粉的发光机理。实验结果表明:采用伽马射线辐照辅助聚丙烯酰胺凝胶法制备纯相MgAl₂O₄和MgAl₂O₄:Ce荧光粉的结晶温度要比传统聚丙烯酰胺凝胶法低100 ℃左右;MgAl₂O₄:Ce荧光粉的平均颗粒尺寸为14 nm,Ce离子掺杂后导致样品颗粒细化;Ce离子的掺入,降低了MgAl₂O₄的能带值,改善了其颜色性质和发光性质;当采用275 nm的光去激发MgAl₂O₄:Ce荧光粉时,获得了425 nm和464 nm的蓝光发射。通过能量传递原理分析认为,杂质缺陷（Ce³⁺）在整个发光过程中扮演了重要角色。MgAl₂O₄:Ce作为一种抗辐射能力强的荧光粉,在空间照明领域具有很好的应用前景。

关键词: MgAl₂O₄:Ce荧光粉, 聚丙烯酰胺凝胶法, 颜色性质, 发光性质

Abstract:

MgAl₂O₄ and MgAl₂O₄:Ce phosphors were successfully synthesized through a gamma-ray irradiation assisted polyacrylamide gel route.The crystal structure,surface morphology,optical and photoluminescence properties of MgAl₂O₄:Ce phosphors were studied by X-ray powder diffraction（XRD）,transmission electron microscopy（TEM）,ultraviolet-visible spectrophotometer and fluorescence spectrophotometer.Based on the experimental results,the photoluminescence mechanism of nanoscale MgAl₂O₄:Ce phosphors was analyzed.Experiment result showed that the crystallization temperature of MgAl₂O₄ and MgAl₂O₄:Ce phosphors synthesized by a gamma-ray irradiation assisted polyacrylamide gel route was lower about 100 ℃ than that of the conventional polyacrylamide gel route.The mean particle size of the MgAl₂O₄:Ce phosphor was 14 nm.Cerium doping MgAl₂O₄ decreased the particle size and E_g value,improved the colour and photoluminescence properties of MgAl₂O₄.Two blue emission peaks at 425 nm and 465 nm were observed for the MgAl₂O₄:Ce phosphor when the excitation peak was 275 nm.The impurity defect（Ce³⁺） played a crucial role in the luminescence process on the basis of the energy transfer mecha nism.The MgAl₂O₄:Ce phosphor can be used as a promising radiation resistance phosphor for space lighting field.

Key words: MgAl₂O₄:Ce phosphor, polyacrylamide gel route, colour properties, photoluminescent properties

中图分类号:

O614.33

杨晓红. MgAl₂O₄:Ce荧光粉辐照合成及发光机理研究[J]. 无机盐工业, 2019, 51(9): 30-35.

Yang Xiaohong. Irradiation synthesized and photoluminescence mechanism of MgAl₂O₄:Ce phosphor[J]. Inorganic Chemicals Industry, 2019, 51(9): 30-35.

图/表 8

图1

图2

图3

表1

图4

图5

图6

图7

参考文献 29

[1]	Han M, Wang Z S, Xu Y , et al. Physical properties of MgAl₂O₄,CoAl₂O₄,NiAl₂O₄,CuAl₂O₄,and ZnAl₂O₄ spinels synthesized by a solution combustion method[J]. Materials Chemistry and Physics, 2018,215:251-258.
[2]	Li F T, Zhao Y, Liu Y , et al. Solution combustion synjournal and visi-ble light-induced photocatalytic activity of mixed amorphous and crystalline MgAl₂O₄ nanopowders[J]. Chemical Engineering Journal, 2011,173(3):750-759.
[3]	Goldstein A, Loiko P, Burshtein Z , et al. Development of saturable absorbers for laser passive Q-switching near 1.5 μm based on trans- parent ceramic Co ²⁺:MgAl₂O₄[J]. Journal of the American Ceramic Society, 2016,99(4):1324-1331.
[4]	Iqbal M J, Ismail B, Rentenberger C , et al. Modification of the physical properties of semiconducting MgAl₂O₄ by doping with a binary mixture of Co and Zn ions[J]. Materials Research Bulletin, 2011,46(12):2271-2277.
[5]	Shiono T, Shiono K, Miyamoto K , et al. Synjournal and characteriza-tion of MgAl₂O₄ spinel precursor from a heterogeneous alkoxide so-lution containing fine MgO powder[J]. Journal of the American Ceramic Society, 2000,83(1):235-237.
[6]	Benaissa S, Hamidouche M, Kolli M , et al. Characterization of nano-structured MgAl₂O₄ ceramics fabricated by spark plasma sintering[J]. Ceramics International, 2016,42(7):8839-8846.
[7]	张绍纲 . 航天照明[J]. 照明工程学报, 2004,15(2):45-47.
[8]	王仕发, 李丹明, 肖玉华 , 等. 用于空间辐射环境探测的金刚石探测器研究综述[J]. 材料导报, 2018,32(9):1459-1468.
[9]	Izumi K, Miyazaki S, Yoshida S , et al. Optical properties of 3d tran-sition-metal-doped MgAl₂O₄ spinels[J]. Physical Review B, 2007,76(7):075111.
[10]	Tabaza W A I, Swart H C, Kroon R E . Luminescence of Ce doped MgAl₂O₄ prepared by the combustion method[J]. Physica B:Condensed Matter, 2014,439:109-114.
[11]	Yang P, Chen C F, Doty F P , et al. Characterizations of a hot-pres-sed polycrystalline spinel:Ce scintillator[J]. Journal of the American Ceramic Society, 2010,93(8):2399-2402.
[12]	Jain U K, Dongre J K . Combustion synjournal and photoluminescent properties of Ce³⁺ activated MgAl₂O₄ phosphor[J]. International Jo- urnal of Applied Research, 2017,3(4):47-49.
[13]	Wang S F, Li Q, Zu X T , et al. Phase controlled synjournal of (Mg,Ca,Ba)-ferrite magnetic nanoparticles with high uniformity[J]. Journal of Magnetism and Magnetic Materials, 2016,419:464-475.
[14]	Wang S F, Zu X T, Sun G Z , et al. Highly dispersed spinel(Mg,Ca,Ba)-ferrite nanoparticles:Tuning the particle size and magne- tic properties through a modified polyacrylamide gel route[J]. Ceramics International, 2016,42(16):19133-19140.
[15]	杨玉荣, 张清杰, 易美桂 , 等. 聚丙烯酰胺对半水硫酸钙晶须形貌稳定性的影响[J]. 无机盐工业, 2018,50(12):13-16.
[16]	Gao H, Yang H, Wang S . Comparative study on optical and elec-trochemical properties of MFe₂O₄(M=Mg,Ca,Ba) nanoparticles[J]. Transactions of the Indian Ceramic Society, 2018,77(3):150-160.
[17]	Wang S F, Li D M, Yang C Q , et al. A novel method for the synthe-size of nanostructured MgFe₂O₄ photocatalysts[J]. Journal of Sol-Gel Science and Technology, 2017,84(1):169-179.
[18]	Gao H J, Yang H, Wang S F , et al. A new route for the preparation of CoAl₂O₄ nanoblue pigments with high uniformity and its optical properties[J]. Journal of Sol-Gel Science and Technology, 2018,86(1):206-216.
[19]	Wang R T, Liang X P, Peng Y , et al. A novel method for the synthesis of nano-sized MgAl₂O₄ spinel ceramic powders[J]. Journal of Ceramic Processing Research, 2010,11(2):173-175.
[20]	Wang S F, Gao H J, Wei Y , et al. Insight into the optical,color,photoluminescence properties,and photocatalytic activity of the N-O and C-O functional groups decorating spinel type magnesium alu-minate[J]. CrystEngComm, 2019,21(2):263-277.
[21]	Wang S F, Li D M, Xiao Y H .Insight into the effects of titanium salt and sintering temperature on the luminescence of Ti:α-Al₂O₃ phosphor[J]. Optik, 2016,127(20):8562-8569.
[22]	Wang S F, Li D M, Xiao Y H . Experimental study of structural,surface morphology,optical and luminescence properties of MAl₂O₄/Al₂O₃(M=Co,Ni) composites[J]. Optik,2018,162:172-181.
[23]	Ewais E M, El-Amir A A, Besisa D H ,et al.Synjournal of nanocrystalline MgO/MgAl₂O₄ spinel powders from industrial wastes[J].Journal of Alloys and Compounds, 2017,691:822-833.
[24]	Sykora G J, Akselrod M S . Photoluminescence study of photochro-mically and radiochromically transformed Al₂O₃:C,Mg crystals used for fluorescent nuclear track detectors[J]. Radiation Measurements, 2010,45(3/4/5/6):631-634.
[25]	Nassar M Y, Ahmed I S, Samir I . A novel synthetic route for magnesium aluminate(MgAl₂O₄) nanoparticles using solgel auto combustion method and their photocatalytic properties[J]. Spectrochimica Acta A, 2014,131:329-334.
[26]	Wang S F, Yang H, Xian T , et al. Size-controlled synjournal and photocatalytic properties of YMnO₃ nanoparticles[J]. Catalysis Communications, 2011,12(7):625-628.
[27]	Kulis P A, Springis M J, Tale I A , et al. Impurity-associated colour centres in Mg and Ca doped Al₂O₃ single crystals[J]. Physica Status Solidi B, 1981,104(2):719-725.
[28]	Aitasalo T, Holsa J, Jungner H , et al.Mechanisms of persistent luminescence in Eu²⁺,RE³⁺ doped alkaline earth aluminates[J].Journal of Luminescence, 2001, 94-95:59-63.
[29]	吕兴栋, 舒万艮 . 稀土离子激活碱土铝酸盐长余辉光致发光材料研究进展[J]. 稀土, 2005,26(2):66-72.

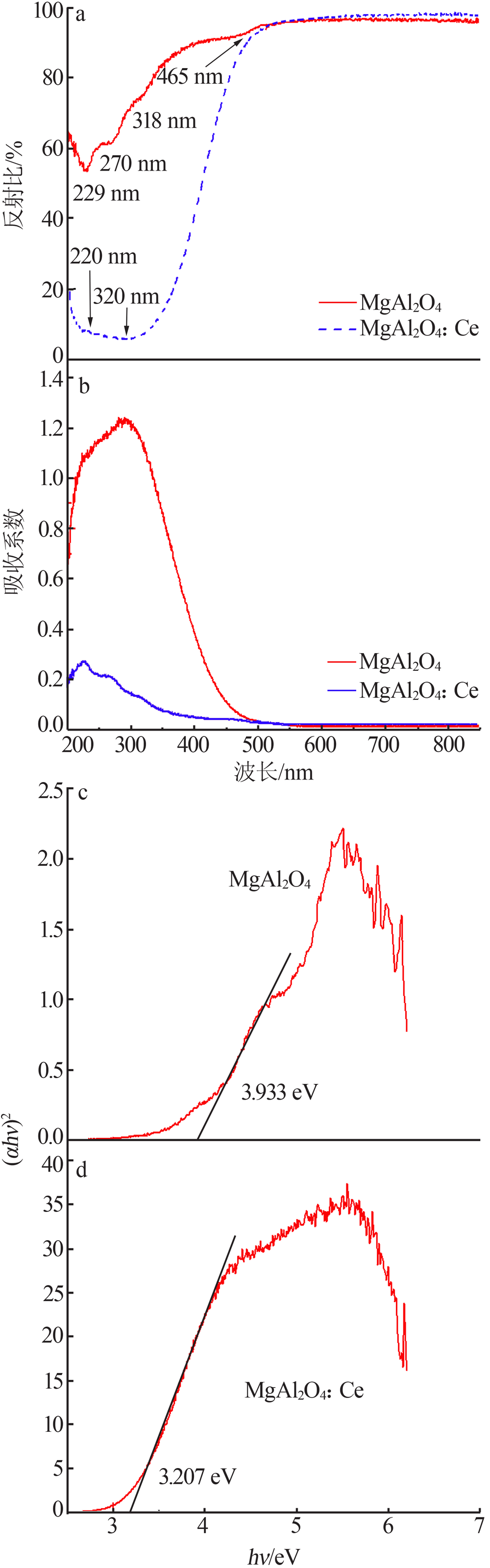

样品	颜色坐标						E_g/ eV
样品	L*	a*	b*	c*	H°	E*_CIE	E_g/ eV
MgAl₂O₄	98.263	-0.313	2.729	2.747	-83.457	98.301	3.933
MgAl₂O₄:Ce	98.017	-4.147	13.715	14.328	-73.175	99.059	3.207

首页

全国无机盐信息中心

中国化工学会

无机酸碱盐专业委员会

MgAl₂O₄:Ce荧光粉辐照合成及发光机理研究

Irradiation synthesized and photoluminescence mechanism of MgAl₂O₄:Ce phosphor

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 29

相关文章 1

Metrics

本文评价

推荐阅读 0

首 页
