球形氧化镁的控制合成研究

朱华阳1,2,3,仲剑初1,2,3(),于本儒1,刘建行1,罗鑫虎1

  1. 1.大连理工大学化工学院,辽宁大连 116024
    2.辽宁省硼镁特种功能材料制备与应用技术工程实验室
    3.辽宁省硼镁资源化工与新材料工程技术研究中心
  • 收稿日期:2020-05-30 出版日期:2020-11-10 发布日期:2020-12-01
  • 通讯作者: 仲剑初
  • 作者简介:朱华阳(1994— ),男,硕士研究生,主要从事精细无机化学品合成。

Study on controllable synthesis of spherical magnesium oxide

Zhu Huayang1,2,3,Zhong Jianchu1,2,3(),Yu Benru1,Liu Jianxing1,Luo Xinhu1

  1. 1. School of Chemical Engineering,Dalian University of Technology,Dalian 116024,China,2.Engineering Laboratory of Boric and Magnesic Functional Material Preparative and Applied Technology in Liaoning Province
    2. Engineering Laboratory of Boric and Magnesic Functional Material Preparative and Applied Technology in Liaoning Province
    3. Liaoning Provincial Chemical Process and Advanced Materials Research Center on B & Mg Natural Resources
  • Received:2020-05-30 Online:2020-11-10 Published:2020-12-01
  • Contact: Zhong Jianchu

摘要:

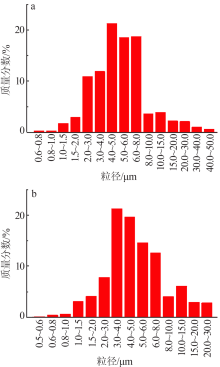

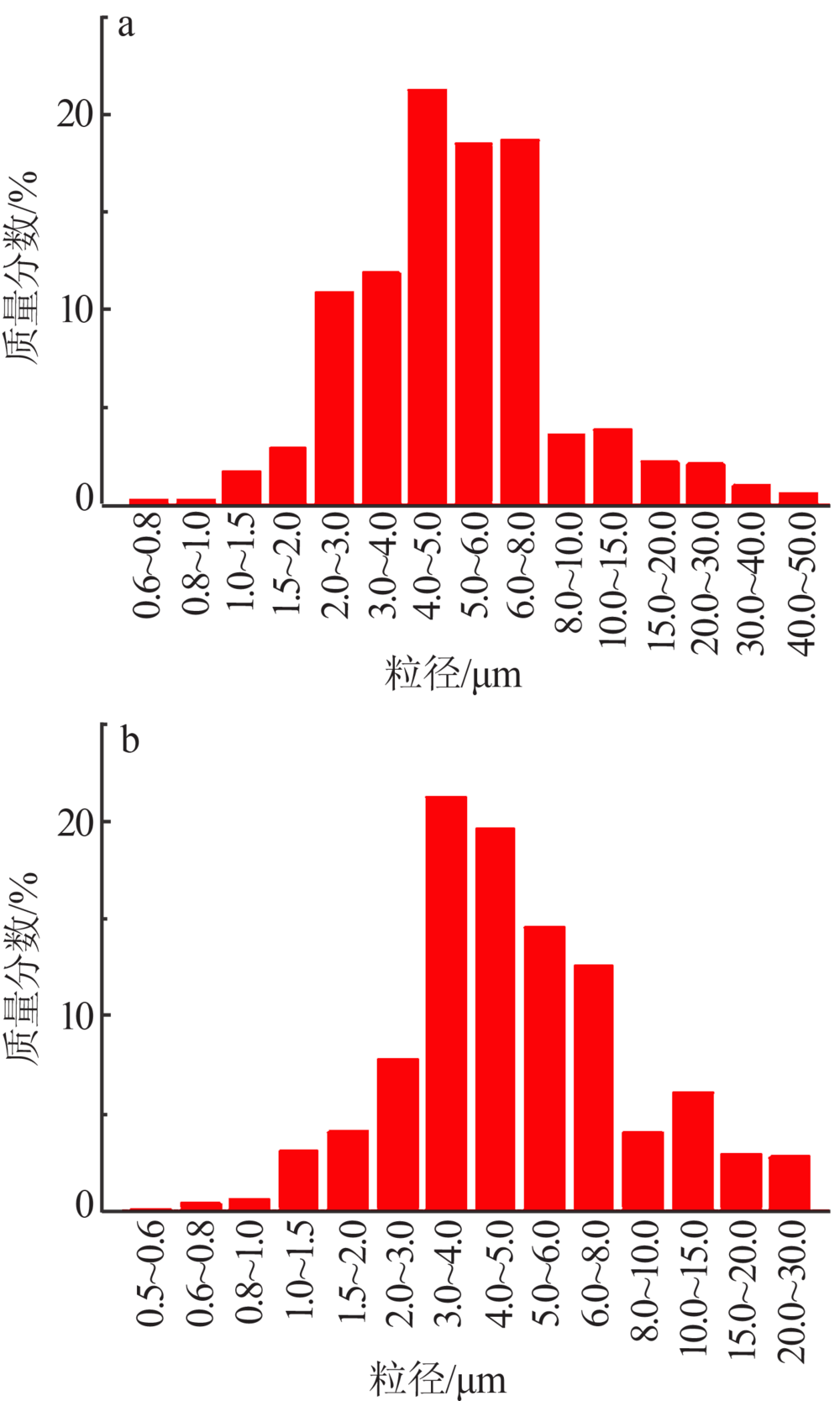

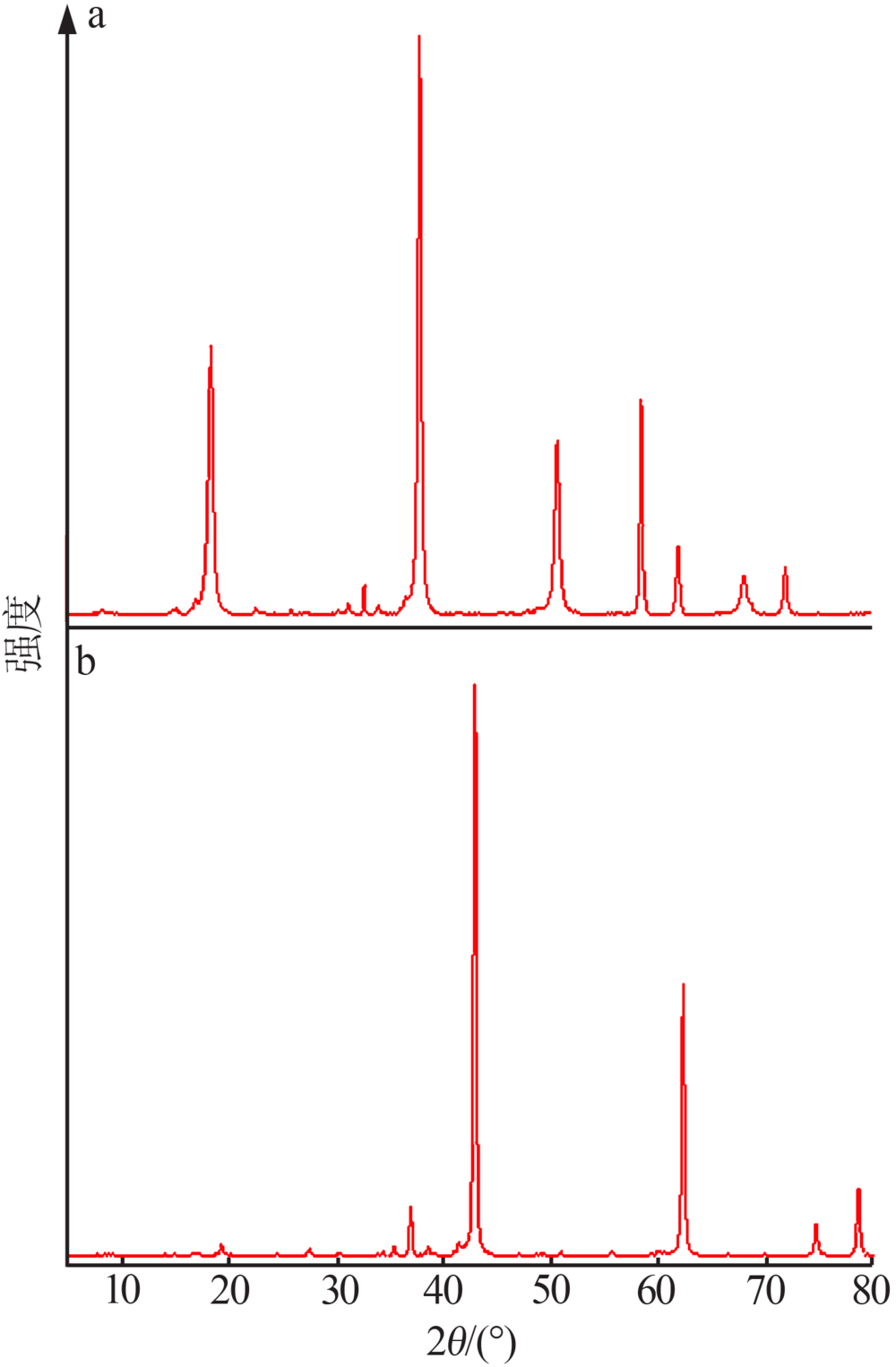

以聚乙烯吡咯烷酮为控制剂,氯化镁、氢氧化钠和氨水为原料,经静态反应制备出球形氢氧化镁前驱体,再经煅烧得到球形氧化镁。研究了控制剂种类、控制剂用量、反应物浓度、反应时间等因素对球形氧化镁形貌的影响,并用XRD、SEM等分析手段对产物做了表征。结果表明:在控制剂为聚乙烯吡咯烷酮、添加量为1.0%(质量分数)、氯化镁浓度为1.0 mol/L、氢氧化钠浓度为0.25 mol/L、反应时间为24 h的条件下,获得球形氢氧化镁前驱物;前驱物氢氧化镁在600 ℃下煅烧2 h,制得的球形氧化镁颗粒大小均匀、分散性好、球形度高,平均粒径为4.53 μm。

关键词: 球形氢氧化镁, 球形氧化镁, 聚乙烯吡咯烷酮

Abstract:

Using polyvinylpyrrolidone as control agent,magnesium chloride,sodium hydroxide and ammonia as raw materi-als,a spherical magnesium hydroxide precursor was prepared through static reaction,and then spherical MgO was obtained by the calcination of the magnesium hydroxide.The effects of factors such as the type of control agent,the amount of control agent,the concentration of reactants and reaction time on the morphology of spherical magnesium hydroxide were studied,and the products were characterized by XRD,SEM and other analytical methods.The results showed that using 1.0% (mass fraction) polyvinylpyrrolidone as control agent,the concentration of magnesium chloride was 1.0 mol/L,the concentration of sodium hydroxide was 0.25 mol/L and the reaction time was 24 h,then the spherical magnesium hydroxide precursor was obtained.Spherical magnesium hydroxide precursor was calcinated to obtained spherical magnesium oxide under the condition of 600 ℃ and 2 h,the prepared spherical magnesium oxide particles had uniform size,good dispersibility,high sphericity and an average particle diameter of 4.53 μm.

Key words: spherical magnesium hydroxide, spherical magnesium oxide, polyvinylpyrrolidone
